Introduction

Single layer and double layer fiber laser cutting nozzles comparison

Laser cutting nozzles are essential consumables in fiber laser cutting machines. Choosing the correct nozzle type can significantly affect cutting quality, cutting speed, gas flow stability, and production efficiency.

Among the various nozzle types available, single layer nozzles and double layer nozzles are the most commonly used.

In this guide, we explain the differences between these two nozzle designs and help you choose the right option for your application.

What Is a Laser Cutting Nozzle?

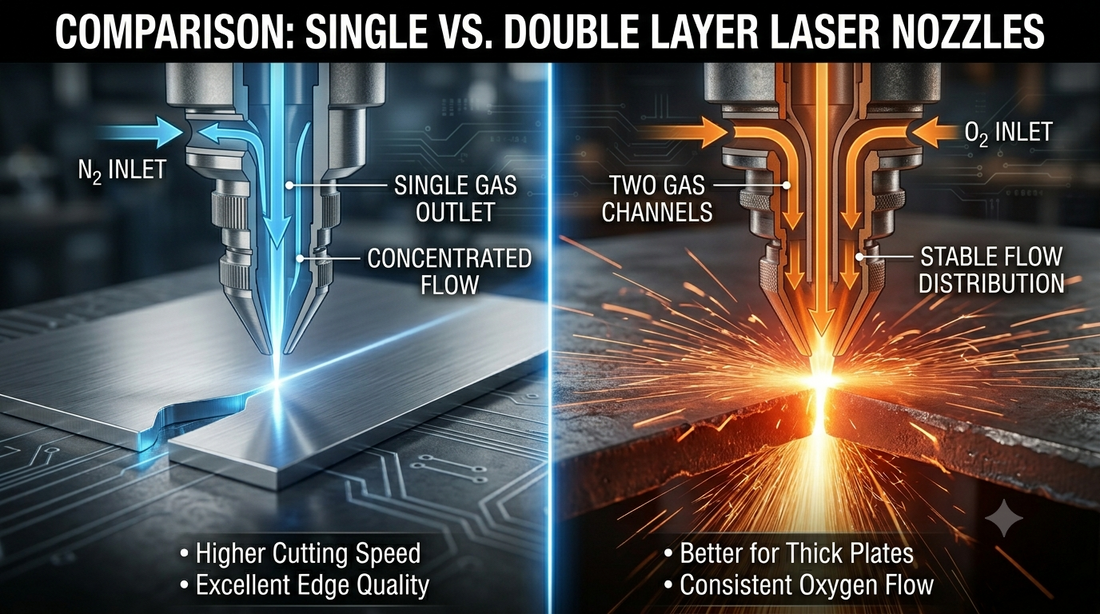

Structure comparison of single layer and double layer laser nozzles

A laser cutting nozzle is installed at the bottom of the cutting head and directs assist gas into the cutting area.

Its main functions include:

  • Controlling assist gas flow

  • Protecting optical components

  • Improving cutting quality

  • Increasing cutting efficiency

  • Maintaining stable cutting performance

The correct nozzle selection is critical for achieving optimal cutting results.

What Is a Single Layer Laser Nozzle?

A single layer nozzle has one gas outlet opening and is mainly used with nitrogen-assisted cutting.

Features

  • Concentrated gas flow

  • Higher cutting speed

  • Cleaner cutting edges

  • Better surface finish

Typical Applications

  • Stainless steel

  • Aluminum

  • Copper

  • Brass

Common Gas

  • Nitrogen (N₂)

Single layer nozzles are widely used when high-quality cut surfaces are required.

What Is a Double Layer Laser Nozzle?

A double layer nozzle has two gas channels that improve gas distribution and cutting stability.

Features

  • More stable oxygen flow

  • Better cutting consistency

  • Suitable for thicker materials

  • Improved slag removal

Typical Applications

  • Carbon steel

  • Mild steel

  • Thick steel plates

Common Gas

  • Oxygen (O₂)

Double layer nozzles are commonly used in oxygen cutting applications.

Single Layer vs Double Layer Nozzle Comparison

Feature Single Layer Nozzle Double Layer Nozzle
Gas Type Nitrogen Oxygen
Cutting Speed Higher Moderate
Edge Quality Excellent Good
Material Thickness Thin to Medium Medium to Thick
Main Application Stainless Steel Carbon Steel
Gas Flow Concentrated Distributed

How to Choose the Right Nozzle

Application guide for single layer and double layer laser cutting nozzles

Choose a Single Layer Nozzle If:

  • Cutting stainless steel

  • Cutting aluminum

  • Using nitrogen assist gas

  • High edge quality is required

Choose a Double Layer Nozzle If:

  • Cutting carbon steel

  • Using oxygen assist gas

  • Cutting thicker materials

  • Stable oxygen flow is required

Common Problems Caused by Incorrect Nozzle Selection

Cutting defects caused by incorrect laser nozzle selection

Using the wrong nozzle may result in:

  • Rough cutting edges

  • Excessive burr formation

  • Increased dross

  • Reduced cutting speed

  • Unstable cutting quality

Proper nozzle selection can significantly improve production efficiency.

Fiber laser consumables including nozzles protective lenses and ceramic rings

Related Consumables

Laser cutting performance depends on multiple consumables working together.

Important consumables include:

Regular maintenance of these components helps maintain stable cutting quality.

Frequently Asked Questions (FAQ)

Can I use a single layer nozzle for carbon steel?

It is generally not recommended. Double layer nozzles are usually more suitable for oxygen cutting applications.

Which nozzle provides better cutting quality?

For stainless steel and nitrogen cutting, single layer nozzles generally provide cleaner cutting edges.

Does nozzle diameter matter?

Yes. Nozzle diameter affects gas flow, cutting quality, and cutting stability.

How often should laser nozzles be replaced?

Replacement frequency depends on usage conditions and nozzle wear. Regular inspection is recommended.

Conclusion

Single layer and double layer laser nozzles serve different purposes in fiber laser cutting. Single layer nozzles are ideal for nitrogen cutting and high-quality surface finishes, while double layer nozzles are designed for oxygen cutting and thicker materials.

Selecting the correct nozzle type can improve cutting quality, increase efficiency, and reduce production costs.
