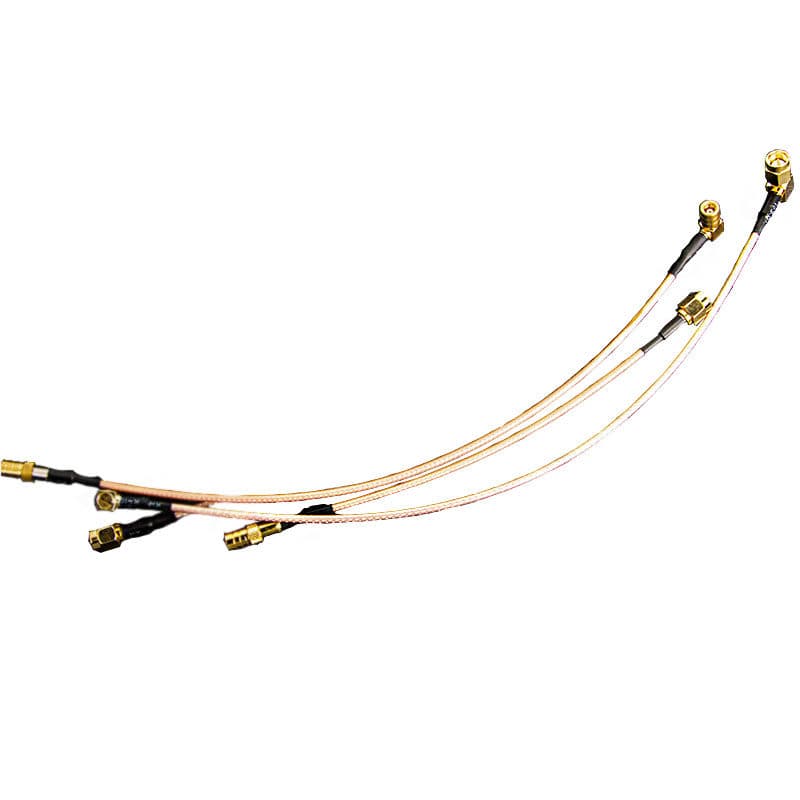

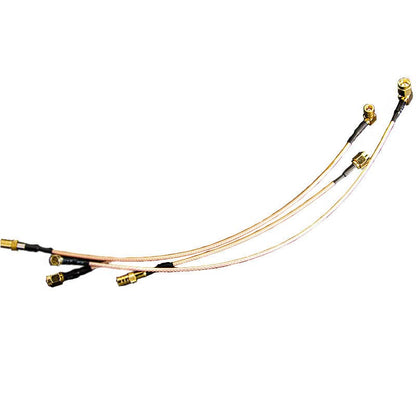

Laser Height Sensor RF Cable for Fiber Laser Cutting Heads

Professional industrial-grade laser height sensor RF coaxial cables specially designed for all mainstream fiber laser cutting heads on the market. Made of high-grade RG316/RG178 high-frequency coaxial material with precision-machined SMA connectors, our RF cables provide excellent low-loss signal transmission, anti-interference and high temperature resistance. They are essential core replacement accessories for daily maintenance of fiber laser cutting equipment, ensuring stable and accurate operation of the capacitive height sensing system.

This complete product series covers all standard connection types and is universally compatible with Precitec, Han's Laser, Mazak, NTC and Bystronic series cutting heads. All products are precision manufactured with strict quality control for reliable performance in demanding industrial laser cutting environments.

Key Advantages of Our Laser Height Sensor RF Cables

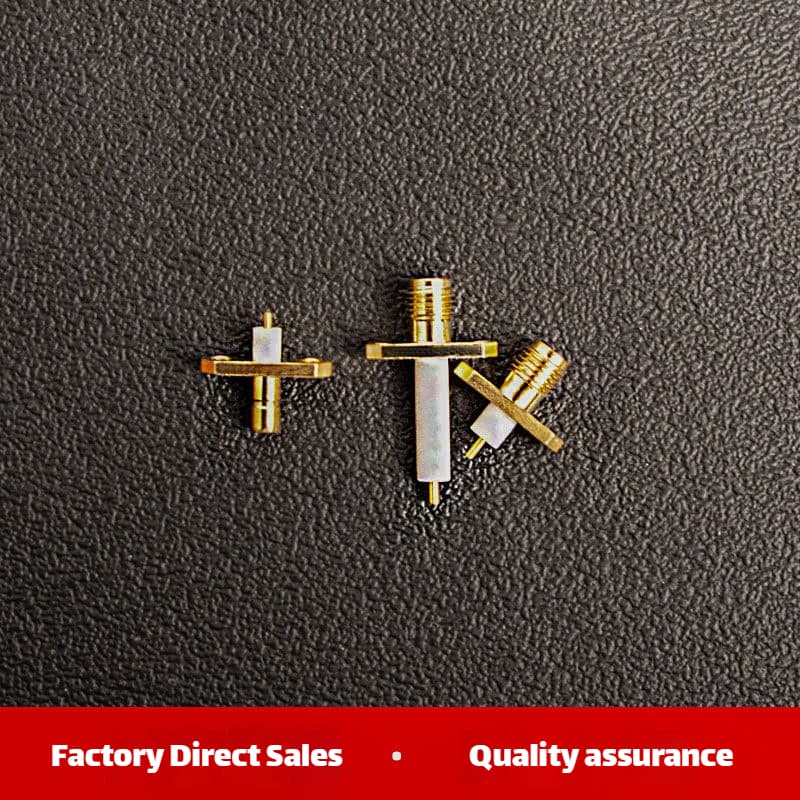

• High-Grade High-Frequency Coaxial Material: Made from premium RG316/RG178 high-frequency RF coaxial cable. Offers excellent shielding performance, low signal loss, superior anti-interference capability and outstanding high temperature resistance.
• Precision-Machined Metal Connectors: High-precision CNC machined metal connectors with tight size tolerance control. Provides perfect fit for original laser equipment interfaces with no additional debugging required—direct installation and replacement.
• Full Series Standard Connection Types: Complete range of 4 standard connection types that 1:1 match original factory parameters. Includes threaded, quick plug and custom adapter types to meet all installation requirements.
• Multi-Brand Universal Compatibility: Universally fits most mainstream fiber laser cutting heads on the market, including Precitec, Han's Laser, Mazak, NTC and Bystronic series models. Provides one-stop procurement solution for all your laser equipment needs.
• Stable Long-Term Performance: Maintains stable signal transmission performance even under high-load long-time working conditions. Resists wear and tear, ensuring long service life and reducing equipment downtime.
• Easy Installation & Replacement: Simple and quick installation process. No special tools required, allowing you to minimize downtime and maximize production efficiency.
• Broad Industrial Applicability: Suitable for all 1064nm fiber laser cutting machines. Compatible with different power laser equipment from 1000W to 30000W, widely used in various industrial fields.

Compatible Equipment & Available Models

Compatible Equipment

• All Precitec Series Fiber Laser Cutting Heads (Including P0360 Type)
• All Han's Laser Series Fiber Laser Cutting Heads
• All Mazak Series Fiber Laser Cutting Heads
• All NTC Series Fiber Laser Cutting Heads
• All Bystronic Series Fiber Laser Cutting Heads (Standard & With Plastic Tube)
• Most Mainstream Fiber Laser Cutting Machines

Available RF Cable Models (12 Options Total)

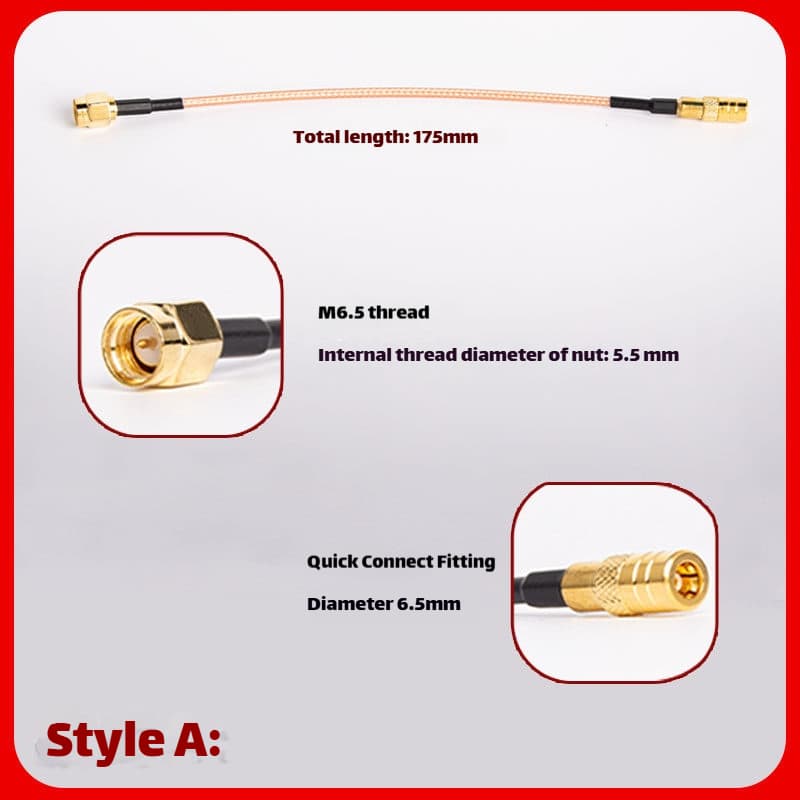

Threaded to Quick Plug

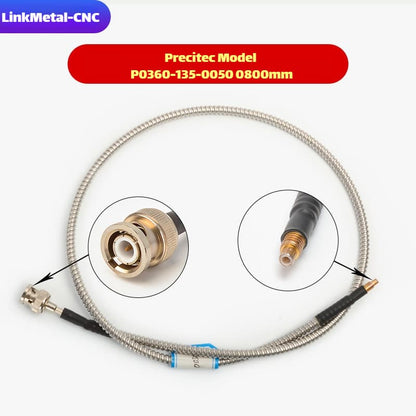

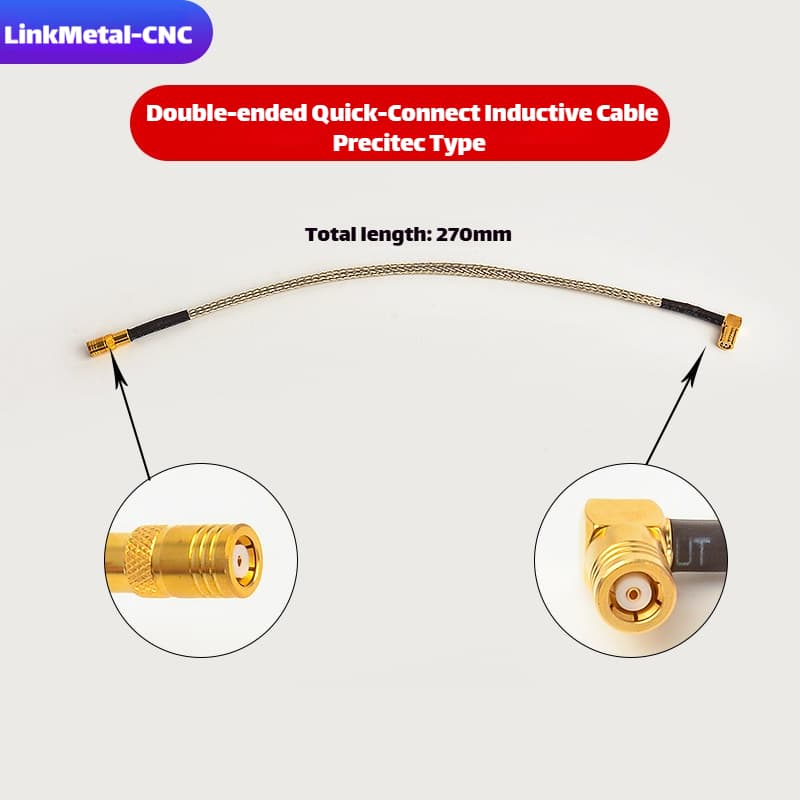

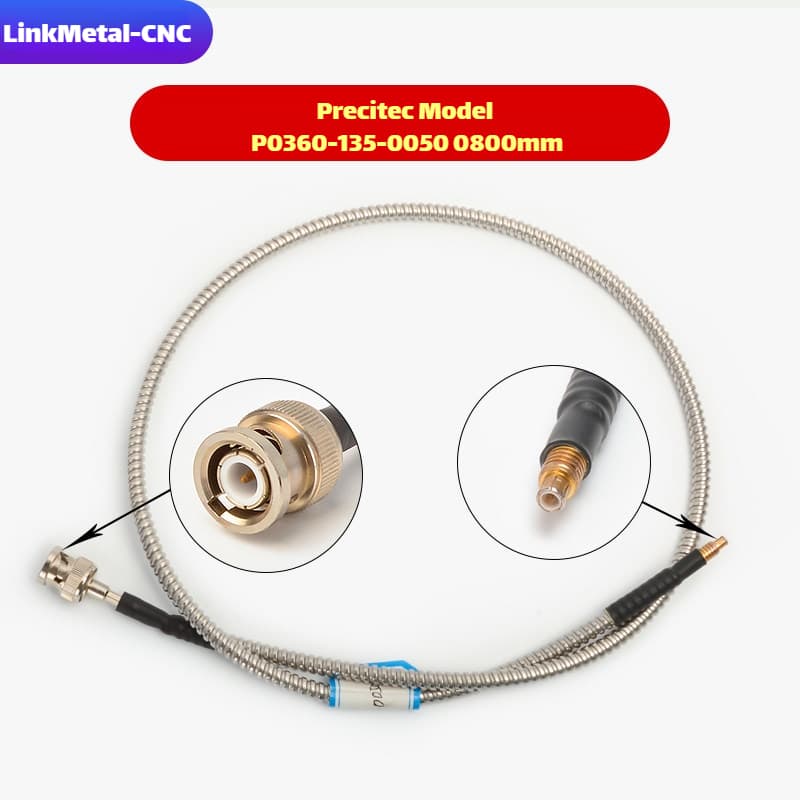

• Precitec (Including P0360 Type) - Sensor Connector Small

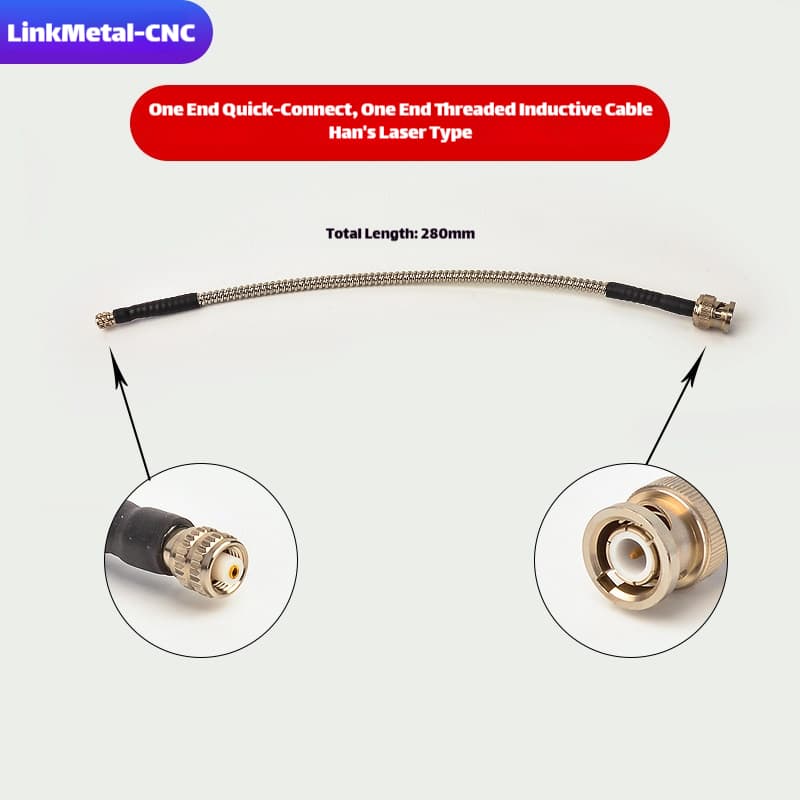

• Han's Laser - Sensor Connector Small

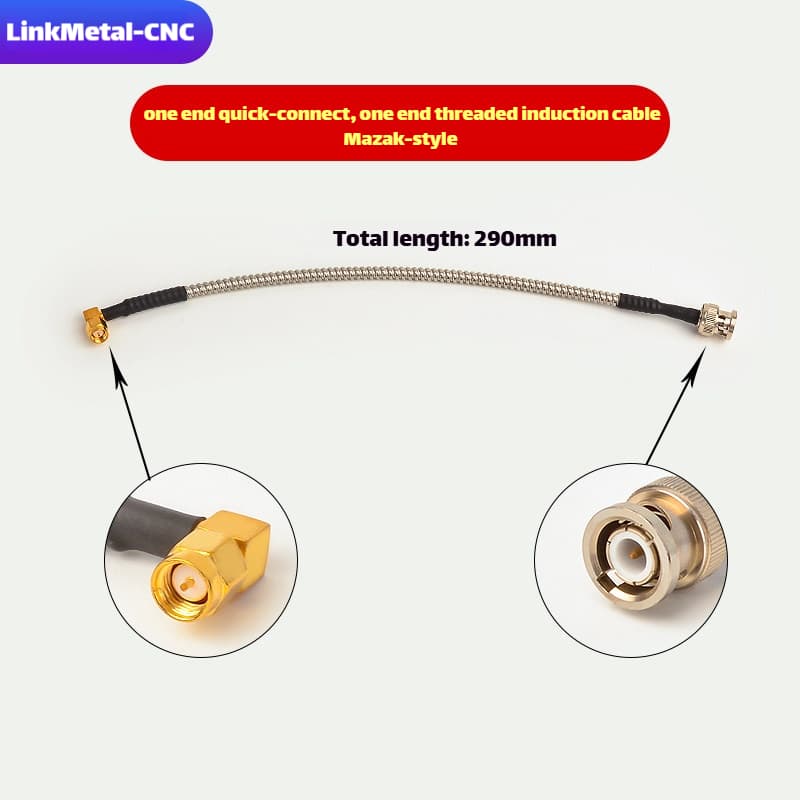

• Mazak - Sensor Connector Small

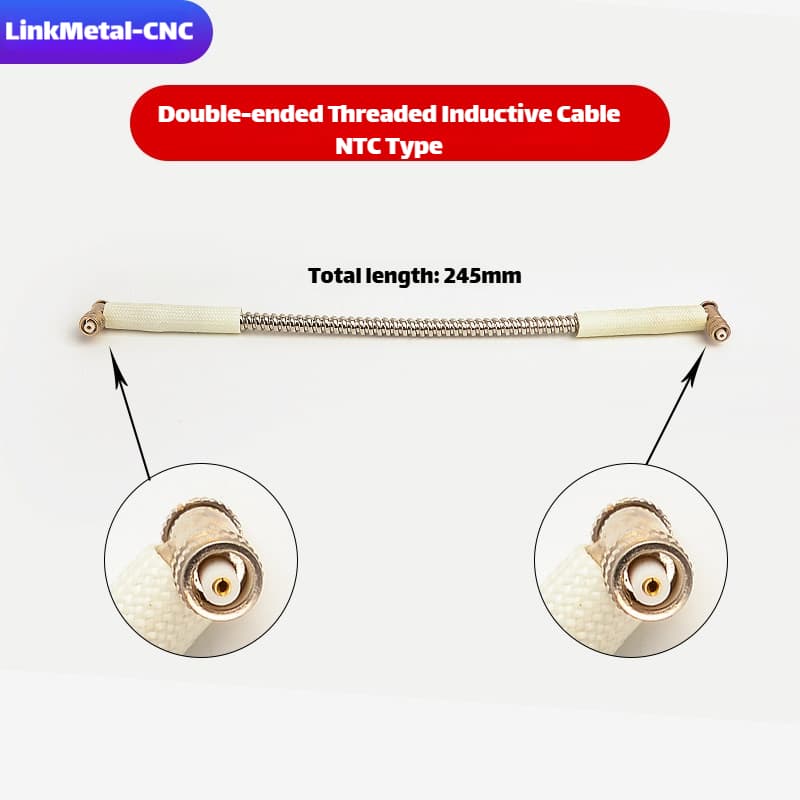

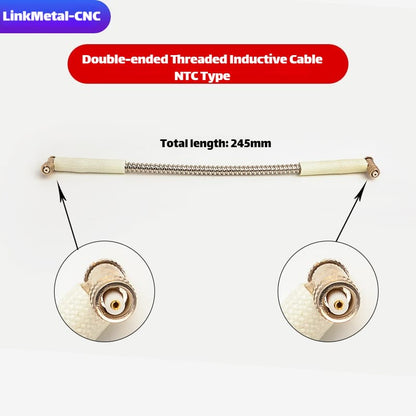

• NTC - Sensor Connector Small

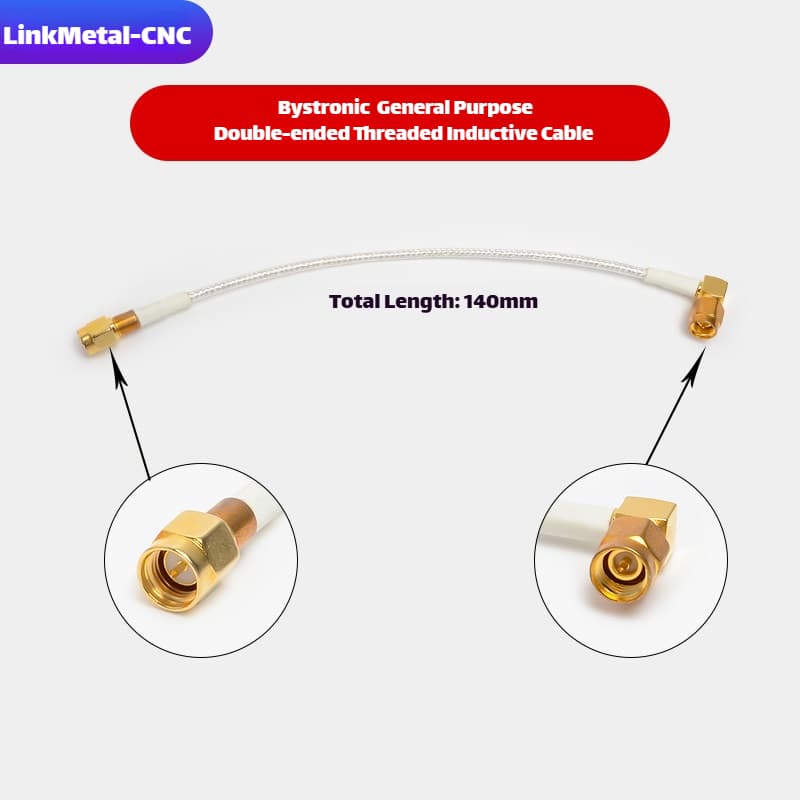

• Bystronic (Standard Type) - Sensor Connector Small

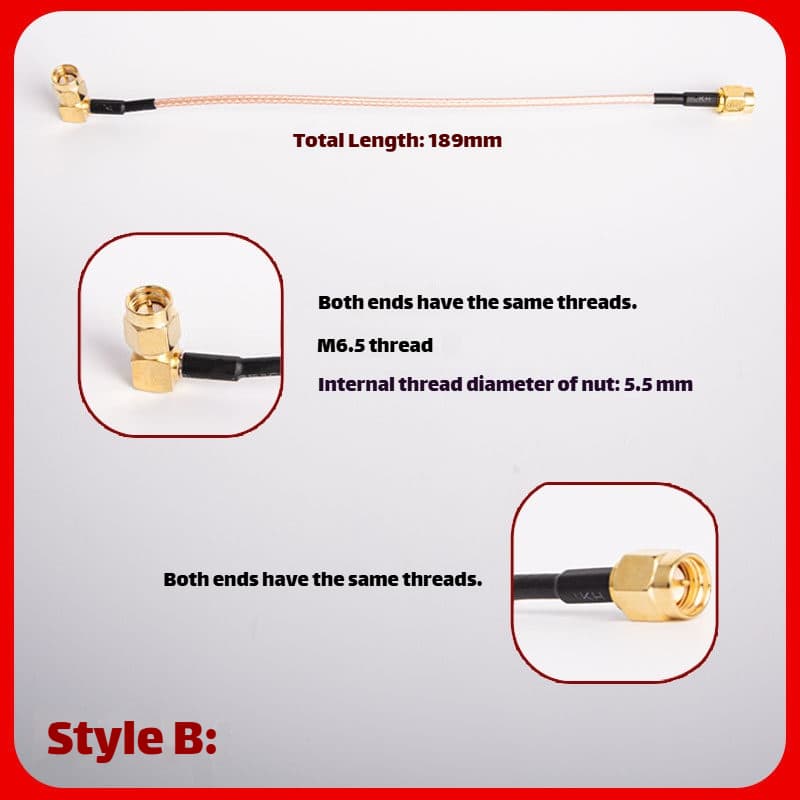

Threaded to Threaded

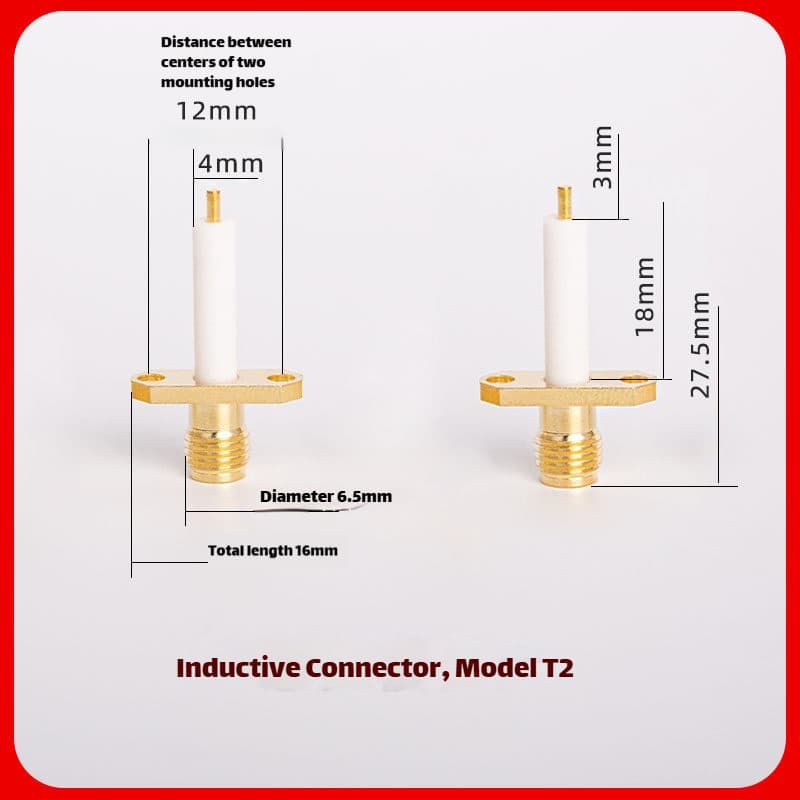

• Universal - Sensor Connector Large

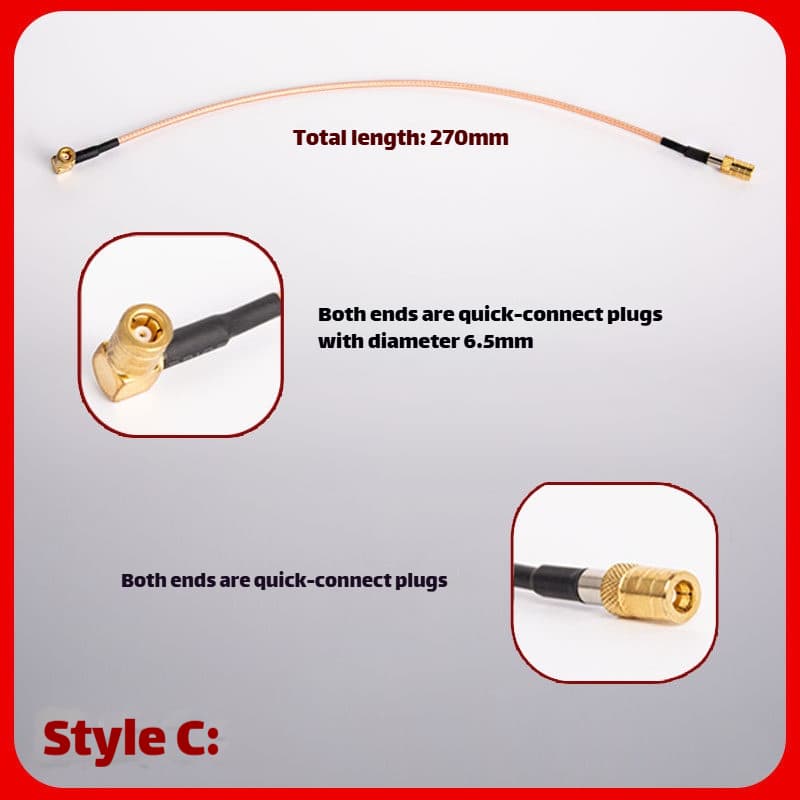

Quick Plug to Quick Plug

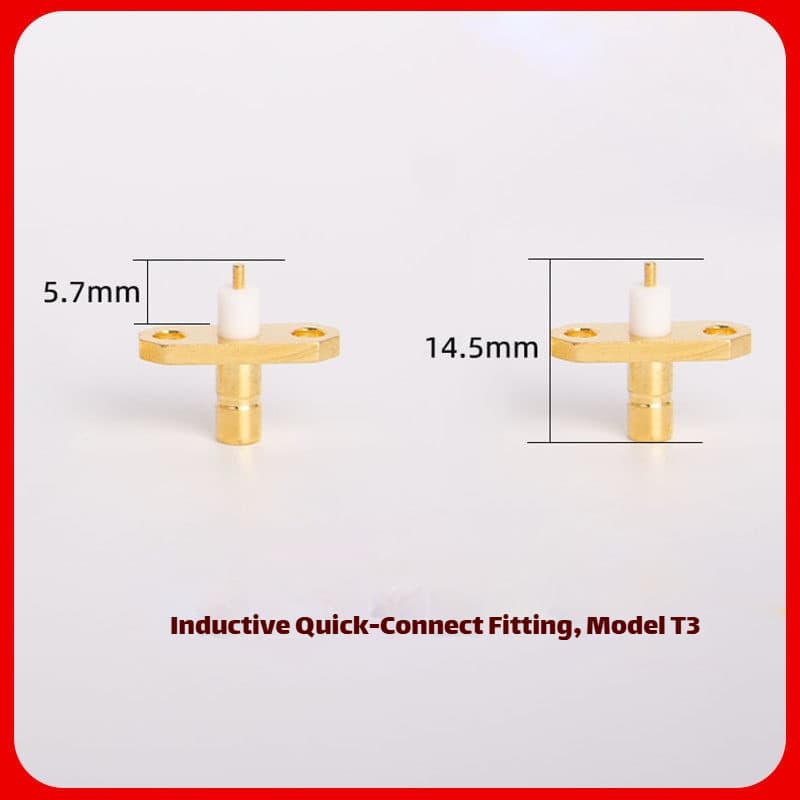

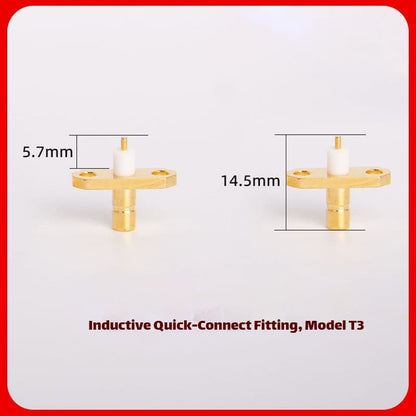

• Universal - Sensor Connector Small Quick Plug

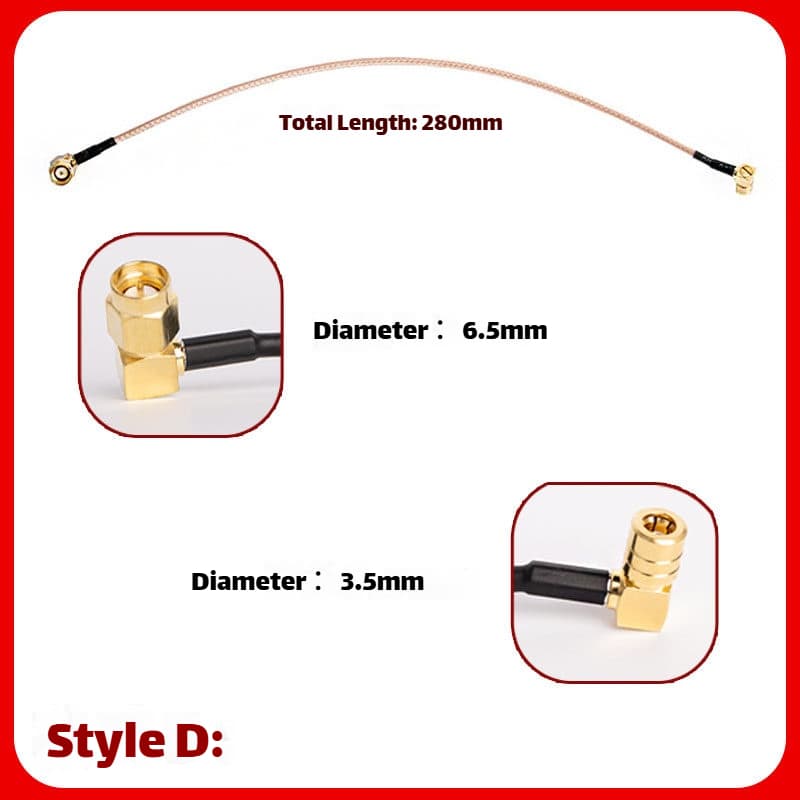

M6.5 Threaded to M3.5 Quick Plug

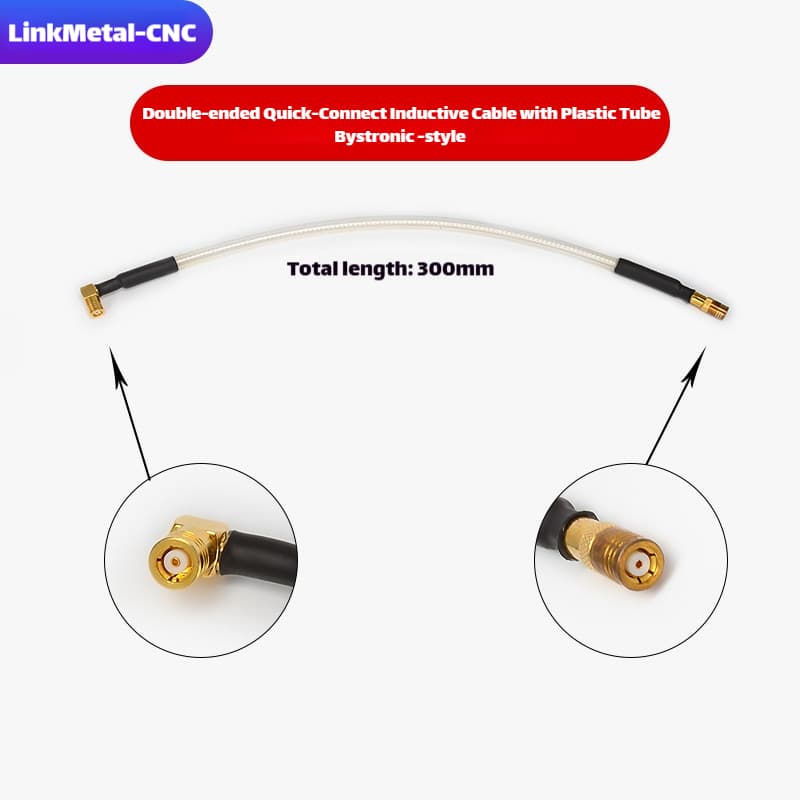

• Bystronic (With Plastic Tube Type) - Sensor Connector Small

Custom Specifications Available: For other sizes, lengths or custom models, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Selected Link Metal CNC Laser Height Sensor RF Cable
• 1 x Specialized Shockproof Anti-static Protective Packaging

Quality Assurance

Every Link Metal CNC laser height sensor RF cable undergoes rigorous pre-delivery testing, including signal transmission test, connector fit verification, insulation resistance test and durability test.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What does the height sensor RF cable do?
A: The RF cable transmits high-frequency electrical signals between the capacitive height sensor on the cutting head and the control system. It allows the system to accurately measure the distance between the nozzle and the workpiece and maintain a constant cutting height. A damaged or faulty RF cable will cause the height follow system to fail, resulting in poor cut quality and potential collisions.

Q: How do I choose the correct RF cable for my machine?
A: First, identify the connection type required by your cutting head (threaded, quick plug, etc.). Then select the compatible brand and connector size. If you are unsure, please contact our sales team with your cutting head model number and we will help you find the correct cable.

Q: What is the difference between RG316 and RG178 cables?
A: RG316 is a thicker cable with better shielding performance and lower signal loss, making it ideal for longer cable runs and high-power applications. RG178 is a thinner, more flexible cable suitable for shorter runs and applications where space is limited. We match the cable type to original factory specifications for each model.

Q: How often should I replace my RF cable?
A: Under normal operating conditions, an RF cable should last 6-12 months. However, it should be replaced immediately if you notice any damage to the cable or connectors, or if the height follow system becomes unstable. Frequent movement of the cutting head and exposure to high temperatures will accelerate wear.

Q: What causes RF cable failure?
A: The most common causes of RF cable failure are: 1) Physical damage from bending or pulling; 2) Connector wear from frequent disconnection and reconnection; 3) Corrosion from exposure to cutting fumes and moisture; 4) Heat damage from proximity to the cutting head.
