Link Metal CNC Locking Ring for Fiber Laser Cutting Heads

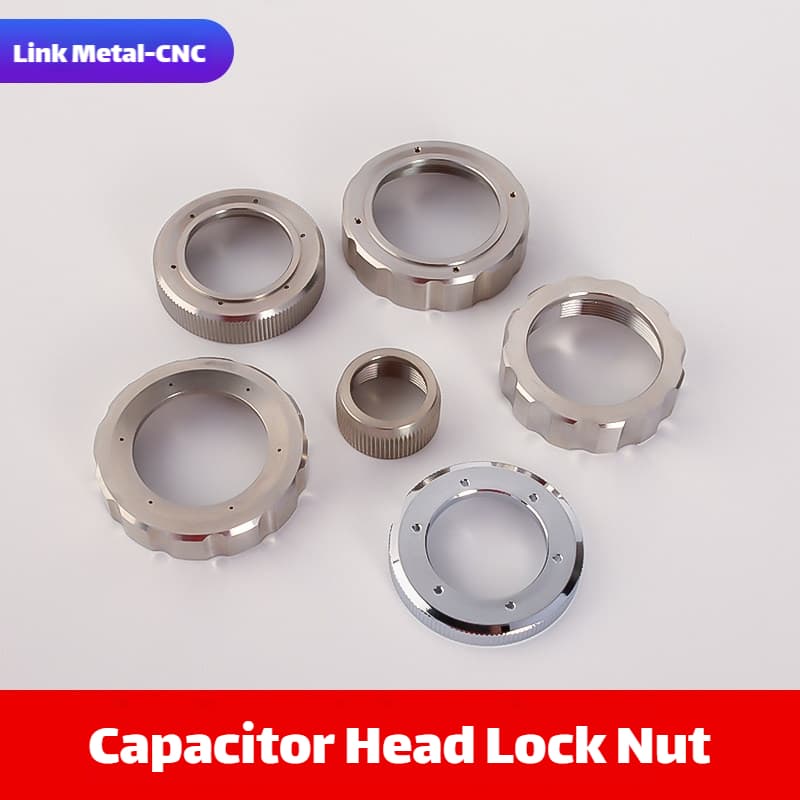

Locking Ring for Fiber Laser Cutting Heads

Professional industrial-grade locking rings specially designed for all mainstream fiber laser cutting heads on the market. Made of high-strength wear-resistant stainless steel or aluminum alloy material with excellent anti-deformation, stable locking performance and corrosion resistance, our locking rings are essential core replacement accessories for daily maintenance of fiber laser cutting equipment, ensuring stable and efficient operation of your laser cutting head.

This complete product series covers 13 standard models compatible with Raytools, WSX and Precitec series cutting heads. All products are precision machined with strict size tolerance control for perfect fit and reliable performance in demanding industrial laser cutting environments.

Key Advantages of Our Laser Locking Rings

• Multi-Brand Universal Compatibility: Universally fits most mainstream fiber laser cutting heads on the market, including Raytools, WSX and Precitec series models. Provides one-stop procurement solution for all your laser equipment needs.

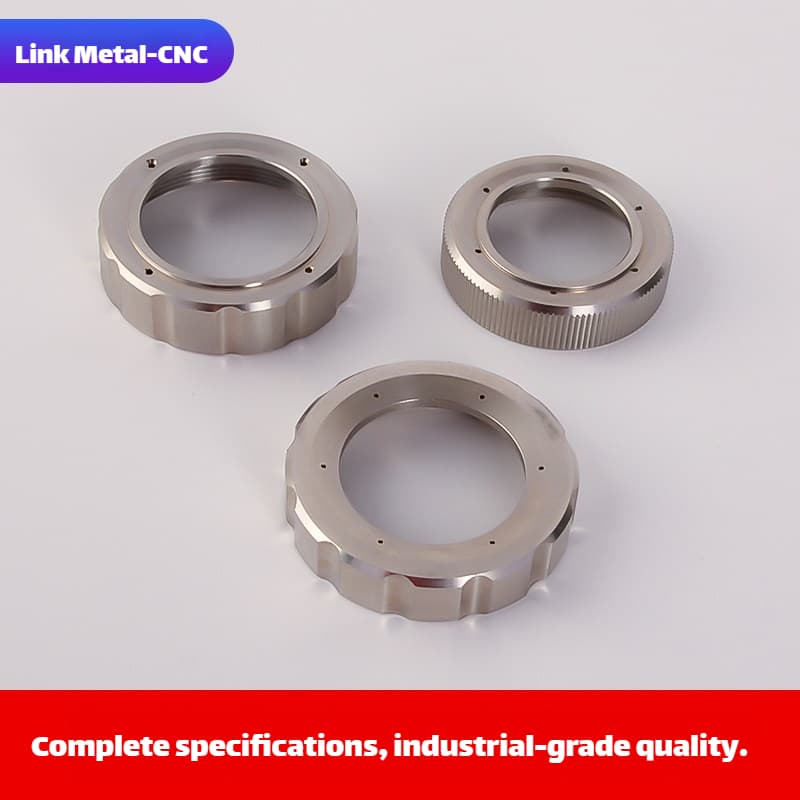

• High-Strength Wear-Resistant Material: Made from premium high-strength wear-resistant stainless steel or aluminum alloy (matching original factory specifications). Offers excellent durability, anti-deformation and anti-corrosion performance for long service life.
• Ultra-High Precision CNC Machining: Strict dimensional tolerance control with smooth surface and precise thread. Provides 1:1 perfect fit for original fiber laser cutting heads with no additional debugging required—direct installation and replacement.
• Stable Locking Performance: Maintains stable locking force even under high-load long-time working conditions. Securely locks the ceramic ring and laser nozzle components, maintaining stable coaxiality of the laser beam and reducing equipment failure rate.
• Easy Installation & Replacement: Simple and quick installation process. No special tools required, allowing you to minimize downtime and maximize production efficiency.
• Full Series Standard Models: Complete range of 13 standard models that 1:1 match original factory parameters. Compatible with different power laser equipment from 1000W to 30000W.

Compatible Equipment & Available Models

Compatible Equipment

• All Raytools Series Fiber Laser Cutting Heads
• All WSX Series Fiber Laser Cutting Heads
• All Precitec Series Fiber Laser Cutting Heads
• Most Mainstream Fiber Laser Cutting Machines

Available Locking Ring Models (13 Options Total)

Raytools Series

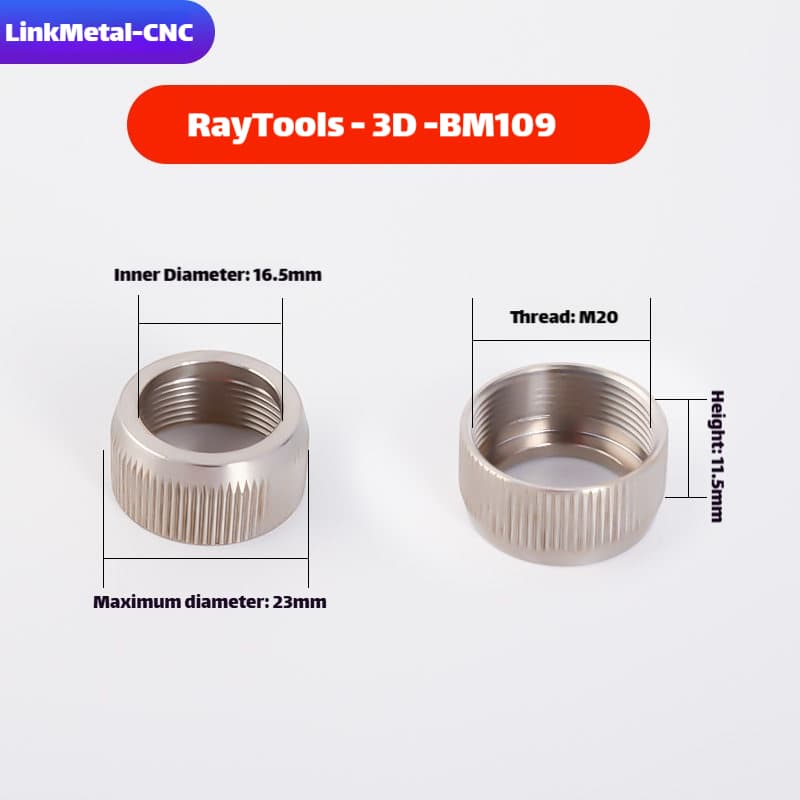

• 3D-BM109: For Raytools 3D-BM109 robotic cutting heads

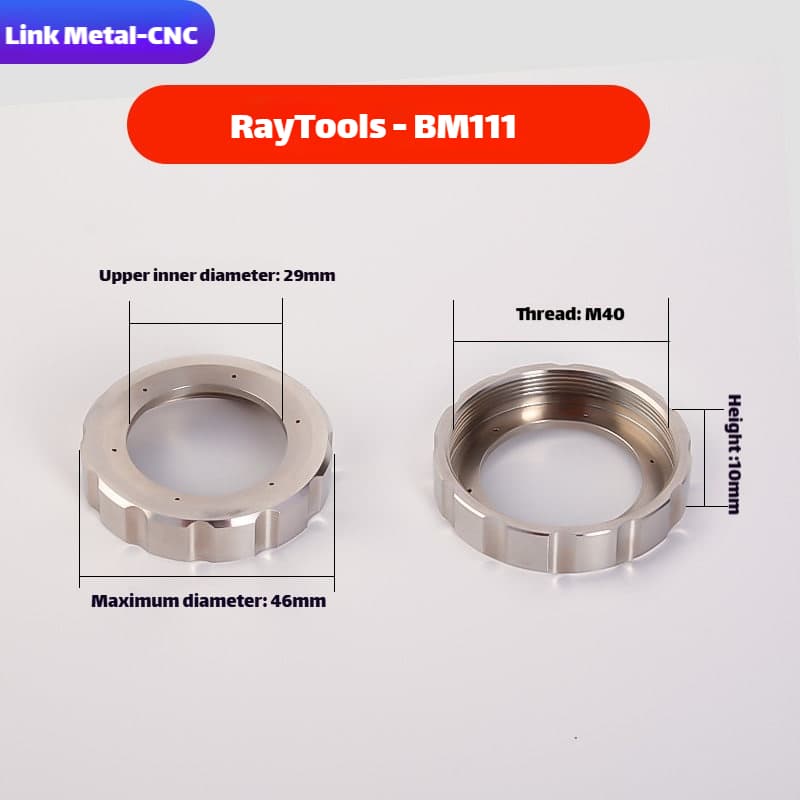

• BM111: For Raytools BM111 cutting heads
• BM114: For Raytools BM114 cutting heads
• BT220: For Raytools BT220 cutting heads
• BM06K Flat type: For Raytools BM06K cutting heads

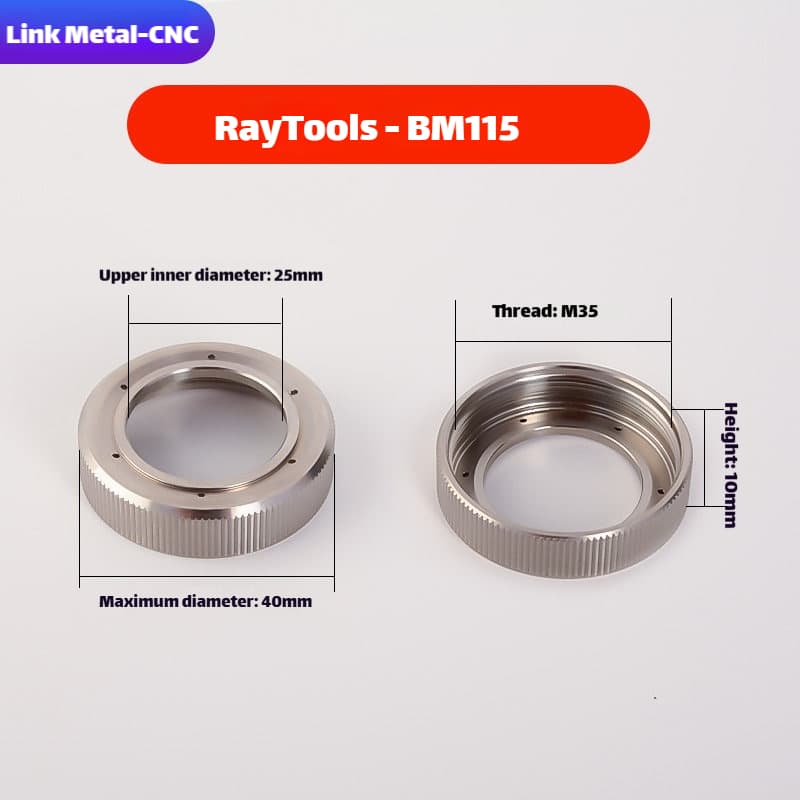

• BM115: For Raytools BM115 cutting heads

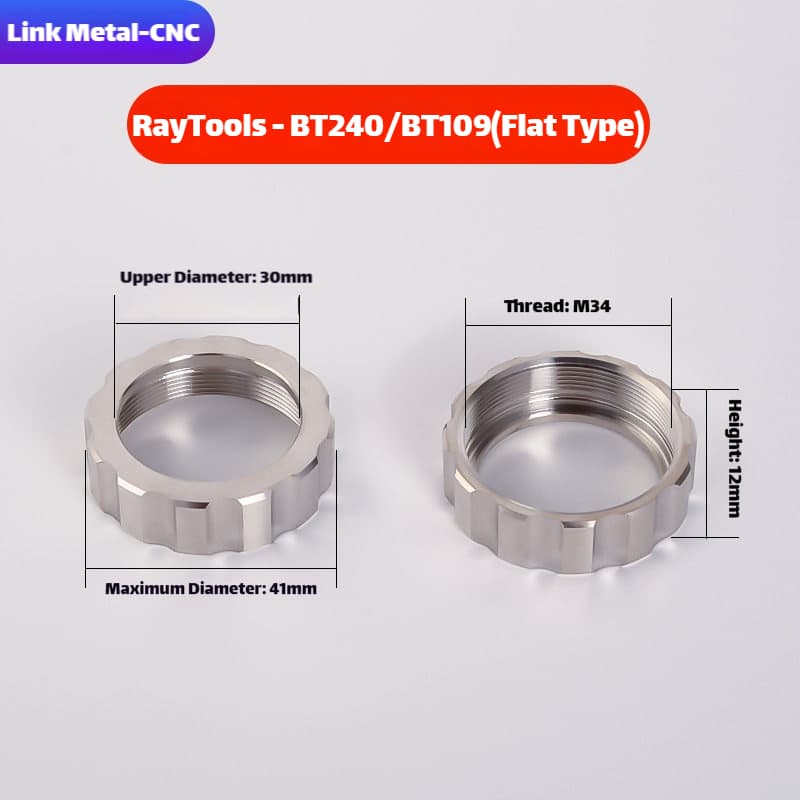

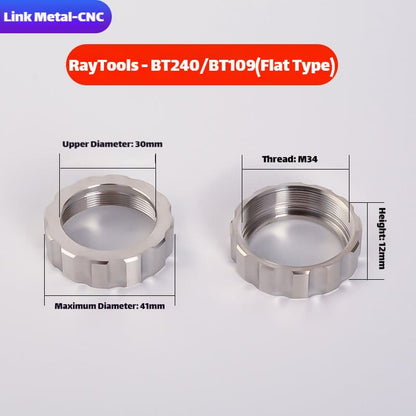

• BT240/BT109 Flat type: For Raytools BT240 and BT109 cutting heads

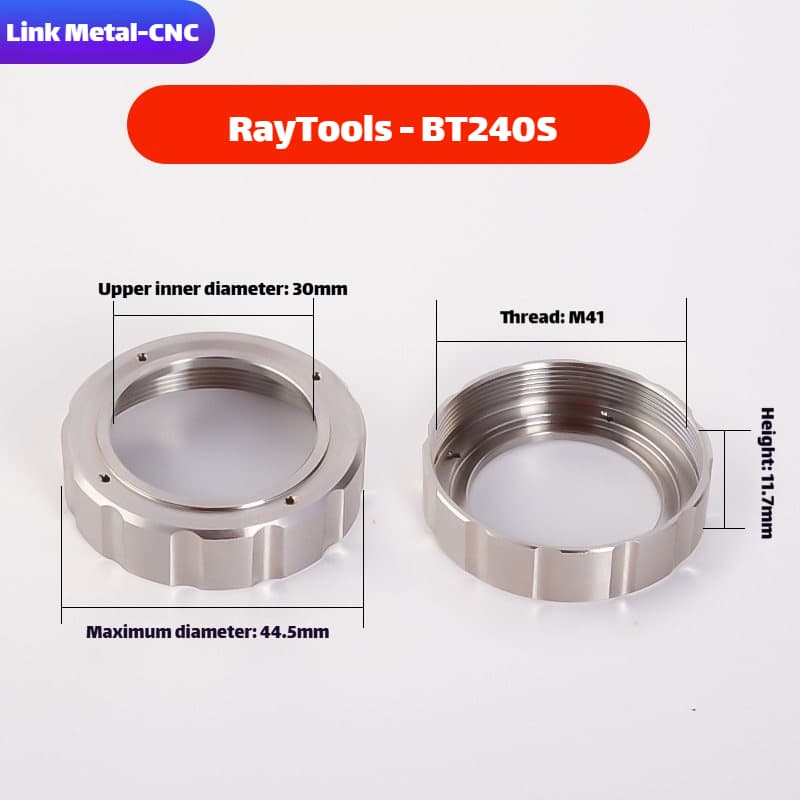

• BT240S: For Raytools BT240S cutting heads

WSX Series

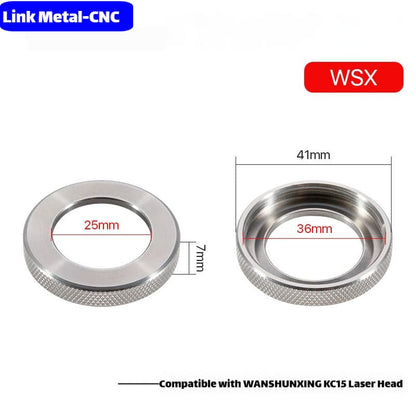

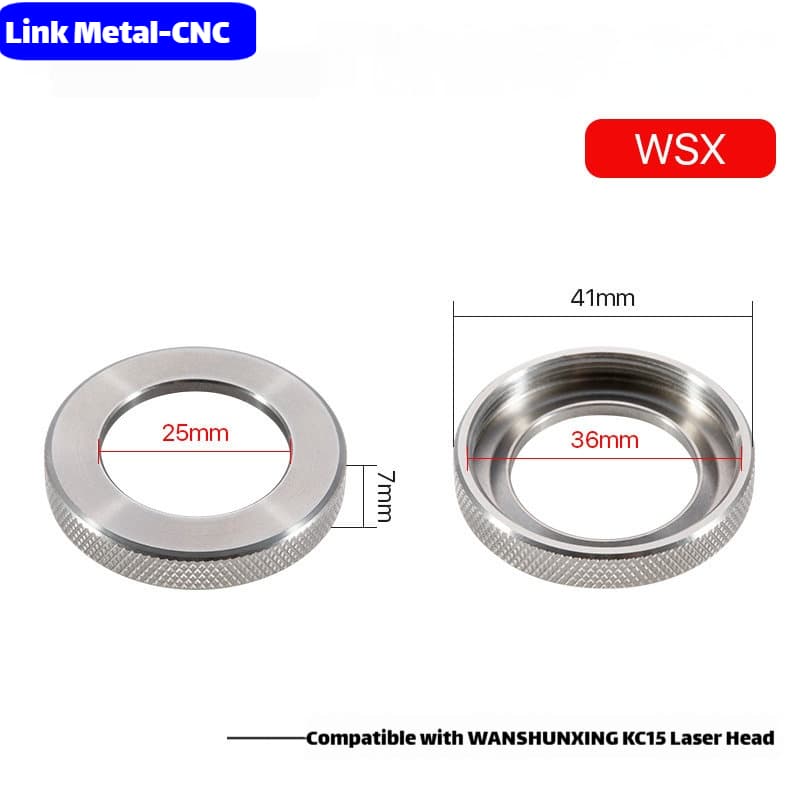

• KC15: For WSX KC15 cutting heads

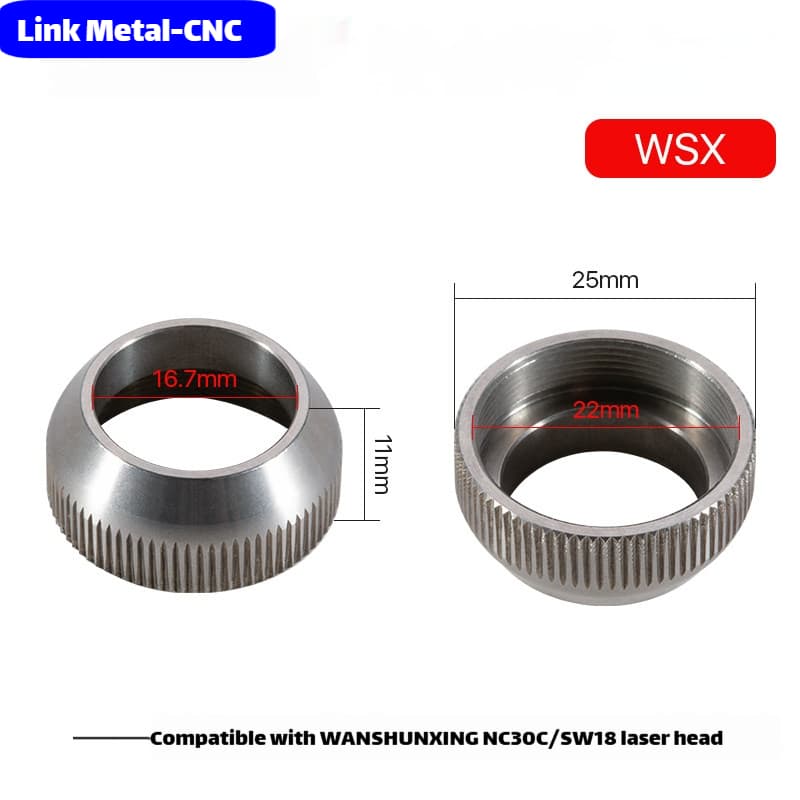

• NC30C/SW18: For WSX NC30C and SW18 cutting heads

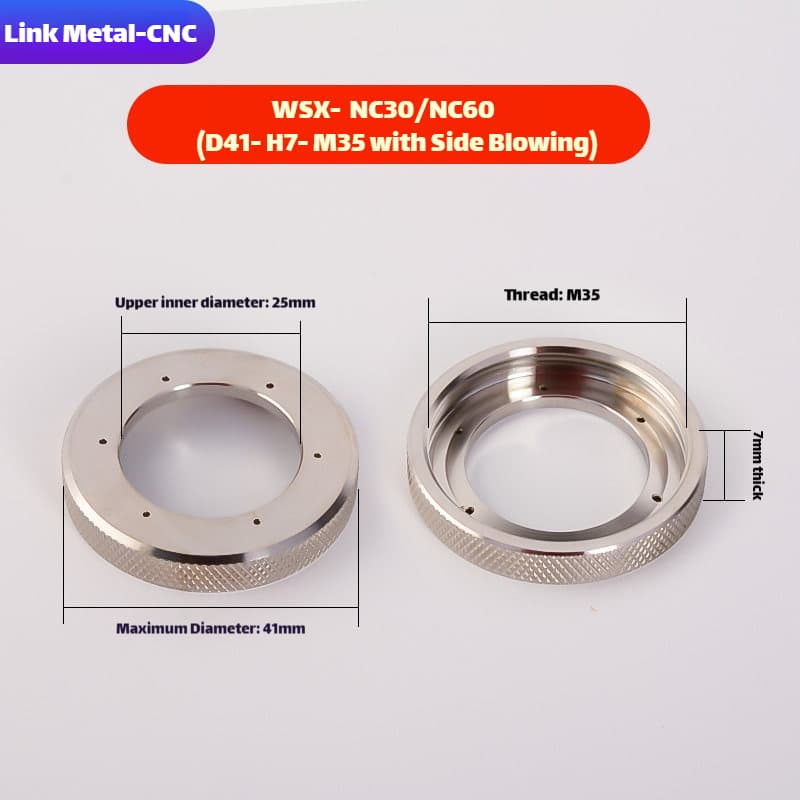

• NC30/NC60 Side Blow: For WSX NC30 and NC60 side blow cutting heads

Precitec Series

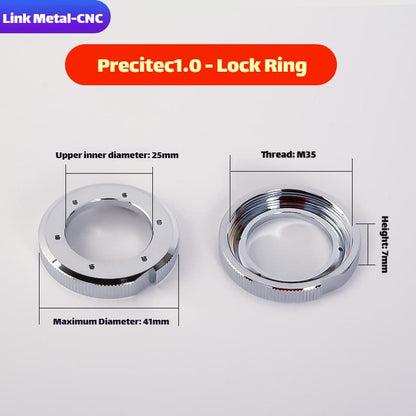

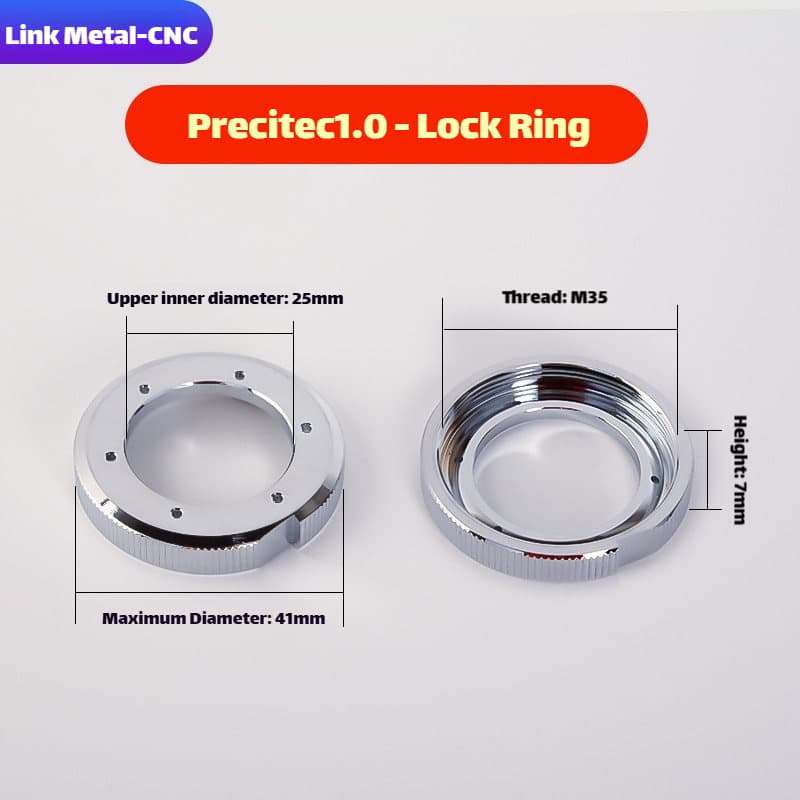

• PRECITEC 1.0: For Precitec 1.0 series cutting heads

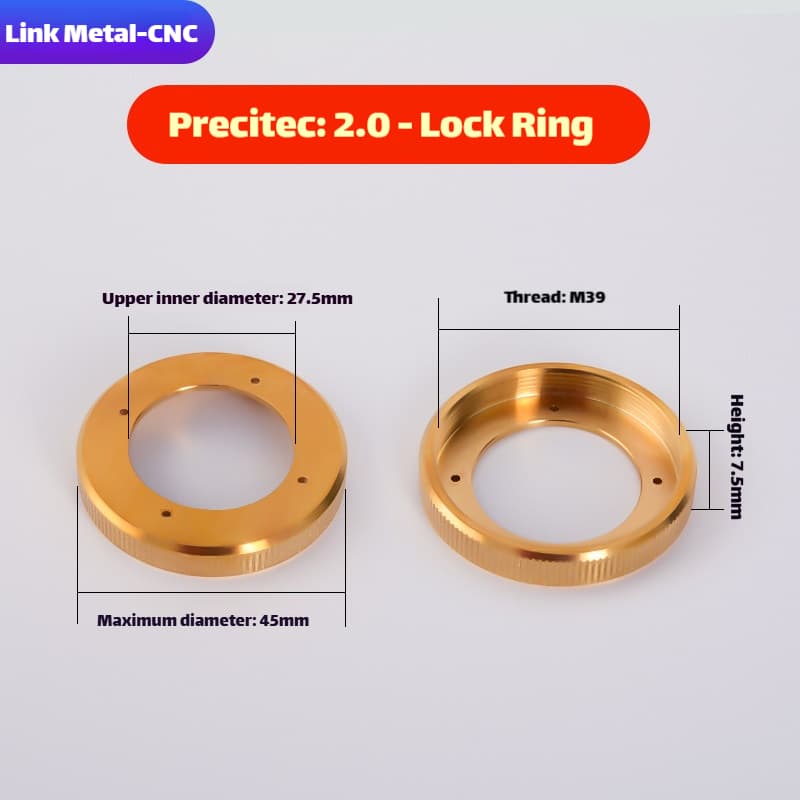

• PRECITEC 2.0: For Precitec 2.0 series cutting heads

Custom Specifications Available: For other sizes or custom models, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Selected Link Metal CNC Laser Locking Ring
• 1 x Specialized Shockproof Anti-static Protective Packaging

Quality Assurance

Every Link Metal CNC laser locking ring undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, thread fit verification, material hardness test and installation fit inspection.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What does a locking ring do in a laser cutting head?
A: The locking ring (also called nozzle retainer) has two critical functions: 1) Securely locks the ceramic ring and copper nozzle in place; 2) Maintains precise coaxiality between the laser beam and the nozzle. A worn or damaged locking ring will cause unstable cutting performance, poor cut quality and increased risk of collisions.

Q: Are locking rings interchangeable between different brands?
A: No, locking rings are brand and model specific due to different thread sizes and dimensions. Using the wrong locking ring will result in poor fit, loose components and potential damage to your cutting head. Always select the correct model for your specific cutting head.

Q: How often should I replace my locking ring?
A: Under normal operating conditions, a locking ring should last 6-12 months. However, it should be replaced immediately if you notice any stripped threads, deformation, or if the nozzle cannot be tightened properly. Frequent nozzle changes and collisions will accelerate wear.

Q: What is the difference between stainless steel and aluminum alloy locking rings?
A: Stainless steel locking rings offer higher durability and better corrosion resistance, making them ideal for high-power cutting and harsh environments. Aluminum alloy locking rings are lighter and provide better thermal conductivity, suitable for standard power cutting applications. We match the material to original factory specifications for each model.

Q: Do you offer locking rings for other brands besides Raytools, WSX and Precitec?
A: Yes, we can provide custom locking rings for most other laser cutting head brands upon request. Please contact our sales team with your specific cutting head model and we will be happy to assist you.

View our full range of laser cutting accessories including ceramic rings, nozzles and protective lenses.
