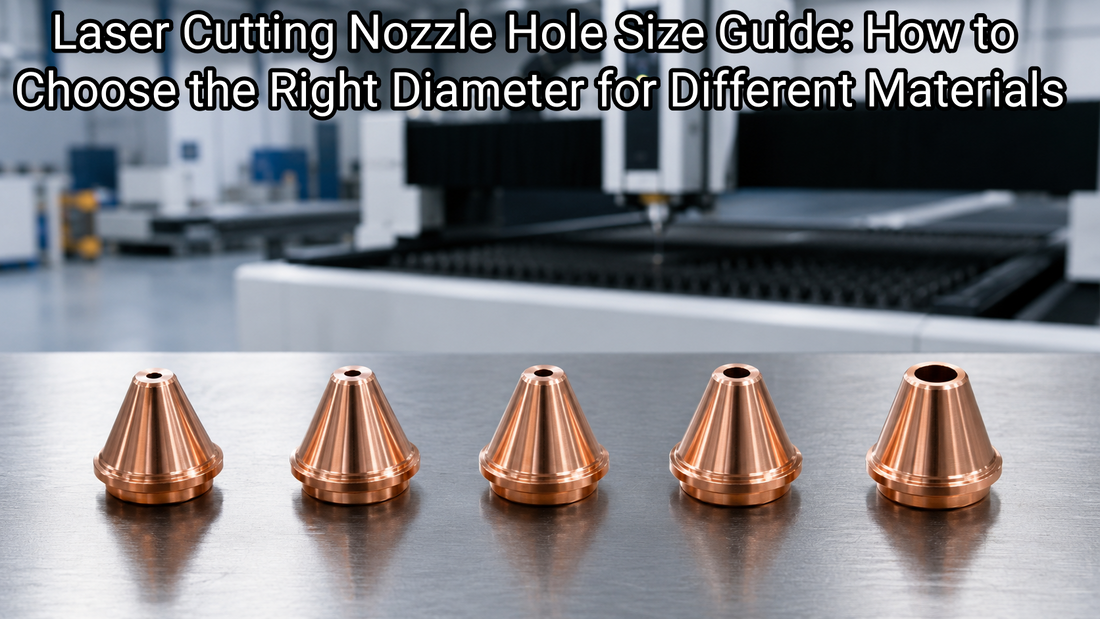

Laser Cutting Nozzle Hole Size Guide: How to Choose the Right Diameter for Different Materials
Laser Cutting Nozzle Hole Size Guide: How to Choose the Right Diameter for Different Materials
Choosing the correct laser cutting nozzle hole size is one of the most overlooked factors in fiber laser cutting, yet it has a significant impact on cutting quality, cutting speed, gas efficiency, and consumable life. Many operators focus primarily on laser power or gas pressure while ignoring the nozzle diameter, which directly determines gas flow characteristics around the cutting area.
A nozzle with an inappropriate hole size can cause rough edges, excessive dross, unstable cutting, nozzle overheating, poor piercing performance, and unnecessary gas consumption. In contrast, selecting the correct nozzle diameter improves cut consistency, enhances production efficiency, and extends the service life of consumables.
This guide explains how different nozzle hole sizes affect laser cutting performance, which diameter is suitable for various materials and thicknesses, and how to troubleshoot common problems related to incorrect nozzle selection.
Quick Summary
| Application | Recommended Nozzle Diameter | Typical Gas |
|---|---|---|
| Thin stainless steel (0.5–3 mm) | 1.0–1.2 mm | Nitrogen |
| Medium stainless steel (3–8 mm) | 1.2–1.5 mm | Nitrogen |
| Thick stainless steel (8–20 mm) | 1.5–2.0 mm | Nitrogen |
| Thin carbon steel | 1.0–1.2 mm | Oxygen |
| Medium carbon steel | 1.2–1.5 mm | Oxygen |
| Thick carbon steel | 1.5–2.5 mm | Oxygen |
| Aluminum | 1.4–2.0 mm | Nitrogen |
| Brass & Copper | 1.5–2.0 mm | Nitrogen |
Important: Actual nozzle selection also depends on laser power, focal position, cutting head design, gas purity, and machine parameters.
Why Nozzle Hole Size Matters
The laser nozzle does much more than simply deliver assist gas. It creates a controlled gas flow around the laser beam, protects the focusing lens from contamination, and stabilizes the cutting process. Choosing the correct nozzle is the foundation of stable fiber laser cutting performance. Before selecting a nozzle diameter, you can also refer to our guide on How to Choose the Right Fiber Laser Cutting Nozzle for a complete selection process.
The nozzle diameter influences:
- Assist gas velocity
- Gas pressure distribution
- Molten metal removal efficiency
- Piercing stability
- Cutting speed
- Kerf quality
- Lens protection
- Nozzle temperature
Even changing the nozzle hole from 1.2 mm to 1.5 mm can noticeably affect cutting performance.
How Nozzle Diameter Affects Gas Flow
The relationship between nozzle diameter and gas flow is relatively straightforward.
| Smaller Hole | Larger Hole |
|---|---|
| Higher gas velocity | Higher gas volume |
| More concentrated airflow | Wider airflow coverage |
| Suitable for thin sheets | Suitable for thick plates |
| Better cutting precision | Better molten metal removal |
| Lower gas consumption | Higher gas consumption |
| Smaller kerf | Larger kerf tolerance |
Finding the proper balance between gas pressure and nozzle diameter is essential for achieving optimal cutting performance.
Common Laser Cutting Nozzle Hole Sizes
The most commonly used nozzle diameters in fiber laser cutting include:
| Nozzle Diameter | Typical Application |
|---|---|
| 0.8 mm | Ultra-thin precision cutting |
| 1.0 mm | Thin stainless steel |
| 1.2 mm | General-purpose cutting |
| 1.4 mm | Medium thickness materials |
| 1.5 mm | Versatile industrial production |
| 1.8 mm | Thick stainless steel |
| 2.0 mm | Heavy plate cutting |
| 2.5 mm | Very thick carbon steel |
| 3.0 mm | Special heavy-duty applications |
Many manufacturers standardize on 1.2 mm, 1.4 mm, and 1.5 mm nozzles because these sizes cover the majority of daily production requirements.
Choosing Nozzle Diameter for Stainless Steel
Thin Stainless Steel (0.5–3 mm)
Thin stainless steel requires high cutting precision and smooth edges. Smaller nozzle diameters concentrate nitrogen flow, producing cleaner cuts with minimal burrs.
Recommended:
- 1.0 mm
- 1.2 mm
- High-pressure nitrogen
Advantages include:
- Smooth bright edges
- Reduced gas consumption
- Excellent dimensional accuracy
- Small kerf width
Medium Thickness Stainless Steel (3–8 mm)
As thickness increases, molten material becomes more difficult to remove. Slightly larger nozzle diameters improve gas coverage without sacrificing excessive precision.
Recommended:
- 1.2 mm
- 1.4 mm
- 1.5 mm
This range provides a balanced combination of cutting speed and edge quality.
Thick Stainless Steel (8–20 mm)
For heavy plate processing, gas volume becomes more important than gas velocity.
Recommended diameters include:
- 1.5 mm
- 1.8 mm
- 2.0 mm
Larger nozzles help remove molten metal more efficiently and reduce bottom dross formation.
Choosing Nozzle Diameter for Carbon Steel
Carbon steel behaves differently because oxygen actively participates in the cutting reaction.
The exothermic oxidation reaction generates additional heat, allowing thicker materials to be cut with relatively lower laser power.
Thin Carbon Steel
- 1.0 mm
- 1.2 mm
Benefits:
- Stable oxygen flow
- Narrow kerf
- Clean edge
Medium Carbon Steel
- 1.2 mm
- 1.4 mm
- 1.5 mm
This size range improves slag removal while maintaining efficient oxygen-assisted cutting.
Thick Carbon Steel
When cutting carbon steel thicker than 10 mm, oxygen flow must remove a much larger volume of molten material while maintaining a stable oxidation reaction. Larger nozzle diameters allow greater gas volume and reduce the risk of incomplete slag removal.
Recommended nozzle diameters:
- 1.5 mm
- 2.0 mm
- 2.5 mm (for very thick plates)
These larger diameters improve gas coverage and help achieve smoother bottom edges on heavy plates.
Choosing Nozzle Diameter for Aluminum
Aluminum presents unique challenges in fiber laser cutting due to its high reflectivity and excellent thermal conductivity. Heat dissipates quickly throughout the material, making molten metal more difficult to eject from the kerf.
Unlike carbon steel, aluminum is almost always cut using high-pressure nitrogen to prevent oxidation and produce clean, bright edges.
General recommendations:
| Material Thickness | Recommended Diameter | Assist Gas |
|---|---|---|
| 1–3 mm | 1.2–1.4 mm | Nitrogen |
| 4–8 mm | 1.4–1.8 mm | Nitrogen |
| 8–15 mm | 1.8–2.0 mm | Nitrogen |
Because aluminum produces sticky molten material, adequate gas volume is critical. Selecting a nozzle that is too small may result in dross adhering to the bottom edge.
Choosing Nozzle Diameter for Copper and Brass
Copper and brass are among the most difficult metals to process with fiber lasers. Their high reflectivity requires stable beam delivery, while their excellent thermal conductivity demands efficient molten metal removal.
Most manufacturers recommend:
- 1.5 mm
- 1.8 mm
- 2.0 mm
Combined with high-pressure nitrogen, these nozzle sizes generally provide better cutting stability and reduce the likelihood of back reflection affecting the cutting process.
Recommended Nozzle Diameter by Material
| Material | Thickness | Recommended Diameter | Assist Gas |
|---|---|---|---|
| Stainless Steel | 0.5–3 mm | 1.0–1.2 mm | Nitrogen |
| Stainless Steel | 3–8 mm | 1.2–1.5 mm | Nitrogen |
| Stainless Steel | 8–20 mm | 1.5–2.0 mm | Nitrogen |
| Carbon Steel | 1–4 mm | 1.0–1.2 mm | Oxygen |
| Carbon Steel | 4–10 mm | 1.2–1.5 mm | Oxygen |
| Carbon Steel | 10–25 mm | 1.5–2.5 mm | Oxygen |
| Aluminum | 1–15 mm | 1.4–2.0 mm | Nitrogen |
| Copper / Brass | 1–10 mm | 1.5–2.0 mm | Nitrogen |
How Laser Power Influences Nozzle Diameter Selection
Laser power and nozzle diameter should always be considered together. As laser power increases, more molten material is generated during cutting, requiring higher assist gas flow for effective removal.
| Laser Power | Typical Nozzle Range |
|---|---|
| 1–3 kW | 1.0–1.2 mm |
| 3–6 kW | 1.2–1.5 mm |
| 6–12 kW | 1.4–1.8 mm |
| 12–20 kW | 1.5–2.0 mm |
| 20 kW+ | 1.8–2.5 mm |
Using a very small nozzle on an ultra-high-power laser may restrict gas flow and reduce cutting efficiency. Conversely, an oversized nozzle on a low-power machine can reduce gas velocity and negatively affect cut quality.
Single Layer vs Double Layer Nozzles
The nozzle diameter is not the only factor affecting cutting performance. Nozzle structure also plays an important role, especially when selecting between different gas flow designs. Learn more about nozzle structure differences in our guide: Single Layer vs Double Layer Laser Nozzles: What's the Difference?.
Nozzle diameter should always be considered together with nozzle type.
Single-layer nozzles are primarily used for nitrogen cutting, especially stainless steel, aluminum, and non-ferrous metals where high-pressure gas is required.
Double-layer nozzles are typically selected for oxygen cutting of carbon steel because their dual-channel design stabilizes oxygen flow and supports the oxidation reaction.
Signs Your Nozzle Hole Size Is Incorrect
If the nozzle diameter is not properly matched to your cutting conditions, you may observe several production issues. These problems are often part of wider fiber laser cutting challenges. For more troubleshooting methods, see our article 7 Common Fiber Laser Cutting Problems and Solutions.
Nozzle Too Small
- Heavy bottom dross
- Poor slag removal
- Reduced cutting speed
- Frequent piercing failures
- Overheated nozzle
- Higher risk of nozzle damage
Nozzle Too Large
- Unstable gas flow
- Lower gas velocity
- Rough cutting edges
- Reduced dimensional accuracy
- Excessive gas consumption
- Lower cutting efficiency on thin materials
Many cutting quality issues attributed to laser parameters are actually caused by incorrect nozzle selection. However, edge quality problems can also come from other factors. For additional solutions, check Why Is My Laser Cutting Edge Rough? Causes and Solutions for Fiber Laser Cutting.
Maintenance Tips for Better Nozzle Performance
Even the correct nozzle diameter cannot deliver optimal results if the nozzle itself is damaged or contaminated. Frequent nozzle damage may indicate incorrect cutting parameters, poor gas flow, or consumable problems. Read our troubleshooting guide: Why Does Fiber Laser Cutting Nozzle Burn Quickly? Causes, Solutions & Prevention Guide.
To maximize performance:
- Inspect the nozzle orifice daily for wear and deformation.
- Keep the nozzle surface clean and free of spatter.
- Check nozzle concentricity after replacement.
- Verify nozzle height calibration regularly.
- Replace nozzles showing scratches, dents, or impact damage.
- Use high-quality consumables with precise machining tolerances.
Likewise, dirty or damaged protective lenses can disturb beam quality and lead to unstable cutting. For maintenance recommendations, see Why Do Fiber Laser Protective Lenses Burn Frequently? and How Often Should You Replace Laser Protective Lenses?.
Best Practices for Selecting the Right Nozzle Diameter
- Match the nozzle diameter to both material type and thickness.
- Consider laser power and assist gas pressure together.
- Use high-quality nozzles with accurate concentricity.
- Optimize focus position before changing nozzle size.
- Monitor cut quality and adjust diameter based on actual production results.
- Standardize nozzle selection for repeat production to improve consistency.
- Maintain adequate inventories of the most frequently used nozzle sizes.
Frequently Asked Questions (FAQ)
1. What is the most commonly used laser cutting nozzle hole size?
The most widely used nozzle diameters are 1.2 mm, 1.4 mm, and 1.5 mm. These sizes cover most stainless steel and carbon steel cutting applications in industrial production and provide a good balance between cutting quality, gas efficiency, and productivity.
2. Is a larger nozzle always better for thick materials?
Not necessarily. While thicker materials generally require larger nozzle diameters to increase assist gas volume, choosing an excessively large nozzle can reduce gas velocity, increase gas consumption, and negatively affect cutting quality. The nozzle should always be matched with the material thickness, assist gas, laser power, and cutting parameters.
3. Which nozzle diameter is best for cutting stainless steel?
For most stainless steel applications:
- 0.5–3 mm: 1.0–1.2 mm
- 3–8 mm: 1.2–1.5 mm
- 8–20 mm: 1.5–2.0 mm
High-pressure nitrogen is typically used to achieve oxidation-free, bright cutting edges.
4. Does nozzle hole size affect gas consumption?
Yes. Larger nozzle diameters allow a greater volume of assist gas to pass through, which generally increases gas consumption. Smaller nozzles improve gas efficiency but may not provide sufficient gas flow for thicker materials. The goal is to choose the smallest diameter that still delivers stable cutting performance.
5. Can the wrong nozzle diameter cause poor cutting quality?
Absolutely. An incorrect nozzle diameter may result in rough edges, excessive dross, unstable kerfs, incomplete penetration, poor piercing performance, or inconsistent cutting results. Before adjusting laser parameters, it is always worth confirming that the nozzle size matches the application.
6. Should I change the nozzle diameter when upgrading to a higher-power laser?
In many cases, yes. Higher-power fiber lasers generate more molten material and often require increased assist gas flow. As laser power increases, operators frequently move to slightly larger nozzle diameters to improve slag removal and maintain stable cutting quality.
7. How often should laser cutting nozzles be replaced?
There is no fixed replacement interval. Nozzles should be inspected regularly and replaced whenever the orifice becomes worn, scratched, deformed, or contaminated. Preventive replacement is often more cost-effective than waiting for cutting quality to deteriorate.
8. What other factors should be checked besides nozzle diameter?
Nozzle diameter is only one part of the cutting system. Operators should also verify:
- Laser beam centering
- Nozzle concentricity
- Nozzle height
- Focus position
- Assist gas purity and pressure
- Protective lens condition
- Ceramic ring condition
- Machine parameter settings
Optimizing all of these factors together delivers the best cutting performance. If the machine still cannot achieve full penetration, additional troubleshooting steps are available in Why Is Laser Cutting Not Penetrating Material? Causes, Solutions & Troubleshooting Guide.
Conclusion
Selecting the correct laser cutting nozzle hole size is essential for achieving stable, efficient, and high-quality fiber laser cutting. The ideal nozzle diameter depends on multiple factors, including material type, material thickness, assist gas, laser power, and cutting head configuration.
As a general rule, smaller nozzle diameters provide higher gas velocity and better precision for thin materials, while larger diameters supply greater gas volume for thicker plates and high-power applications. However, there is no universal nozzle size that fits every cutting condition.
By understanding how nozzle diameter influences gas flow, molten metal removal, cutting quality, and production efficiency, manufacturers can reduce downtime, lower consumable costs, and achieve more consistent production results.
Regular inspection, proper maintenance, and selecting high-quality consumables are equally important for maintaining long-term cutting performance.
