Link Metal CNC Fiber Laser Lens Disassembly Tool for Laser Cutting Heads

Fiber Laser Lens Disassembly Tool for Laser Cutting Heads

Professional industrial-grade fiber laser lens disassembly tools, exclusively designed for all mainstream fiber laser cutting heads and welding heads. This tool is a dedicated maintenance accessory for laser equipment, which can quickly and safely disassemble and install collimating lenses, focusing lenses and pressure rings. It effectively avoids damage to optical lenses, threads and AR coatings during disassembly, reduces equipment downtime, and is an essential tool for daily maintenance and repair of fiber laser equipment.

This complete product series includes both brand-specific models and universal models, fully compatible with RayTools, Precitec, WSX, OSPRI and other mainstream brands. All products are precision manufactured with strict quality control for reliable performance in industrial environments.

Key Advantages of Our Laser Lens Disassembly Tools

• Precision CNC Machined Aviation Aluminum: Made from high-grade aviation aluminum with 1:1 perfect match to original cutting head structures. Provides tight fit, no slippage, and no damage to lens pressure rings and internal threads.
• Scratch-Resistant Design: High strength hard anodic oxidation surface treatment is wear-resistant, corrosion-resistant and burr-free. Will not scratch optical lenses and anti-reflection coatings, significantly extending the service life of expensive lenses.
• Ergonomic & Labor-Saving: Ergonomic design allows for labor-saving operation. Enables quick disassembly and installation, greatly improving maintenance efficiency and reducing equipment downtime and maintenance costs.
• Full Series Brand-Specific Models: Complete range of special models available with 1:1 OEM fit for RayTools, Precitec, WSX and OSPRI mainstream brand cutting heads. Plug and play with no additional adjustment required.
• Universal Models Available: Universal models cover 15-55mm lens calibers, compatible with most fiber laser cutting heads and welding heads on the market. One tool for multiple purposes.
• Durable Construction: High-strength material and precision manufacturing ensure long service life even with frequent use. Designed to withstand the rigors of daily industrial maintenance.
• Broad Industrial Applicability: Suitable for all 1064nm fiber laser cutting machines and handheld laser welding machines, widely used in various industrial fields.

Compatible Equipment & Available Models

Compatible Equipment

• All Mainstream Fiber Laser Cutting Heads
• All Handheld Laser Welding Heads
• All Fiber Laser Cutting Machines
• All Fiber Laser Welding Machines

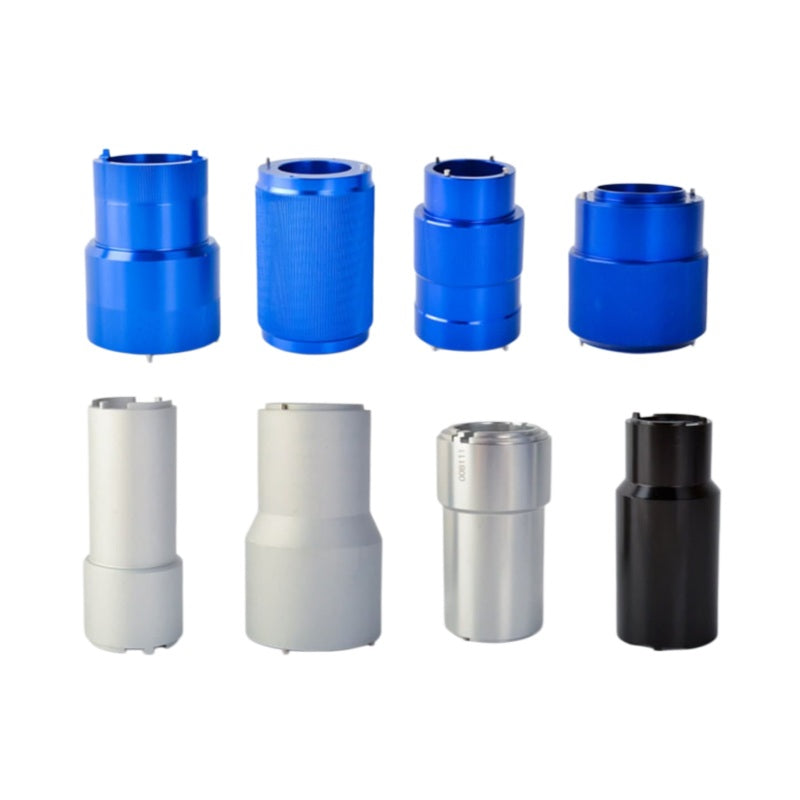

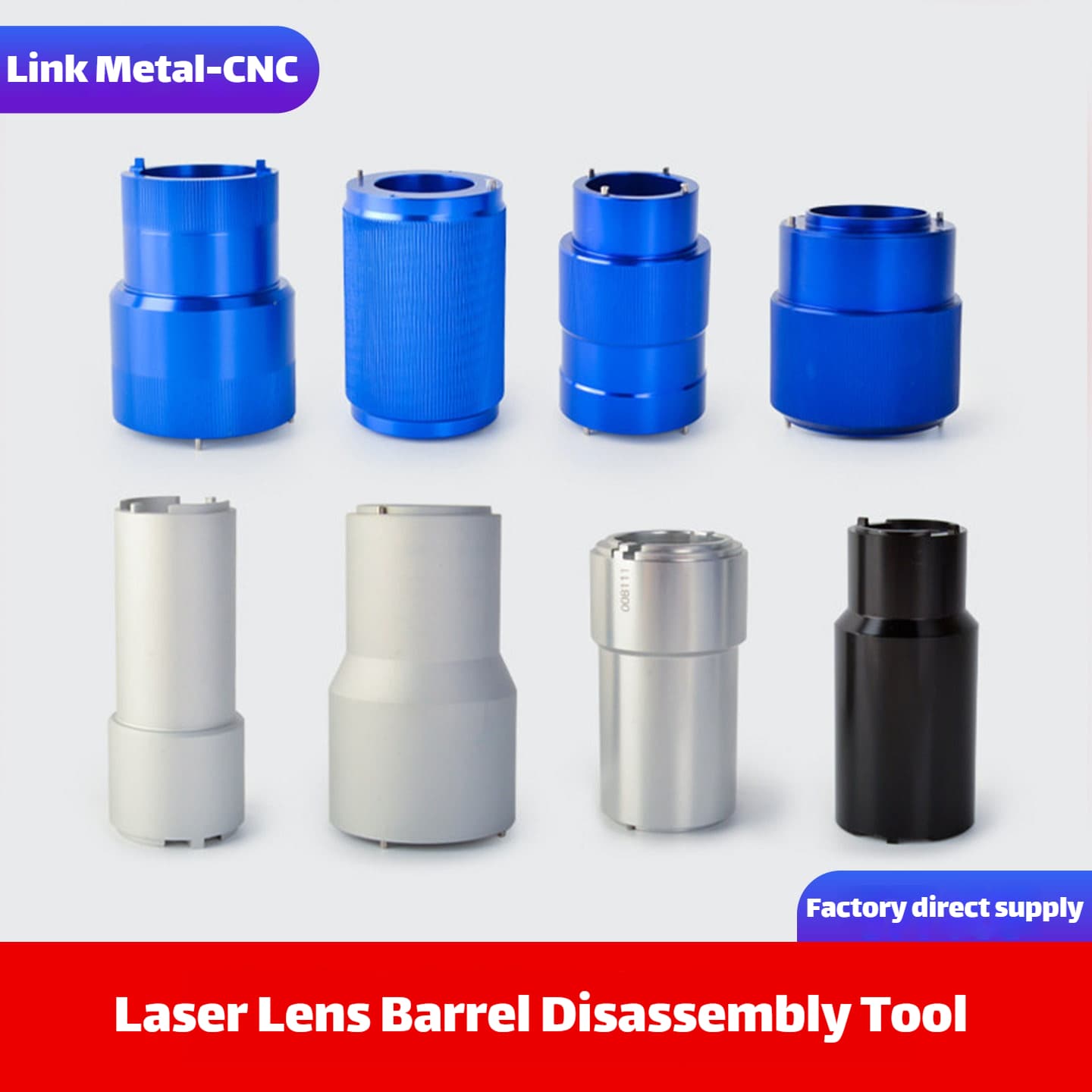

Available Lens Disassembly Tool Models

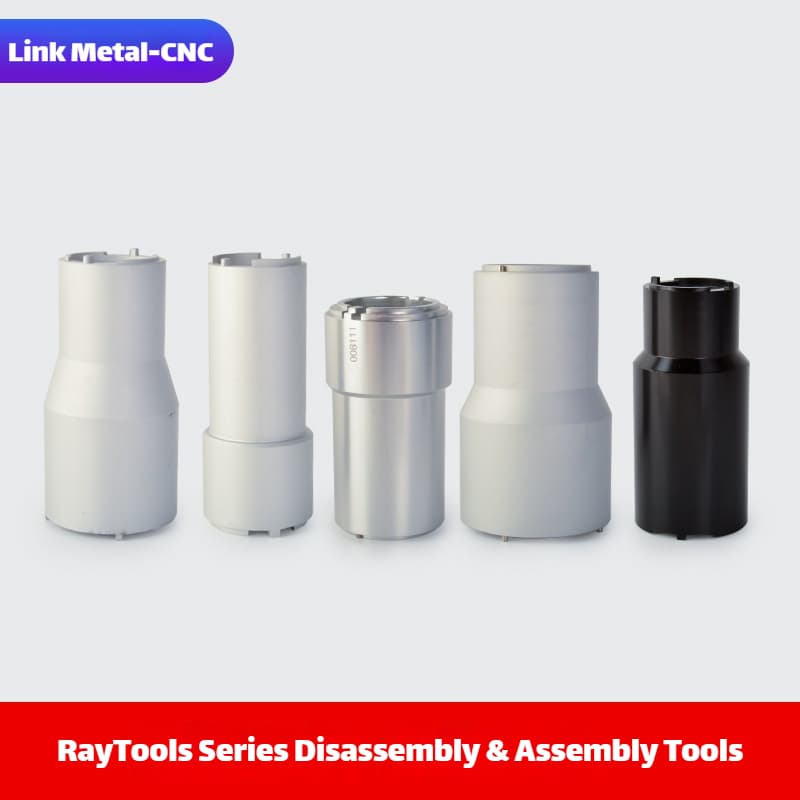

RayTools Series

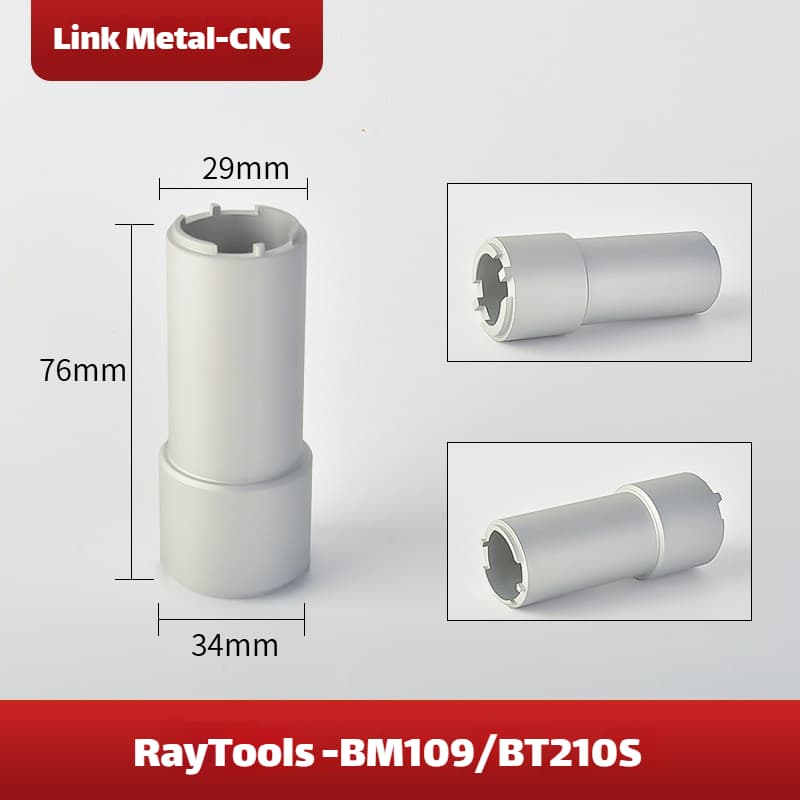

• BM109/BT210S: Dedicated tool for RayTools BM109 and BT210S cutting heads

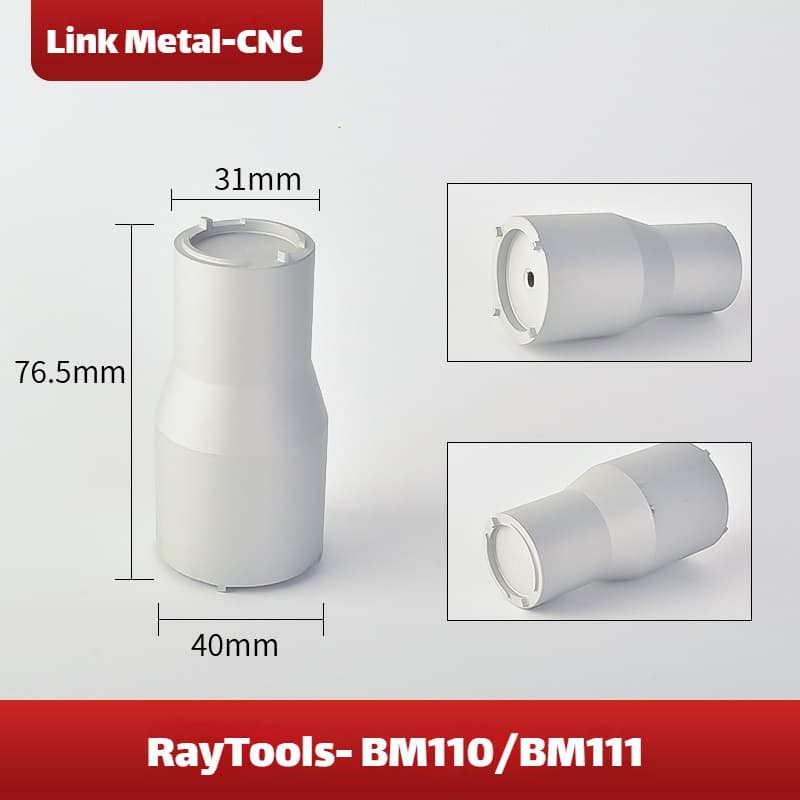

• BM110/BM111: Dedicated tool for RayTools BM110 and BM111 cutting heads

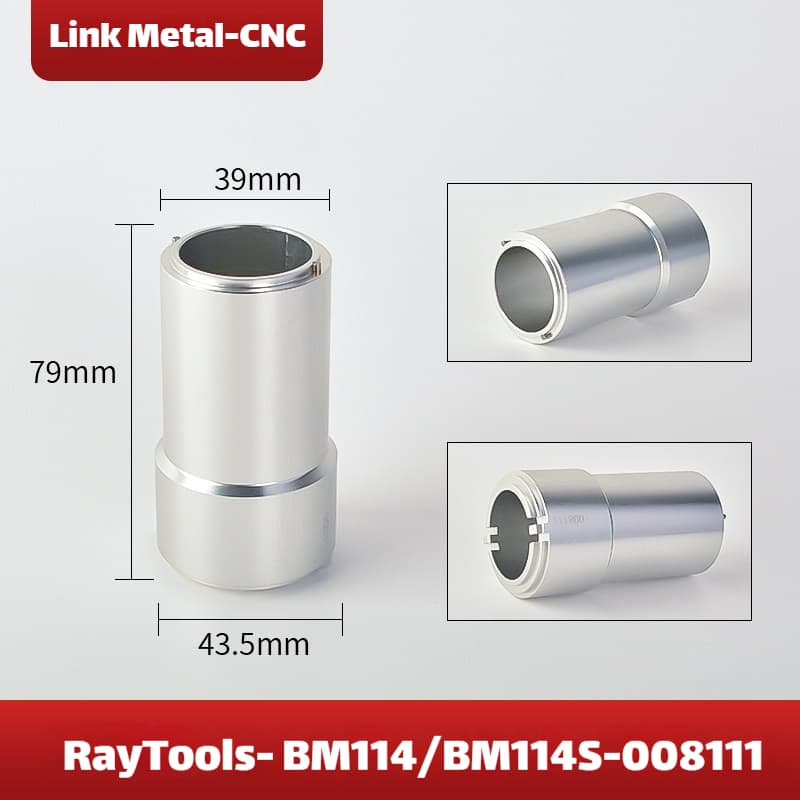

• BM114/BM114S: Dedicated tool for RayTools BM114 and BM114S cutting heads

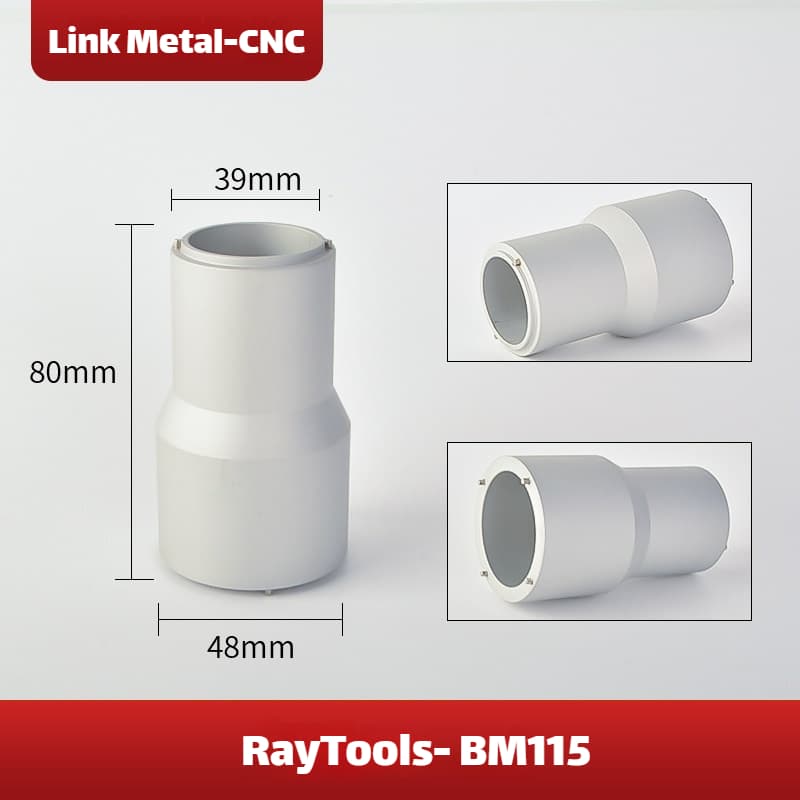

• BM115: Dedicated tool for RayTools BM115 cutting heads

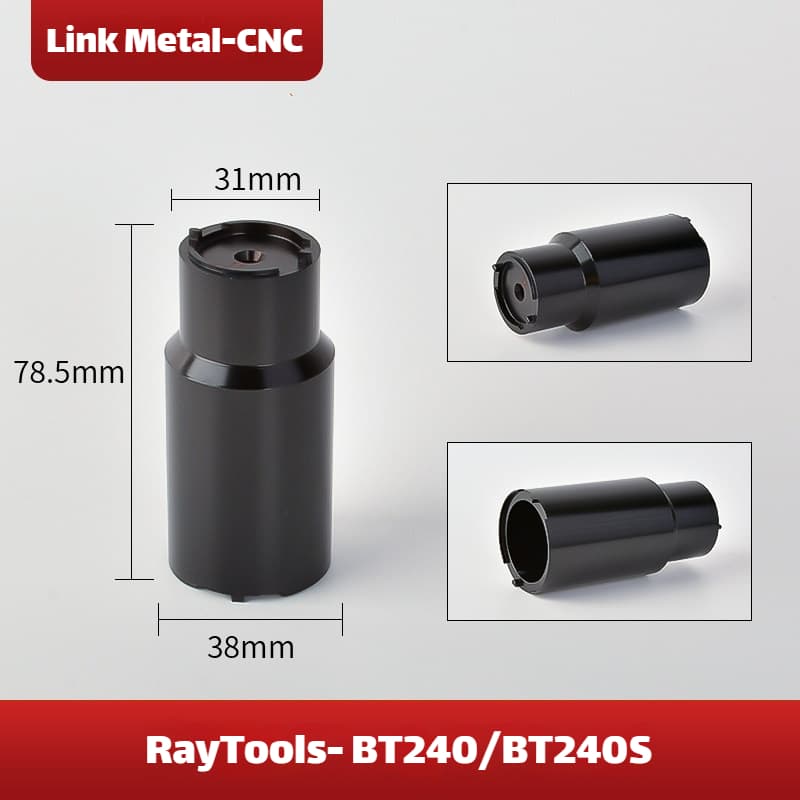

• BT240/BTS240S: Dedicated tool for RayTools BT240 and BTS240S cutting heads

Precitec Series

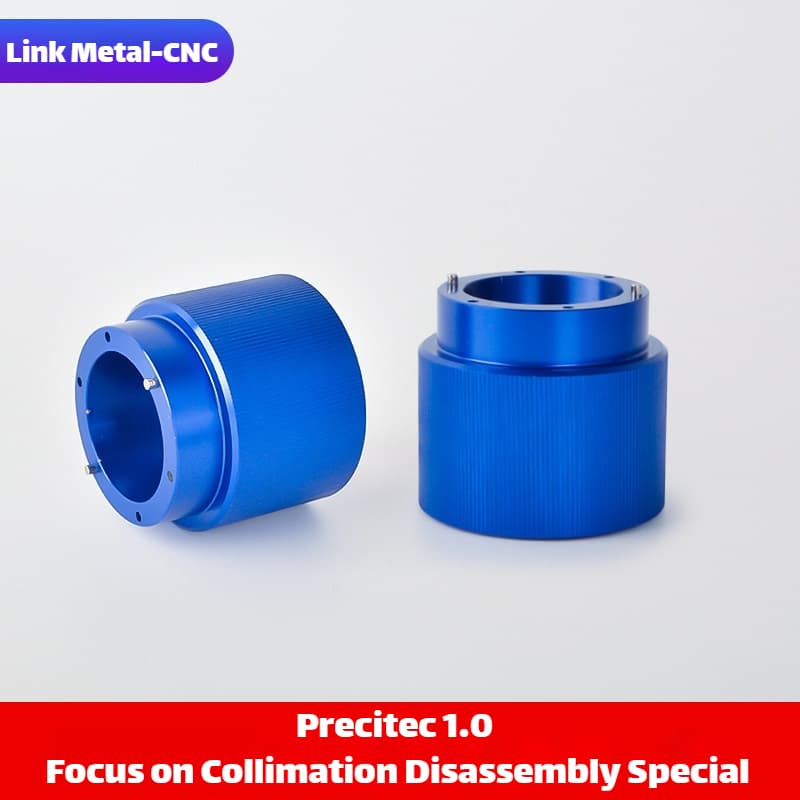

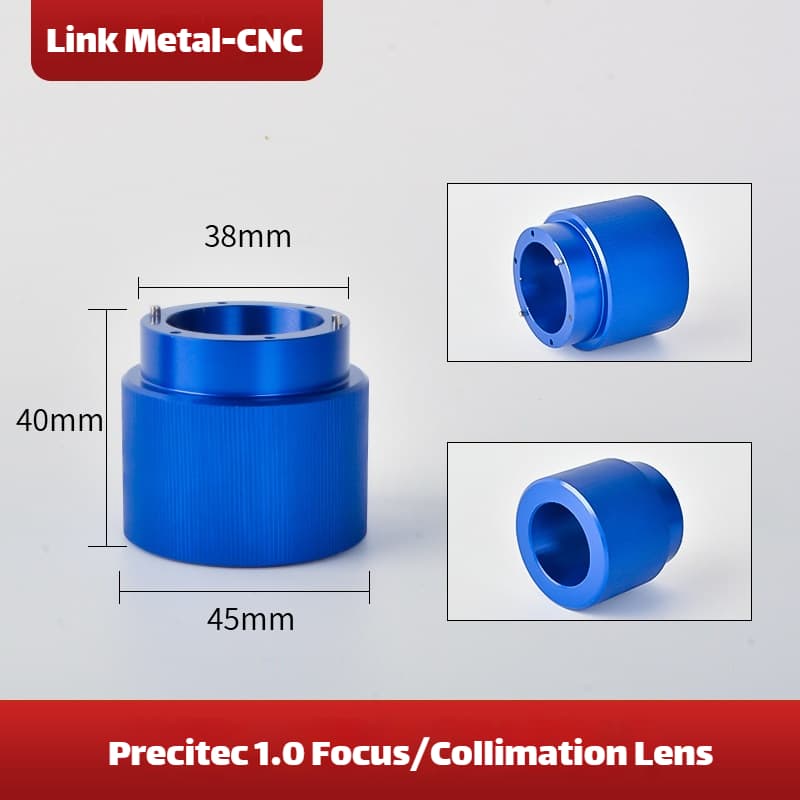

• 1.0 Collimating & Focusing Lens: For Precitec 1.0 series collimating and focusing lenses

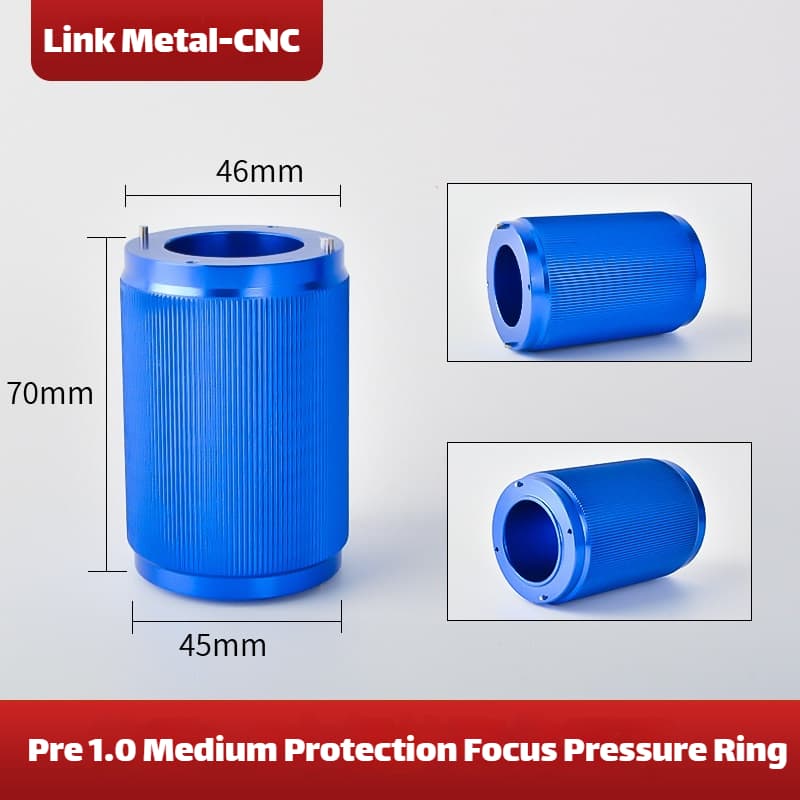

• 1.0 Middle Protective Focusing Pressure Ring: For Precitec 1.0 series middle protective focusing pressure ring

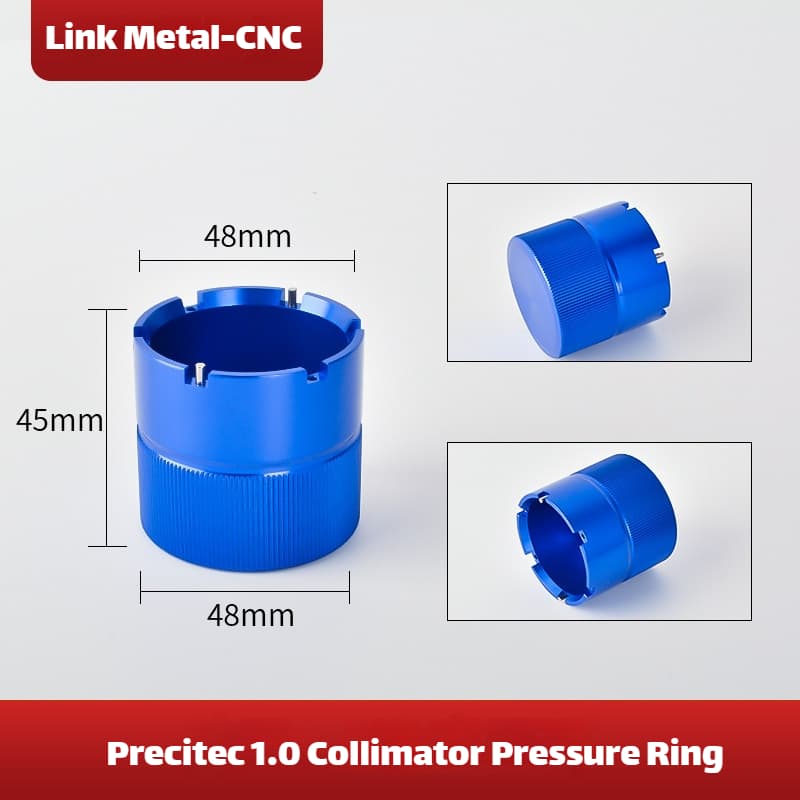

• 1.0 Special Collimating Pressure Ring: For Precitec 1.0 series special collimating pressure ring

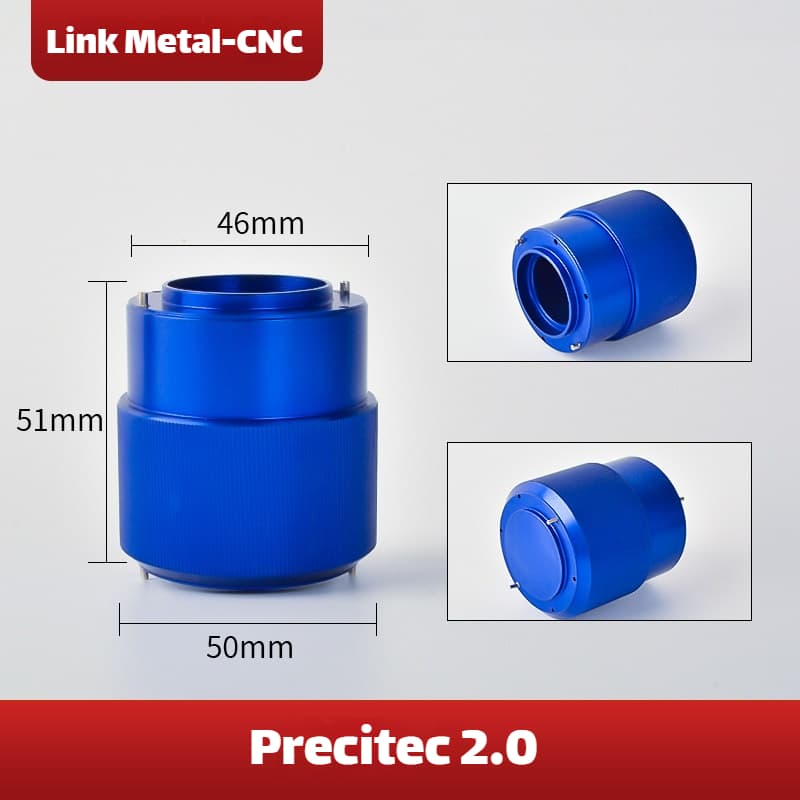

• 2.0 Series: Dedicated tool for Precitec 2.0 series cutting heads

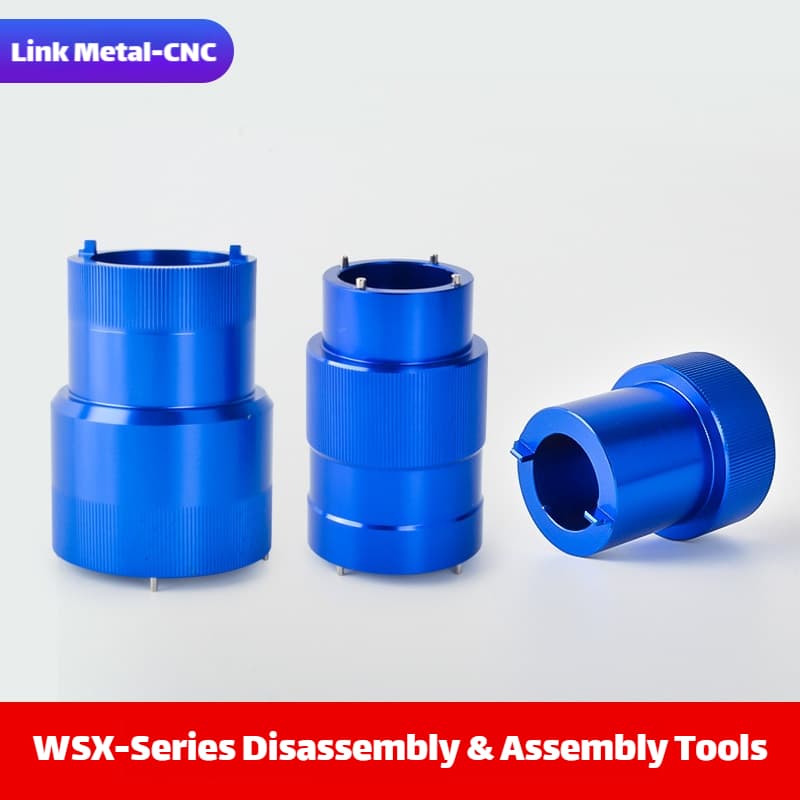

WSX (Wanshunxing) Series

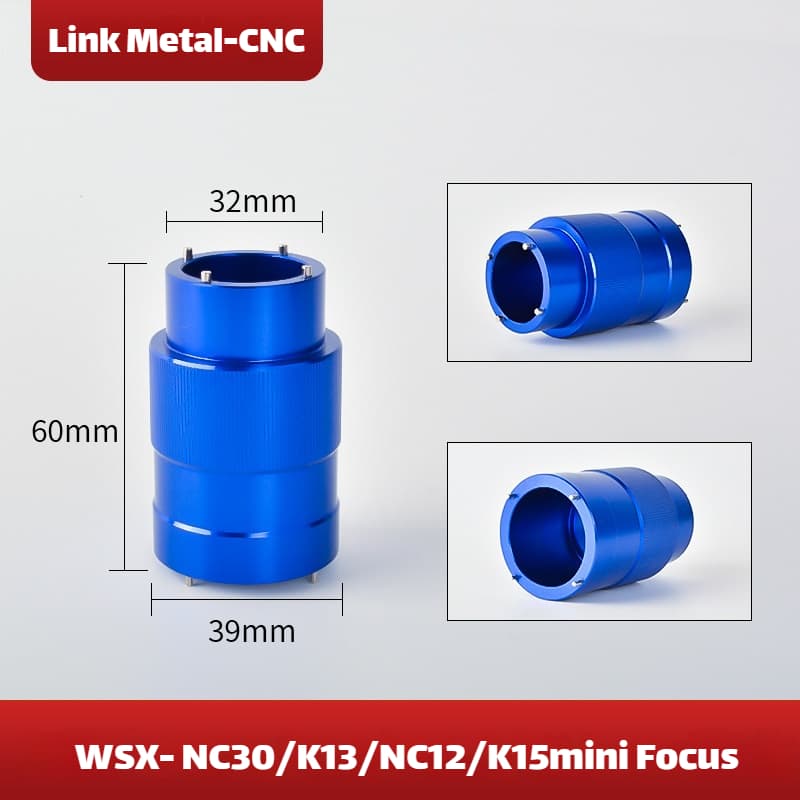

• NC30/K13/NC12/K15 Mini Focusing Lens: For WSX mini series focusing lenses

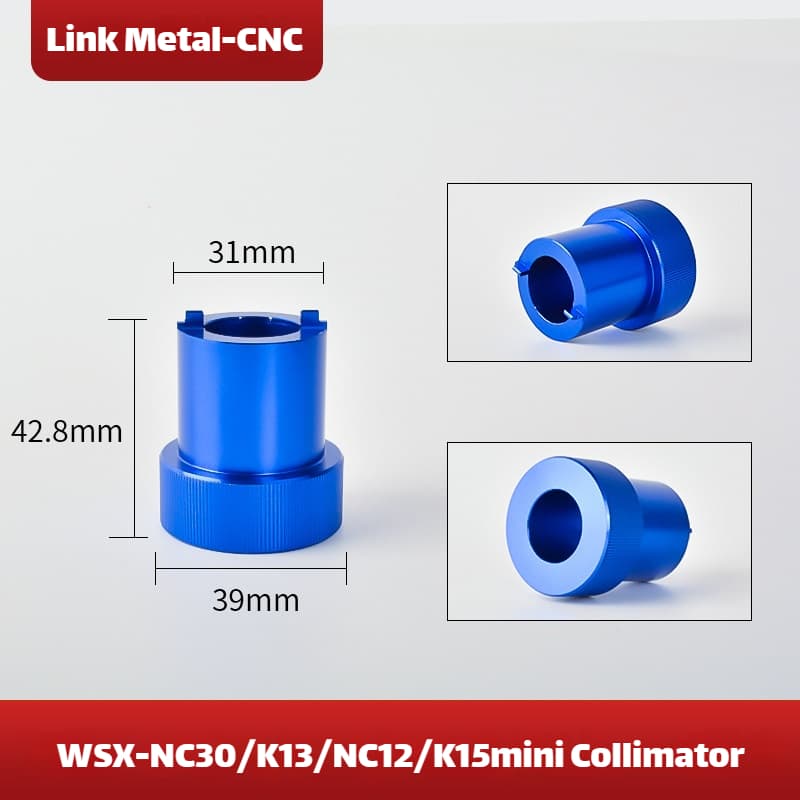

• NC30/K13/NC12/K15 Mini Collimating Lens: For WSX mini series collimating lenses

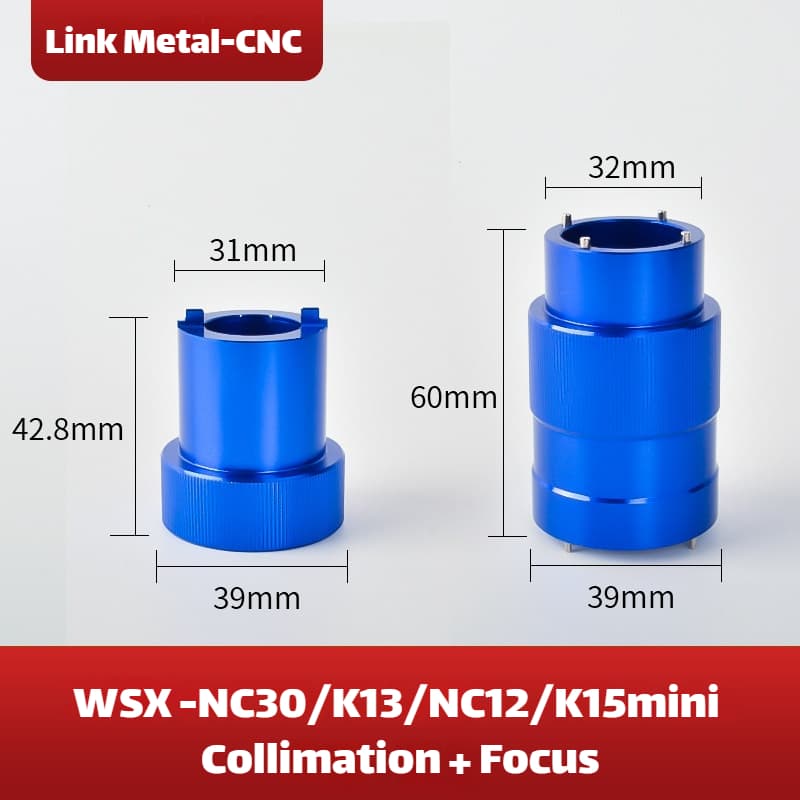

• NC30/K13/NC12/K15 Mini Collimating & Focusing Lens: Combined tool for WSX mini series lenses

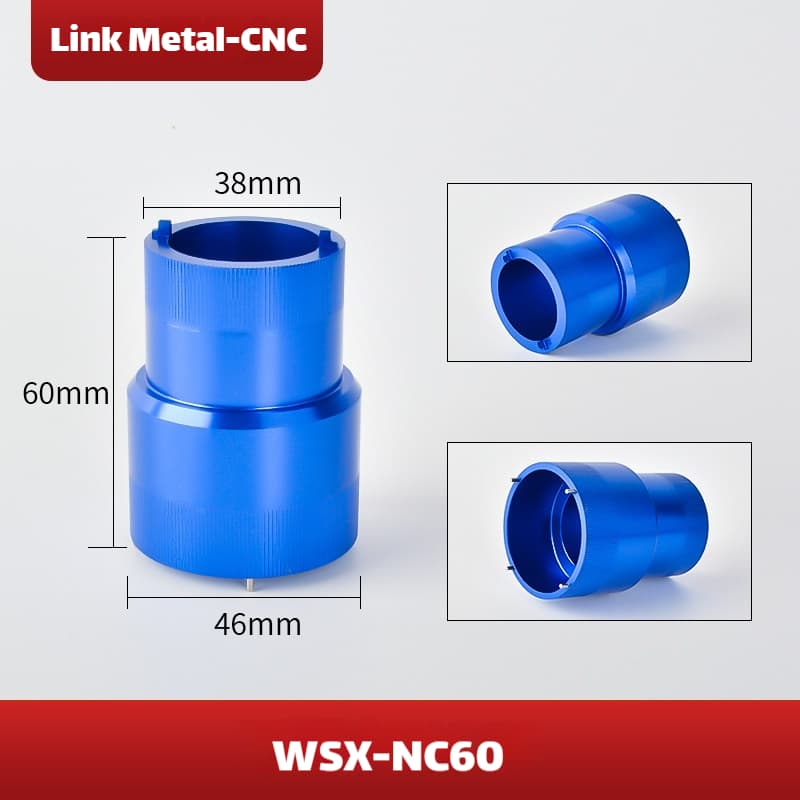

• NC/NC60 Series: Dedicated tool for WSX NC and NC60 series cutting heads

Other Compatible Brands

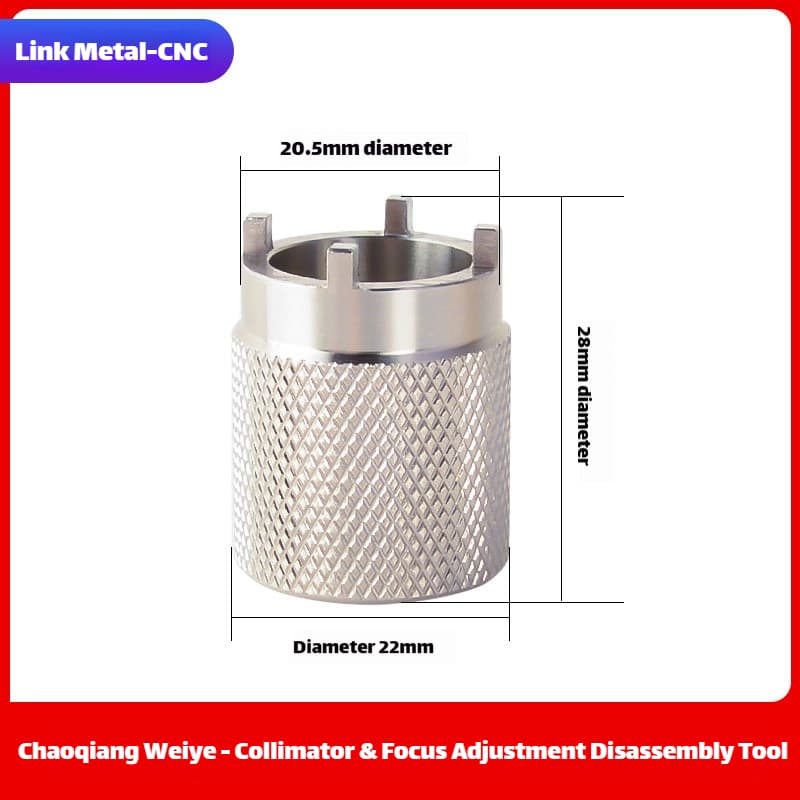

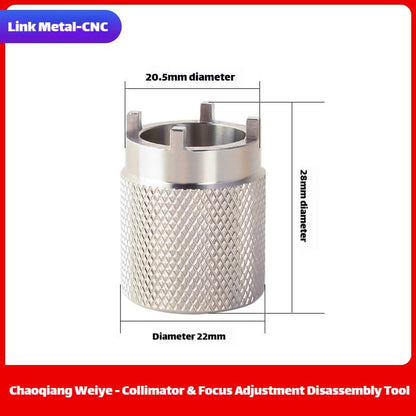

• CQWY (Chaoqiang Weiye): For CQWY handheld laser welding heads
• RECI: Disassembly tool with disassembly blade & screws for RECI equipment

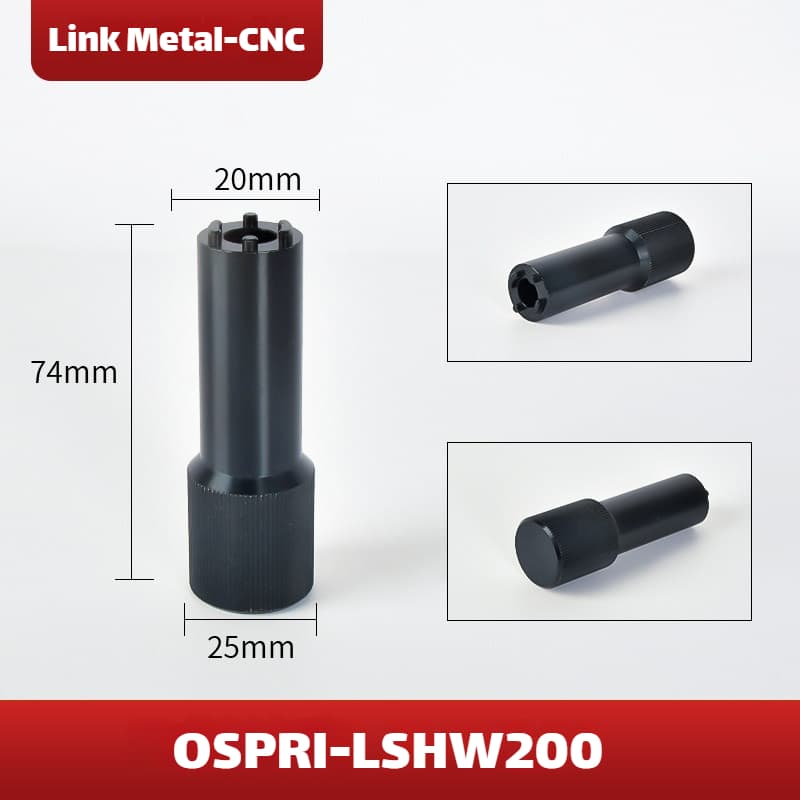

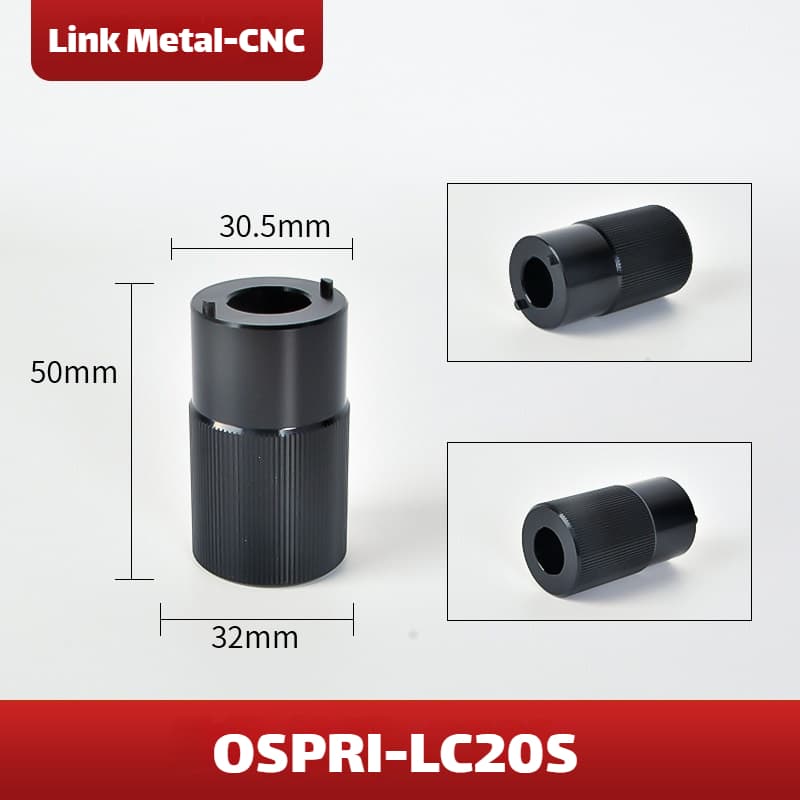

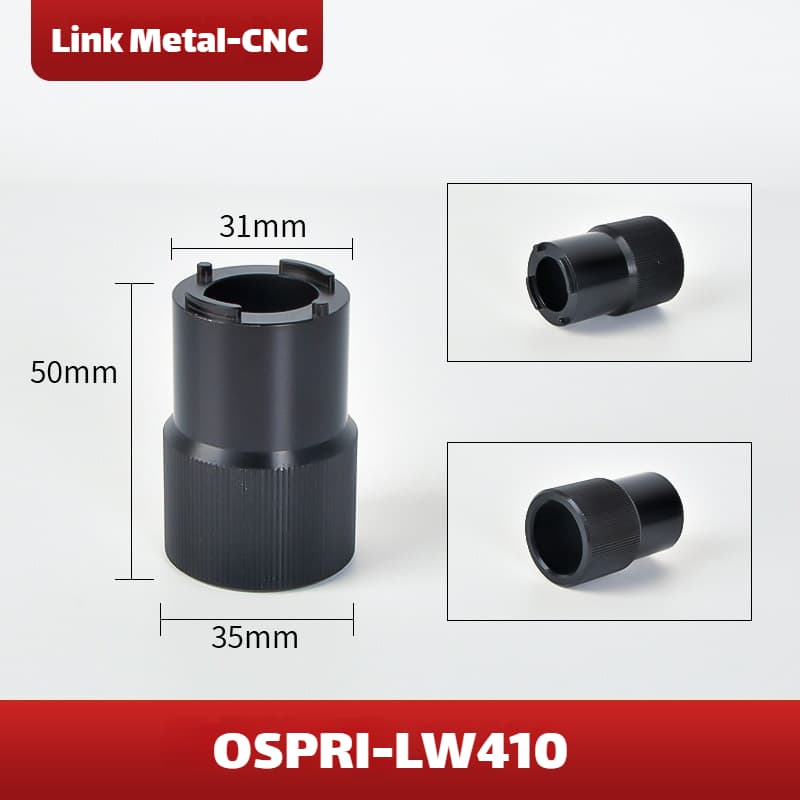

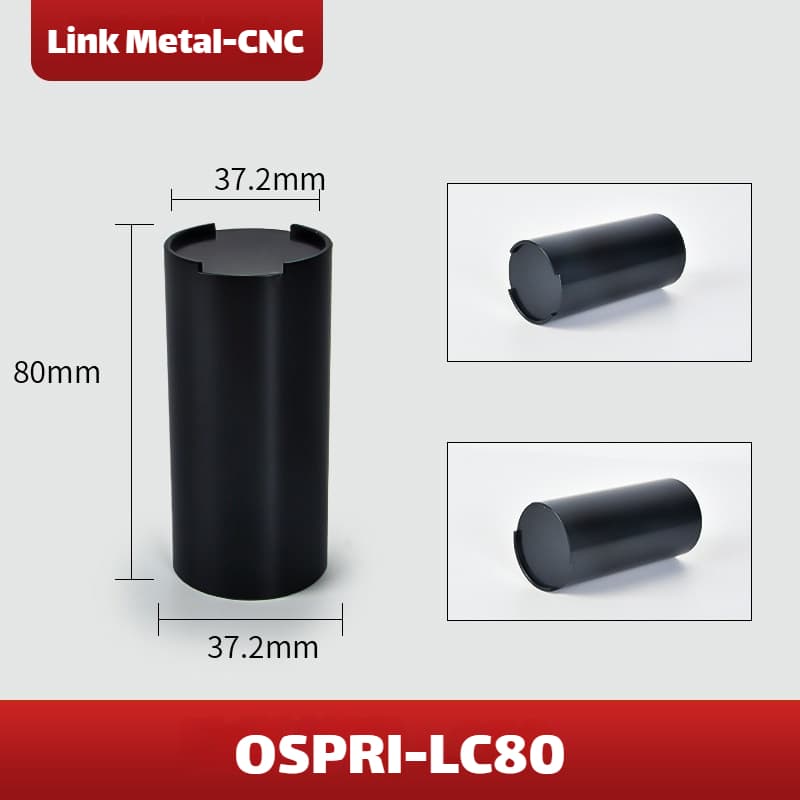

• OSPRI: For OSPRI LC80, LC20S, LSHW200, LW410, LS40 cutting heads
• Universal Disassembly Tool Set: Complete set for multiple lens types

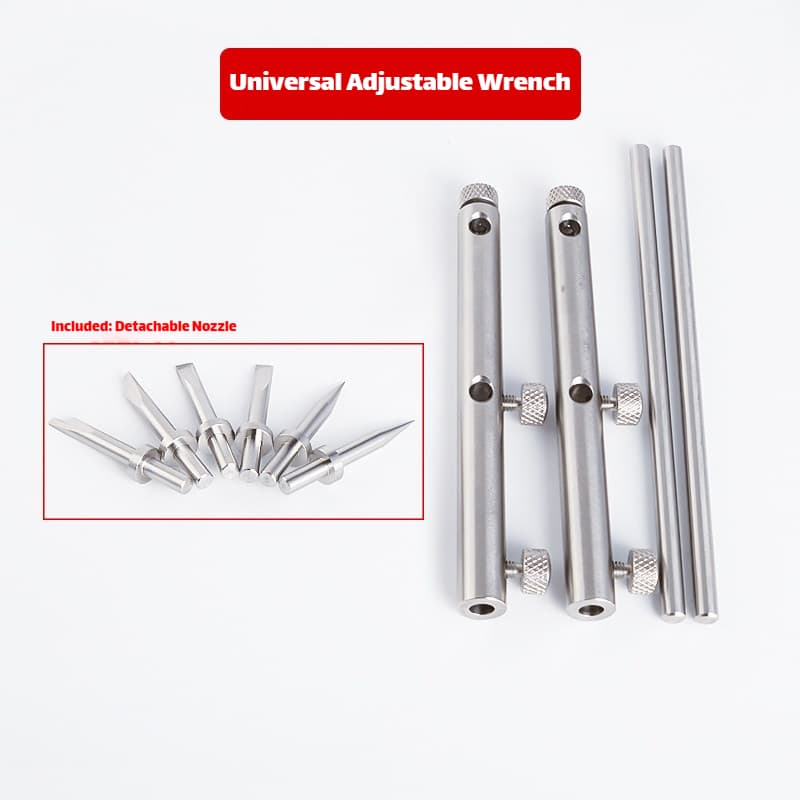

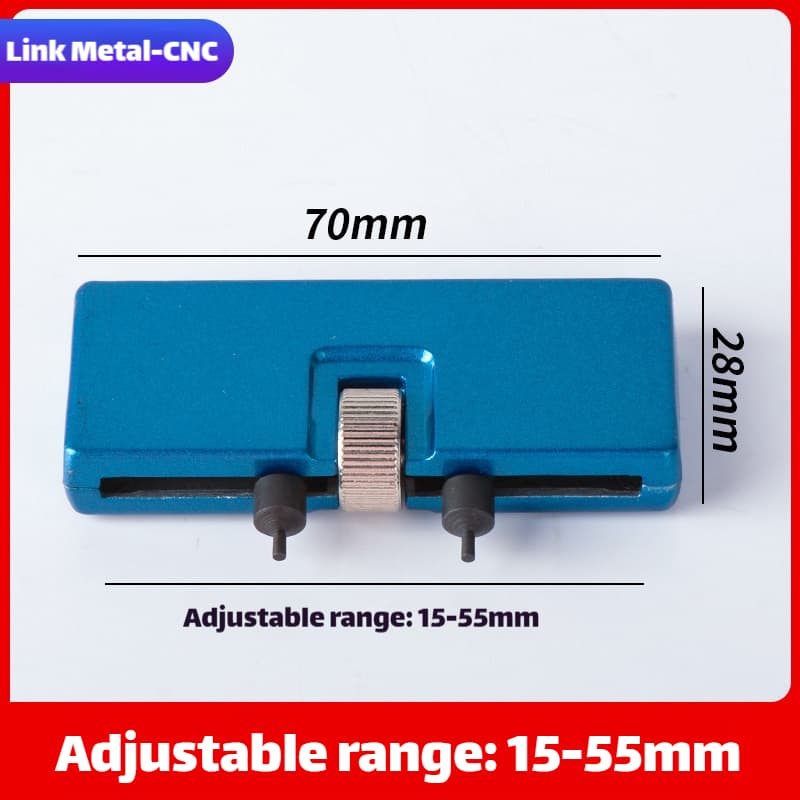

• Universal 15-55mm Disassembly Wrench: Adjustable wrench for 15-55mm lens calibers

Custom Specifications Available: For custom models or other laser equipment maintenance tools, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Selected Link Metal CNC Lens Disassembly Tool / Tool Set / Wrench
• 1 x Specialized Dust-Proof Shockproof Protective Packaging

Quality Assurance

All fiber laser lens disassembly tools from Link Metal CNC undergo strict size testing and fit inspection before delivery. We ensure each tool provides a perfect fit and reliable performance.

We maintain strict ISO 9001 quality control standards to ensure durable and reliable products. All our tools come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: Why do I need a special lens disassembly tool?
A: Using improper tools (like regular pliers or wrenches) can easily damage the expensive optical lenses, scratch the anti-reflection coating, or strip the internal threads of the cutting head. A special disassembly tool is designed to fit perfectly and apply even pressure, preventing these costly damages.

Q: Are disassembly tools interchangeable between different brands?
A: No, each brand and model of cutting head has a unique lens barrel design with different dimensions and notches. Using the wrong tool will result in poor fit, slippage, and potential damage. Always select the tool specifically designed for your cutting head model.

Q: What is the difference between special tools and universal tools?
A: Special tools are precision machined to exactly match a specific cutting head model, providing the best fit and protection. Universal tools are adjustable and can work with multiple lens sizes, making them ideal for workshops with multiple different laser machines.

Q: How do I use the lens disassembly tool correctly?
A: Align the tool with the notches on the lens barrel, apply even pressure, and turn counterclockwise to loosen. Do not use excessive force. When installing, turn clockwise until snug, then tighten slightly. Always handle optical components with clean gloves and avoid touching the lens surface.

Q: Can this tool be used for both collimating and focusing lenses?
A: Yes, most of our disassembly tools are designed to work with both collimating and focusing lenses of the same cutting head model. Some models are specifically labeled for one type of lens, so please check the product description carefully.
