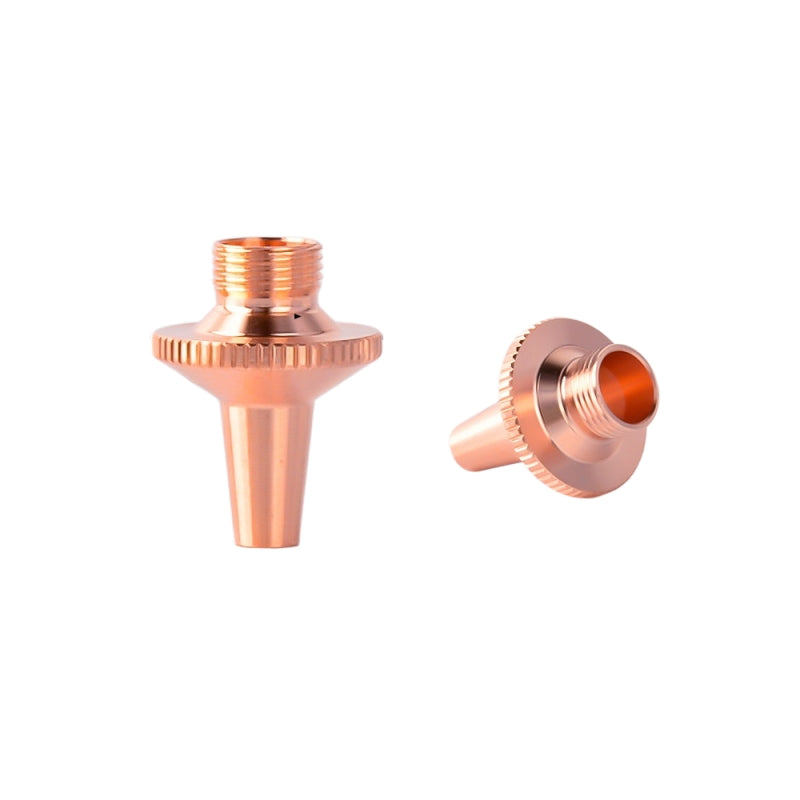

3D-M6 Type Single Layer Laser Cutting Nozzle for 3D Robots & Tube Cutters
Professional industrial-grade 3D-M6 type single layer laser cutting nozzles specially designed for all 3D laser processing equipment including 3D robotic laser cutting, 3D tube cutting, irregular curved surface cutting and three-dimensional profile processing. With 1:1 precision fit for mainstream 3D-M6 interface fiber laser cutting heads, our 3D-M6 nozzle is an essential core consumable for compact 3D laser cutting equipment.
Optimized for single layer performance, all products are manufactured with high-purity oxygen-free red copper material and ultra-precision CNC machining for stable airflow output and excellent cutting performance in complex 3D processing scenarios.
Key Advantages of Our 3D-M6 Laser Nozzles
-
Universal 3D-M6 Standard Interface: Industry-standard 3D-M6 size provides 1:1 perfect fit for all mainstream 3D-M6 interface compact fiber laser cutting heads. Direct drop-in replacement with no additional debugging required—plug and play, compatible with most compact 3D fiber laser cutting systems and 3D tube cutting machines on the market.
-
Optimized Single Layer Structure: Specifically designed for conventional 3D cutting of thin and medium plates and tubes. Delivers flexible adaptability to curved surface processing and bevel cutting, stable airflow output, and cost-effective performance for daily 3D laser processing operations.
-
High-Purity Oxygen-Free Red Copper Construction: Made from premium 99.95% oxygen-free red copper for exceptional thermal conductivity, superior high temperature resistance and outstanding anti-oxidation properties. Resists deformation even during long-term high-power 3D continuous cutting operations.
-
Ultra-Compact Anti-Interference Design: Optimized overall nozzle structure with minimal overall height and streamlined profile. Effectively avoids interference with workpieces during irregular curved surface cutting, three-dimensional profile cutting and tube bevel cutting, adapting seamlessly to the most complex 3D cutting paths in tight spaces.
-
Ultra-High Precision CNC Machining: Strict dimensional tolerance control with mirror-polished inner hole ensures smooth, non-divergent airflow. Effectively reduces cutting burrs and slag hanging in 3D curved surface and tube cutting, optimizes section finish, and eliminates subsequent polishing processes.
-
Broad 3D Industrial Applicability: Ideal for 3D cutting of stainless steel, carbon steel, aluminum alloy, galvanized sheet, copper plate and various metal tubes. Widely used in precision automotive parts processing, small hardware stamping, sheet metal forming, tube furniture manufacturing and miniature engineering machinery production.
Compatible Equipment & Product Type
Compatible Equipment
- All Mainstream 3D-M6 Interface Compact Fiber Laser Cutting Heads
- All Compact 3D Robotic Fiber Laser Cutting Systems
- All 3D Tube Cutting Machines with 3D-M6 Interface
- Raytools, Precitec, WSX, Bodor Miniature 3D Laser Cutting Heads with 3D-M6 Interface
Available 3D-M6 Nozzle Type
-
Single Layer Laser Nozzle: Optimized for general 3D thin to medium plate and tube cutting in compact systems
Custom Specifications Available: For chrome plated options, custom sizes or other 3D laser cutting nozzles, please contact our sales team directly for personalized solutions.

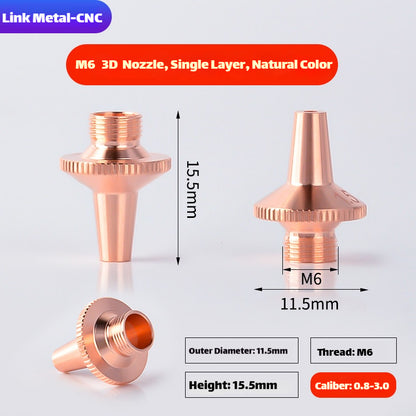

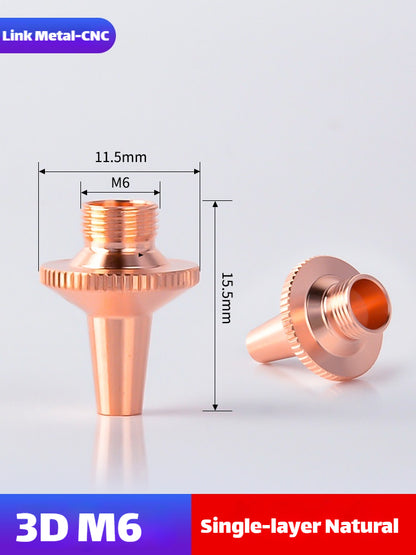

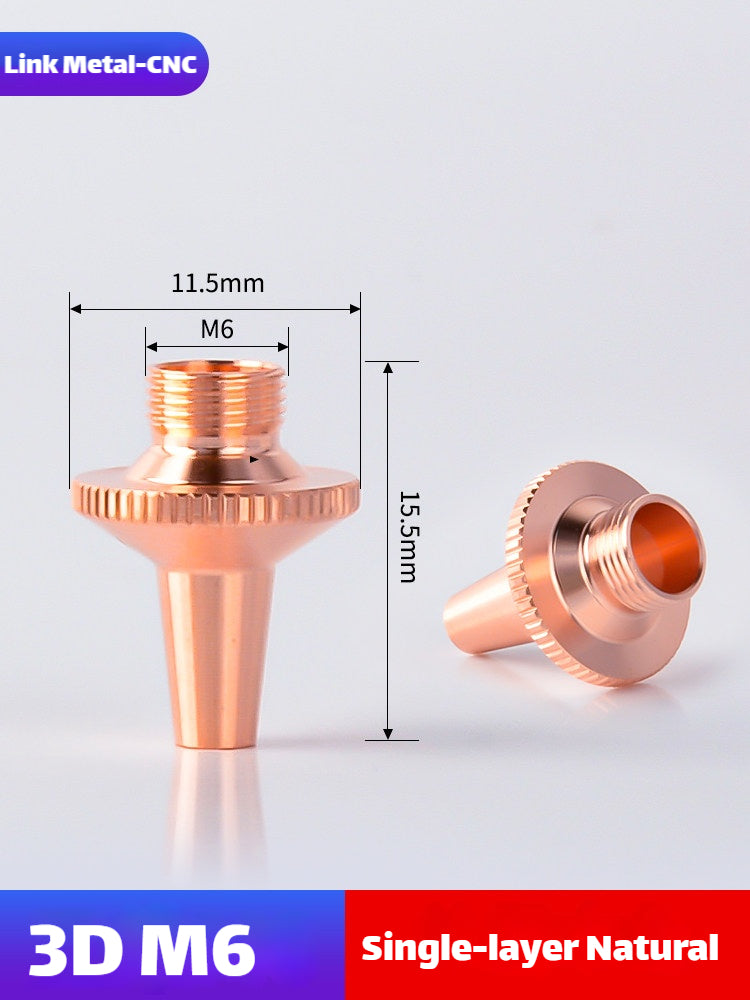

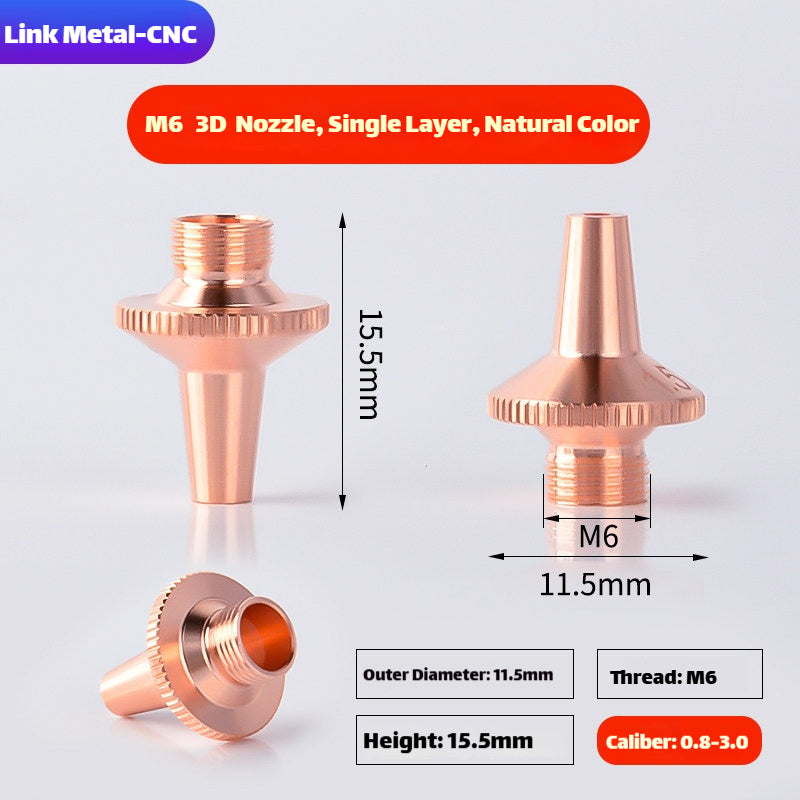

Detailed Technical Specifications
| Parameter |
Specification |
| Brand |
Link Metal CNC |
| Product Type |
3D-M6 Type Laser Cutting Nozzle |
| Interface Type |
3D-M6 Standard Interface (Smallest 3D Interface) |
| Structure |
Single Layer |
| Base Material |
99.95% High-Purity Oxygen-Free Red Copper |
| Surface Treatment |
Original Copper / Chrome Plated (Custom) |
| Applicable Wavelength |
1064nm |
| Applicable Power |
1000W - 8000W |
| Maximum Cutting Angle |
±45° (Standard Configuration) |
| Compatible Materials |
Stainless Steel, Carbon Steel, Aluminum, Galvanized Sheet, Copper, Metal Tubes |
| Application Scenario |
Compact 3D Robotic Cutting, 3D Tube Cutting, Bevel Cutting, Precision Curved Surface Processing |
Package Contents
- 1 x Link Metal CNC 3D-M6 Type Single Layer Laser Cutting Nozzle
- 1 x Specialized Anti-Static Dust-Proof Protective Packaging
Quality Assurance
Every Link Metal CNC 3D-M6 laser nozzle undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, installation fit verification, air tightness test, airflow convergence test and 3D cutting performance assessment at multiple angles including bevel cutting for tubes.
We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.
Frequently Asked Questions
Q: What equipment can 3D-M6 nozzles be used on?
A: 3D-M6 nozzles are compatible with all 3D laser processing equipment that uses the industry-standard 3D-M6 interface, including: 1) Compact 3D robotic laser cutting systems; 2) 3D tube cutting machines (especially those with bevel cutting function); 3) Miniature 3D profile cutting machines. They are not limited to robotic applications only.
Q: What is the difference between 3D-M6 and other 3D laser nozzles?
A: 3D-M6 is the smallest industry-standard interface size for 3D laser cutting heads, specifically designed for compact and miniature 3D robotic systems and small tube cutting machines. It has a smaller overall diameter and shorter height than 3D-M8, 3D-M9 and 3D-M11 nozzles, making it ideal for tight-space cutting applications. These nozzles are not interchangeable due to different interface dimensions and thread specifications.
Q: Why is the 3D-M6 nozzle only available in single layer?
A: 3D-M6 nozzles are primarily used in compact 3D systems with lower power outputs (up to 8000W) for cutting thin to medium thickness materials and tubes. The single layer structure provides sufficient performance for these applications while maintaining the minimal overall height required to avoid interference in tight spaces. Double layer structures would increase the nozzle height unnecessarily for this use case.
Q: Can I use a 3D-M6 nozzle on a larger 3D cutting head?
A: No, 3D-M6 nozzles are specifically designed for 3D-M6 interface cutting heads only. Using the wrong size nozzle will result in poor fit, air leakage, unstable cutting performance, and potential damage to your cutting head. Always use the correct nozzle size specified for your cutting head model.
Q: Do you offer chrome plated versions of the 3D-M6 nozzle?
A: Yes, we can provide chrome plated 3D-M6 nozzles upon request. Chrome plating enhances anti-spatter performance and extends service life by 3-4 times, making it particularly valuable for high-volume compact 3D production and tube cutting environments. Please contact our sales team for pricing and lead time information.
