Link Metal CNC 3D-M9 Type Laser Cutting Nozzle for 3D Fiber Laser Cutting Machines

3D-M9 Type Laser Cutting Nozzle for 3D Robots & Tube Cutters

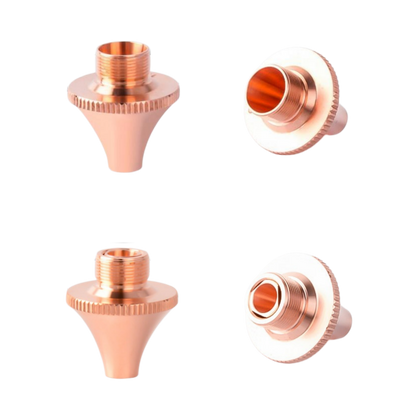

Professional industrial-grade 3D-M9 type laser cutting nozzles specially designed for all 3D laser processing equipment including 3D robotic laser cutting, 3D tube cutting, irregular curved surface cutting and three-dimensional profile processing. With 1:1 precision fit for mainstream 3D-M9 interface fiber laser cutting heads, our 3D-M9 nozzle is an essential core consumable for all 3D laser cutting equipment.

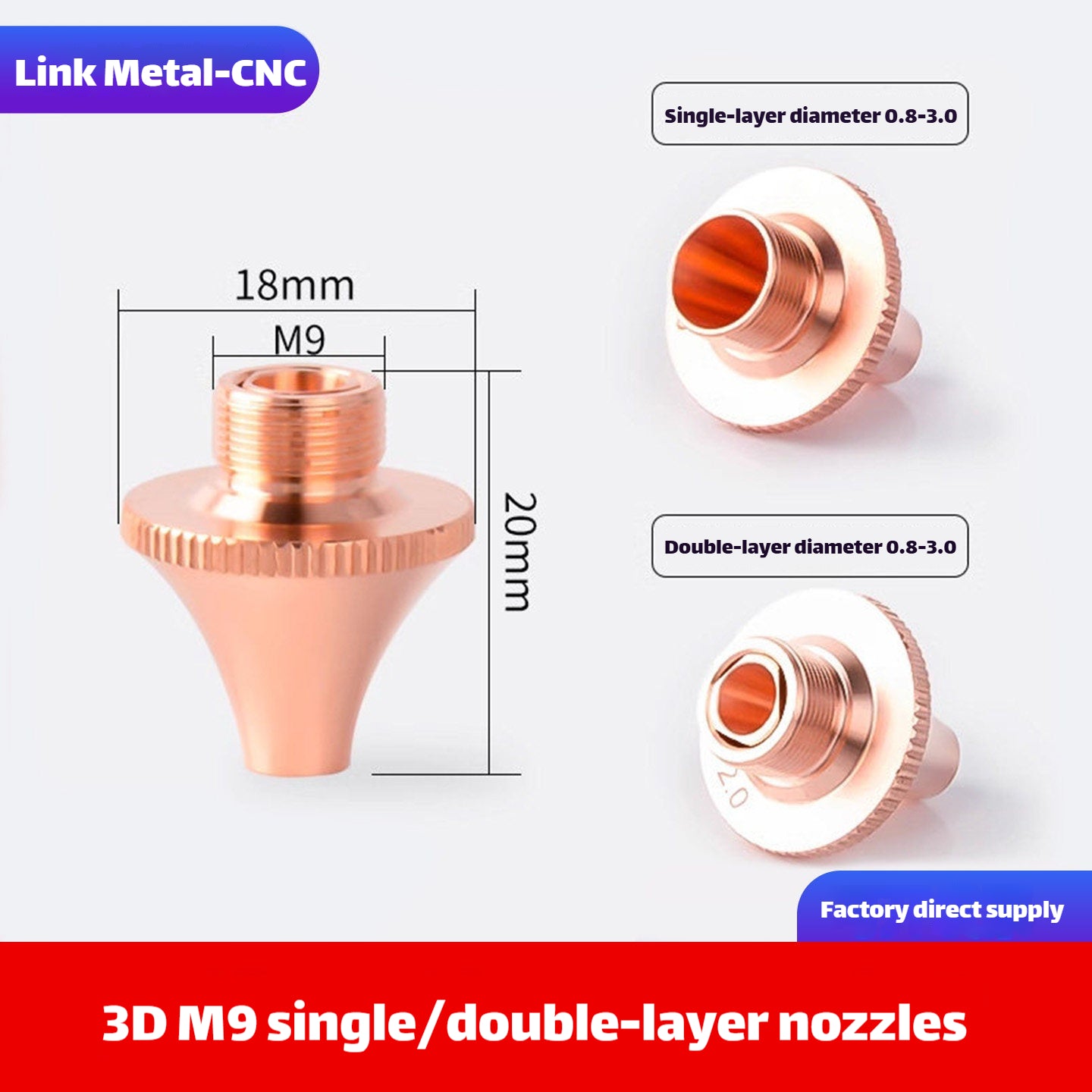

We offer two high-performance configurations: single layer and double layer. All products are manufactured with high-purity oxygen-free red copper material and ultra-precision CNC machining for stable airflow output and excellent cutting performance in complex 3D processing scenarios.

Key Advantages of Our 3D-M9 Laser Nozzles

• Universal 3D-M9 Standard Interface: Industry-standard 3D-M9 size provides 1:1 perfect fit for all mainstream 3D-M9 interface fiber laser cutting heads. Direct drop-in replacement with no additional debugging required—plug and play, compatible with most 3D fiber laser cutting systems and 3D tube cutting machines on the market.
• Two Structure Options for Versatility:
  • Single Layer: Flexible and adaptable for conventional 3D cutting of thin and medium plates and tubes, cost-effective for general production
  • Double Layer: Professional convergent airflow cavity delivers better airflow convergence and more stable cutting air pressure, ensuring superior cutting consistency on complex 3D paths and tube bevel cutting
• High-Purity Oxygen-Free Red Copper Construction: Made from premium 99.95% oxygen-free red copper for exceptional thermal conductivity, superior high temperature resistance and outstanding anti-oxidation properties. Resists deformation even during long-term high-power 3D continuous cutting operations.
• Compact Anti-Interference Design: Optimized overall nozzle structure with reduced overall height and streamlined profile. Effectively avoids interference with workpieces during irregular curved surface cutting, three-dimensional profile cutting and tube bevel cutting, adapting seamlessly to complex 3D cutting paths.
• Ultra-High Precision CNC Machining: Strict dimensional tolerance control with mirror-polished inner hole ensures smooth, non-divergent airflow. Effectively reduces cutting burrs and slag hanging in 3D curved surface and tube cutting, optimizes section finish, and eliminates subsequent polishing processes.
• Broad 3D Industrial Applicability: Ideal for 3D cutting of stainless steel, carbon steel, aluminum alloy, galvanized sheet, copper plate and various metal tubes. Widely used in automotive parts processing, hardware stamping, sheet metal forming, tube furniture manufacturing and engineering machinery production.

Compatible Equipment & Available Types

Compatible Equipment

• All Mainstream 3D-M9 Interface Fiber Laser Cutting Heads
• All 3D Robotic Fiber Laser Cutting Systems
• All 3D Tube Cutting Machines with 3D-M9 Interface
• Raytools, Precitec, WSX, Bodor 3D Laser Cutting Heads with 3D-M9 Interface

Available 3D-M9 Nozzle Types

• Single Layer Laser Nozzle: Standard option for general 3D thin to medium plate and tube cutting
• Double Layer Laser Nozzle: Better airflow stability for complex 3D path and high-precision bevel cutting

Custom Specifications Available: For chrome plated options, custom sizes or other 3D laser cutting nozzles, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Link Metal CNC 3D-M9 Type Laser Cutting Nozzle (selected type)
• 1 x Specialized Anti-Static Dust-Proof Protective Packaging

Quality Assurance

Every Link Metal CNC 3D-M9 laser nozzle undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, installation fit verification, air tightness test, airflow convergence test and 3D cutting performance assessment at multiple angles including bevel cutting for tubes.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What equipment can this 3D nozzle be used on?
A: This 3D nozzle is compatible with all 3D laser processing equipment that uses the corresponding interface, including: 1) 3D robotic laser cutting systems; 2) 3D tube cutting machines (especially those with bevel cutting function); 3) 3D profile cutting machines. They are not limited to robotic applications only.

Q: What is the difference between 3D-M9 and 3D-M11 laser nozzles?
A: 3D-M9 and 3D-M11 are two different industry-standard interface sizes for 3D laser cutting heads. 3D-M9 nozzles have a smaller overall diameter and are designed for more compact 3D cutting heads, while 3D-M11 nozzles are larger and typically used for higher power 3D systems (up to 15000W). They are not interchangeable due to different interface dimensions and thread specifications.

Q: Can I use standard 2D laser nozzles for 3D cutting applications?
A: No, standard 2D nozzles are not recommended for 3D cutting. 3D nozzles feature a more compact and streamlined design with reduced height to avoid interference with workpieces during angled and curved surface cutting. They also have optimized airflow structures specifically tuned for non-perpendicular cutting angles and tube bevel cutting, which standard 2D nozzles lack.

Q: Will this 3D-M9 nozzle work with all brands of 3D laser cutting heads?
A: This nozzle is compatible with all 3D laser cutting heads that use the industry-standard 3D-M9 interface, including most Raytools, Precitec, WSX and Bodor 3D cutting heads. If you are unsure about your cutting head's interface type, please contact our sales team with your cutting head model number for confirmation.

Q: What is the maximum cutting angle supported by these nozzles?
A: Our 3D-M9 nozzles support cutting angles up to ±45° under standard operating conditions. For angles exceeding 30°, we recommend using the double layer version for better airflow stability and cutting quality, especially in tube bevel cutting applications.

View our full range of laser cutting accessories including ceramic rings and protective lenses.
