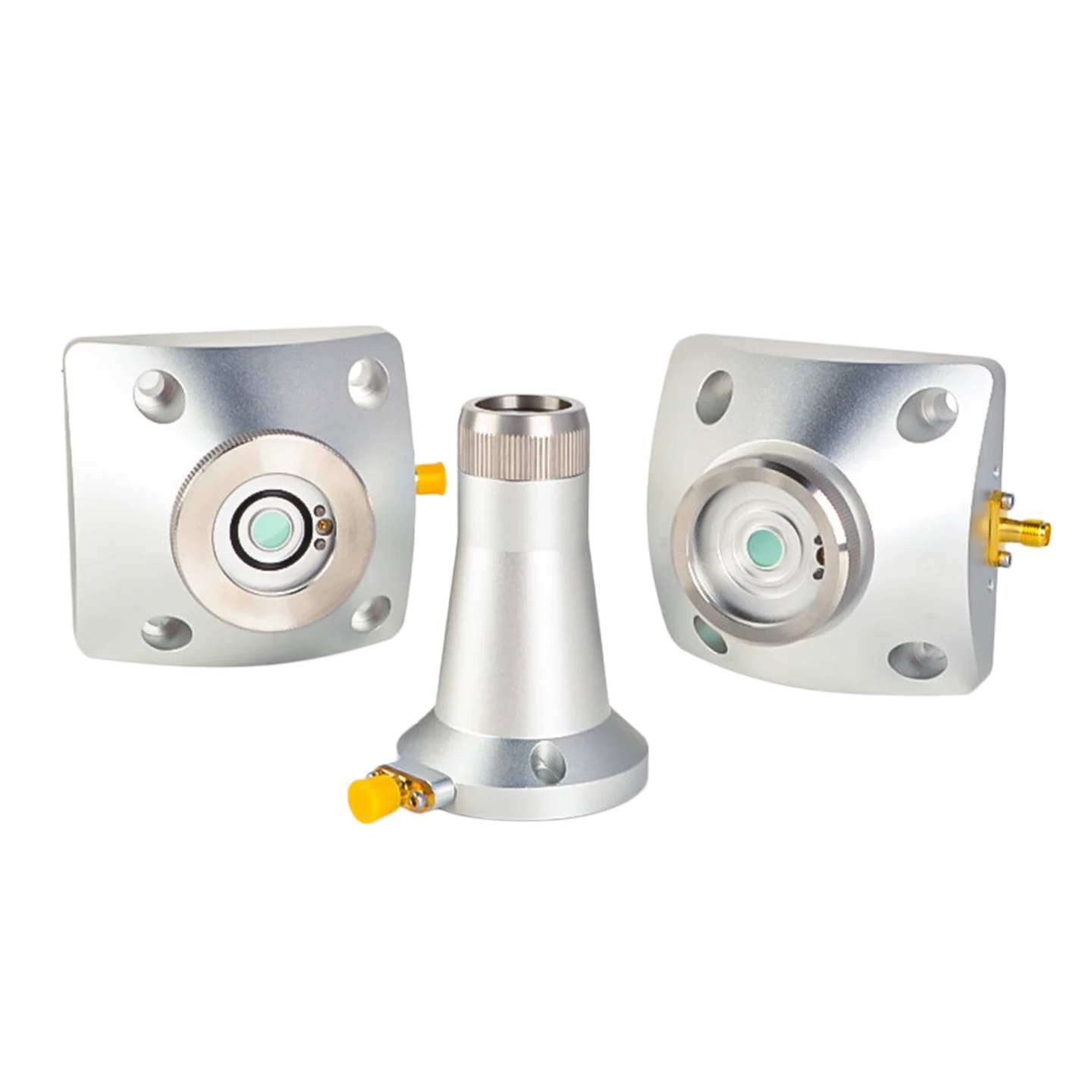

BODOR Nozzle Connector & Capacitive Height Sensor

Professional industrial-grade fiber laser cutting head replacement parts, exclusively designed for original BODOR Laser fiber laser cutting systems. This set includes a high-precision capacitive height sensor and heavy-duty nozzle connector, 1:1 perfectly matching original OEM factory parameters. With stable performance, long service life and tool-free installation, it is an essential core spare part for daily maintenance of BODOR laser cutting equipment.

This complete product series covers all mainstream BODOR fiber laser cutting head models on the market, including both flat type for 2D cutting and 3D type for robotic cutting. All products are manufactured with high-grade industrial materials and undergo rigorous quality control for reliable performance in demanding industrial environments.

Key Advantages of Our BODOR Nozzle Connectors & Sensors

• High-Grade Industrial Raw Materials: Precision CNC machined from premium high-grade industrial alloy with strict size tolerance control. Offers excellent corrosion resistance and wear resistance, suitable for 7*24h high-load industrial working conditions.
• High Stability Capacitive Height Sensor: Features anti-interference design for real-time high-precision height sensing and stable signal transmission. Ensures consistent high-precision laser cutting output and reduces defective rate.
• Heavy-Duty Nozzle Connector: Tight thread fit provides secure locking and no air leakage. Perfectly matches original BODOR laser nozzles and sensors, with easy installation and replacement.
• 1:1 OEM Perfect Fit: Exact match for original BODOR cutting heads with direct plug and play installation. No additional debugging required, significantly reducing equipment downtime.
• Full Series Model Coverage: Complete range of BODOR models available, including flat type for 2D plane cutting and 3D type for robotic cutting. Fully compatible with all mainstream BODOR fiber laser cutting head models on the market.
• Anti-Spatter & Anti-Oxidation Protection: Enhanced surface treatment effectively resists erosion from cutting splash and high-temperature smoke. Resists dust and welding slag adhesion, is easy to clean, and maintains stable performance in harsh environments.
• Broad Industrial Applicability: Suitable for all 1064nm BODOR fiber laser cutting machines (2D plane cutting, 3D robotic cutting, high-power thick plate cutting) and automatic laser production lines.

Compatible Equipment & Available Models

Compatible Equipment

• All BODOR Series Fiber Laser Cutting Heads
• All BODOR 2D Plane Fiber Laser Cutting Machines
• All BODOR 3D Robotic Fiber Laser Cutting Systems
• All Original and Compatible BODOR Laser Processing Equipment

Available BODOR Nozzle Connector & Sensor Models (4 Options Total)

Flat Type (2D Cutting)

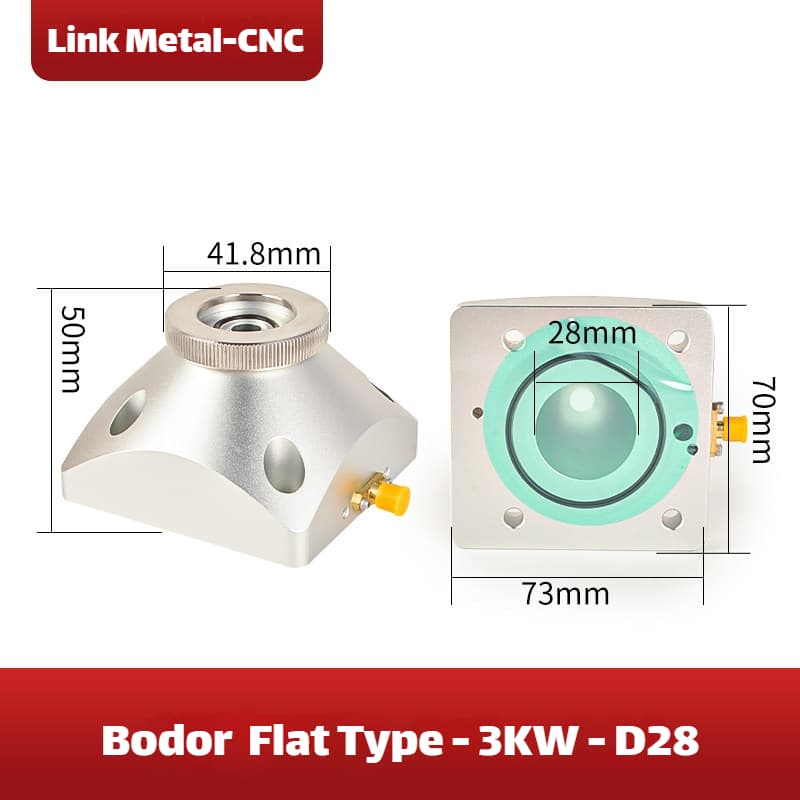

• Flat Type - 3kW - D28: For BODOR 2D flat cutting heads (3kW power, D28 nozzle)

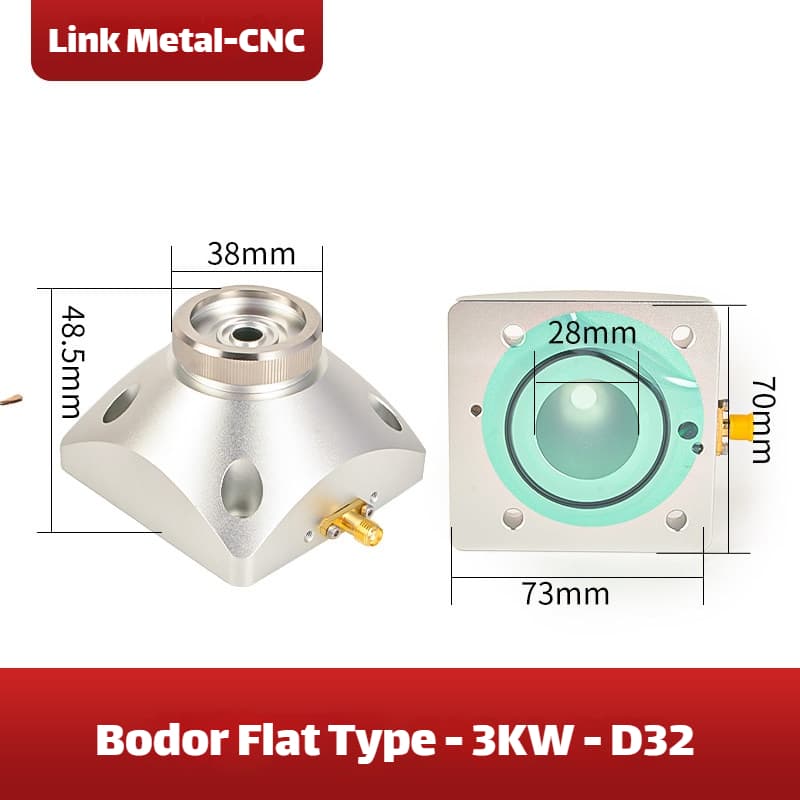

• Flat Type - 3kW - D32: For BODOR 2D flat cutting heads (3kW power, D32 nozzle)

3D Type (Robotic Cutting)

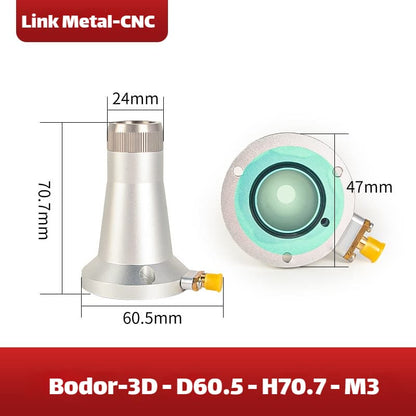

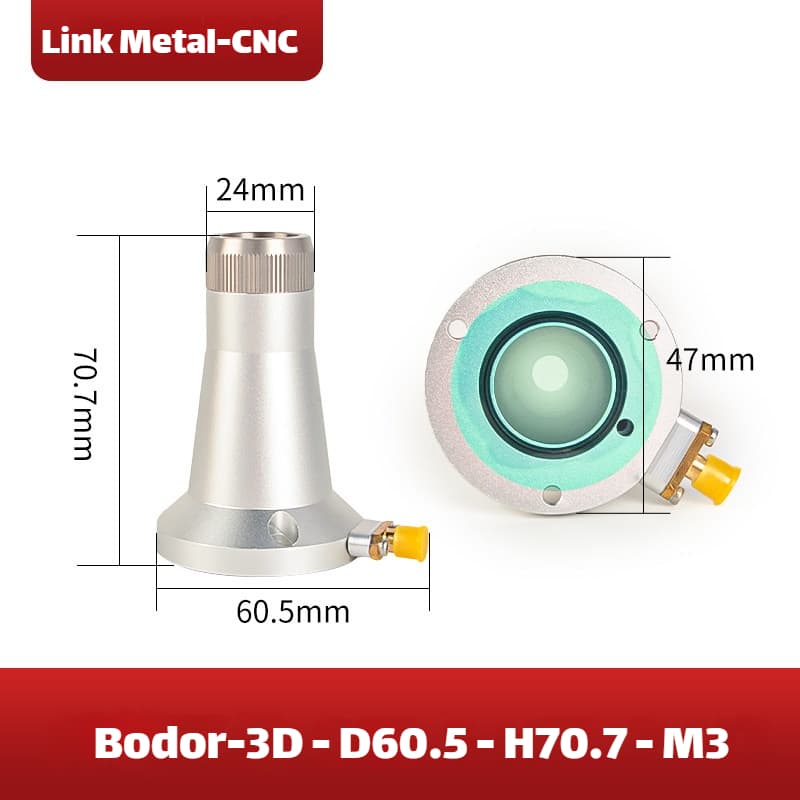

• 3D - D60.5 - H70.7 - M3: For BODOR 3D robotic cutting heads (M3 thread)

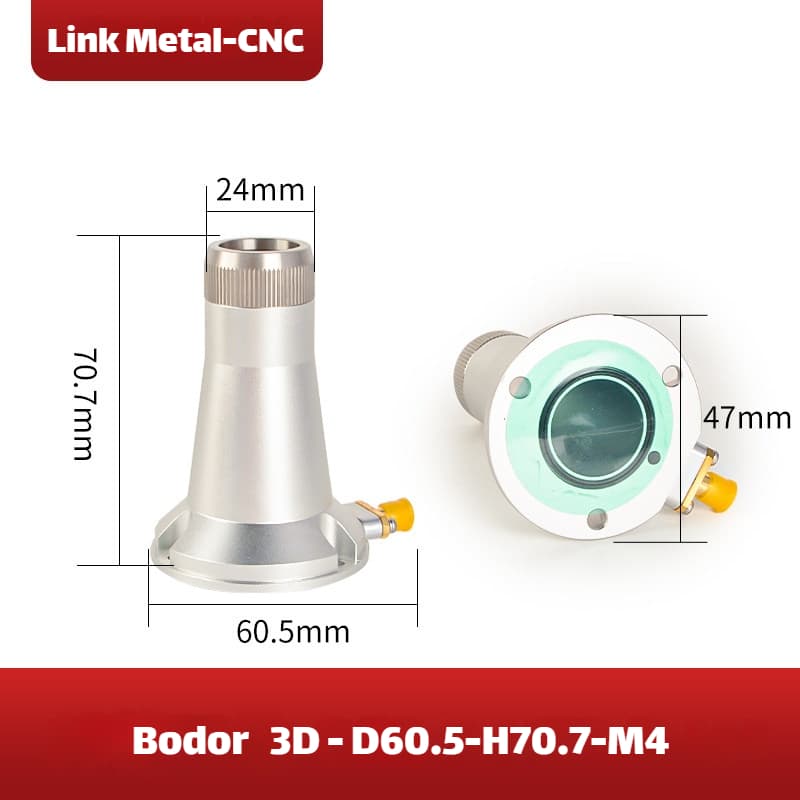

• 3D - D60.5 - H70.7 - M4: For BODOR 3D robotic cutting heads (M4 thread)

Custom Specifications Available: For custom BODOR models or other laser cutting head consumables, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Selected Link Metal CNC BODOR Capacitive Height Sensor / Nozzle Connector
• 1 x Specialized Shockproof Anti-static Protective Packaging

Quality Assurance

All BODOR laser parts from Link Metal CNC undergo strict quality inspection before delivery, including dimensional accuracy inspection, sensor performance calibration, connector precision verification and durability test.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable mechanical and sensing performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What is the difference between Flat Type - D28 and Flat Type - D32?
A: The main difference is the nozzle diameter. D28 is designed for BODOR cutting heads that use 28mm diameter nozzles, while D32 is for those that use 32mm diameter nozzles. They are not interchangeable. Always select the exact diameter that matches your original part.

Q: What is the difference between 3D - M3 and 3D - M4?
A: The main difference is the thread size. M3 has a 3mm thread diameter while M4 has a 4mm thread diameter. They are designed for different generations of BODOR 3D cutting heads and are not interchangeable. Always check the thread size of your original part before ordering.

Q: Can I purchase just the sensor or just the connector separately?
A: Yes, we offer both complete assemblies and individual components. If you only need to replace one part, please contact our sales team and specify which component you require. However, replacing the entire assembly is recommended for optimal performance and reliability.

Q: How often should I replace the nozzle connector/sensor?
A: Under normal operating conditions, a nozzle connector/sensor assembly should last 3-6 months. However, it should be replaced immediately if you notice any damage, deformation, or if the height follow system becomes unstable. Frequent collisions will significantly shorten its service life.

Q: Do I need to recalibrate the height follow system after replacement?
A: No, our BODOR nozzle connectors and sensors are pre-calibrated to match original factory specifications. They are designed for direct plug and play installation with no additional debugging or recalibration required.
