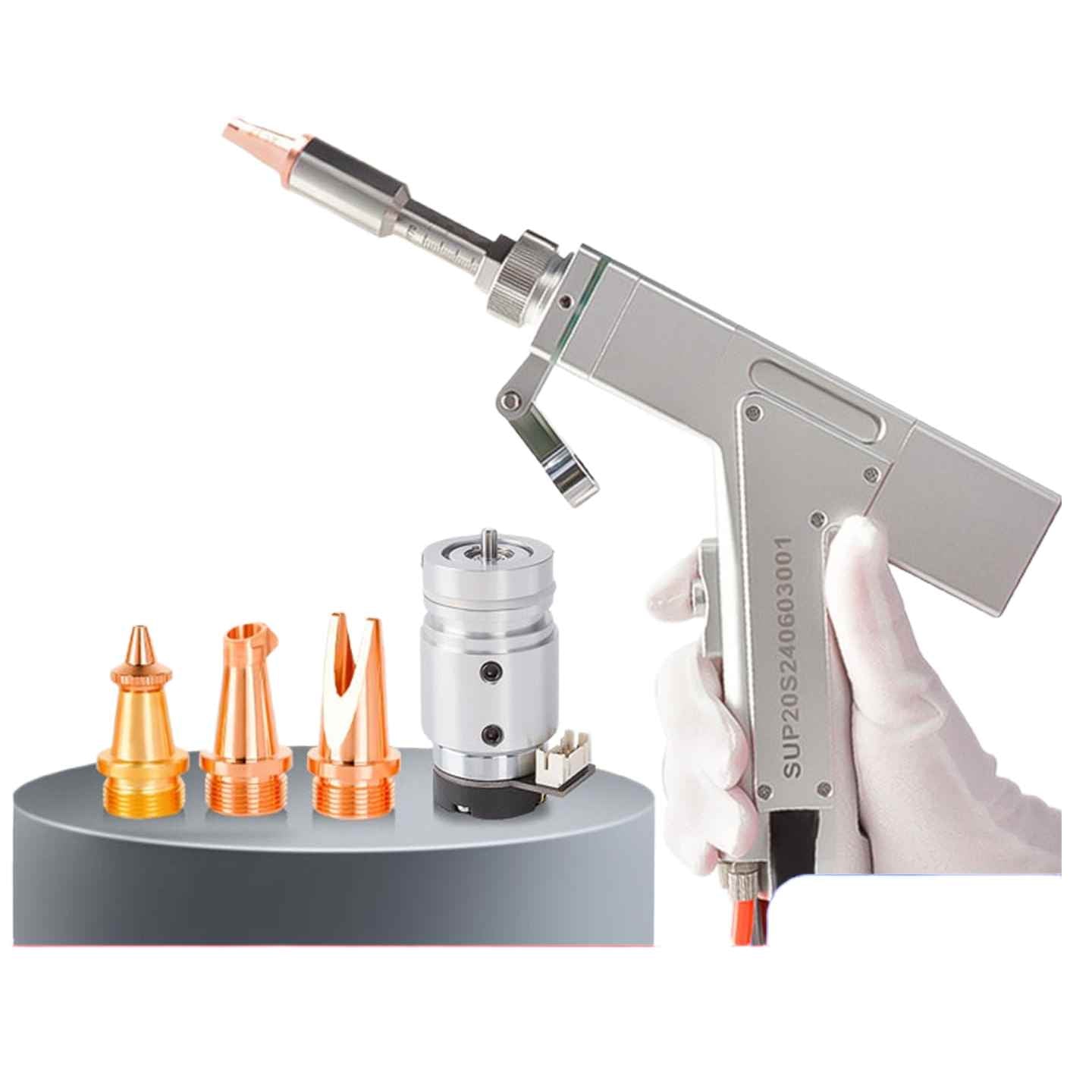

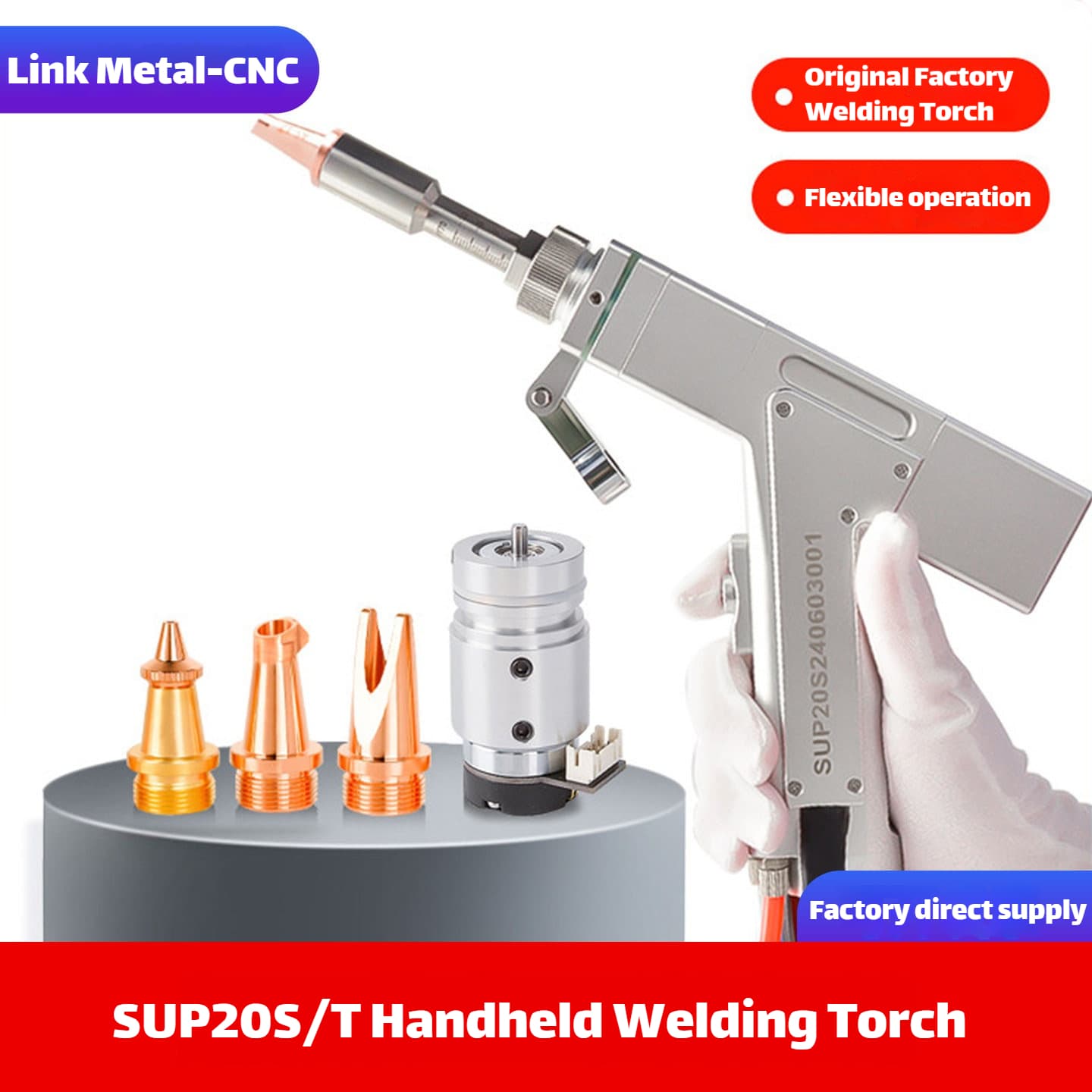

CQWY SUP20S/T Handheld Laser Welding Torch & Replacement Parts

Professional industrial-grade handheld laser welding torch and original replacement parts, 1:1 OEM fit for CQWY (Chaoqiang Weiye) SUP20S/T handheld fiber laser welding guns. This product is a core component and essential consumable for fiber laser welding equipment. With stable performance, perfect fit, and easy installation and replacement, it can effectively reduce equipment downtime, improve welding efficiency and production stability.

This complete product series includes the full welding torch assembly and all replacement parts for the CQWY SUP20S/T. All products are manufactured with strict quality control to match original factory parameters, providing reliable performance in demanding industrial welding environments.

Key Advantages of Our CQWY SUP20S/T Welding Torch & Parts

• 1:1 OEM Perfect Fit: Exact match for original CQWY SUP20S/T welding torch parameters. Direct plug and play installation with no additional debugging required, compatible with both original and compatible fiber laser welding machines.
• High-Quality Aviation Aluminum Torch Body: Made from premium aviation aluminum with excellent high temperature resistance and corrosion resistance. Ergonomic design provides comfortable grip and allows for long-term operation without fatigue.
• Precision Machined Replacement Parts: Strict size tolerance control ensures tight fit, no air leakage, and no offset. Will not damage the internal optical components of the welding torch.
• Imported High-Purity Fused Silica Optics: Features imported high-purity fused silica optical lenses with double-sided anti-reflection coating. High light transmittance up to 99.8%+, high laser damage threshold, stable welding effect, and long service life.
• Full Set One-Stop Procurement: Complete range of 20+ welding torch and replacement parts available. Meet all your daily maintenance and replacement needs for the SUP20S/T welding torch in one place.
• Reliable Quality Assurance: All products undergo rigorous testing before delivery to ensure stable performance and long service life, reducing your maintenance costs and downtime.
• Broad Industrial Applicability: Suitable for all 1064nm fiber laser welding machines with power ranging from 1000W to 2000W, widely used in sheet metal welding, hardware processing, automotive parts manufacturing and other industrial fields.

Compatible Equipment & Available Products

Compatible Equipment

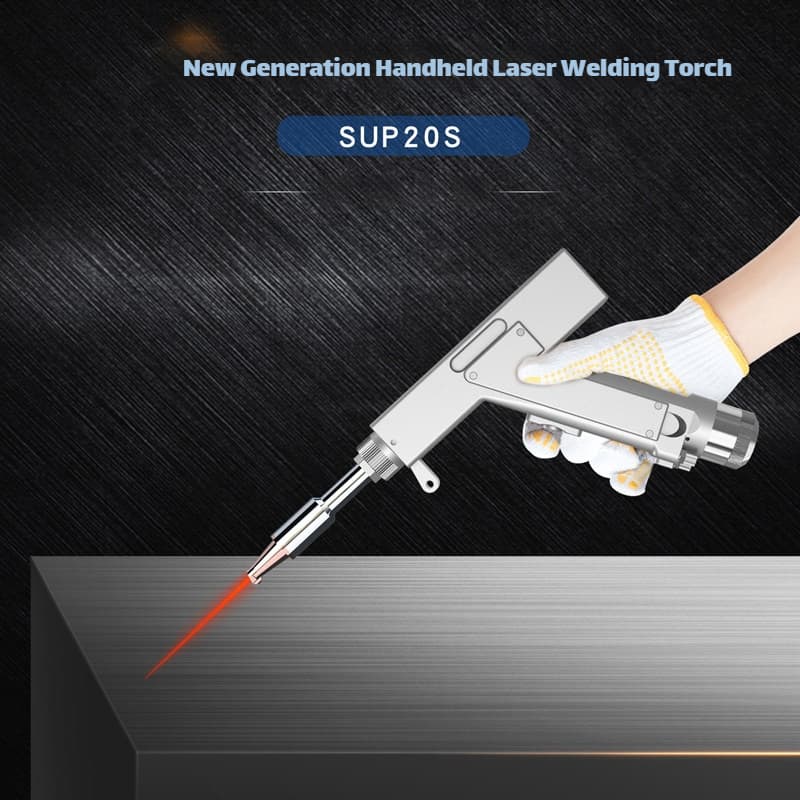

• CQWY (Chaoqiang Weiye) SUP20S Handheld Fiber Laser Welding Torch
• CQWY (Chaoqiang Weiye) SUP20T Handheld Fiber Laser Welding Torch
• All 1000W-2000W Fiber Laser Welding Machines Compatible with SUP20S/T
• Handheld Laser Welding Equipment

Available Products (Full Set)

Optical Components

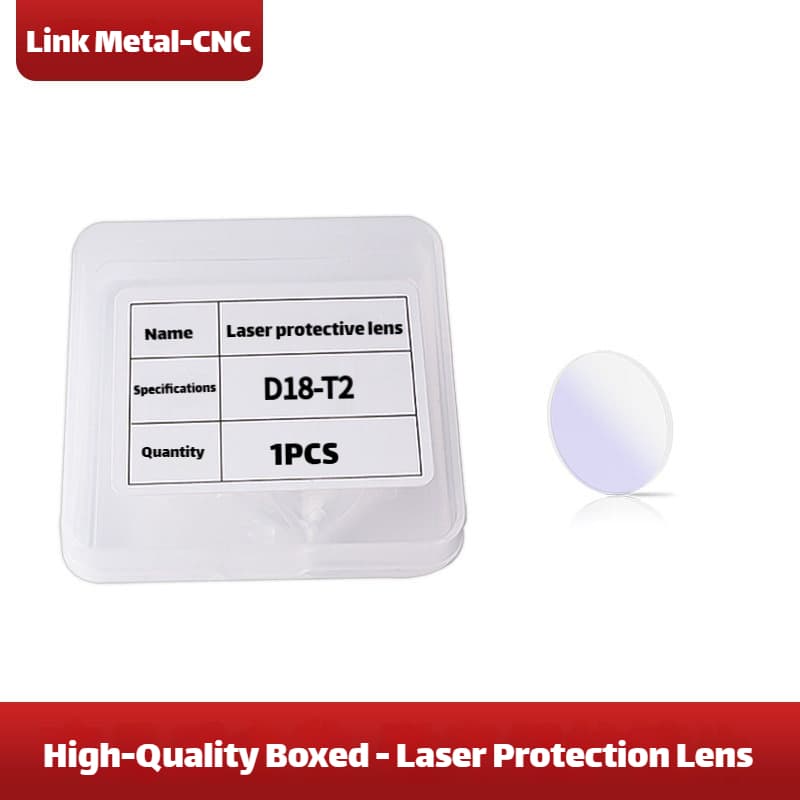

• Protective Lens D18×T2mm: Individual protective lens (bare lens)

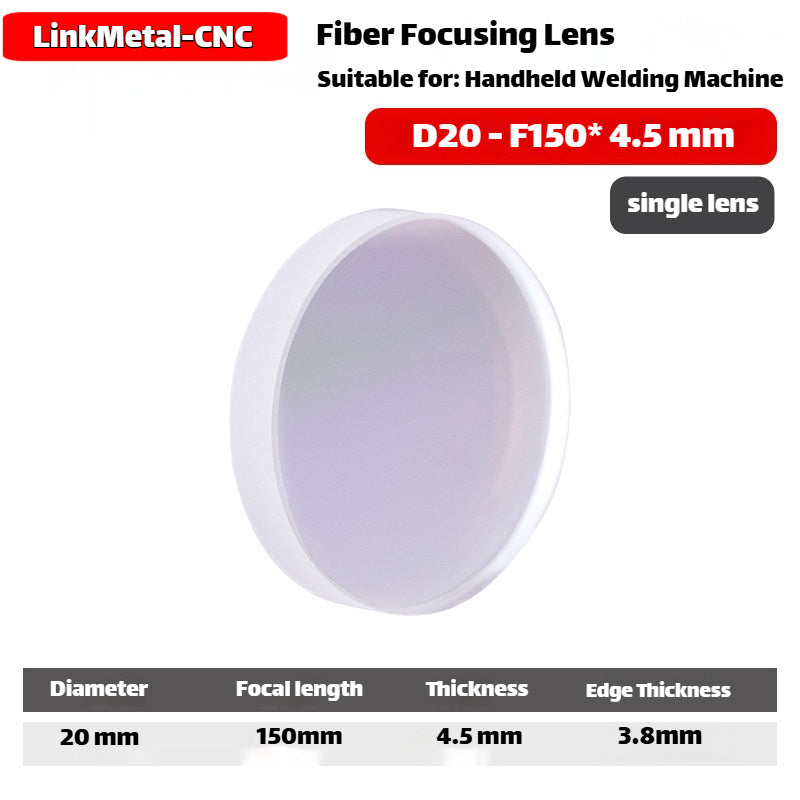

• Focusing Lens D20×F150×4.5mm: Individual focusing lens (bare lens)

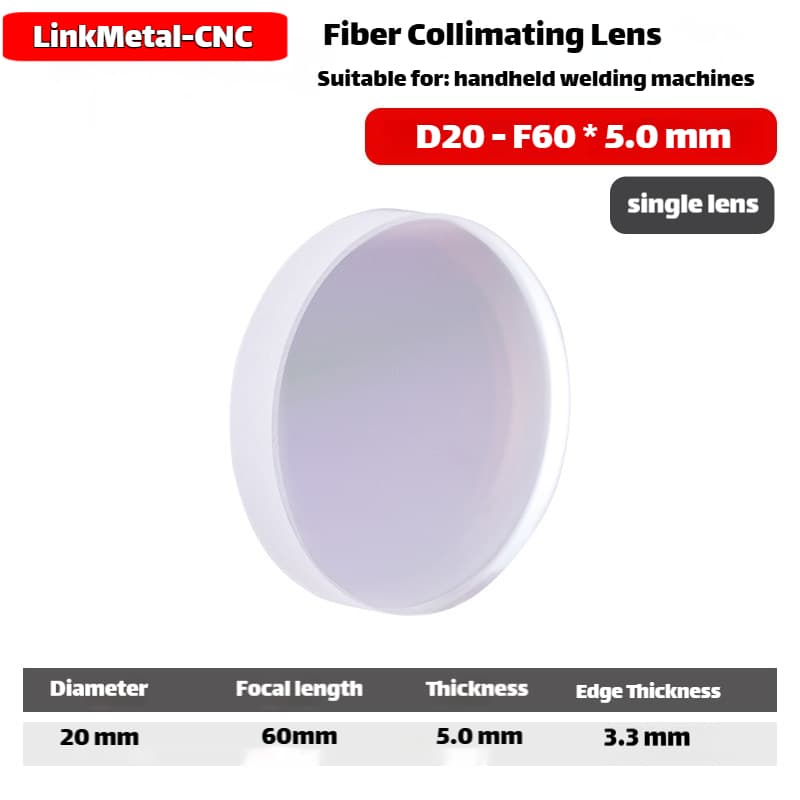

• Collimating Lens D20×F60×5.0mm: Individual collimating lens (bare lens)

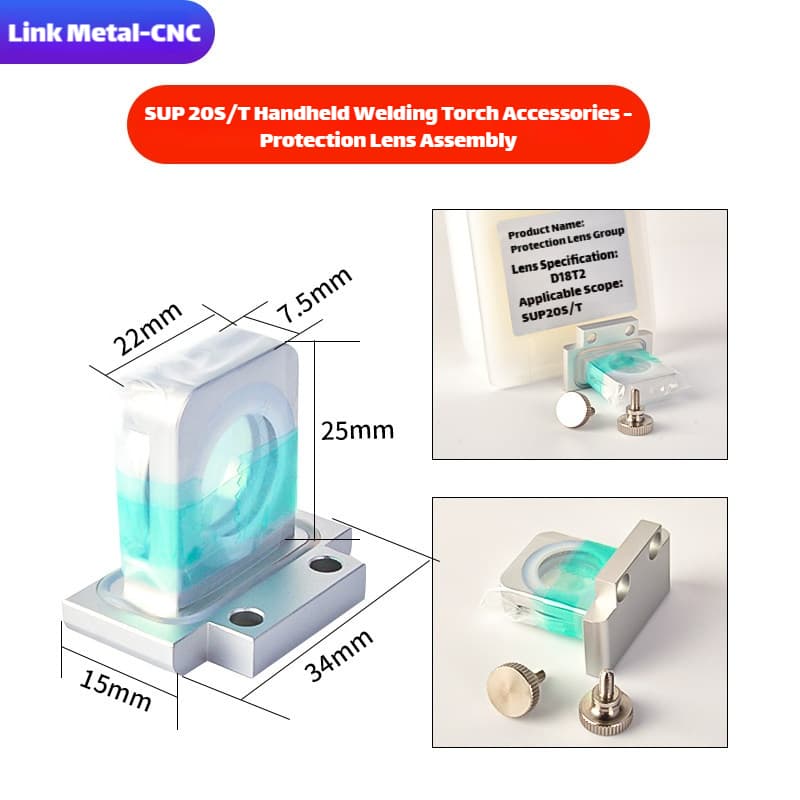

• Protective Lens Assembly: Complete protective lens assembly with housing
• Focusing Lens Assembly: Complete focusing lens assembly with housing

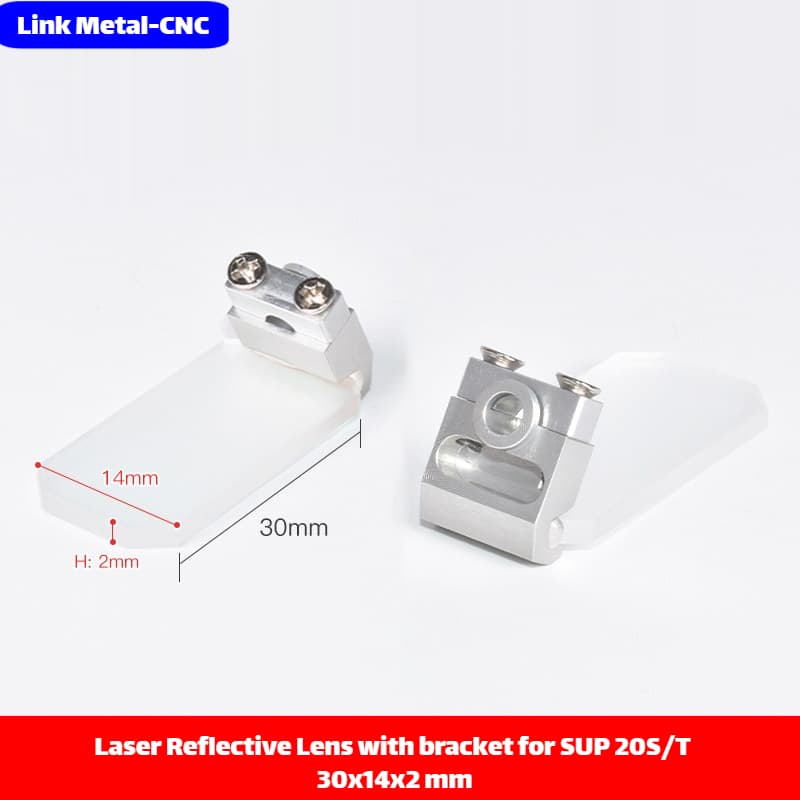

• 30×14×2mm Reflective Lens with Bracket: Reflective lens with pre-installed bracket

Mechanical Components

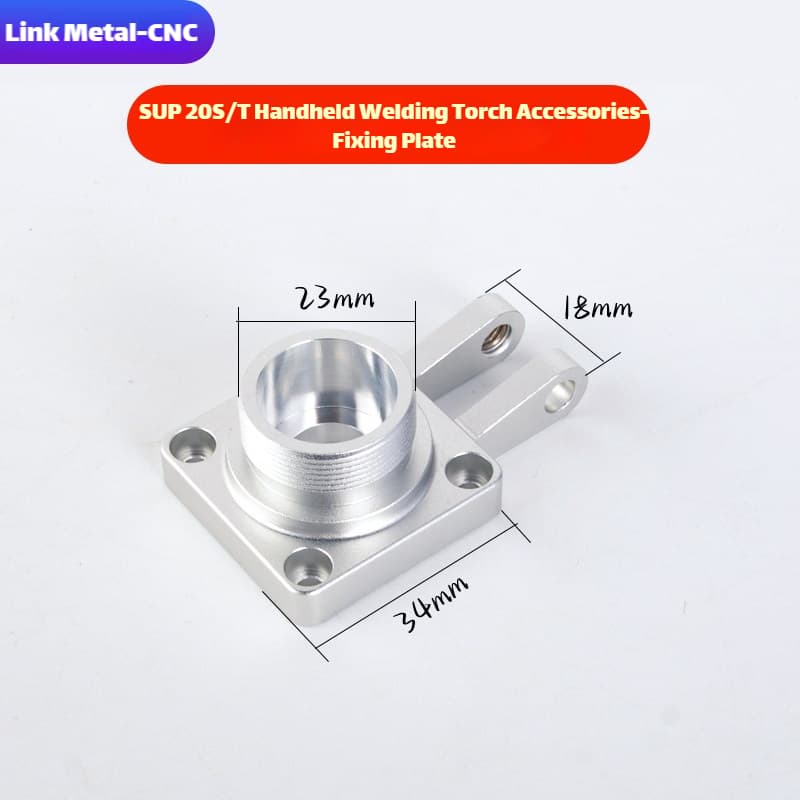

• Fixed Block: Main fixed block for the welding torch

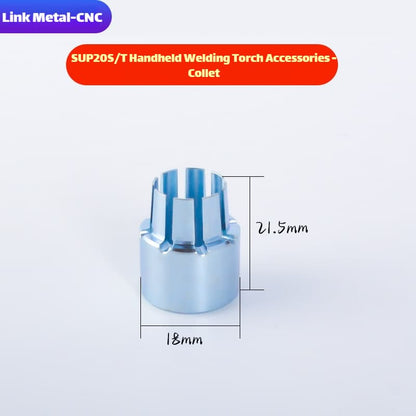

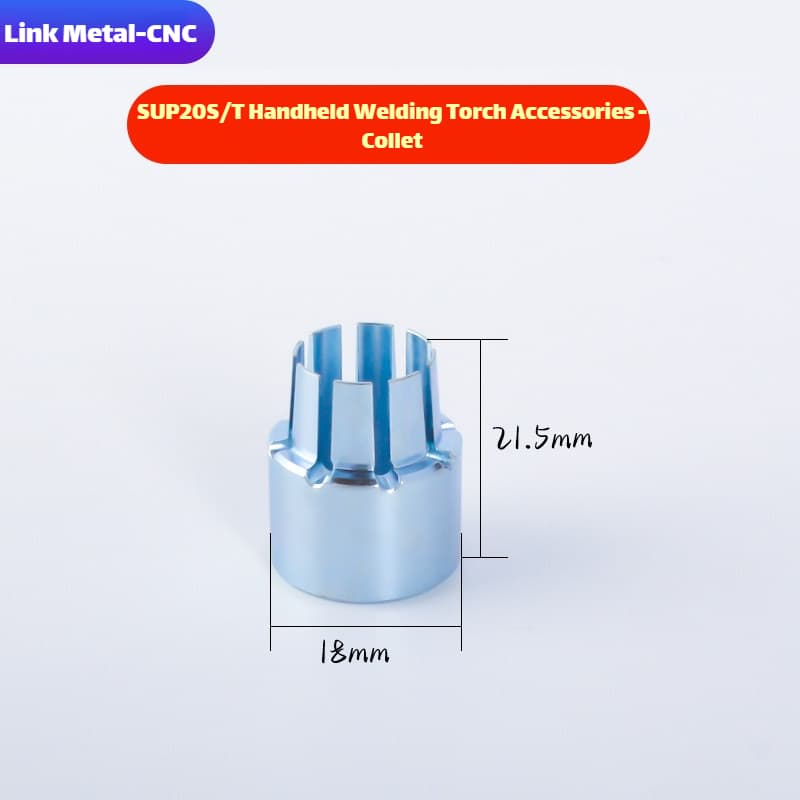

• Collet: Copper collet for holding the welding nozzle

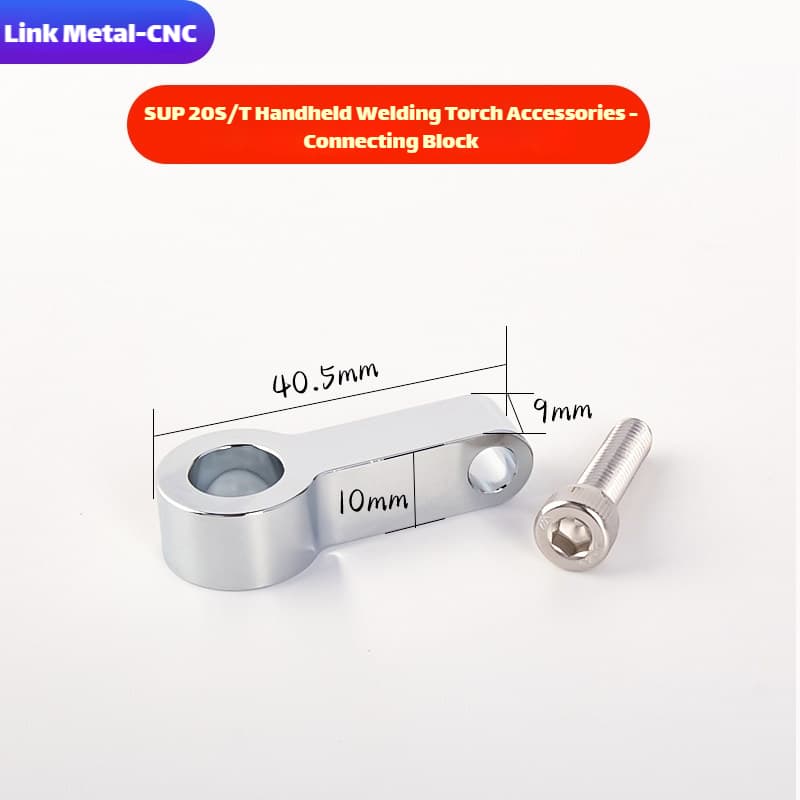

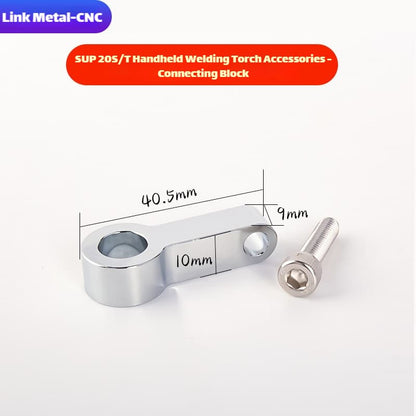

• Connecting Block: Main connection block between the torch body and cable

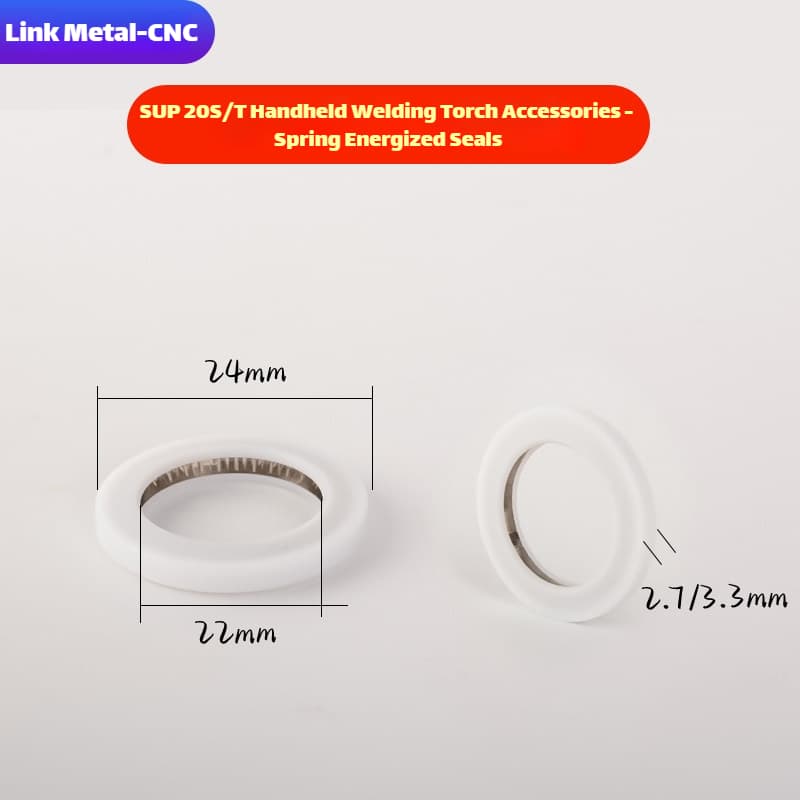

• Sealing Ring: Sealing ring for optical components

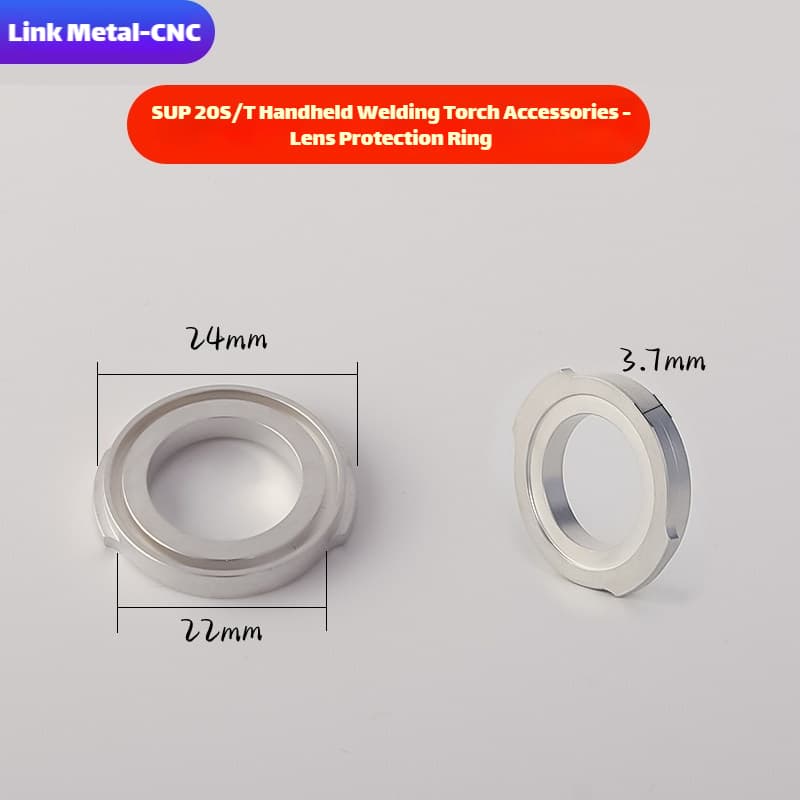

• Protective Lens Retaining Ring: Retaining ring for the protective lens

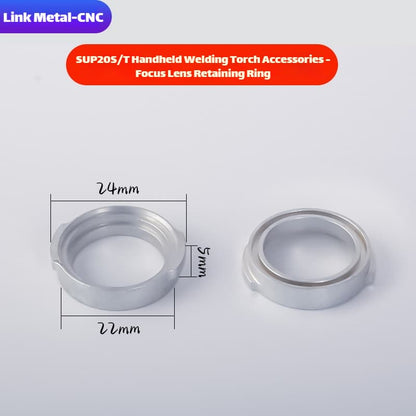

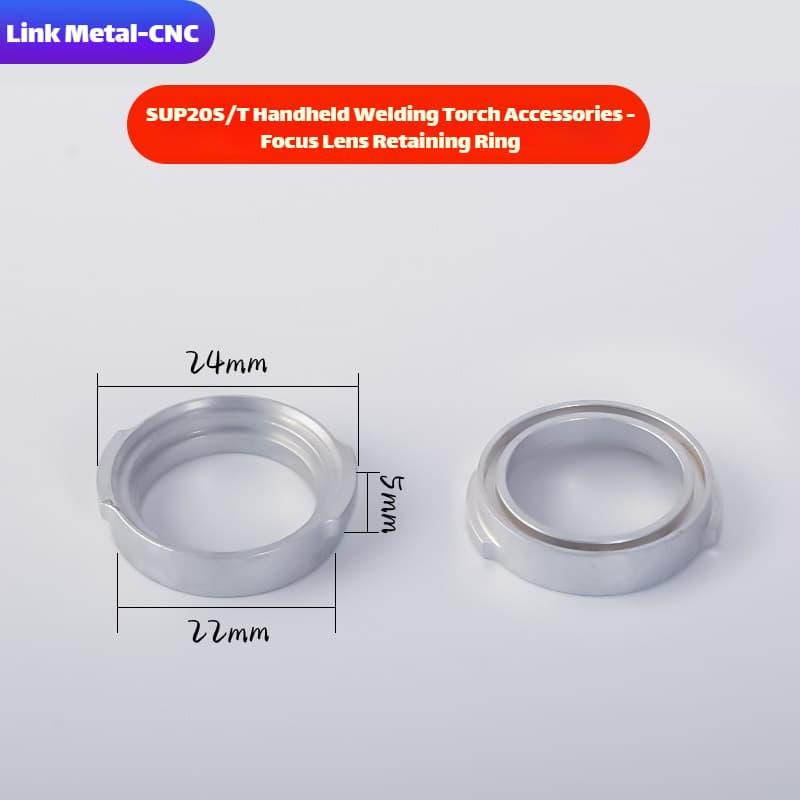

• Focusing Lens Retaining Ring: Retaining ring for the focusing lens

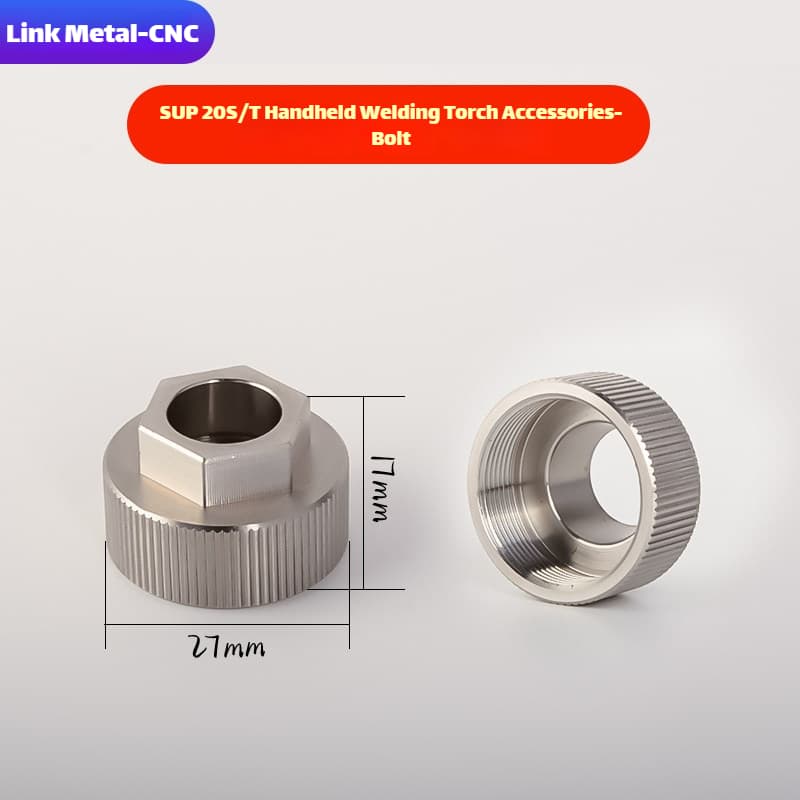

• Bolt: Replacement bolt set

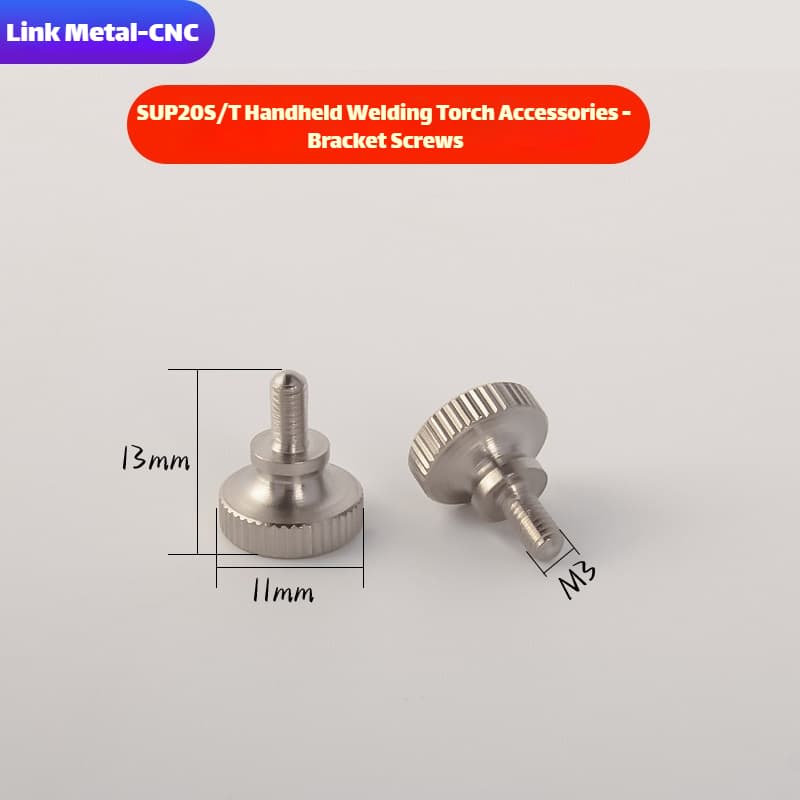

• Protective Lens Bracket Screw: Screws for the protective lens bracket

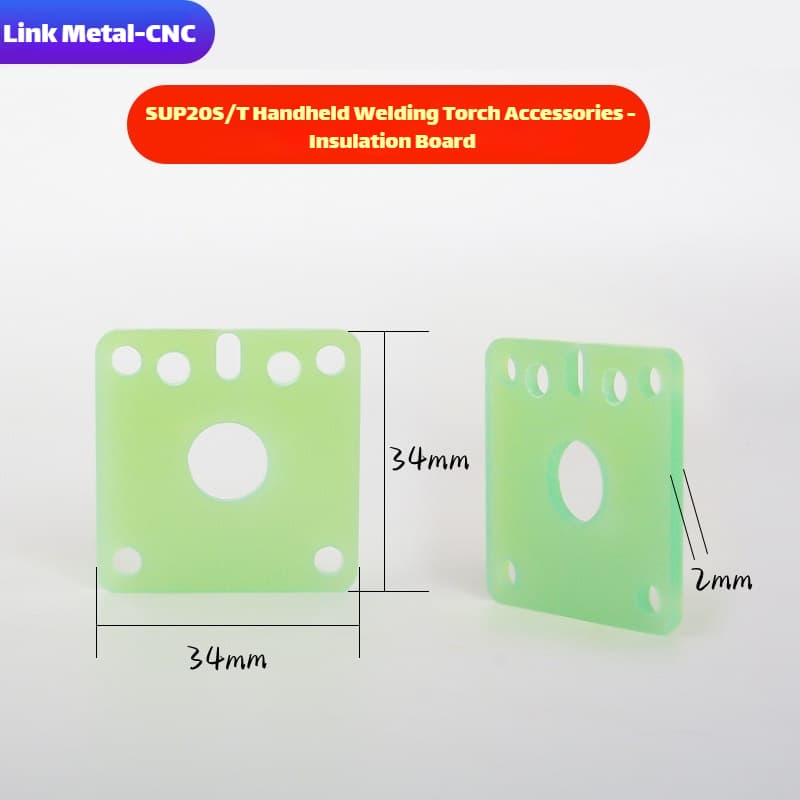

• Insulating Plate: Insulating plate for electrical isolation

Electrical Components

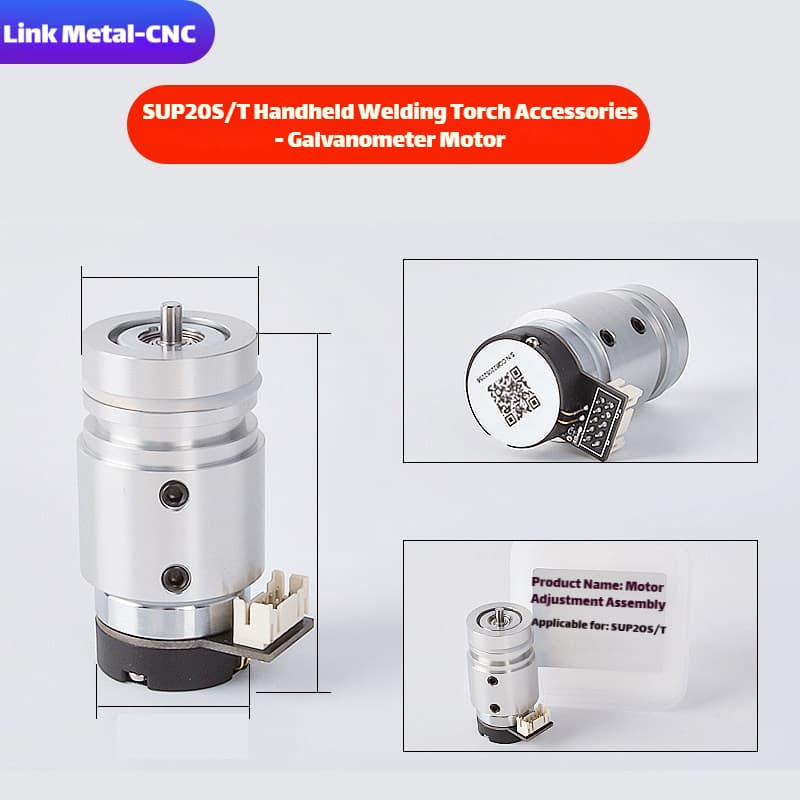

• Galvo Motor: Replacement galvo motor for the welding torch

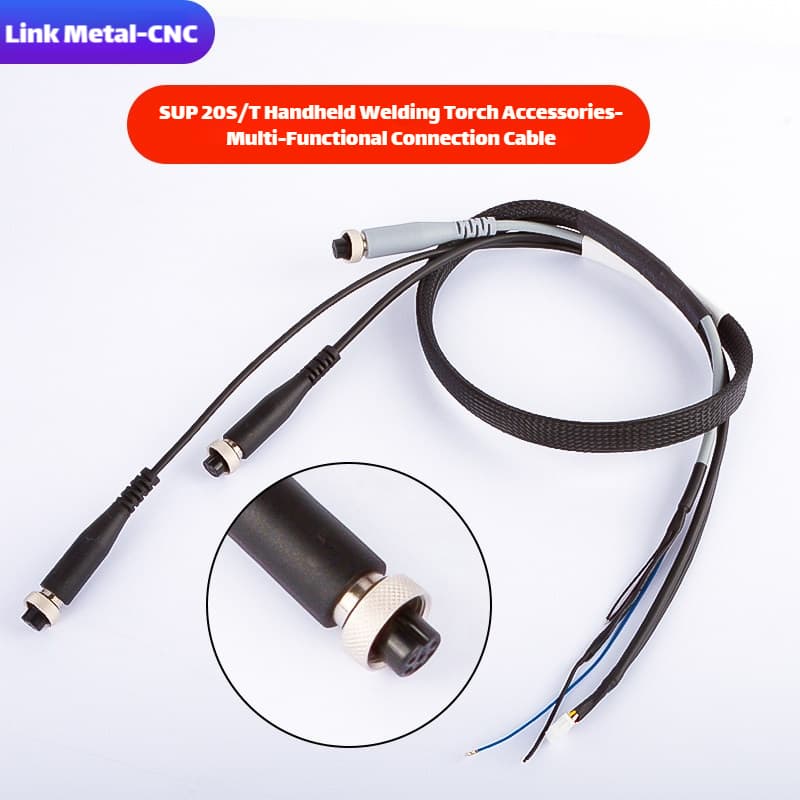

• Multi-functional Connecting Cable Short Version: Short internal connecting cable

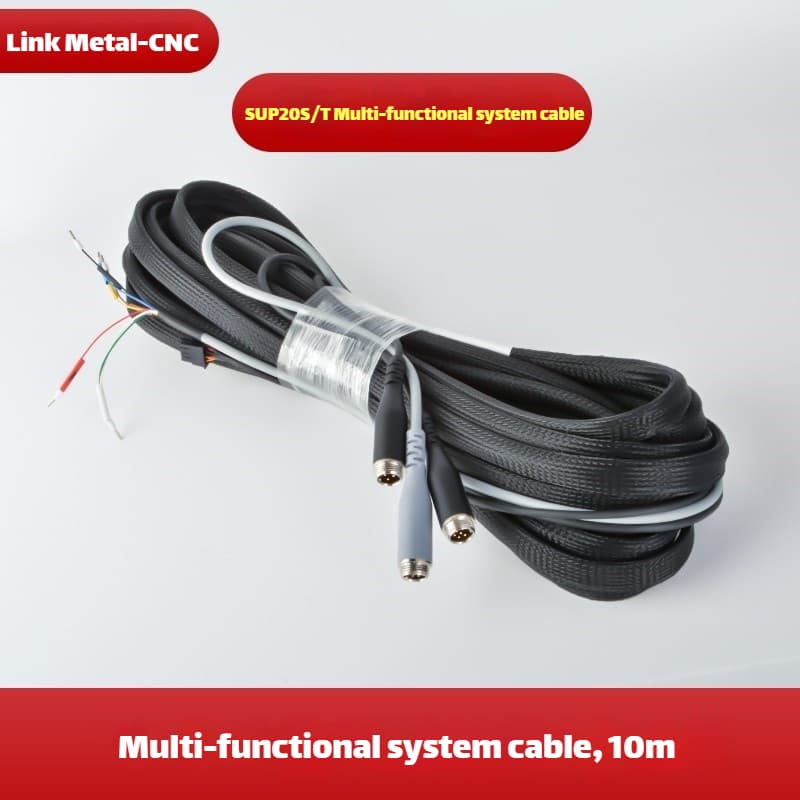

• Multi-functional Connecting Cable 10m: 10-meter main connecting cable

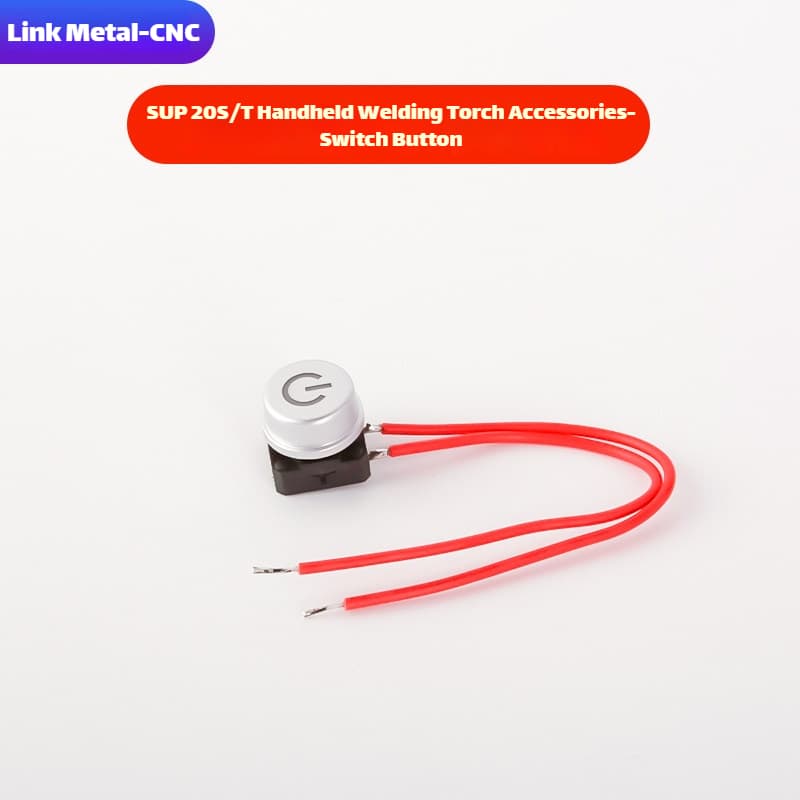

• Switch Button: Replacement trigger switch button

Custom Parts Available: For custom parts or other welding torch models, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Selected Product (Welding Torch Assembly / Replacement Part / Accessory Kit)
• 1 x Specialized Dust-Proof Anti-static Protective Packaging

Quality Assurance

All CQWY SUP20S/T welding torches and replacement parts from Link Metal CNC undergo strict quality testing before delivery, including dimensional accuracy inspection, optical performance test, air tightness test and fit testing.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What is the difference between SUP20S and SUP20T?
A: SUP20S and SUP20T are two similar models of CQWY handheld laser welding torches with minor differences in internal structure. Most replacement parts are interchangeable between the two models, but we always recommend verifying compatibility with your specific torch model before ordering.

Q: What power range is this welding torch suitable for?
A: The CQWY SUP20S/T welding torch is designed for fiber laser welding machines with power ranging from 1000W to 2000W. It is compatible with most mainstream laser welding machines on the market that use the SUP20S/T interface.

Q: How often should I replace the protective lens?
A: Under normal operating conditions, the protective lens should be replaced every 1-2 weeks. However, it should be replaced immediately if you notice any film burning, scratches, or if welding quality deteriorates. Frequent welding of reflective materials like aluminum and copper will accelerate contamination.

Q: Can I purchase individual replacement parts separately?
A: Yes, we offer both the complete welding torch assembly and all individual replacement parts separately. You can select exactly what you need from our product options, allowing you to save money by only replacing the damaged components.

Q: Are the optical lenses compatible with other CQWY models?
A: No, optical lenses are model specific due to different dimensions and focal lengths. The D18×T2mm protective lens, D20×F150×4.5mm focusing lens and D20×F60×5.0mm collimating lens are specifically designed for the SUP20S/T and are not compatible with other CQWY models like the SUP23T.
