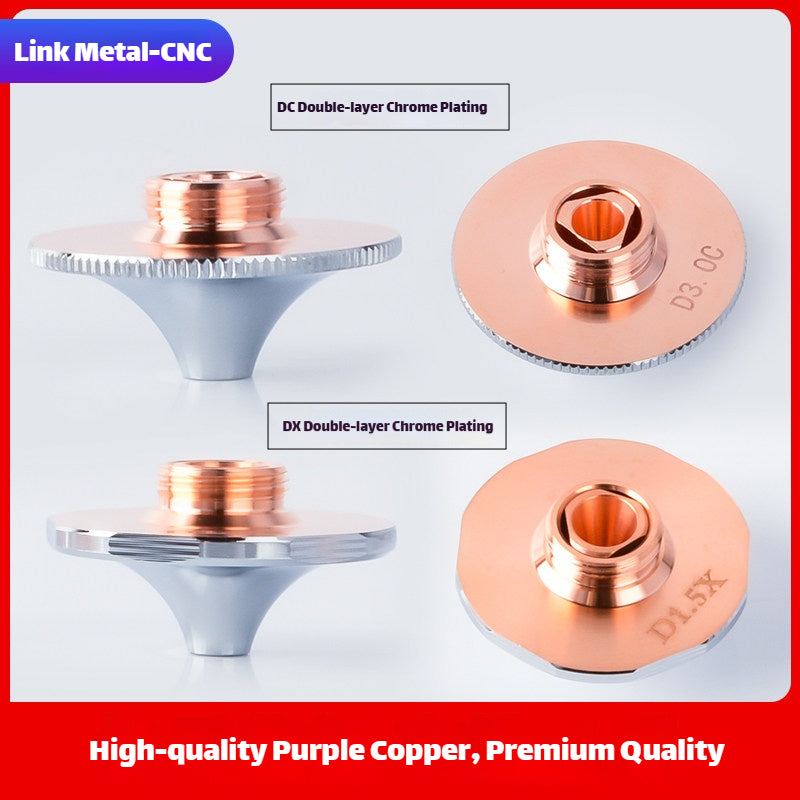

Link Metal CNC DX Hexagonal Style Double-Layer Chrome-Plated High-Speed Laser Cutting Nozzle

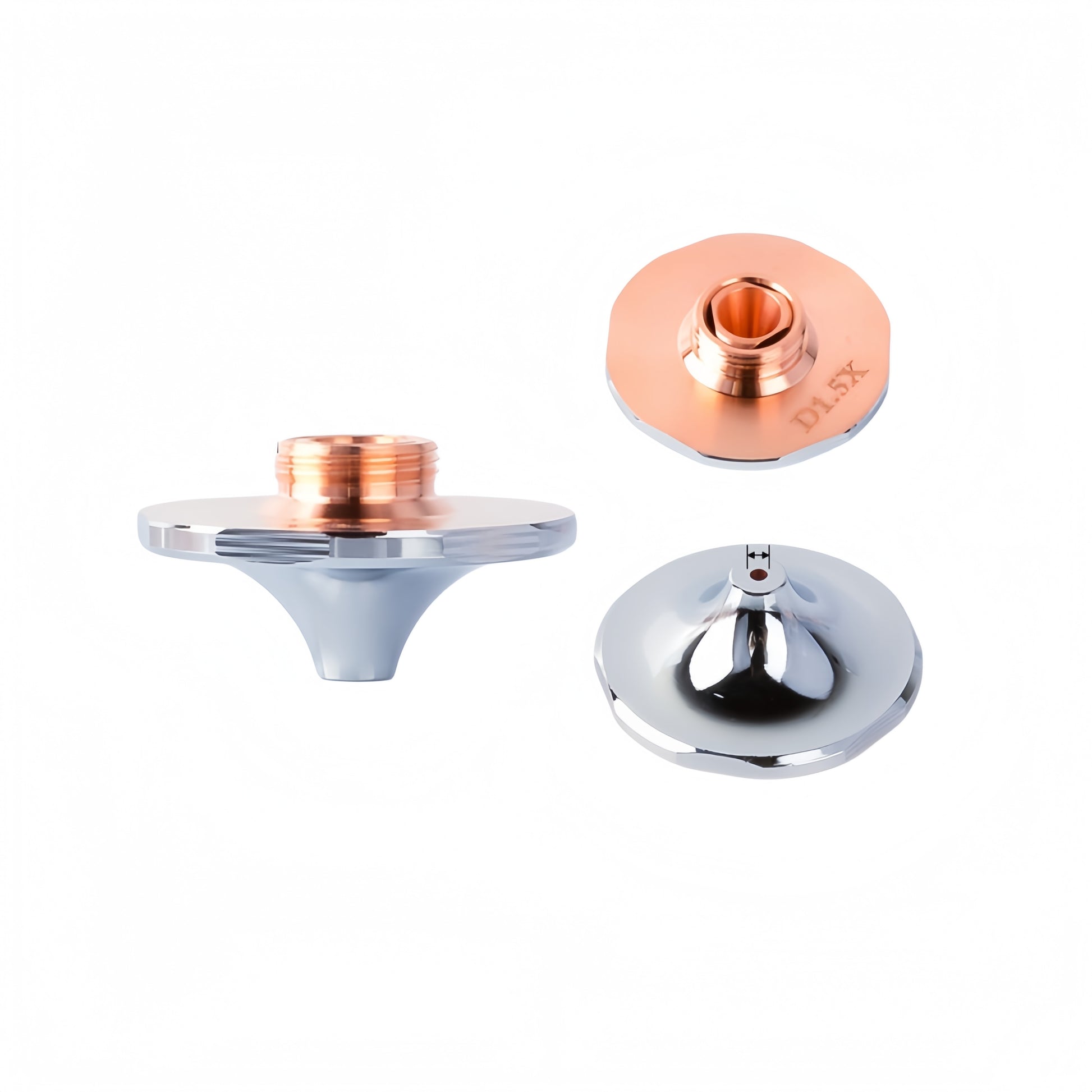

DX Hexagonal Style Double-Layer Chrome Plated High-Speed Laser Nozzle

Professional industrial-grade DX hexagonal style double-layer high-speed laser cutting nozzles with precision chrome-plated surface, specially designed for high-speed flying cutting of fiber laser cutting machines. As an essential core consumable for high-efficiency laser processing, our DX nozzle features an exclusive hexagonal positioning structure and optimized double-layer airflow design for stable cutting performance and extended service life.

All products are manufactured with high-purity oxygen-free red copper material and ultra-precision CNC machining for perfect fit and reliable operation in demanding industrial production environments.

Key Advantages of Our DX Hexagonal Laser Nozzles

• Exclusive DX Hexagonal Positioning Structure: Standard hexagonal design provides non-slip grip for easy tightening and accurate centering installation. Ensures firm positioning without loosening even during high-speed cutting, delivering perfect sealing and no air pressure leakage for stable airflow output.
• Optimized Double-Layer Airflow Structure: Professional convergent airflow cavity design effectively reduces airflow turbulence, improves airflow convergence and stability. Maintains consistent air pressure during high-speed flying cutting, drastically increasing cutting speed and improving section finish.

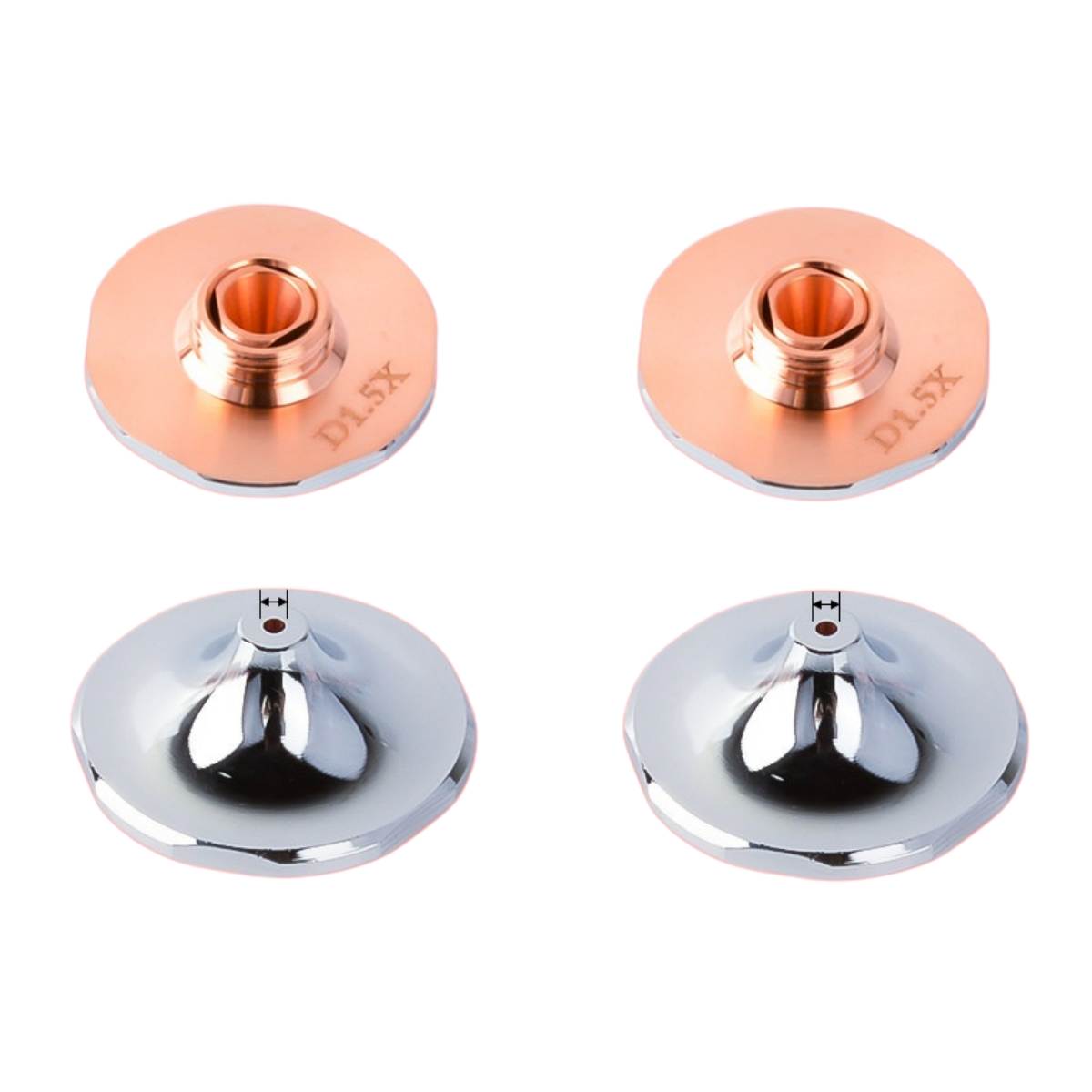

• Precision Hard Chrome Plated Surface: Advanced chrome plating treatment provides significantly enhanced wear resistance and anti-spatter performance. Resists slag adhesion, is easy to clean, and delivers excellent high temperature resistance and anti-oxidation properties, extending service life by 3+ times compared to standard copper nozzles.
• High-Purity Oxygen-Free Red Copper Construction: Made from premium 99.95% oxygen-free red copper for exceptional thermal conductivity. Resists deformation even during long-term high-power high-speed cutting operations, ensuring stable performance and long service life.
• Ultra-High Precision CNC Machining: Strict dimensional tolerance control with mirror-polished inner hole ensures smooth, non-divergent airflow. Effectively reduces cutting burrs and slag hanging, optimizes section finish, and eliminates subsequent polishing processes.
• Broad Industrial Applicability: Ideal for high-speed cutting of stainless steel, carbon steel, aluminum alloy, galvanized sheet, copper plate and other metal materials. Widely used in sheet metal processing, hardware manufacturing, automotive parts production and other industrial scenarios.

Compatible Equipment & Product Type

Compatible Equipment

• All Mainstream Fiber Laser Cutting Machines with DX Interface
• Raytools, Precitec, WSX, Bodor, OSPRI Laser Cutting Heads with DX Interface

Available DX Hexagonal Nozzle Type

• Double-Layer Chrome Plated Laser Nozzle: Optimized for high-speed flying cutting of thin to medium plate materials

Custom Specifications Available: For custom sizes, single layer options or other special laser cutting nozzles, please contact our sales team directly for personalized solutions.

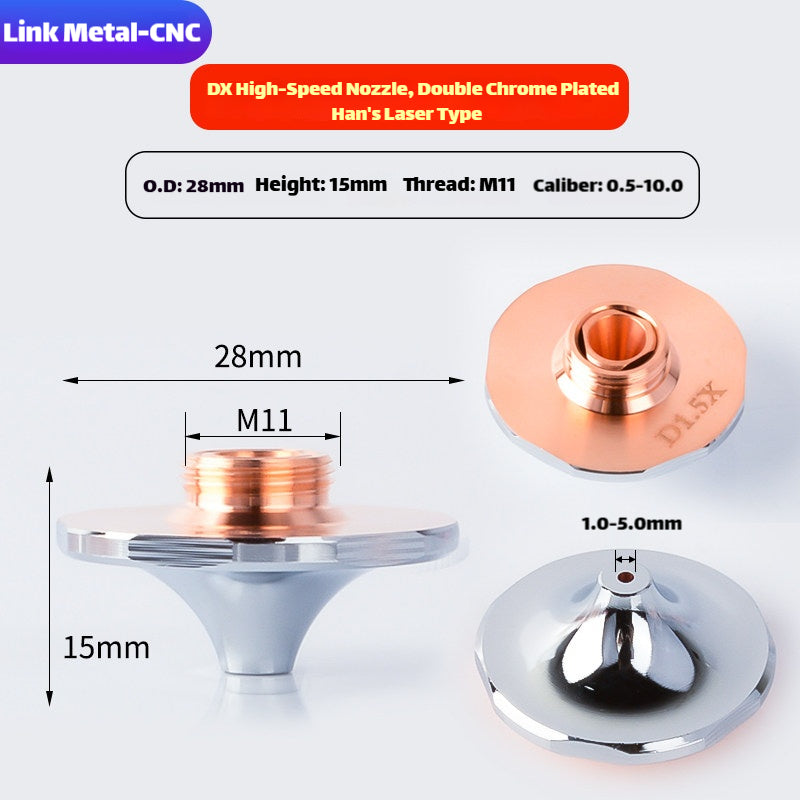

Detailed Technical Specifications

Package Contents

• 1 x Link Metal CNC DX Hexagonal Style Double-Layer Chrome Plated Laser Nozzle
• 1 x Specialized Anti-Static Dust-Proof Protective Packaging

Quality Assurance

Every Link Metal CNC DX hexagonal laser nozzle undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, hexagonal positioning accuracy verification, air tightness test, airflow convergence test and cutting performance assessment.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What is the advantage of the hexagonal design compared to round nozzles?
A: The hexagonal design provides a non-slip grip for easier installation and tightening. It also ensures more accurate centering positioning and firmer fixation, preventing loosening and air leakage during high-speed cutting operations.

Q: What is the difference between DX and DE style laser nozzles?
A: DX nozzles feature a hexagonal interface design, while DE nozzles use a round interface design. They are compatible with different laser cutting head models and cannot be interchanged.

Q: Do you offer single layer DX hexagonal nozzles?
A: Yes, we can provide single layer DX hexagonal nozzles upon request. Single layer nozzles are more cost-effective for general thin plate cutting applications. Please contact our sales team for pricing.
