Link Metal CNC Handheld Laser Welding Torch Scale Tube

Handheld Laser Welding Torch Scale Tube

Industrial grade precision scale tubes, compatible with all mainstream handheld fiber laser welding torches. 1:1 OEM fit, clear laser engraved scale, corrosion-resistant, it is an essential replacement part for laser welding torch maintenance. This product allows for accurate adjustment of welding distance and position, ensuring consistent and high-quality welding results.

This complete product series covers 10 standard specifications and is fully compatible with 5 major brands of handheld laser welding torches on the market. All products are manufactured with strict quality control to match original factory parameters, providing reliable performance in demanding industrial welding environments.

Key Advantages of Our Laser Welding Torch Scale Tubes

• 1:1 OEM Perfect Fit: Exact match for original welding torch parameters. Direct replacement installation with no additional debugging required, compatible with both original and compatible fiber laser welding machines.
• High Precision Machining: Strict size tolerance control ensures tight fit and no loosening during operation. Provides stable and accurate positioning for consistent welding results.
• High Quality Aviation Aluminum: Made from premium aviation aluminum with excellent anti-oxidation and corrosion resistance. Lightweight yet durable, ensuring long service life even in harsh industrial environments.
• Clear Laser Engraved Scale: Features permanent laser engraved scale marks that are not easy to wear or fade. Allows for easy and precise adjustment of welding position and distance.
• Full Specification & Multi-Brand Compatible: Complete range of 10 standard specifications available, fully compatible with Chaoqiang Weiye, Qilin, WSX Wanshunxing, Hanwei and RAYTOOLS welding torches. One-stop procurement for all your scale tube needs.
• Easy Installation & Replacement: Simple and quick installation process. Can be replaced in minutes without any special tools, minimizing production downtime.
• Broad Industrial Applicability: Suitable for all 1064nm fiber laser welding machines with power ranging from 1000W to 3000W, widely used in sheet metal welding, hardware processing, automotive parts manufacturing and other industrial fields.

Compatible Equipment & Available Specifications

Compatible Equipment

• Chaoqiang Weiye (CQWY) Handheld Laser Welding Torches
• Qilin Handheld Laser Welding Torches
• WSX Wanshunxing Handheld Laser Welding Torches
• Hanwei Handheld Laser Welding Torches
• RAYTOOLS Handheld Laser Welding Torches
• All 1000W-3000W Fiber Laser Welding Machines

Available Scale Tube Specifications

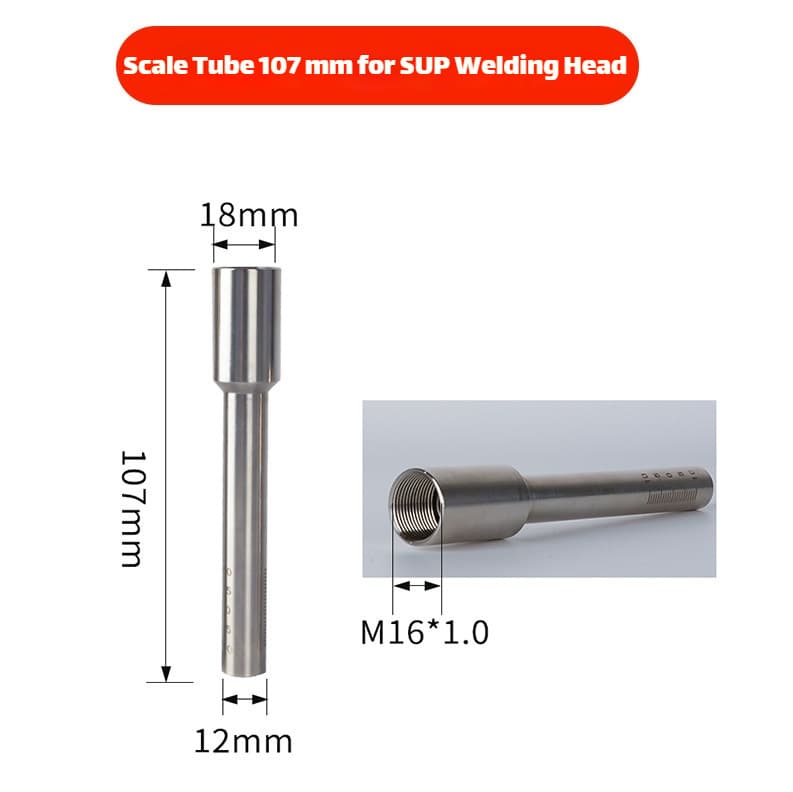

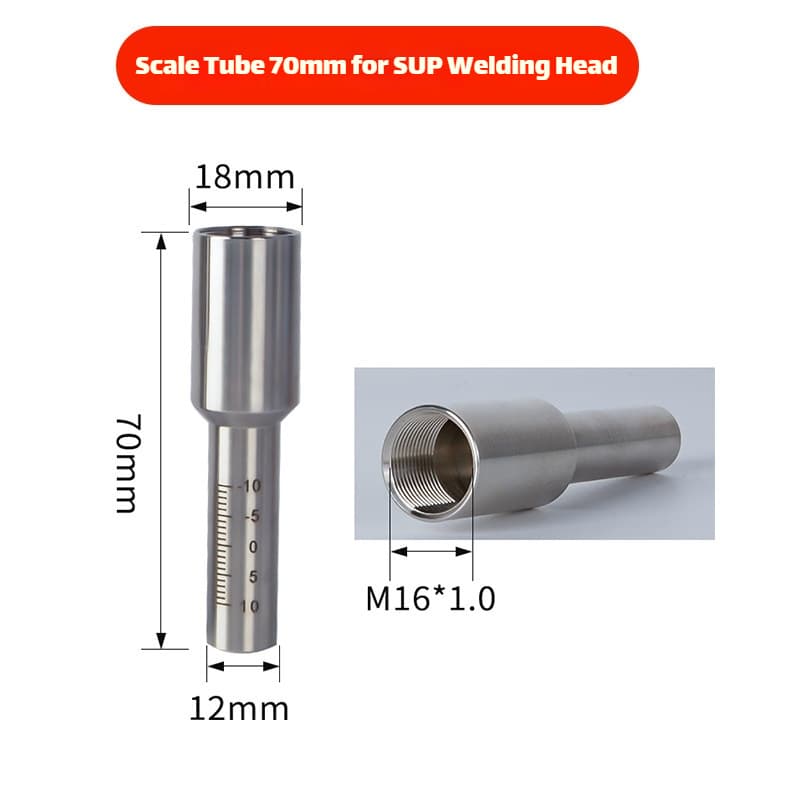

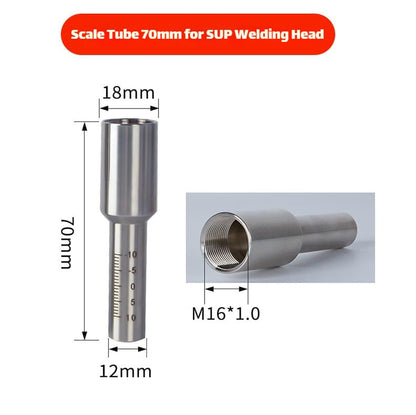

• M16×H70: M16 thread, 70mm height

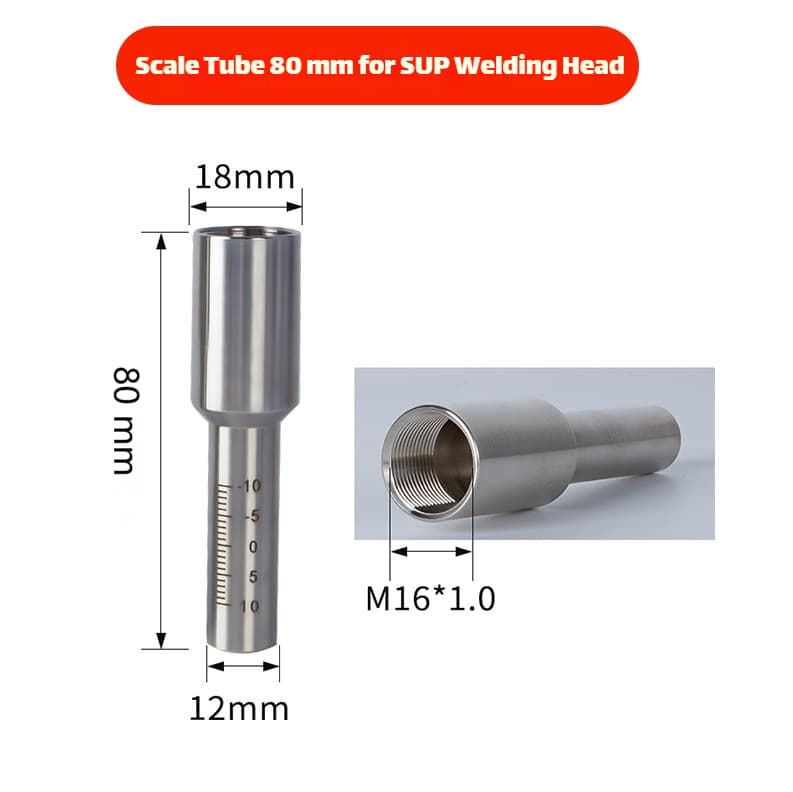

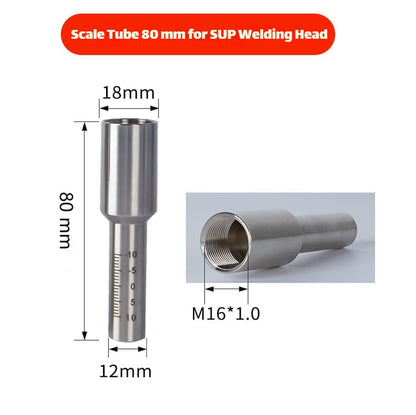

• M16×H80: M16 thread, 80mm height
• M16×H107: M16 thread, 107mm height
• M16×H125: M16 thread, 125mm height

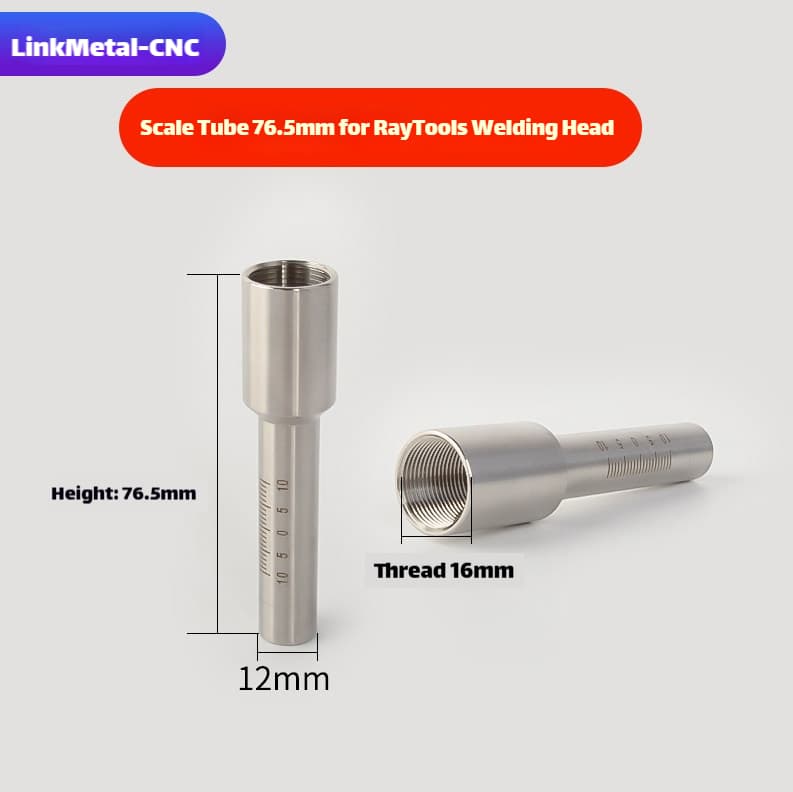

• M16×H76 1.5: M16 thread, 76mm height, 1.5mm pitch

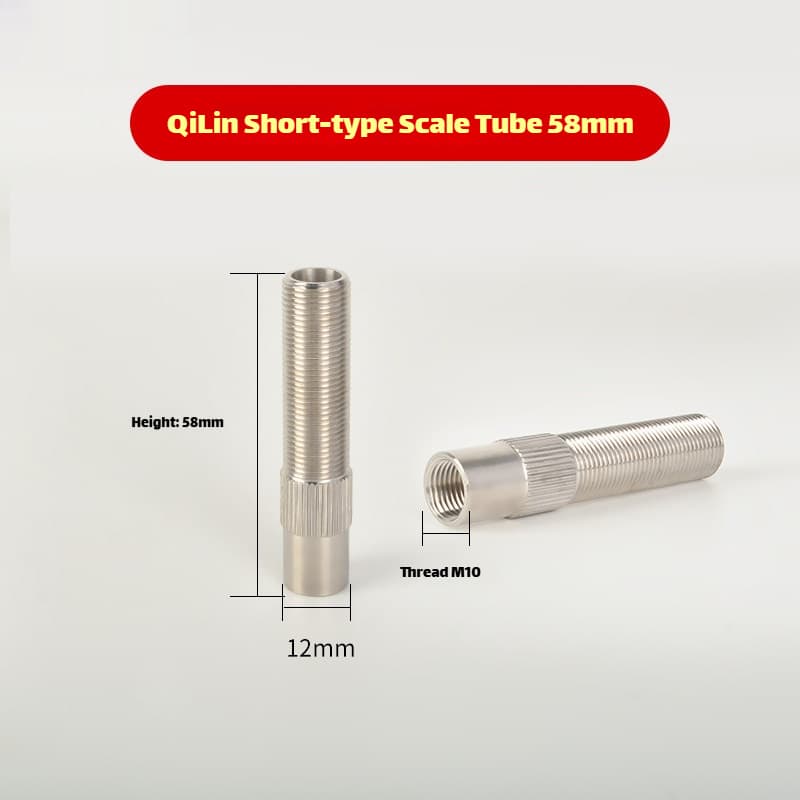

• M10×H58: M10 thread, 58mm height

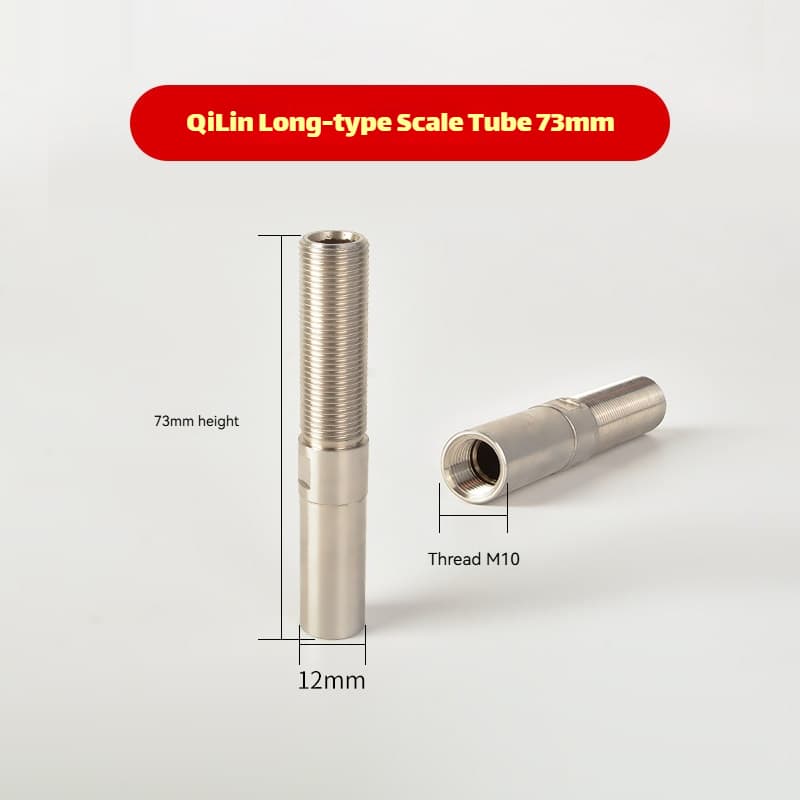

• M10×H73: M10 thread, 73mm height

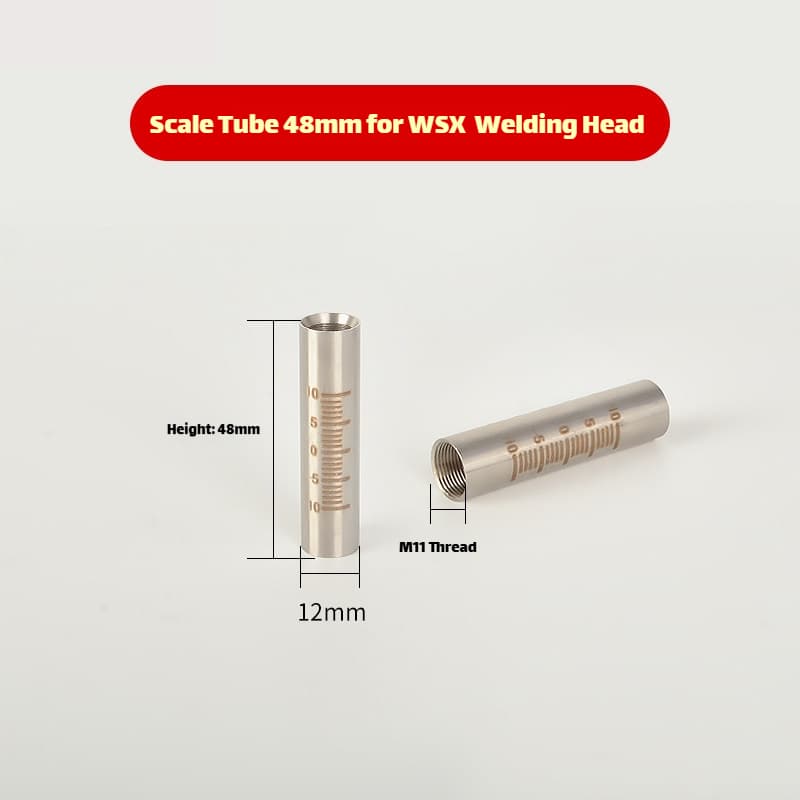

• M11×H48: M11 thread, 48mm height

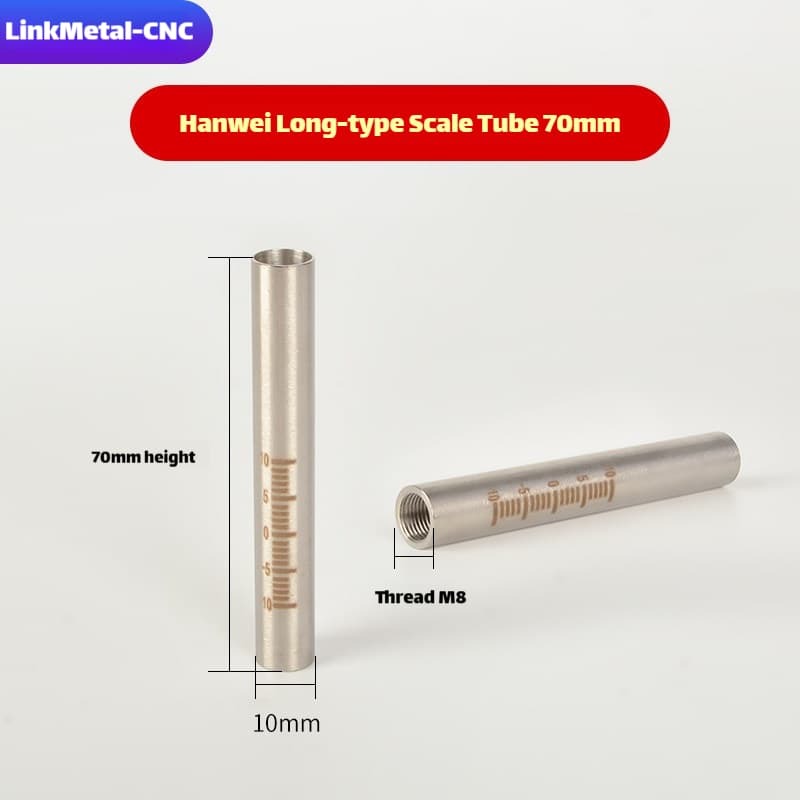

• M8×H70: M8 thread, 70mm height

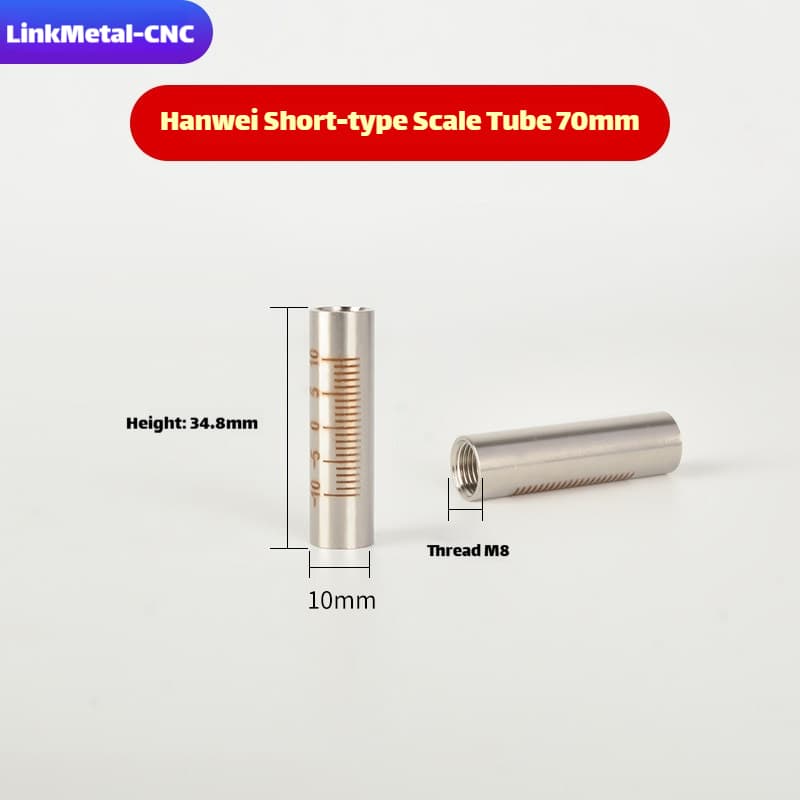

• M8×H34.8: M8 thread, 34.8mm height

Custom Specifications Available: For custom specifications or other laser welding machine accessories, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Selected Laser Welding Torch Scale Tube
• 1 x Anti-static Protective Packaging

Quality Assurance

All laser welding torch scale tubes from Link Metal CNC undergo strict size testing and fit inspection before delivery. We ensure each product provides a perfect fit and reliable performance.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What is the purpose of the scale tube on a laser welding torch?
A: The scale tube allows for accurate adjustment of the distance between the welding nozzle and the workpiece. This ensures consistent focal length and welding results, making it easier to achieve uniform welds across different materials and thicknesses.

Q: How do I choose the correct scale tube for my welding torch?
A: First, identify your welding torch brand and model. Then select the scale tube with the correct thread size and height that matches your original part. If you are unsure, please contact our sales team with your welding torch model number and we will help you find the correct specification.

Q: How often should I replace the scale tube?
A: Under normal operating conditions, a scale tube should last 6-12 months. However, it should be replaced immediately if it becomes damaged, bent, or if the scale marks become worn and difficult to read.

Q: Are these scale tubes compatible with all brands of welding torches?
A: Our scale tubes are designed to be compatible with the 5 most common brands of handheld laser welding torches: Chaoqiang Weiye, Qilin, WSX Wanshunxing, Hanwei and RAYTOOLS. If you have a different brand, please contact our sales team for compatibility information.

Q: How do I install the scale tube correctly?
A: Turn off the power to the welding machine, remove the old scale tube by unscrewing it, clean the threads on the welding torch, then screw on the new scale tube until it is snug. Do not over-tighten as this could damage the threads.

View our full range of laser welding accessories including nozzles, ceramic rings, protective lenses and more.
