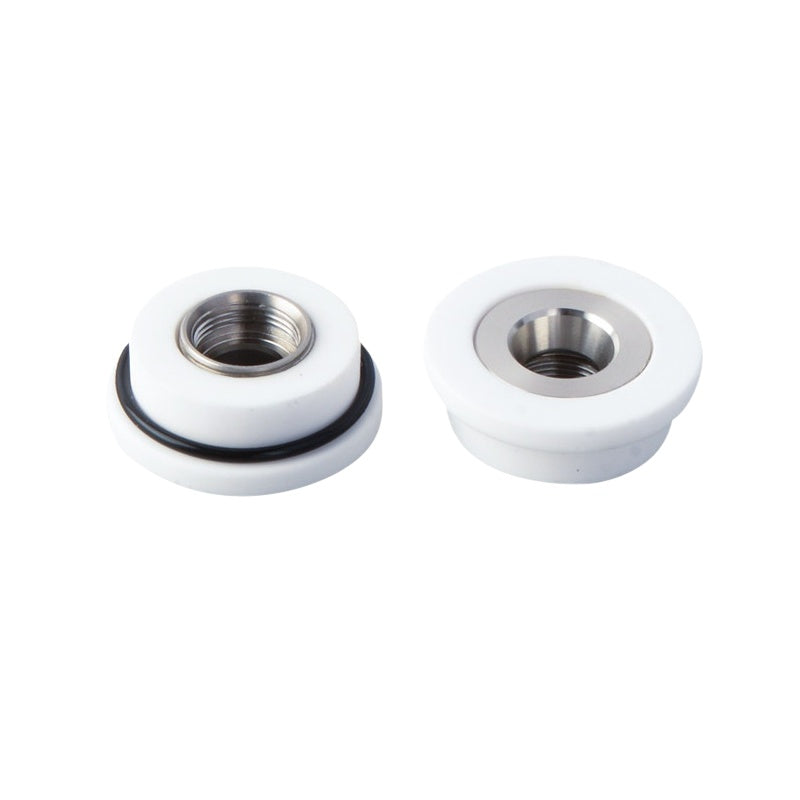

IPG Ceramic Ring for Fiber Laser Cutting Heads

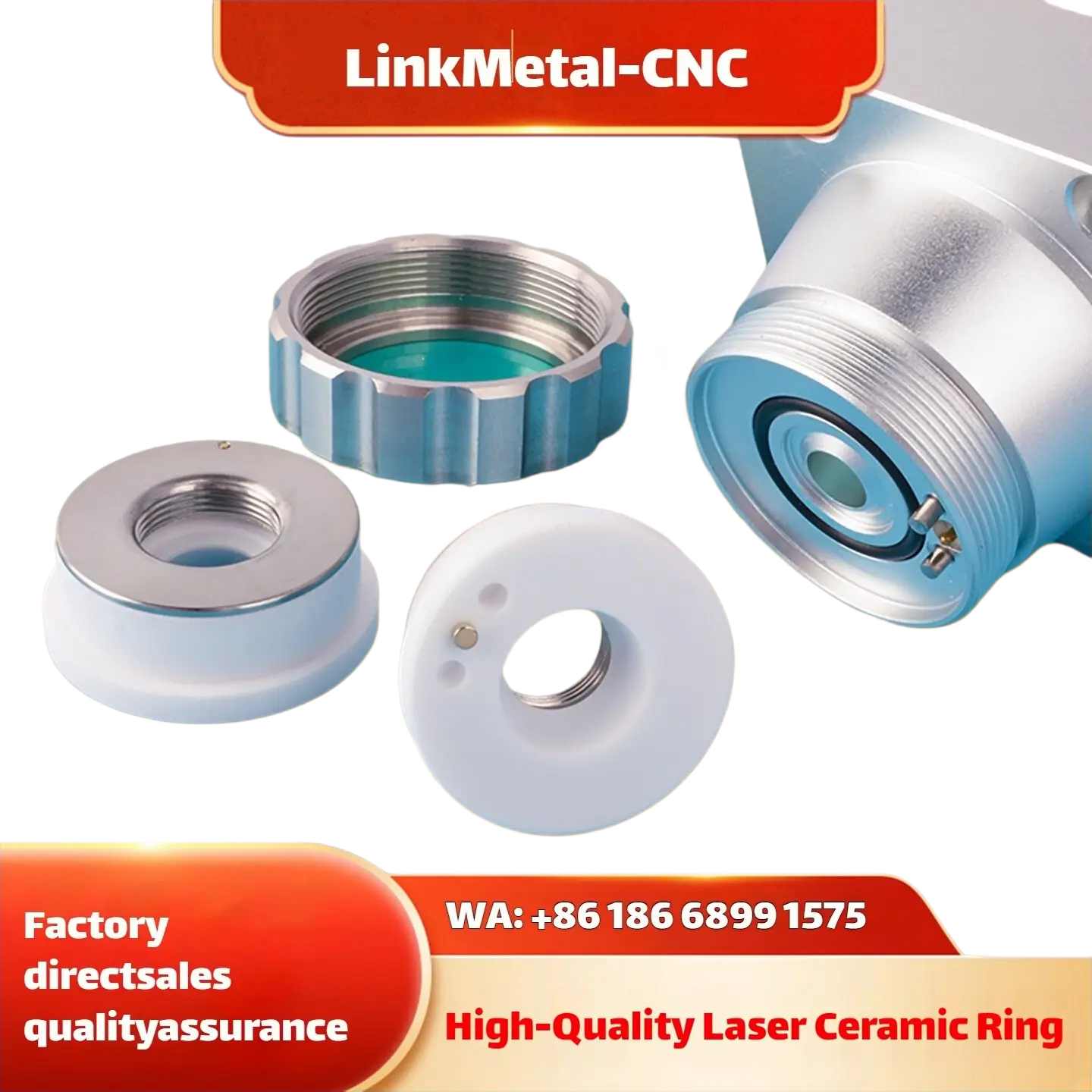

Professional industrial-grade IPG dedicated ceramic ring, essential core insulation consumable for all IPG series fiber laser cutting heads. Designed to insulate the laser cutting head nozzle body, fix the optical assembly, and ensure stable electrical signal transmission for the capacitive sensor, our IPG ceramic ring guarantees the normal operation of the laser cutting head height follow system.
This product features the standard M11-D28.5-H10.5 specification with 1:1 precision fit for original IPG fiber laser cutting heads. Manufactured with high-strength 99% alumina ceramic material, it delivers stable performance in demanding industrial laser cutting environments.
Key Advantages of Our IPG Ceramic Ring
-
Exclusive IPG Dedicated Design: 1:1 perfect fit for all original IPG series fiber laser cutting heads with standard M11-D28.5-H10.5 size. Direct drop-in replacement with no additional debugging required—plug and play, fully compatible with all original IPG laser cutting systems.
-

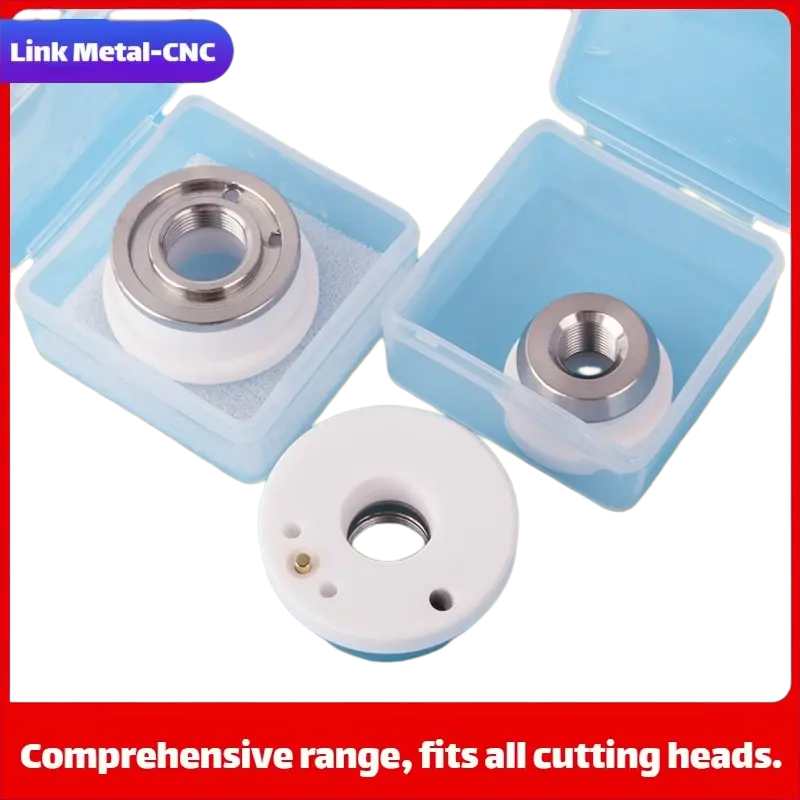

99% High-Purity Alumina Ceramic: Made from premium 99% high-purity alumina ceramic for exceptional mechanical strength, excellent electrical insulation, superior high temperature resistance and outstanding thermal shock resistance. Resists cracking even during long-term high-power laser cutting operations.
-
Built-in High-Quality Copper Electrode: Features a high-conductivity oxygen-free copper electrode with stable electrical signal transmission and strong welding fastness. Ensures long-term stable operation of the laser cutting head height follow system and reduces equipment failure rate.
-
Ultra-High Precision CNC Machining: Strict dimensional tolerance control with smooth surface, no burrs and no impurities. Provides tight fit with the IPG laser head body and copper nozzle, ensuring stable air pressure sealing and avoiding air leakage and cutting instability problems.
-
Anti-Spatter & Anti-Oxidation Surface Treatment: Effectively resists erosion from cutting splash and high-temperature smoke. Resists dust and slag adhesion, is easy to clean, and delivers long service life, reducing replacement frequency and production costs.
-
Broad Industrial Applicability: Suitable for all 1064nm IPG fiber laser cutting machines. Compatible with 2D plane cutting, precision thin plate cutting and high-speed fine cutting, widely used in various industrial fields.
Compatible Equipment & Available Model
Compatible Equipment
- All IPG Series Fiber Laser Cutting Heads
- All IPG 2D Plane Fiber Laser Cutting Machines
- IPG LightCutter Series Cutting Heads
- All Original and Compatible IPG Laser Processing Equipment
Available IPG Ceramic Ring Model
-

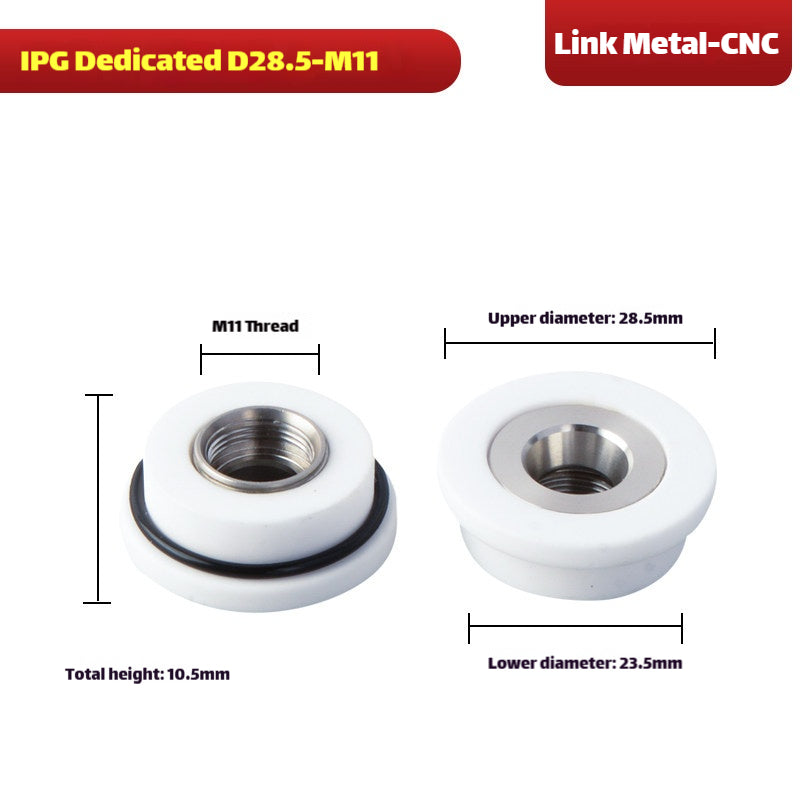

M11-D28.5-H10.5: Standard model for all mainstream IPG fiber laser cutting heads
Custom Specifications Available: For custom sizes, special materials or other IPG dedicated laser cutting consumables, please contact our sales team directly for personalized solutions.
Detailed Technical Specifications
| Parameter |
Specification |
| Brand |
Link Metal CNC |
| Compatible Brand |
IPG |
| Product Type |
Fiber Laser Cutting Head Ceramic Insulation Ring |
| Standard Model |
M11-D28.5-H10.5 |
| Main Body Material |
99% High-Purity Alumina Ceramic |
| Electrode Material |
High-Conductivity Oxygen-Free Copper |
| Insulation Resistance |
≥1000MΩ |
| Applicable Wavelength |
1064nm |
| Applicable Power |
1000W - 15000W |
| Application Scenario |
2D Plane Cutting, Precision Thin Plate Cutting, High-Speed Fine Cutting |

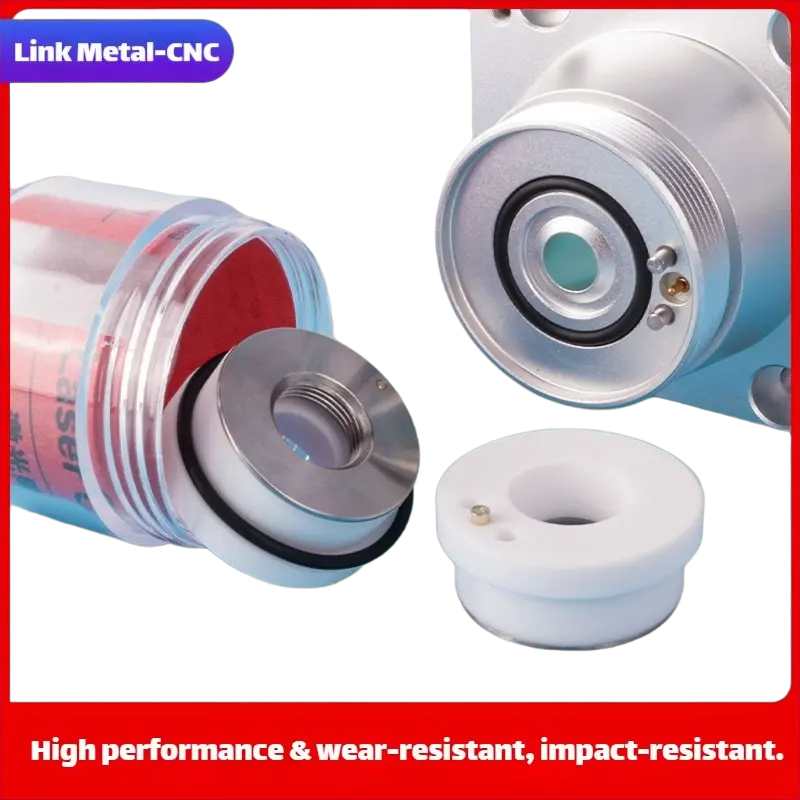

Package Contents
- 1 x Selected Link Metal CNC IPG M11-D28.5-H10.5 Ceramic Ring
- 1 x Anti-Static Shock-Proof Protective Packaging
Quality Assurance
Every Link Metal CNC IPG ceramic ring undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, insulation performance test, electrode conductivity verification, installation fit inspection and pressure resistance test.
We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.
Frequently Asked Questions
Q: Which IPG cutting heads use this ceramic ring?
A: This M11-D28.5-H10.5 ceramic ring is compatible with most mainstream IPG fiber laser cutting heads, including the IPG LightCutter series and all standard IPG 2D cutting heads produced in the last 5 years. If you are unsure about compatibility, please contact our sales team with your cutting head model number for confirmation.
Q: Can I use universal ceramic rings on my IPG laser machine?
A: No, IPG cutting heads use unique interface specifications and dimensions that differ from standard universal ceramic rings. Using universal ceramic rings on IPG equipment will result in poor fit, air leakage, unstable height follow performance and potential damage to your cutting head.
Q: What is the advantage of 99% alumina ceramic over lower purity materials?
A: 99% high-purity alumina ceramic offers superior mechanical strength, better thermal shock resistance and more stable electrical insulation properties compared to lower purity materials. It is less likely to crack under high-power laser cutting conditions and provides longer service life, especially in high-speed fine cutting applications.
Q: How often should I replace my IPG ceramic ring?
A: Under normal operating conditions, an IPG ceramic ring should last 2-3 months. However, it should be replaced immediately if you notice any cracks, chips, or if the height follow system becomes unstable. Frequent collisions between the nozzle and workpiece will significantly shorten its service life.
Q: Do you offer other IPG ceramic ring models?
A: Yes, we can provide custom sizes and special models for all IPG cutting heads upon request. Please contact our sales team with your specific requirements and we will be happy to assist you.
