Link Metal CNC Qilin M16 Welding Nozzle for Laser Welding Machine

Qilin M16 Laser Welding Nozzle for Handheld Welders

Professional industrial-grade Qilin M16 laser welding nozzles, essential core consumables for all fiber laser welding machines. With 1:1 OEM precision fit for original Qilin series handheld laser welding guns, our M16 welding nozzle is compatible with mainstream automatic and robotic laser welding systems.

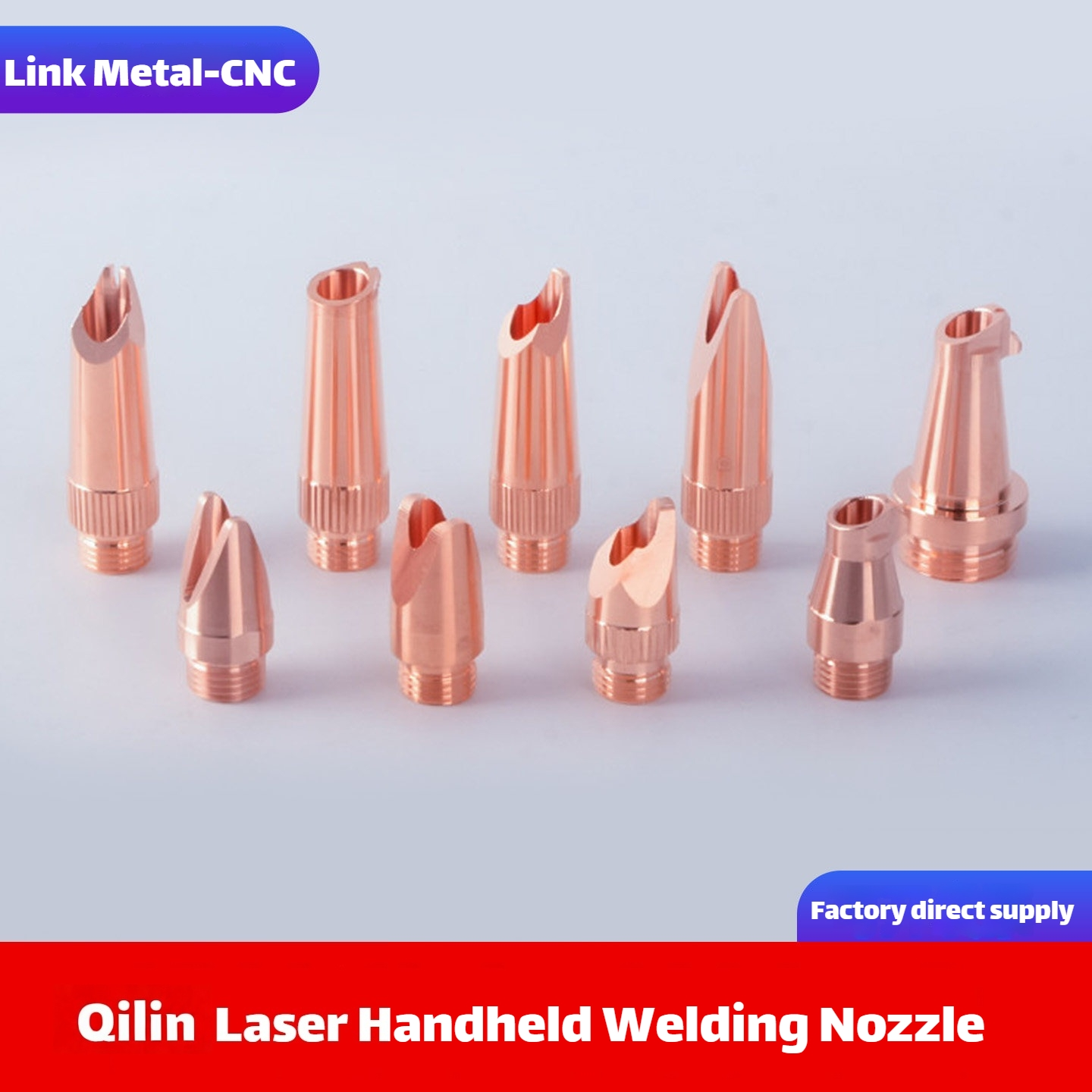

This complete product series covers a full range of structure specifications, including basic Type A/F/G/H models, wire feed type, round opening type and dual wire feed type. All products are precision machined from high-purity copper alloy for stable welding performance in demanding industrial environments.

Key Advantages of Our Qilin M16 Welding Nozzles

• Exclusive Qilin Dedicated Design: Standard M16 interface provides 1:1 perfect fit for all original Qilin laser welding guns. Direct drop-in replacement with no additional debugging required—plug and play, also compatible with most mainstream fiber laser welding equipment on the market.
• 7 Professional Configurations:
  • Basic Type A/F/G/H: Match different welding gun models, welding angles and workpiece scenarios
  • Wire Feed Type: Optimized for automatic wire feeding welding, smooth wire guiding without jamming
  • Round Opening Type: Uniform airflow structure for stable protective gas output
  • Dual Wire Feed Type: For dual wire synchronous welding, greatly improving welding efficiency
• High-Purity Copper Alloy Construction: Made from premium high-purity copper alloy for exceptional thermal conductivity, superior high temperature resistance and outstanding anti-spatter properties. Effectively resists welding splash erosion, is easy to clean, and delivers long service life.
• Ultra-High Precision CNC Machining: Strict dimensional tolerance control with smooth inner wall and no burrs. Ensures stable wire feeding and uniform protective gas flow, avoiding welding deviation, air holes, burrs and other defects.
• Broad Industrial Applicability: Compatible with laser welding of stainless steel, carbon steel, aluminum alloy, galvanized sheet, copper plate and other metal materials. Widely used in sheet metal processing, hardware manufacturing, automotive parts production and mold repair.

Compatible Equipment & Available Types

Compatible Equipment

• All Qilin Series Fiber Laser Welding Machines
• All Qilin Handheld Laser Welding Guns
• All Automatic Laser Welding Systems
• All Robotic Laser Welding Stations

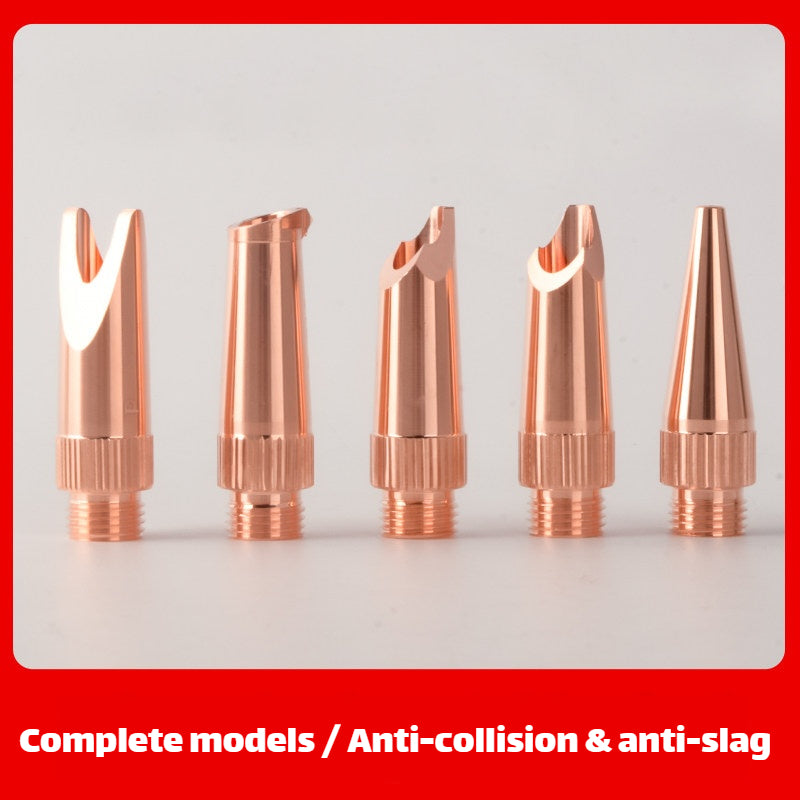

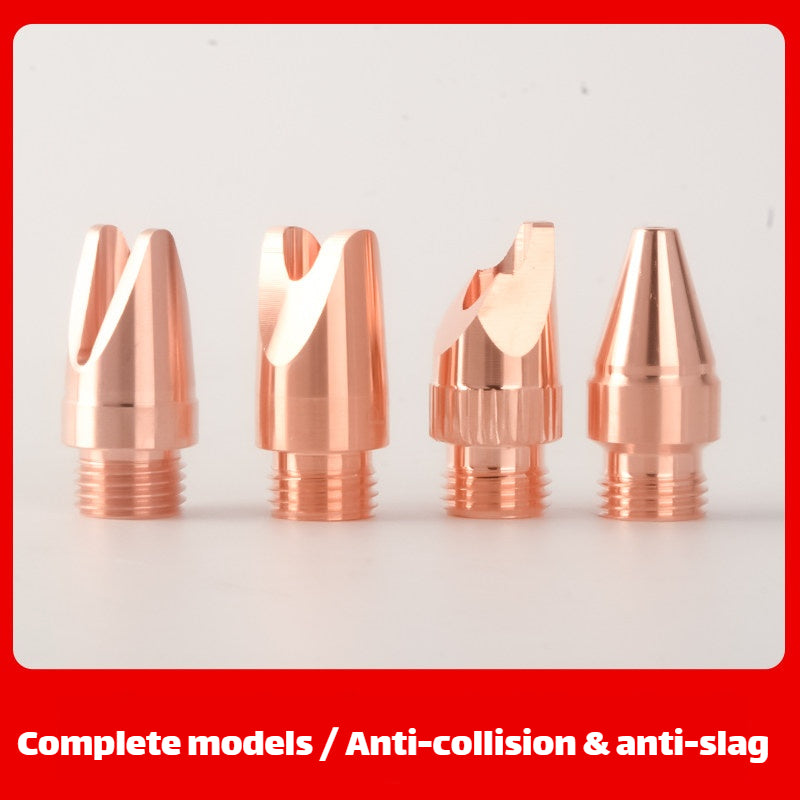

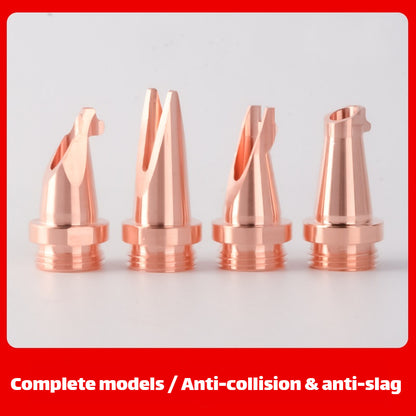

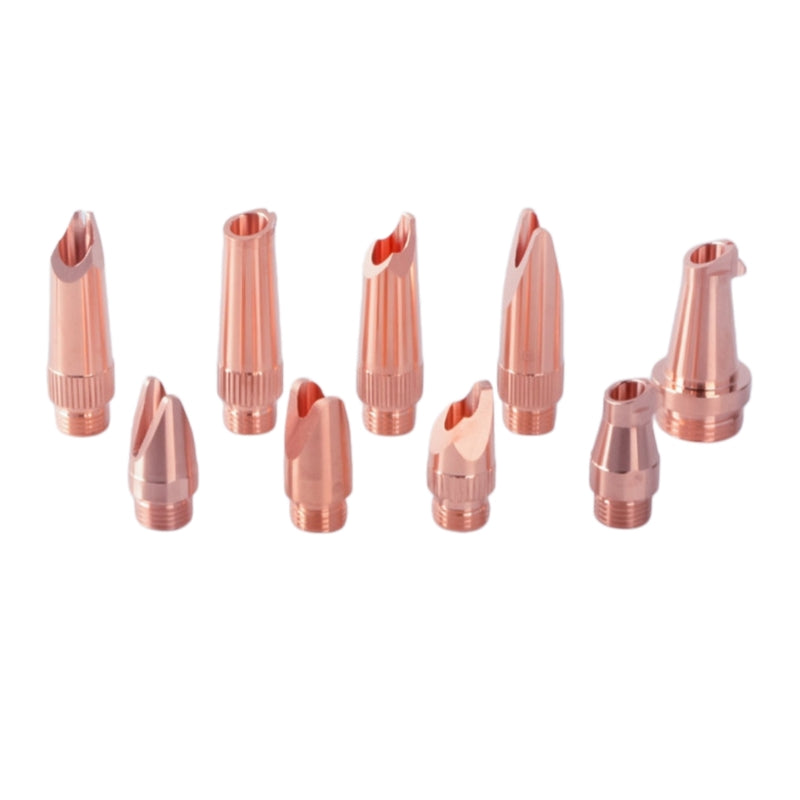

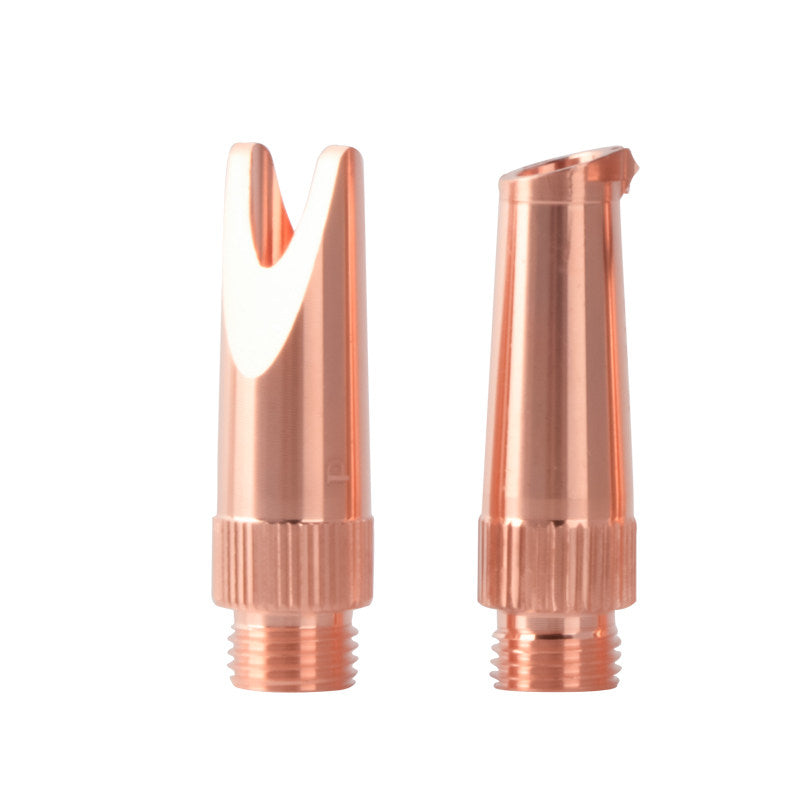

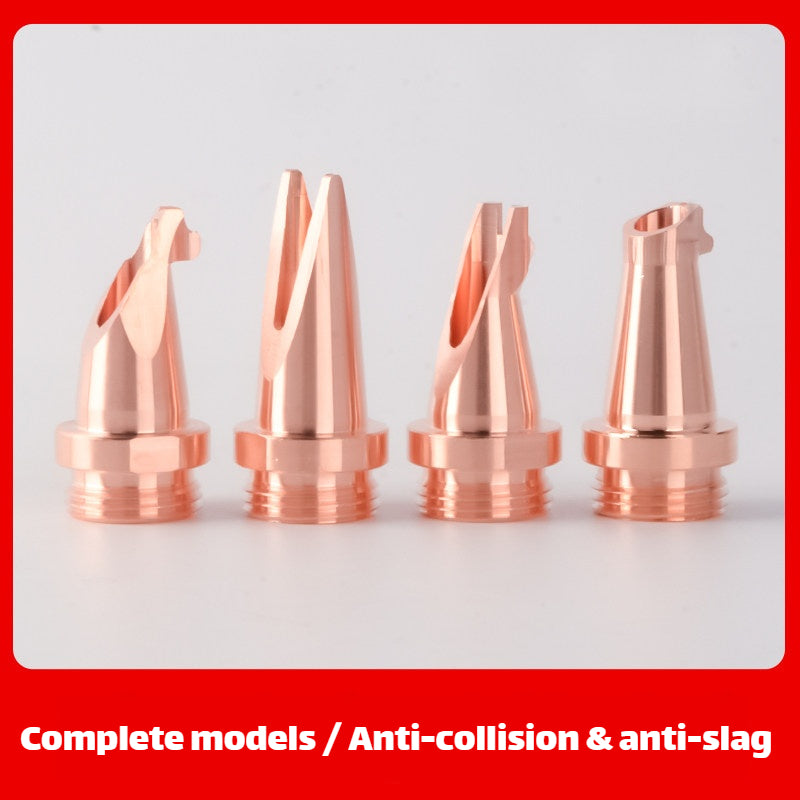

Available Qilin M16 Welding Nozzle Types (7 Options)

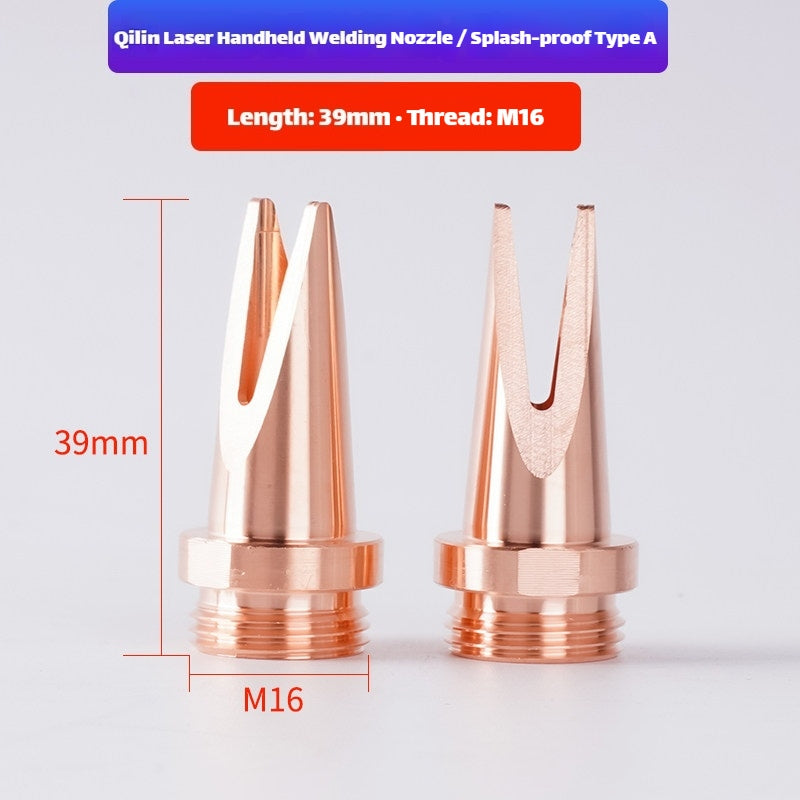

• Type A: Standard general-purpose welding nozzle

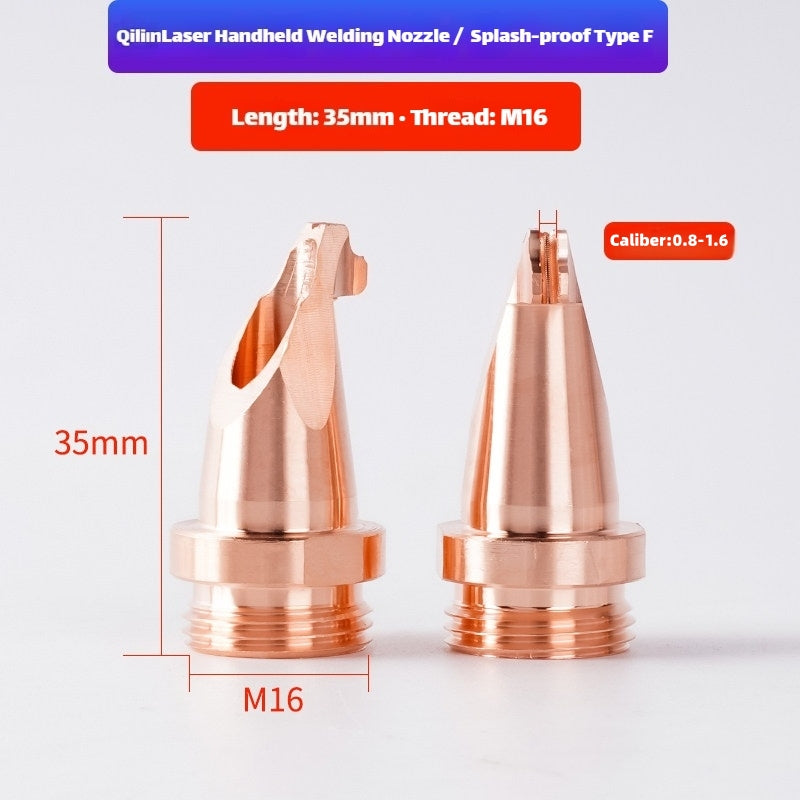

• Type F: Optimized for fillet and corner welding

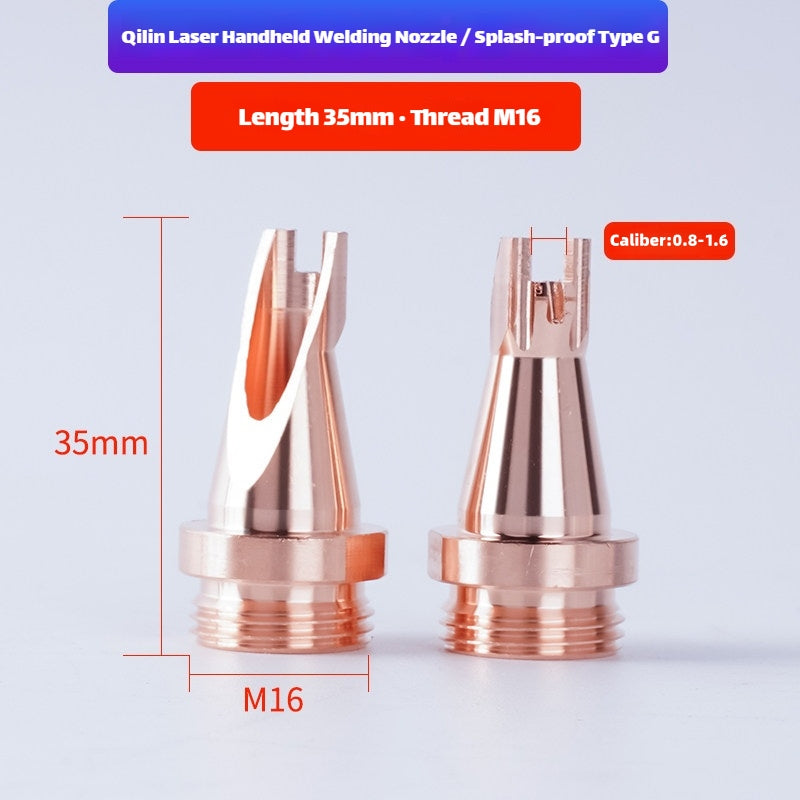

• Type G: Extended reach welding nozzle

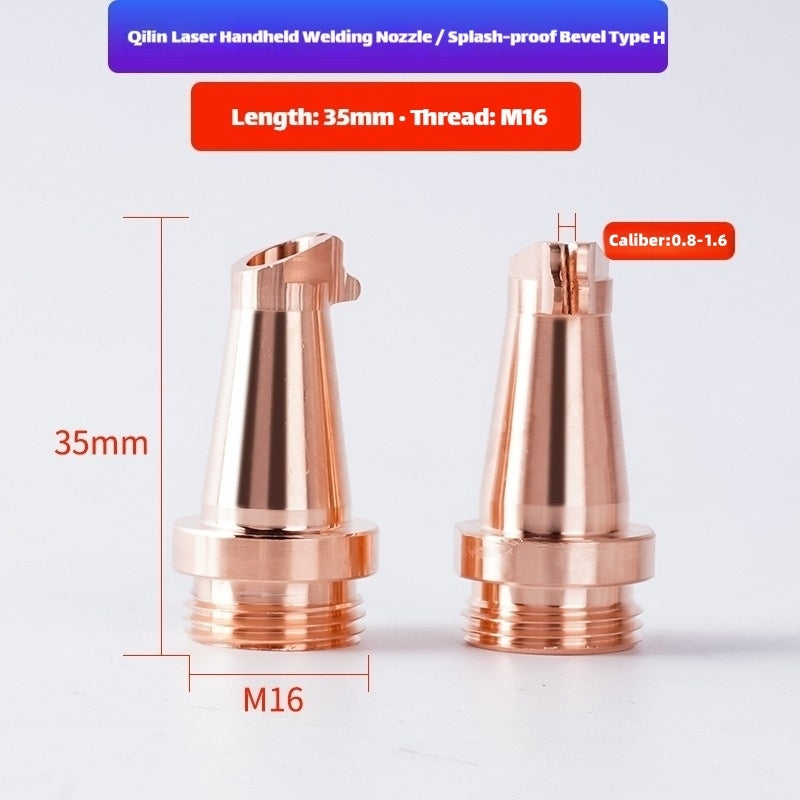

• Type H: High-precision fine welding nozzle

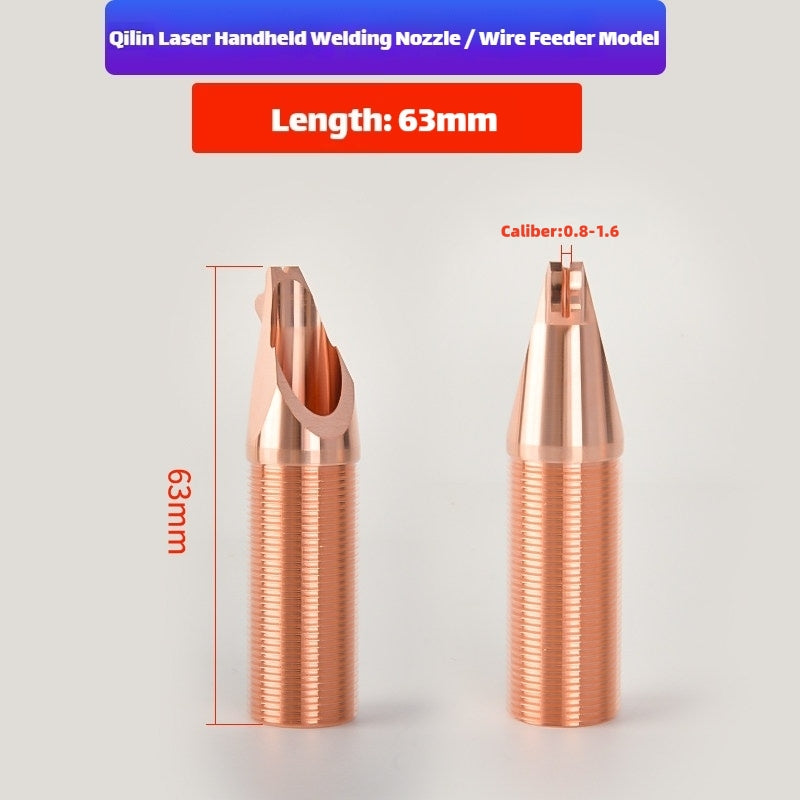

• Wire Feed Type: Integrated wire guide for automatic wire feeding

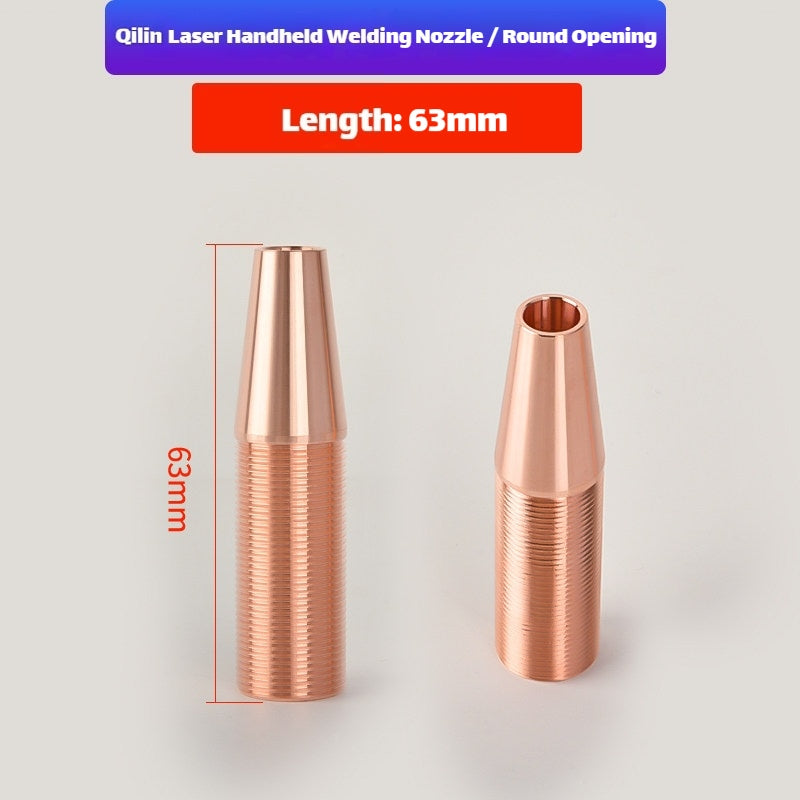

• Round Opening Type: Uniform airflow for superior weld surface finish

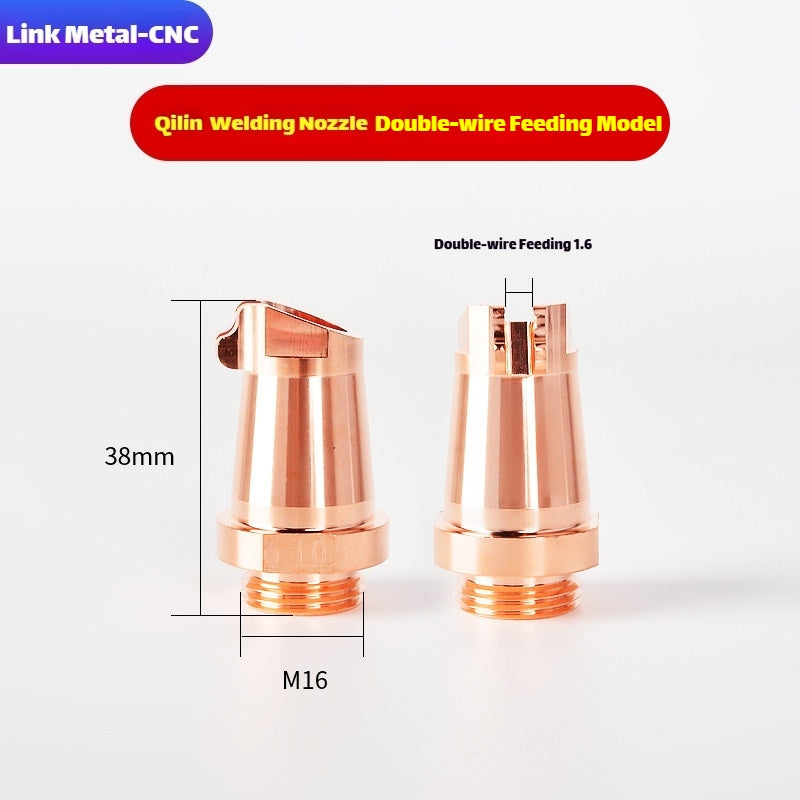

• Dual Wire Feed Type: Special design for dual wire synchronous welding

Custom Specifications Available: For anti-spatter coated versions, custom calibers or other laser welding accessories, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Selected Link Metal CNC Qilin M16 Welding Nozzle
• 1 x Specialized Anti-Static Dust-Proof Protective Packaging

Quality Assurance

Every Link Metal CNC Qilin M16 welding nozzle undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, installation fit verification, air tightness test, wire feeding smoothness test and welding performance assessment.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What is the difference between Qilin M10 and M16 welding nozzles?
A: The main difference is the interface size and application range. Qilin M10 nozzles are designed for lower power systems (up to 3000W) and general welding applications, while Qilin M16 nozzles are for higher power systems (up to 6000W) and more demanding industrial applications including thick plate welding and high-volume production. They are not interchangeable due to different thread sizes.

Q: What is the difference between the various Qilin M16 nozzle types?
A: Type A is general-purpose, Type F for fillet and corner welding, Type G for extended reach, Type H for high-precision fine welding. Wire Feed Type has an integrated wire guide for automatic feeding, Round Opening Type provides uniform airflow, and Dual Wire Feed Type allows two wires to be fed simultaneously for higher efficiency.

Q: What is the dual wire feed type used for?
A: The dual wire feed nozzle is specially designed for dual wire synchronous laser welding process. It allows two welding wires to be fed simultaneously into the weld pool, significantly increasing welding speed and deposition rate by up to 50%, making it ideal for thick plate welding and high-volume production environments.

Q: Do you offer anti-spatter coated versions of Qilin M16 nozzles?
A: Yes, we can provide anti-spatter coated versions of all Qilin M16 nozzle models upon request. Anti-spatter coating significantly reduces welding splash adhesion, makes cleaning easier, and extends service life by 2-3 times compared to standard copper nozzles.

Q: Will these nozzles work with non-Qilin welding guns?
A: While these nozzles are specifically designed for Qilin M16 interface welding guns, they may be compatible with some other laser welding guns that use the M16 thread standard. However, we cannot guarantee perfect fit or performance on non-Qilin equipment. Please contact our sales team for compatibility confirmation.
