Industrial Ceramic Insulation Ring for Trumpf Fiber Laser Cutting Heads
Professional industrial-grade ceramic insulation rings exclusively designed for Trumpf series fiber laser cutting heads. As an essential core consumable, our Trumpf ceramic ring insulates the nozzle body, secures optical components, ensures stable electrical signal transmission for the capacitive sensor, and guarantees reliable operation of the laser cutting head height following system.
We offer a complete range of Trumpf dedicated models, including standard and high-performance beige special types. All products are manufactured with 1:1 precision to match original Trumpf fiber laser cutting heads, using high-strength 99% alumina ceramic material for exceptional stability. Ideal for all industrial metal laser cutting applications.
Key Advantages of Our Trumpf Ceramic Rings
-
1:1 Perfect Fit for Trumpf Laser Systems: Exclusively engineered for original Trumpf series fiber laser cutting heads, including all TruLaser models. Direct drop-in replacement with no additional debugging required—plug and play, fully compatible with all original Trumpf laser cutting software and hardware.
-
Complete Model Range for Every Processing Need:
-

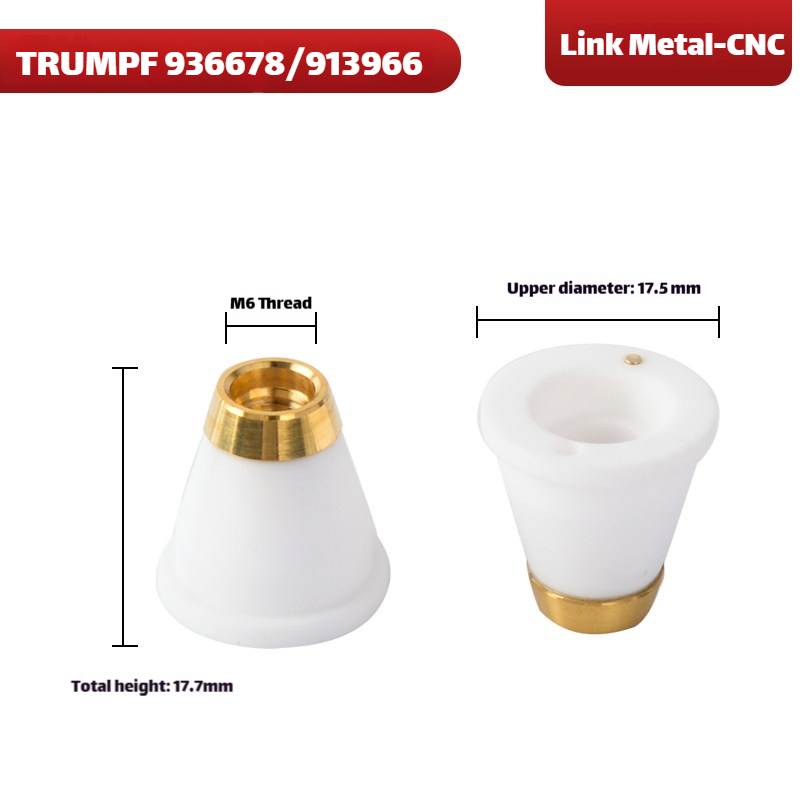

M6-D17.5-H17.7 Mini Model: For Trumpf precision cutting heads, perfect for fine cutting of thin sheets and small parts
-

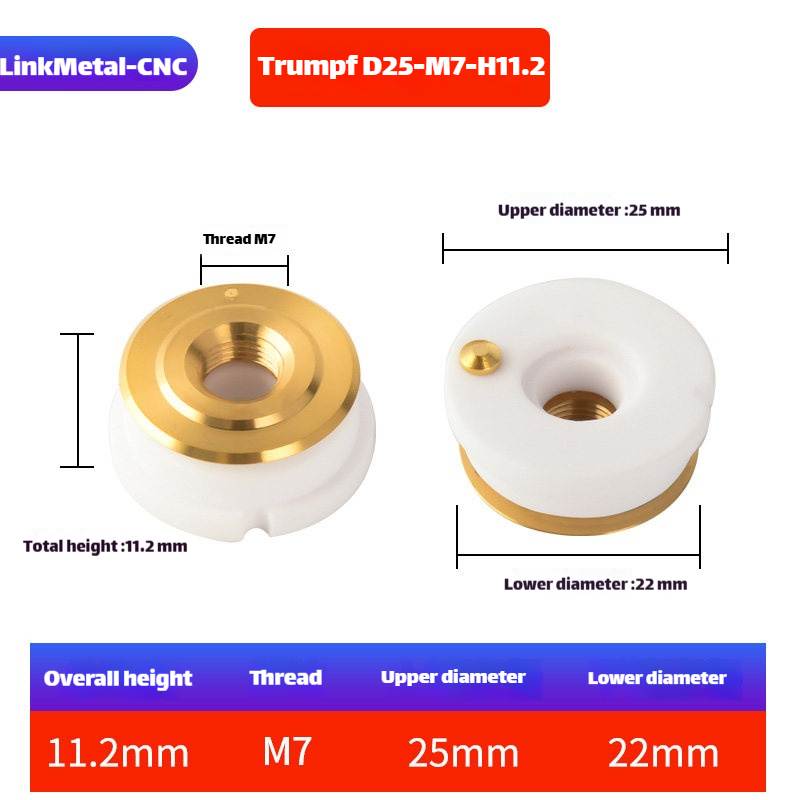

M7-D25-H11.2 Compact Model: Cost-effective solution for daily conventional 2D plane cutting
-

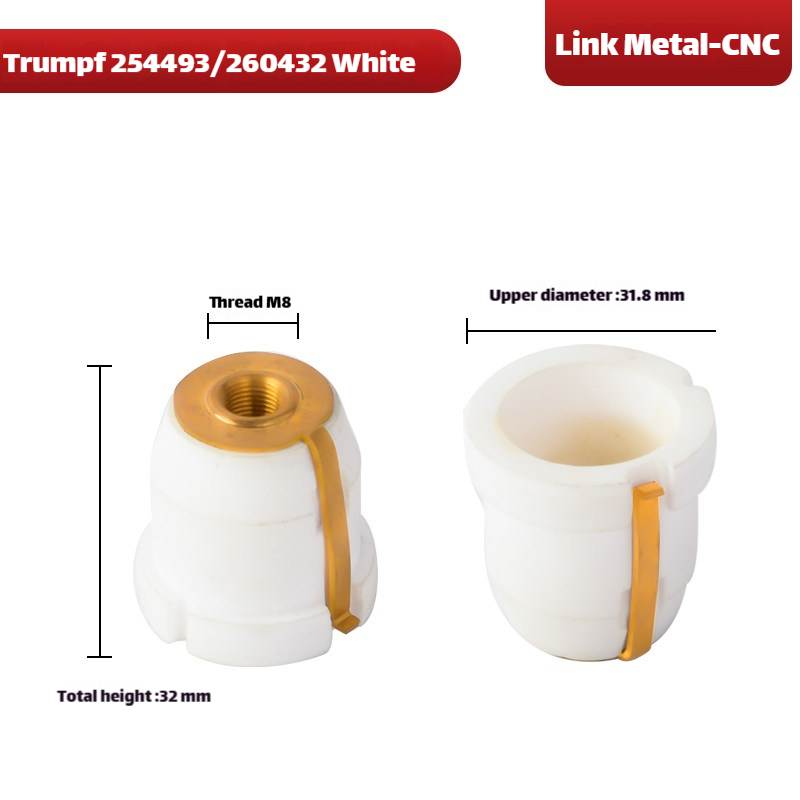

M8-D31.8-H32 Standard Model: Optimized for medium-power laser cutting scenarios
-

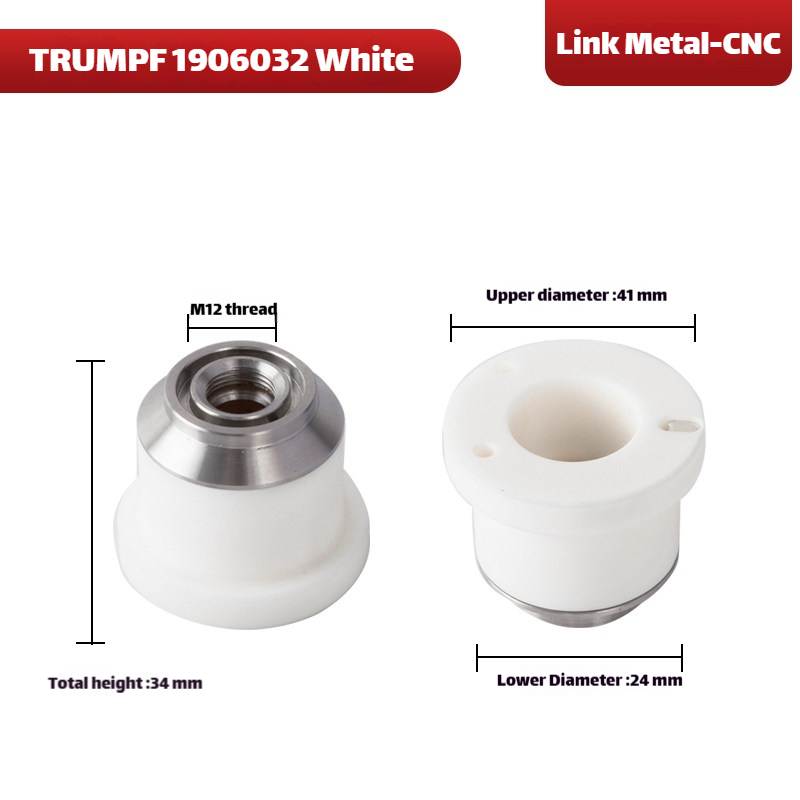

M12-D41-H34 Standard Model: Designed for high-power thick plate cutting with superior thermal shock resistance
-

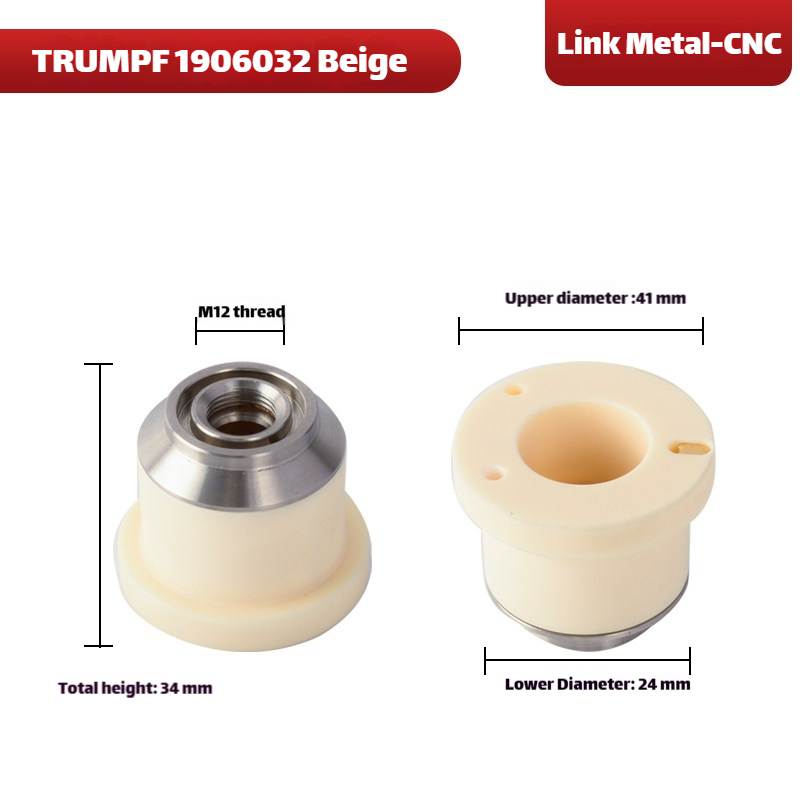

M12-D41-H34 Beige Special Model: Features an optimized material formula for enhanced high-temperature resistance and anti-spatter performance, delivering longer service life in high-intensity continuous production environments
-
99% High-Purity Alumina Ceramic Construction: Exceptional mechanical strength, superior electrical insulation, high-temperature resistance, and thermal shock stability. Resists cracking even during long-term high-power laser cutting operations, ensuring consistent electrical insulation and accurate capacitive height following system performance.
-
High-Precision CNC Machining: Strict dimensional tolerance control with smooth, burr-free, impurity-free surfaces. Creates an airtight seal with Trumpf laser head bodies and copper nozzles, eliminating air leakage and cutting instability issues.
-
Premium Built-In Copper Electrode: High conductivity for stable electrical signal transmission, strong welding adhesion to prevent detachment, and long-term reliable operation of the laser cutting head height following system—significantly reducing equipment downtime and failure rates.
-
Advanced Anti-Spatter & Anti-Oxidation Surface Treatment: Effectively resists erosion from cutting splashes and high-temperature fumes. Resists dust and slag adhesion, is easy to clean, extends service life, and reduces replacement frequency and production costs.
-
Broad Industrial Applicability: Compatible with 1064nm Trumpf fiber laser cutting machines, supporting 2D plane cutting, 3D robotic curved surface cutting, micro precision cutting, and high-power thick plate cutting. Widely used in sheet metal processing, automotive parts manufacturing, hardware fabrication, precision machinery, and other industrial sectors.
Compatible Equipment & Available Models
Compatible Equipment
- All Trumpf Series Fiber Laser Cutting Heads
- All Trumpf TruLaser Series Fiber Laser Cutting Machines

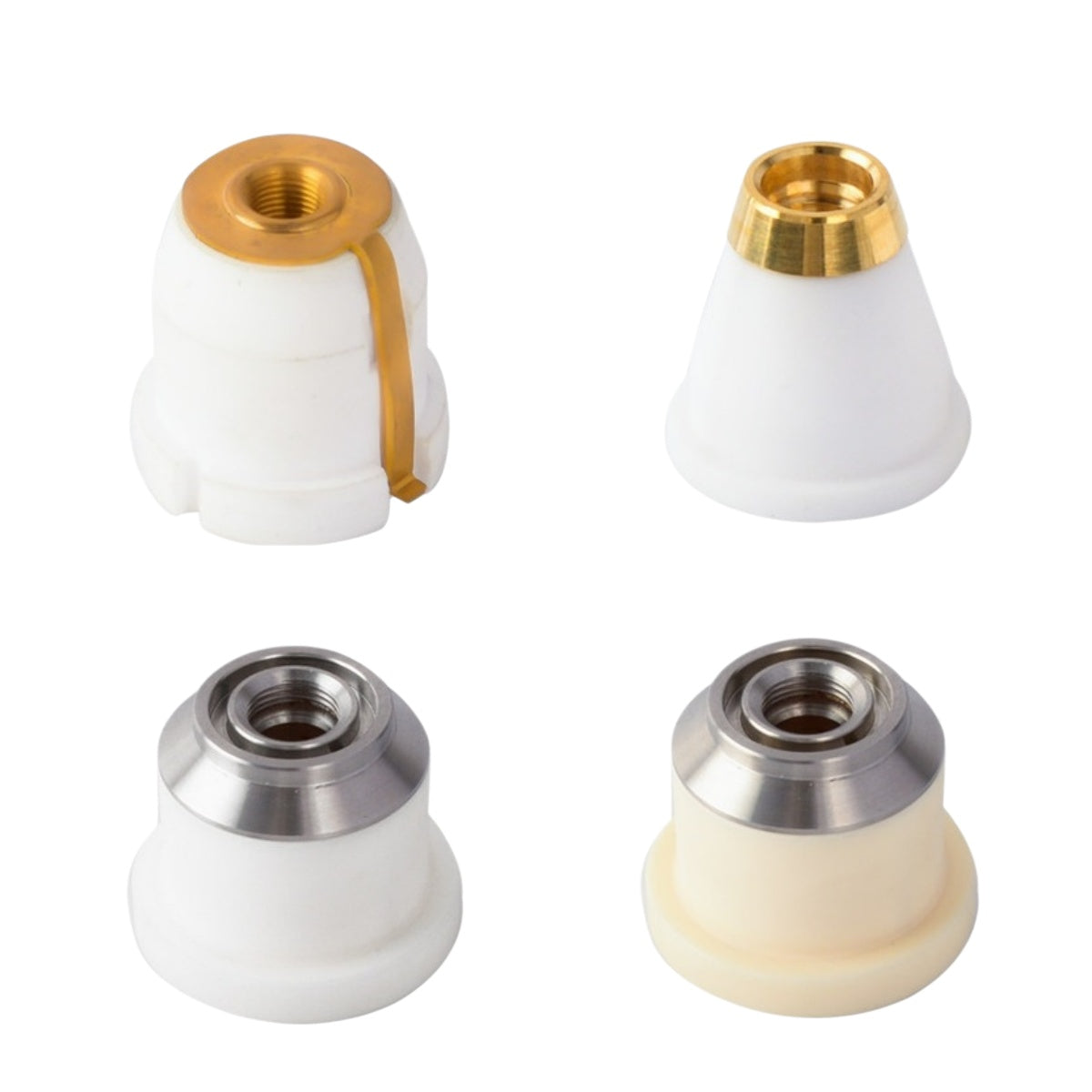

Available Trumpf Ceramic Ring Models
- M6-D17.5-H17.7
- M7-D25-H11.2
- M8-D31.8-H32
- M12-D41-H34
- M12-D41-H34 Beige Special Type
Custom Specifications Available: For other Trumpf dedicated models or additional laser cutting machine consumables, please contact our sales team directly for personalized solutions.
Detailed Technical Specifications
| Parameter |
Specification |
| Brand |
Link Metal CNC |
| Compatible Brand |
Trumpf |
| Product Type |
Fiber Laser Cutting Head Ceramic Insulation Ring |
| Available Models |
M6-D17.5-H17.7, M7-D25-H11.2, M8-D31.8-H32, M12-D41-H34, M12-D41-H34 Beige |
| Main Body Material |
99% High-Purity Alumina Ceramic |
| Electrode Material |
High-Conductivity Oxygen-Free Copper |
| Insulation Performance |
Excellent Electrical Insulation |
| Applicable Wavelength |
1064nm |
| Application Scenarios |
2D Plane Laser Cutting, 3D Robotic Laser Cutting, Micro Precision Cutting, High-Power Thick Plate Cutting |
| Compatible Equipment |
All Trumpf Fiber Laser Cutting Machines |
Package Contents
- 1 x Link Metal CNC Trumpf Ceramic Ring (selected model)
- 1 x Anti-Static Shock-Proof Protective Packaging
Quality Assurance
Every Link Metal CNC Trumpf ceramic ring undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, insulation performance verification, electrode conductivity testing, installation fit assessment, and pressure resistance testing.
We maintain strict quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support to help you maximize your laser cutting productivity.
Frequently Asked Questions
Q: How often should I replace my Trumpf ceramic ring?
A: Under normal operating conditions, our standard Trumpf ceramic rings last 2-4 weeks. The beige special type can last 30-50% longer in high-intensity production environments.
Q: Are these ceramic rings compatible with all Trumpf laser cutting machines?
A: Yes, our Trumpf ceramic rings are 1:1 compatible with all TruLaser series fiber laser cutting machines.
Q: What is the difference between standard and beige ceramic rings?
A: The beige special type features an optimized material formula that provides better high-temperature resistance and anti-spatter performance, making it ideal for high-power thick plate cutting and continuous production.
