LinkMetal CNC CVD ZnSe CO₂ Laser Protective Windows

CVD ZnSe CO₂ Laser Protective Window 10.6μm

Professional optical grade CVD ZnSe protective window designed exclusively for 10.6μm CO₂ laser systems. Precision manufactured plano-parallel window with double-sided hard anti-reflection coating. Provides a reliable barrier against dust, fumes, splashes and airborne contaminants, preserving laser beam quality and significantly extending the service life of expensive internal optical components.

This complete product series includes 6 standard specifications, fully compatible with all mainstream CO₂ laser cutting and engraving machines. All windows undergo 100% optical inspection before delivery to ensure maximum protection and performance.

Key Advantages of Our CVD ZnSe Protective Windows

• High Purity CVD Zinc Selenide Substrate: Made from premium chemical vapor deposition (CVD) zinc selenide with excellent transmission at 10.6μm wavelength. Low absorption and high thermal conductivity for stable performance.
• Double-Sided Hard AR Coating: Features durable double-sided hard anti-reflection coating optimized for 10.6μm. Provides >99% transmittance, minimizing reflection loss and maximizing light throughput.

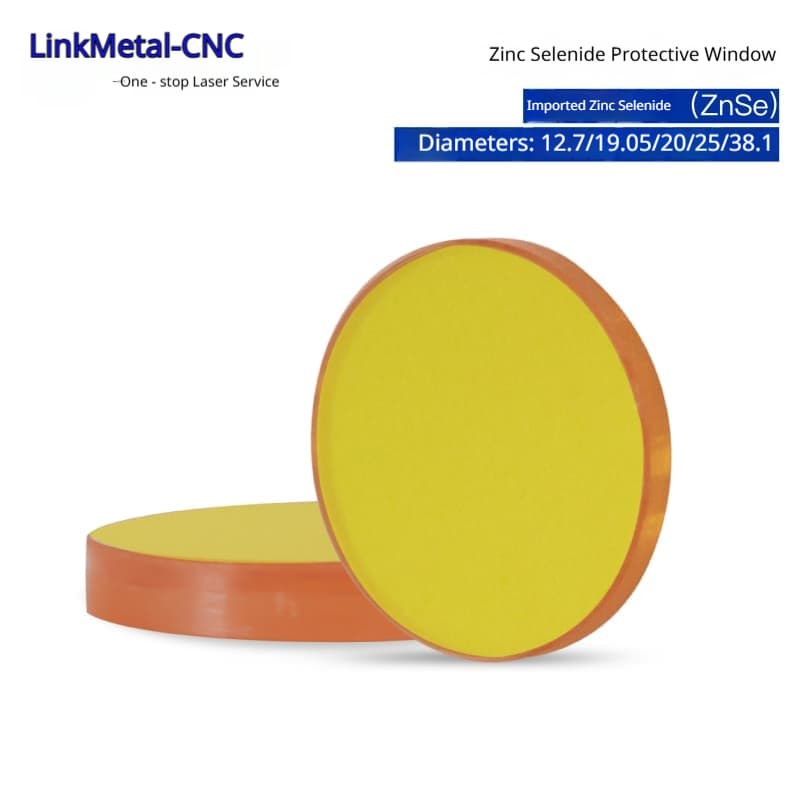

• Precision Plano-Parallel Design: Precision polished plano-parallel surfaces with zero optical power. Ensures no beam distortion or focal shift, maintaining perfect laser beam quality.
• Effective Contaminant Barrier: Acts as the first line of defense against dust, fumes, cutting splashes and airborne particles. Prevents contaminants from entering the laser head assembly and damaging expensive internal optics.
• 6 Standard Specifications: Complete range of diameters available, covering all mainstream CO₂ laser machine models and application requirements.
• Easy Installation & Replacement: Standard dimensions ensure perfect fit with all original and compatible CO₂ laser cutting heads. No optical alignment required, can be replaced in minutes.
• Cost-Effective Protection: Significantly reduces maintenance costs by protecting expensive internal focusing and collimating lenses. A small investment that saves hundreds of dollars in replacement parts.

Compatible Equipment & Available Sizes

Compatible Equipment

• All Mainstream CO₂ Laser Cutting Machines
• All CO₂ Laser Engraving Machines
• All CO₂ Laser Marking Machines
• All 10.6μm CO₂ Laser Processing Equipment

Available Protective Window Sizes

• D12.7mm × T3mm: 12.7mm (0.5") diameter, 3mm thickness
• D15mm × T3mm: 15mm diameter, 3mm thickness
• D18mm × T3mm: 18mm diameter, 3mm thickness
• D19mm × T3mm: 19mm diameter, 3mm thickness
• D20mm × T3mm: 20mm diameter, 3mm thickness

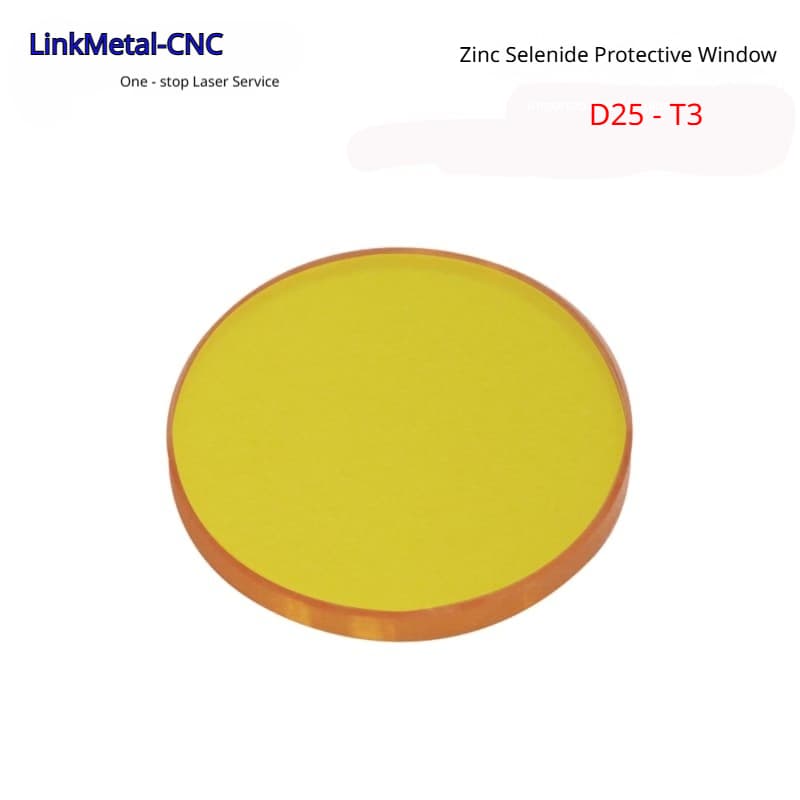

• D25mm × T3mm: 25mm diameter, 3mm thickness

Custom Sizes Available: For custom diameters, thicknesses or special coatings, please contact our sales team directly for personalized solutions.

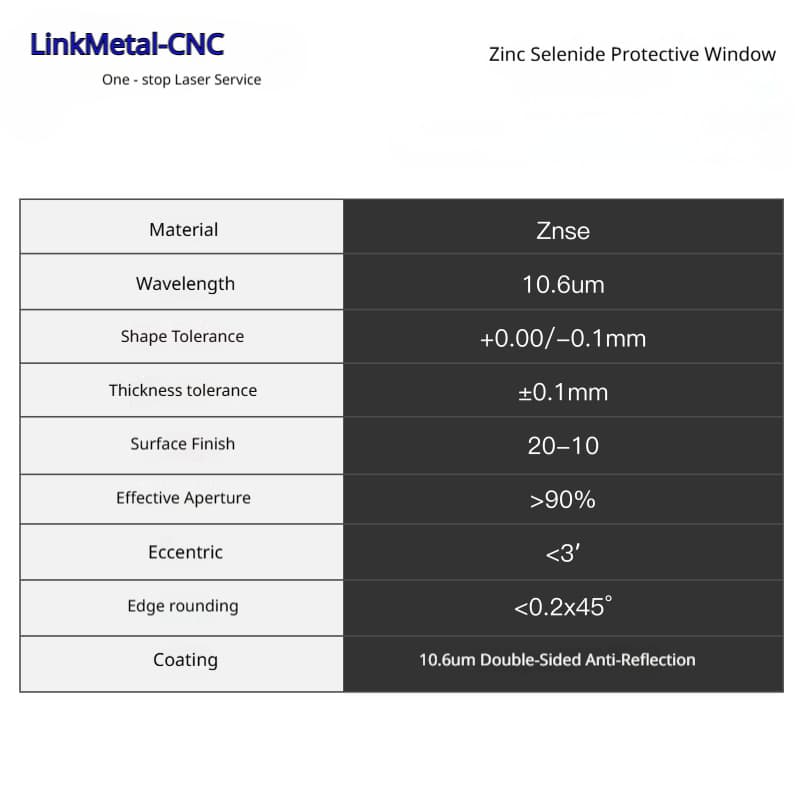

Detailed Technical Specifications

Package Contents

• 1 x Selected CVD ZnSe CO₂ Laser Protective Window
• 1 x Hard Protective Storage Case
• 1 x Lint-free Microfiber Cleaning Cloth
• 1 x Sealed Anti-static Aluminum Foil Packaging

Quality Assurance

All CVD ZnSe protective windows from Link Metal CNC undergo 100% optical inspection before delivery, including transmittance test, surface quality check, flatness measurement and dimensional accuracy verification.

We maintain strict ISO 9001 quality control standards to ensure stable performance and reliable protection for your expensive laser optics. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: Why do I need a protective window for my CO₂ laser?
A: The protective window acts as a disposable barrier between the laser head and the workpiece. It prevents dust, fumes, cutting splashes and other contaminants from entering the laser head and damaging the expensive internal focusing and collimating lenses. Replacing a $20 protective window is much more cost-effective than replacing a $200+ focusing lens.

Q: How often should I replace the protective window?
A: Under normal operating conditions, the protective window should be replaced every 1-2 weeks or every 40-80 hours of use. However, it should be replaced immediately if you notice any film burning, scratches, or if cutting/engraving quality deteriorates. Frequent cutting of oily or reflective materials will accelerate contamination.

Q: Can I clean and reuse a protective window?
A: Yes, you can clean a slightly contaminated protective window using proper cleaning techniques. However, once the window has significant scratches, film burning or permanent staining, it must be replaced. Always use a blower ball first to remove loose dust, then gently wipe with a lint-free microfiber cloth and lens cleaning fluid.

Q: What is the difference between CVD ZnSe and other materials for protective windows?
A: CVD ZnSe is the best material for CO₂ laser protective windows due to its excellent transmission at 10.6μm, low absorption and high thermal conductivity. Other materials like fused silica have very high absorption at 10.6μm and will overheat and crack almost immediately when exposed to CO₂ laser radiation.

Q: Can I use this protective window for fiber lasers?
A: No, this protective window is specifically designed for 10.6μm CO₂ lasers. It will not work for 1064nm fiber lasers. Using the wrong wavelength window will result in extremely high absorption, causing the window to overheat and crack.
