LinkMetal CNC D32 Standard Laser Nozzle for Fiber Laser Cutting Machine

Industrial Grade D32 Laser Nozzle for Fiber Laser Cutting Machines

Professional D32 standard laser nozzles designed for all mainstream fiber laser cutting equipment. As an essential core consumable, our D32 laser nozzle delivers exceptional wear resistance, stable cutting performance, and precise gas flow control for high-power industrial metal cutting applications.

We offer three high-performance configurations: standard single layer, single layer chrome plated, and double layer chrome plated. All products are manufactured with high-purity red copper material and ultra-precision CNC machining for perfect fit and reliable long-term operation.

Key Advantages of Our D32 Laser Nozzles

• Universal D32 Standard Size: Industry-standard D32 outer diameter, perfectly compatible with all mainstream fiber laser cutting machines including Raytools, Precitec, WSX, Bodor, OSPRI and more. Direct drop-in replacement with no additional debugging required.
• High-Purity Red Copper Construction: Made from premium 99.95% oxygen-free red copper for excellent thermal conductivity, superior high temperature resistance, and outstanding anti-oxidation properties, ensuring extended service life.
• Chrome Plated Upgrade Option: Advanced hard chrome plating technology provides significantly enhanced wear resistance and anti-spatter performance, drastically reducing slag adhesion and extending service life compared to standard copper nozzles.
• Optimized Double Layer Design: Scientific double layer structure delivers superior gas flow convergence and pressure stability, significantly improving cutting precision, edge finish, and speed, especially for medium to thick plate cutting.
• Ultra-Precision Polished Inner Hole: Mirror-polished inner wall ensures uniform and laminar gas flow, delivering consistent cutting results for stainless steel, carbon steel, aluminum, copper, galvanized sheet and all common metal materials.
• Rigorous Full Inspection Process: Every D32 nozzle undergoes strict dimensional accuracy testing, air tightness verification, and cutting performance assessment before shipment to guarantee stable and reliable quality.

Compatible Equipment & Available Types

Compatible Equipment

• All Mainstream Fiber Laser Cutting Machines
• Raytools, Precitec, WSX, Bodor, OSPRI, BOCI, HSG Laser Cutting Heads

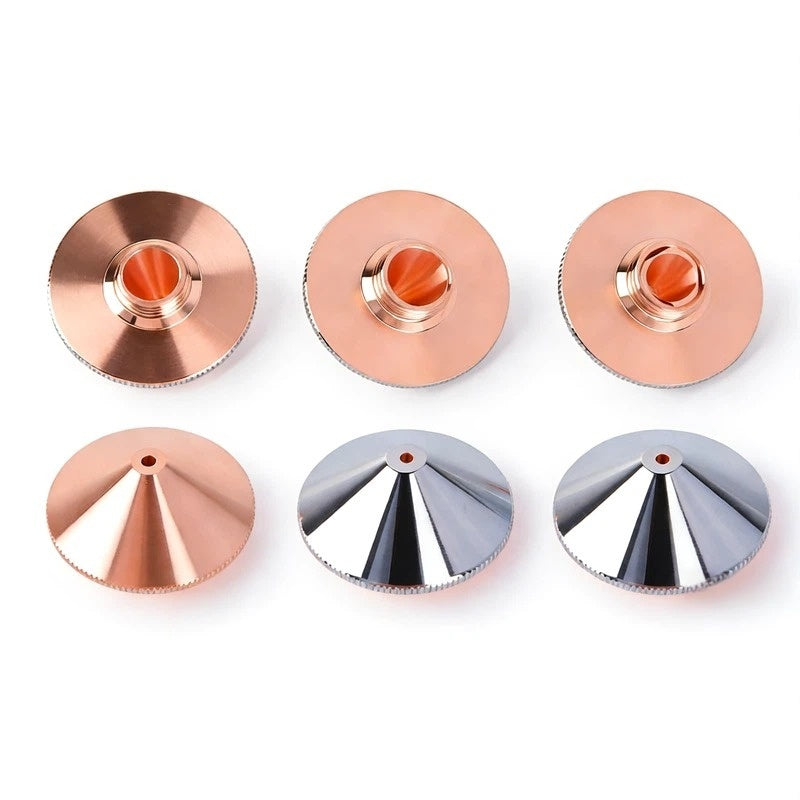

Available D32 Laser Nozzle Types

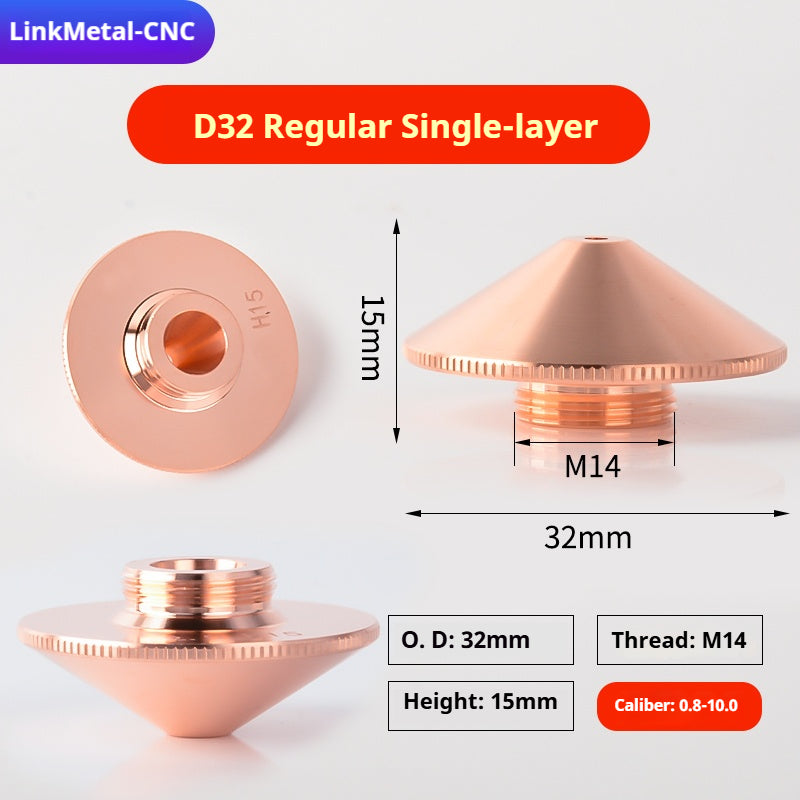

• Single Layer Laser Nozzle: Cost-effective solution for general thin to medium plate cutting

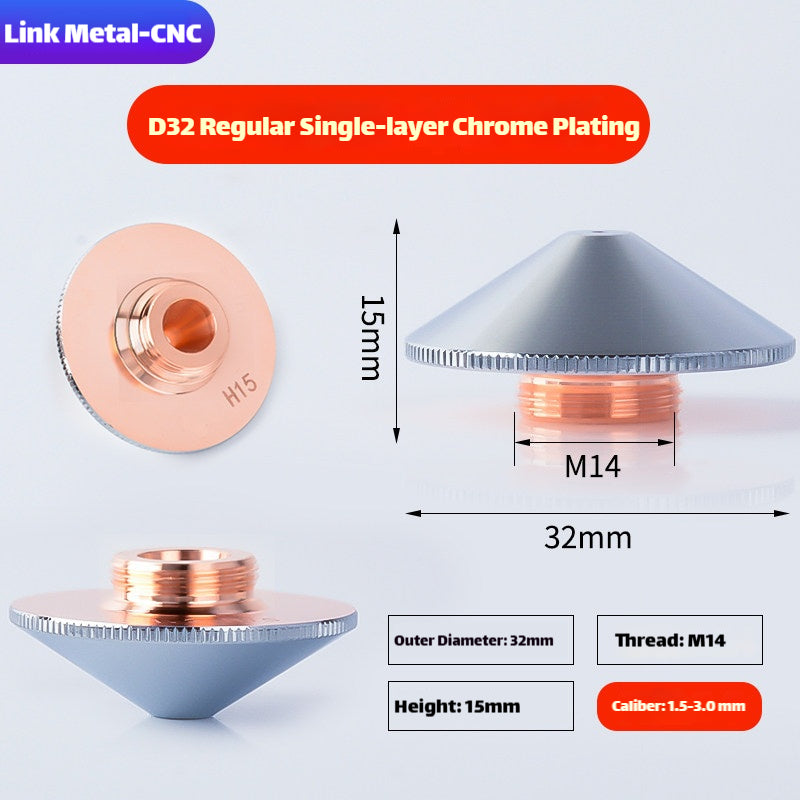

• Single Layer Chrome Plated Laser Nozzle: Enhanced anti-spatter and wear resistance for daily production
• Double Layer Chrome Plated Laser Nozzle: Superior gas flow for high-precision thick plate cutting

Custom Specifications Available: For custom sizes, special materials or other laser nozzle models, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Link Metal CNC D32 Laser Nozzle (selected type)
• 1 x Anti-Static Protective Packaging

Quality Assurance

Every Link Metal CNC D32 laser nozzle undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, air tightness verification, inner hole smoothness testing and cutting performance assessment.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What is the difference between D28 and D32 laser nozzles?
A: D28 nozzles are suitable for most standard cutting heads, while D32 nozzles are designed for larger cutting heads and higher power laser systems (above 15000W), providing better heat dissipation and gas flow for thick plate cutting.

Q: How much longer do chrome plated D32 nozzles last?
A: Our hard chrome plated D32 nozzles last 3-4 times longer than standard copper nozzles, especially in high-intensity production environments where spatter buildup is common.

Q: Are these nozzles compatible with my high-power laser cutting machine?
A: Yes, our D32 standard laser nozzles are specifically designed for high-power fiber laser cutting machines up to 30000W, compatible with all mainstream brands.

View our full range of laser cutting accessories including ceramic rings and protective lenses.
