M5 Series Wire Guide Nozzle for Fiber Laser Welding Machines
Professional industrial-grade M5 wire guide nozzles, essential core accessories for all fiber laser welding machines. Specially designed for handheld laser welding, automatic laser welding and robotic laser welding systems, our M5 wire guide nozzle delivers stable wire feeding and accurate welding positioning.

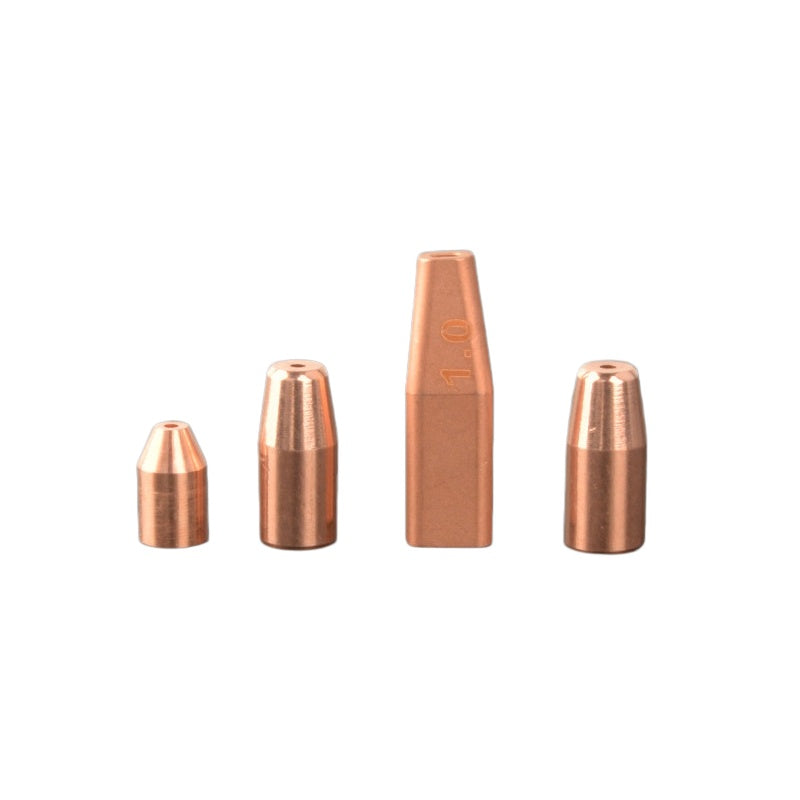

We offer three professional configurations: M5-16, M5-10 and dual wire feed models. All products are precision machined from high-quality wear-resistant materials for reliable performance in demanding industrial welding environments.
Key Advantages of Our M5 Wire Guide Nozzles
-
Standard M5 Universal Interface: Industry-standard M5 thread interface provides 1:1 precision fit for all mainstream fiber laser welding guns and wire feeding systems. Direct drop-in replacement with no additional debugging required—plug and play, universally compatible with most laser welding equipment on the market.
-
Three Professional Specifications:
-
M5-10 & M5-16 Single Wire: Compact structure, smooth wire feeding for conventional single wire laser welding of thin and medium plates
-
Dual Wire Feed: Stable double wire guiding for dual wire synchronous welding process, significantly improving welding efficiency and weld seam quality
-
Premium Chromium-Zirconium-Copper Construction: Made from high-grade chromium-zirconium-copper alloy for exceptional hardness, superior high temperature resistance and outstanding anti-spatter properties. Effectively resists welding splash erosion, delivering 2-3 times longer service life than standard copper nozzles.
-
Ultra-High Precision CNC Machining: Strict inner hole size tolerance control with mirror-polished inner wall and no burrs. Ensures smooth wire feeding without jamming, prevents wire deviation, and improves welding positioning accuracy and weld seam consistency.
-
Broad Industrial Applicability: Compatible with laser welding of stainless steel, carbon steel, aluminum alloy, galvanized sheet and other metal materials. Widely used in sheet metal processing, hardware manufacturing, automotive parts production, chassis cabinet manufacturing and mold repair.
Compatible Equipment & Available Types
Compatible Equipment
- All Mainstream Fiber Laser Welding Machines
- All Handheld Laser Welding Guns
- All Automatic Laser Welding Systems
- All Robotic Laser Welding Stations
Available M5 Wire Guide Nozzle Types
-

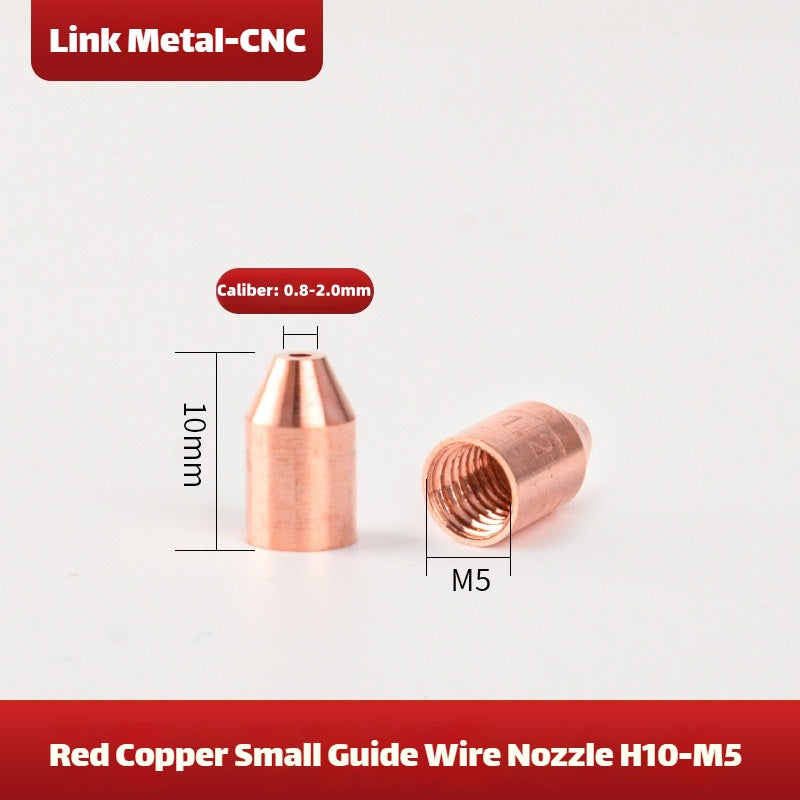

M5-10 Wire Guide Nozzle: 10mm length, compact design for tight space welding
-

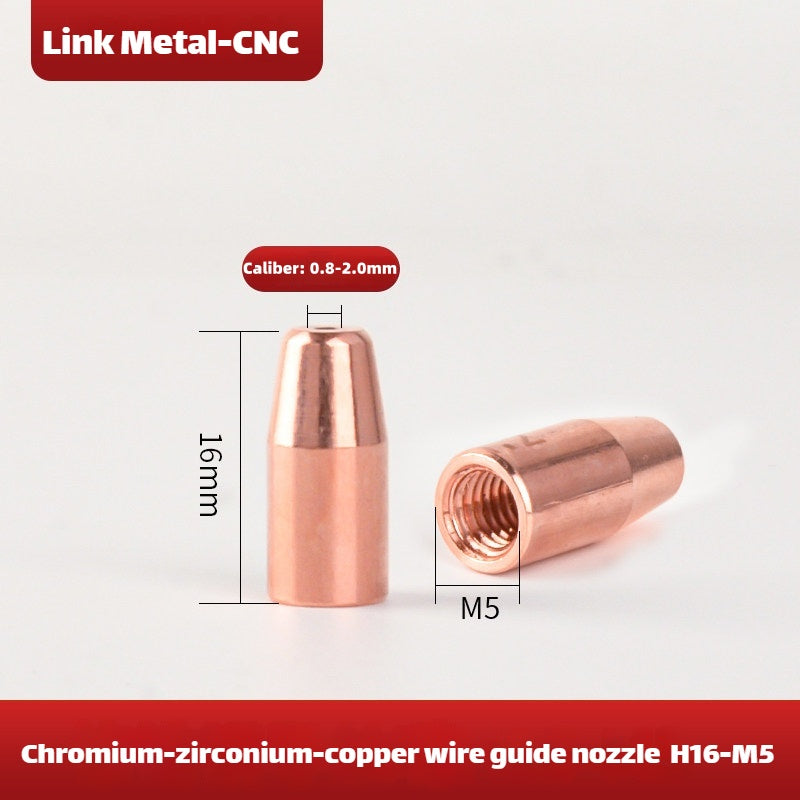

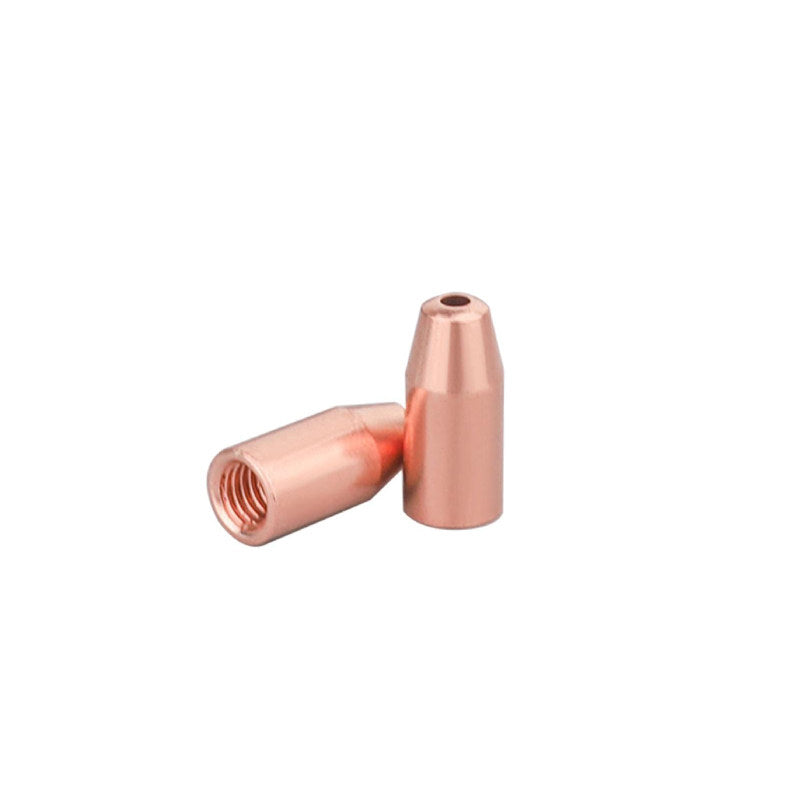

M5-16 Wire Guide Nozzle: 16mm length, standard option for most general welding applications
-

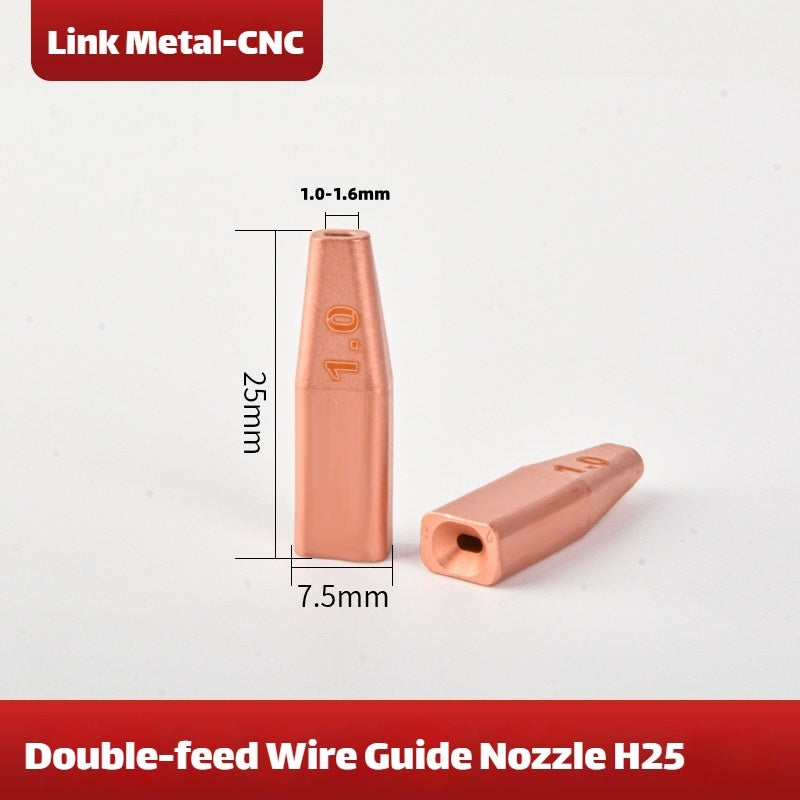

Dual Wire Feed Wire Guide Nozzle: Special design for dual wire synchronous welding process
Custom Specifications Available: For custom calibers, special lengths or other laser welding accessories, please contact our sales team directly for personalized solutions.
Detailed Technical Specifications
| Parameter |
Specification |
| Brand |
Link Metal CNC |
| Product Type |
M5 Series Laser Welding Wire Guide Nozzle |
| Interface Standard |
M5 Standard Thread |
| Length Options |
10mm, 16mm, Dual Wire |
| Caliber Range |
0.8mm - 2.0mm |
| Base Material |
High-Grade Chromium-Zirconium-Copper Alloy |
| Applicable Process |
Single Wire Laser Welding / Dual Wire Laser Welding |
| Compatible Wire Materials |
Stainless Steel, Carbon Steel, Aluminum, Galvanized Steel |
| Application Scenario |
Handheld Welding, Automatic Welding, Robotic Welding |
Package Contents
- 1 x Selected Link Metal CNC M5 Wire Guide Nozzle Laser Welding Accessory
- 1 x Specialized Anti-Static Dust-Proof Protective Packaging
Quality Assurance
Every Link Metal CNC M5 wire guide nozzle undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, inner hole smoothness verification, installation fit test, wire feeding smoothness test and welding performance assessment.
We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.
Frequently Asked Questions
Q: What is the difference between M5-10 and M5-16 wire guide nozzles?
A: The difference is the overall length. M5-10 nozzles are 10mm long and designed for tight space welding applications where a shorter nozzle is required. M5-16 nozzles are 16mm long, which is the standard length for most general laser welding applications and provides better wire guidance stability.
Q: What is the advantage of chromium-zirconium-copper over standard copper?
A: Chromium-zirconium-copper alloy has significantly higher hardness, better high temperature resistance and superior anti-spatter properties compared to standard oxygen-free copper. It can withstand the harsh welding environment much better, delivering 2-3 times longer service life and reducing replacement frequency.
Q: What is the dual wire feed model used for?
A: The dual wire feed wire guide nozzle is specially designed for dual wire synchronous laser welding process. It allows two welding wires to be fed simultaneously into the weld pool, significantly increasing welding speed and deposition rate, making it ideal for thick plate welding and high-volume production applications.
Q: What caliber sizes are available?
A: Our M5 wire guide nozzles are available in calibers ranging from 0.8mm to 2.0mm, covering all common welding wire sizes. Please specify the required caliber when placing your order.
Q: Will this wire guide nozzle work with my laser welding machine?
A: Our M5 wire guide nozzles use the industry-standard M5 thread interface, which is compatible with over 95% of mainstream fiber laser welding machines and welding guns on the market. If you are unsure about compatibility, please contact our sales team with your welding gun model number for confirmation.

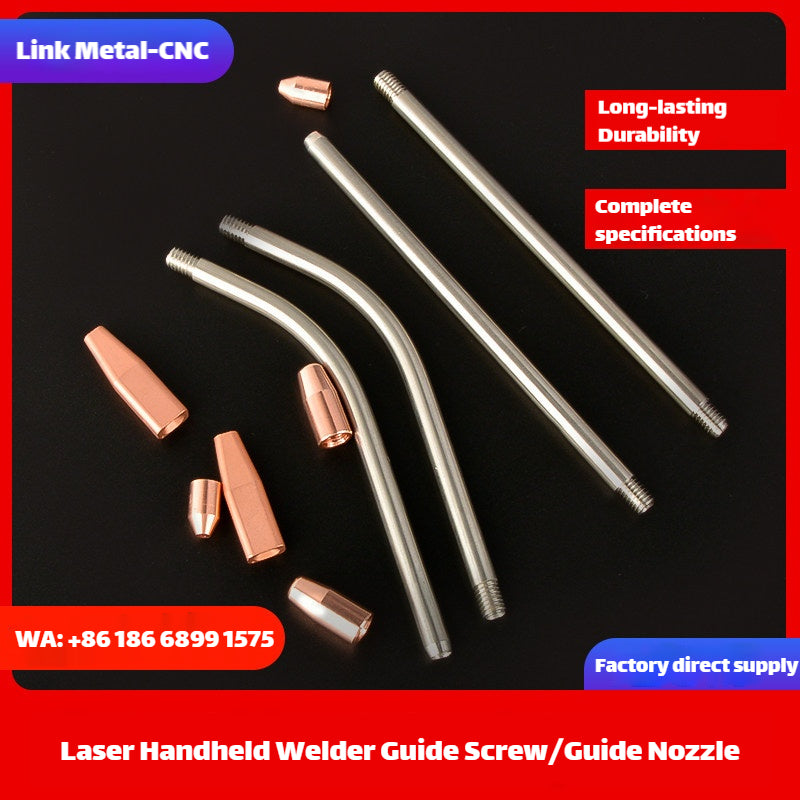

View our full range of laser welding accessories including welding nozzles and protective lenses.
