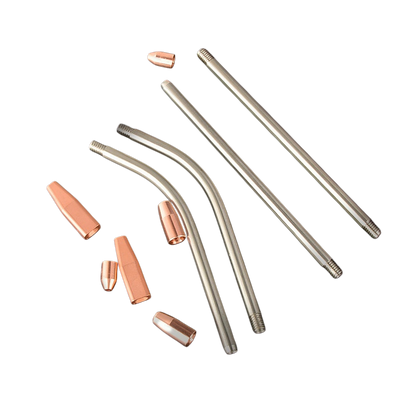

M5 Series Wire Guide Tube for Fiber Laser Welding Machines
Professional high-quality M5 wire guide tubes designed for all fiber laser welding machines. Perfect for metal sheet welding, tube welding, corner welding and various industrial laser welding applications, our M5 wire guide tube ensures stable wire feeding and consistent welding quality.
We offer a complete range of configurations including straight and bent styles, single-end and double-end threads, and multiple length options. All products are precision machined from high-grade wear-resistant materials for reliable performance in demanding industrial welding environments.
Key Advantages of Our M5 Wire Guide Tubes
-
Standard M5 Universal Thread: Industry-standard M5 thread interface provides perfect match with all original welding torches. Direct drop-in replacement with no additional debugging required—plug and play, universally compatible with most laser welding equipment on the market.
-
Complete Configuration Options:
-

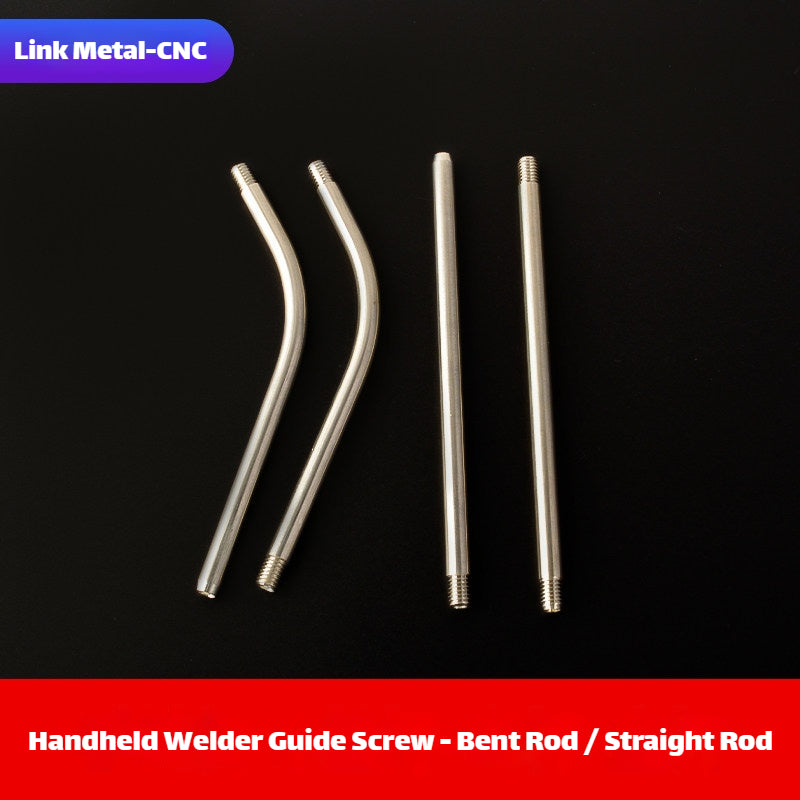

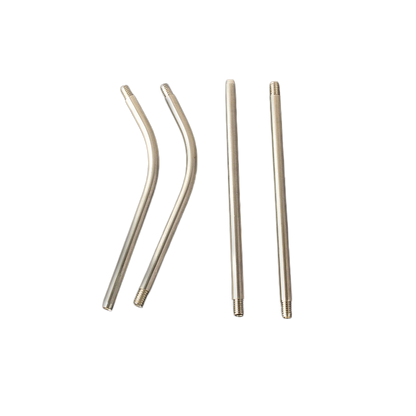

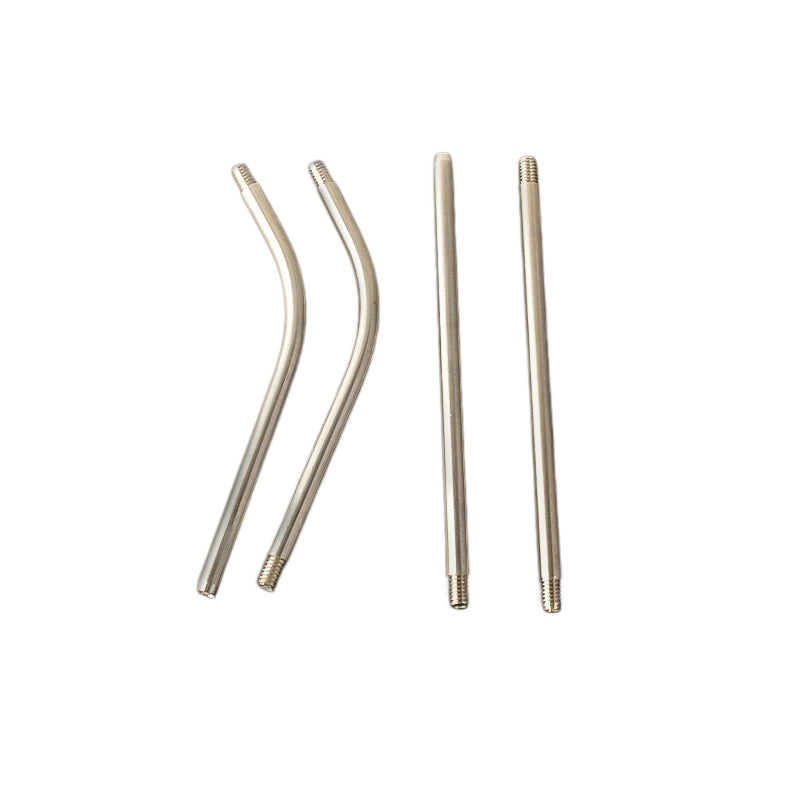

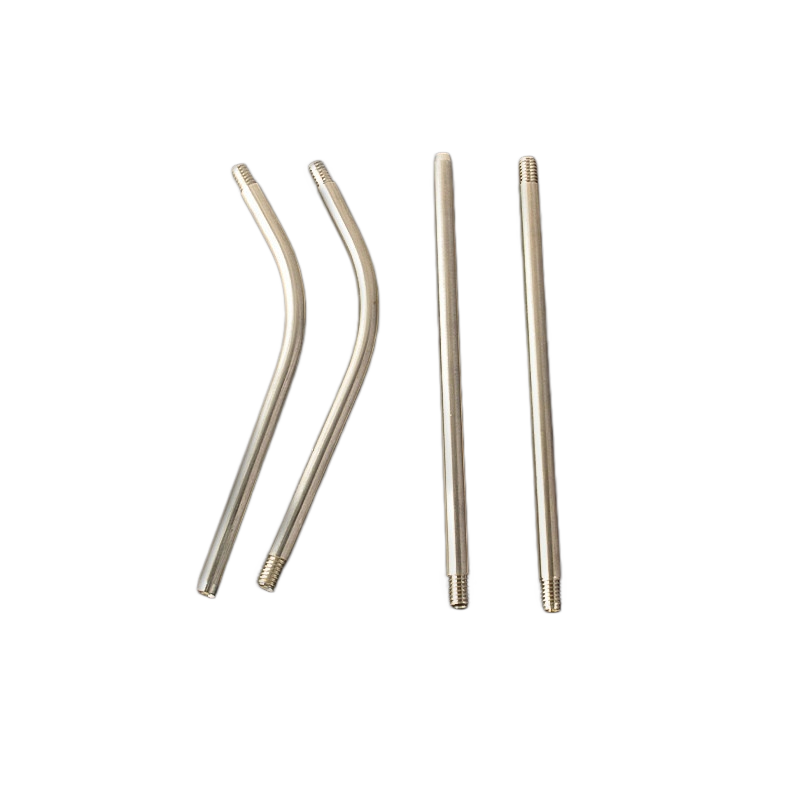

Straight & Bent Styles: Straight for general welding, bent for corner and hard-to-reach area welding
-
Single-End & Double-End Threads: Flexible installation options for different welding gun designs
-
Multiple Lengths: H10, H12 and H15 lengths to meet various welding process requirements
-
High-Grade Wear-Resistant Alloy Construction: Made from premium wear-resistant alloy for exceptional high temperature resistance and outstanding anti-spatter properties. Effectively resists welding splash erosion, delivering long service life and reducing replacement frequency.
-
Ultra-High Precision Machining: Smooth mirror-polished inner wall with no burrs ensures smooth wire feeding without jamming. Prevents damage to welding wire and ensures stable welding current transmission for consistent weld quality.
-
Broad Industrial Compatibility: Compatible with all mainstream handheld and automatic laser welding equipment. Easy to install and replace, making it ideal for daily equipment maintenance and production line use.
Compatible Equipment & Available Types
Compatible Equipment
- All Mainstream Fiber Laser Welding Machines
- All Handheld Laser Welding Guns
- All Automatic Laser Welding Systems
- All Robotic Laser Welding Stations
Available M5 Wire Guide Tube Types
-

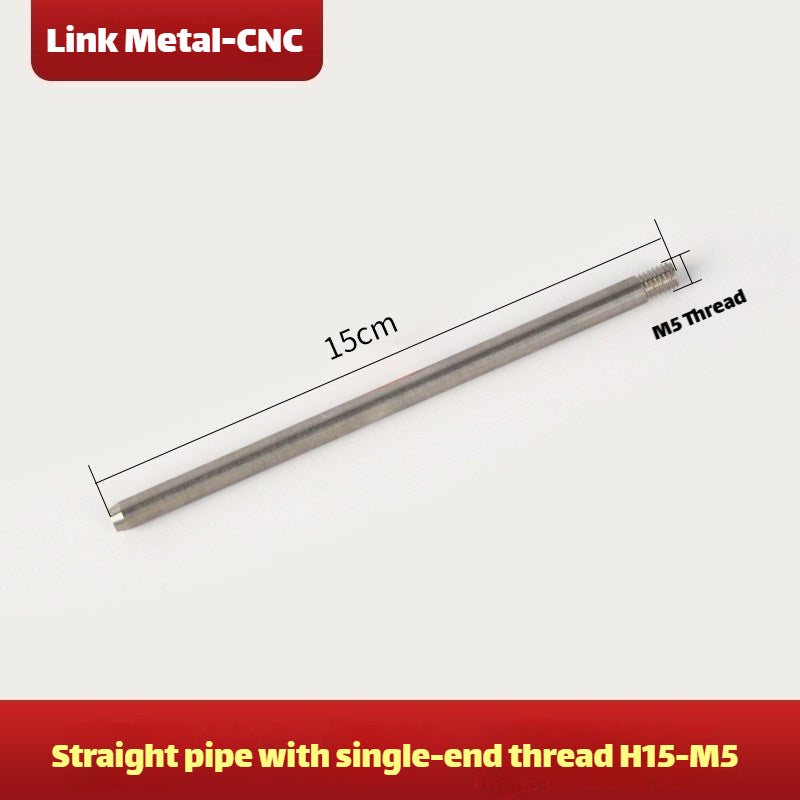

Straight Style: Standard option for general flat and linear welding applications
-

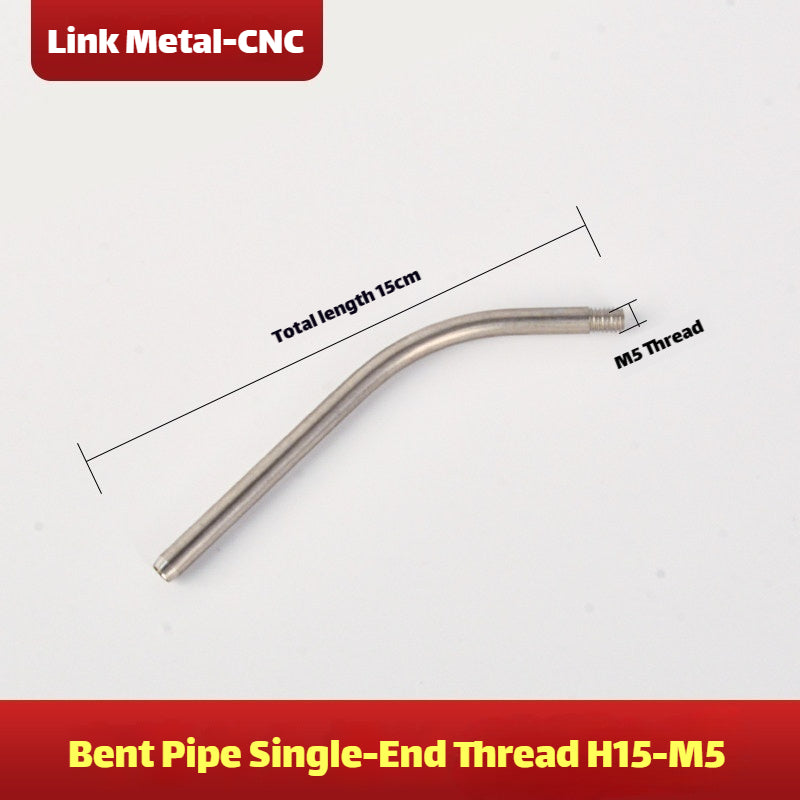

Bent Style: Angled design for corner welding and hard-to-reach area welding
-

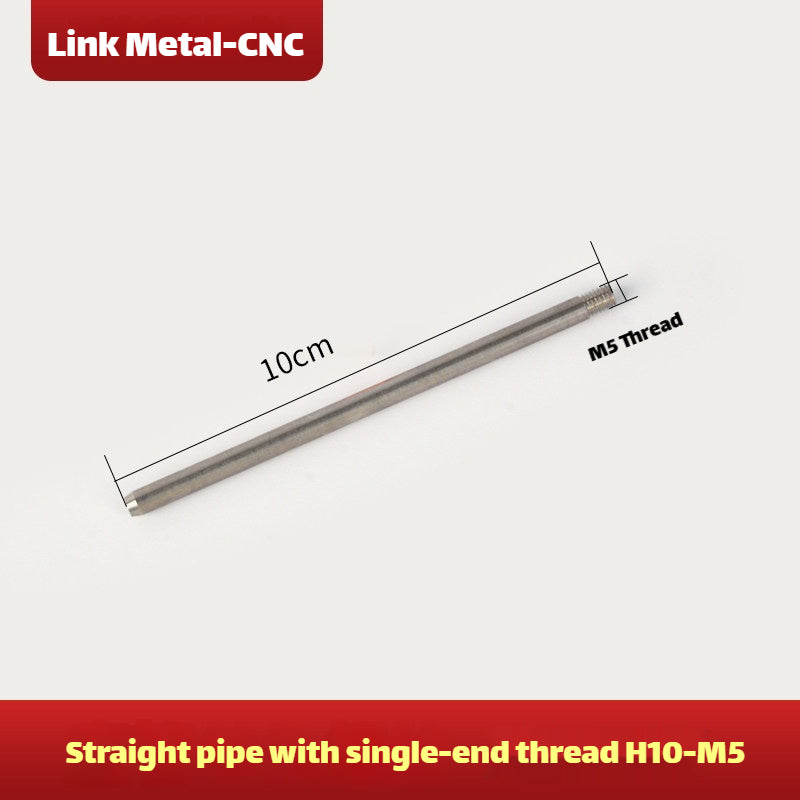

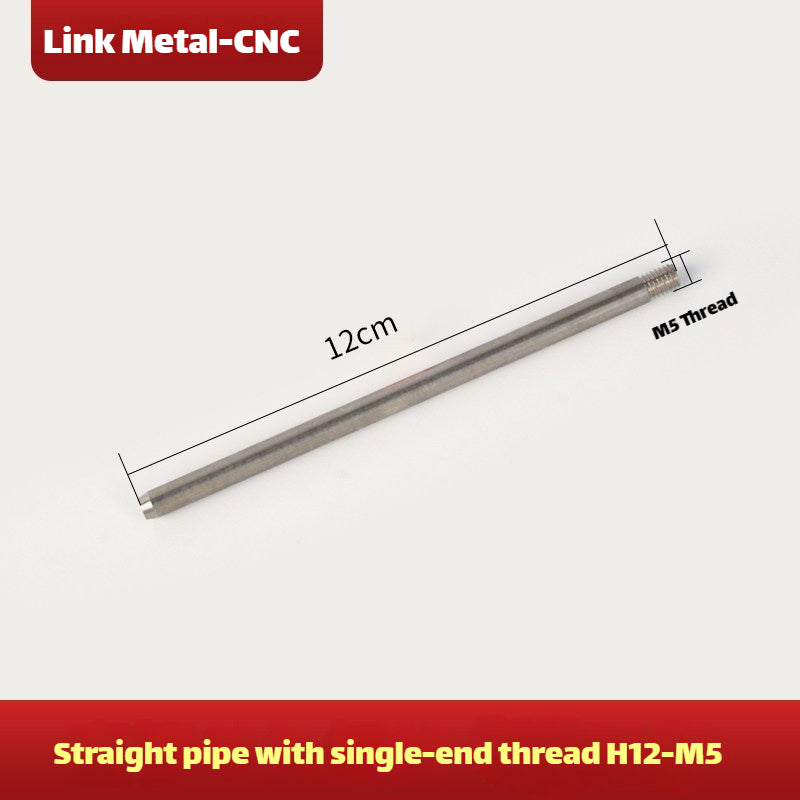

Single-End Thread: Threaded at one end for standard welding gun installation
-

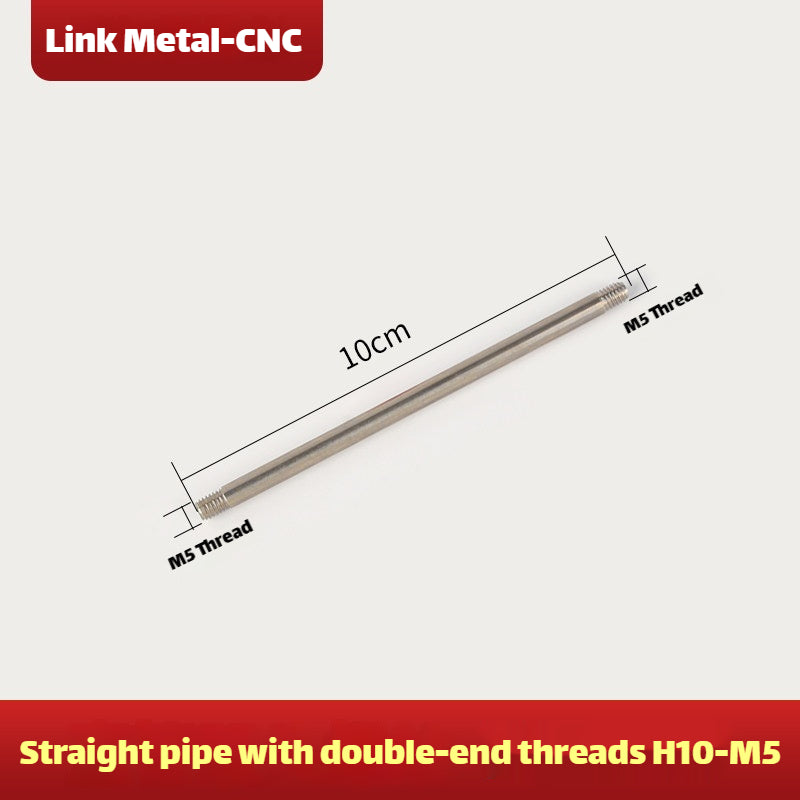

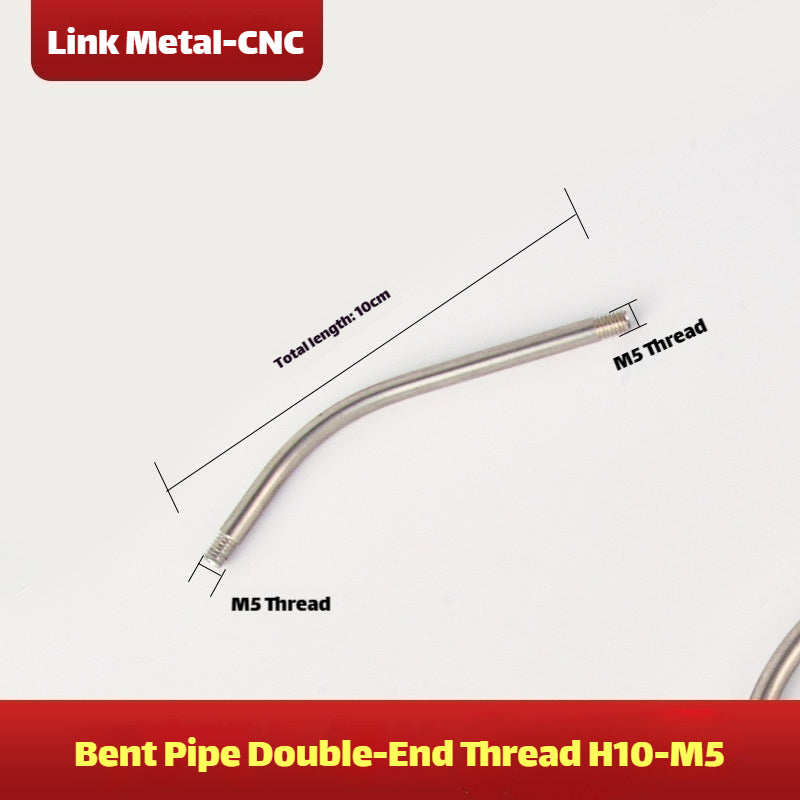

Double-End Thread: Threaded at both ends for special welding gun configurations
Custom Specifications Available: For custom lengths, special angles or other laser welding accessories, please contact our sales team directly for personalized solutions.
Detailed Technical Specifications
| Parameter |
Specification |
| Brand |
Link Metal CNC |
| Product Type |
M5 Series Laser Welding Wire Guide Tube |
| Interface Standard |
M5 Standard Thread |
| Style Options |
Straight, Bent (45° Standard Angle) |
| Thread Type |
Single-End Thread, Double-End Thread |
| Length Options |
H10 (10mm), H12 (12mm), H15 (15mm) |
| Inner Diameter |
2.0mm (Standard for 0.8-1.6mm Welding Wire) |
| Base Material |
High-Grade Wear-Resistant Alloy |
| Compatible Wire Materials |
Stainless Steel, Carbon Steel, Aluminum, Galvanized Steel |
| Application Scenario |
Sheet Welding, Tube Welding, Corner Welding, Hard-to-Reach Area Welding |
Package Contents
- 1 x Selected Link Metal CNC M5 Wire Guide Tube (based on selected style, thread type and length)
- 1 x Specialized Anti-Static Dust-Proof Protective Packaging
Quality Assurance
Every Link Metal CNC M5 wire guide tube undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, thread fit verification, inner wall smoothness test and wire feeding performance assessment.
We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.
Frequently Asked Questions
Q: What is the difference between straight and bent wire guide tubes?
A: Straight wire guide tubes are designed for general flat and linear welding applications where the welding gun is perpendicular to the workpiece. Bent wire guide tubes (standard 45° angle) are specifically designed for corner welding, fillet welding and welding in hard-to-reach areas where a straight tube would cause interference.
Q: What is the difference between single-end and double-end thread tubes?
A: Single-end thread tubes have threads only at one end and are the standard configuration for most welding guns. Double-end thread tubes have threads at both ends and are used in special welding gun designs that require threading from both sides. Please check your welding gun's requirements before ordering.
Q: Which length should I choose: H10, H12 or H15?
A: The required length depends on your specific welding gun model and welding process. H10 is the shortest for compact welding guns, H12 is the most common standard length, and H15 is the longest for extended reach applications. We recommend measuring your existing wire guide tube to confirm the correct length.
Q: What welding wire sizes are compatible with these tubes?
A: Our M5 wire guide tubes have a standard 2.0mm inner diameter, which is compatible with all common welding wire sizes from 0.8mm to 1.6mm. This covers the vast majority of industrial laser welding applications.
Q: Will this wire guide tube work with my laser welding machine?
A: Our M5 wire guide tubes use the industry-standard M5 thread interface, which is compatible with over 95% of mainstream fiber laser welding machines and welding guns on the market. If you are unsure about compatibility, please contact our sales team with your welding gun model number for confirmation.

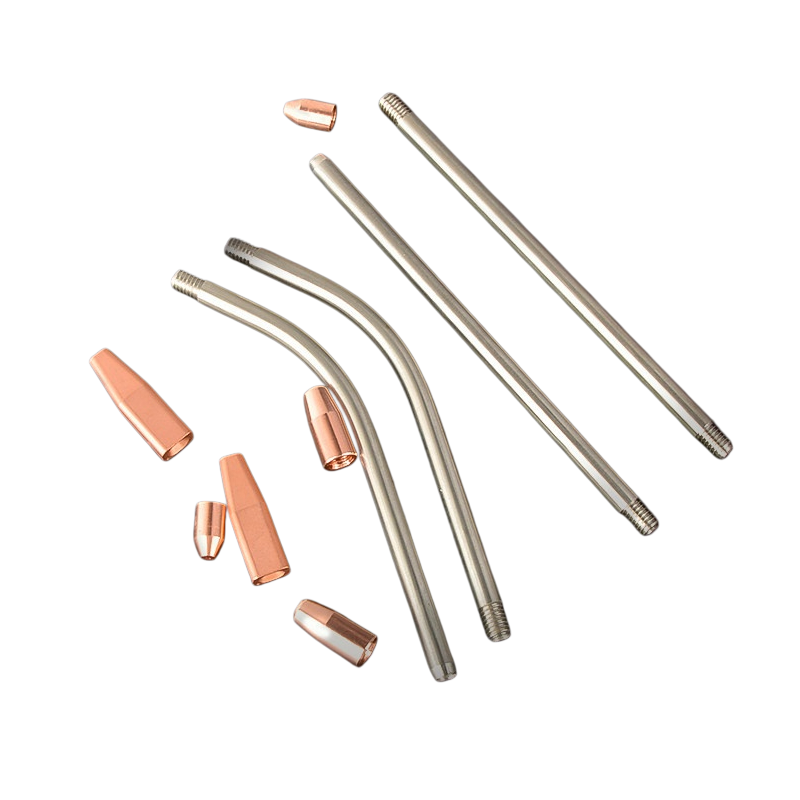

View our full range of laser welding accessories including wire guide nozzles and protective lenses.
