MCSB Style High Speed Laser Cutting Nozzle for Fiber Lasers

Professional industrial-grade MCSB style high-speed laser cutting nozzles specially designed for high-speed flying cutting of fiber laser cutting machines. As an essential core consumable for high-efficiency laser processing, our MCSB nozzle features a dedicated optimized airflow structure and is available in 5 different configurations to meet all your industrial cutting needs.

All products are manufactured with high-purity oxygen-free red copper material and ultra-precision CNC machining for perfect fit, stable cutting performance and extended service life in demanding production environments.

Key Advantages of Our MCSB Laser Nozzles

• Exclusive MCSB High-Speed Optimized Structure: Professionally designed internal cavity and airflow channel specifically tuned for MCSB systems. Effectively reduces airflow turbulence, improves airflow convergence and stability, and maintains consistent air pressure during high-speed flying cutting, increasing cutting speed by up to 30%.
• 1:1 OEM Fit for MCSB Interface Heads: Standard MCSB interface design, perfectly compatible with all mainstream MCSB interface fiber laser cutting heads. Direct drop-in replacement with no additional debugging required—plug and play, works with most popular fiber laser cutting machines on the market.
• High-Purity Oxygen-Free Red Copper Construction: Made from premium 99.95% oxygen-free red copper for exceptional thermal conductivity, superior high temperature resistance and outstanding anti-oxidation properties. Resists deformation even during long-term high-power cutting operations.

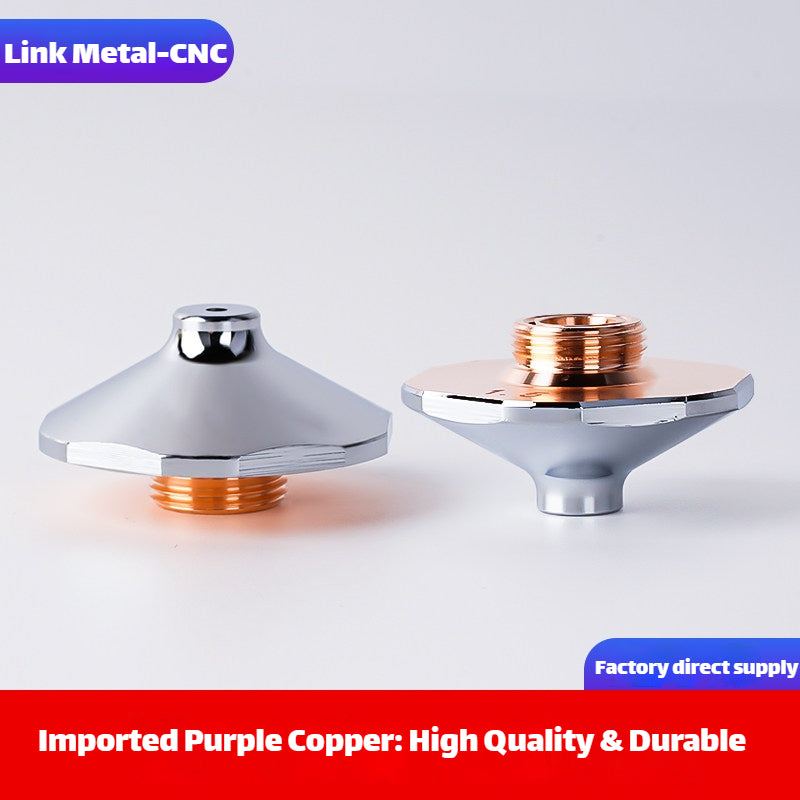

• Advanced Chrome Plated Upgrade: Precision hard chrome plating treatment provides significantly enhanced wear resistance and anti-spatter performance. Resists slag adhesion, is easy to clean, and delivers 3+ times longer service life than standard non-chrome plated nozzles.
• Innovative Stepped Single Layer Design: Integrated stepped positioning structure ensures accurate centering installation and firm locking without loosening. Provides perfect sealing and no air pressure leakage, guaranteeing stable airflow output even during high-speed cutting.
• Optimized Double Layer Structure: Professional convergent airflow cavity delivers superior gas flow convergence and more stable cutting air pressure. Effectively improves cutting precision and edge finish, making it ideal for high-precision high-speed cutting applications.
• Ultra-High Precision CNC Machining: Strict dimensional tolerance control with mirror-polished inner hole ensures smooth, non-divergent airflow. Effectively reduces cutting burrs and slag hanging, optimizes section finish, and eliminates subsequent polishing processes.
• Broad Industrial Applicability: Ideal for cutting stainless steel, carbon steel, aluminum alloy, galvanized sheet, copper plate and other metal materials. Widely used in sheet metal processing, hardware manufacturing, automotive parts production and other industrial scenarios.

Compatible Equipment & Available Types

Compatible Equipment

• All Mainstream Fiber Laser Cutting Machines with MCSB Interface
• Raytools, Precitec, WSX, Bodor, OSPRI Laser Cutting Heads with MCSB Interface

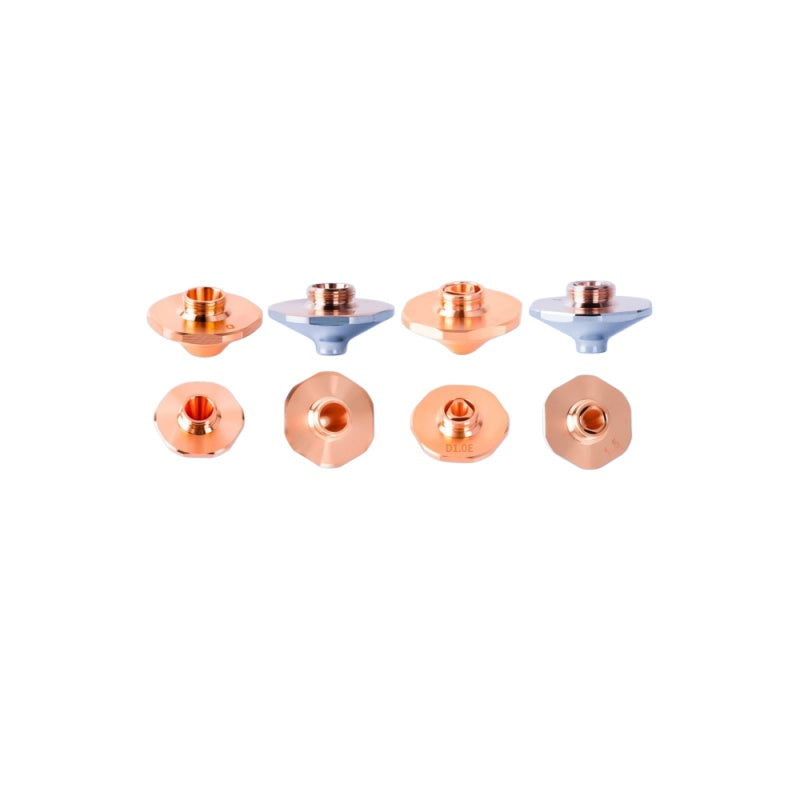

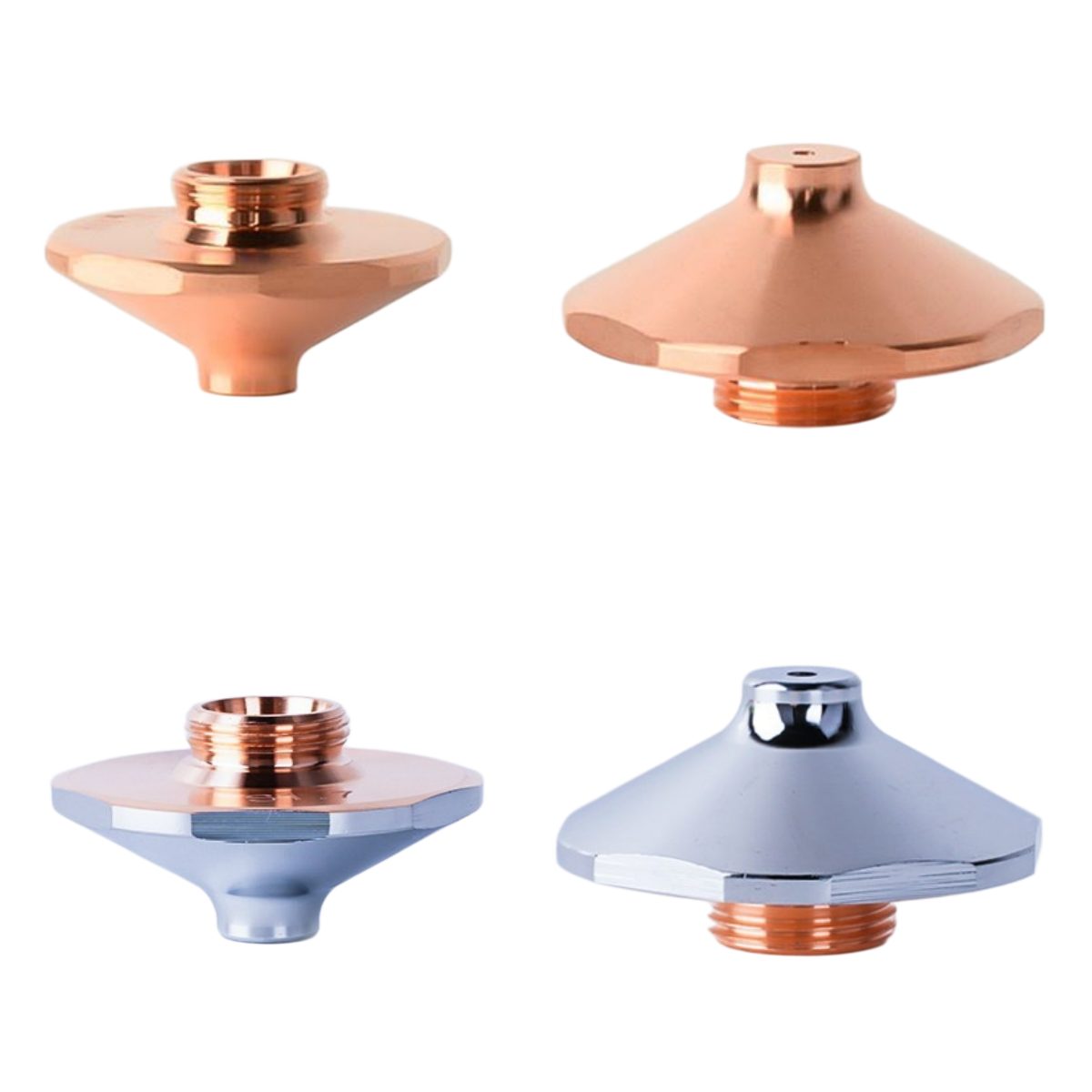

Available MCSB Nozzle Types (5 Options)

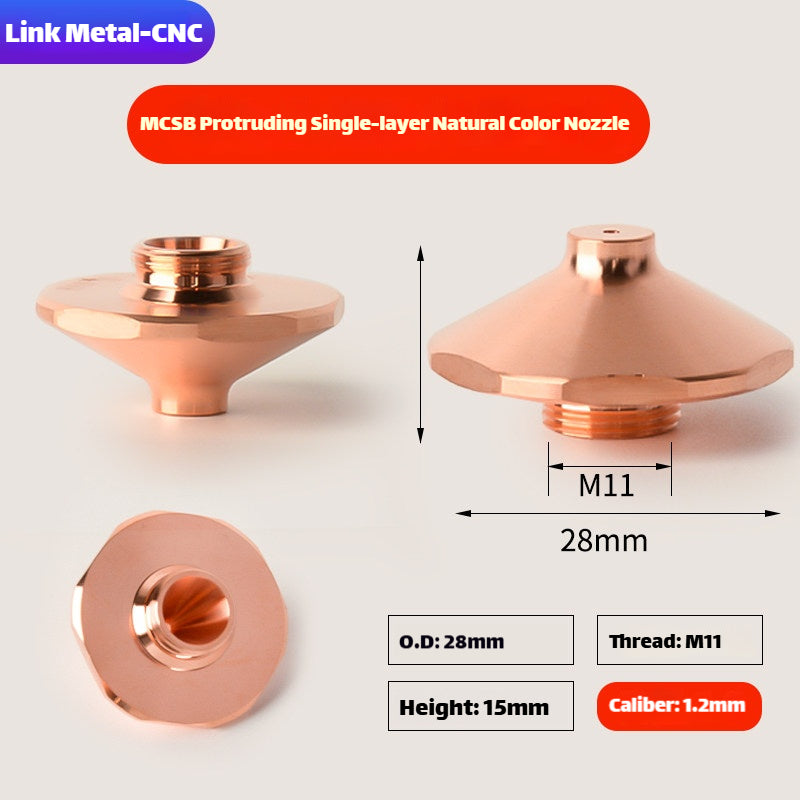

• Single Layer Laser Nozzle: Cost-effective solution for general thin plate cutting

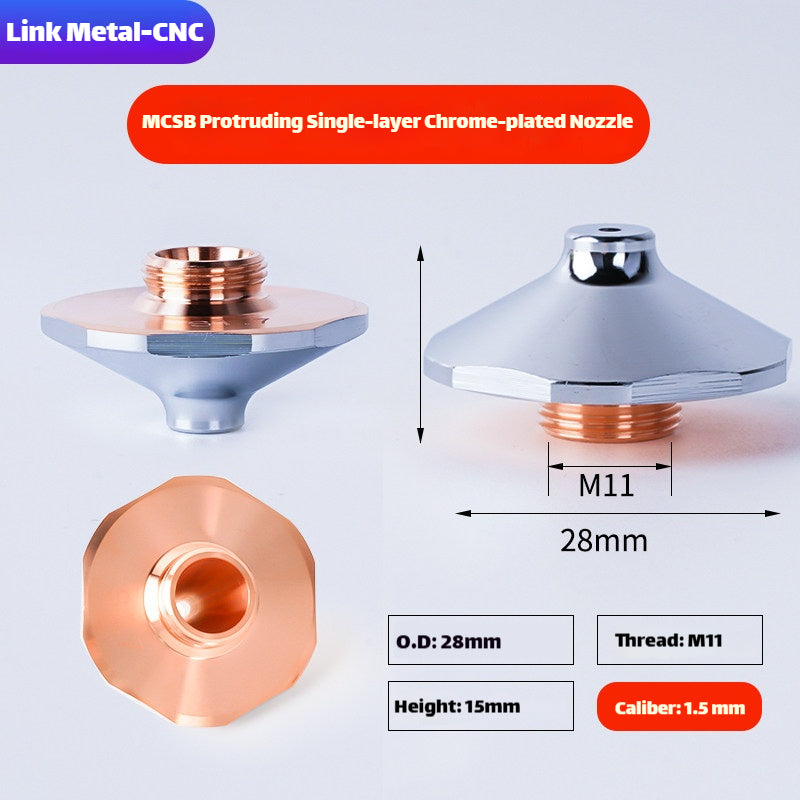

• Single Layer Chrome Plated Laser Nozzle: Enhanced anti-spatter for daily production

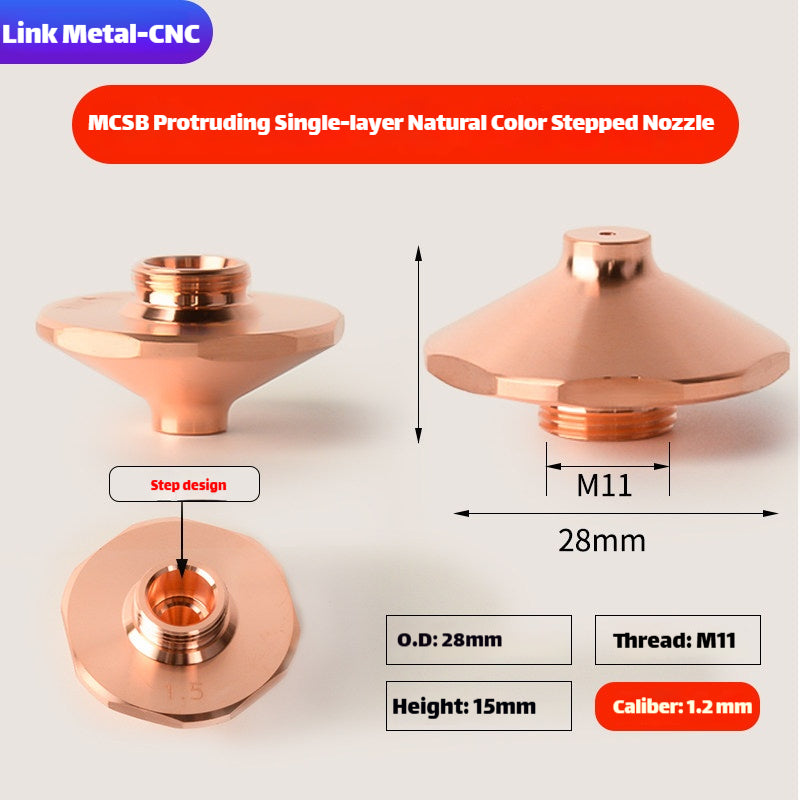

• Single Layer With Step Laser Nozzle: Accurate positioning for high-speed cutting

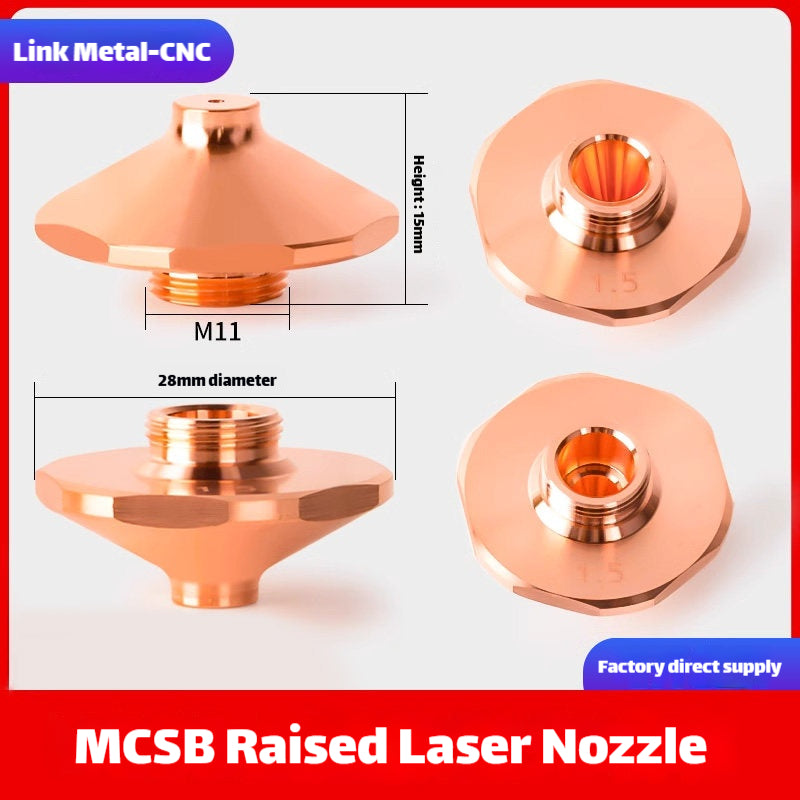

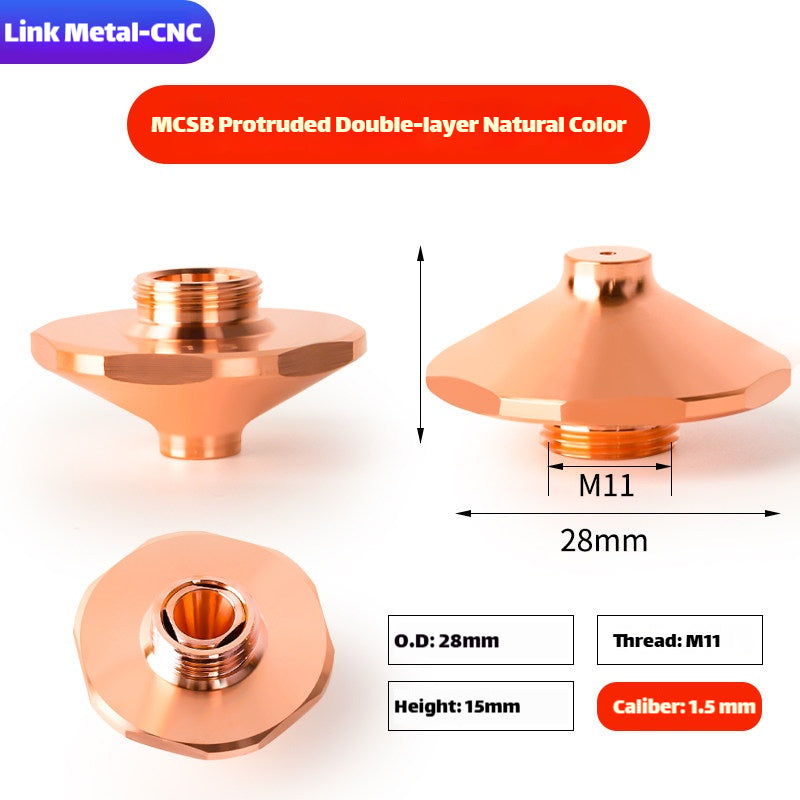

• Double Layer Laser Nozzle: Superior airflow for medium plate cutting

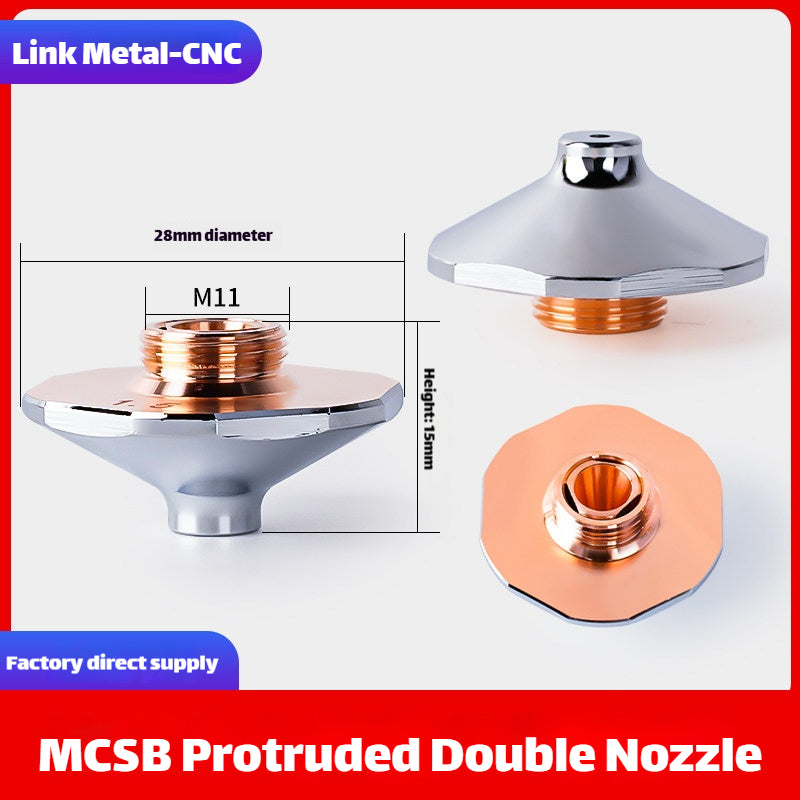

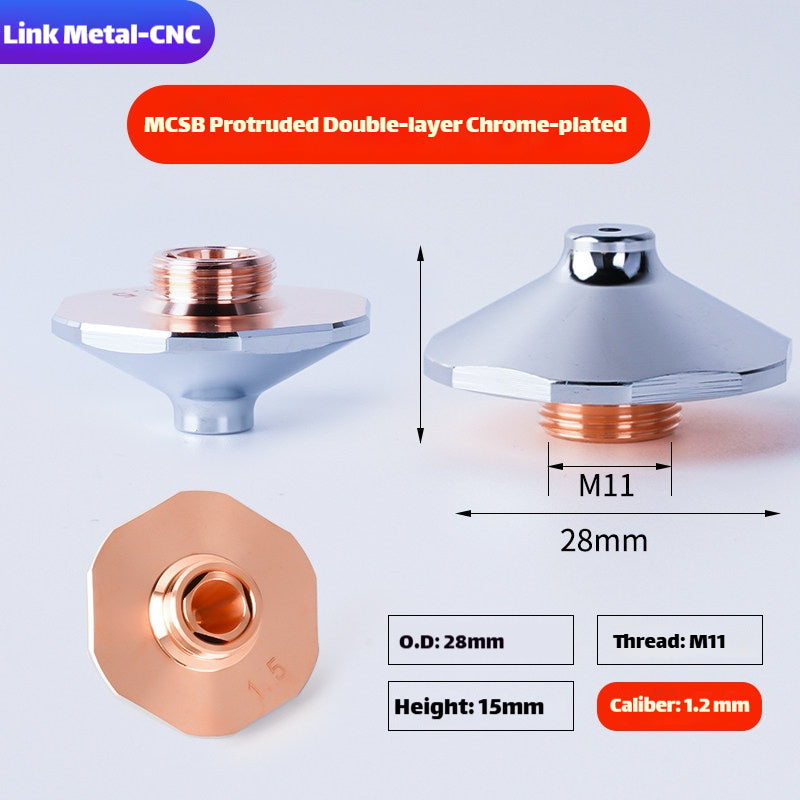

• Double Layer Chrome Plated Laser Nozzle: Premium option for high-precision thick plate cutting

Custom Specifications Available: For custom sizes, special materials or other laser cutting nozzles, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Link Metal CNC MCSB Style High Speed Laser Cutting Nozzle (selected type)
• 1 x Specialized Anti-Static Dust-Proof Protective Packaging

Quality Assurance

Every Link Metal CNC MCSB laser nozzle undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, positioning accuracy verification, air tightness test, airflow convergence test and cutting performance assessment.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What is the difference between the 5 types of MCSB nozzles?
A: We offer 5 configurations to meet different needs: standard single layer (most economical), chrome plated single layer (anti-spatter), stepped single layer (best positioning), standard double layer (better airflow), and chrome plated double layer (premium high-precision option).

Q: Will this nozzle work with non-MCSB interface cutting heads?
A: No, this nozzle is specifically designed for MCSB interface cutting heads. For other interface types, please check our standard D28/D32 nozzles, SP-S/SP-F high speed nozzles or DX hexagonal nozzles.

Q: How much longer do chrome plated MCSB nozzles last?
A: Our precision hard chrome plated MCSB nozzles last 3-4 times longer than standard copper nozzles, especially in high-intensity production environments where spatter buildup is common.
