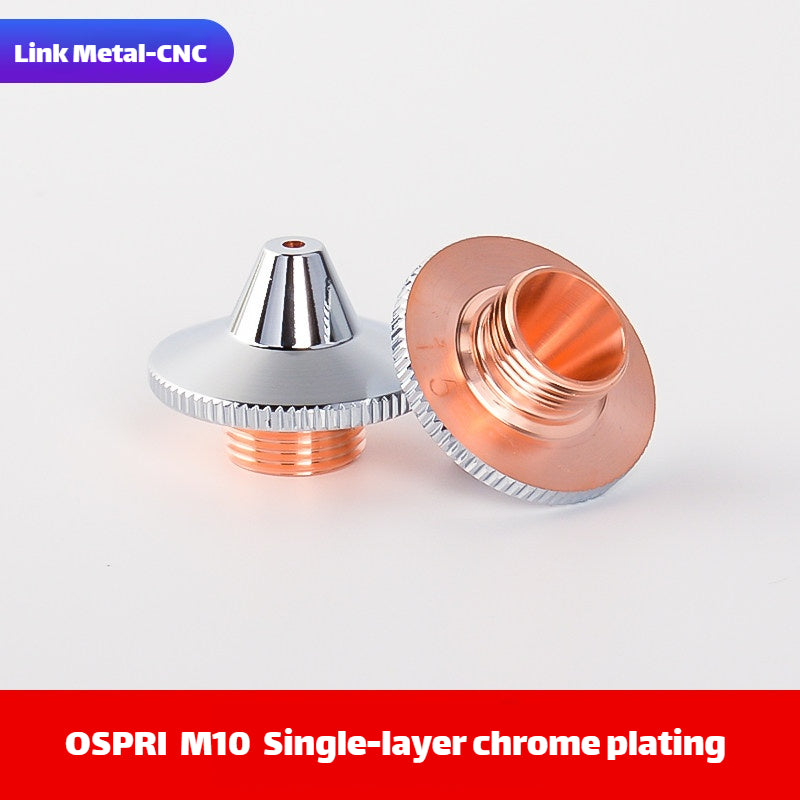

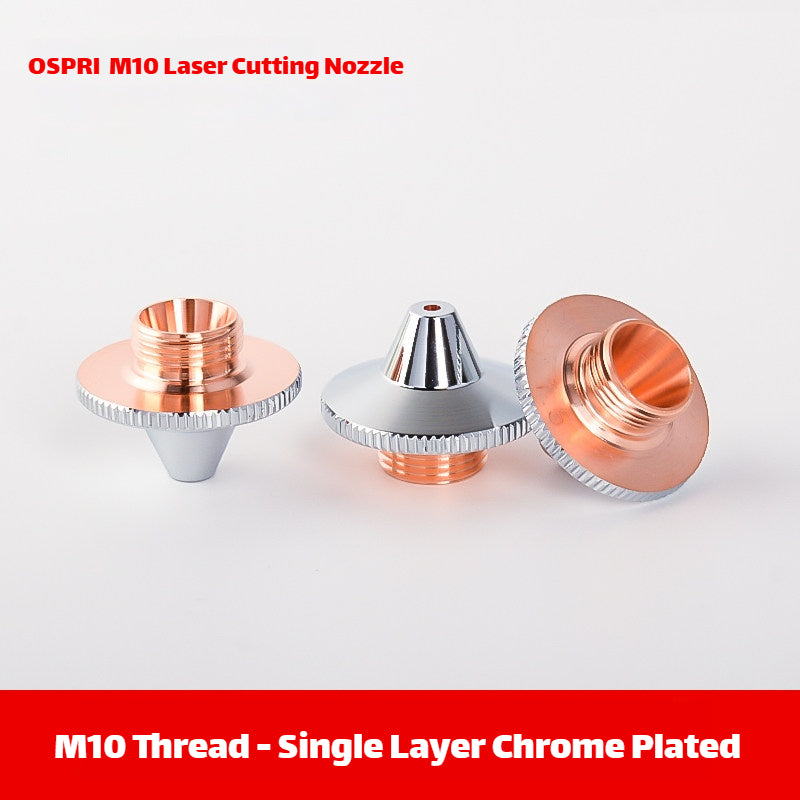

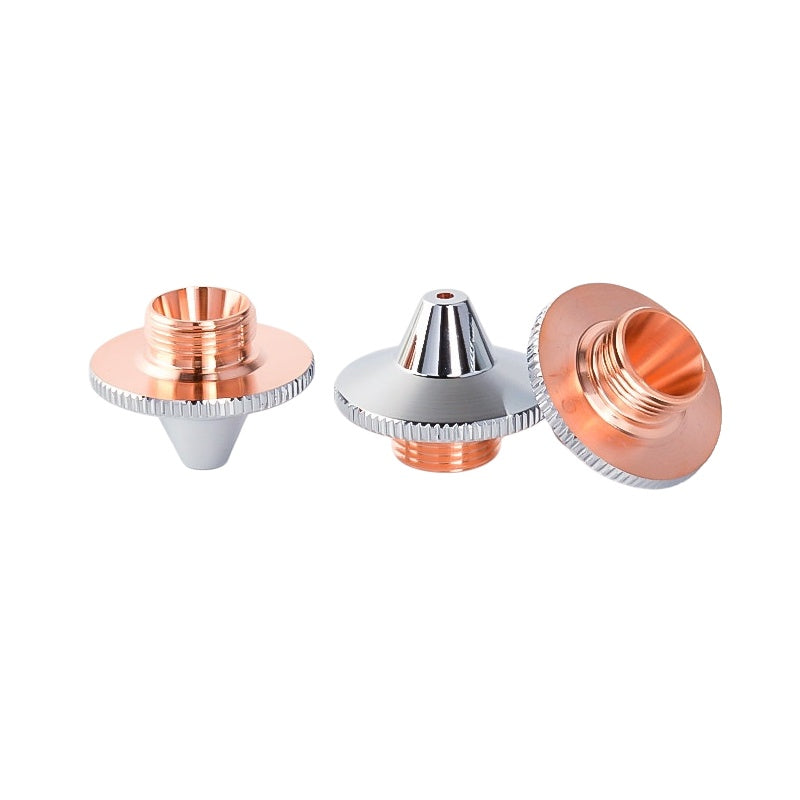

OSPRI 3D-M10 Type Single Layer Chrome Plated Laser Cutting Nozzle for 3D Robots & Tube Cutters
Professional industrial-grade OSPRI 3D-M10 type single layer chrome plated laser cutting nozzles with 1:1 OEM precision fit for original OSPRI 3D series fiber laser cutting heads. Specially designed for 3D robotic laser cutting, 3D tube cutting, irregular curved surface cutting and three-dimensional profile processing, our OSPRI 3D-M10 nozzle is an essential core consumable for all OSPRI 3D laser cutting equipment.
Featuring full precision chrome-plated surface treatment, all products are manufactured with high-purity oxygen-free red copper material and ultra-precision CNC machining for stable airflow output and excellent cutting performance in complex 3D processing scenarios.
Key Advantages of Our OSPRI 3D-M10 Laser Nozzles
-
Exclusive OSPRI 3D Dedicated Design: Standard 3D-M10 size with OSPRI-specific interface provides 1:1 perfect fit for all original OSPRI 3D laser cutting heads. Direct drop-in replacement with no additional debugging required—plug and play, fully compatible with all OSPRI 3D fiber laser cutting systems and 3D tube cutting machines.
-
Full Precision Hard Chrome Plated Surface: Advanced hard chrome plating treatment on all surfaces provides significantly enhanced wear resistance and anti-spatter performance. Resists slag adhesion, is easy to clean, and delivers 3+ times longer service life than standard non-chrome plated nozzles.
-
Optimized Single Layer Structure: Professionally designed for conventional 3D cutting of thin and medium metal plates and tubes. Delivers stable airflow output, flexible adaptability to curved surface processing and bevel cutting, and cost-effective performance for daily 3D laser processing operations.
-
High-Purity Oxygen-Free Red Copper Construction: Made from premium 99.95% oxygen-free red copper for exceptional thermal conductivity and high temperature resistance. Resists deformation even during long-term high-power 3D continuous cutting operations.
-
Compact Anti-Interference Design: Optimized overall nozzle structure with reduced overall height and streamlined profile. Effectively avoids interference with workpieces during irregular curved surface cutting, three-dimensional profile cutting and tube bevel cutting, adapting seamlessly to complex 3D cutting paths.
-
Ultra-High Precision CNC Machining: Strict dimensional tolerance control with mirror-polished inner hole ensures smooth, non-divergent airflow. Effectively reduces cutting burrs and slag hanging in 3D curved surface and tube cutting, optimizes section finish, and eliminates subsequent polishing processes.
-
Broad 3D Industrial Applicability: Ideal for 3D cutting of stainless steel, carbon steel, aluminum alloy, galvanized sheet, copper plate and various metal tubes. Widely used in automotive parts processing, hardware stamping, sheet metal forming, tube furniture manufacturing and engineering machinery production.
Compatible Equipment & Product Type
Compatible Equipment
- All OSPRI 3D Series Fiber Laser Cutting Heads
- All OSPRI 3D Robotic Fiber Laser Cutting Systems
- All OSPRI 3D Tube Cutting Machines with Bevel Cutting Function
- All Original and Compatible OSPRI 3D Laser Processing Equipment
Available OSPRI 3D-M10 Nozzle Type
-
Single Layer Chrome Plated Laser Nozzle: Optimized for general 3D thin to medium plate and tube cutting on OSPRI systems
Custom Specifications Available: For non-chrome plated options, double layer versions, custom sizes or other OSPRI laser cutting nozzles, please contact our sales team directly for personalized solutions.

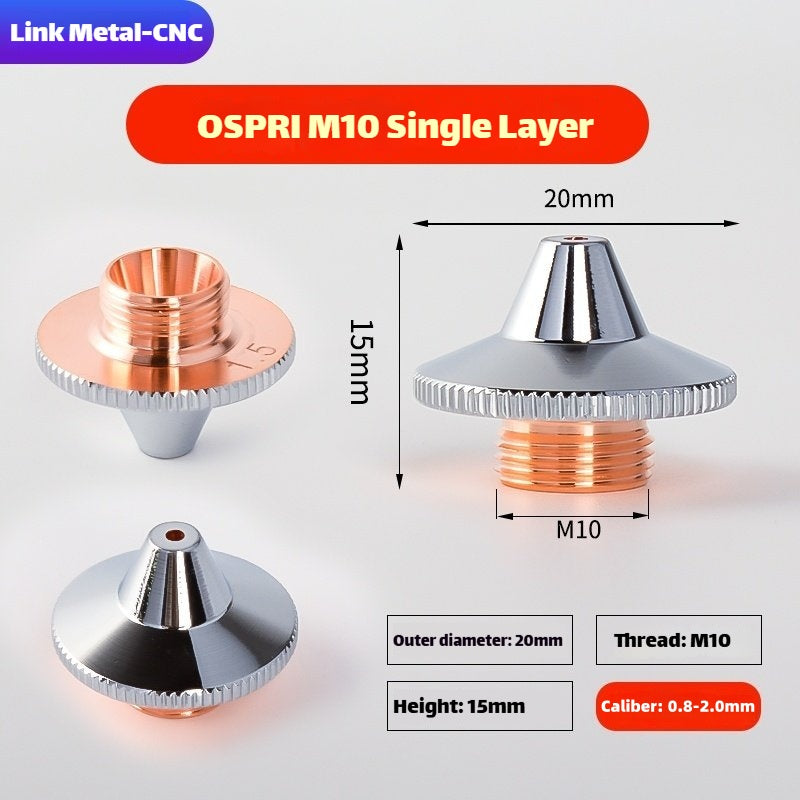

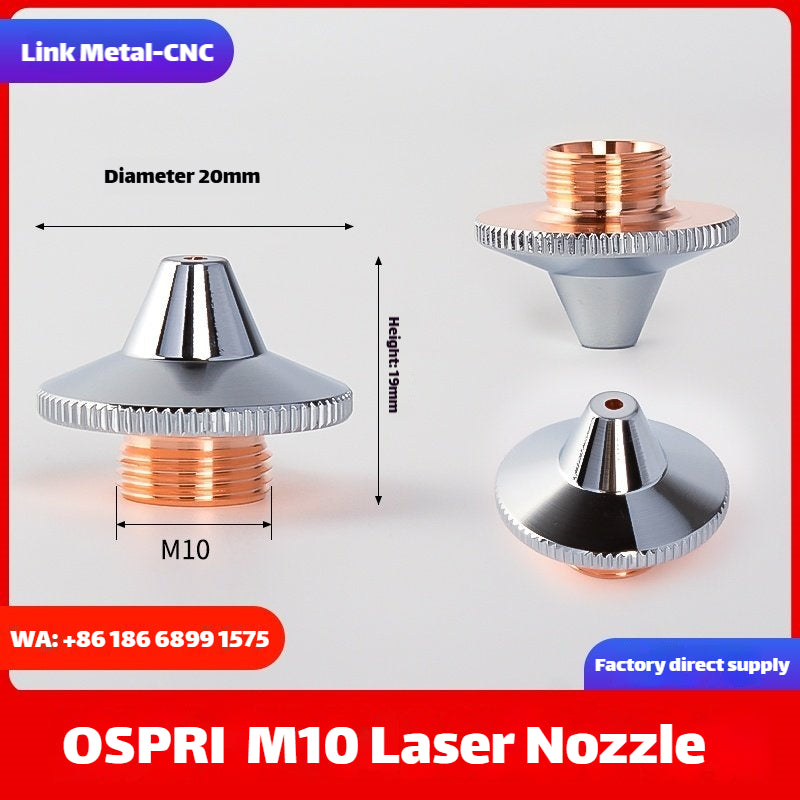

Detailed Technical Specifications
| Parameter |
Specification |
| Brand |
Link Metal CNC |
| Compatible Brand |
OSPRI |
| Product Type |
OSPRI 3D-M10 Type Laser Nozzle |
| Interface Type |
OSPRI 3D-M10 Standard Interface |
| Structure |
Single Layer |
| Surface Treatment |
Full Precision Hard Chrome Plated |
| Base Material |
99.95% High-Purity Oxygen-Free Red Copper |
| Applicable Wavelength |
1064nm |
| Applicable Power |
1000W - 12000W |
| Maximum Cutting Angle |
±45° (Standard Configuration) |
| Compatible Materials |
Stainless Steel, Carbon Steel, Aluminum, Galvanized Sheet, Copper, Metal Tubes |
| Application Scenario |
3D Robotic Cutting, 3D Tube Cutting, Bevel Cutting, Curved Surface Processing |

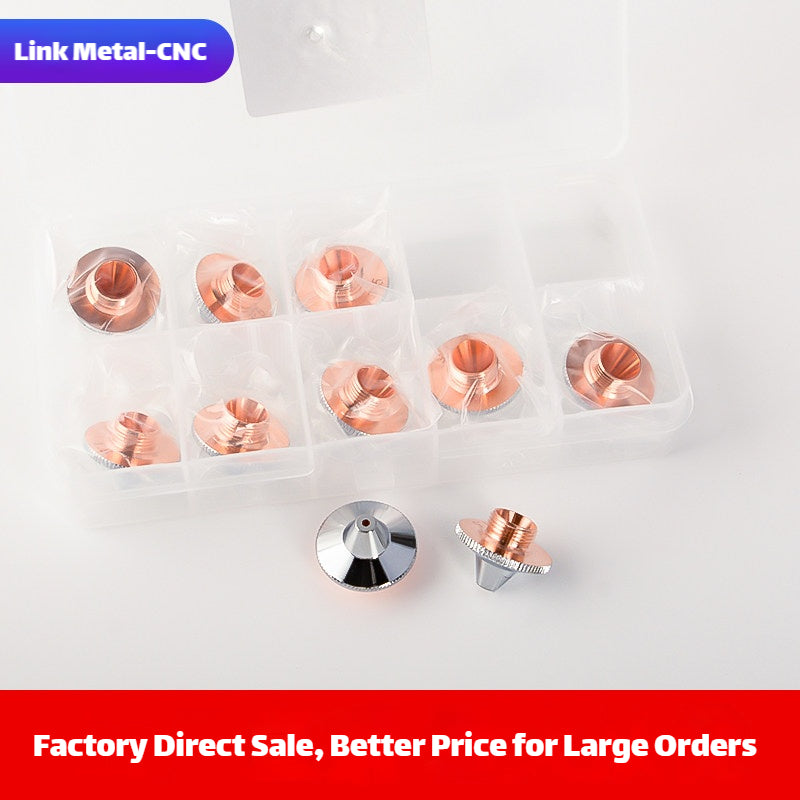

Package Contents
- 1 x Link Metal CNC OSPRI 3D-M10 Type Single Layer Chrome Plated Laser Cutting Nozzle
- 1 x Specialized Anti-Static Dust-Proof Protective Packaging
Quality Assurance
Every Link Metal CNC OSPRI 3D-M10 laser nozzle undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, installation fit verification, air tightness test, airflow convergence test and 3D cutting performance assessment at multiple angles including bevel cutting for tubes.
We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.
Frequently Asked Questions
Q: What equipment can this OSPRI 3D-M10 nozzle be used on?
A: This nozzle is compatible with all OSPRI 3D laser processing equipment that uses the 3D-M10 interface, including: 1) OSPRI 3D robotic laser cutting systems; 2) OSPRI 3D tube cutting machines (especially those with bevel cutting function); 3) OSPRI 3D profile cutting machines. They are not limited to robotic applications only.
Q: What is the difference between this and universal 3D-M10 nozzles?
A: While both use the 3D-M10 size designation, OSPRI cutting heads have a unique thread specification and interface depth that differs from standard universal 3D-M10 nozzles. Using universal nozzles on OSPRI heads will result in poor fit, air leakage, unstable cutting performance, and potential damage to your cutting head.
Q: Why is the OSPRI 3D-M10 nozzle only available in single layer chrome plated?
A: OSPRI 3D-M10 nozzles are primarily used in compact 3D systems with power outputs up to 12000W for cutting thin to medium thickness materials and tubes. The single layer chrome plated structure provides the optimal balance of performance, durability and minimal height to avoid interference in tight 3D cutting spaces. We can provide double layer versions upon special request.
Q: What are the benefits of the chrome plated surface?
A: Chrome plated 3D nozzles offer three key advantages: 1) Significantly enhanced anti-spatter performance, reducing slag adhesion by up to 70%; 2) Improved wear resistance, extending service life by 3-4 times; 3) Easier cleaning, reducing maintenance time. This makes them particularly valuable for high-volume 3D production and tube cutting environments.
Q: Will this nozzle work with non-OSPRI 3D cutting heads?
A: No, this nozzle is specifically designed for OSPRI 3D-M10 interface cutting heads only. For other brands of 3D cutting heads, please check our universal 3D nozzles or other brand-specific 3D nozzles.
