OSPRI Ceramic Ring for Fiber Laser Cutting Heads
Professional industrial-grade OSPRI dedicated ceramic rings, essential core insulation consumables for all OSPRI series fiber laser cutting heads. Designed to insulate the laser cutting head nozzle body, fix the optical assembly, and ensure stable electrical signal transmission for the capacitive sensor, our OSPRI ceramic rings guarantee the normal operation of the laser cutting head height follow system.
This complete product series covers the full range of OSPRI dedicated models, including single hole, dual hole, 3D robotic cutting series and full size conventional models. All products are manufactured with high-strength 99% alumina ceramic material for stable performance in demanding industrial laser cutting environments.
Key Advantages of Our OSPRI Ceramic Rings
-
Exclusive OSPRI Dedicated Design: 1:1 perfect fit for all original OSPRI series fiber laser cutting heads, including both 2D plane cutting and 3D robotic cutting dedicated models. Direct drop-in replacement with no additional debugging required—plug and play, fully compatible with all original OSPRI laser cutting systems.
-
Full Range of 8 Professional Models:
-

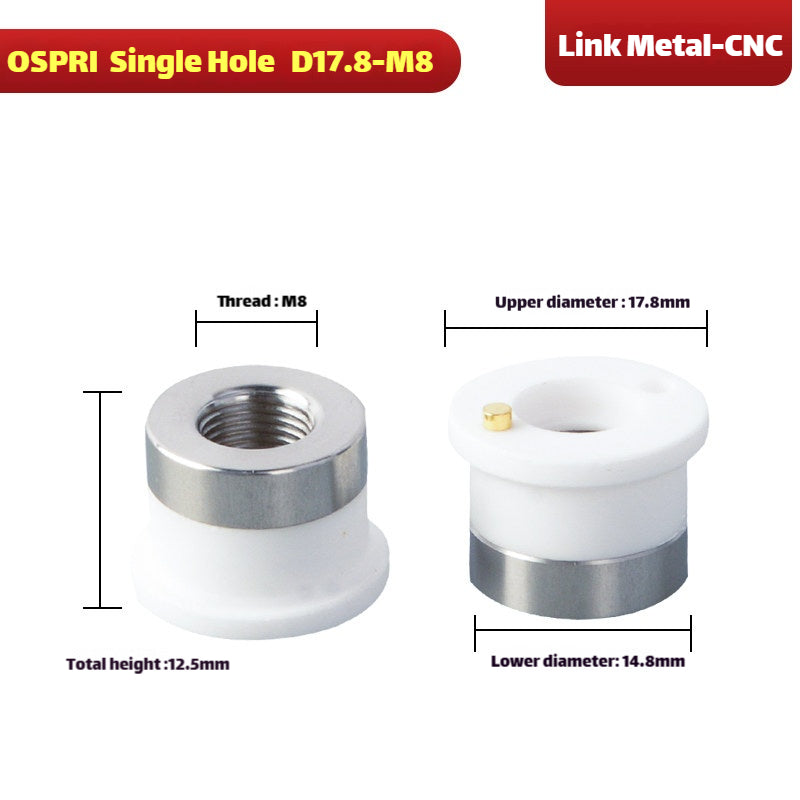

M8-D17.8 Single Hole: For conventional 2D plane cutting, stable airflow output, cost-effective for daily processing
-

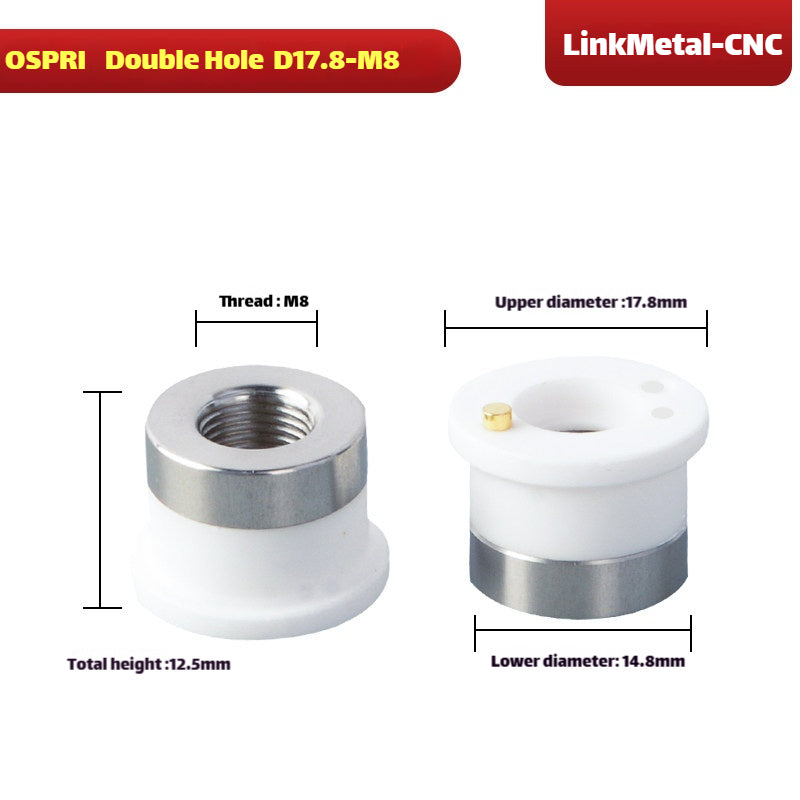

M8-D17.8 Dual Hole: Optimized double airflow structure for uniform protective gas output and better high-speed cutting stability
-
3D-M8-D21.4 & 3D-M8-D21.5: Specially designed for OSPRI 3D robotic cutting heads, compact structure avoids workpiece interference
-
Full Conventional Models: Cover all mainstream OSPRI laser cutting head installation requirements for one-stop procurement
-

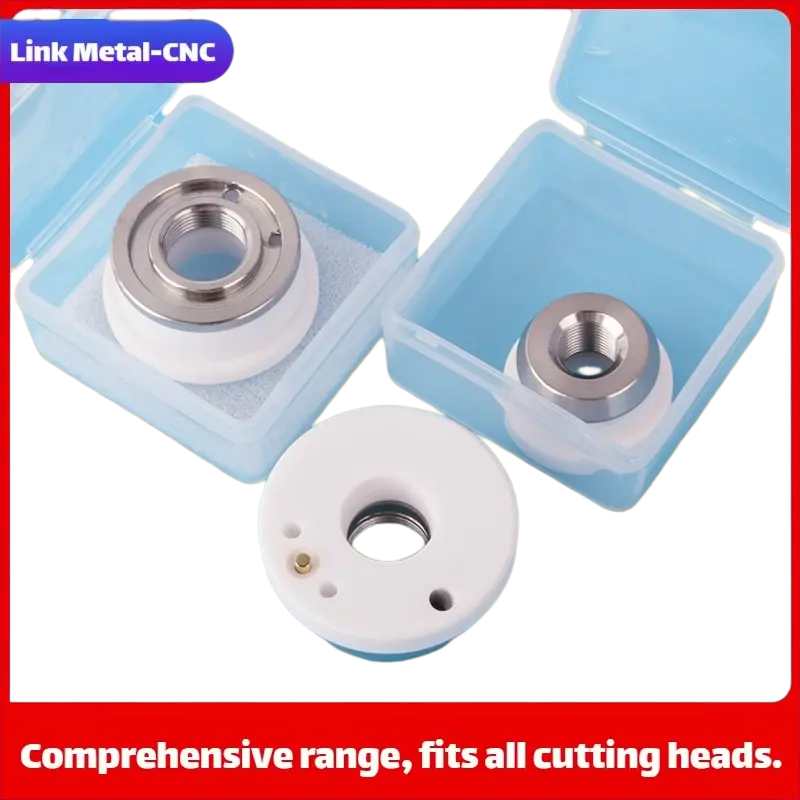

99% High-Purity Alumina Ceramic: Made from premium 99% high-purity alumina ceramic for exceptional mechanical strength, excellent electrical insulation, superior high temperature resistance and outstanding thermal shock resistance. Resists cracking even during long-term high-power laser cutting operations.
-

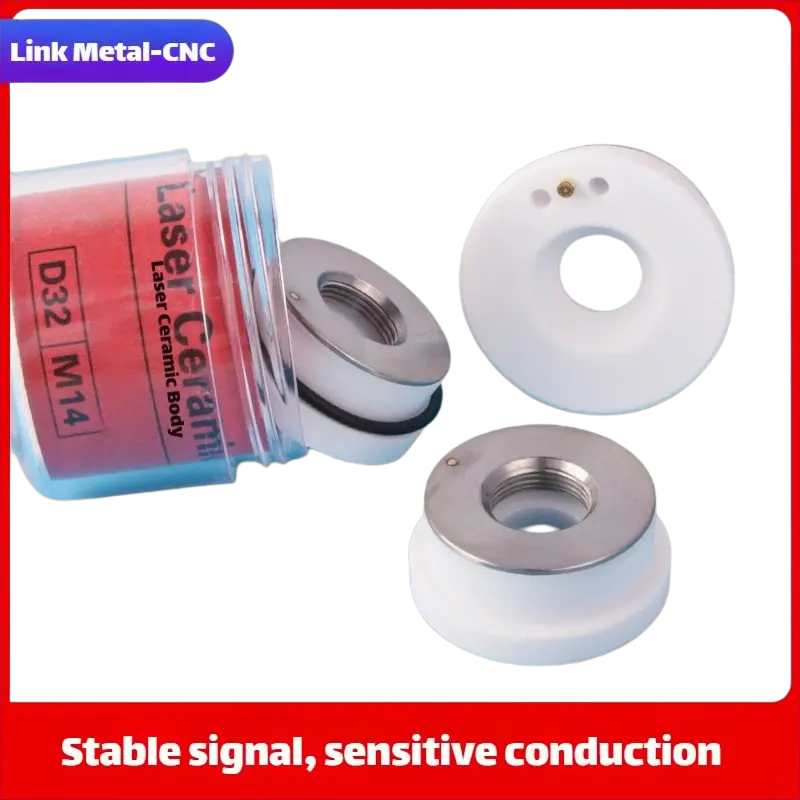

Built-in High-Quality Copper Electrode: Features a high-conductivity oxygen-free copper electrode with stable electrical signal transmission and strong welding fastness. Ensures long-term stable operation of the laser cutting head height follow system and reduces equipment failure rate.
-
Ultra-High Precision CNC Machining: Strict dimensional tolerance control with smooth surface, no burrs and no impurities. Provides tight fit with the OSPRI laser head body and copper nozzle, ensuring stable air pressure sealing and avoiding air leakage and cutting instability problems.
-
Anti-Spatter & Anti-Oxidation Surface Treatment: Effectively resists erosion from cutting splash and high-temperature smoke. Resists dust and slag adhesion, is easy to clean, and delivers long service life, reducing replacement frequency and production costs.
-
Broad Industrial Applicability: Suitable for all 1064nm OSPRI fiber laser cutting machines. Compatible with 2D plane cutting, 3D robotic curved surface cutting, thick plate high-power cutting and high-speed fine cutting.
Compatible Equipment & Available Models
Compatible Equipment
- All OSPRI Series Fiber Laser Cutting Heads
- All OSPRI 2D Plane Fiber Laser Cutting Machines
- All OSPRI 3D Robotic Fiber Laser Cutting Systems
- All Original and Compatible OSPRI Laser Processing Equipment

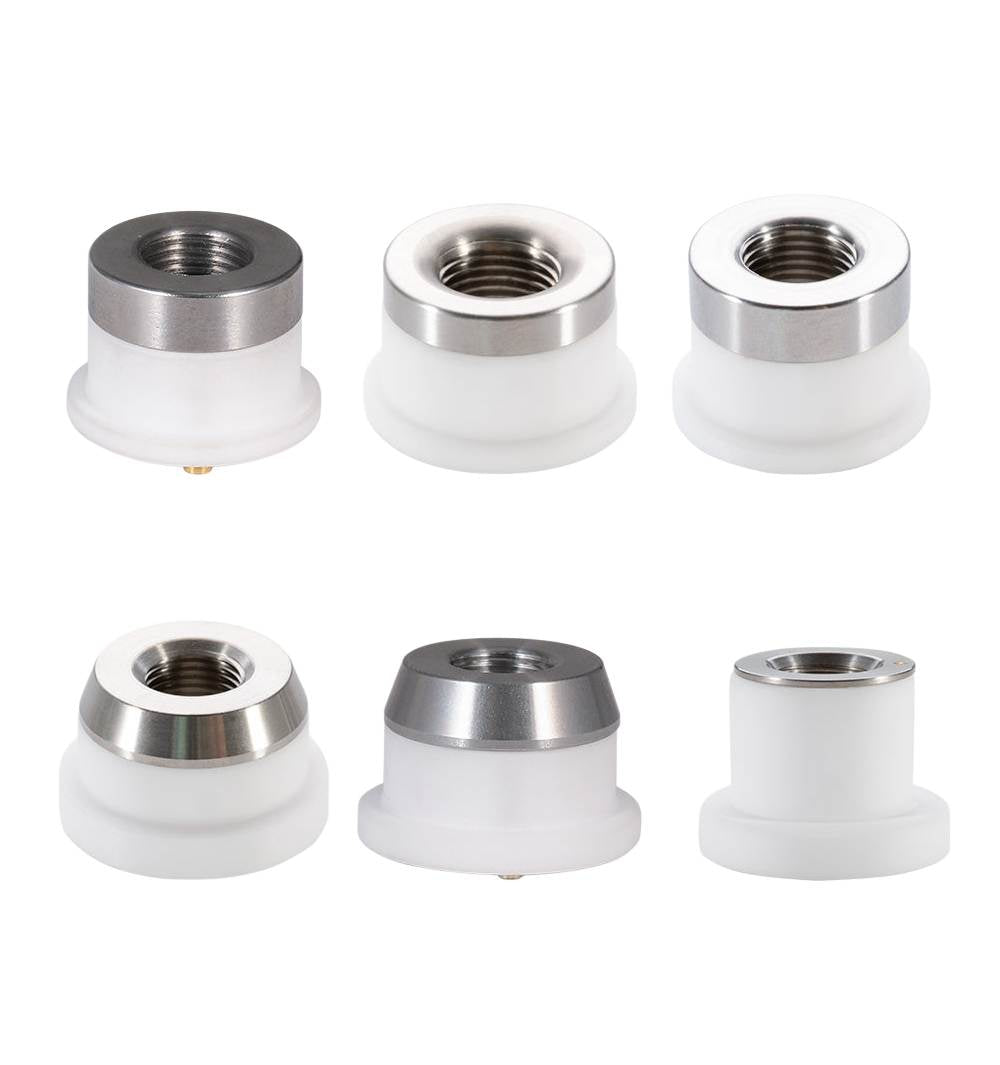

Available OSPRI Ceramic Ring Models (8 Options)
-
M8-D17.8 Single Hole: Most popular general-purpose for standard OSPRI 2D cutting heads
-
M8-D17.8 Dual Hole: Optimized airflow for high-speed and thick plate cutting
-

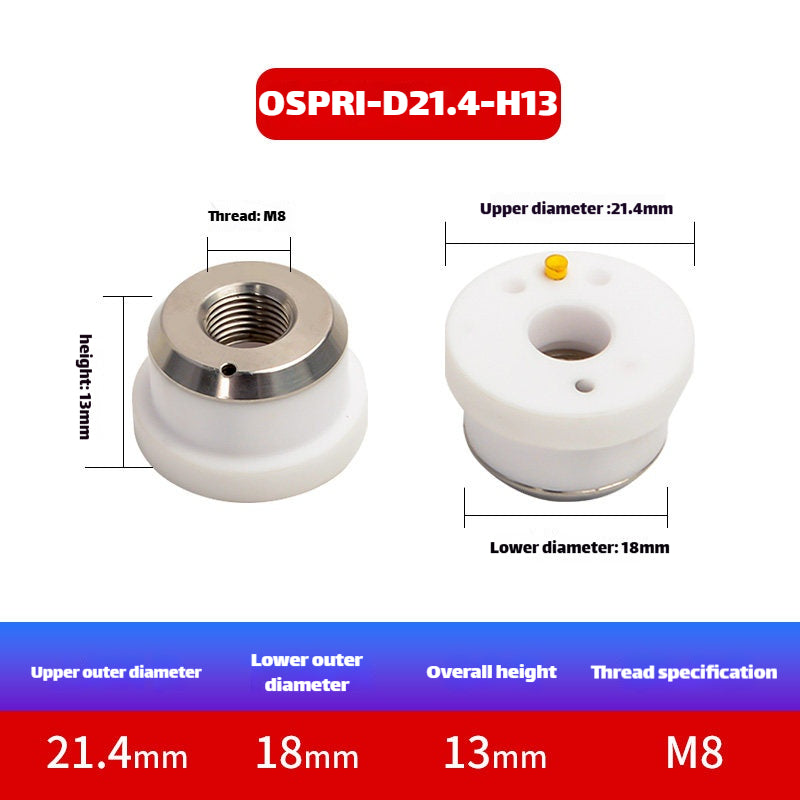

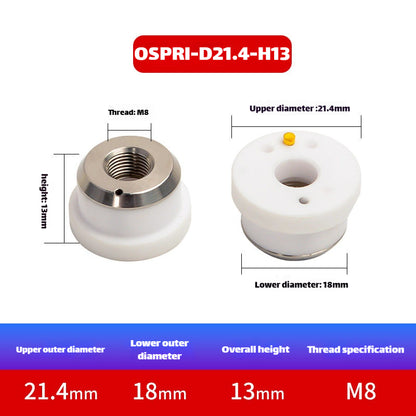

M8-D21.4-H13: Compact standard model for mid-range OSPRI cutting heads
-

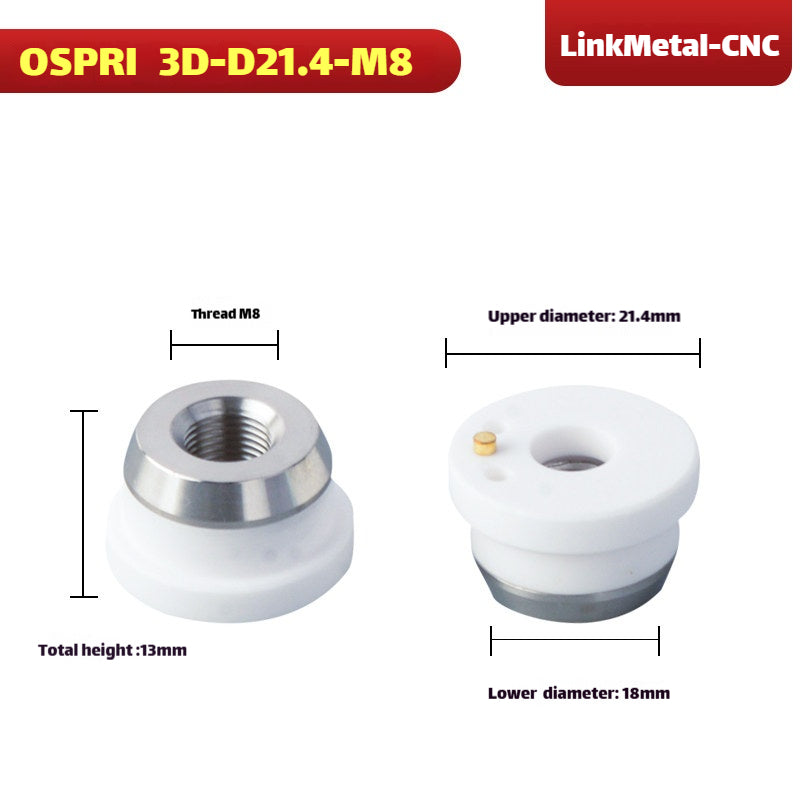

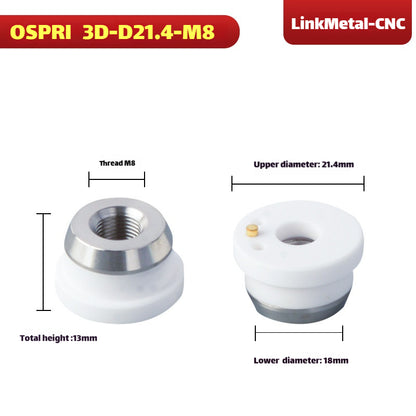

3D-M8-D21.4: Dedicated for OSPRI 3D-A/3D-B robotic cutting heads
-

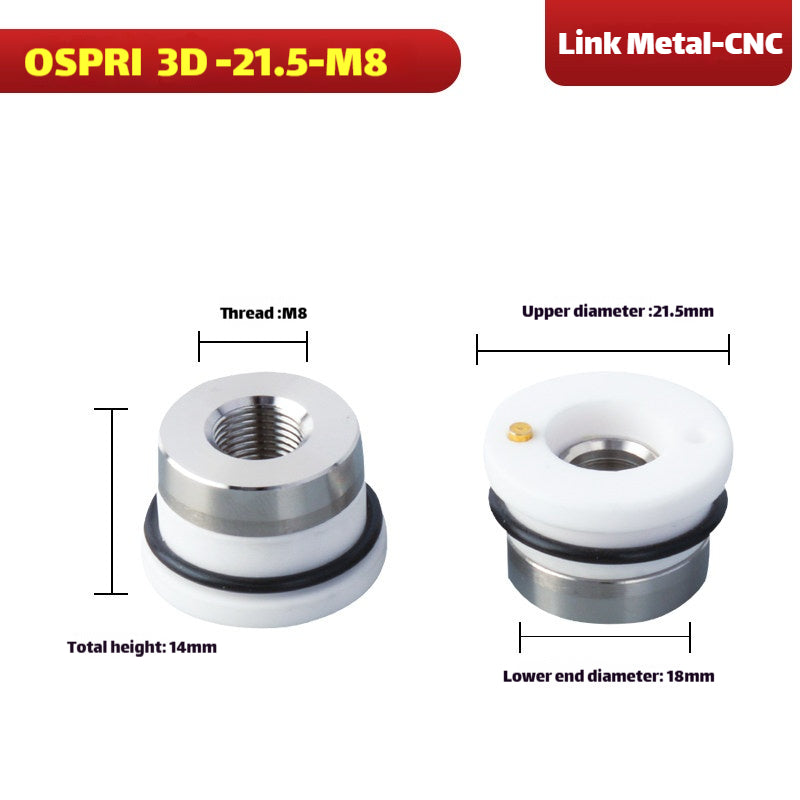

3D-M8-D21.5: Dedicated for OSPRI 3D-C/3D-D robotic cutting heads
-

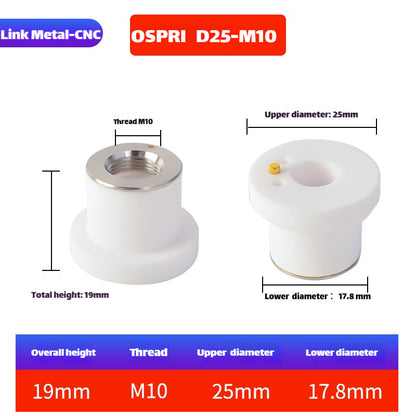

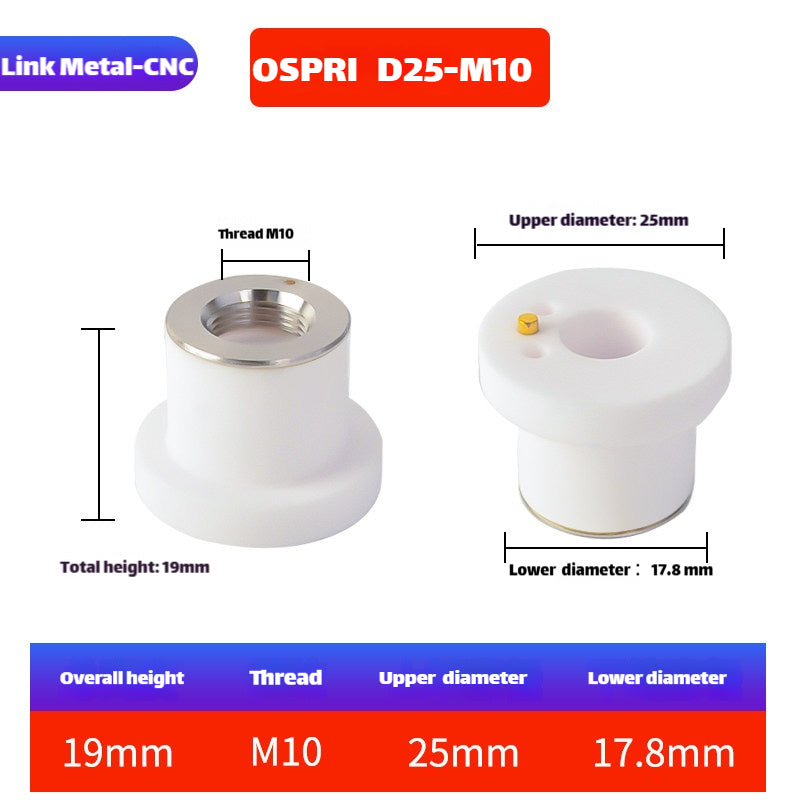

M10-D25-H19: Standard model for OSPRI mid-high power cutting heads
-

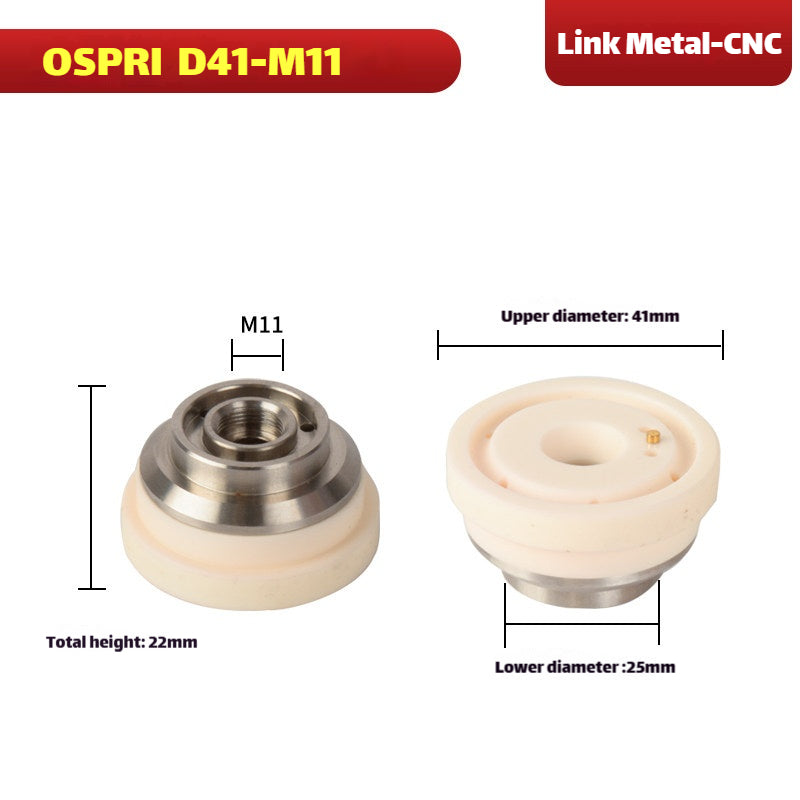

M11-D41-H22: Large size for OSPRI high-power cutting heads
-

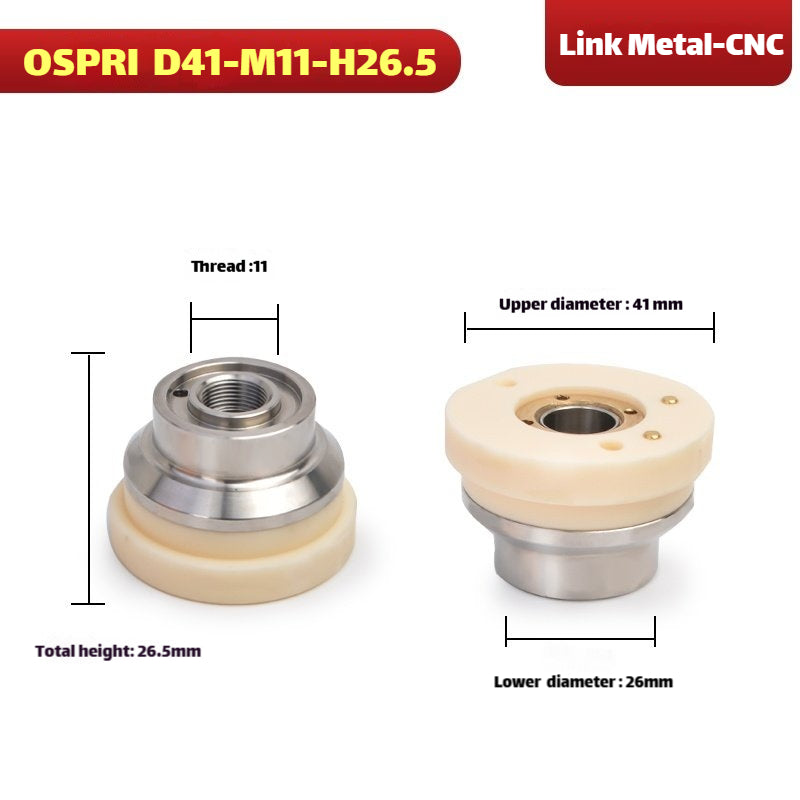

M11-D41-H26.5: Extended height for OSPRI ultra-high power cutting heads
Custom Specifications Available: For custom sizes, special materials or other OSPRI dedicated laser cutting consumables, please contact our sales team directly for personalized solutions.
Detailed Technical Specifications
| Parameter |
Specification |
| Brand |
Link Metal CNC |
| Compatible Brand |
OSPRI |
| Product Type |
Fiber Laser Cutting Head Ceramic Insulation Ring |
| Model Options |
M8-D17.8 Single Hole, M8-D17.8 Dual Hole, M8-D21.4-H13, 3D-M8-D21.4, 3D-M8-D21.5, M10-D25-H19, M11-D41-H22, M11-D41-H26.5 |
| Main Body Material |
99% High-Purity Alumina Ceramic |
| Electrode Material |
High-Conductivity Oxygen-Free Copper |
| Insulation Resistance |
≥1000MΩ |
| Applicable Wavelength |
1064nm |
| Applicable Power |
1000W - 30000W |
| Application Scenario |
2D Plane Cutting, 3D Robotic Cutting, High-Speed Cutting, Thick Plate Cutting |
Package Contents
- 1 x Selected Link Metal CNC OSPRI Ceramic Ring
- 1 x Anti-Static Shock-Proof Protective Packaging
Quality Assurance
Every Link Metal CNC OSPRI ceramic ring undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, insulation performance test, electrode conductivity verification, installation fit inspection and pressure resistance test.
We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.
Frequently Asked Questions
Q: What is the difference between single hole and dual hole ceramic rings?
A: Single hole ceramic rings provide basic airflow and are ideal for general daily cutting applications. Dual hole ceramic rings feature an optimized double airflow structure that delivers more uniform protective gas output around the nozzle. This improves cutting stability, reduces slag adhesion, and delivers better cutting quality especially for high-speed cutting and thick plate cutting applications.
Q: Which OSPRI cutting heads use these ceramic rings?
A: M8-D17.8 for LC100/LC200; M8-D21.4-H13 for LC300; 3D-M8-D21.4 for 3D-A/3D-B; 3D-M8-D21.5 for 3D-C/3D-D; M10-D25-H19 for LC600; M11-D41-H22 for LC1200; M11-D41-H26.5 for LC2000/LC3000. If unsure, contact us with your cutting head model.
Q: What is the difference between 3D-M8-D21.4 and 3D-M8-D21.5?
A: The main difference is the outer diameter. 3D-M8-D21.4 is designed for older OSPRI 3D-A and 3D-B robotic cutting heads, while 3D-M8-D21.5 is for newer 3D-C and 3D-D cutting heads. They are not interchangeable due to different dimensions.
Q: Can I use universal ceramic rings on my OSPRI laser machine?
A: No, OSPRI cutting heads use unique interface specifications and dimensions that differ from standard universal ceramic rings. Using universal ceramic rings on OSPRI equipment will result in poor fit, air leakage, unstable height follow performance and potential damage to your cutting head.
Q: How often should I replace my OSPRI ceramic ring?
A: Under normal operating conditions, an OSPRI ceramic ring should last 2-3 months. However, it should be replaced immediately if you notice any cracks, chips, or if the height follow system becomes unstable. Frequent collisions between the nozzle and workpiece will significantly shorten its service life.
