Link Metal CNC OSPRI Nozzle Connector & Capacitive Height Sensor for Fiber Laser Cutting Heads

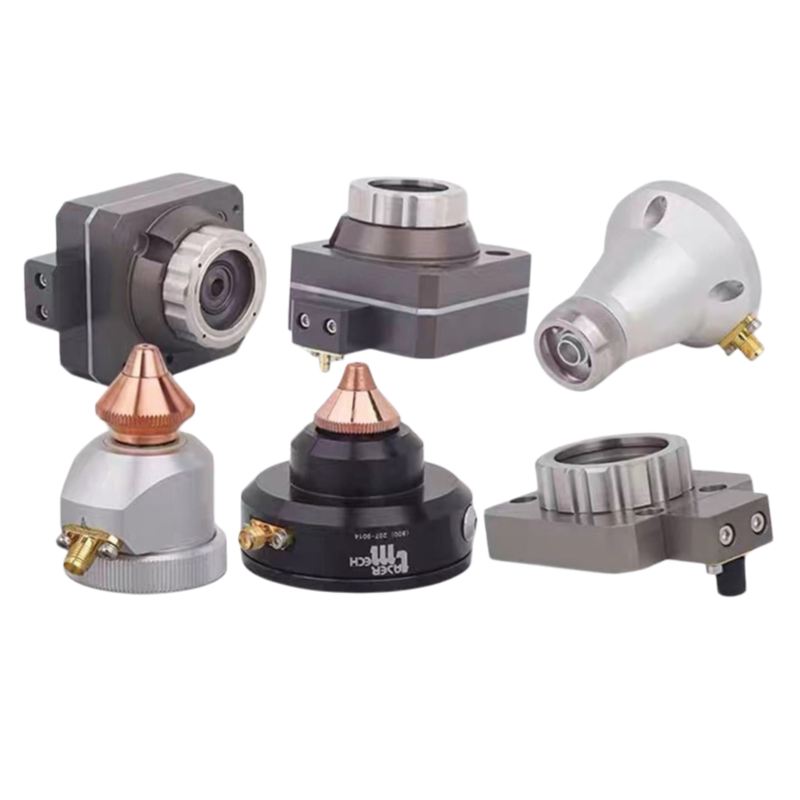

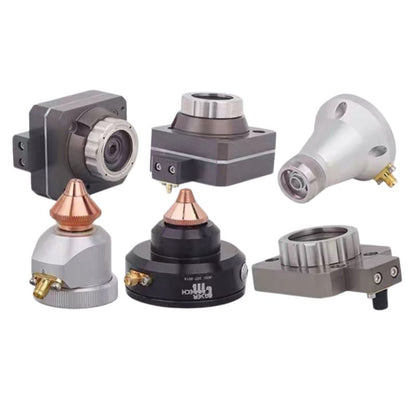

OSPRI Nozzle Connector & Capacitive Height Sensor

Professional industrial-grade fiber laser cutting head replacement parts, exclusively designed for original OSPRI fiber laser cutting systems. This set includes a high-precision capacitive height sensor and heavy-duty nozzle connector, 1:1 perfectly matching original OEM factory parameters. With stable performance, long service life and tool-free installation, it is an essential core spare part for daily maintenance of OSPRI laser cutting equipment.

This complete product series covers all mainstream OSPRI fiber laser cutting head models on the market. All products are manufactured with high-grade industrial materials and undergo rigorous quality control for reliable performance in demanding industrial environments.

Key Advantages of Our OSPRI Nozzle Connectors & Sensors

• High-Grade Industrial Raw Materials: Precision CNC machined from premium high-grade industrial alloy with strict size tolerance control. Offers excellent corrosion resistance and wear resistance, suitable for 7*24h high-load industrial working conditions.
• High Stability Capacitive Height Sensor: Features anti-interference design for real-time high-precision height sensing and stable signal transmission. Ensures consistent high-precision laser cutting output and reduces defective rate.
• Heavy-Duty Nozzle Connector: Tight thread fit provides secure locking and no air leakage. Perfectly matches original OSPRI laser nozzles and sensors, with easy installation and replacement.
• 1:1 OEM Perfect Fit: Exact match for original OSPRI cutting heads with direct plug and play installation. No additional debugging required, significantly reducing equipment downtime.
• Full Series Model Coverage: Complete range of OSPRI models available, fully compatible with all mainstream OSPRI fiber laser cutting head models on the market. Provides one-stop procurement solution.
• Anti-Spatter & Anti-Oxidation Protection: Enhanced surface treatment effectively resists erosion from cutting splash and high-temperature smoke. Resists dust and welding slag adhesion, is easy to clean, and maintains stable performance in harsh environments.
• Broad Industrial Applicability: Suitable for all 1064nm OSPRI fiber laser cutting machines (2D plane cutting, 3D robotic cutting, high-power thick plate cutting) and automatic laser production lines.

Compatible Equipment & Available Models

Compatible Equipment

• All OSPRI LC Series Fiber Laser Cutting Heads
• All OSPRI 2D Plane Fiber Laser Cutting Machines
• All OSPRI 3D Robotic Fiber Laser Cutting Systems
• All Original and Compatible OSPRI Laser Processing Equipment

Available OSPRI Nozzle Connector & Sensor Models (8 Options Total)

LC40 Series

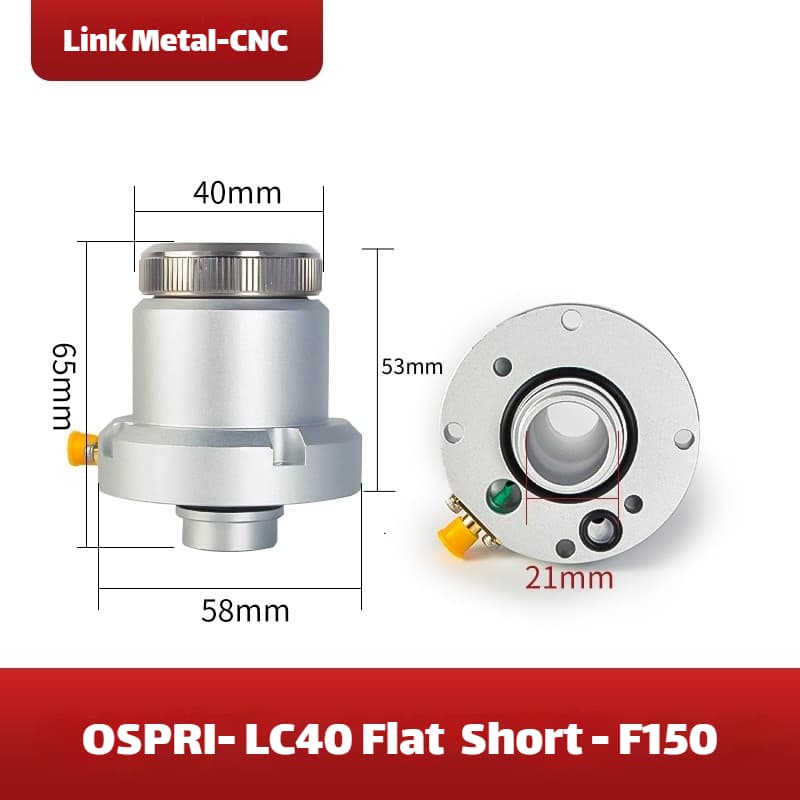

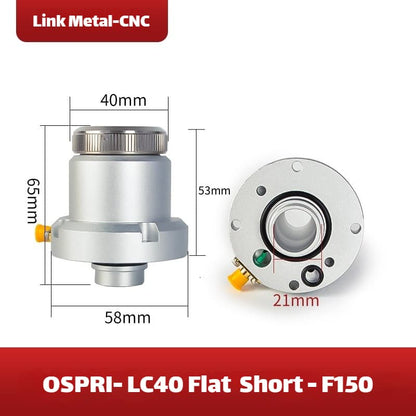

• LC40 Flat - F150-H65: For OSPRI LC40 2D flat cutting heads (F150 focal length, H65 height)

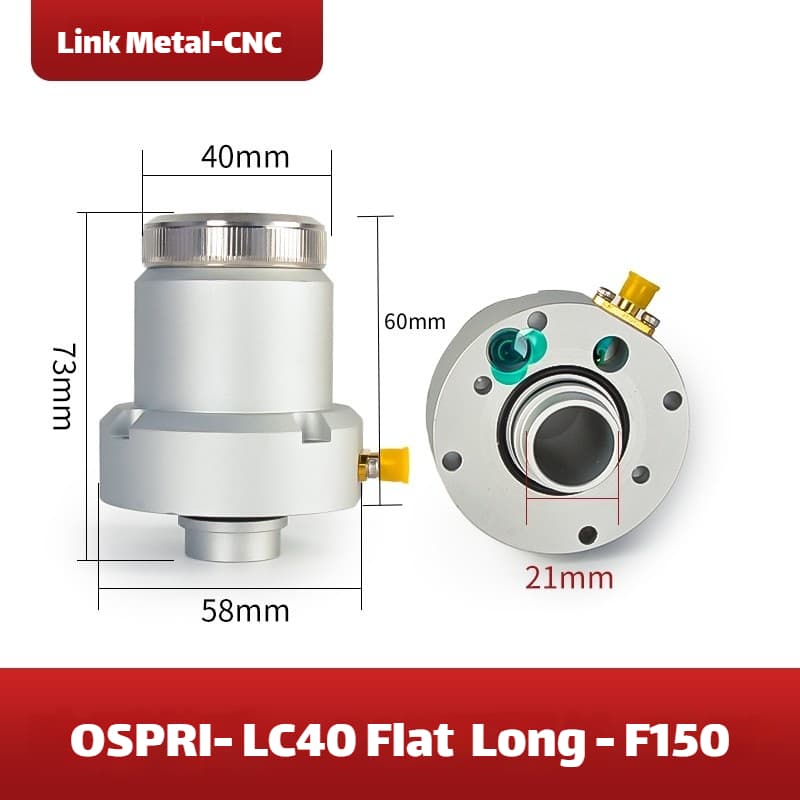

• LC40 Flat - F150-H73: For OSPRI LC40 2D flat cutting heads (F150 focal length, H73 height)

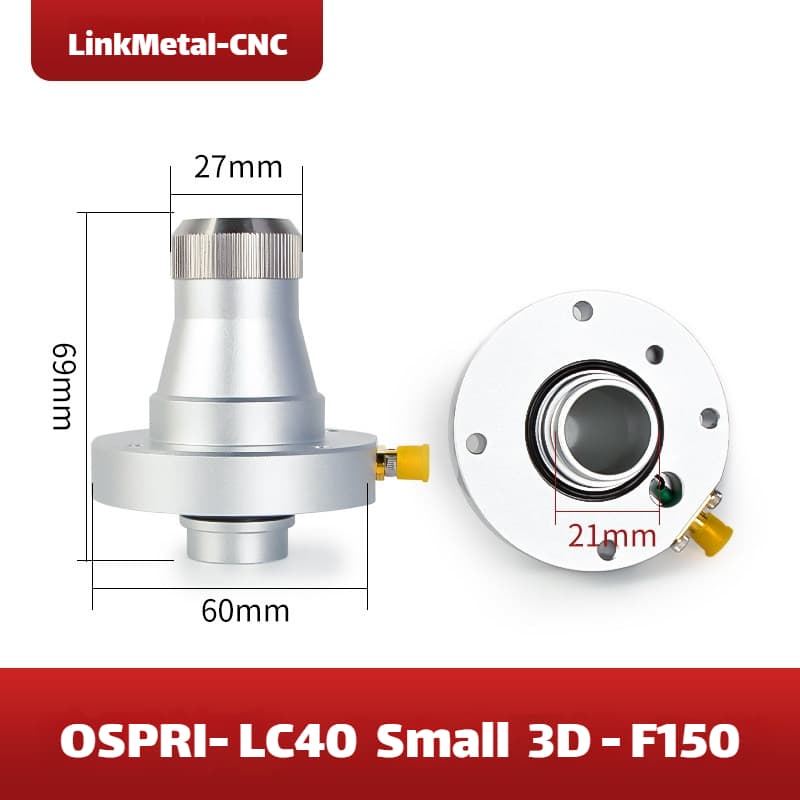

• LC40 3D - F150 Short: For OSPRI LC40 3D robotic cutting heads (F150 short focal length)

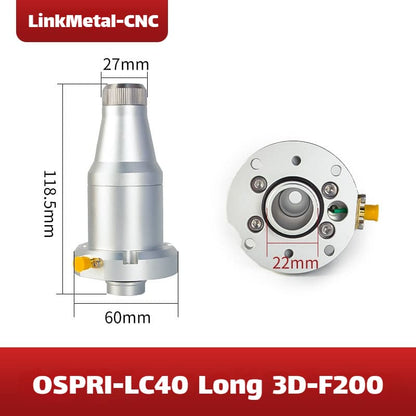

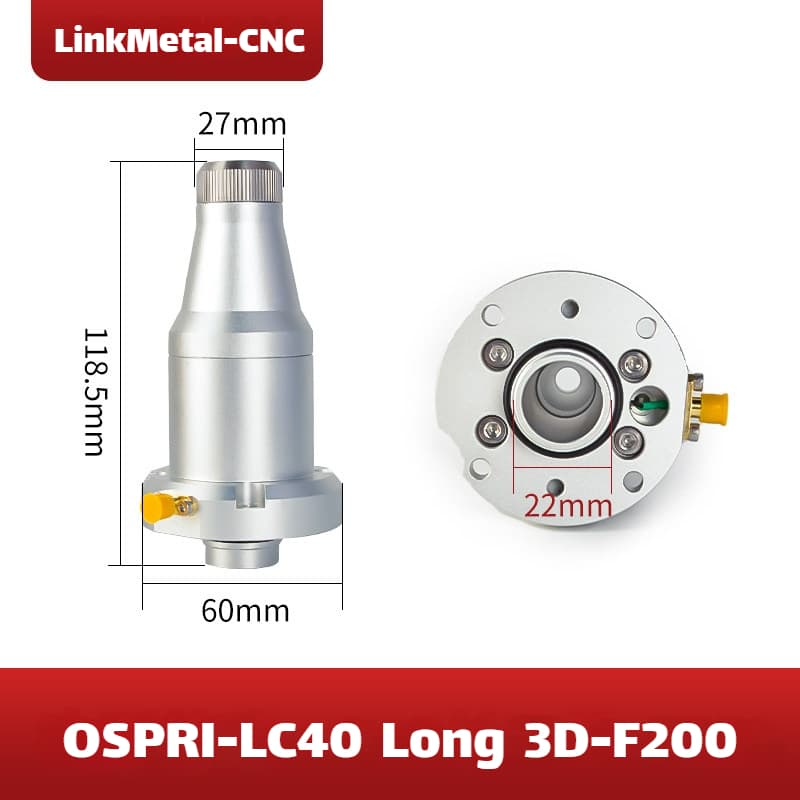

• LC40 3D - F200 Long: For OSPRI LC40 3D robotic cutting heads (F200 long focal length)

LC218 Series

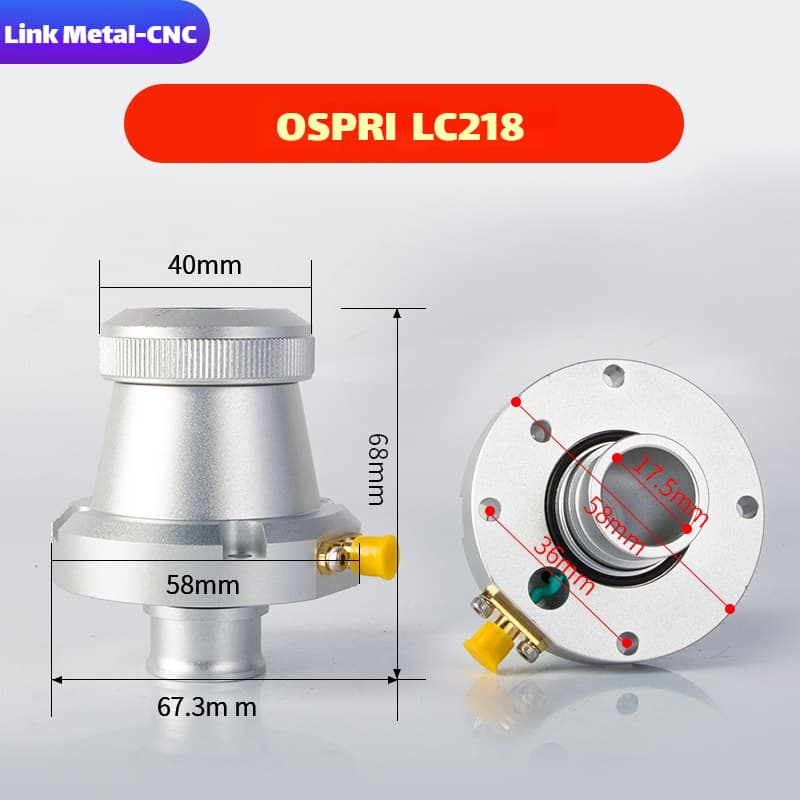

• LC218: For OSPRI LC218 2D cutting heads

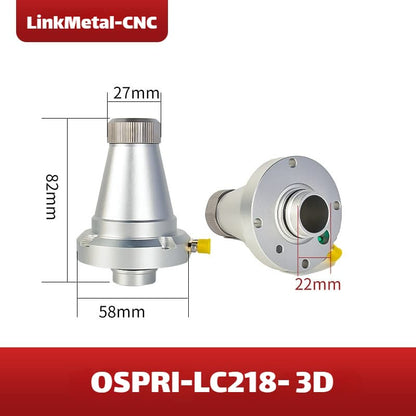

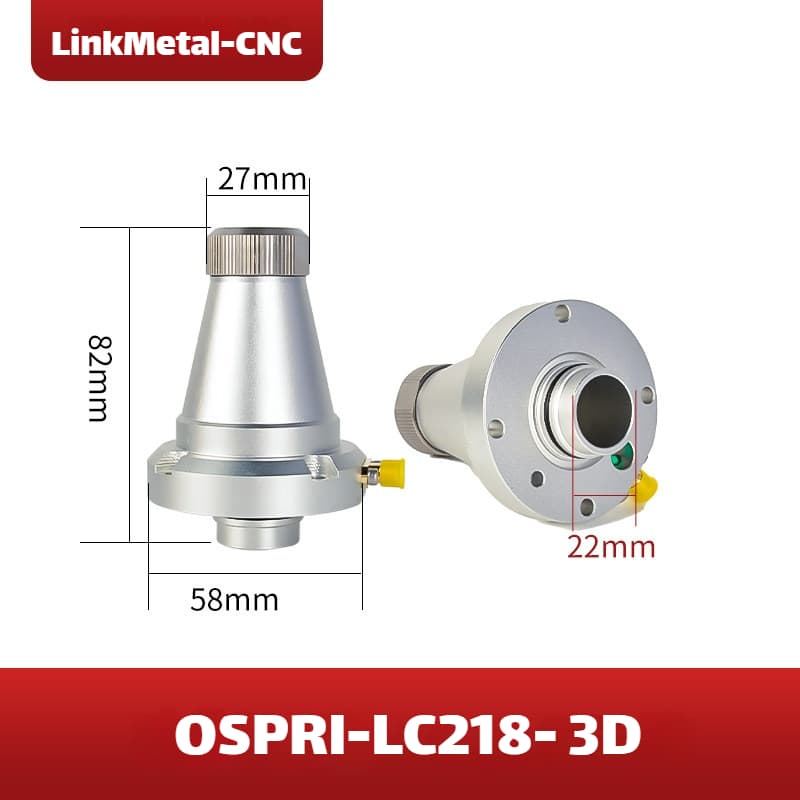

• LC218 - 3D: For OSPRI LC218 3D robotic cutting heads

608/808/1208/1508 Series

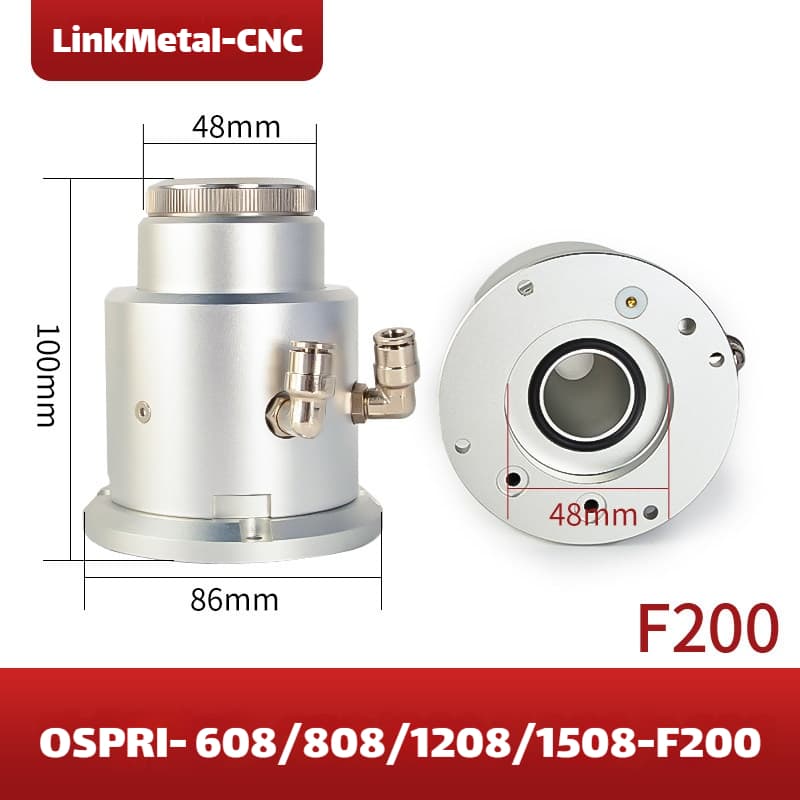

• 608/808/1208/1508 - F200: For OSPRI 608/808/1208/1508 series cutting heads (F200 focal length)

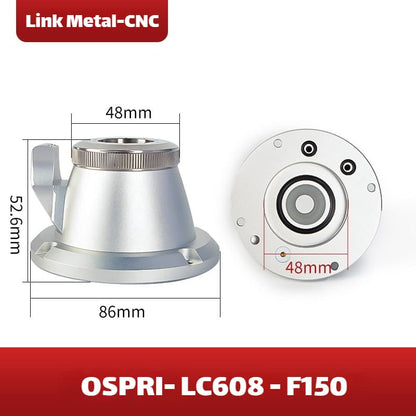

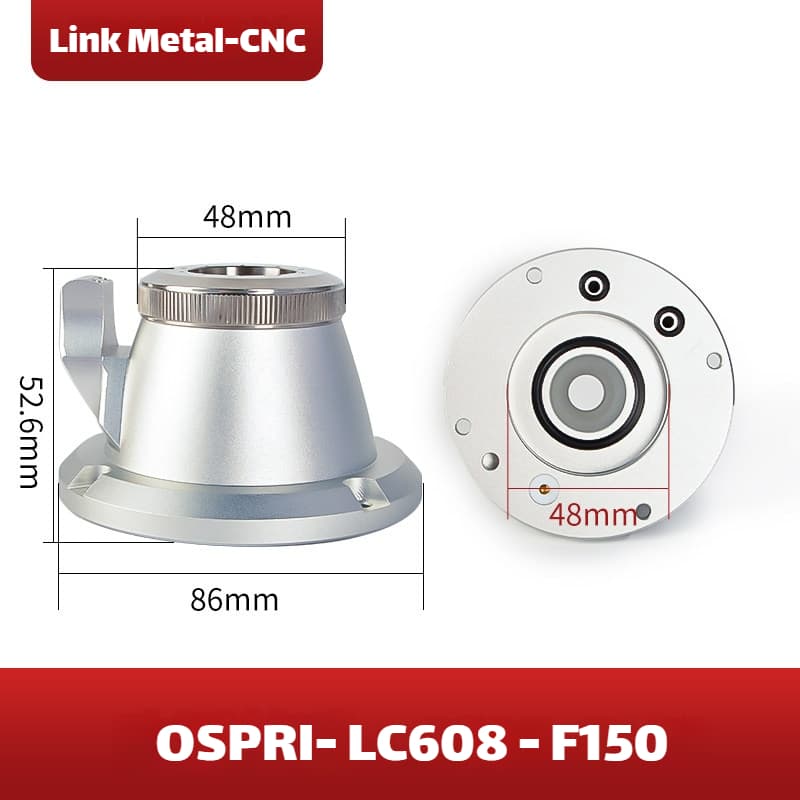

• LC608 - F150: For OSPRI LC608 cutting heads (F150 focal length)

LCM08 Series

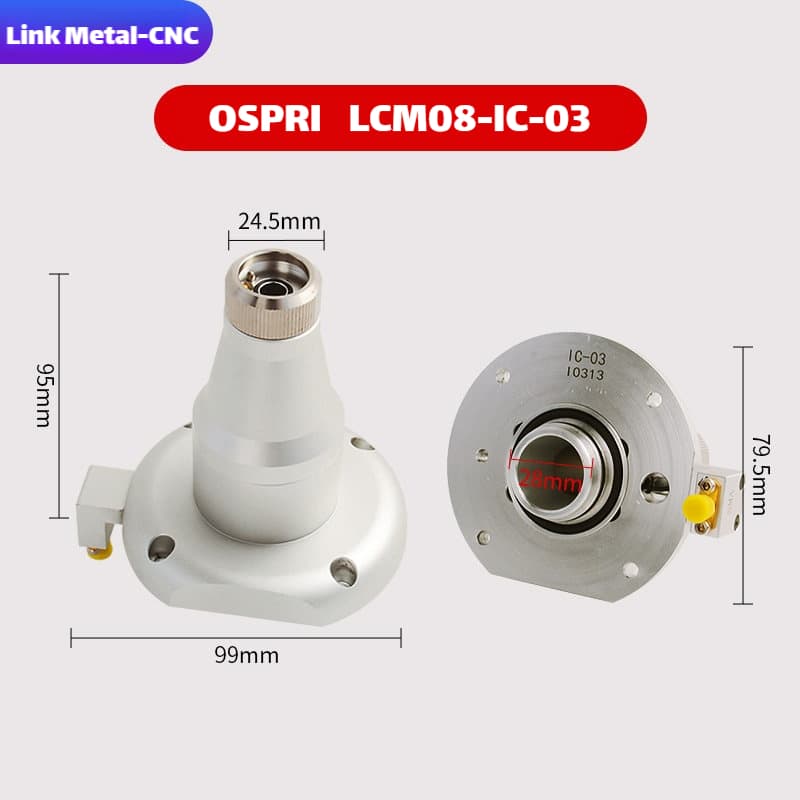

• LCM08: For OSPRI LCM08 compact cutting heads

Custom Specifications Available: For custom OSPRI models or other laser cutting head consumables, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Selected Link Metal CNC OSPRI Capacitive Height Sensor / Nozzle Connector
• 1 x Specialized Shockproof Anti-static Protective Packaging

Quality Assurance

All OSPRI laser parts from Link Metal CNC undergo strict quality inspection before delivery, including dimensional accuracy inspection, sensor performance calibration, connector precision verification and durability test.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable mechanical and sensing performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What is the difference between LC40 Flat - F150-H65 and LC40 Flat - F150-H73?
A: The main difference is the overall height of the assembly. H65 has a height of 65mm while H73 has a height of 73mm. They are designed for different generations of OSPRI LC40 cutting heads and are not interchangeable. Always select the exact height that matches your original part.

Q: What is the difference between 2D and 3D models?
A: 3D models feature a more compact and streamlined design specifically optimized for robotic 3D cutting applications. They avoid interference with workpieces during complex curved surface and irregular profile cutting operations. 2D models are designed for standard plane cutting heads and are not suitable for 3D applications.

Q: Can I purchase just the sensor or just the connector separately?
A: Yes, we offer both complete assemblies and individual components. If you only need to replace one part, please contact our sales team and specify which component you require. However, replacing the entire assembly is recommended for optimal performance and reliability.

Q: How often should I replace the nozzle connector/sensor?
A: Under normal operating conditions, a nozzle connector/sensor assembly should last 3-6 months. However, it should be replaced immediately if you notice any damage, deformation, or if the height follow system becomes unstable. Frequent collisions will significantly shorten its service life.

Q: Do I need to recalibrate the height follow system after replacement?
A: No, our OSPRI nozzle connectors and sensors are pre-calibrated to match original factory specifications. They are designed for direct plug and play installation with no additional debugging or recalibration required.
