Precitec Ceramic Ring for Fiber Laser Cutting Heads
Professional industrial-grade Precitec dedicated ceramic rings, essential core insulation consumables for all Precitec series fiber laser cutting heads. Designed to insulate the laser cutting head nozzle body, fix the optical assembly, and ensure stable electrical signal transmission for the capacitive sensor, our Precitec ceramic rings guarantee the normal operation of the laser cutting head height follow system.
This complete product series covers the full range of Precitec dedicated models, including mini precision type, 3D robotic cutting type, conventional standard type and KTX series dedicated models. All products are manufactured with high-strength 99% alumina ceramic material for stable performance in demanding industrial laser cutting environments.
Key Advantages of Our Precitec Ceramic Rings
-
Exclusive Precitec Dedicated Design: 1:1 perfect fit for all original Precitec series fiber laser cutting heads, including LightCutter, ProCutter, 3D cutting head and KTX series laser heads. Direct drop-in replacement with no additional debugging required—plug and play, fully compatible with all original Precitec laser cutting systems.
-

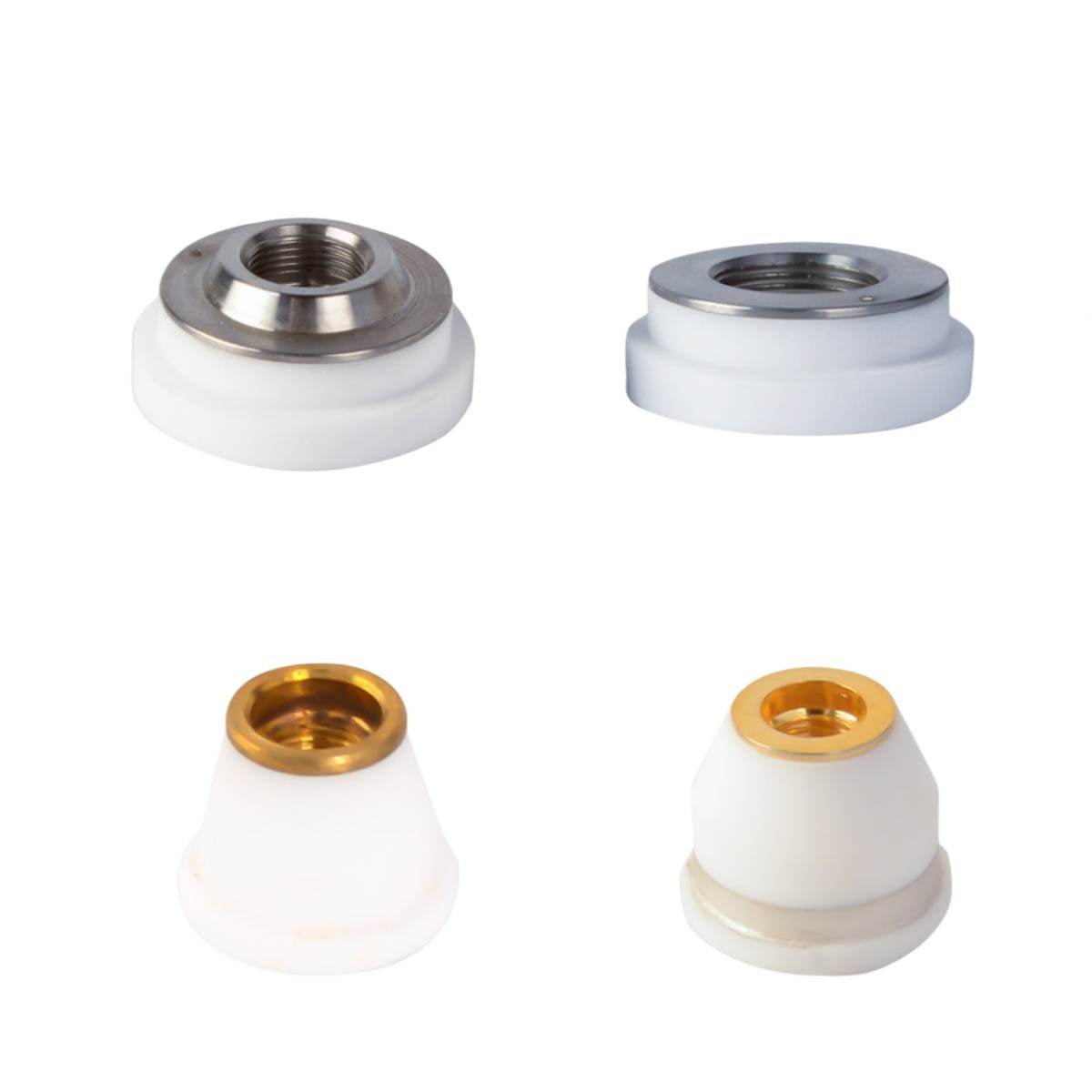

Full Range of 4 Professional Models:
-

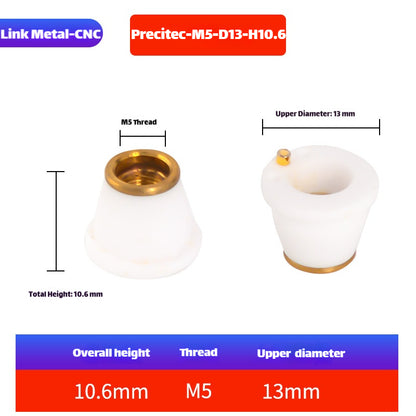

M5-D13.3-H10.6 Mini Precision: For Precitec micro precision cutting heads, ideal for fine cutting of thin plates and small parts
-
3D-M6-D17: Specially designed for Precitec 3D robotic cutting heads, compact structure avoids workpiece interference
-
M11-D31-H13.5 Standard: For conventional 2D plane cutting, cost-effective for daily processing
-
KTX-M15-D31: Dedicated for Precitec KTX series cutting heads, fully matches original factory parameters
-

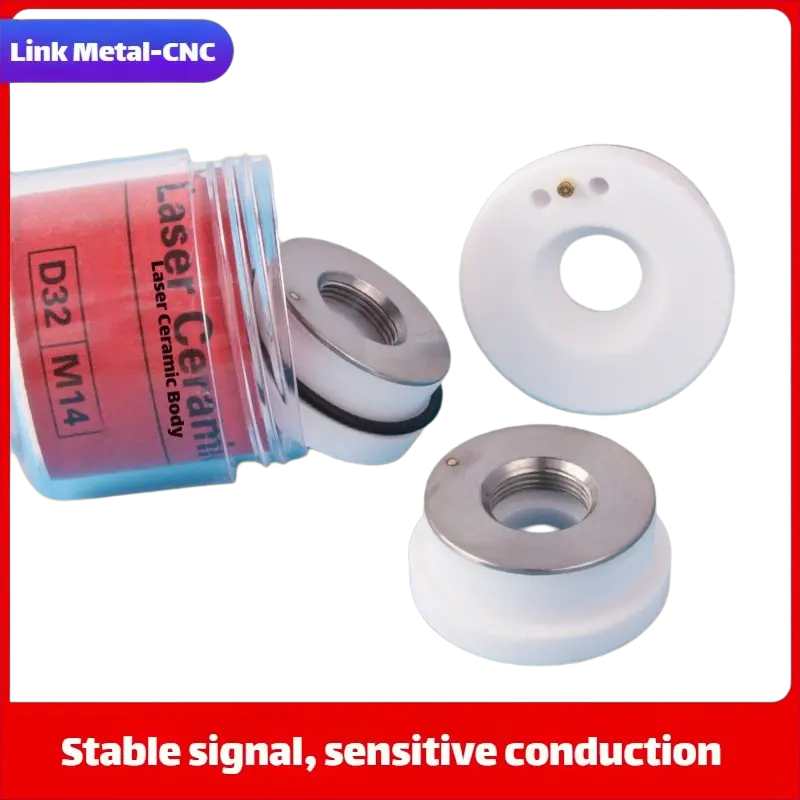

99% High-Purity Alumina Ceramic: Made from premium 99% high-purity alumina ceramic for exceptional mechanical strength, excellent electrical insulation, superior high temperature resistance and outstanding thermal shock resistance. Resists cracking even during long-term high-power laser cutting operations.
-
Built-in High-Quality Copper Electrode: Features a high-conductivity oxygen-free copper electrode with stable electrical signal transmission and strong welding fastness. Ensures long-term stable operation of the laser cutting head height follow system and reduces equipment failure rate.
-

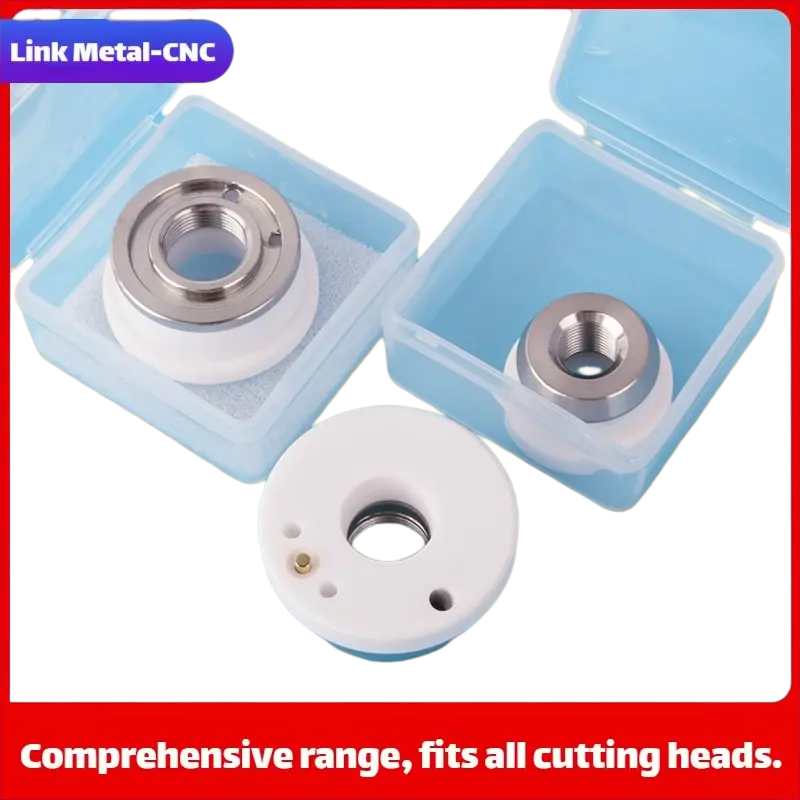

Ultra-High Precision CNC Machining: Strict dimensional tolerance control with smooth surface, no burrs and no impurities. Provides tight fit with the Precitec laser head body and copper nozzle, ensuring stable air pressure sealing and avoiding air leakage and cutting instability problems.
-
Anti-Spatter & Anti-Oxidation Surface Treatment: Effectively resists erosion from cutting splash and high-temperature smoke. Resists dust and slag adhesion, is easy to clean, and delivers long service life, reducing replacement frequency and production costs.
-
Broad Industrial Applicability: Suitable for all 1064nm Precitec fiber laser cutting machines. Compatible with 2D plane cutting, 3D robotic curved surface cutting, micro precision cutting and thick plate high-power cutting.
Compatible Equipment & Available Models
Compatible Equipment
- All Precitec Series Fiber Laser Cutting Heads
- Precitec LightCutter & ProCutter Series
- Precitec 3D Robotic Fiber Laser Cutting Systems
- Precitec KTX Series Laser Cutting Heads
- All Original and Compatible Precitec Laser Processing Equipment
Available Precitec Ceramic Ring Models (4 Options)
-

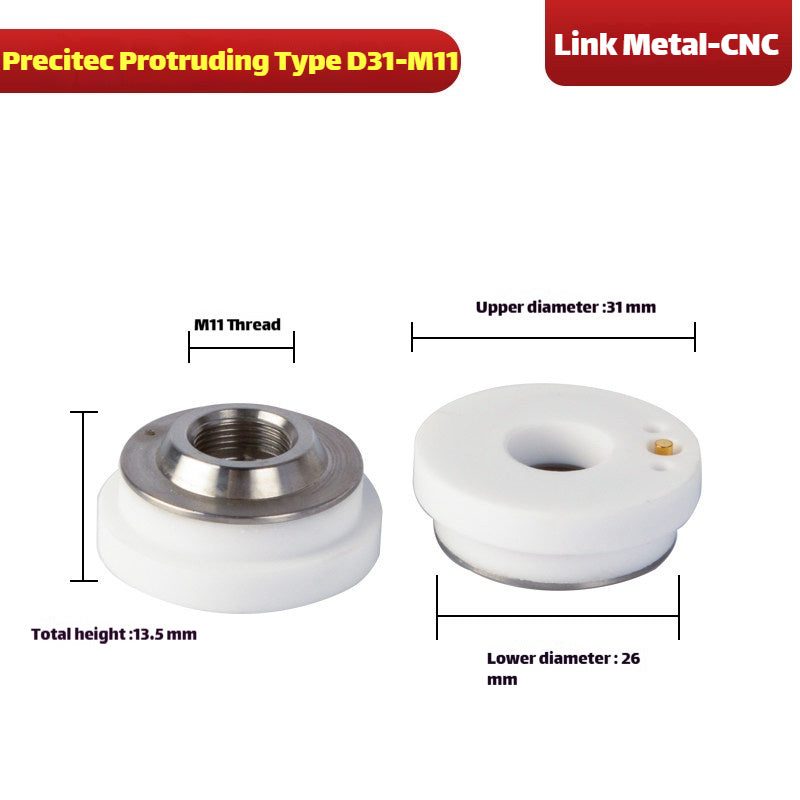

M11-D31-H13.5: Most popular general-purpose for Precitec LightCutter/ProCutter 2D cutting heads
-

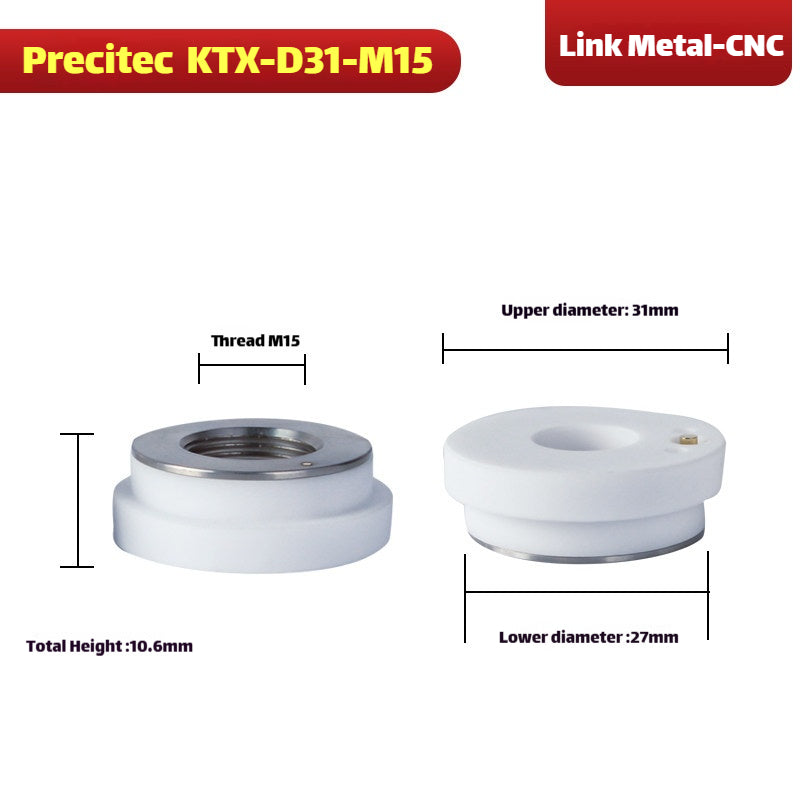

KTX-M15-D31: Dedicated for Precitec KTX series high-power cutting heads
-

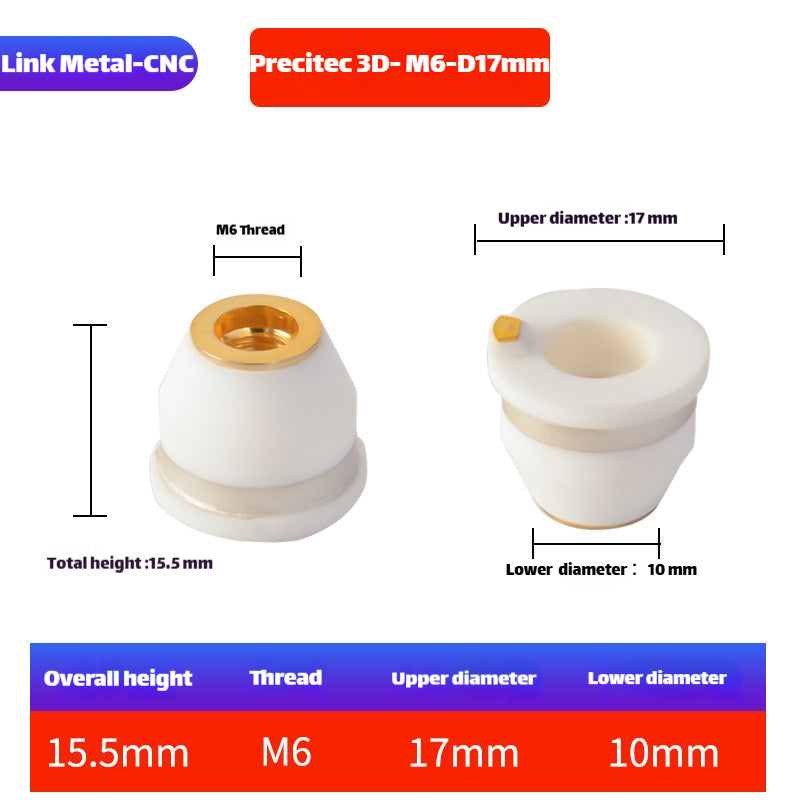

3D-M6-D17: Dedicated for Precitec 3D robotic laser cutting heads
-

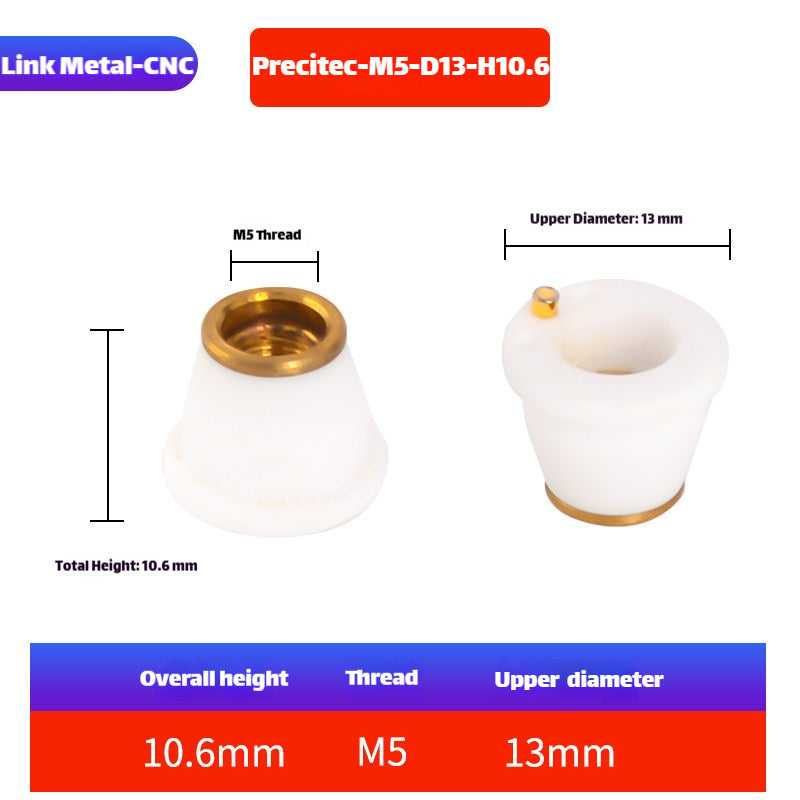

M5-D13.3-H10.6: Mini precision model for Precitec micro cutting heads
Custom Specifications Available: For custom sizes, special materials or other Precitec dedicated laser cutting consumables, please contact our sales team directly for personalized solutions.
Detailed Technical Specifications
| Parameter |
Specification |
| Brand |
Link Metal CNC |
| Compatible Brand |
Precitec |
| Product Type |
Fiber Laser Cutting Head Ceramic Insulation Ring |
| Model Options |
M5-D13.3-H10.6, 3D-M6-D17, M11-D31-H13.5, KTX-M15-D31 |
| Main Body Material |
99% High-Purity Alumina Ceramic |
| Electrode Material |
High-Conductivity Oxygen-Free Copper |
| Insulation Resistance |
≥1000MΩ |
| Applicable Wavelength |
1064nm |
| Applicable Power |
500W - 30000W |
| Application Scenario |
2D Plane Cutting, 3D Robotic Cutting, Micro Precision Cutting, High-Power Cutting |
Package Contents
- 1 x Selected Link Metal CNC Precitec Ceramic Ring
- 1 x Anti-Static Shock-Proof Protective Packaging
Quality Assurance
Every Link Metal CNC Precitec ceramic ring undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, insulation performance test, electrode conductivity verification, installation fit inspection and pressure resistance test.
We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.
Frequently Asked Questions
Q: Which Precitec cutting heads use these ceramic rings?
A: M5-D13.3-H10.6 for Precitec micro precision cutting heads; 3D-M6-D17 for Precitec 3D robotic cutting heads; M11-D31-H13.5 for Precitec LightCutter and ProCutter series 2D cutting heads; KTX-M15-D31 exclusively for Precitec KTX series high-power cutting heads. If unsure, contact us with your cutting head model.
Q: What is special about the KTX-M15-D31 model?
A: The KTX-M15-D31 is specifically designed for Precitec KTX series cutting heads. It features a unique M15 thread interface and optimized dimensions that are not compatible with standard Precitec cutting heads. Using the wrong ceramic ring will result in poor fit and unstable cutting performance.
Q: What is the M5-D13.3-H10.6 mini model used for?
A: The M5-D13.3-H10.6 is a mini precision ceramic ring designed for Precitec micro cutting heads. It is ideal for fine cutting of thin plates (0.5mm-3mm) and small precision parts where high installation accuracy and minimal interference are required.
Q: Can I use universal ceramic rings on my Precitec laser machine?
A: No, Precitec cutting heads use unique interface specifications and dimensions that differ from standard universal ceramic rings. Using universal ceramic rings on Precitec equipment will result in poor fit, air leakage, unstable height follow performance and potential damage to your cutting head.
Q: How often should I replace my Precitec ceramic ring?
A: Under normal operating conditions, a Precitec ceramic ring should last 2-3 months. However, it should be replaced immediately if you notice any cracks, chips, or if the height follow system becomes unstable. Frequent collisions between the nozzle and workpiece will significantly shorten its service life.
