Qilin Handheld Laser Welding Torch Replacement Parts

Professional industrial-grade original replacement parts, 1:1 OEM fit for all Qilin handheld fiber laser welding guns. This product is a core component and essential consumable for fiber laser welding equipment maintenance. With stable performance, perfect fit, and easy installation and replacement, it can effectively reduce equipment downtime, improve welding efficiency and production stability.

This complete product series includes all replacement parts for Qilin handheld laser welding torches. All products are manufactured with strict quality control to match original factory parameters, providing reliable performance in demanding industrial welding environments.

Key Advantages of Our Qilin Welding Torch Parts

• 1:1 OEM Perfect Fit: Exact match for original Qilin welding torch parameters. Direct replacement installation with no additional debugging required, compatible with both original and compatible fiber laser welding machines.
• Imported High-Purity Fused Silica Optics: Features imported high-purity fused silica optical lenses with high-precision coating. High laser damage threshold, stable welding effect, and long service life.
• Precision Machined Metal Parts: Strict size tolerance control ensures tight fit, no air leakage, and no offset. Wear-resistant and corrosion-resistant, no deformation after long-term use.
• High-Quality Industrial Materials: Made from premium copper, aviation aluminum and stainless steel materials. Excellent high temperature resistance and anti-aging properties, meeting the needs of long-term continuous welding work.
• Full Set One-Stop Procurement: Complete range of 20+ welding torch replacement parts available. Meet all your daily maintenance and replacement needs for Qilin welding torches in one place.
• Reliable Quality Assurance: All products undergo rigorous testing before delivery to ensure stable performance and long service life, reducing your maintenance costs and downtime.
• Broad Industrial Applicability: Suitable for all 1064nm fiber laser welding machines with power ranging from 1000W to 3000W, widely used in sheet metal welding, hardware processing, automotive parts manufacturing and other industrial fields.

Compatible Equipment & Available Products

Compatible Equipment

• All Qilin Handheld Fiber Laser Welding Torches
• All 1000W-3000W Fiber Laser Welding Machines Compatible with Qilin
• Handheld Laser Welding Equipment

Available Products (Full Set)

Optical Components

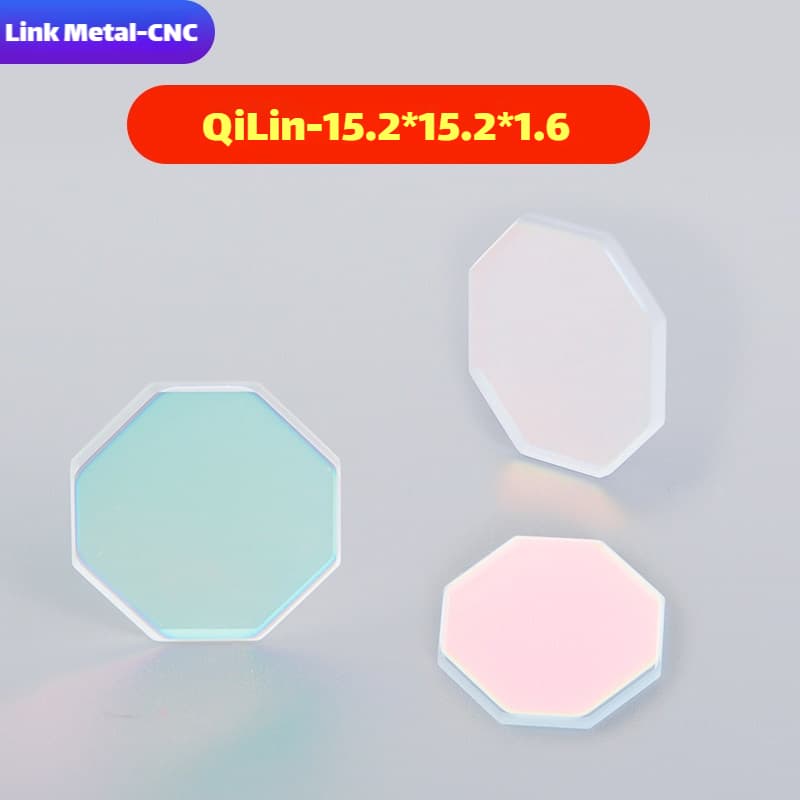

• Reflective Lens 15.2×15.2×1.6mm: Individual reflective lens (bare lens)

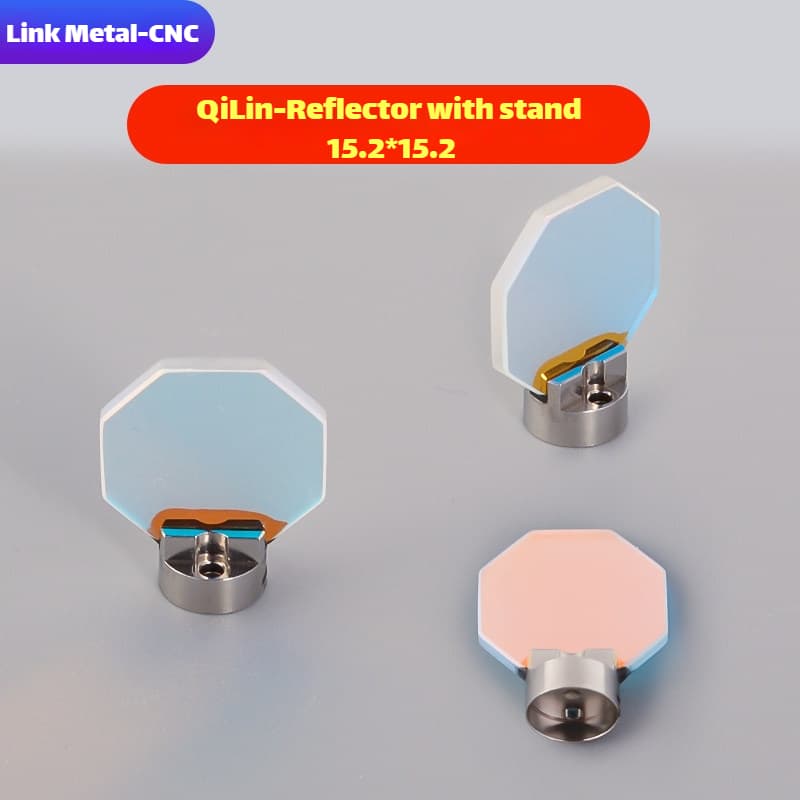

• 15.2×15.2×1.6mm Reflective Lens with Bracket: Reflective lens with pre-installed bracket

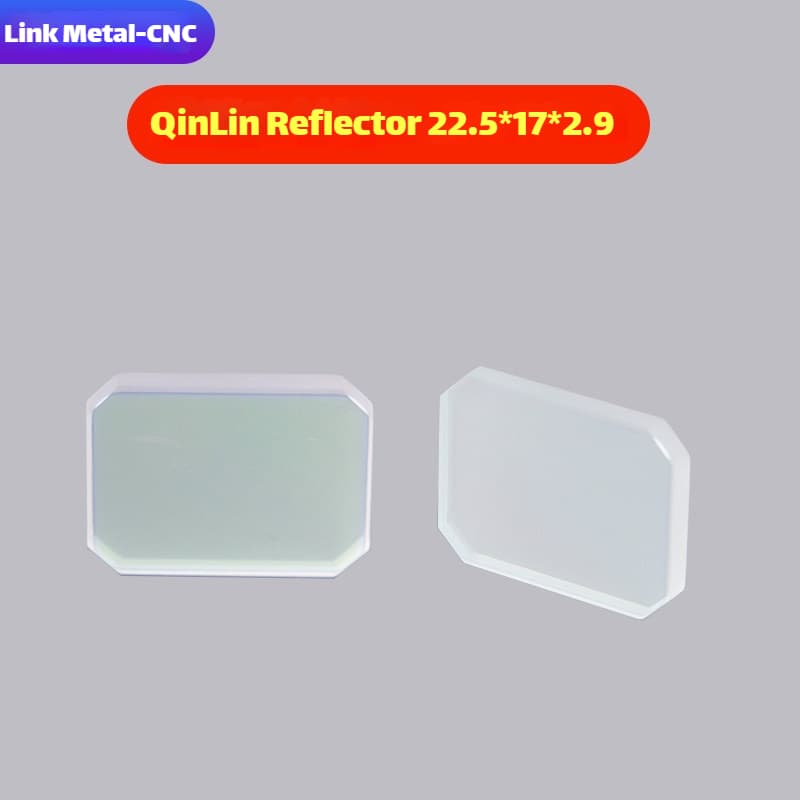

• Reflective Lens 22.5×17×2.9mm 60°: 60° reflective lens (bare lens)

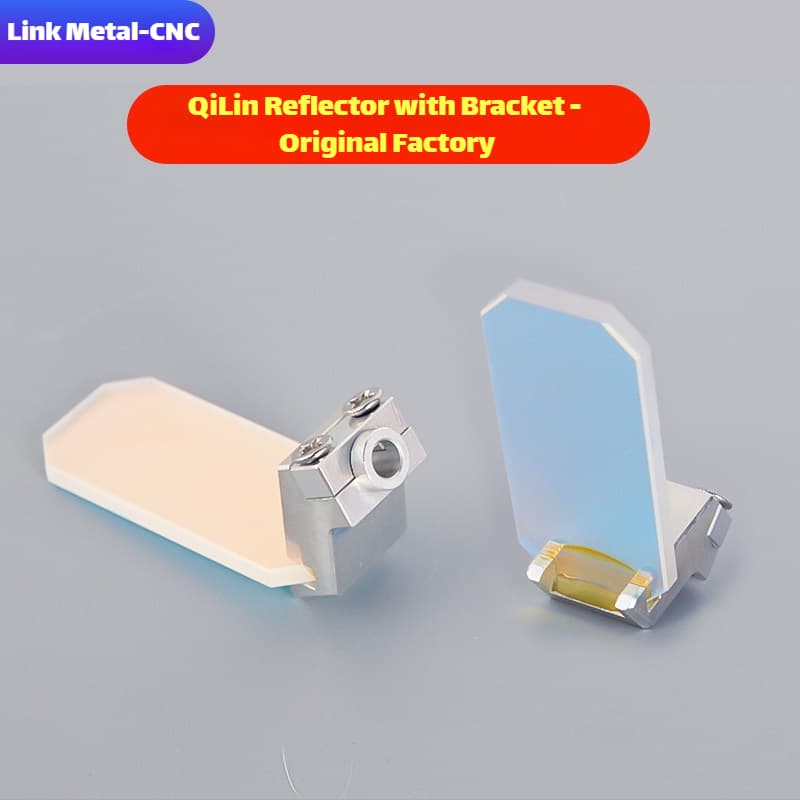

• 30×14×2mm Reflective Lens 60° with Bracket: 60° reflective lens with bracket for Qilin welding torches

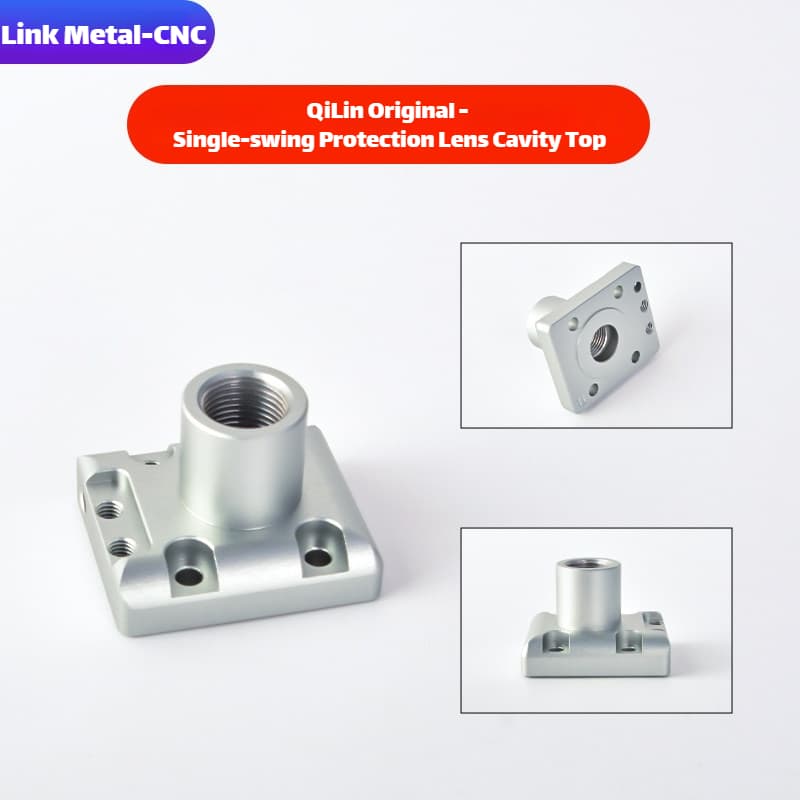

• Single Plate Protective Lens Cavity: Protective lens cavity assembly

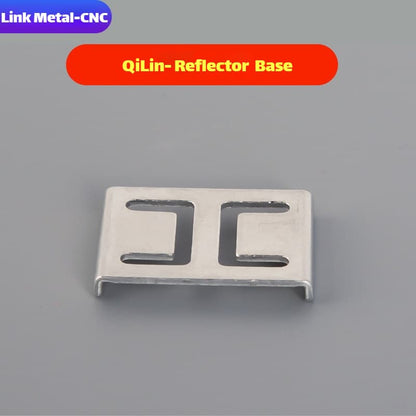

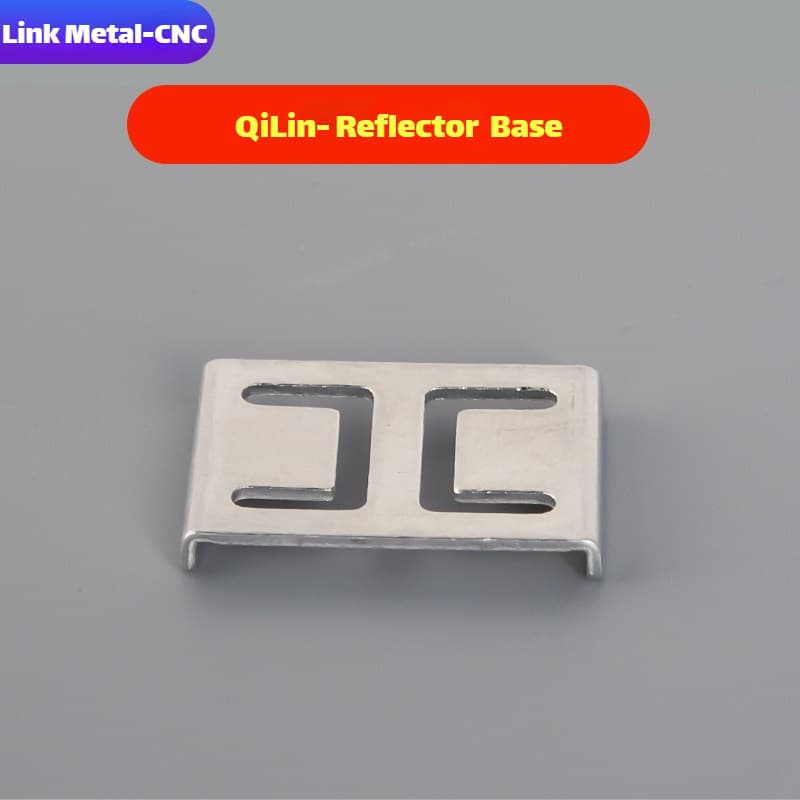

• Reflective Lens Base: Base for mounting reflective lenses

Wire Feed System Components

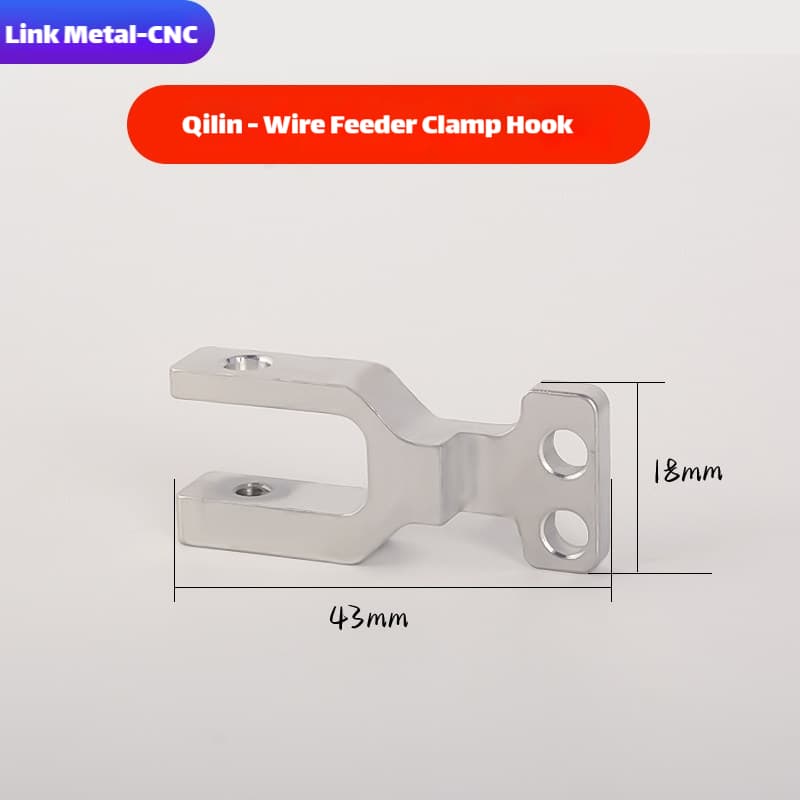

• Wire Feed Fixture Hook: Hook for wire feed fixture

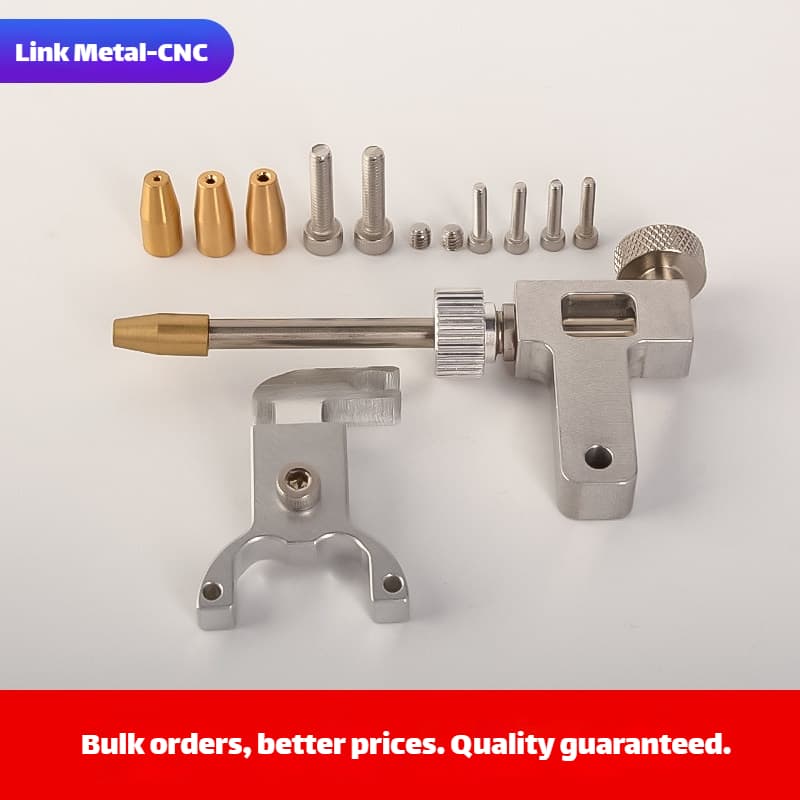

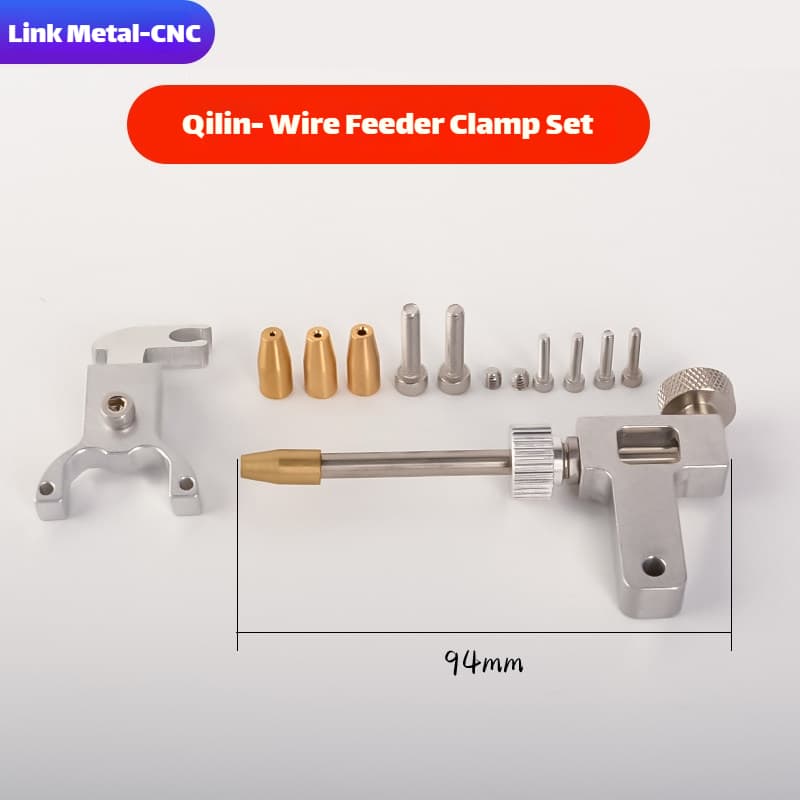

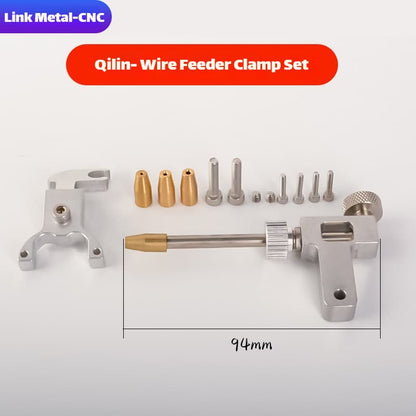

• Wire Feed Fixture Full Set: Complete wire feed fixture assembly

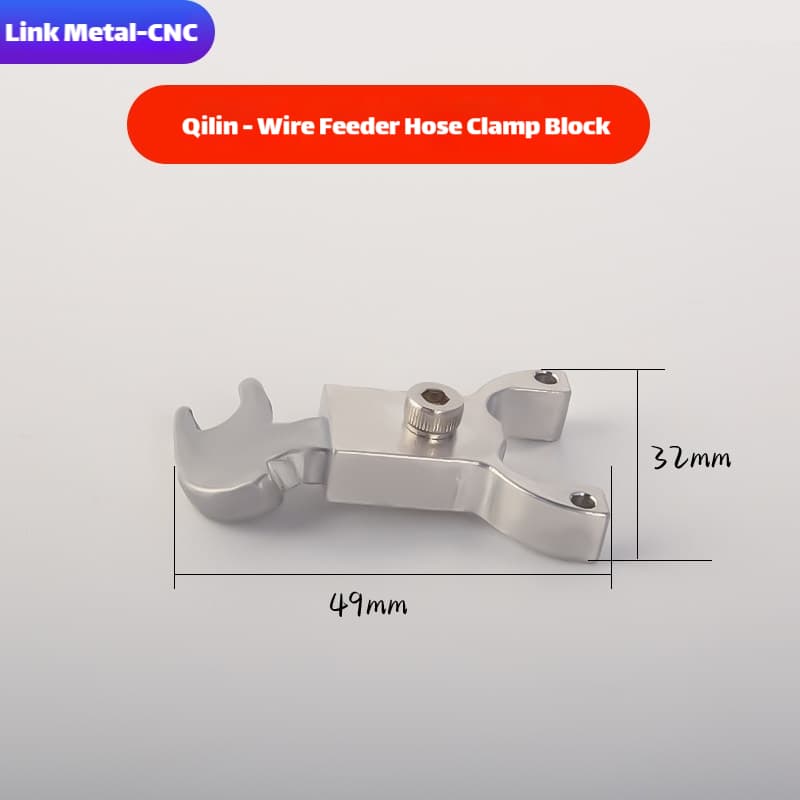

• Wire Feed Hose Clamp Block: Clamp block for wire feed hose

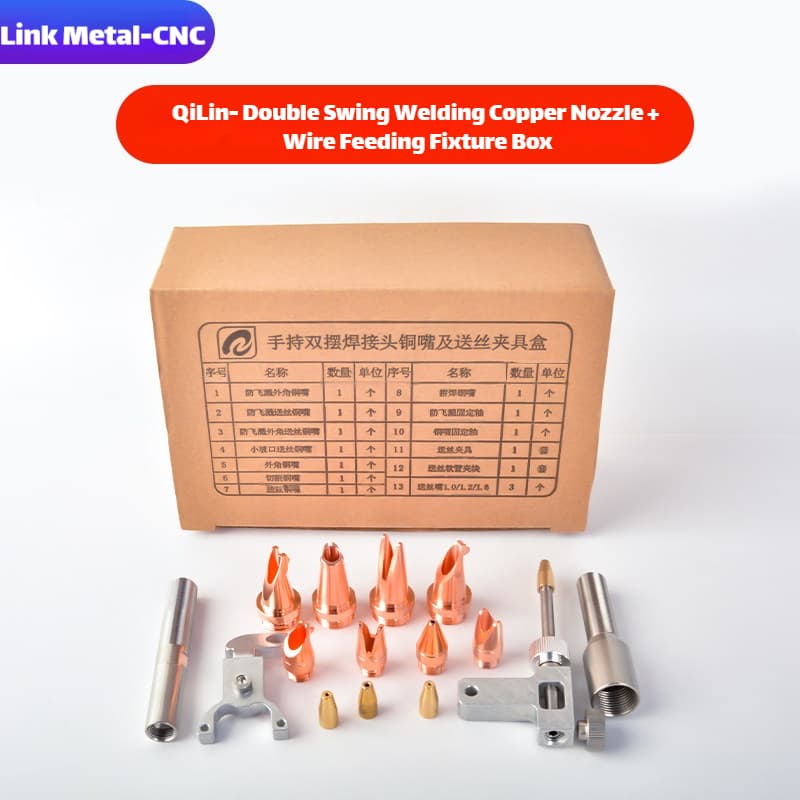

• Handheld Dual Plate Welding Head Copper Nozzle & Wire Feed Fixture Boxed: Complete nozzle and wire feed fixture set

Mechanical Components

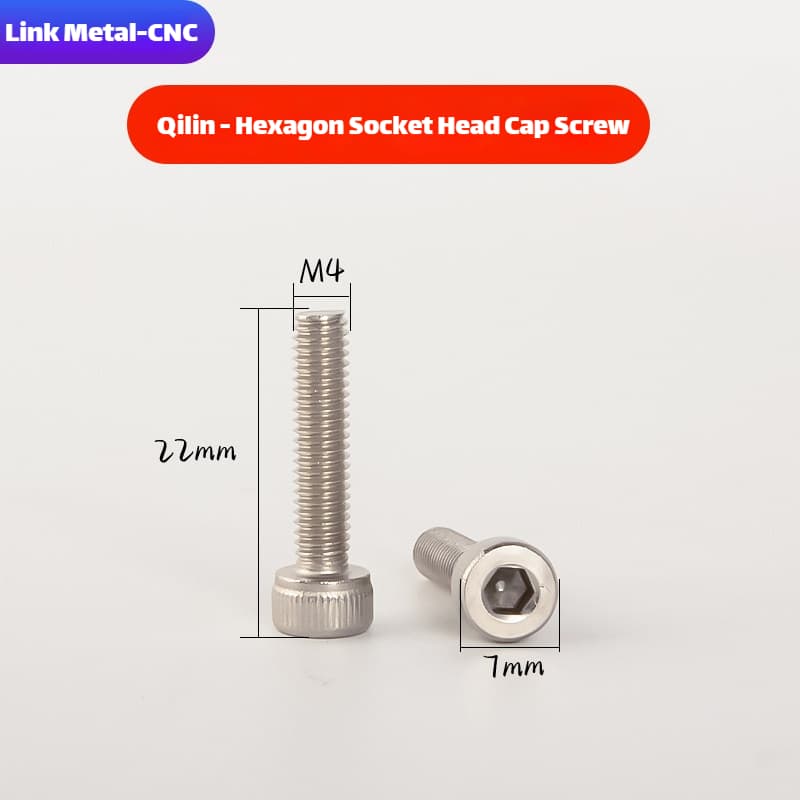

• Socket Head Cap Screw: Replacement screw set

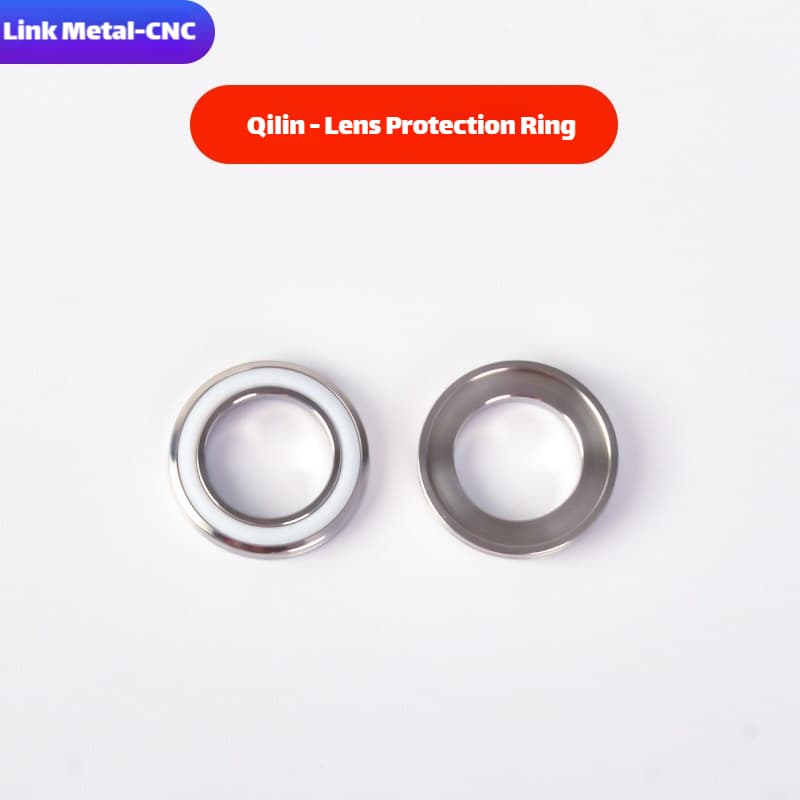

• Protective Lens Retaining Ring: Retaining ring for protective lens

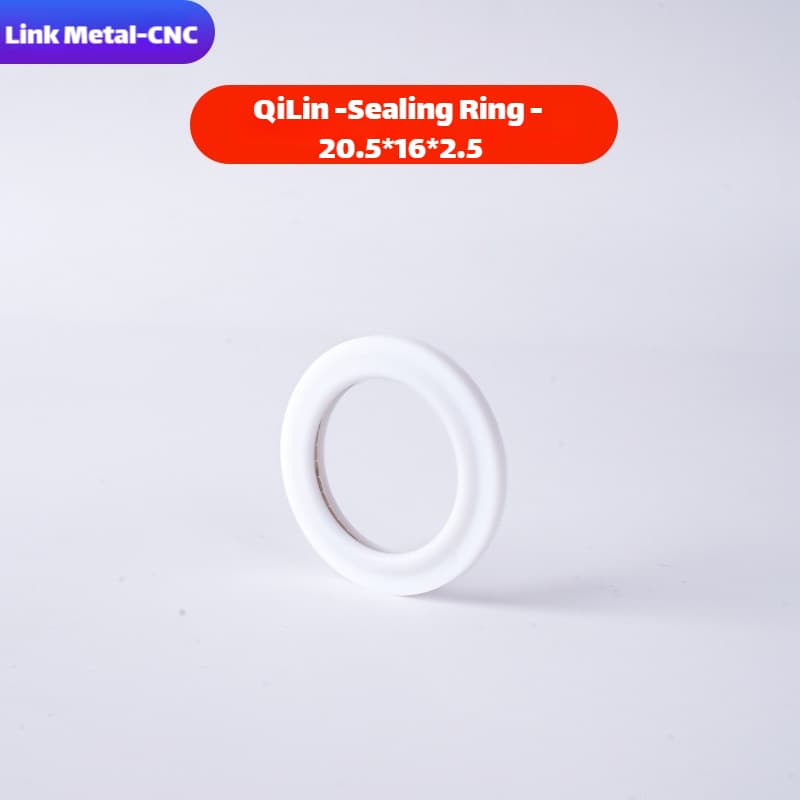

• Sealing Ring 20.5×16×2.5mm: Sealing ring for optical components

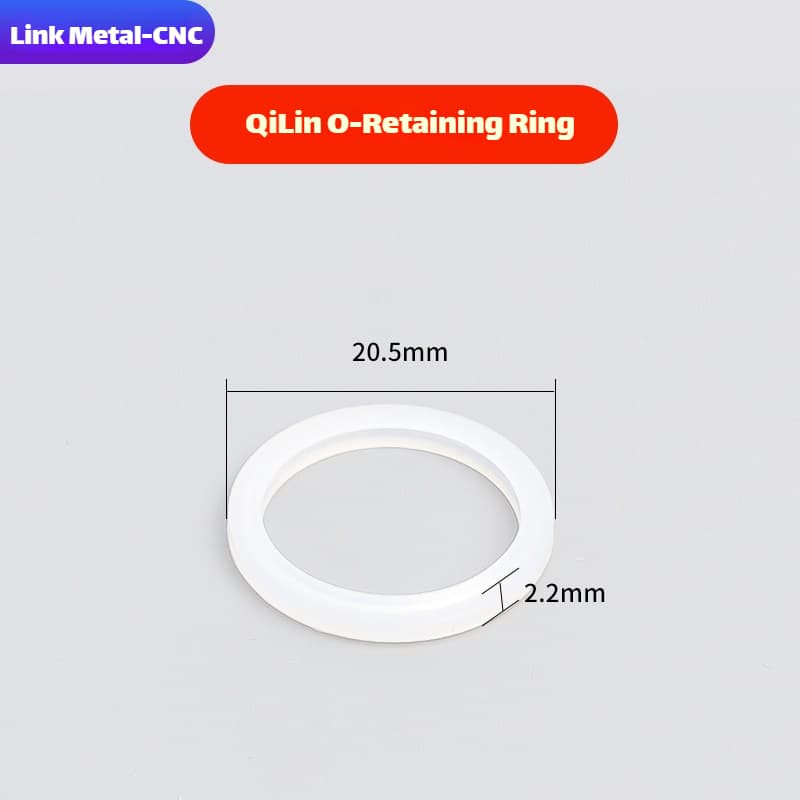

• O-Ring 20.5×2.2mm: O-ring for sealing

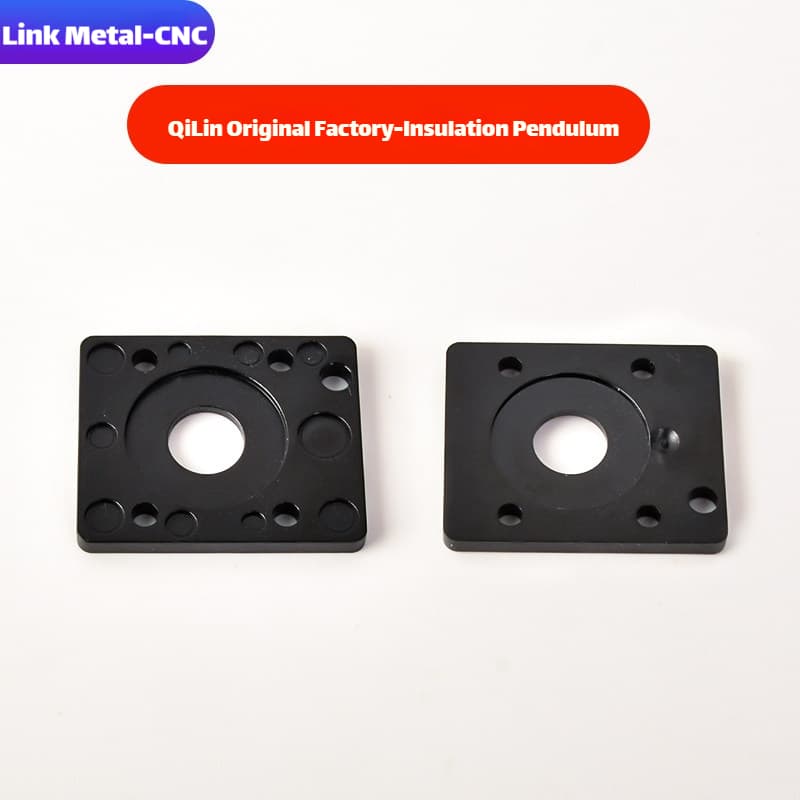

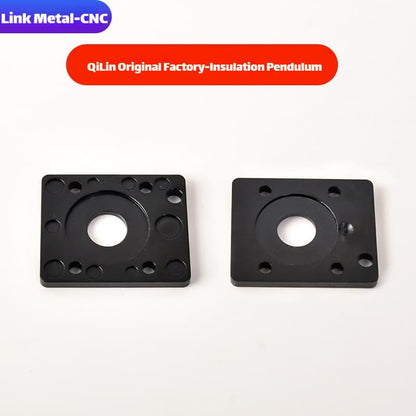

• Insulating Pad Single Pendulum: Insulating pad for single pendulum welding heads

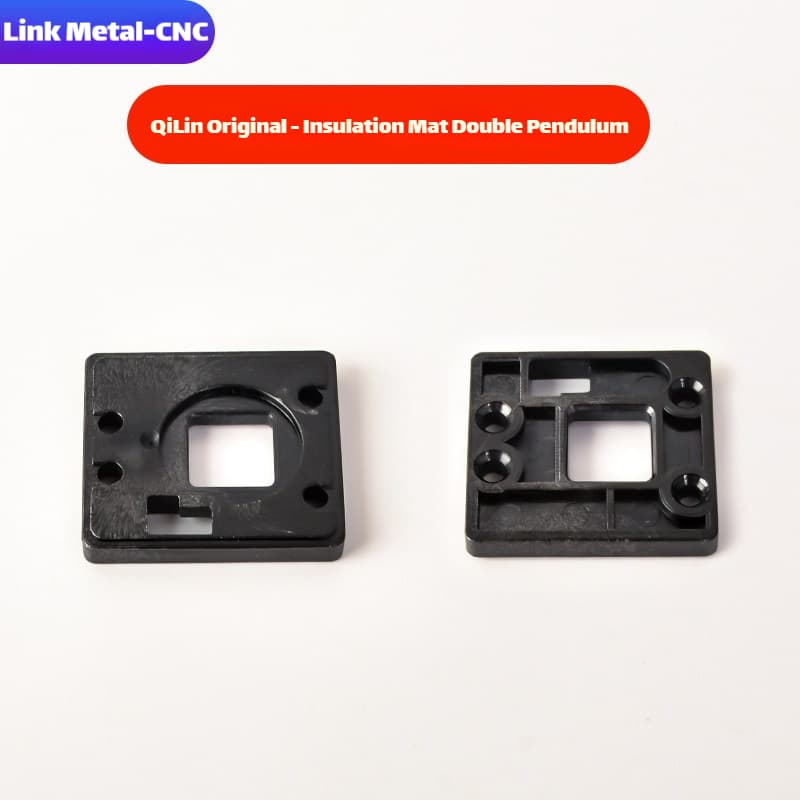

• Insulating Pad Dual Pendulum: Insulating pad for dual pendulum welding heads

Electrical Components & Motors

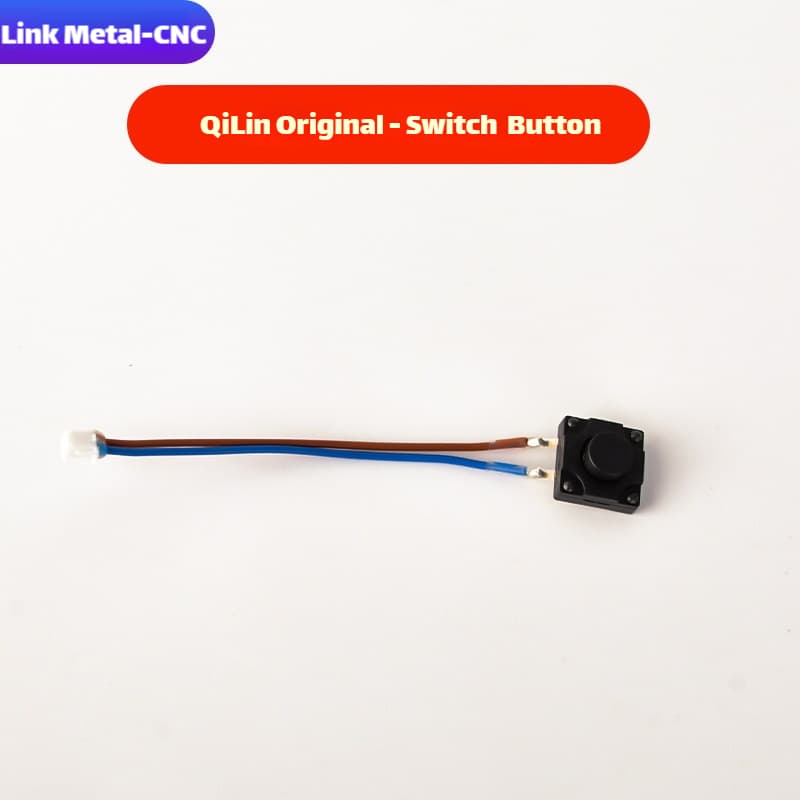

• Switch Button: Replacement trigger switch button

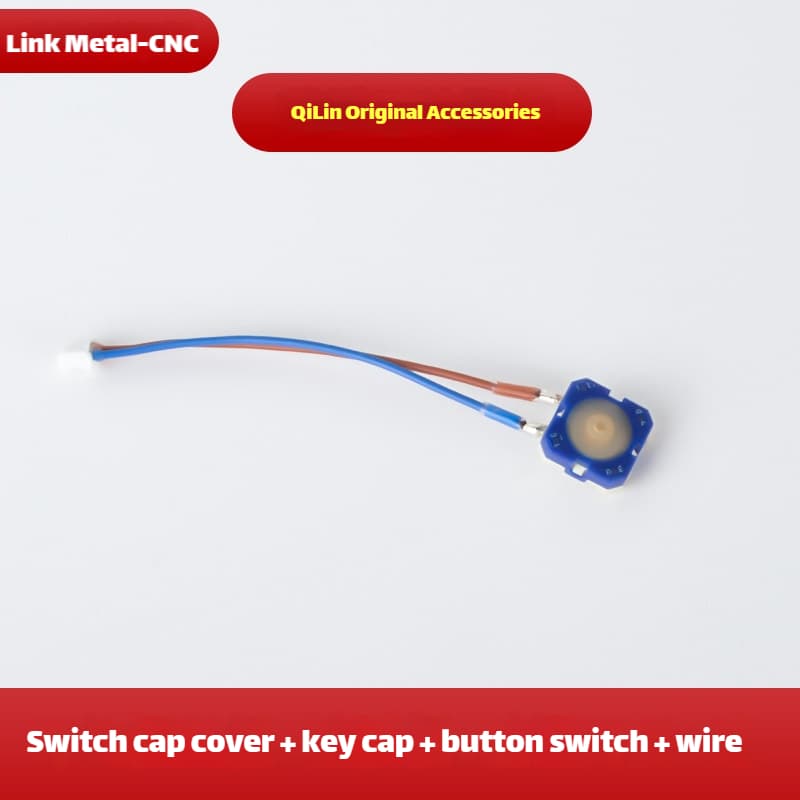

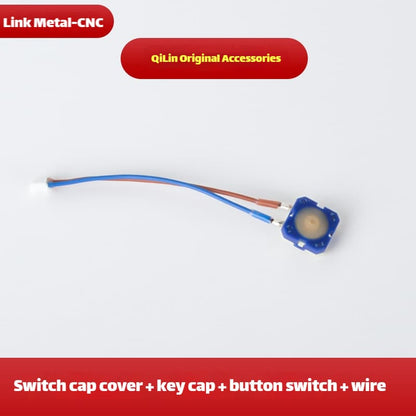

• Original Switch: Original factory switch assembly

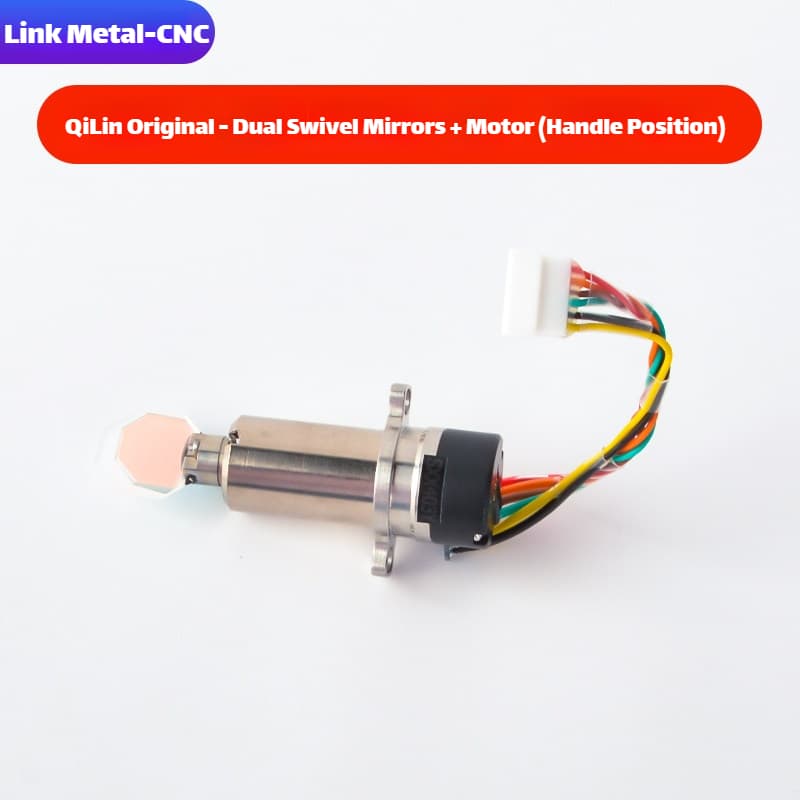

• Dual Pendulum Reflective Lens with Motor (Y-axis, Handle Position): Y-axis motor assembly for dual pendulum heads

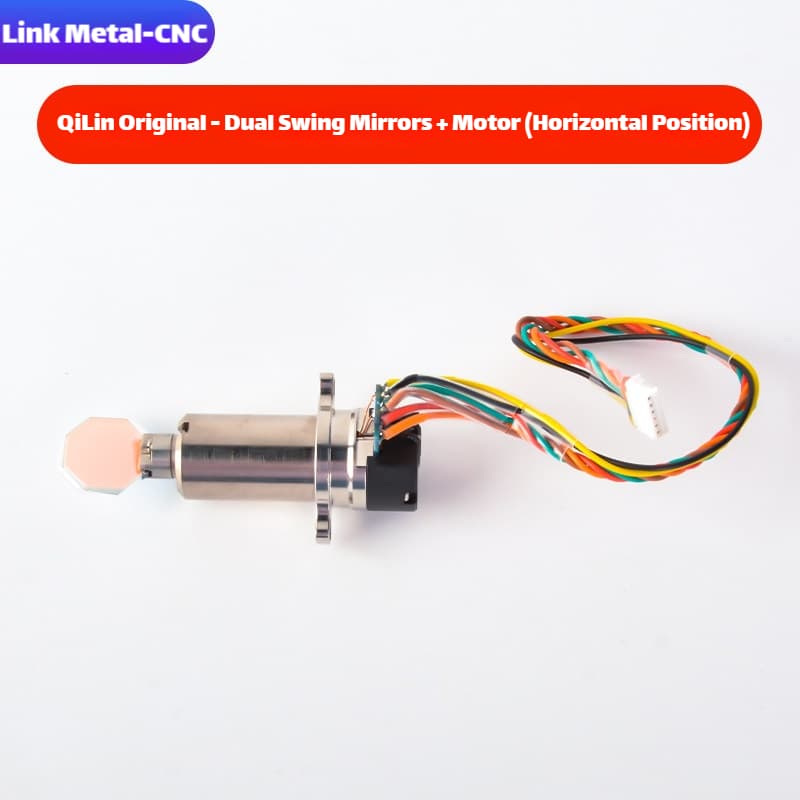

• Dual Pendulum Reflective Lens with Motor (X-axis, Horizontal Position): X-axis motor assembly for dual pendulum heads
• V8/V9 Motor: Replacement V8/V9 galvo motor

Custom Parts Available: For custom parts or other welding torch models, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Selected Qilin Welding Torch Replacement Part / Accessory
• 1 x Specialized Dust-Proof Anti-static Protective Packaging

Quality Assurance

All Qilin welding torch replacement parts from Link Metal CNC undergo strict quality testing before delivery, including dimensional accuracy inspection, optical performance test, air tightness test and fit testing.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: Are these parts compatible with all Qilin welding torch models?
A: Yes, our Qilin replacement parts are designed to be compatible with all standard Qilin handheld laser welding torch models, including both single pendulum and dual pendulum versions. However, some parts are specific to certain models, so please check the product description carefully before ordering.

Q: What is the difference between single pendulum and dual pendulum insulating pads?
A: Single pendulum insulating pads are designed for Qilin welding torches with only one oscillating axis, while dual pendulum insulating pads are for torches with two oscillating axes (X and Y). They have different dimensions and are not interchangeable.

Q: How often should I replace the reflective lens?
A: Under normal operating conditions, a reflective lens should last 1-2 months. However, it should be replaced immediately if you notice any film burning, scratches, or if welding quality deteriorates. Frequent welding of reflective materials like aluminum and copper will accelerate wear.

Q: Can I purchase individual replacement parts separately?
A: Yes, we offer all individual replacement parts separately. You can select exactly what you need from our product options, allowing you to save money by only replacing the damaged components.

Q: Do you provide technical support for installation?
A: Yes, we provide professional technical support for all our products. If you have any questions about installation or use, please contact our sales team and we will be happy to assist you.
