Link Metal CNC Qilin M10 Welding Nozzle for Laser Welding Machine

Qilin M10 Laser Welding Nozzle for Handheld Welders

Professional industrial-grade Qilin M10 laser welding nozzles, essential core consumables for all fiber laser welding machines. With 1:1 OEM precision fit for original Qilin series handheld laser welding guns, our M10 welding nozzle is compatible with mainstream automatic and robotic laser welding systems.

This complete product series covers both long and short structure specifications, including full Type A-H models. All products are precision machined from high-purity copper alloy for stable welding performance in demanding industrial environments.

Key Advantages of Our Qilin M10 Welding Nozzles

• Exclusive Qilin Dedicated Design: Standard M10 interface provides 1:1 perfect fit for all original Qilin laser welding guns. Direct drop-in replacement with no additional debugging required—plug and play, also compatible with most mainstream fiber laser welding equipment on the market.
• Long & Short Dual Series:
  • Long Type (A-F): Extended length for deep cavity welding, long-distance welding and irregular workpiece welding. Reaches narrow and deep welding positions while avoiding welding gun interference.
  • Short Type (A-H): Compact structure for conventional flat welding, narrow space welding and short-distance precision welding. Offers flexible operation and improved welding accuracy.

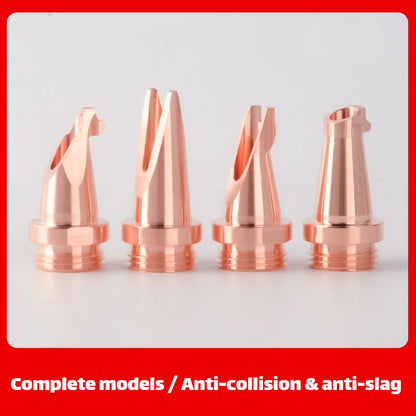

• Complete Type A-H Model Range: Full range of specifications matching different welding process requirements, welding angles, wire feeding methods and workpiece materials. Fully covers daily conventional welding, precision welding, thick plate welding and special-shaped workpiece welding scenarios.
• High-Purity Copper Alloy Construction: Made from premium high-purity copper alloy for exceptional thermal conductivity, superior high temperature resistance and outstanding anti-spatter properties. Effectively resists welding splash erosion, is easy to clean, and delivers long service life.
• Ultra-High Precision CNC Machining: Strict dimensional tolerance control with smooth inner wall and no burrs. Ensures stable wire feeding and uniform protective gas flow, isolating air to avoid weld oxidation, air holes and burrs.
• Broad Industrial Applicability: Compatible with laser welding of stainless steel, carbon steel, aluminum alloy, galvanized sheet, copper plate and other metal materials. Widely used in sheet metal processing, hardware manufacturing, automotive parts production and mold repair.

Compatible Equipment & Available Types

Compatible Equipment

• All Qilin Series Fiber Laser Welding Machines
• All Qilin Handheld Laser Welding Guns
• All Automatic Laser Welding Systems
• All Robotic Laser Welding Stations

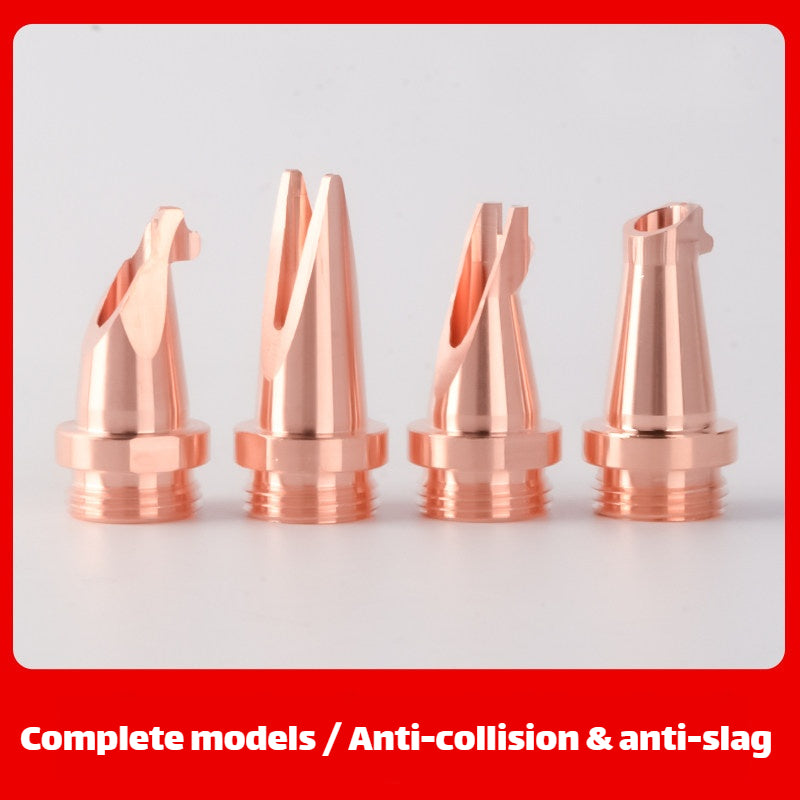

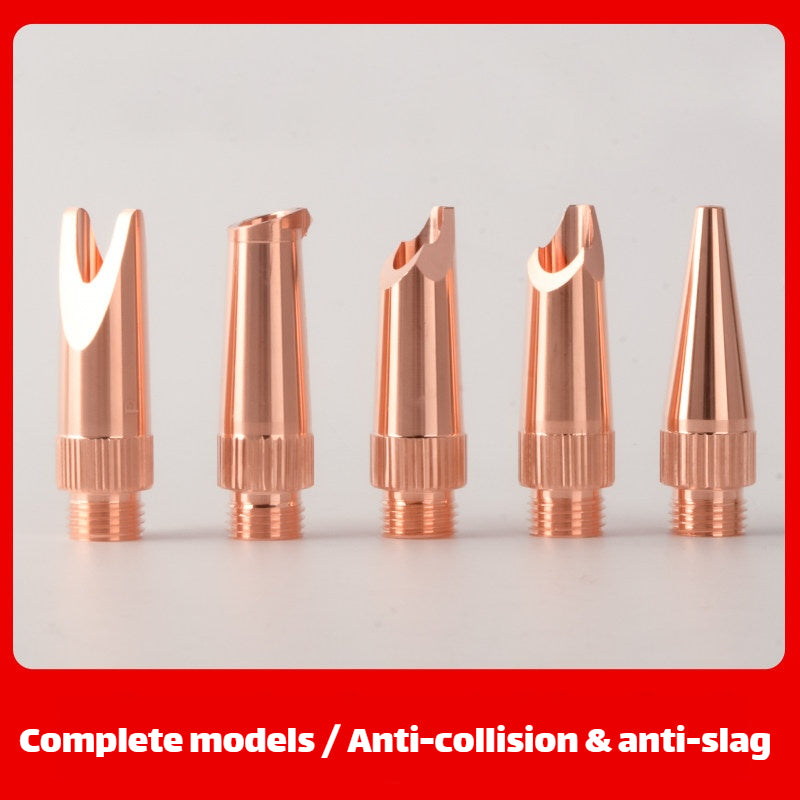

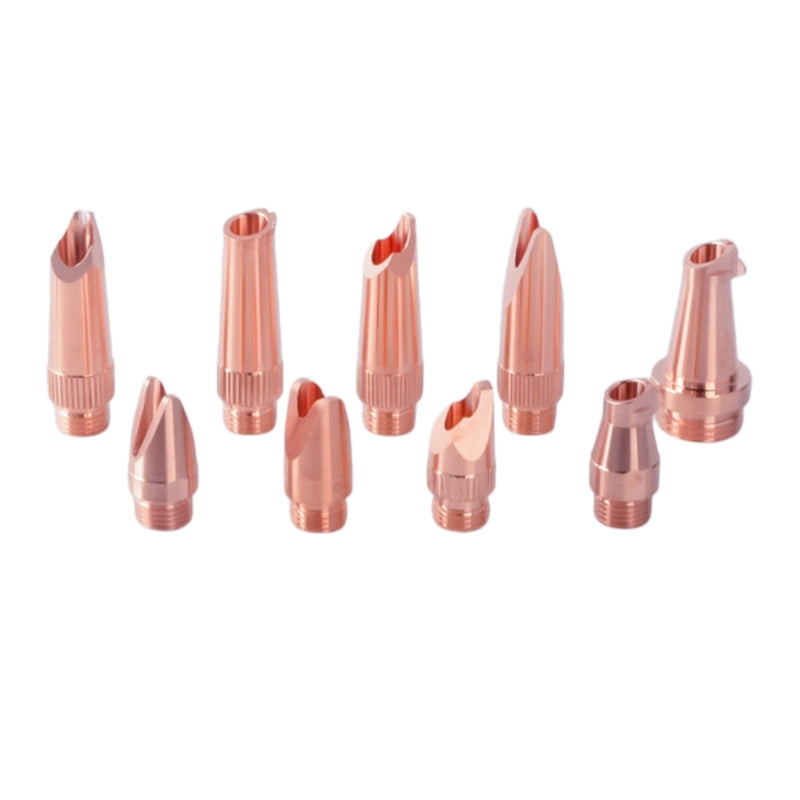

Available Qilin M10 Welding Nozzle Types (14 Options)

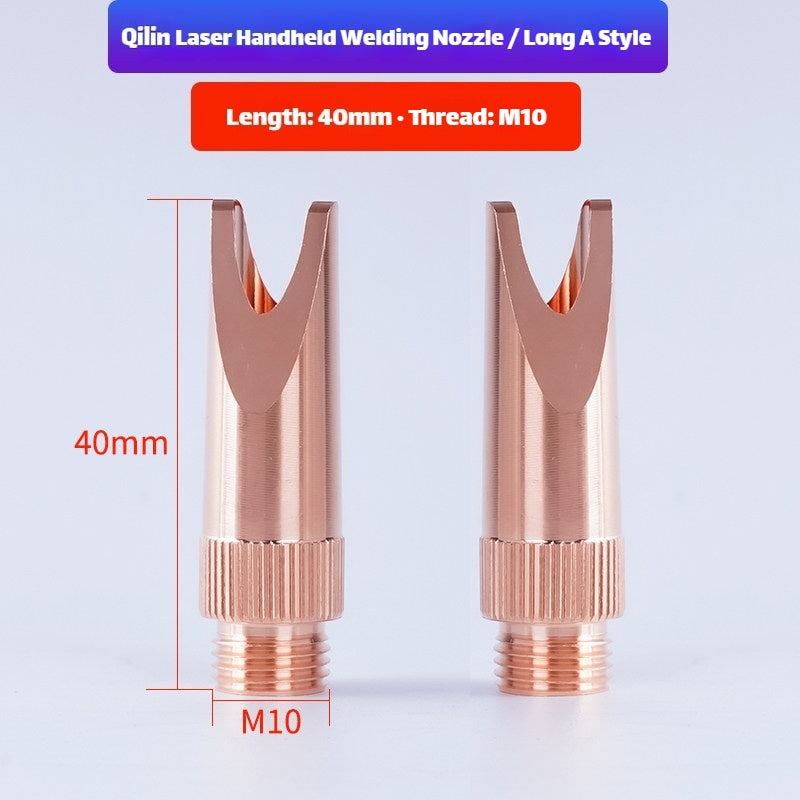

• Type A (Long): Standard general-purpose long welding nozzle

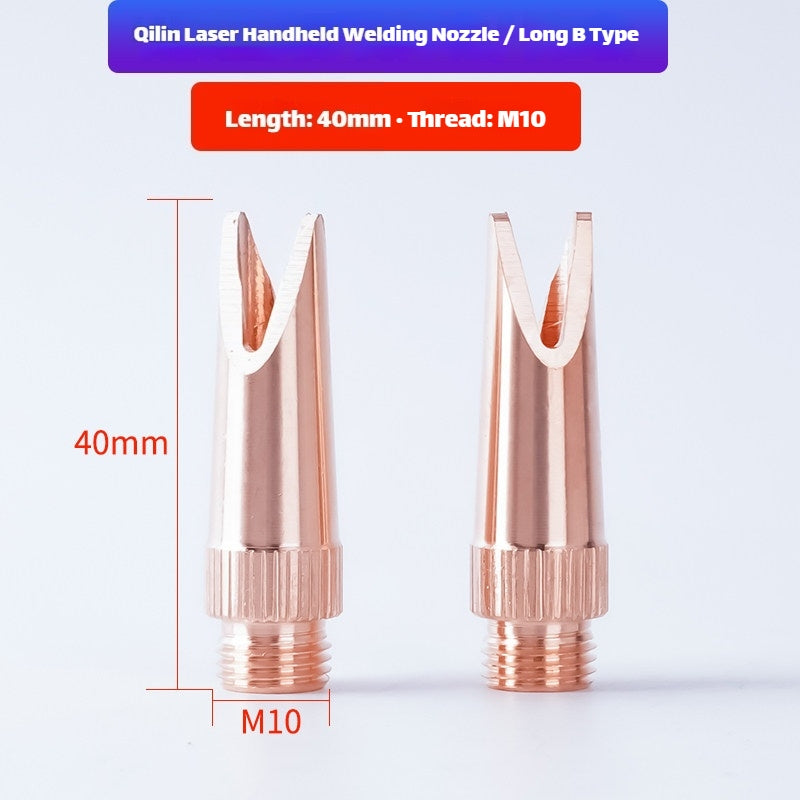

• Type B (Long): Optimized for fillet welding (long)

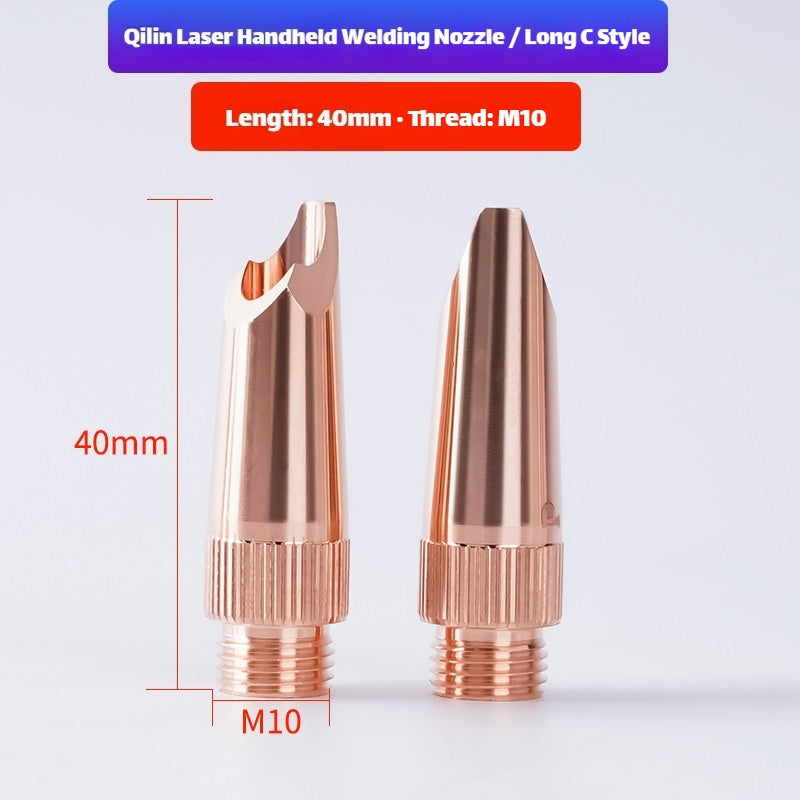

• Type C (Long): Narrow gap welding nozzle (long)

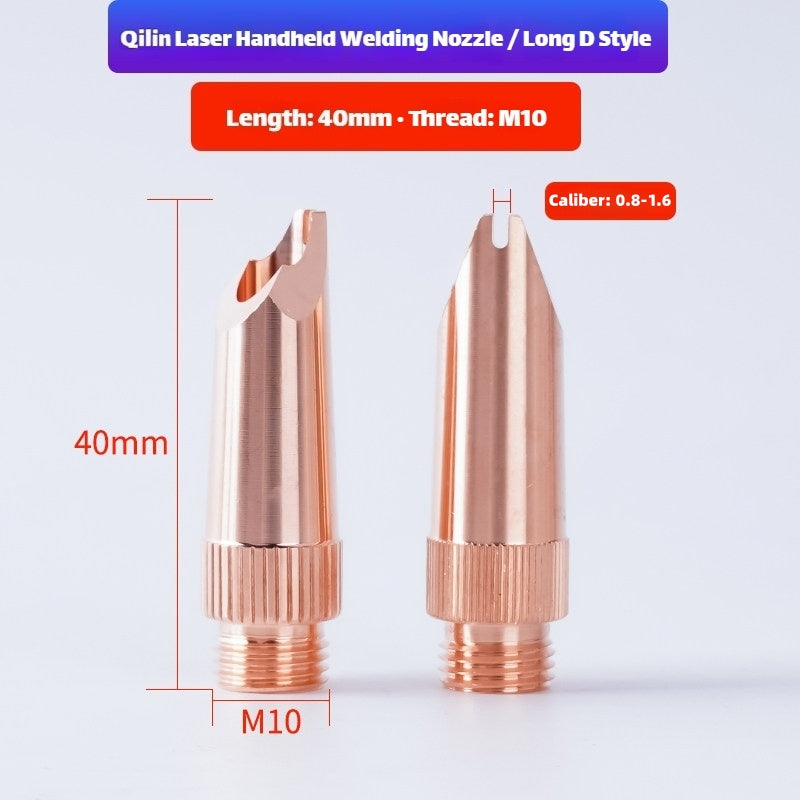

• Type D (Long): Deep penetration welding nozzle (long)
• Type E (Long): All-around welding nozzle (long)

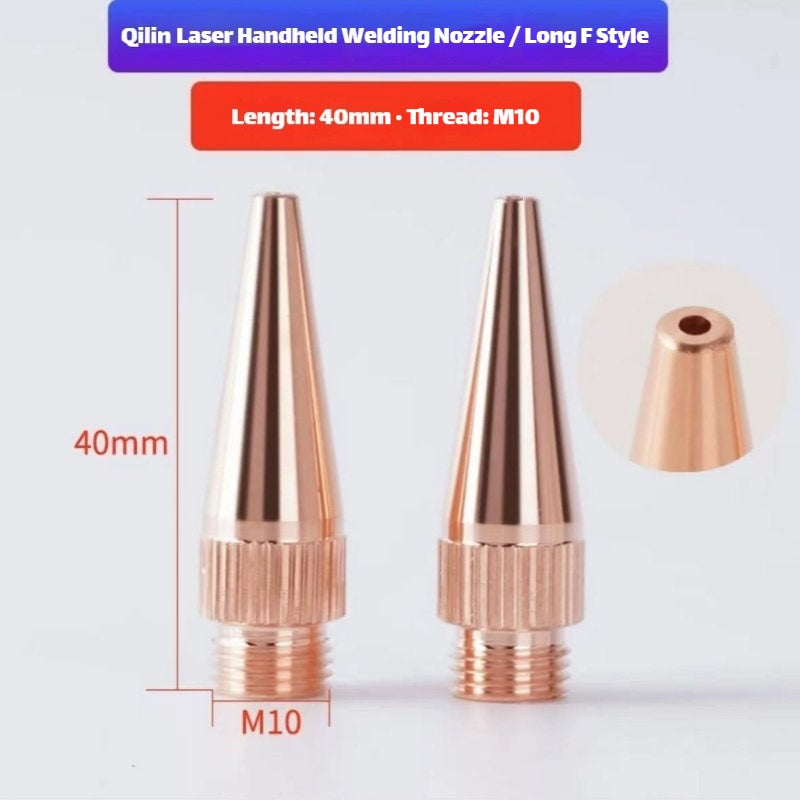

• Type F (Long): Corner welding nozzle (long)

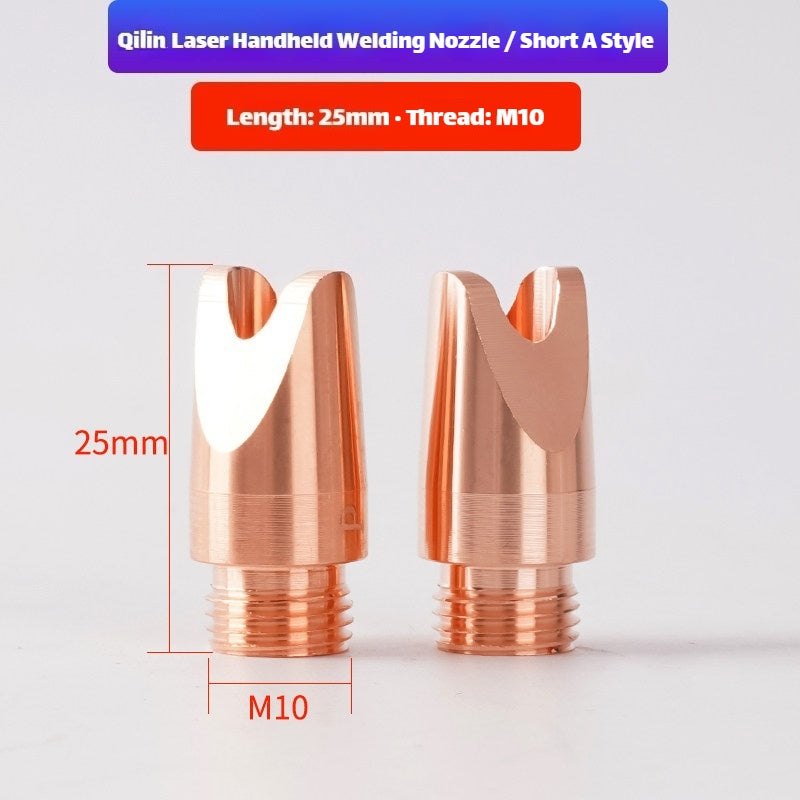

• Type A (Short): Standard general-purpose short welding nozzle

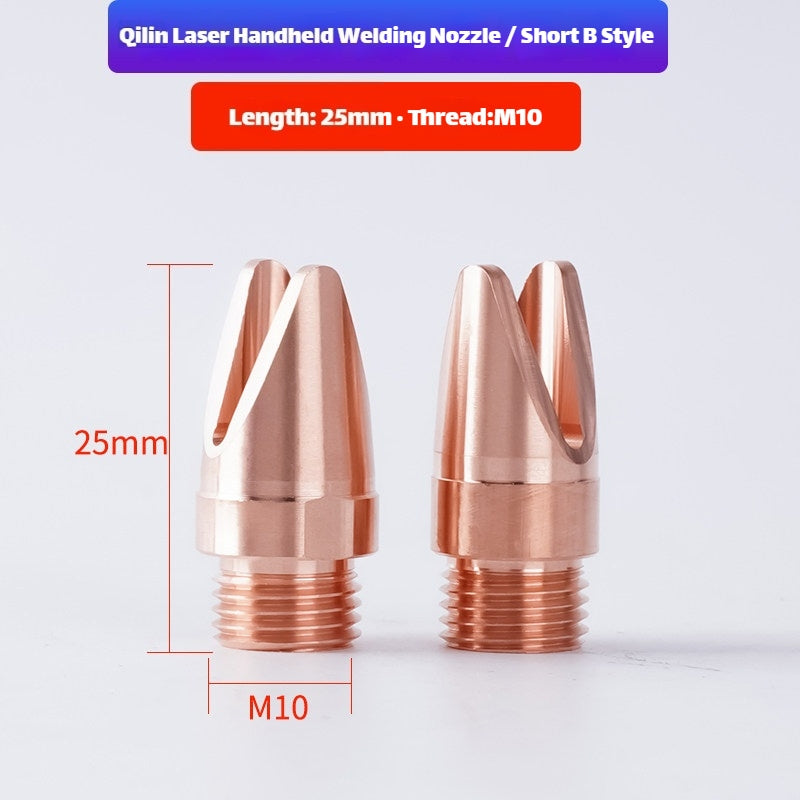

• Type B (Short): Optimized for fillet welding (short)

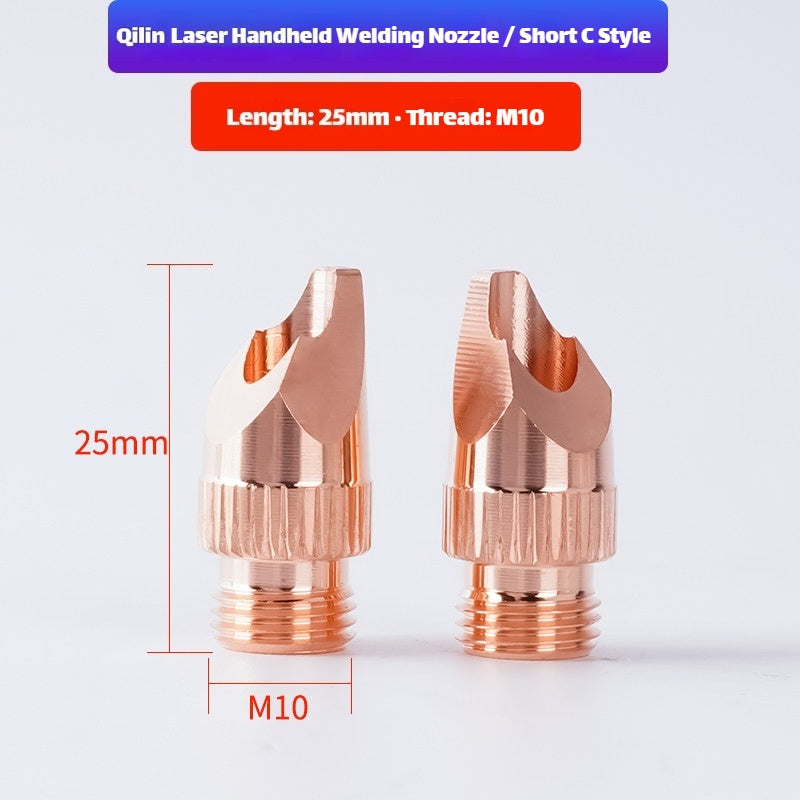

• Type C (Short): Narrow gap welding nozzle (short)

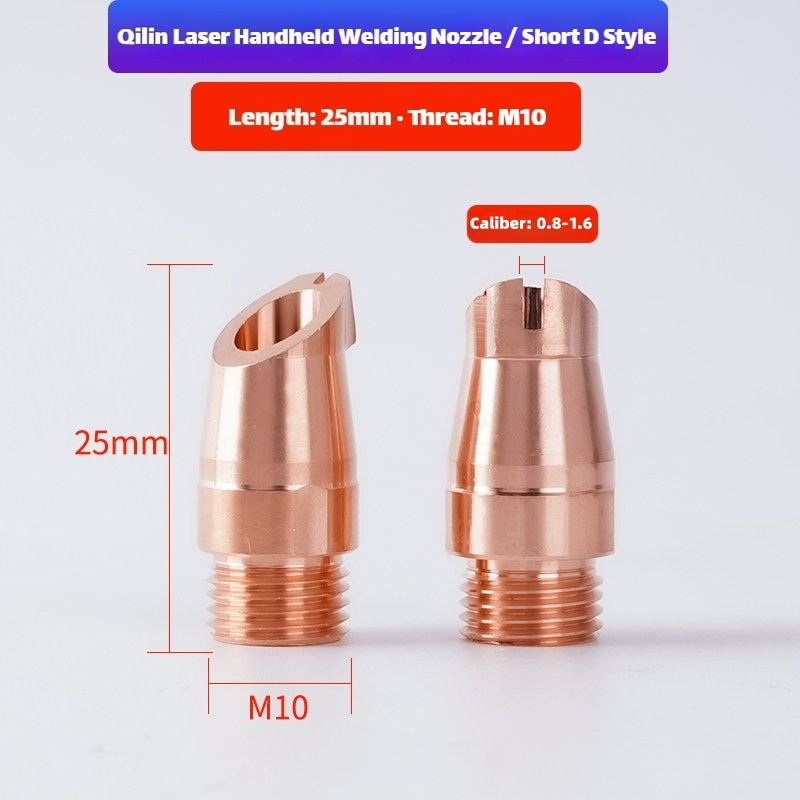

• Type D (Short): Deep penetration welding nozzle (short)

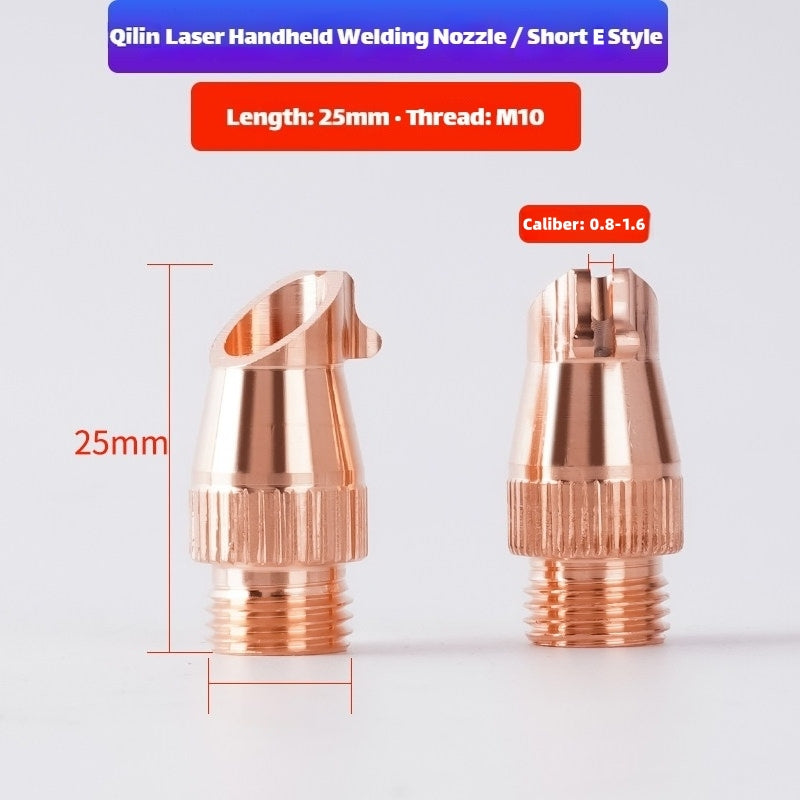

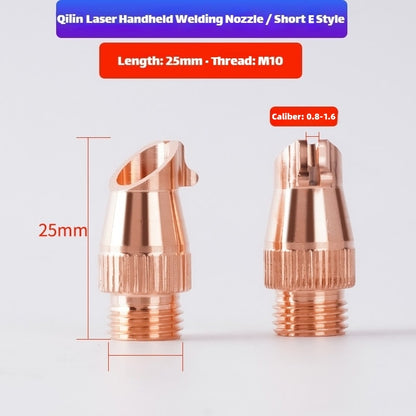

• Type E (Short): Most popular all-around welding nozzle (short)

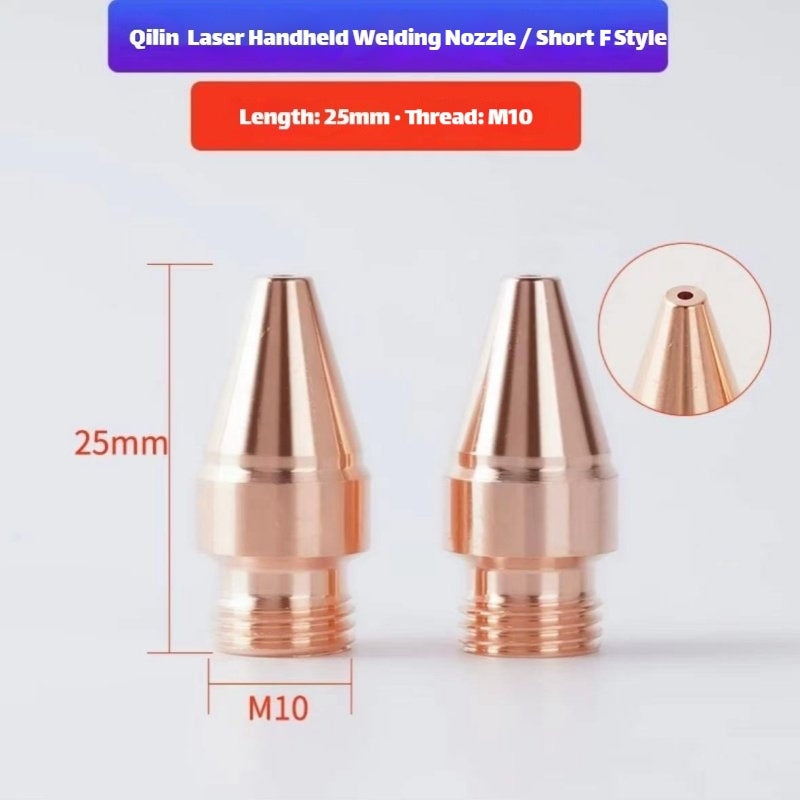

• Type F (Short): Corner welding nozzle (short)

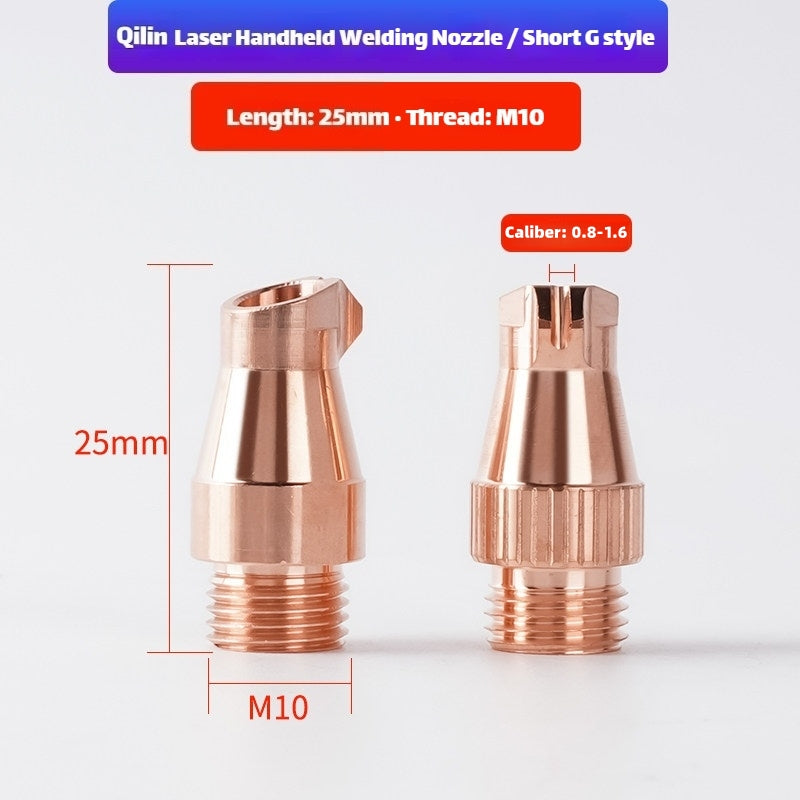

• Type G (Short): Extended reach welding nozzle (short)

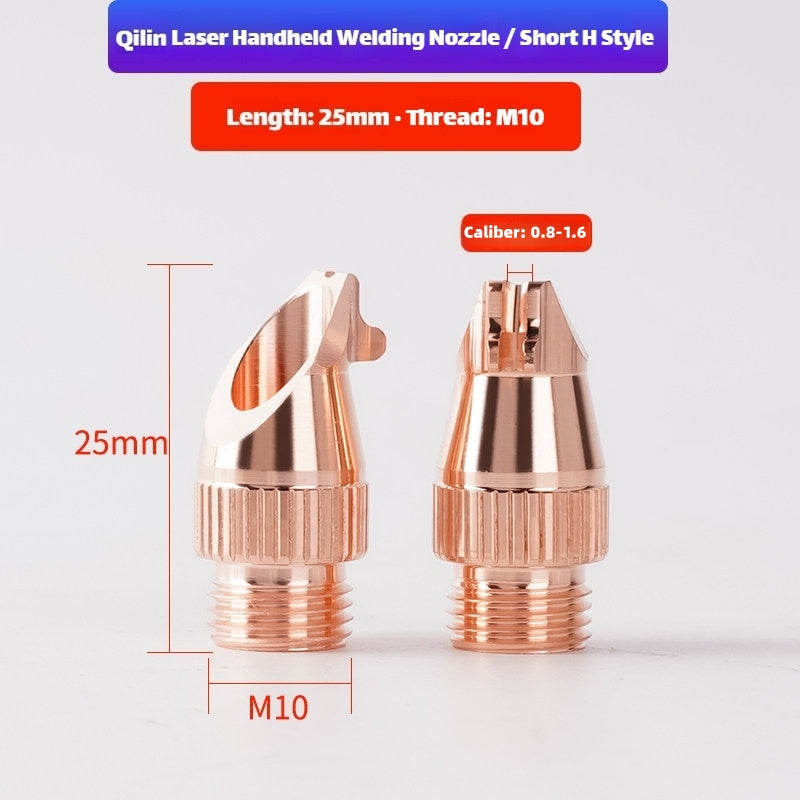

• Type H (Short): High-precision fine welding nozzle (short)

Custom Specifications Available: For anti-spatter coated versions, custom calibers or other laser welding accessories, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Selected Link Metal CNC Qilin M10 Welding Nozzle
• 1 x Specialized Anti-Static Dust-Proof Protective Packaging

Quality Assurance

Every Link Metal CNC Qilin M10 welding nozzle undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, installation fit verification, air tightness test, wire feeding smoothness test and welding performance assessment.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What is the difference between long and short Qilin M10 nozzles?
A: Long type nozzles (Type A-F) have an extended length design that allows them to reach deep into cavities and narrow spaces for welding operations where a short nozzle would cause interference. Short type nozzles (Type A-H) have a compact structure that provides better maneuverability and precision for conventional flat welding and tight space applications.

Q: What is the difference between Type A-H welding nozzles?
A: Type A-H are different structural designs optimized for specific welding applications: Type A is general-purpose, Type B for fillet welding, Type C for narrow gaps, Type D for deep penetration, Type E is the most popular all-around, Type F for corners, Type G for extended reach, and Type H for high-precision fine welding.

Q: Do you offer anti-spatter coated versions of Qilin M10 nozzles?
A: Yes, we can provide anti-spatter coated versions of all Qilin M10 nozzle models upon request. Anti-spatter coating significantly reduces welding splash adhesion, makes cleaning easier, and extends service life by 2-3 times compared to standard copper nozzles.

Q: Will these nozzles work with non-Qilin welding guns?
A: While these nozzles are specifically designed for Qilin M10 interface welding guns, they may be compatible with some other laser welding guns that use the M10 thread standard. However, we cannot guarantee perfect fit or performance on non-Qilin equipment. Please contact our sales team for compatibility confirmation.

Q: What caliber sizes are available?
A: Our Qilin M10 welding nozzles are available in calibers ranging from 0.8mm to 3.0mm, covering all common welding wire sizes and application requirements. Please specify the required caliber when placing your order.
