Link Metal CNC Raytools 3D-M11 Type Laser Cutting Nozzle for 3D Fiber Laser Cutting Machines

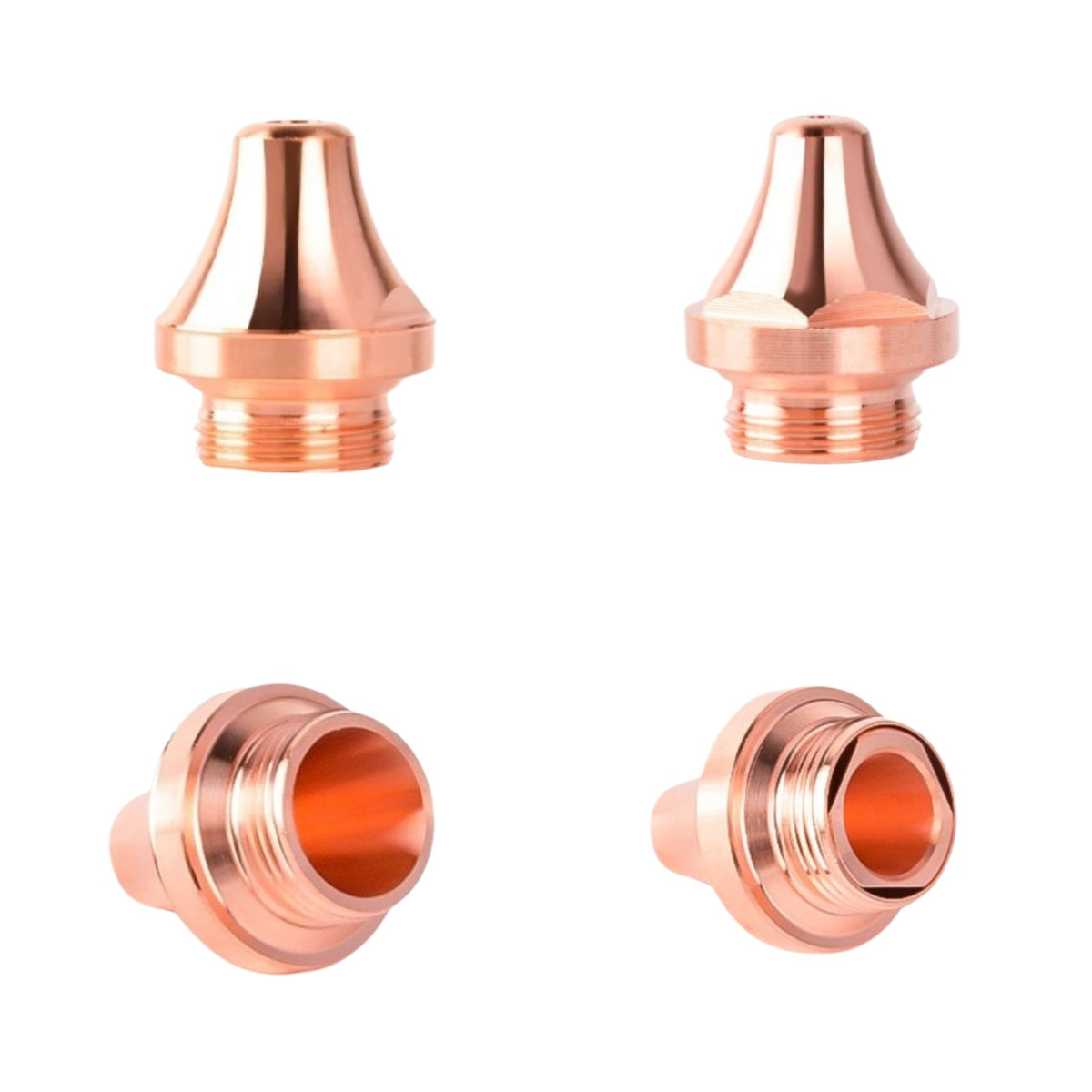

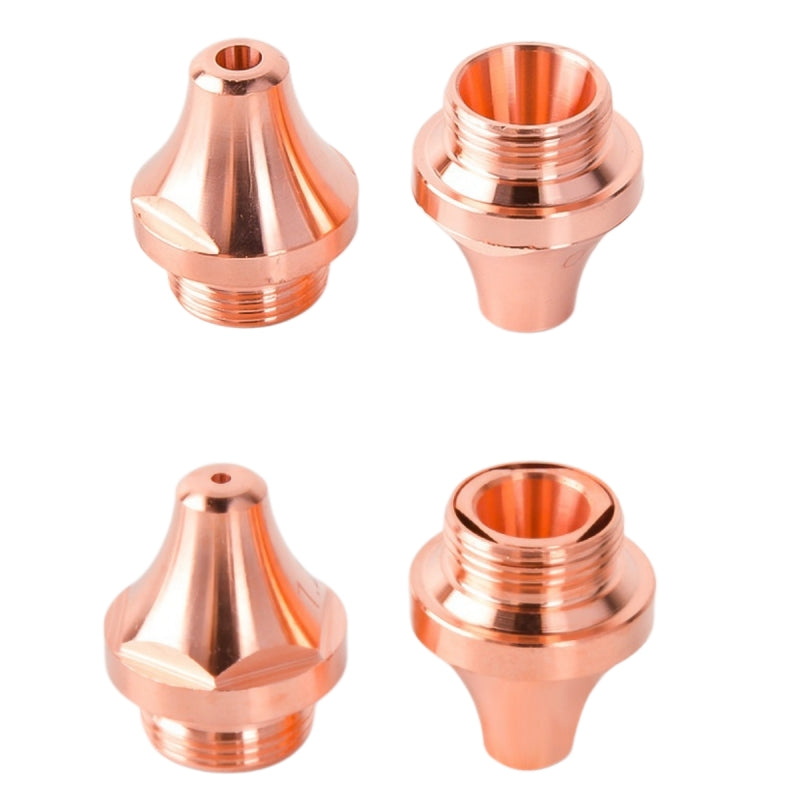

Raytools 3D-M11 Type Laser Cutting Nozzle for 3D Robots

Professional industrial-grade Raytools 3D-M11 type laser cutting nozzles with 1:1 OEM precision fit for Raytools 3D series fiber laser cutting heads. Specially designed for 3D robotic laser cutting, irregular curved surface cutting and three-dimensional profile processing, our 3D-M11 nozzle is an essential core consumable for all 3D laser cutting equipment.

We offer three professional configurations: single layer, double layer and thunderbolt boost laser type. All products are manufactured with high-purity oxygen-free red copper material and ultra-precision CNC machining for stable airflow output and excellent cutting performance in complex 3D processing scenarios.

Key Advantages of Our Raytools 3D-M11 Nozzles

• Exclusive Raytools 3D Dedicated Design: Standard 3D-M11 size with Raytools-specific interface provides 1:1 perfect fit for all original Raytools 3D laser cutting heads. Direct drop-in replacement with no additional debugging required—plug and play, fully compatible with all Raytools 3D fiber laser cutting systems.
• Three Professional 3D Processing Options:
  • Single Layer: Flexible and adaptable for conventional 3D cutting of thin and medium plates
  • Double Layer: Convergent airflow cavity for more stable airflow and better cutting consistency on complex 3D paths
  • Thunderbolt Boost Type: Pressurized structure for stronger penetration, excellent for thick plate 3D cutting and high-speed flying cutting
• High-Purity Oxygen-Free Red Copper Construction: Made from premium 99.95% oxygen-free red copper for exceptional thermal conductivity, superior high temperature resistance and outstanding anti-oxidation properties. Resists deformation even during long-term high-power 3D continuous cutting operations.
• Ultra-High Precision CNC Machining: Strict dimensional tolerance control with mirror-polished inner hole ensures smooth, non-divergent airflow. Effectively reduces cutting burrs and slag hanging in 3D curved surface cutting, optimizes section finish, and eliminates subsequent polishing processes.
• Compact Anti-Interference Structure: Optimized overall nozzle design avoids interference with workpieces during irregular curved surface and three-dimensional profile cutting. Adapts to complex 3D cutting paths with wide processing compatibility.
• Broad 3D Industrial Applicability: Ideal for 3D cutting of stainless steel, carbon steel, aluminum alloy, galvanized sheet, copper plate and other metal materials. Widely used in automotive parts processing, hardware stamping, sheet metal forming and engineering machinery manufacturing.

Compatible Equipment & Available Types

Compatible Equipment

• All Raytools 3D Series Fiber Laser Cutting Heads
• All Raytools 3D Robotic Fiber Laser Cutting Machines

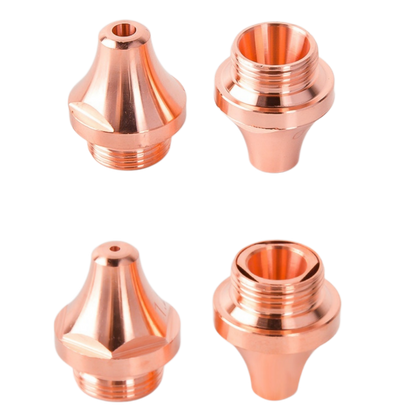

Available Raytools 3D-M11 Nozzle Types

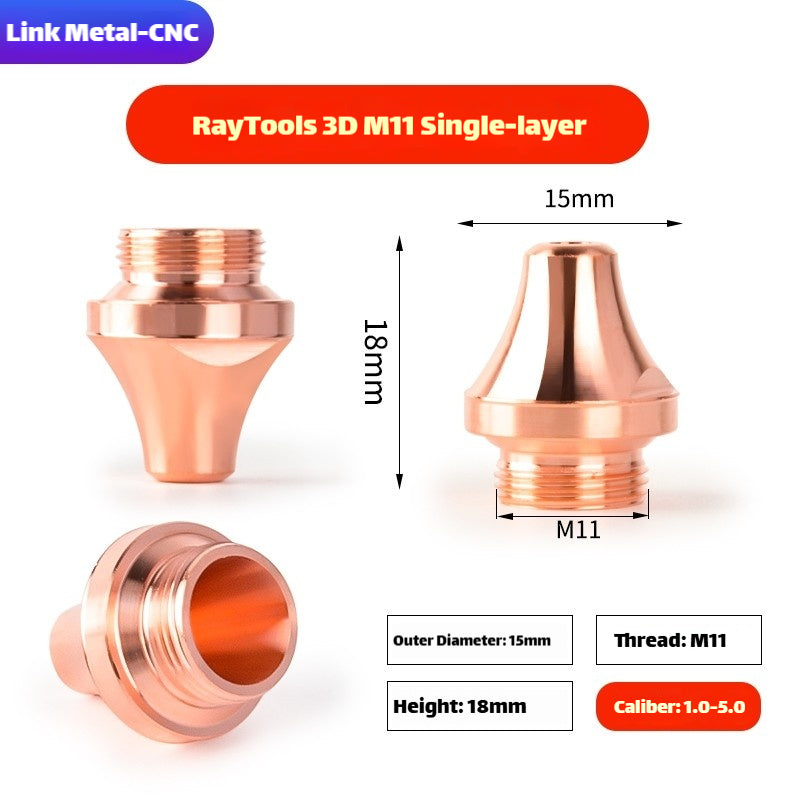

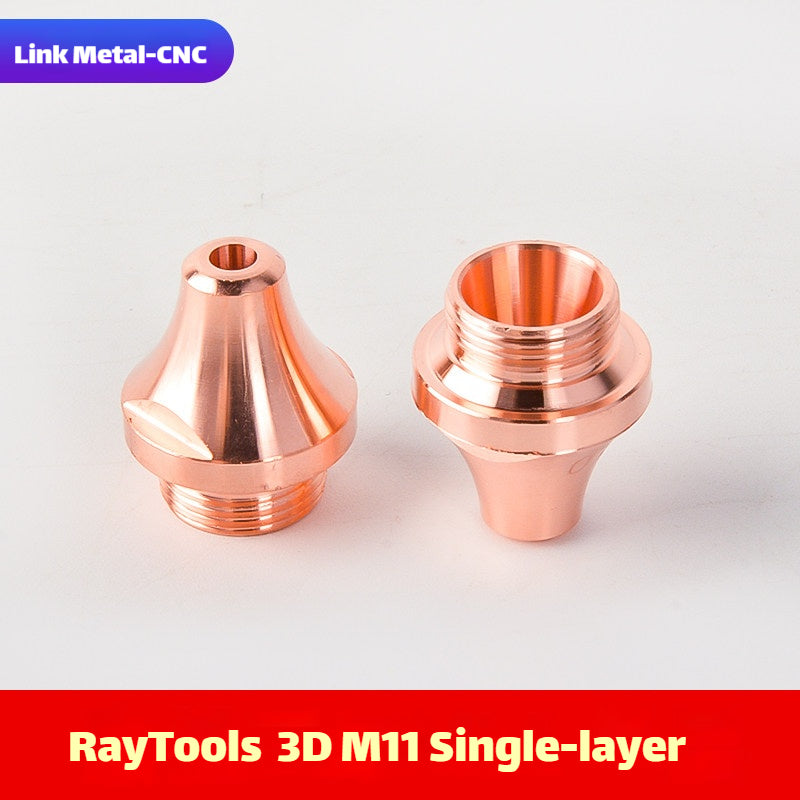

• Single Layer Laser Nozzle: Standard option for general 3D thin to medium plate cutting

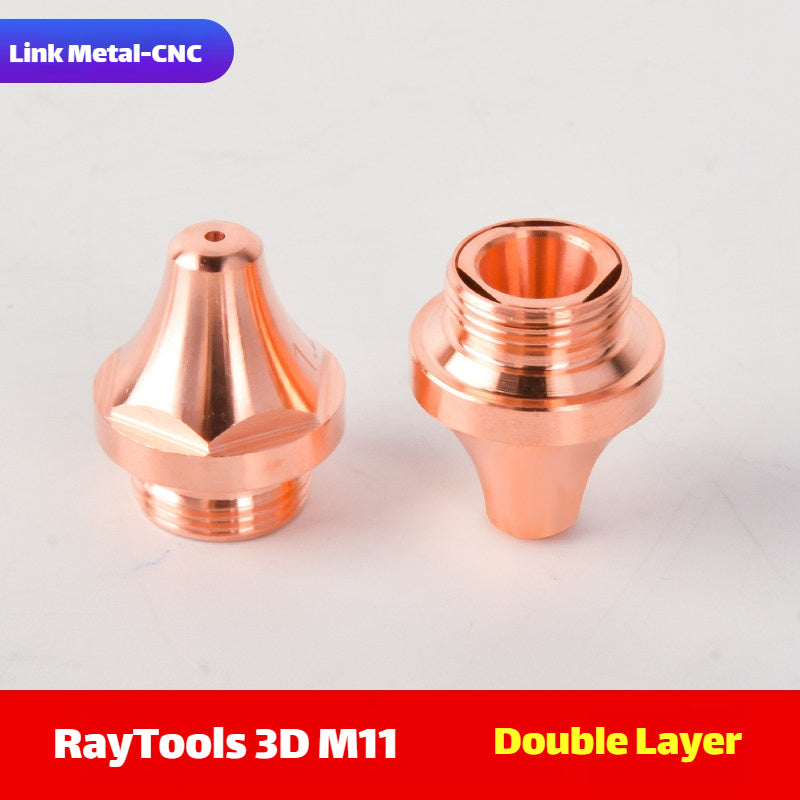

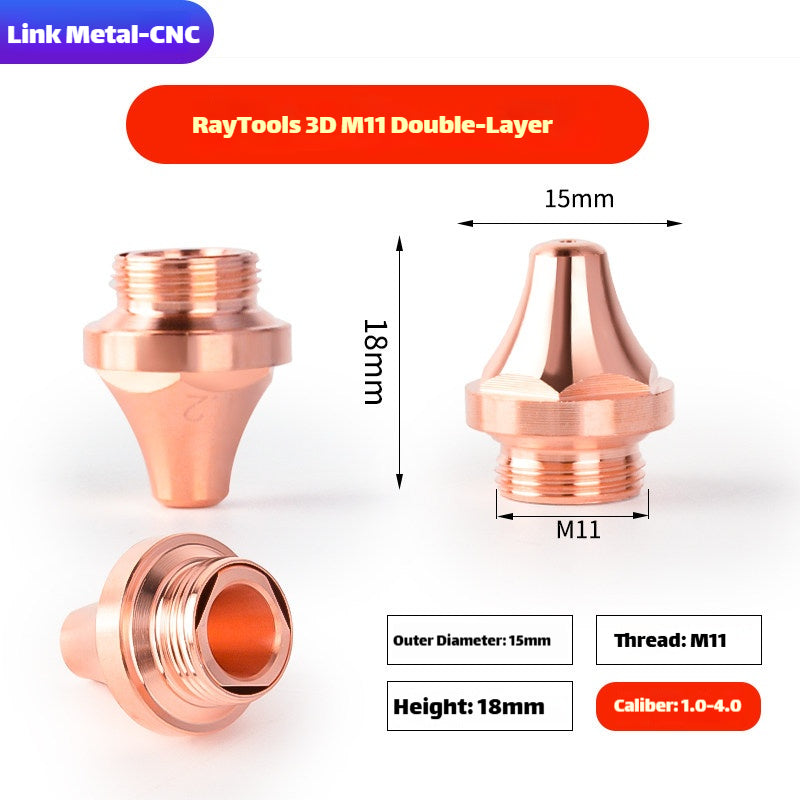

• Double Layer Laser Nozzle: Better airflow stability for complex 3D path cutting
• Thunderbolt Boost Laser Nozzle: Pressurized structure for thick plate 3D cutting

Custom Specifications Available: For chrome plated options, custom sizes or other 3D laser cutting nozzles, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Link Metal CNC Raytools 3D-M11 Type Laser Cutting Nozzle (selected type)
• 1 x Specialized Anti-Static Dust-Proof Protective Packaging

Quality Assurance

Every Link Metal CNC Raytools 3D-M11 laser nozzle undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, installation fit verification, air tightness test, airflow convergence test and 3D cutting performance assessment.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What is the difference between 3D nozzles and standard 2D nozzles?
A: 3D nozzles feature a more compact and streamlined design to avoid interference with workpieces during complex 3D cutting operations. They also have optimized airflow structures specifically tuned for angled and curved surface cutting.

Q: What is the advantage of the Thunderbolt Boost type?
A: The Thunderbolt Boost nozzle features a special pressurized internal structure that generates stronger airflow penetration. It is ideal for cutting thicker materials in 3D applications and provides faster cutting speeds compared to standard 3D nozzles.

Q: Will this nozzle work with non-Raytools 3D cutting heads?
A: No, this nozzle is specifically designed with a Raytools 3D-M11 interface. For other brands of 3D cutting heads, please contact our sales team for compatibility information.
