Raytools Ceramic Ring for Fiber Laser Cutting Heads
Professional industrial-grade Raytools dedicated ceramic rings, essential core insulation consumables for all Raytools series fiber laser cutting heads. Designed to insulate the laser cutting head nozzle body, fix the optical assembly, and ensure stable electrical signal transmission for the capacitive sensor, our Raytools ceramic rings guarantee the normal operation of the laser cutting head height follow system.
This complete product series covers the full range of Raytools dedicated models, including 3D robotic cutting series, three hole type and full size conventional models. All products are manufactured with high-strength 99% alumina ceramic material for stable performance in demanding industrial laser cutting environments.
Key Advantages of Our Raytools Ceramic Rings
-
Exclusive Raytools Dedicated Design: 1:1 perfect fit for all original Raytools series fiber laser cutting heads, including BT series 2D plane cutting and 3D robotic cutting dedicated models. Direct drop-in replacement with no additional debugging required—plug and play, fully compatible with all original Raytools laser cutting systems.
-
Full Range of Professional Models:
-

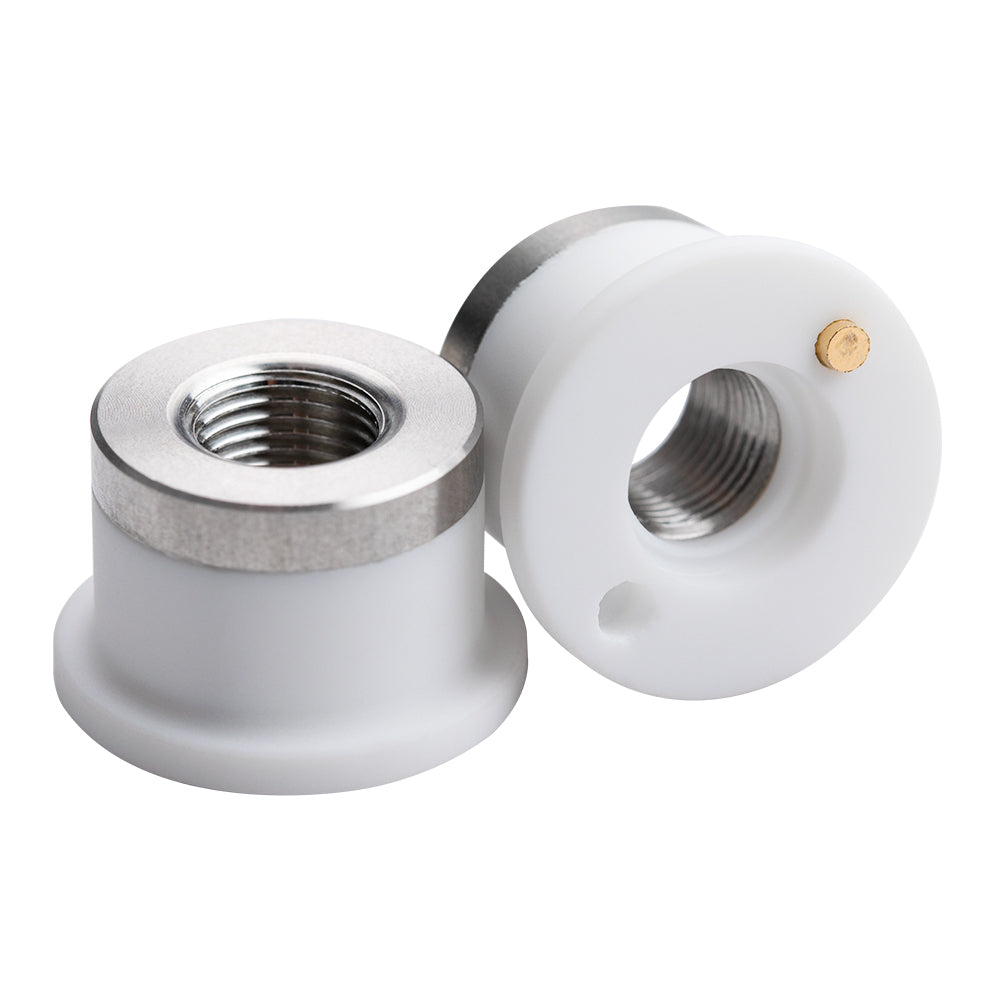

3D-M8-D19.5 & 3D-M8-D21.4: Specially designed for Raytools 3D robotic cutting heads, compact structure avoids workpiece interference
-

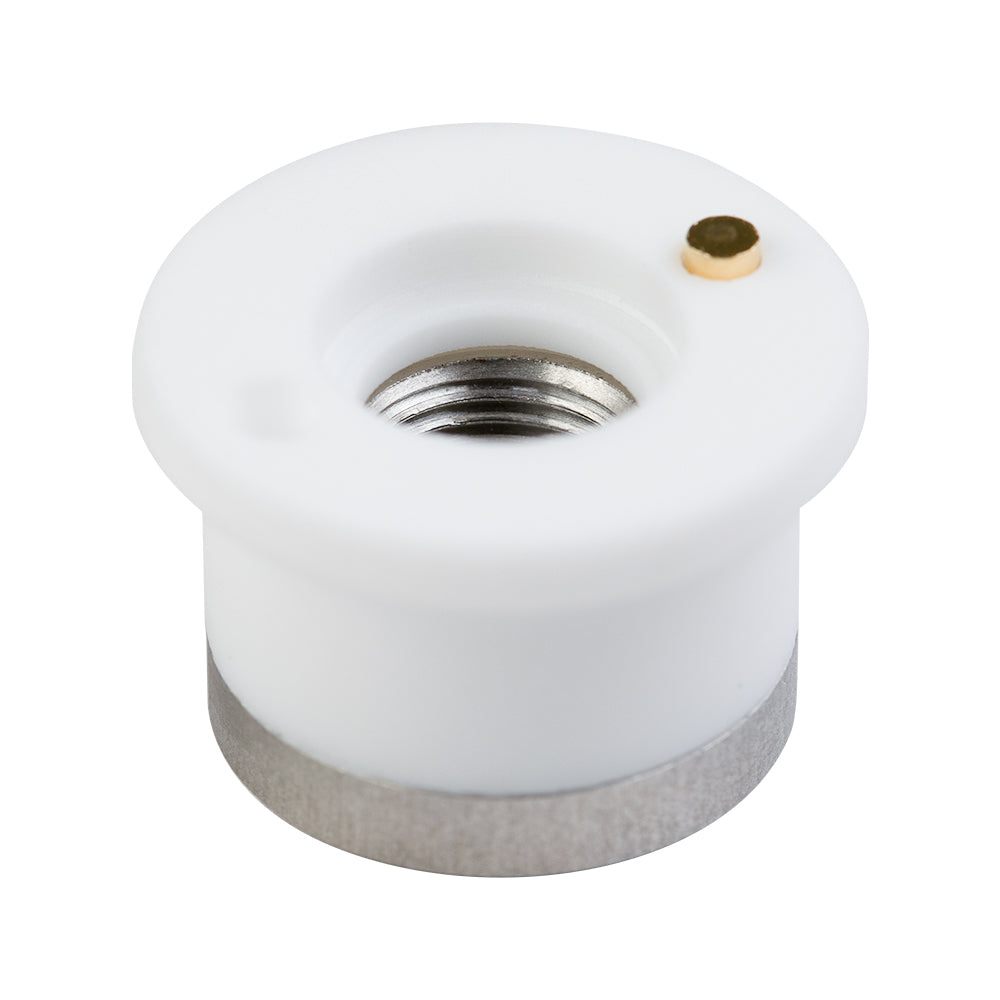

M11-D21.4 (Three Hole): Optimized airflow structure for uniform protective gas output and better high-speed cutting stability
-
Full Conventional Models: Cover all mainstream Raytools laser cutting head installation requirements for one-stop procurement
-

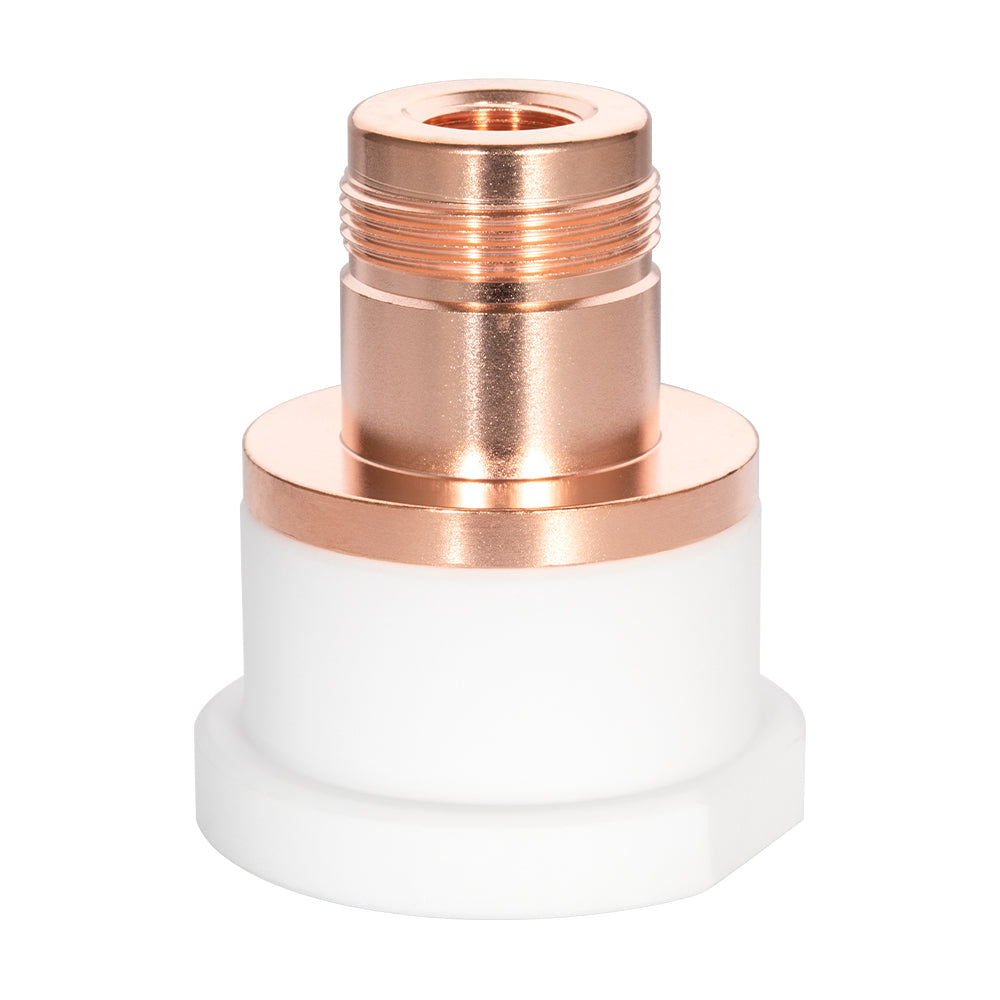

99% High-Purity Alumina Ceramic: Made from premium 99% high-purity alumina ceramic for exceptional mechanical strength, excellent electrical insulation, superior high temperature resistance and outstanding thermal shock resistance. Resists cracking even during long-term high-power laser cutting operations.
-
Built-in High-Quality Copper Electrode: Features a high-conductivity copper electrode with stable electrical signal transmission and strong welding fastness. Ensures long-term stable operation of the laser cutting head height follow system and reduces equipment failure rate.
-
Ultra-High Precision CNC Machining: Strict dimensional tolerance control with smooth surface, no burrs and no impurities. Provides tight fit with the Raytools laser head body and copper nozzle, ensuring stable air pressure sealing and avoiding air leakage and cutting instability problems.
-
Anti-Spatter & Anti-Oxidation Surface Treatment: Effectively resists erosion from cutting splash and high-temperature smoke. Resists dust and slag adhesion, is easy to clean, and delivers long service life, reducing replacement frequency and production costs.
-
Broad Industrial Applicability: Suitable for all 1064nm Raytools fiber laser cutting machines. Compatible with 2D plane cutting, 3D robotic curved surface cutting, thick plate high-power cutting and high-speed fine cutting.
Compatible Equipment & Available Models
Compatible Equipment
- All Raytools BT Series Fiber Laser Cutting Heads
- All Raytools 2D Plane Fiber Laser Cutting Machines
- All Raytools 3D Robotic Fiber Laser Cutting Systems
- All Original and Compatible Raytools Laser Processing Equipment
Available Raytools Ceramic Ring Models (6 Options)
-

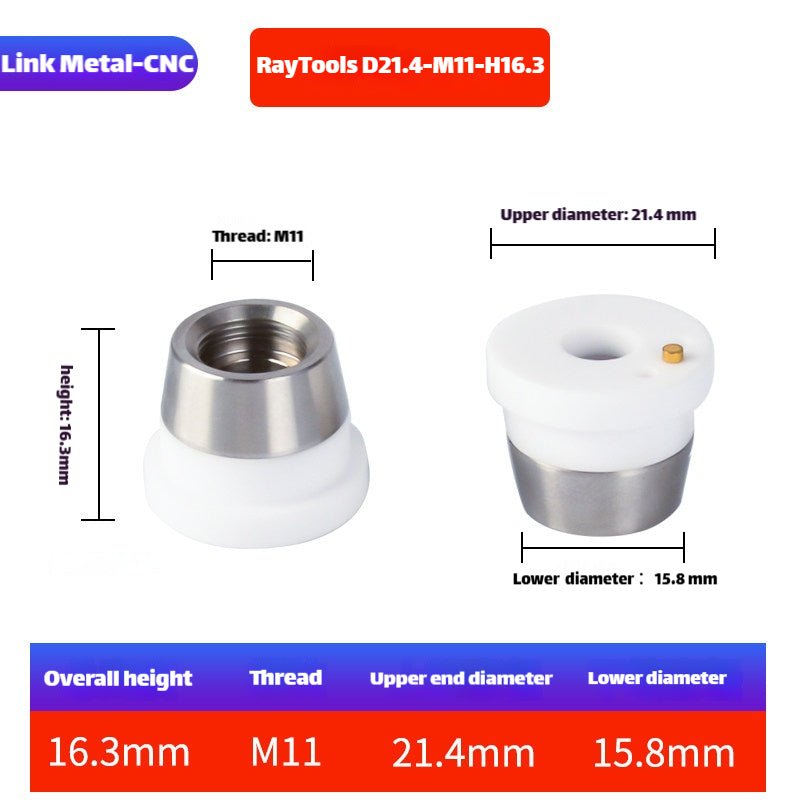

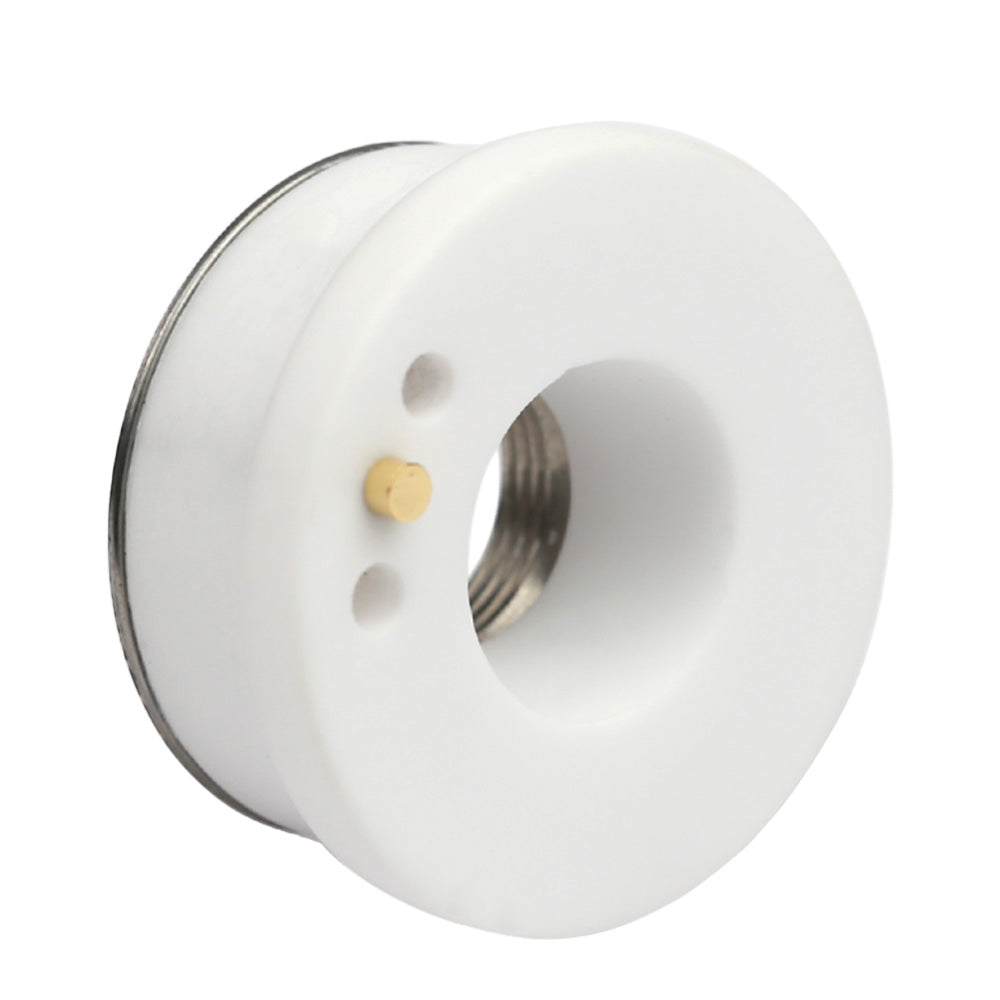

M11-D21.4-H16.3: Most popular general-purpose for BT240/BT240S cutting heads
-

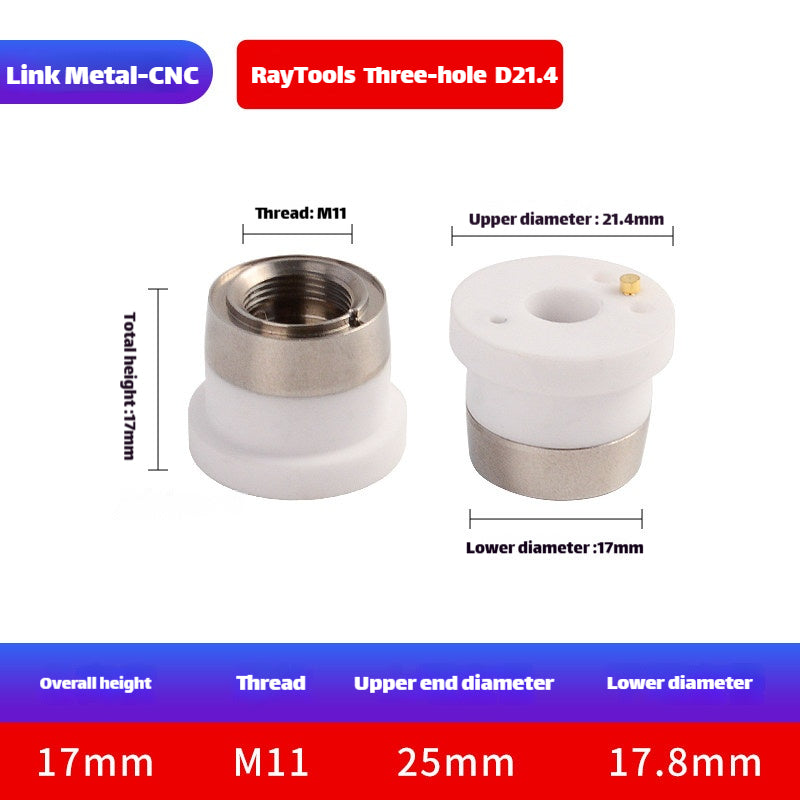

M11-D21.4 (Three Hole): Optimized airflow for BT240 high-speed and thick plate cutting
-

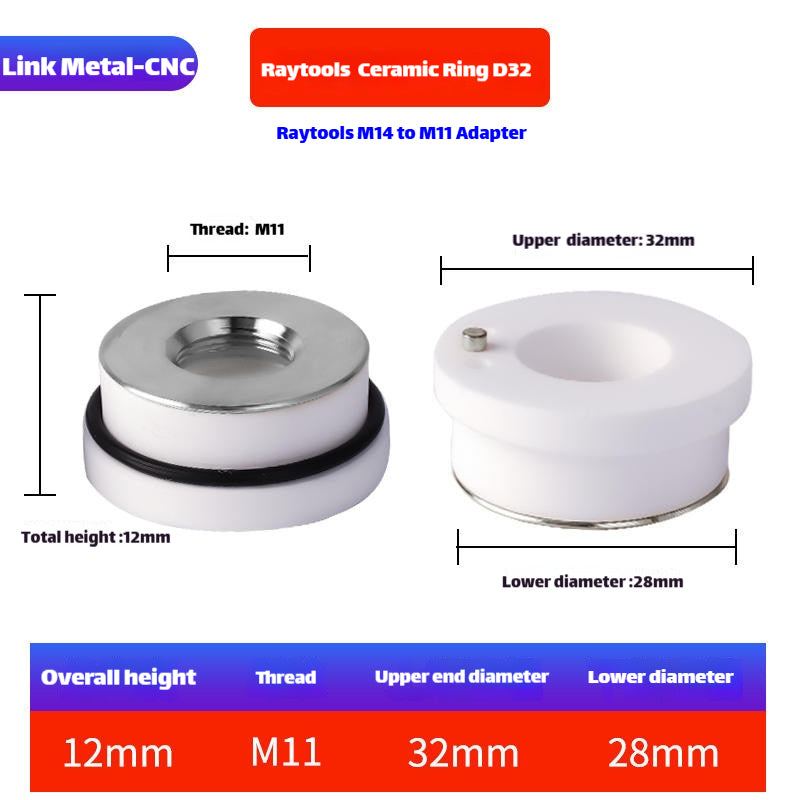

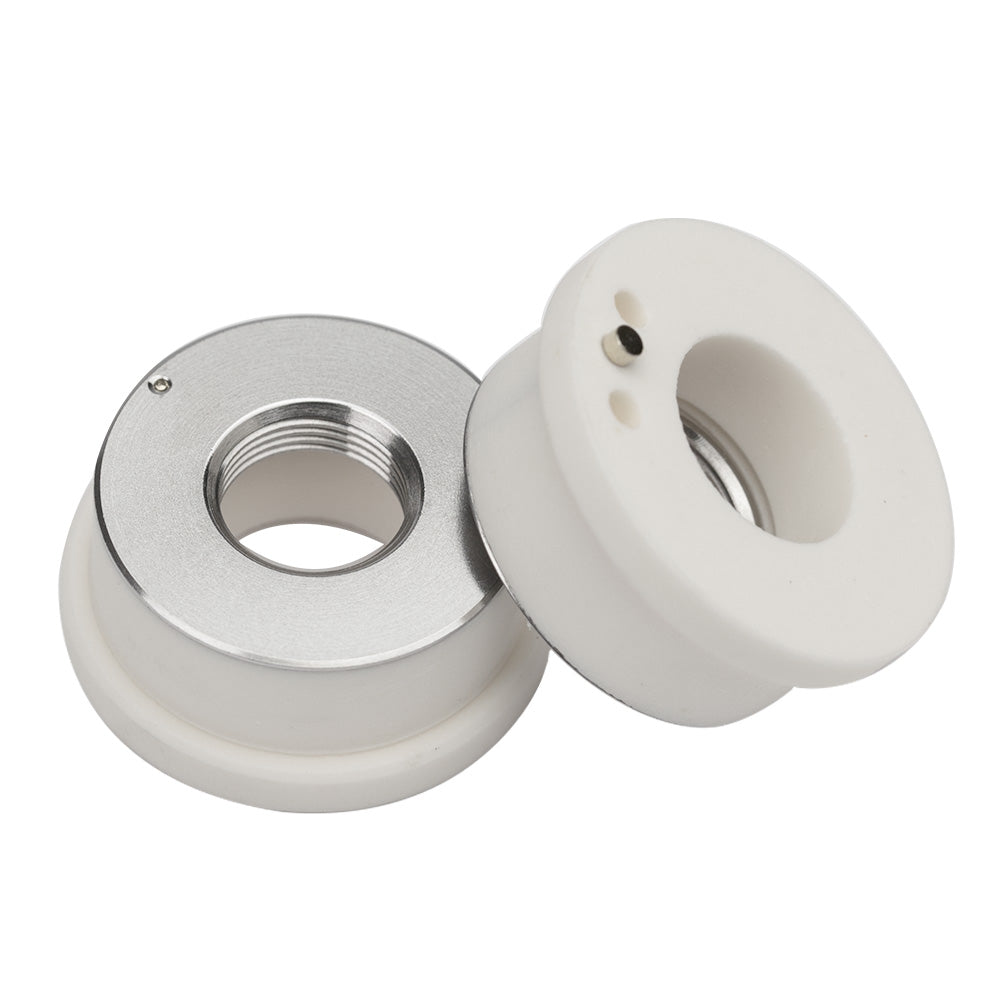

M11-D32-H12: Standard for BT210/BT220 cutting heads
-

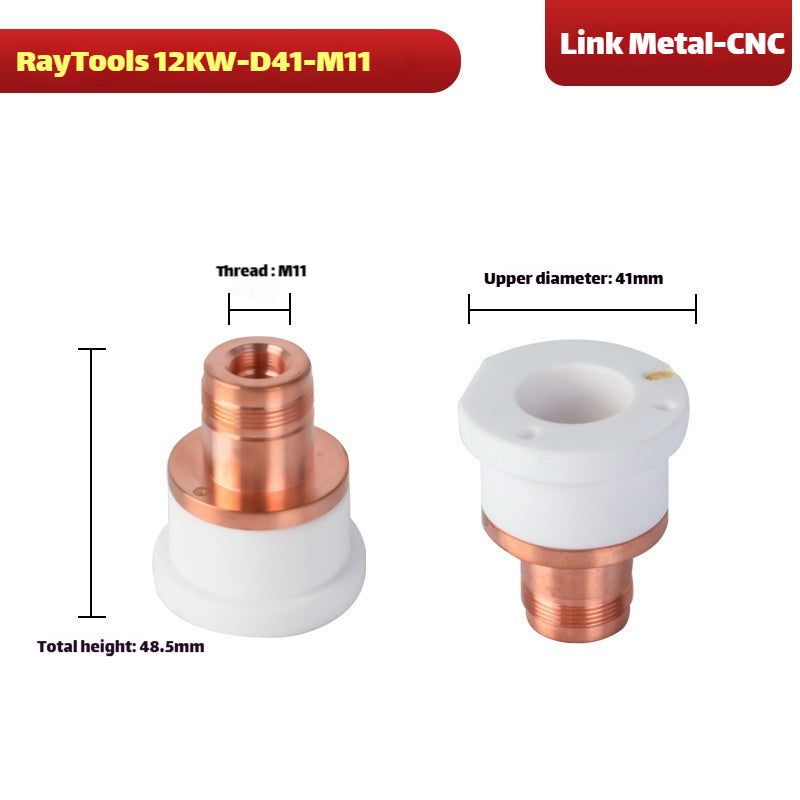

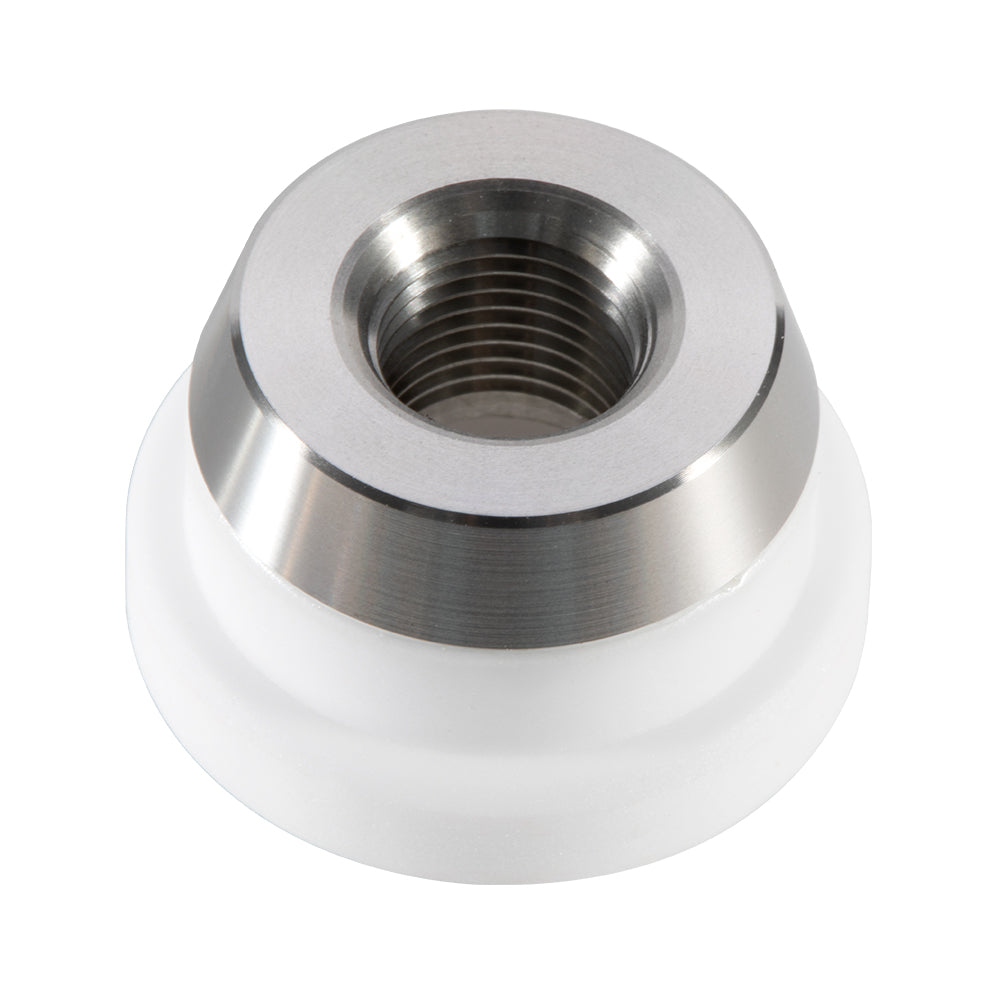

M11-D41-H48.5: Large size for BT300/BT440 high-power cutting heads
-

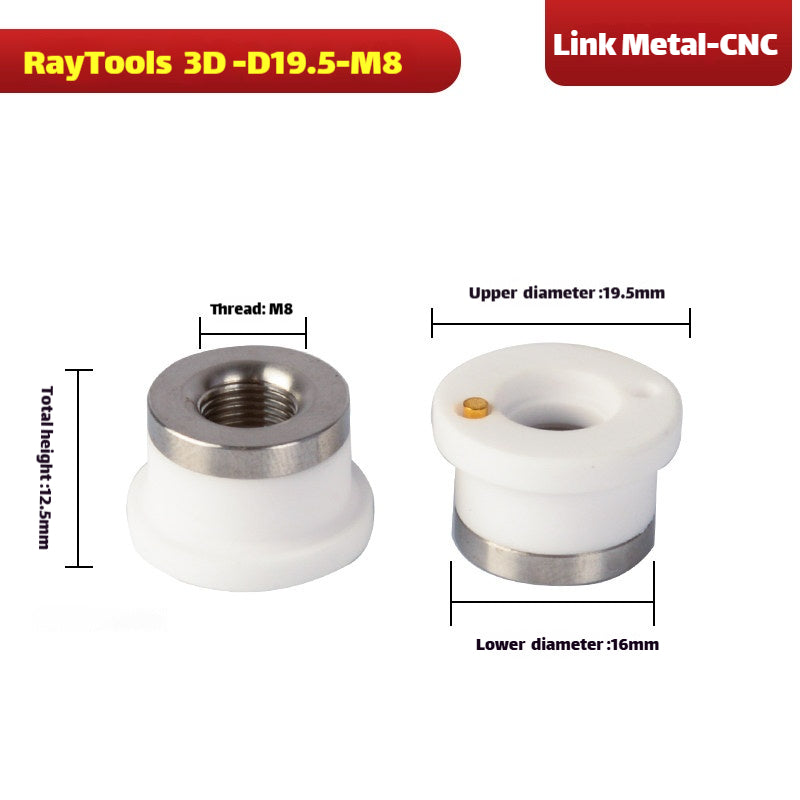

3D-M8-D19.5: Dedicated for Raytools 3D-A/3D-B robotic cutting heads
-

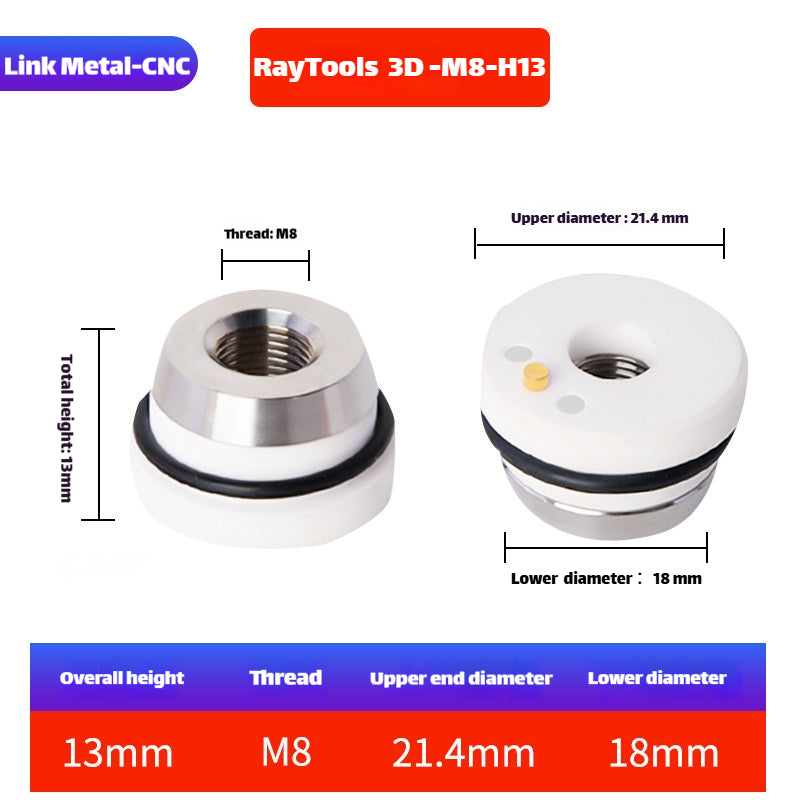

3D-M8-D21.4: Dedicated for Raytools 3D-C/3D-D robotic cutting heads
Custom Specifications Available: For custom sizes, special materials or other Raytools dedicated laser cutting consumables, please contact our sales team directly for personalized solutions.
Detailed Technical Specifications
| Parameter |
Specification |
| Brand |
Link Metal CNC |
| Compatible Brand |
Raytools |
| Product Type |
Fiber Laser Cutting Head Ceramic Insulation Ring |
| Model Options |
3D-M8-D19.5, 3D-M8-D21.4, M11-D21.4 (Three Hole), M11-D21.4-H16.3, M11-D32-H12, M11-D41-H48.5 |
| Main Body Material |
99% High-Purity Alumina Ceramic |
| Electrode Material |
High-Conductivity Oxygen-Free Copper |
| Insulation Resistance |
≥1000MΩ |
| Applicable Wavelength |
1064nm |
| Applicable Power |
1000W - 30000W |
| Application Scenario |
2D Plane Cutting, 3D Robotic Cutting, High-Speed Cutting, Thick Plate Cutting |
Package Contents
- 1 x Selected Link Metal CNC Raytools Ceramic Ring
- 1 x Anti-Static Shock-Proof Protective Packaging
Quality Assurance
Every Link Metal CNC Raytools ceramic ring undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, insulation performance test, electrode conductivity verification, installation fit inspection and pressure resistance test.
We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.
Frequently Asked Questions
Q: Which Raytools cutting head uses which ceramic model?
A: M11-D21.4-H16.3 for BT240/BT240S; M11-D21.4 (Three Hole) for BT240 high-speed cutting; M11-D32-H12 for BT210/BT220; M11-D41-H48.5 for BT300/BT440; 3D-M8-D19.5 for 3D-A/3D-B; 3D-M8-D21.4 for 3D-C/3D-D. If unsure, contact us with your cutting head model.
Q: What is the advantage of the three hole type ceramic ring?
A: The three hole type features an optimized airflow structure that provides more uniform protective gas output around the nozzle. This improves cutting stability, reduces slag adhesion, and delivers better cutting quality especially for high-speed cutting and thick plate cutting applications.
Q: What is the difference between 3D-M8-D19.5 and 3D-M8-D21.4?
A: The main difference is the outer diameter. 3D-M8-D19.5 is designed for older Raytools 3D-A and 3D-B robotic cutting heads, while 3D-M8-D21.4 is for newer 3D-C and 3D-D cutting heads. They are not interchangeable due to different dimensions.
Q: Can I use universal ceramic rings on my Raytools laser machine?
A: No, Raytools cutting heads use unique interface specifications and dimensions that differ from standard universal ceramic rings. Using universal ceramic rings on Raytools equipment will result in poor fit, air leakage, unstable height follow performance and potential damage to your cutting head.
Q: How often should I replace my Raytools ceramic ring?
A: Under normal operating conditions, a Raytools ceramic ring should last 2-3 months. However, it should be replaced immediately if you notice any cracks, chips, or if the height follow system becomes unstable. Frequent collisions between the nozzle and workpiece will significantly shorten its service life.
View our full range of laser cutting accessories including Raytools nozzles and protective lenses.
