Link Metal CNC RayTools Nozzle Connector & Capacitive Height Sensor for Fiber Laser Cutting Heads

RayTools Nozzle Connector & Capacitive Height Sensor

Professional industrial-grade RayTools dedicated nozzle connectors and capacitive height sensors, core mechanical and sensing components for all RayTools fiber laser cutting heads. Designed to securely connect the laser nozzle and transmit signals for the capacitive height follow system, our products ensure real-time and stable feedback of the laser head height position, guaranteeing the precision and consistency of the cutting process.

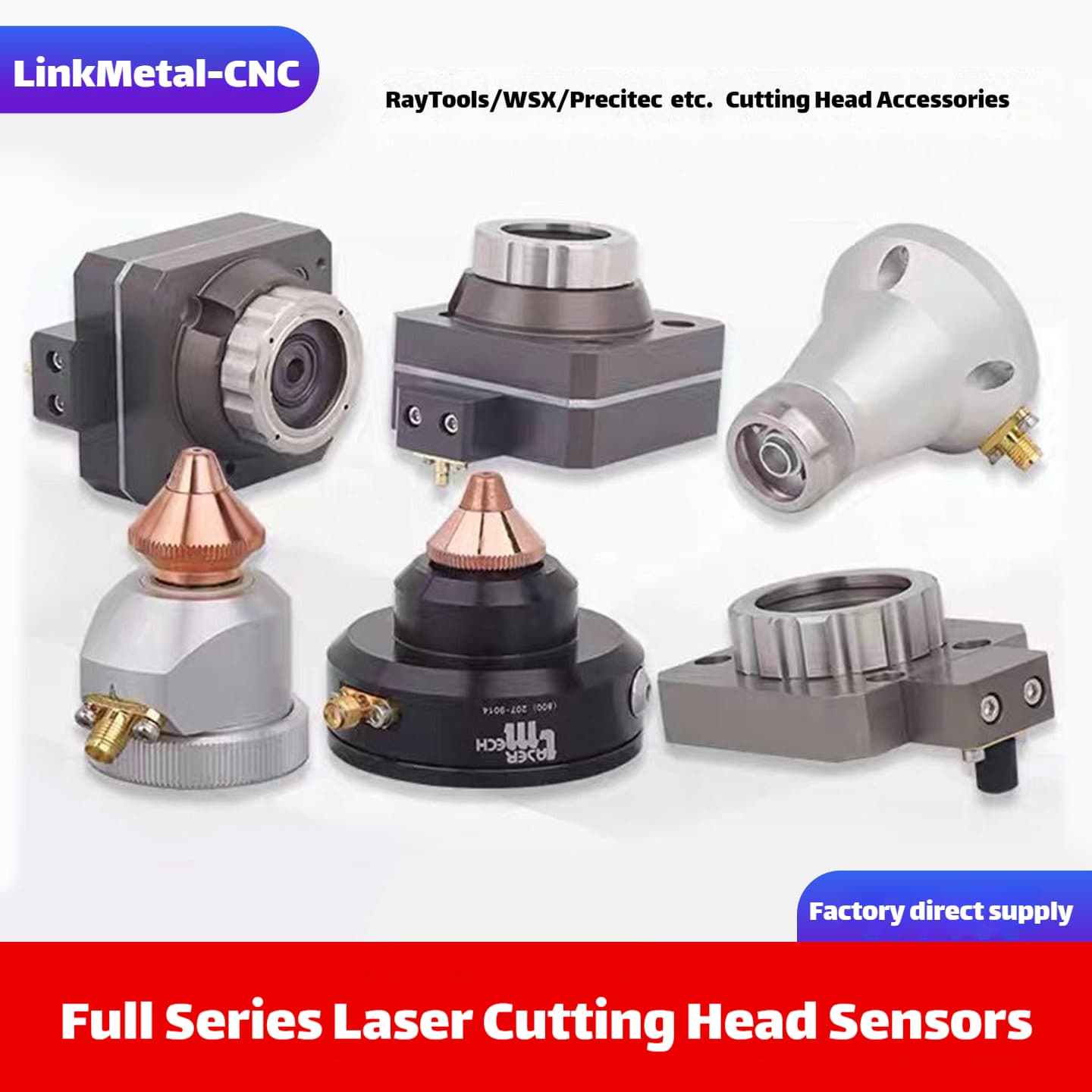

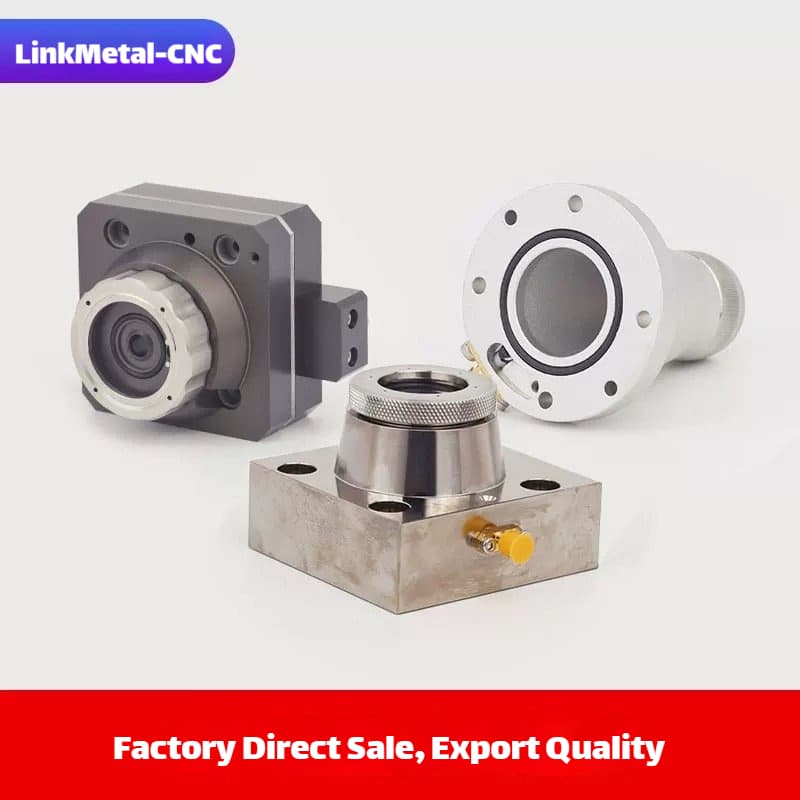

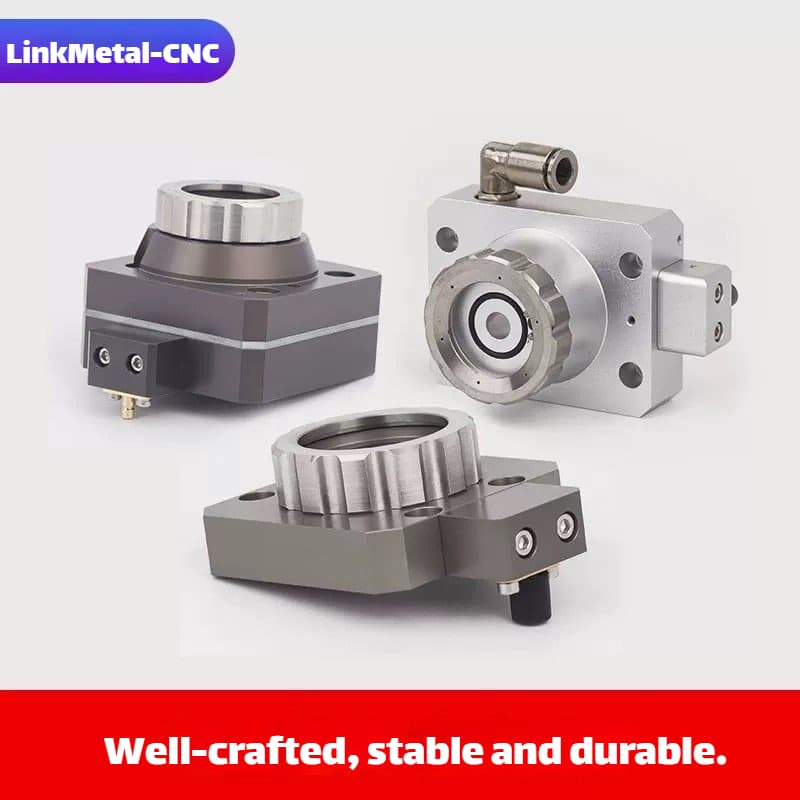

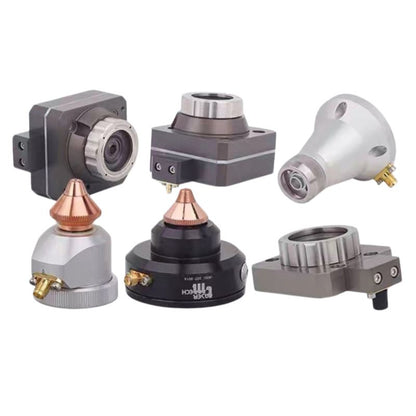

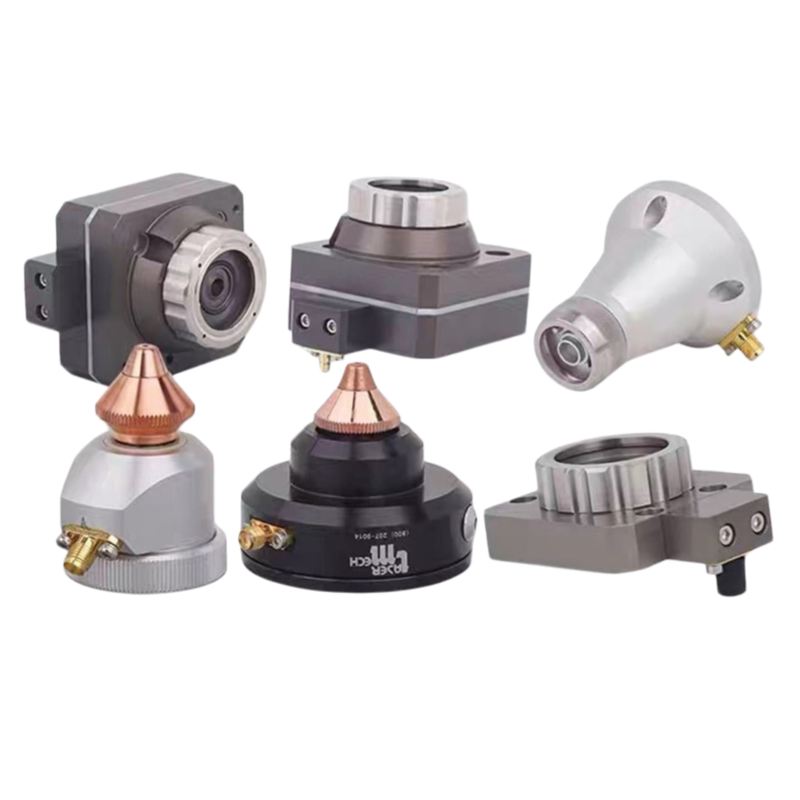

This complete product series covers the full range of RayTools laser cutting head models, including 3D type, flat type, quick plug type and threaded type. All products are 1:1 precision fit for original RayTools fiber laser cutting heads and manufactured with high-strength metal material for stable performance in demanding industrial environments.

Key Advantages of Our RayTools Nozzle Connectors & Sensors

• 20+ Models & Full RayTools Compatibility: Complete model range including BM/BT series 3D type, flat type, quick plug type and threaded type. 1:1 perfect fit for all original RayTools cutting heads (BM109/BM110, BM111, BT220, BT230, BT240, etc.). Direct drop-in replacement with no additional debugging required.
• High-Precision Capacitive Height Sensing: Professional capacitive sensor design with high sensitivity and fast response speed. Provides real-time and accurate feedback of the laser head height position, ensuring stable cutting height follow, improving cutting precision and yield, and reducing defective rate.
• High-Strength Metal Construction: Made from premium high-quality stainless steel or aluminum alloy material. Offers high mechanical strength, excellent wear resistance, corrosion resistance and anti-fatigue performance. Resists deformation or breakage under long-term high-intensity processing.
• Precision Connector Design: High-precision CNC machined threads and quick plug connectors provide tight fit with the laser head body and nozzle interface. Uniform force distribution effectively avoids signal contact failure or nozzle loosening caused by vibration.
• Application-Specific Structures: 3D models specially designed for robotic 3D cutting heads avoid workpiece interference; flat type models for conventional plane cutting; quick plug type models reduce maintenance time; threaded type models offer better stability in high-vibration environments.
• Anti-Spatter & Anti-Oxidation Protection: Enhanced surface treatment effectively resists erosion from cutting splash and high-temperature smoke. Resists dust and welding slag adhesion, is easy to clean, and maintains stable performance in harsh environments.
• Broad Industrial Applicability: Suitable for all 1064nm RayTools fiber laser cutting machines (2D plane cutting, 3D robotic cutting, high-power thick plate cutting) and automatic laser production lines.

Compatible Equipment & Available Models

Compatible Equipment

• All RayTools BM Series Fiber Laser Cutting Heads
• All RayTools BT Series Fiber Laser Cutting Heads
• All RayTools 2D Plane Fiber Laser Cutting Machines
• All RayTools 3D Robotic Fiber Laser Cutting Systems
• All Original and Compatible RayTools Laser Processing Equipment

Available RayTools Nozzle Connector & Sensor Models (20+ Options Total)

BM109/BM110 Series

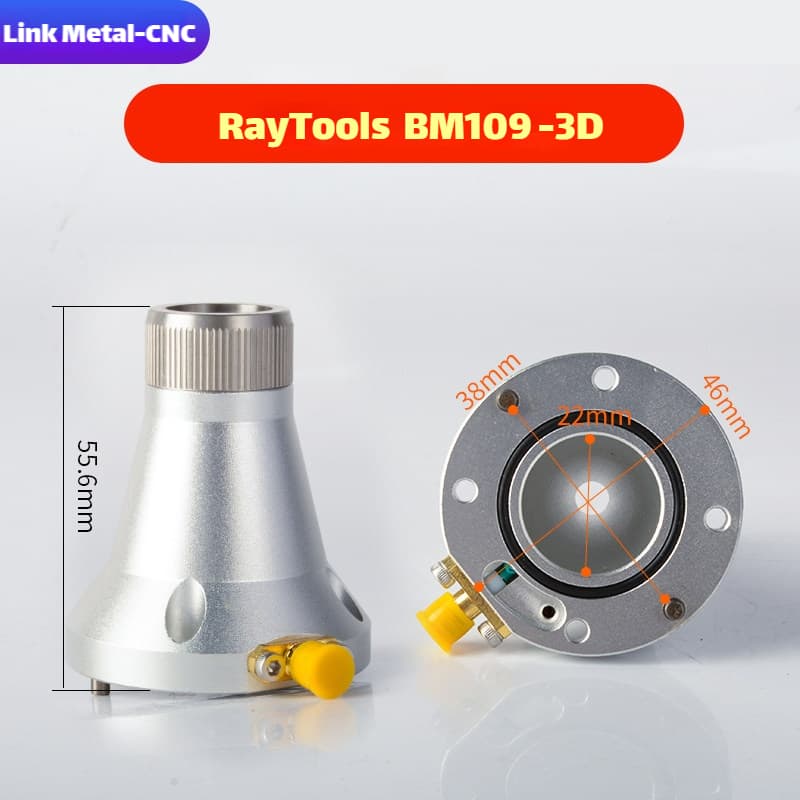

• BM109/BM110 - 3D: For RayTools 3D robotic cutting heads

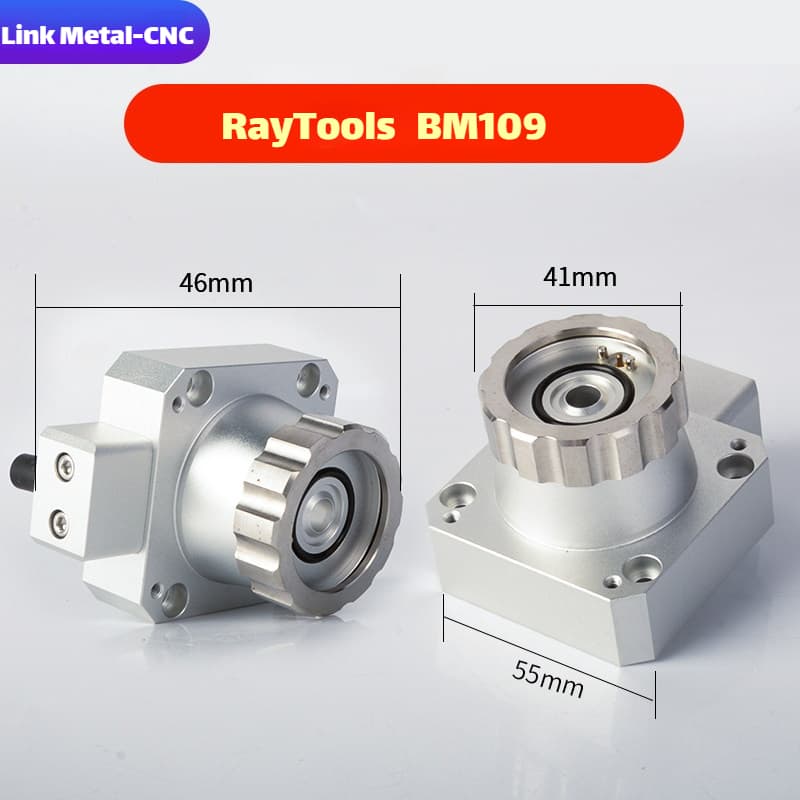

• BM109 - Flat: For RayTools BM109 2D cutting heads

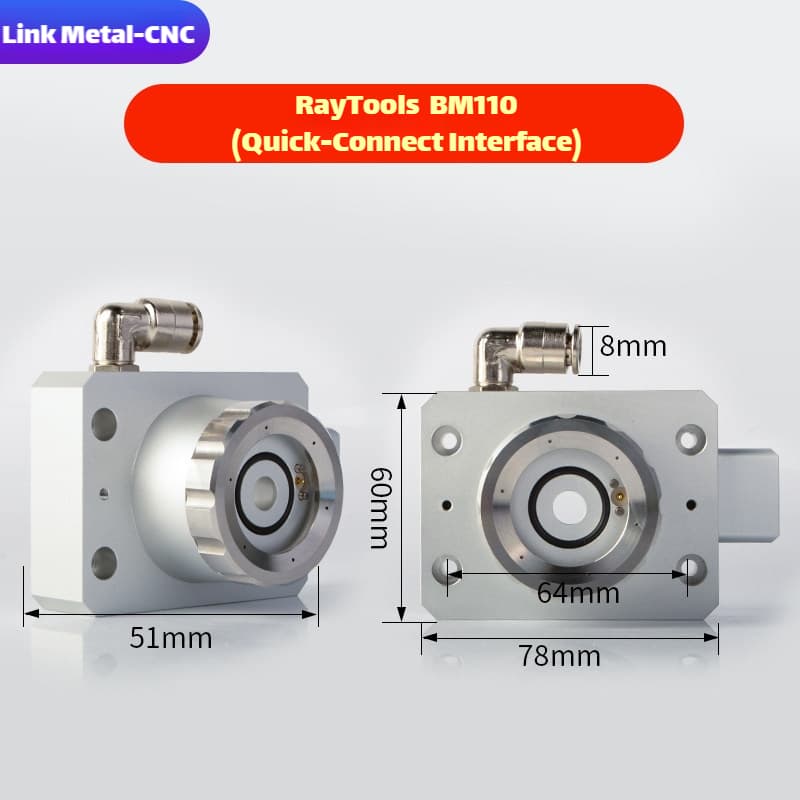

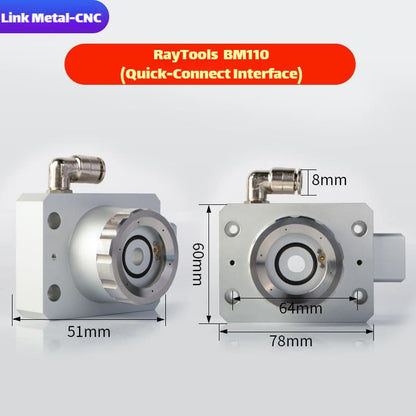

• BM110 - Quick Plug: Quick plug type for BM110 cutting heads

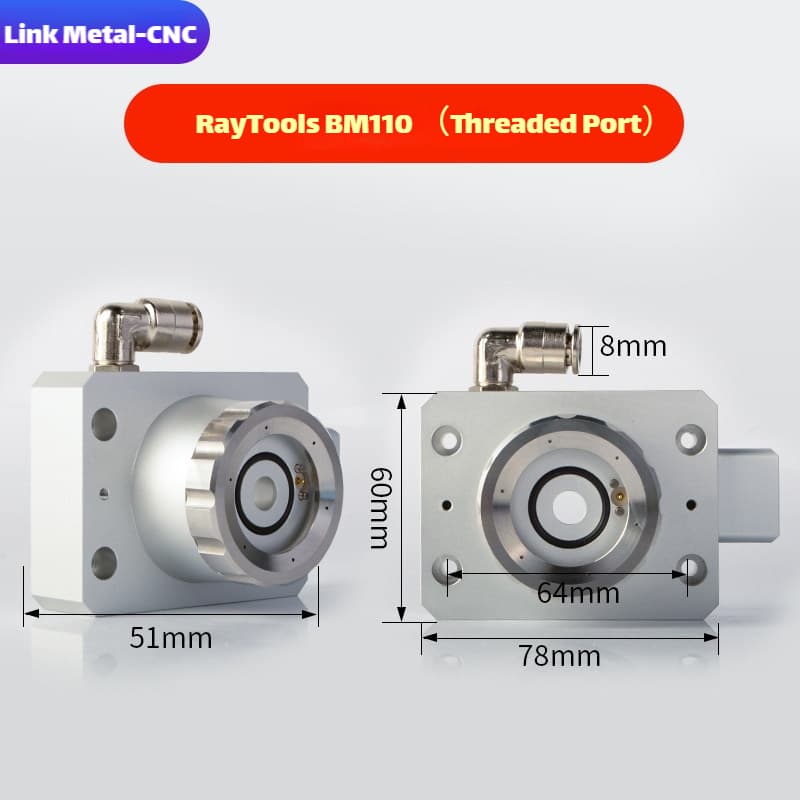

• BM110 - Threaded: Threaded type for BM110 cutting heads

BM111 Series

• BM111 - Quick Plug: Quick plug type for BM111 cutting heads

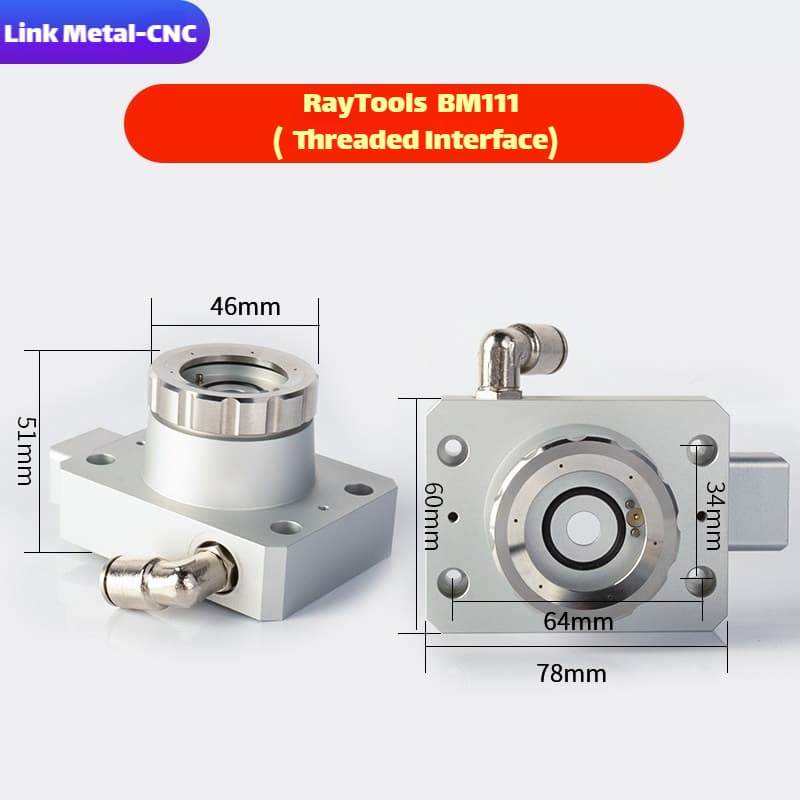

• BM111 - Threaded: Threaded type for BM111 cutting heads

BM112/BT220 Series

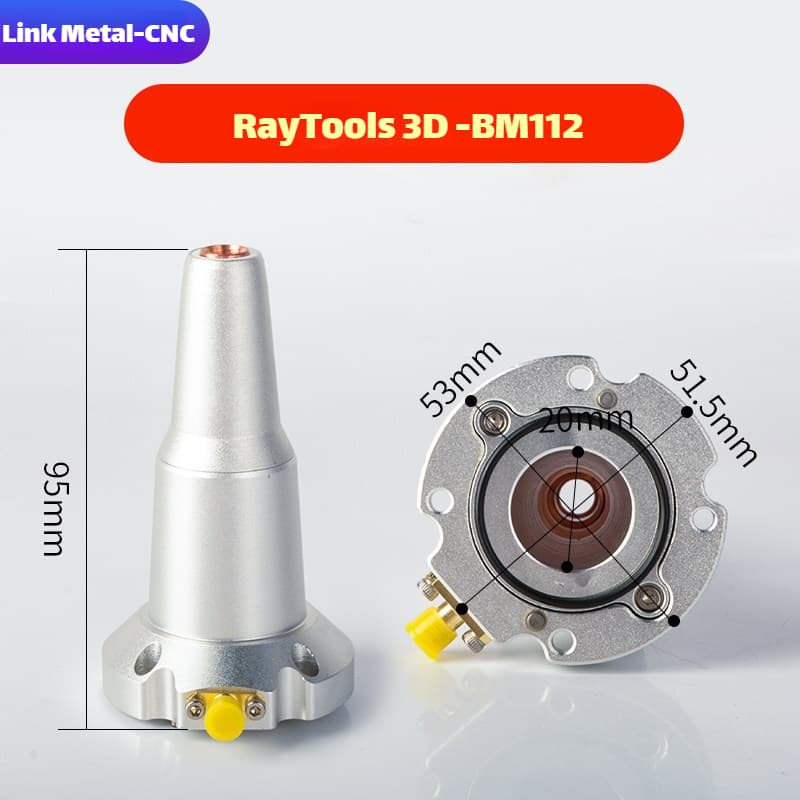

• BM112/BT220 - 3D: For BM112/BT220 3D cutting heads

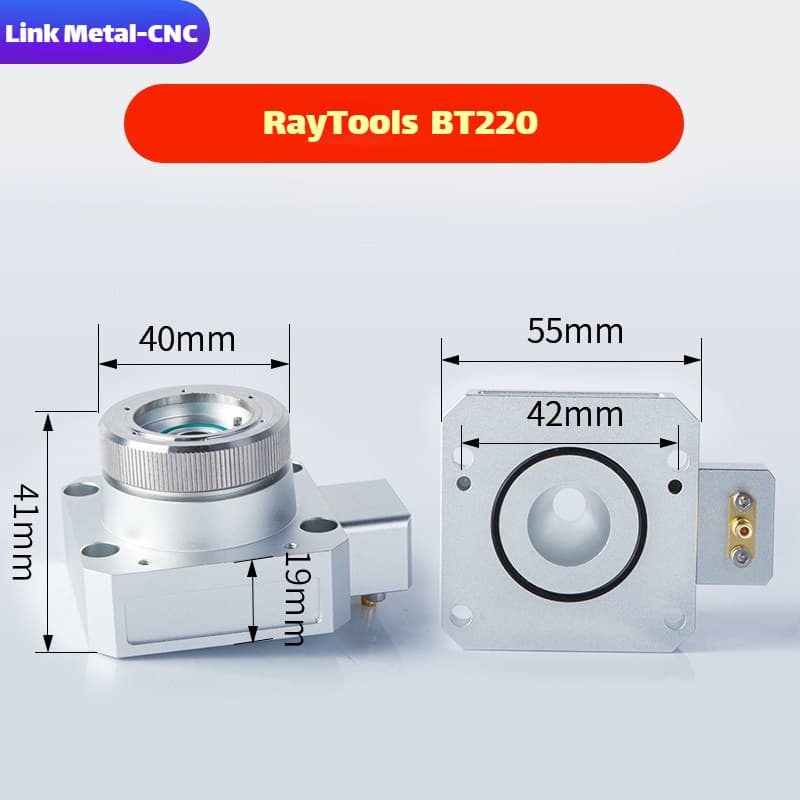

• BT220 - Flat: Flat type for BT220 2D cutting heads

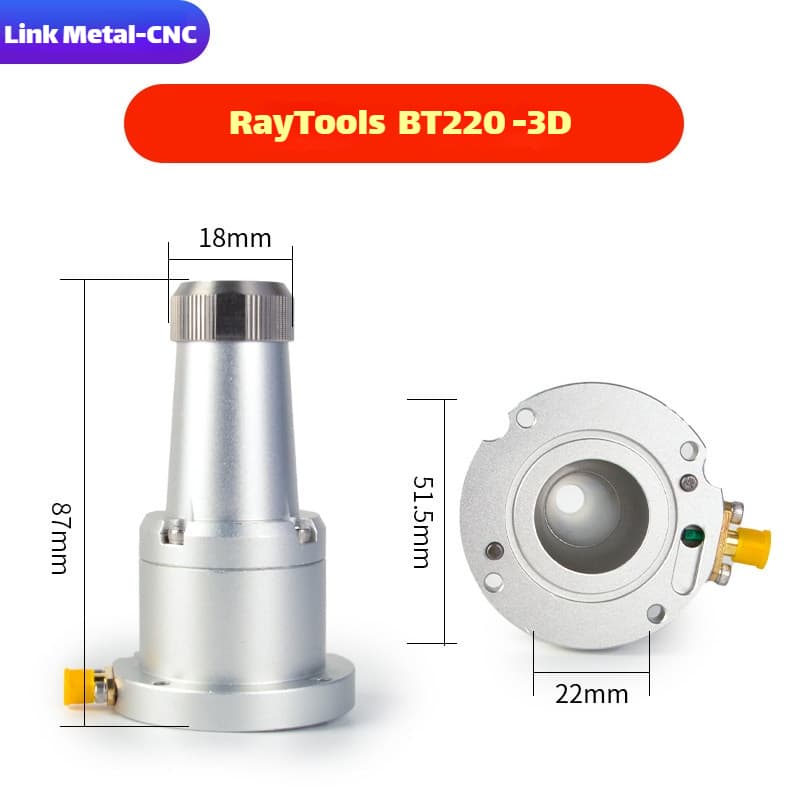

• BT220 - 3D: 3D type for BT220 robotic cutting heads

BM114/BM114S Series

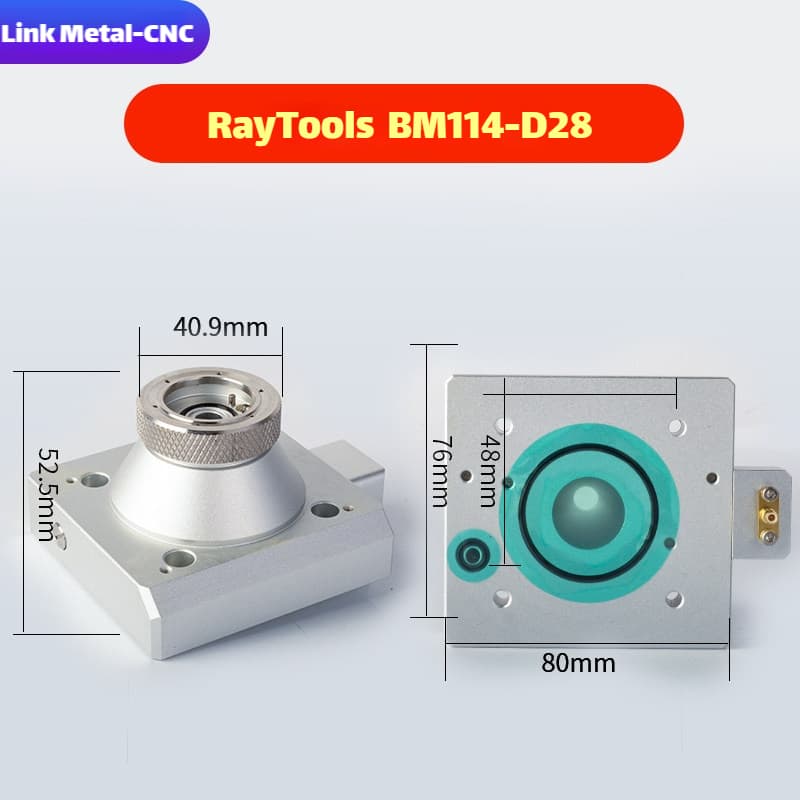

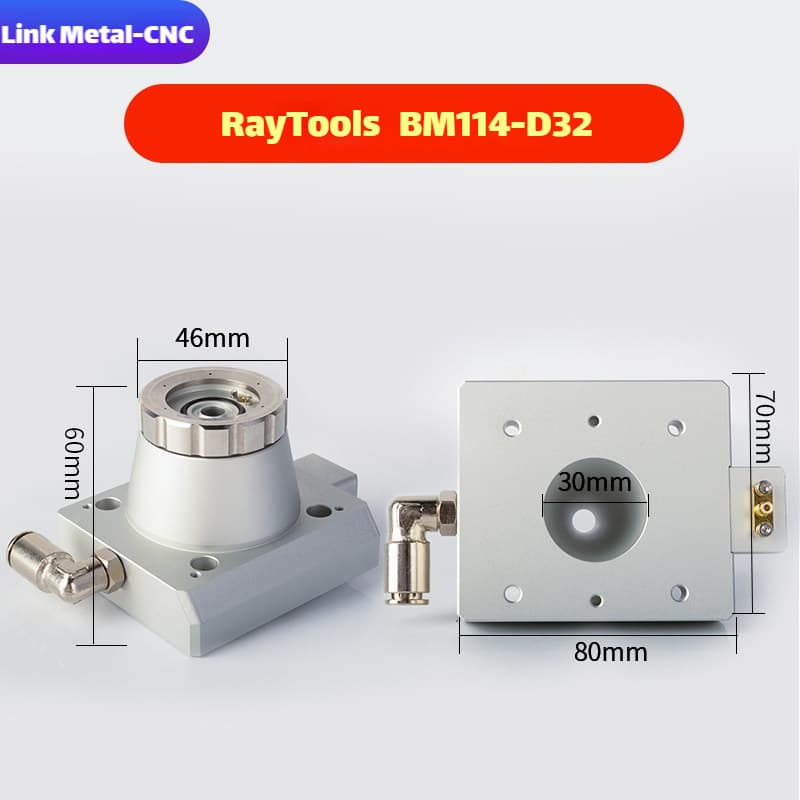

• BM114-D28: For BM114 cutting heads (D28 nozzle)
• BM114S-D32: For BM114S cutting heads (D32 nozzle)

BM115 Series

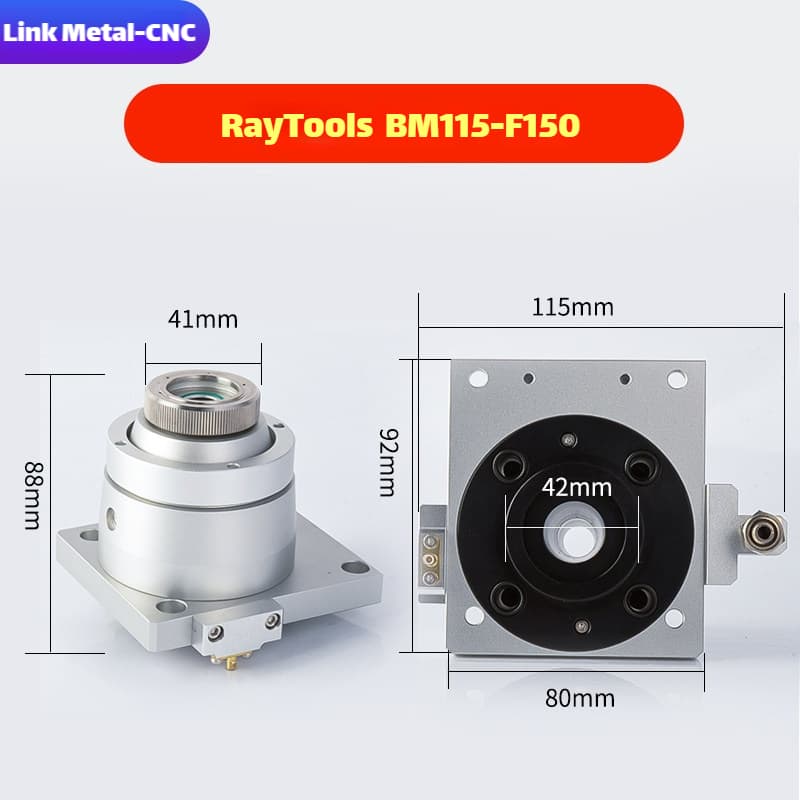

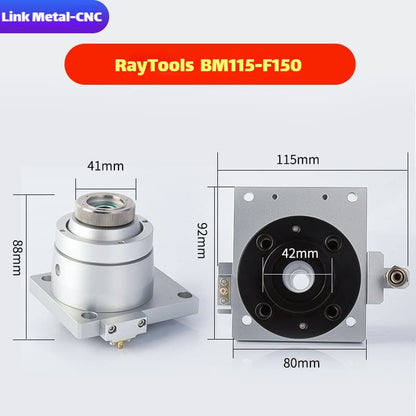

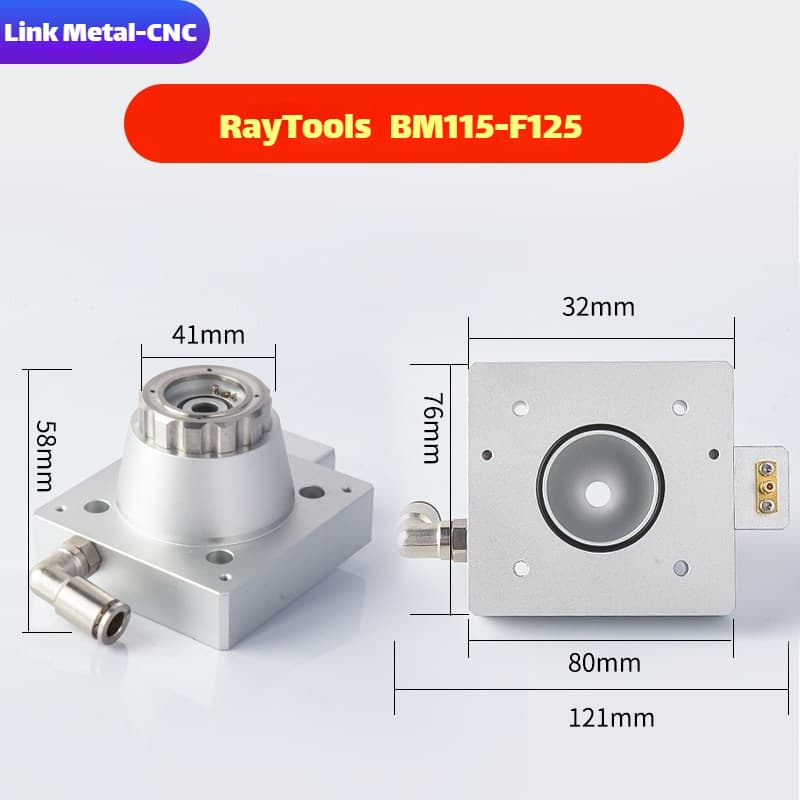

• BM115-F125: For BM115 cutting heads (F125 focal length)
• BM115-F150: For BM115 cutting heads (F150 focal length)

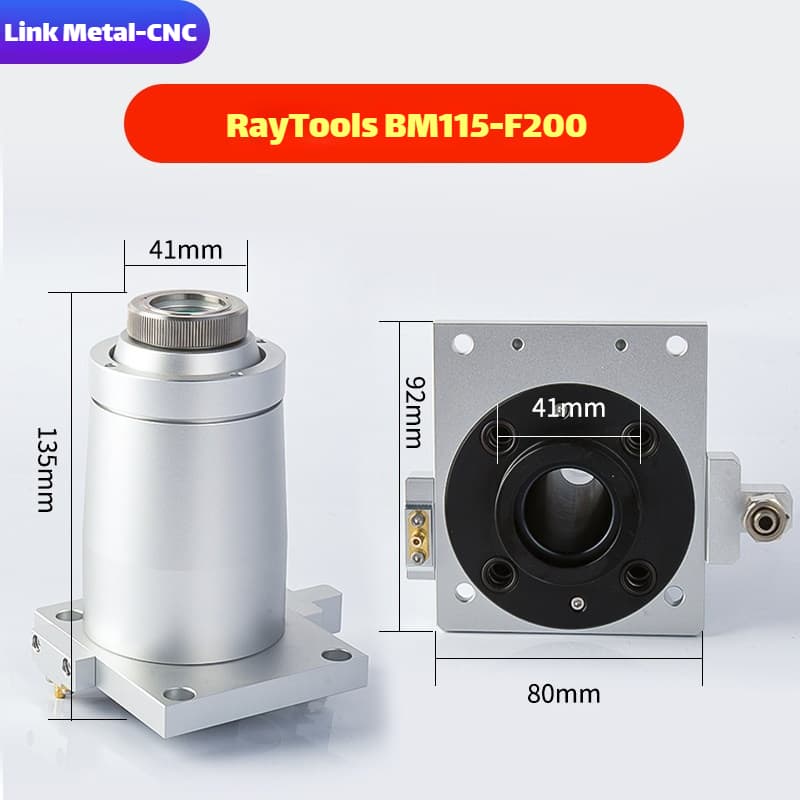

• BM115-F200: For BM115 cutting heads (F200 focal length)

BT210S/BT230 Series

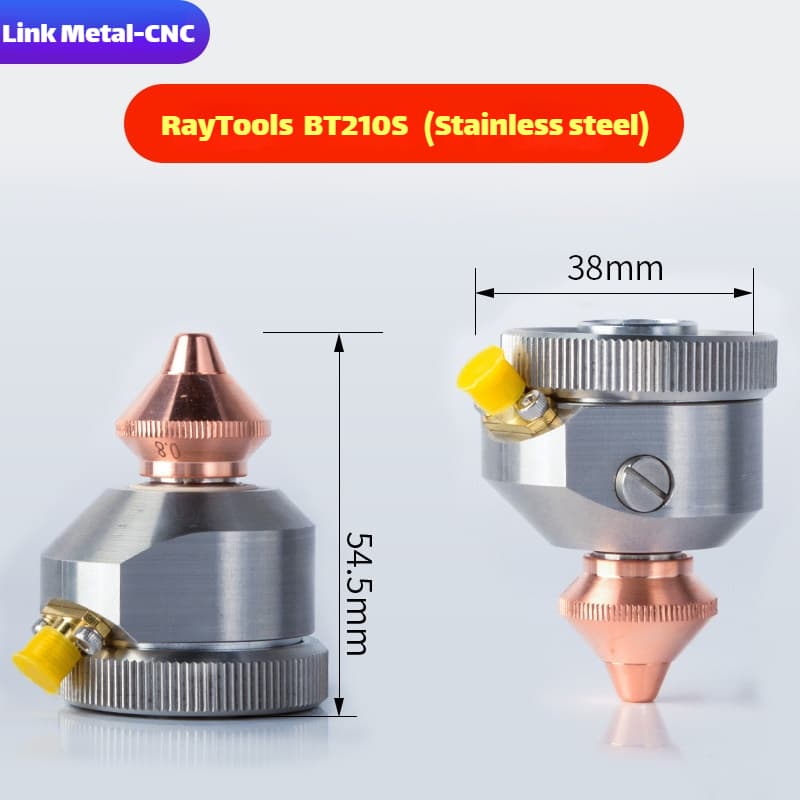

• BT210S - Stainless Steel: Stainless steel version for BT210S cutting heads

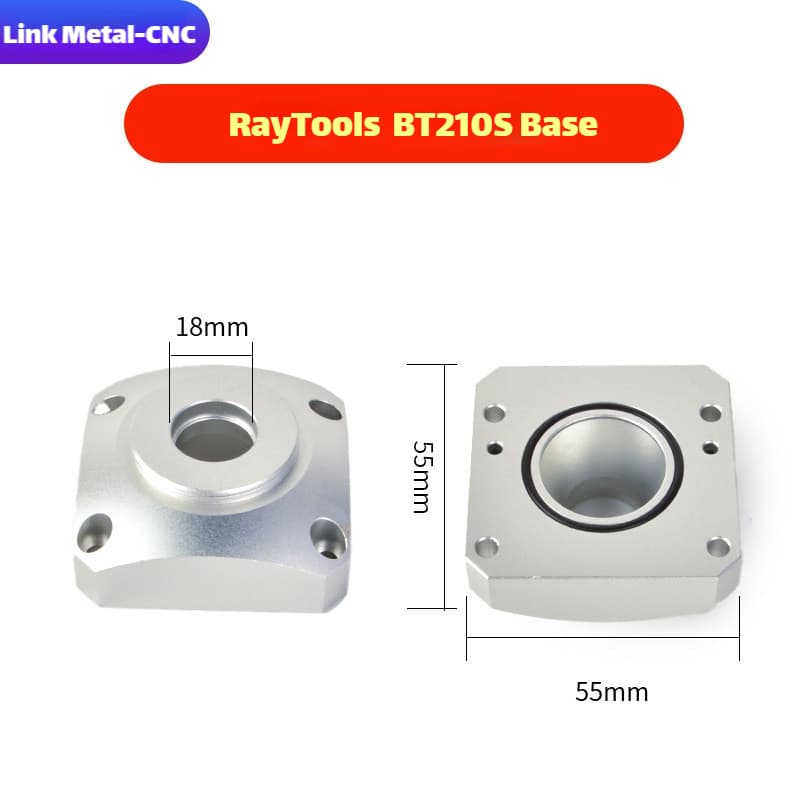

• BT210S - Base: Base only for BT210S cutting heads

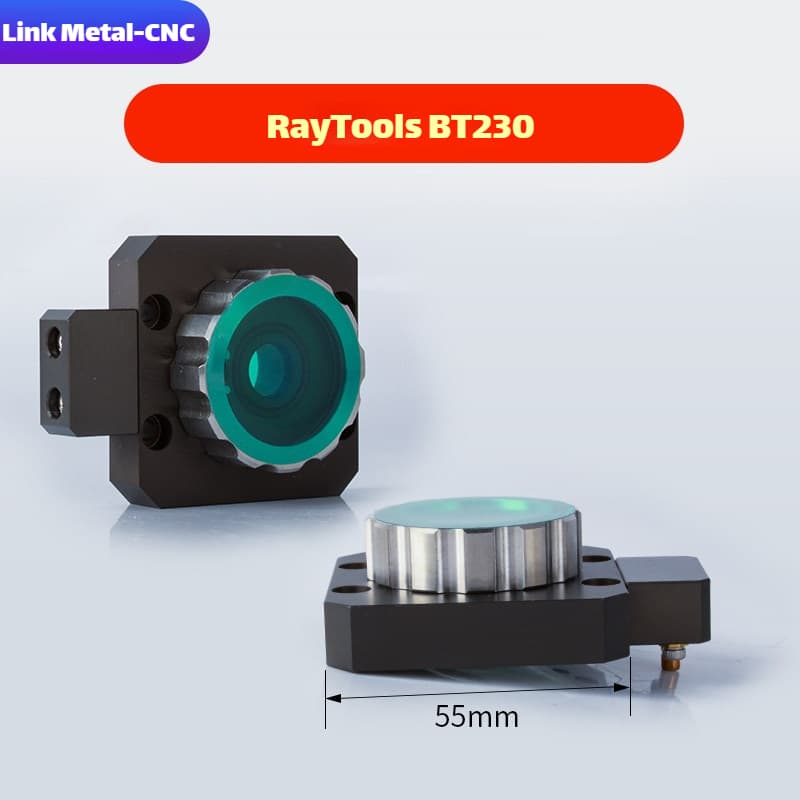

• BT230: For BT230 cutting heads

BT240/BT240S Series

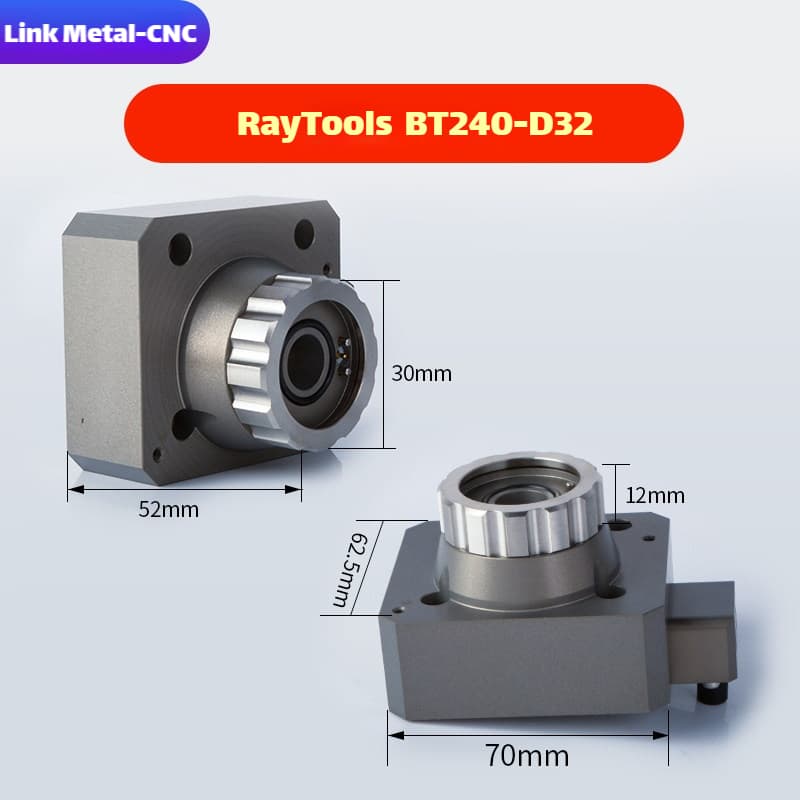

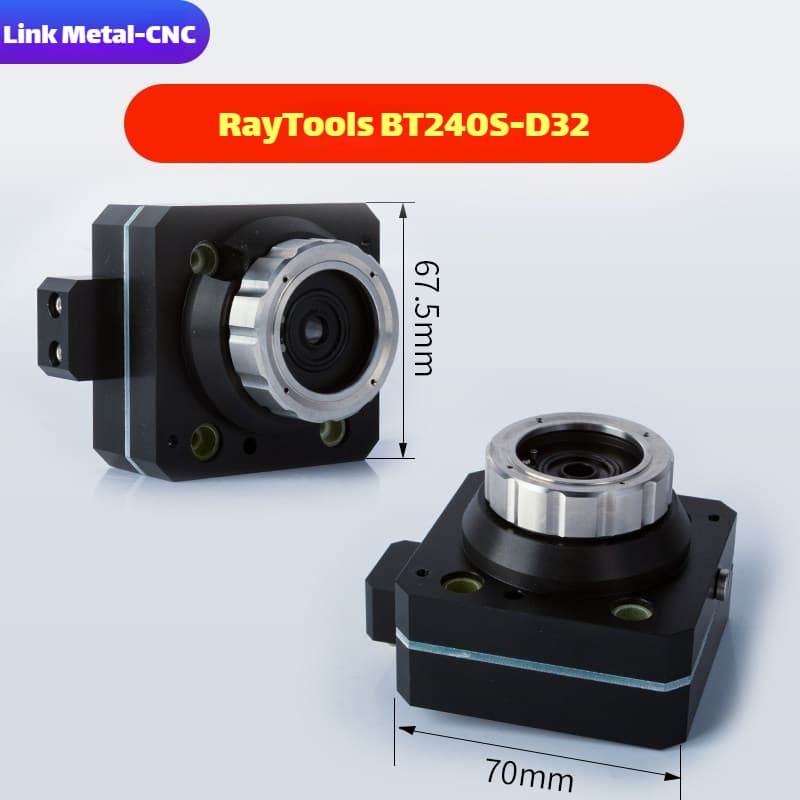

• BT240-D32: For BT240 cutting heads (D32 nozzle)
• BT240S-D32: For BT240S cutting heads (D32 nozzle)

BM06K/BD08K Series

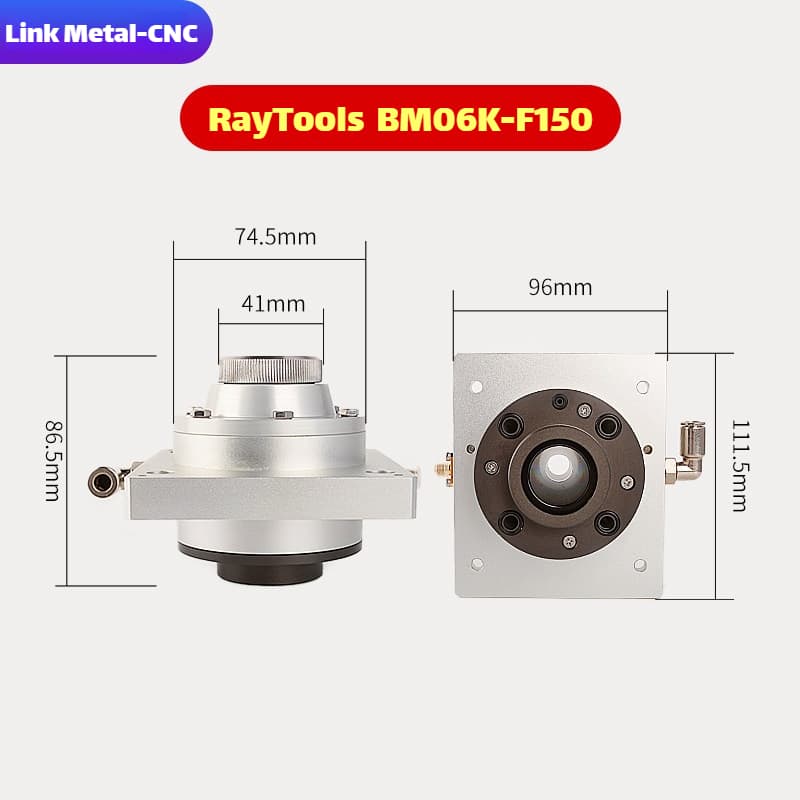

• BM06K-F150: For BM06K cutting heads (F150 focal length)

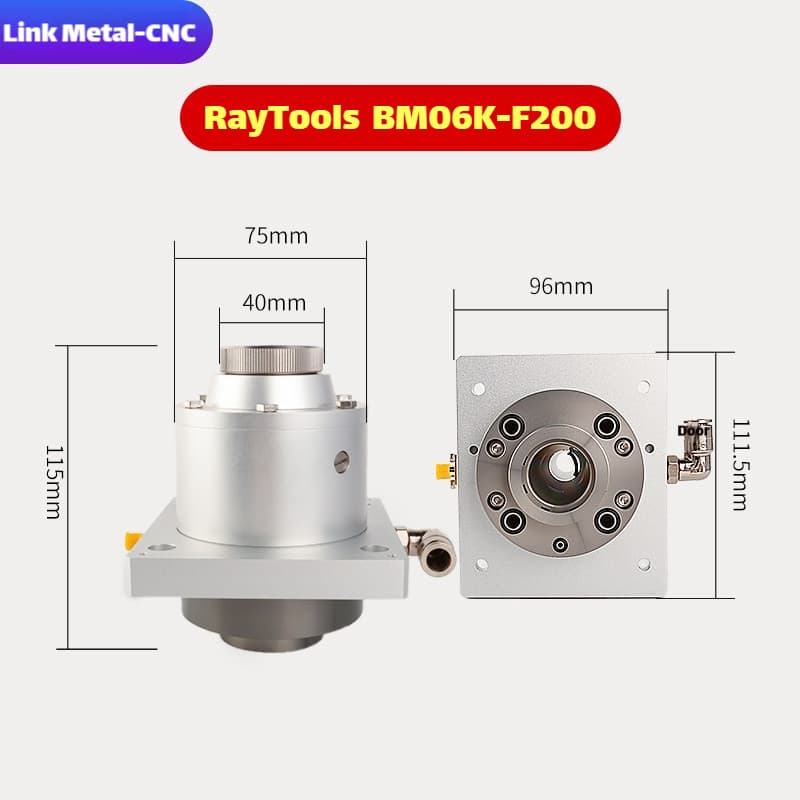

• BM06K-F200: For BM06K cutting heads (F200 focal length)

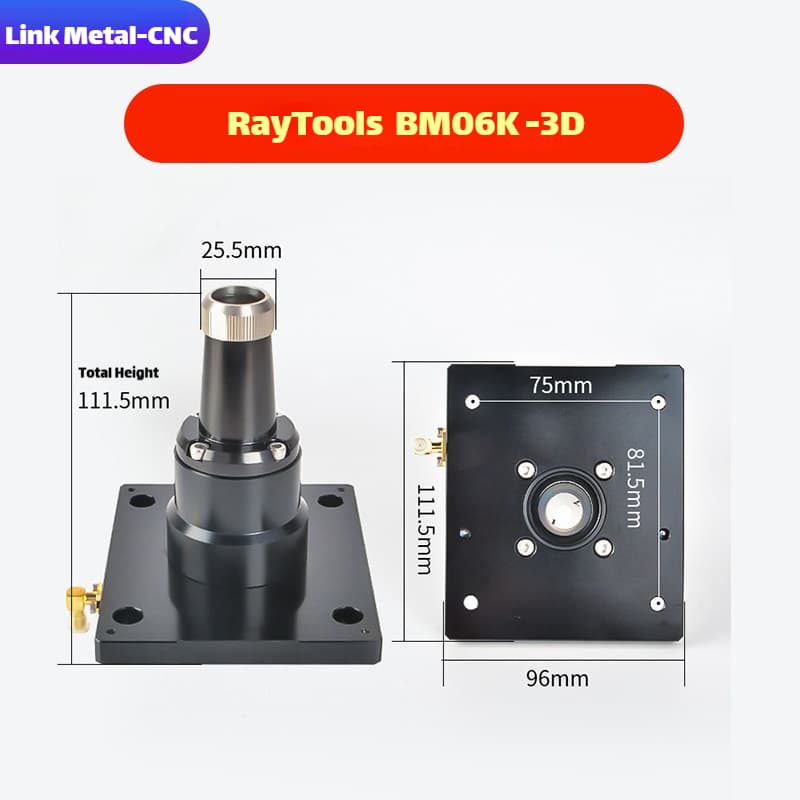

• BM06K/BS06K: For BM06K/BS06K cutting heads

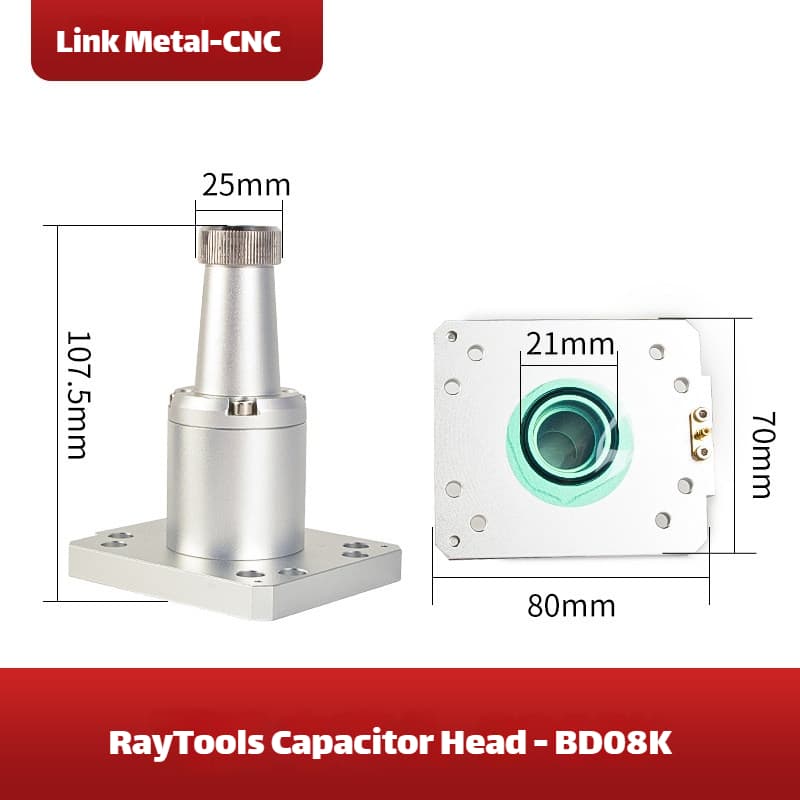

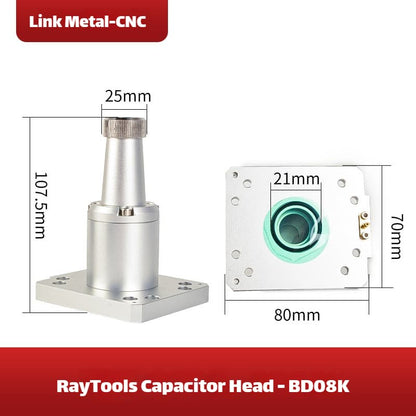

• BD08K-2: For BD08K-2 cutting heads

Custom Specifications Available: For custom specifications, special brand dedicated models or other laser cutting head consumables, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Selected Link Metal CNC RayTools Nozzle Connector / Capacitive Height Sensor
• 1 x Anti-static & Shock-proof Protective Packaging

Quality Assurance

Every Link Metal CNC RayTools nozzle connector and capacitive height sensor undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, sensor performance calibration, connector precision verification, material performance test and durability test (vibration, high temperature, plug life).

We maintain strict ISO 9001 quality control standards to ensure stable and reliable mechanical and sensing performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What is the difference between a nozzle connector and a capacitive height sensor?
A: The nozzle connector is the mechanical component that holds the copper nozzle in place. The capacitive height sensor is the electrical component that measures the distance between the nozzle and the workpiece. In most RayTools cutting heads, these two components are integrated into a single assembly, which is what this product is.

Q: How do I choose the correct model for my cutting head?
A: First, identify your RayTools cutting head model number (usually located on the side of the cutting head). Then select the corresponding model from our list. If you are unsure, please contact our sales team with your cutting head model number and we will help you find the correct part.

Q: What causes the height follow system to fail?
A: The most common causes of height follow system failure are: 1) Damaged or worn capacitive sensor; 2) Loose or corroded electrical connections; 3) Contamination of the sensor surface with cutting spatter; 4) Damaged RF cable. Regular inspection and cleaning can prevent many of these issues.

Q: How often should I replace the nozzle connector/sensor?
A: Under normal operating conditions, a nozzle connector/sensor assembly should last 3-6 months. However, it should be replaced immediately if you notice any damage, deformation, or if the height follow system becomes unstable. Frequent collisions will significantly shorten its service life.

Q: Can I replace just the sensor or just the connector?
A: In most cases, these components are integrated and sold as a single assembly. Replacing the entire assembly ensures proper alignment and optimal performance. Attempting to replace individual components may result in poor fit or unstable signal transmission.

View our full range of laser cutting accessories including RayTools nozzles, ceramic rings and protective lenses.
