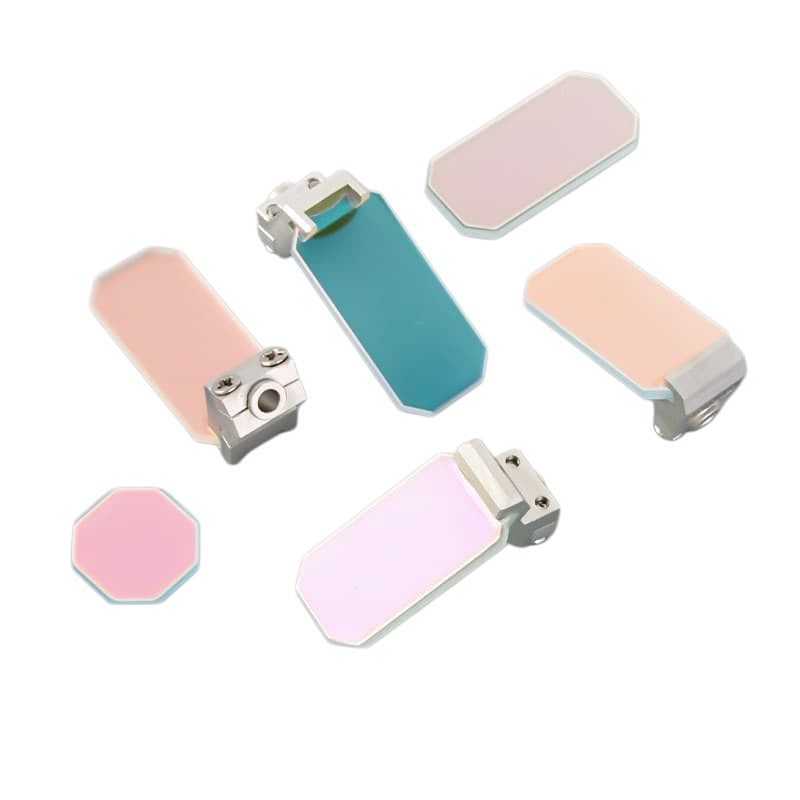

Link Metal CNC Reflective Mirror for Handheld Laser Welding Torches

Reflective Mirror for Handheld Laser Welding Torches

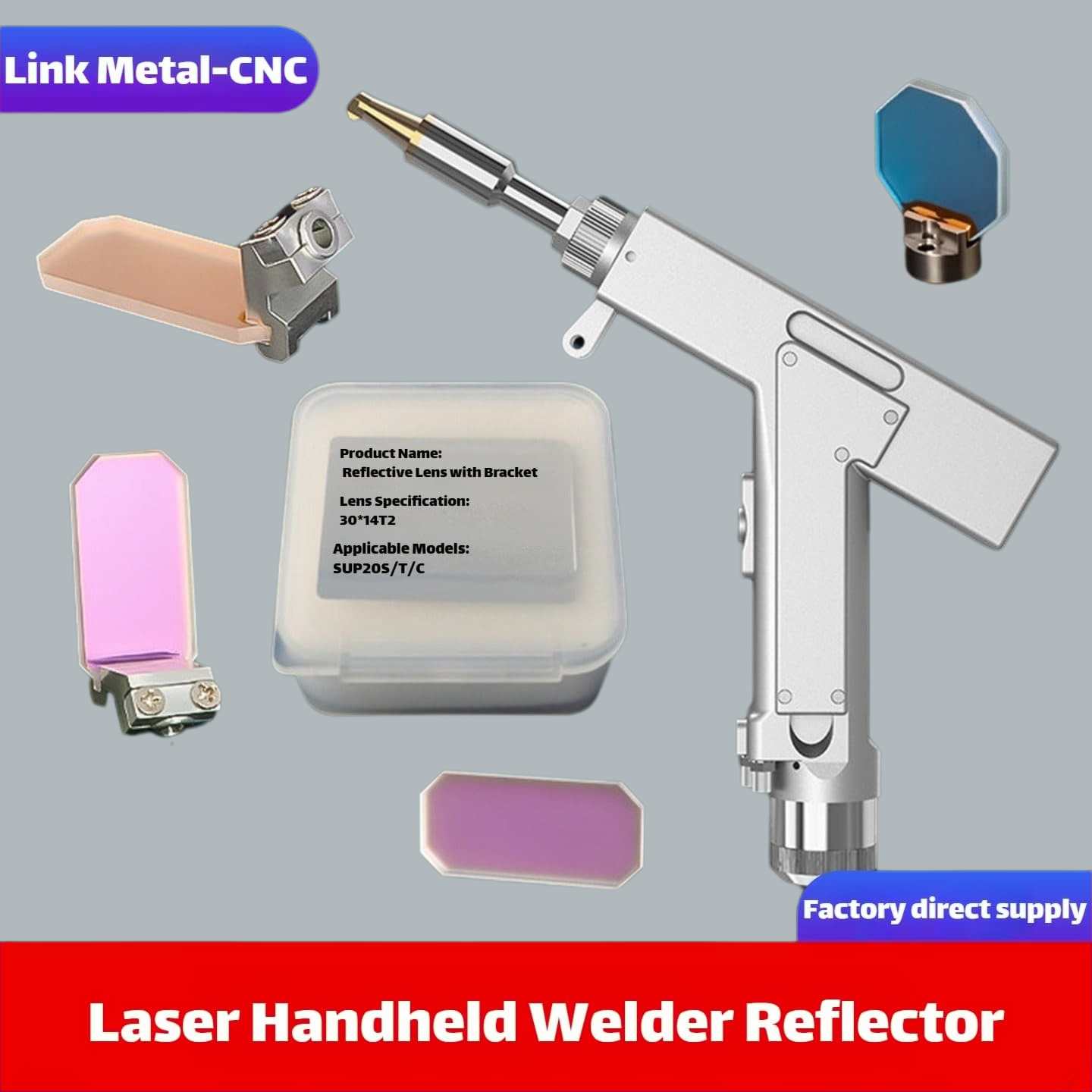

Professional industrial-grade laser reflective mirrors, core optical components for all handheld fiber laser welding torches. Designed to accurately reflect and guide the 1064nm fiber laser beam, adjust the laser transmission path, and ensure stable laser energy output and precise welding positioning, our reflective mirrors are essential for reliable laser welding performance.

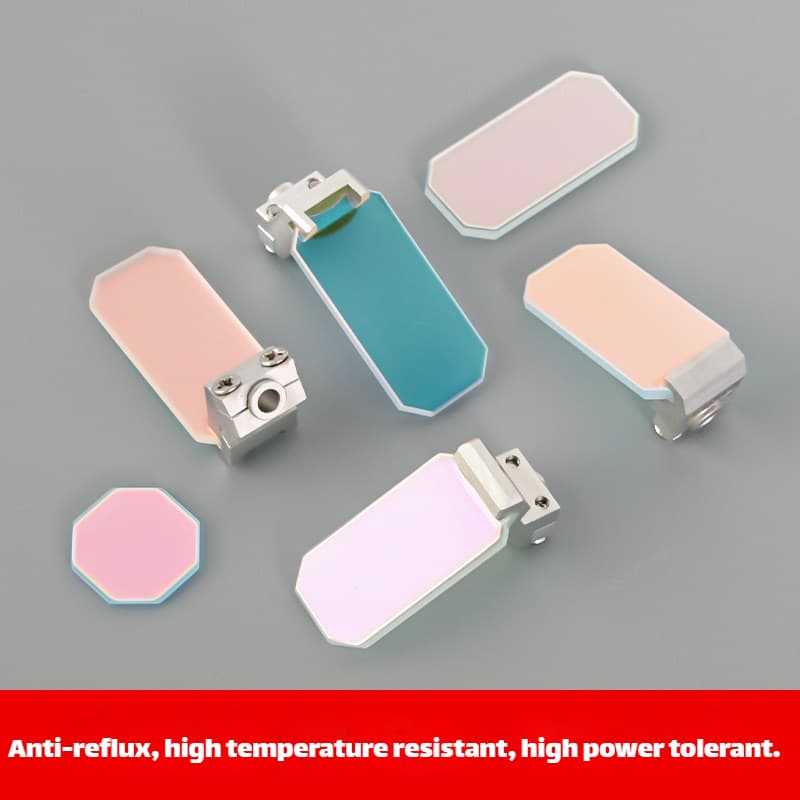

This complete product series covers the full range of mainstream sizes and brand dedicated models, including both bare mirror and bracket integrated options. 1:1 precision fit for QILIN, WSX, RAYTOOLS, SUP, RELFAR, SUPER WEIYE and other mainstream handheld welding torches.

Key Advantages of Our Laser Welding Reflective Mirrors

• 20+ Models & 6 Brand Compatibility: Complete size range and brand dedicated models, including both bare mirror and bracket integrated options. 1:1 perfect fit for all original handheld laser welding torches. Bracket integrated models are plug and play with no additional debugging required.

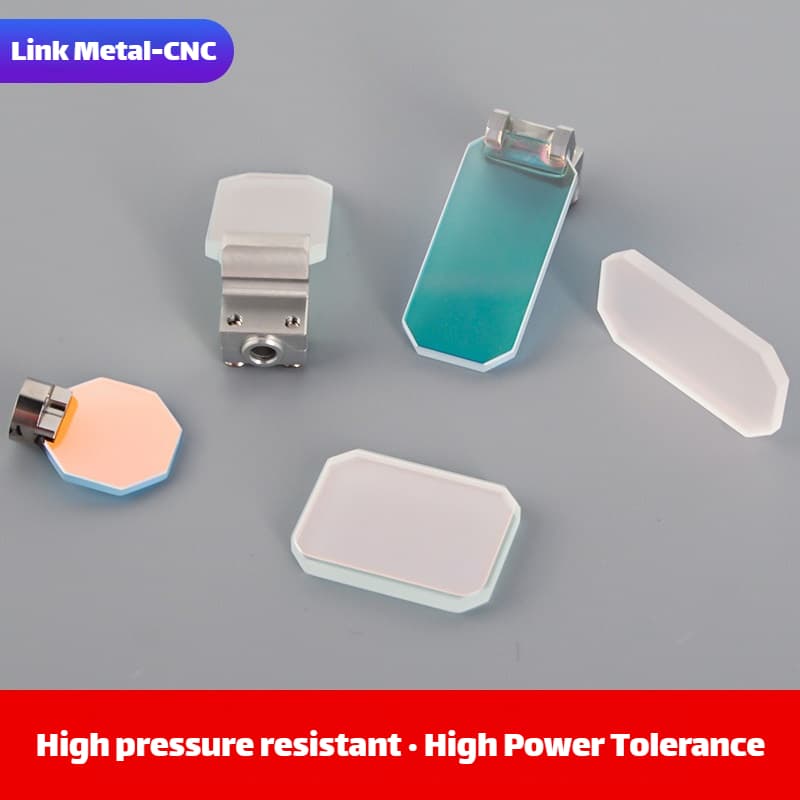

• High-Quality Optical Grade Fused Silica: Made from premium high-purity fused silica optical material with high thermal conductivity and low thermal expansion coefficient. Offers excellent thermal stability and resists deformation even under long-term high-power laser irradiation.
• High-Precision Gold-Plated Reflective Film: Features professional multi-layer dielectric film + high-purity gold-plated reflective film with ≥99.5% reflectivity at 1064nm wavelength. Ultra-low absorption effectively reduces laser energy loss and ensures stable laser power output.
• High Laser Damage Threshold: Optimized film design can withstand long-term continuous high-power laser irradiation. Resists film burning, effectively extends service life, and reduces replacement frequency and production costs.
• Ultra-High Precision Manufacturing: Ultra-smooth optical surface with strict size tolerance, flatness and parallelism control. Free of bubbles, impurities and burrs, ensuring accurate laser reflection angle and avoiding beam deviation.
• Anti-Spatter & Anti-Oxidation Protection: Enhanced film layer protection effectively resists erosion from welding splash and high-temperature smoke. Resists dust and welding slag adhesion, is easy to clean, and maintains stable optical performance in harsh environments.
• Broad Industrial Applicability: Suitable for all 1064nm handheld fiber laser welding machines, automatic laser welding equipment and robotic laser welding systems. Widely used in various industrial fields.

Compatible Equipment & Available Models

Compatible Equipment

• All Mainstream Handheld Fiber Laser Welding Torches
• All Fiber Laser Welding Machines
• Automatic Laser Welding Systems
• Robotic Laser Welding Systems

Available Reflective Mirror Models (20+ Options Total)

QILIN Series

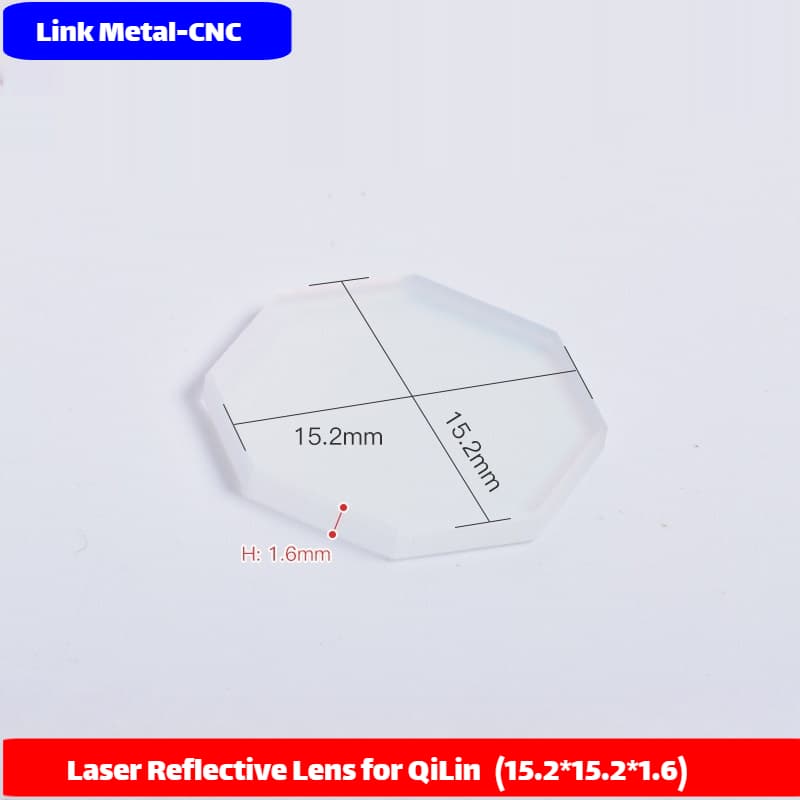

• 15.2×15.2×1.6mm QILIN (Bare Mirror)

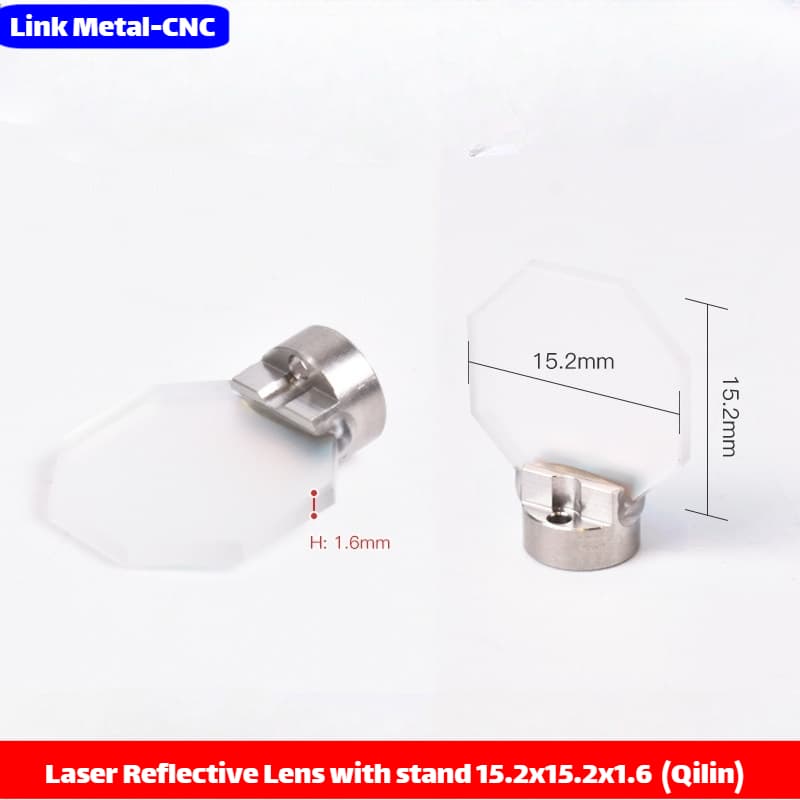

• 15.2×15.2×1.6mm QILIN with Bracket

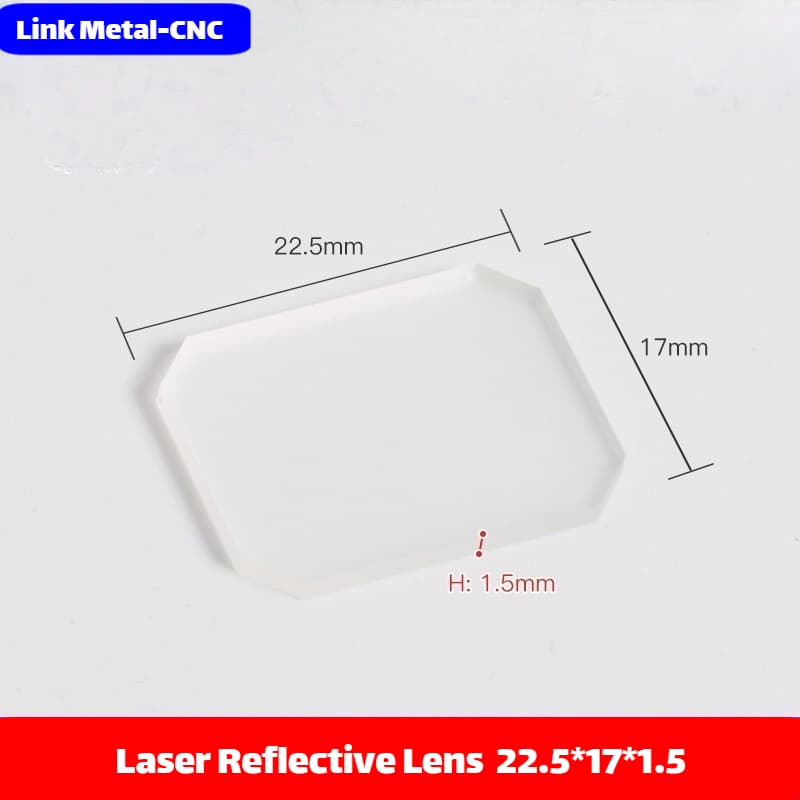

• 22.5×17×1.5mm (Bare Mirror)

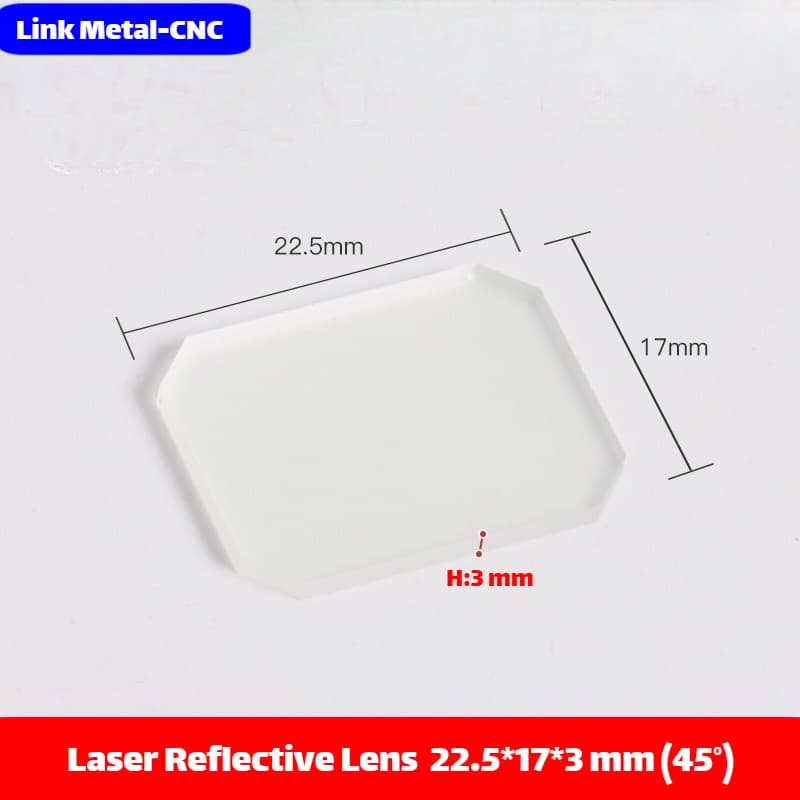

• 22.5×17×3mm (45°) (Bare Mirror)

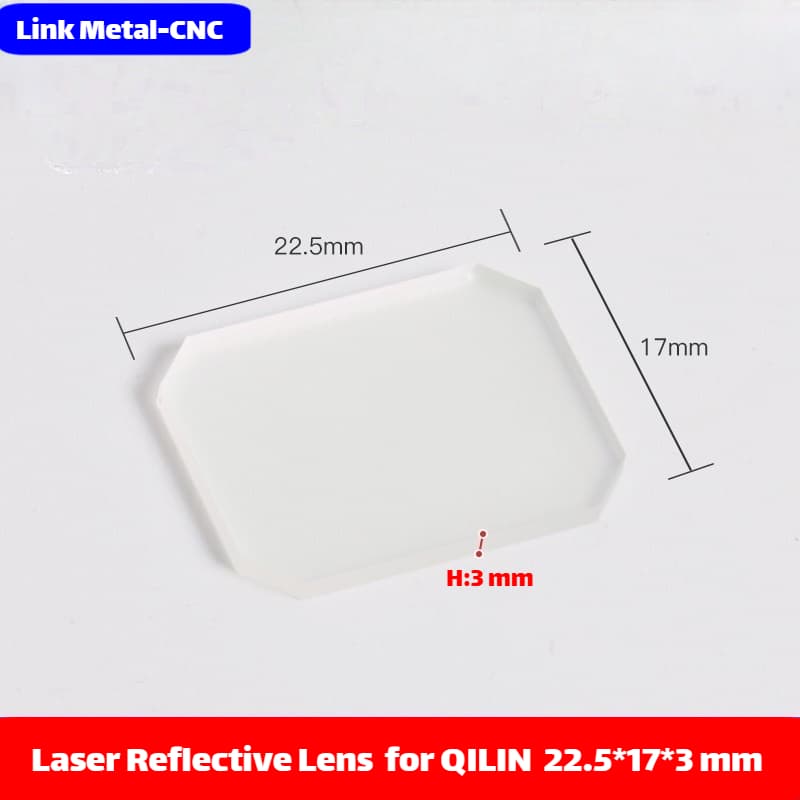

• 22.5×17×3mm QILIN (Bare Mirror)

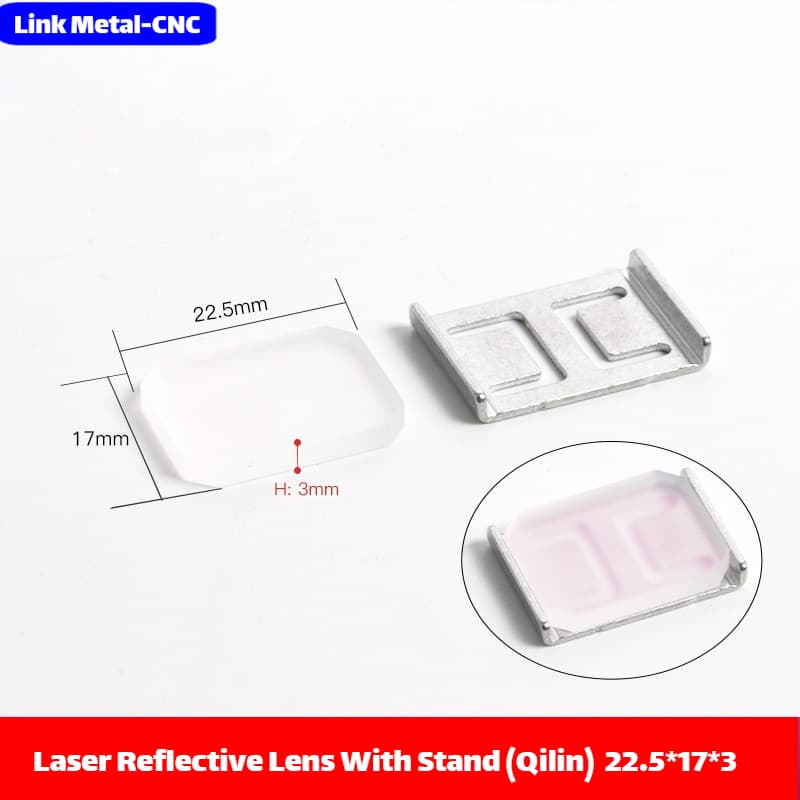

• 22.5×17×3mm QILIN with Stand

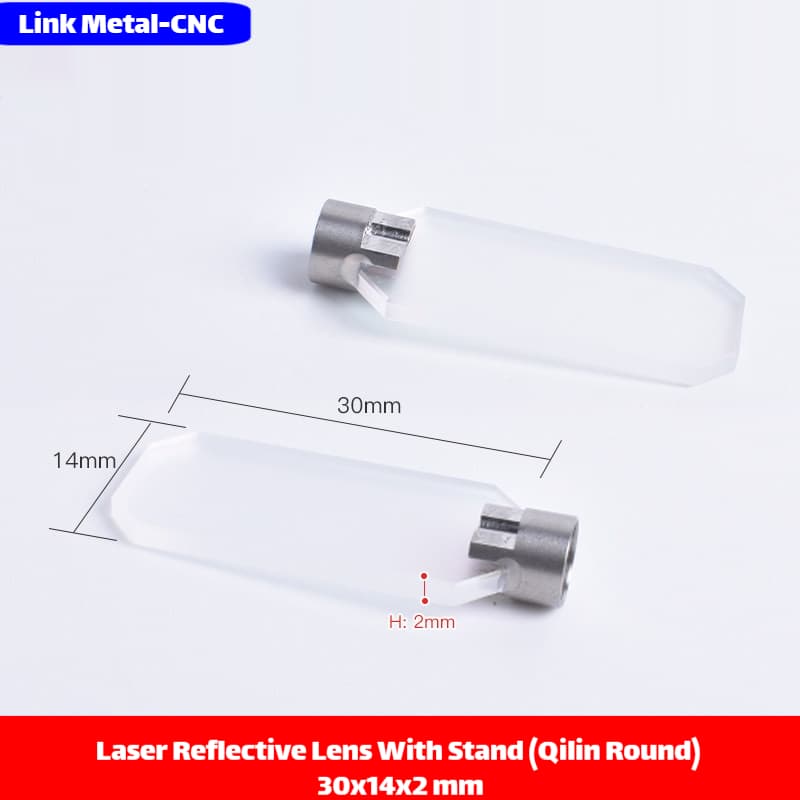

• 30×14×2mm QILIN Round with Bracket

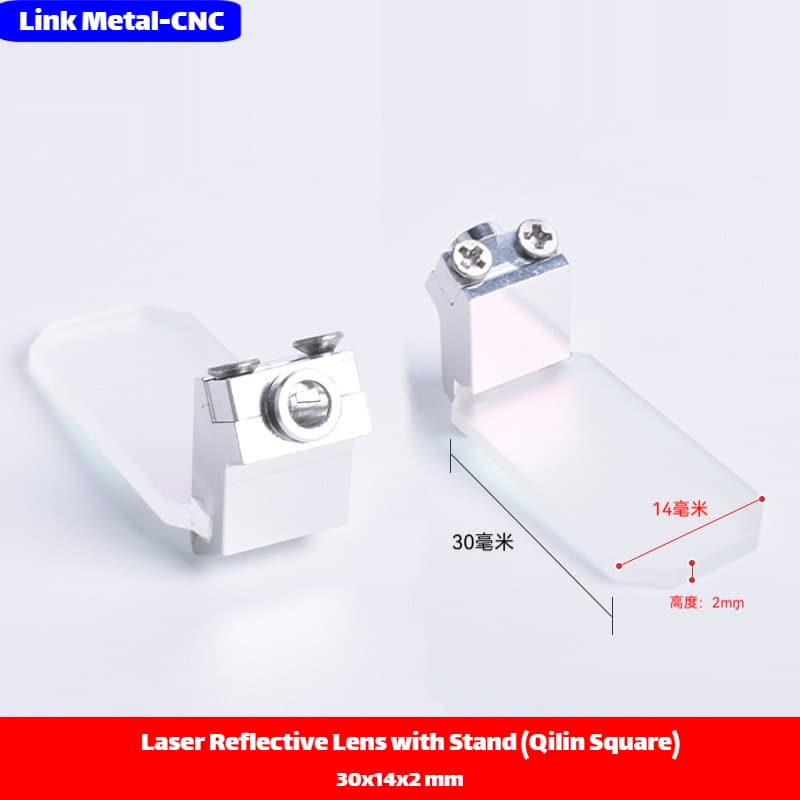

• 30×14×2mm QILIN Square with Bracket

WSX Series

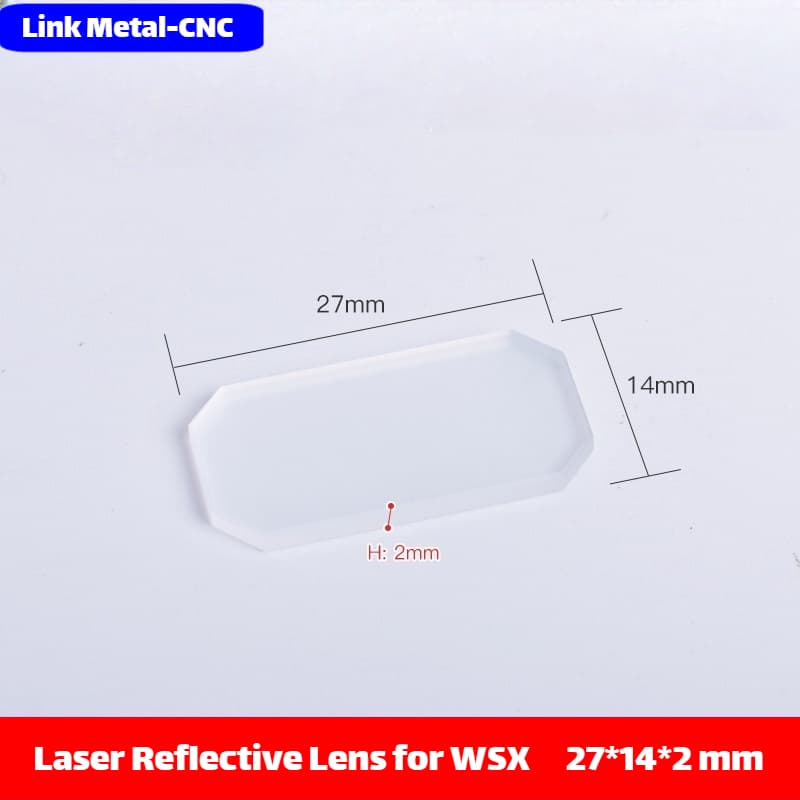

• 27×14×2mm WSX (Bare Mirror)

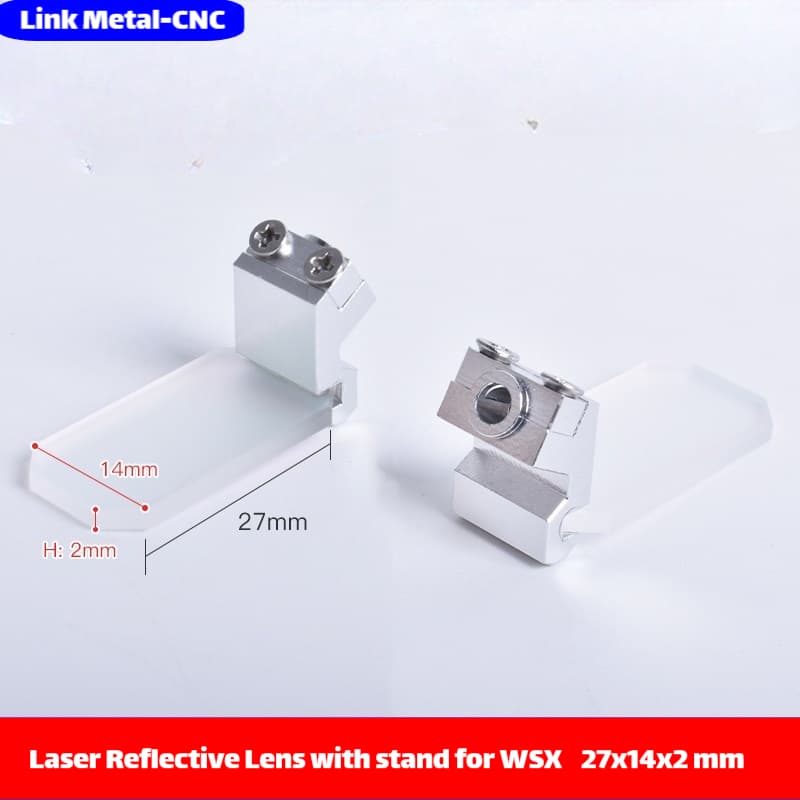

• 27×14×2mm WSX with Bracket

RELFAR Series

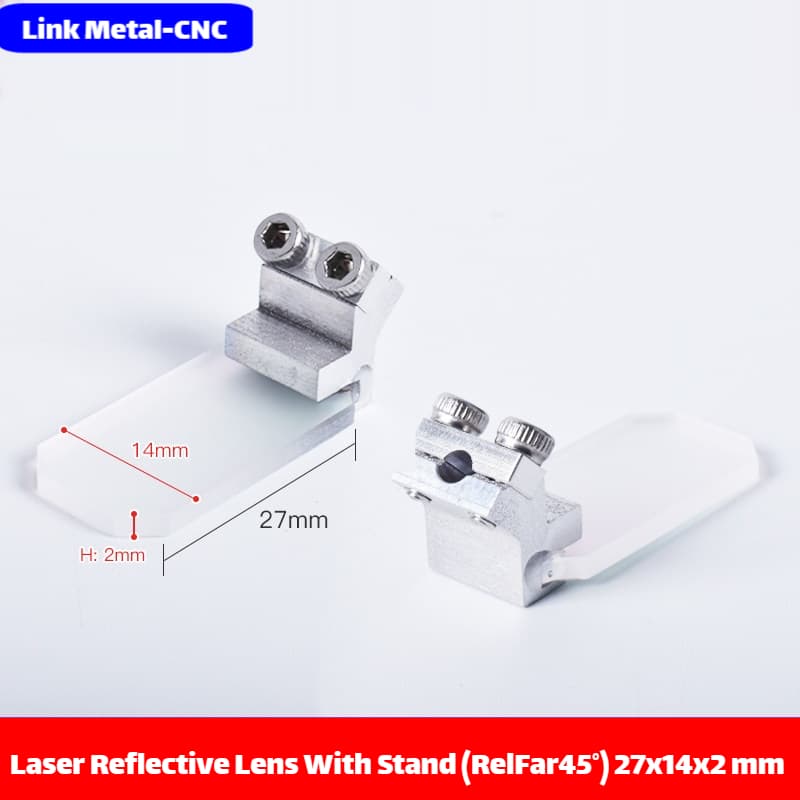

• 27×14×2mm RELFAR 45° with Bracket

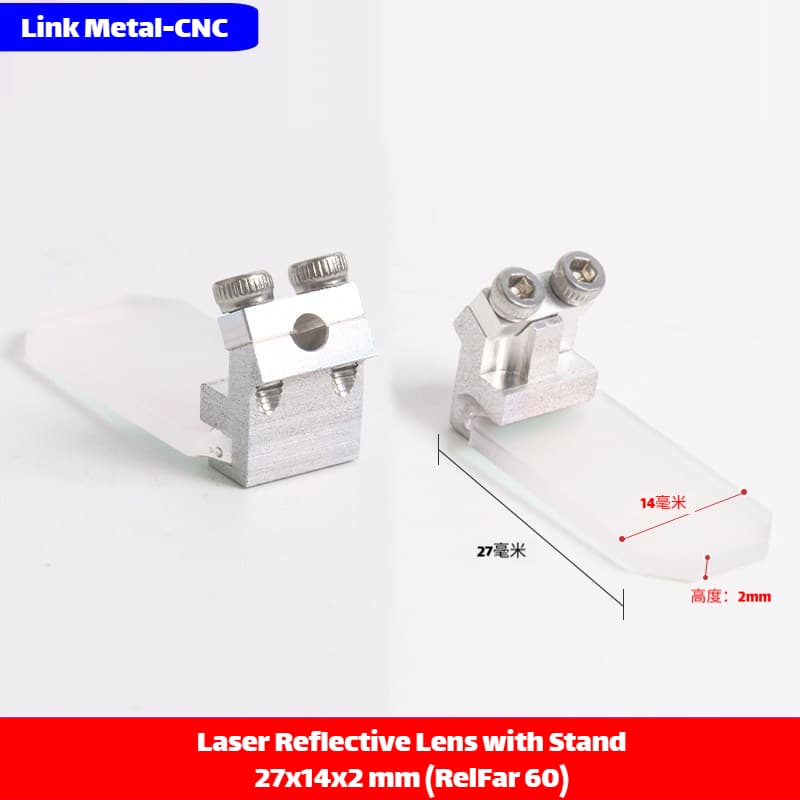

• 27×14×2mm RELFAR 60° with Bracket

SUPER WEIYE Series

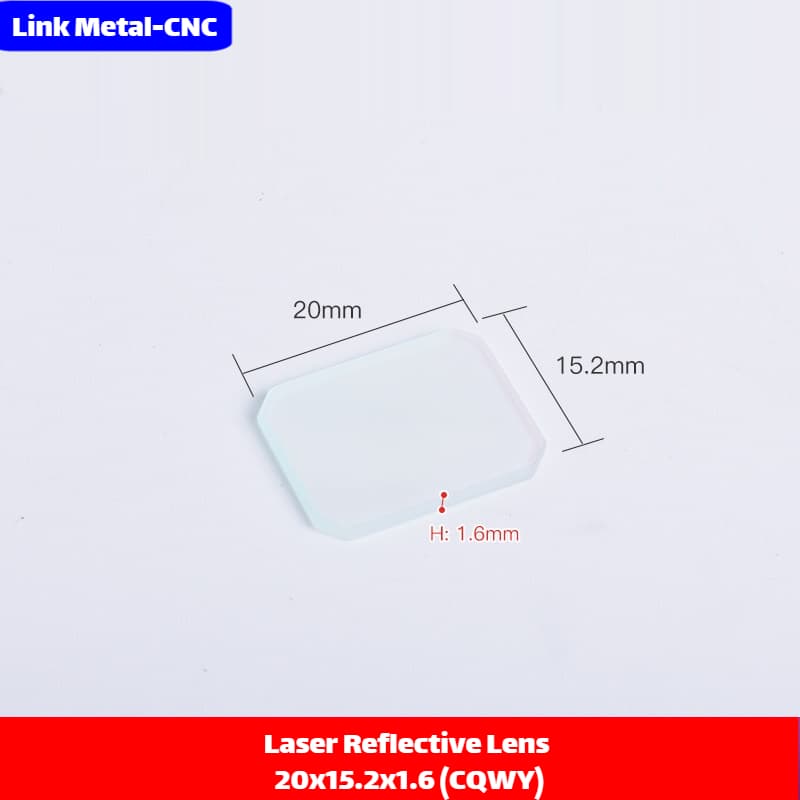

• 20×15.2×1.6mm SUPER WEIYE (Bare Mirror)

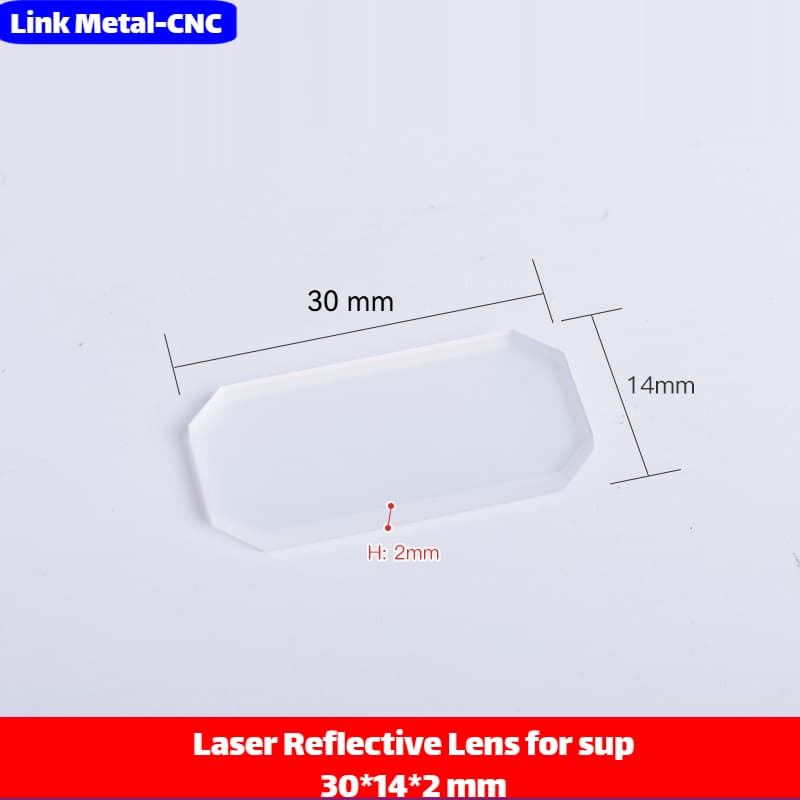

• 30×14×2mm SUPER WEIYE (Bare Mirror)

SUP Series

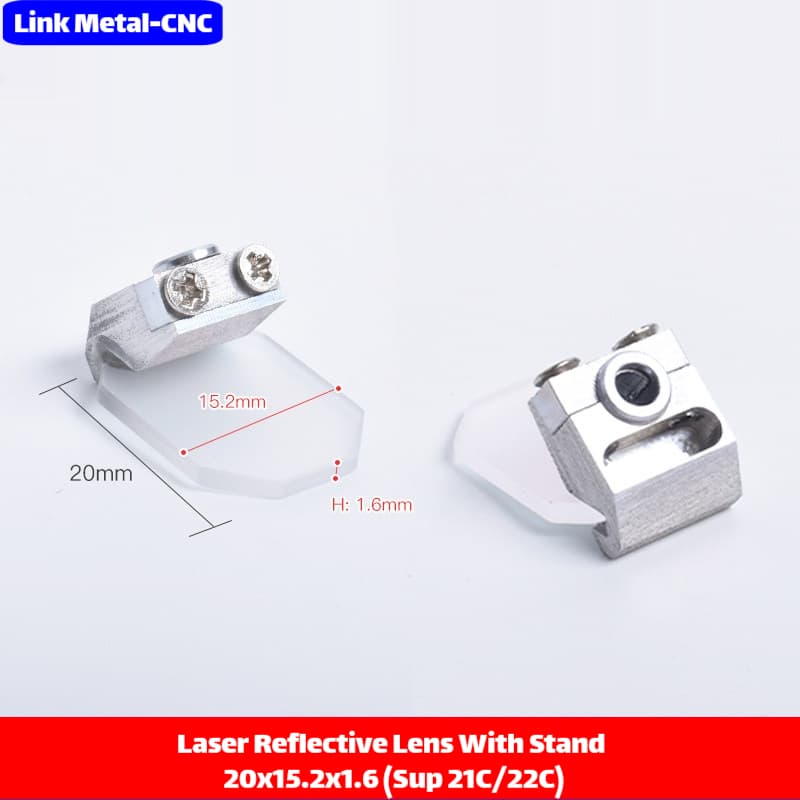

• 20×15.2×1.6mm SUP 21C/22C with Bracket

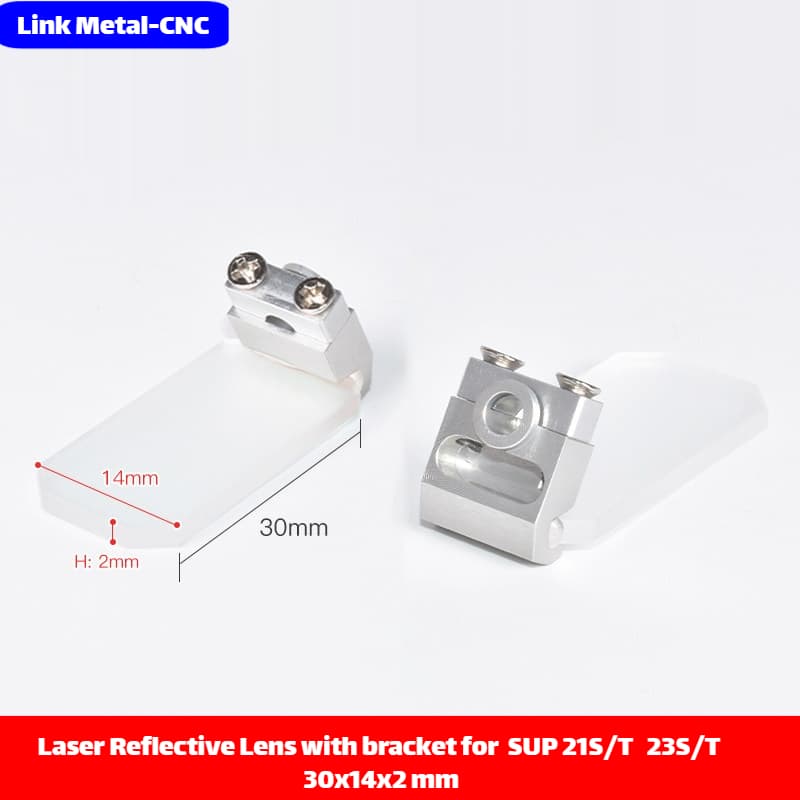

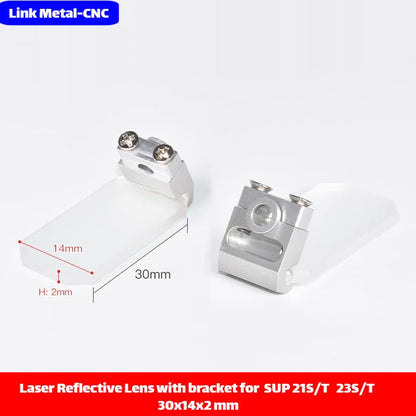

• 30×14×2mm SUP 21S/T 23S/T with Bracket

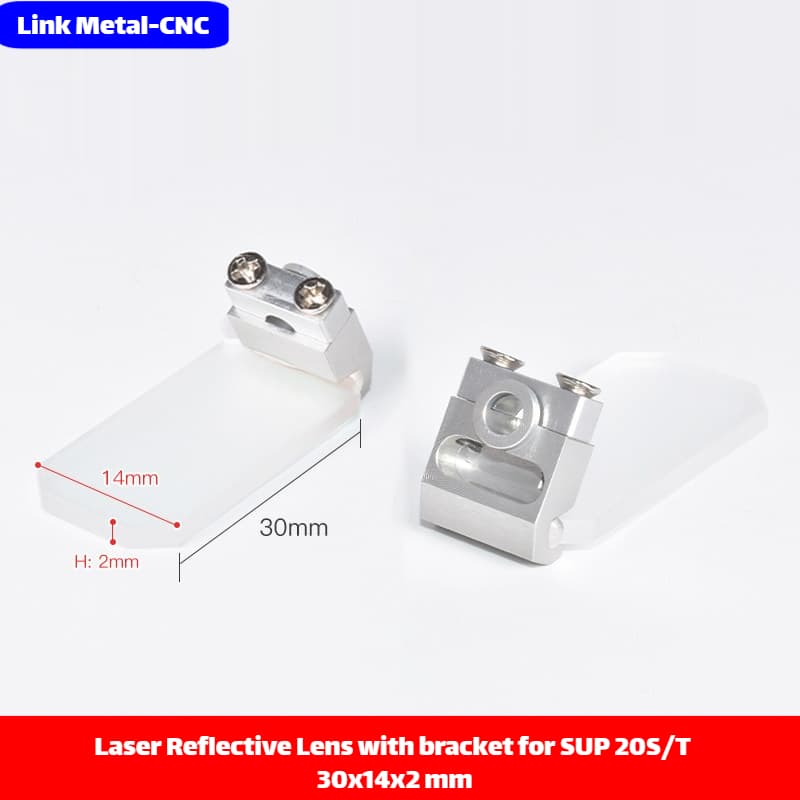

• 30×14×2mm SUP 20S/T with Bracket

RAYTOOLS & Universal Series

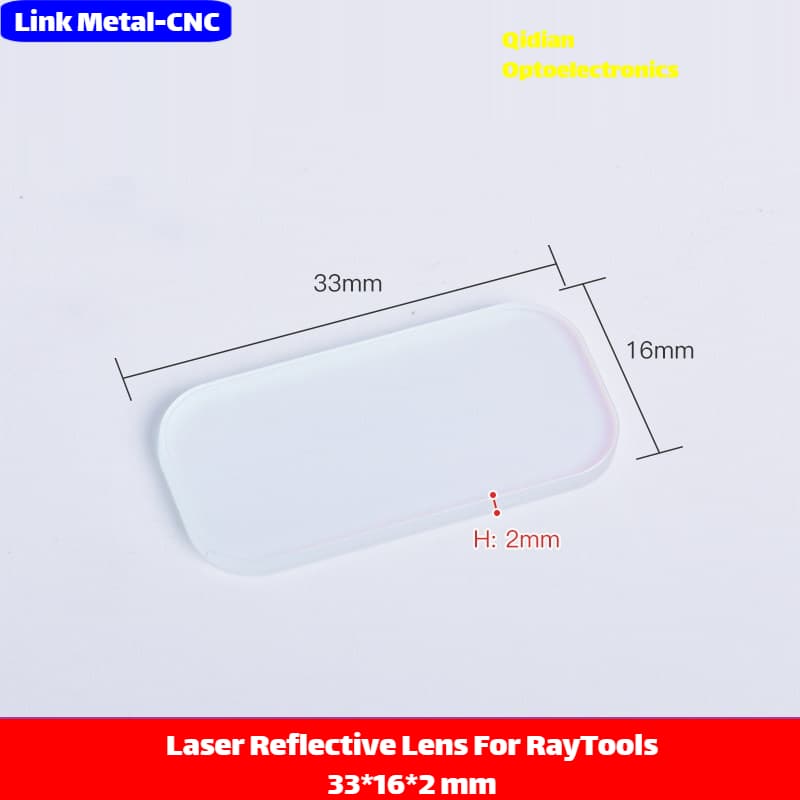

• 33×16×2mm RAYTOOLS (Bare Mirror)

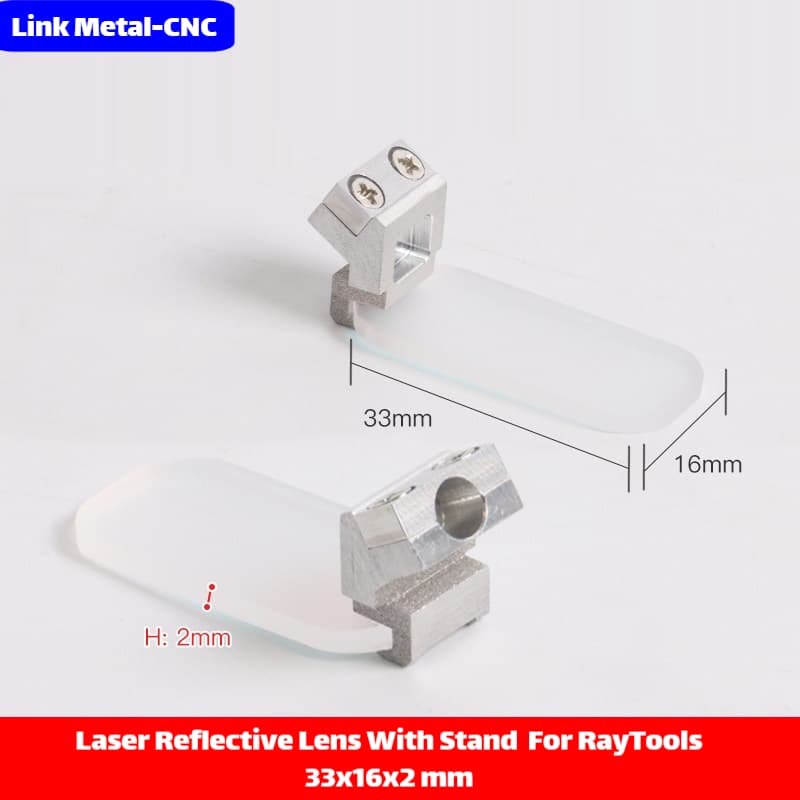

• 33×16×2mm RAYTOOLS with Bracket
• 33×16×2mm (Universal Bare Mirror)
• 42×22×3.5mm (Universal Bare Mirror)

Custom Specifications Available: For custom sizes, special brand dedicated models or other laser welding optical consumables, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Selected Link Metal CNC Laser Welding Reflective Mirror
• 1 x Class A Dust-Free Sealed Independent Packaging

Quality Assurance

Every Link Metal CNC laser reflective mirror undergoes rigorous pre-delivery testing in a dust-free environment, including optical performance testing, reflectivity inspection, size tolerance verification, film layer quality test and appearance inspection.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable optical performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

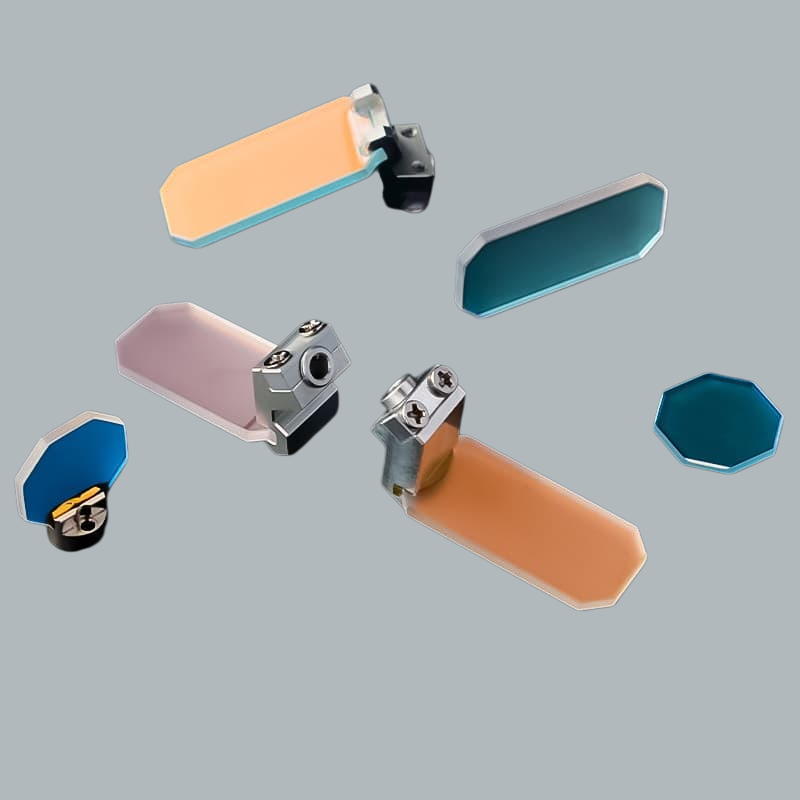

Q: What is the difference between bare mirror and bracket integrated models?
A: Bare mirrors are just the optical component itself and require installation into your existing bracket. Bracket integrated models come pre-assembled in a precision-machined bracket that is ready to install directly into your welding torch. They offer easier installation, better alignment and no additional debugging required.

Q: Why is reflectivity important for a welding mirror?
A: Higher reflectivity means less laser energy is absorbed by the mirror, resulting in more stable laser power output at the workpiece. Our mirrors with ≥99.5% reflectivity ensure consistent welding quality, reduce heat buildup in the torch, and extend the service life of the mirror itself.

Q: How often should I replace my reflective mirror?
A: Under normal operating conditions, a reflective mirror should last 1-2 months. However, it should be replaced immediately if you notice any film burning, scratches, or if welding quality deteriorates. Frequent welding of reflective materials like aluminum and copper will accelerate wear.

Q: Can I clean and reuse a reflective mirror?
A: Yes, you can clean a lightly contaminated mirror using isopropyl alcohol and lint-free optical wipes. However, once a mirror has film burning, deep scratches or significant spatter that cannot be removed, it must be replaced immediately to avoid damage to more expensive optical components.

Q: Are reflective mirrors interchangeable between different brands?
A: No, reflective mirrors are brand and model specific due to different dimensions, angles and bracket designs. Using the wrong mirror will result in poor beam alignment, unstable welding performance and potential damage to your welding torch.
