Link Metal CNC SP-F Stepped High Speed Laser Cutting Nozzle for Fiber Laser Cutting Machines

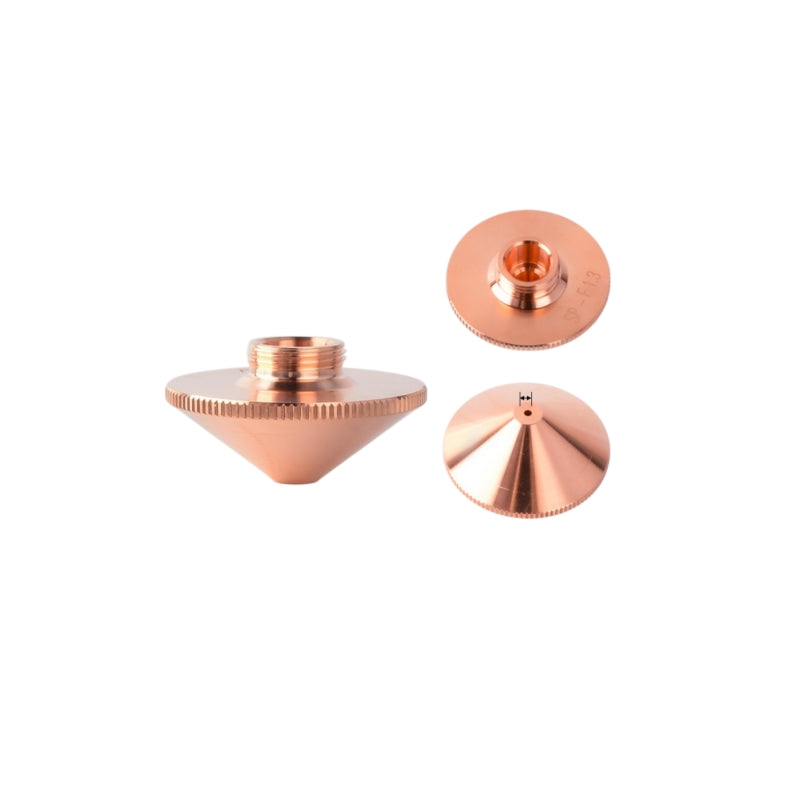

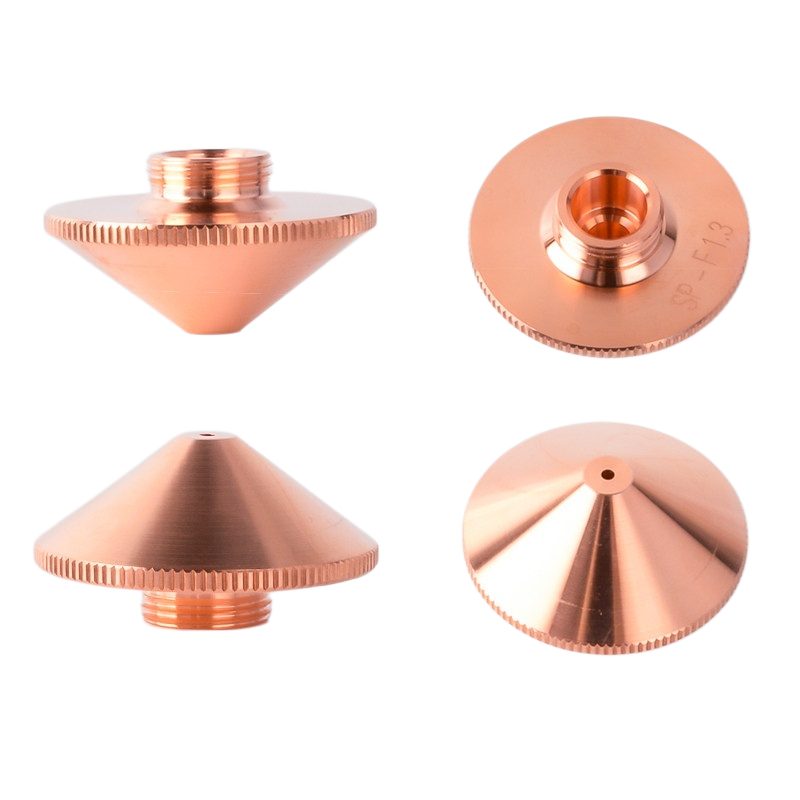

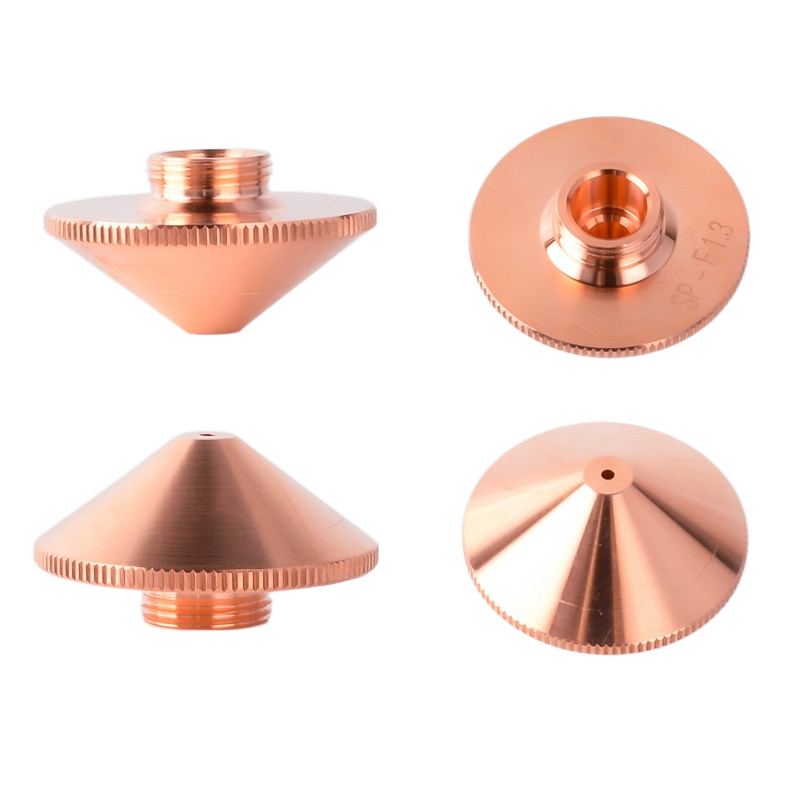

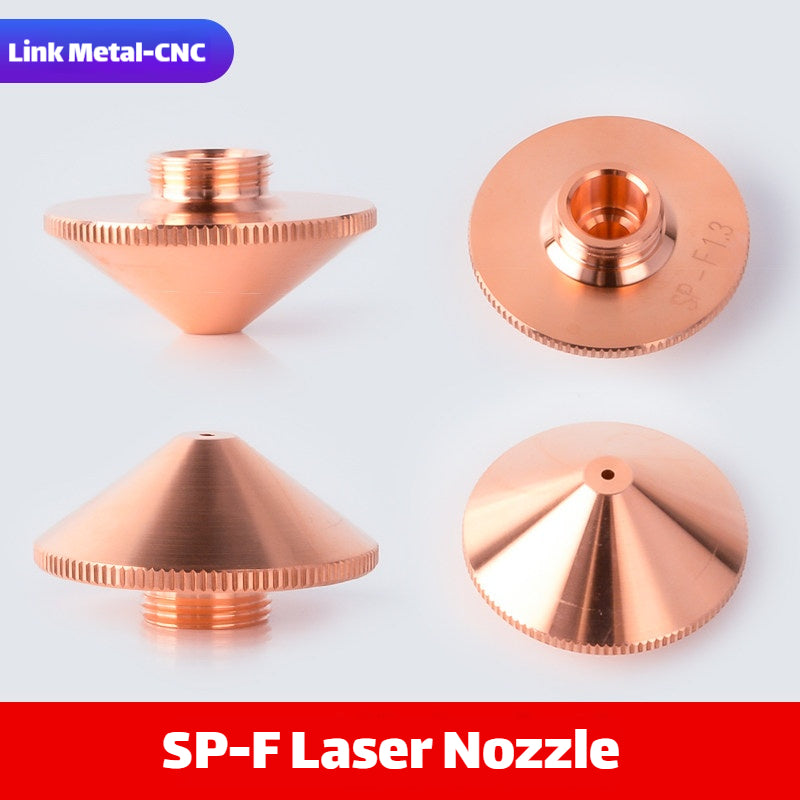

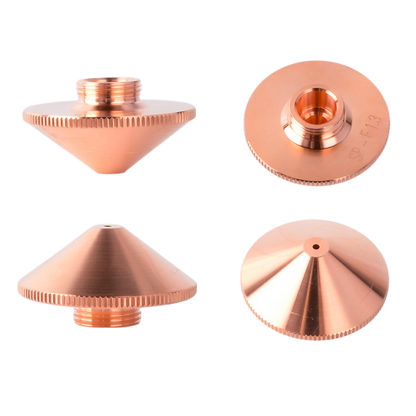

SP-F Stepped High Speed Laser Cutting Nozzle for Fiber Lasers

Professional industrial-grade stepped high-speed laser cutting nozzles exclusively designed for SP-F interface fiber laser cutting machines. Featuring an exclusive integrated stepped positioning structure, our SP-F nozzle is an essential core consumable for high-efficiency laser processing. It delivers significantly improved cutting speed, superior edge finish, and reduced burrs, making it ideal for long-term continuous high-speed industrial production.

All products are manufactured with ultra-precision CNC machining and optimized airflow structure for perfect fit and stable performance in demanding high-speed cutting environments.

Key Advantages of Our SP-F Stepped High Speed Nozzles

• Exclusive Integrated Stepped Positioning Structure: Precision-machined stepped shoulder design provides 1:1 perfect fit for SP-F laser cutting head mounting interfaces. Ensures accurate centering positioning, airtight sealing, and no loosening even during high-speed cutting, eliminating air pressure leakage and guaranteeing stable airflow output.
• SP-F Dedicated High-Speed Airflow Optimization: Professionally designed internal cavity and airflow channel specifically tuned for SP-F systems. Effectively reduces airflow turbulence, improves airflow convergence and stability, and maintains consistent air pressure during high-speed flying cutting, drastically increasing cutting speed and processing efficiency.
• 1:1 OEM Fit for SP-F Interface Heads: Standard SP-F interface design, perfectly compatible with all mainstream SP-F interface fiber laser cutting heads. Direct drop-in replacement with no additional debugging required—plug and play, works with most popular fiber laser cutting machines on the market.
• High-Purity Oxygen-Free Red Copper Construction: Made from premium 99.95% oxygen-free red copper for exceptional thermal conductivity, superior high temperature resistance, and outstanding anti-oxidation properties. Resists deformation even during long-term high-power high-speed cutting operations.
• Ultra-High Precision CNC Machining: Strict dimensional tolerance control with mirror-polished inner hole ensures smooth, non-divergent airflow and consistent cutting results. Effectively reduces cutting burrs and slag hanging, optimizes section finish, and eliminates subsequent polishing processes.
• Broad Industrial Applicability: Ideal for high-speed cutting of stainless steel, carbon steel, aluminum alloy, galvanized sheet, copper plate and other metal materials. Widely used in sheet metal processing, hardware manufacturing, automotive parts production and other high-volume industrial scenarios.

Compatible Equipment & Product Type

Compatible Equipment

• All Mainstream Fiber Laser Cutting Machines with SP-F Interface
• Raytools, Precitec, WSX, Bodor, OSPRI Laser Cutting Heads with SP-F Interface

Available SP-F Stepped Nozzle Type

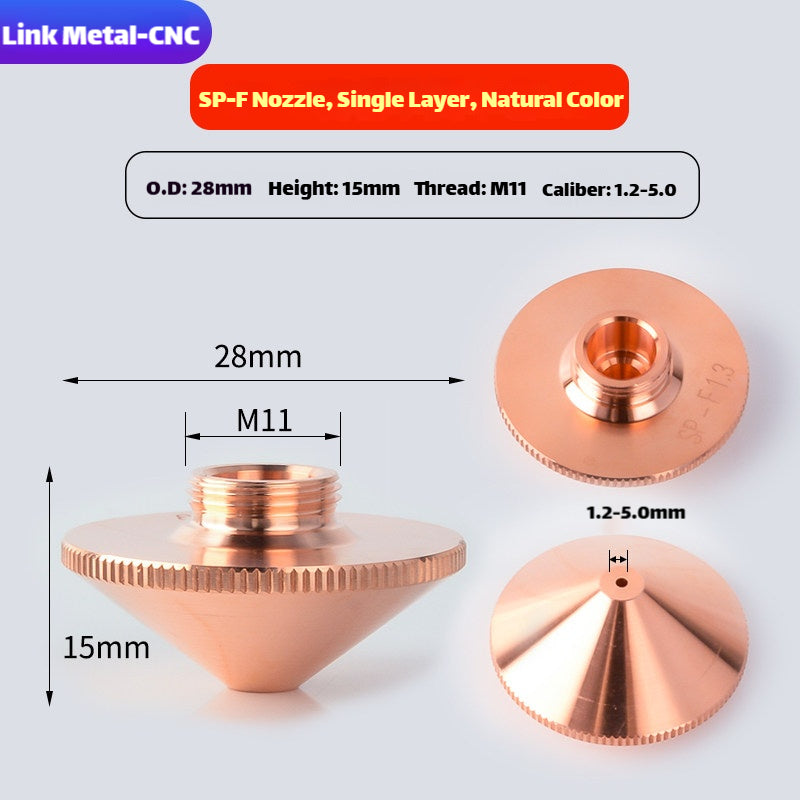

• Single Layer Stepped Laser Nozzle: Optimized for high-speed flying cutting of thin to medium plate materials

Custom Specifications Available: For custom sizes, chrome plated options or other special laser cutting nozzles, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Link Metal CNC SP-F Stepped High Speed Laser Cutting Nozzle

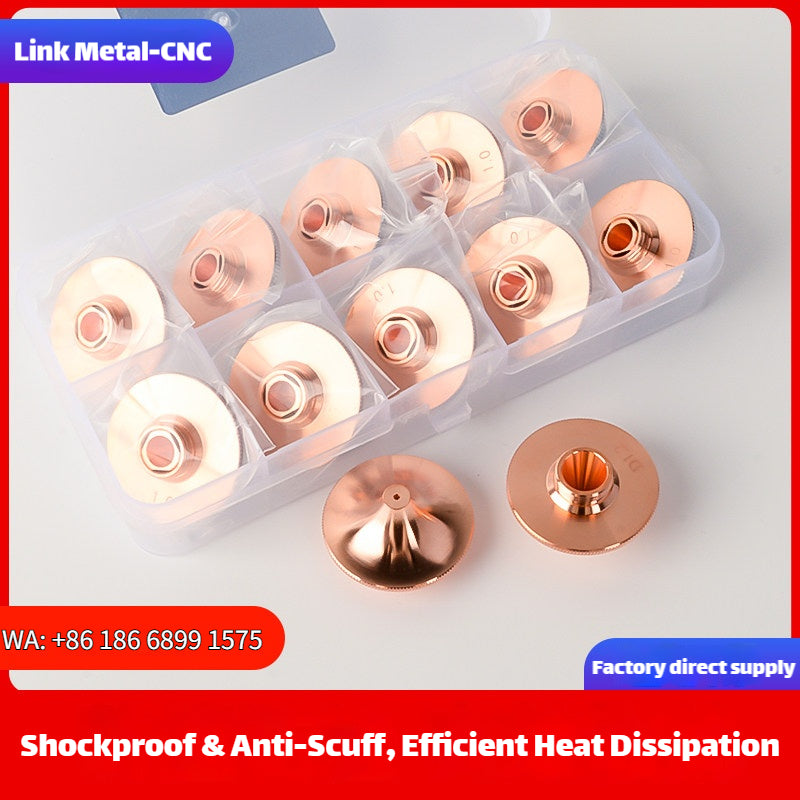

• 1 x Specialized Anti-Static Dust-Proof Protective Packaging

Quality Assurance

Every Link Metal CNC SP-F stepped high speed laser nozzle undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, stepped positioning accuracy verification, air tightness test, airflow convergence test and high-speed cutting effect verification.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What is the difference between SP-F and SP-S laser nozzles?
A: SP-F nozzles feature an exclusive integrated stepped positioning shoulder for SP-F interface cutting heads, providing better centering accuracy and sealing performance. SP-S nozzles use a standard flat interface and are compatible with SP-S interface heads.

Q: Will this nozzle work with non-SP-F interface cutting heads?
A: No, this nozzle is specifically designed for SP-F interface cutting heads. For other interface types, please check our standard D28/D32 nozzles or SP-S high speed nozzles.

Q: Do you offer chrome plated versions of the SP-F nozzle?
A: Yes, we can provide chrome plated SP-F nozzles upon request. Chrome plating enhances anti-spatter performance and extends service life by 3+ times. Please contact our sales team for pricing.
