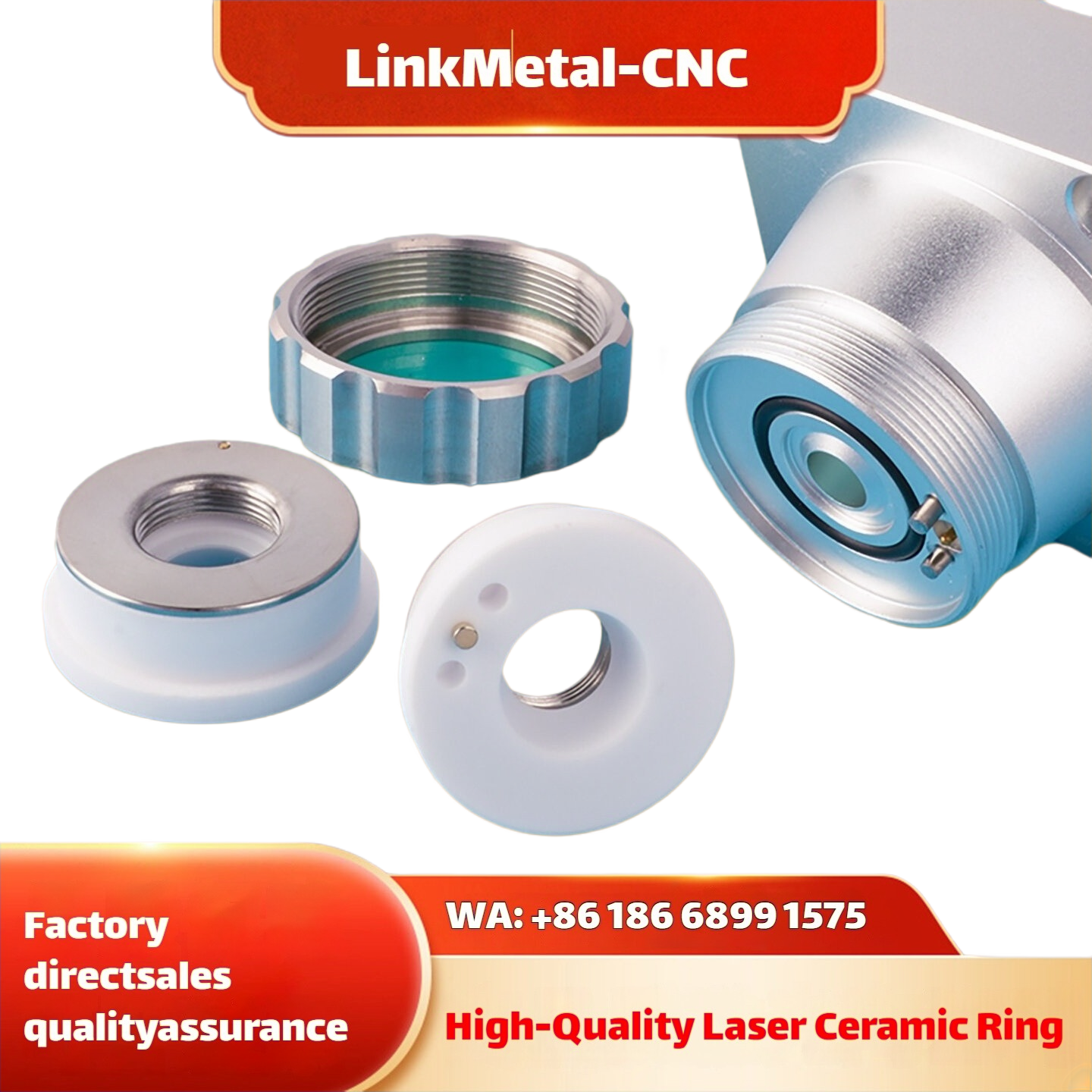

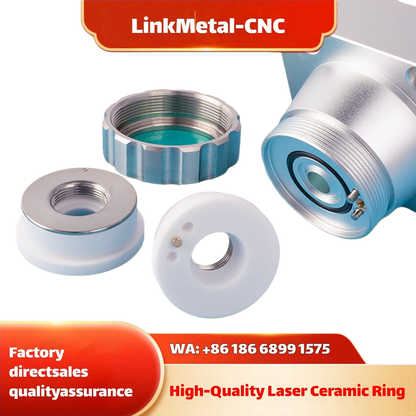

WSX Ceramic Ring & Ceramic Spacer for Fiber Laser Cutting Heads
Professional industrial-grade WSX dedicated ceramic rings and ceramic spacers, essential core insulation consumables for all WSX series fiber laser cutting heads. Designed to insulate the laser cutting head nozzle body, fix the optical assembly, and ensure stable electrical signal transmission for the capacitive sensor, our WSX ceramic parts guarantee the normal operation of the laser cutting head height follow system.
This complete product series covers the full range of WSX dedicated models, including standard ceramic spacers and 3D cutting dedicated ceramic rings. All products are manufactured with high-strength 99% alumina ceramic material for stable performance in demanding industrial laser cutting environments.
Key Advantages of Our WSX Ceramic Rings & Spacers
-
Exclusive WSX Dedicated Design: Full range of models provide 1:1 perfect fit for all original WSX series fiber laser cutting heads, including both 2D plane cutting and 3D robotic cutting dedicated models. Direct drop-in replacement with no additional debugging required—plug and play, fully compatible with all original WSX laser cutting systems.
-
Complete Model Coverage: One-stop procurement solution covering all conventional WSX laser cutting head installation requirements: M8/M11 ceramic spacers, 3D-M8-17.8 3D cutting dedicated model, D24-M8-H12, D28-M20-H25 and D41-M11-34.5 full size conventional models.
-
99% High-Purity Alumina Ceramic: Made from premium 99% high-purity alumina ceramic for exceptional mechanical strength, excellent electrical insulation, superior high temperature resistance and outstanding thermal shock resistance. Resists cracking even during long-term high-power laser cutting operations.
-
Built-in High-Quality Copper Electrode: Features a high-conductivity copper electrode with stable electrical signal transmission and strong welding fastness. Ensures long-term stable operation of the laser cutting head height follow system and reduces equipment failure rate.
-
Ultra-High Precision CNC Machining: Strict dimensional tolerance control with smooth surface, no burrs and no impurities. Provides tight fit with the WSX laser head body and copper nozzle, ensuring stable air pressure sealing and avoiding air leakage and cutting instability problems.
-
Anti-Spatter & Anti-Oxidation Surface Treatment: Effectively resists erosion from cutting splash and high-temperature smoke. Resists dust and slag adhesion, is easy to clean, and delivers long service life, reducing replacement frequency and production costs.
-
Broad Industrial Applicability: Suitable for all 1064nm WSX fiber laser cutting machines. Compatible with 2D plane cutting, 3D robotic curved surface cutting and irregular workpiece cutting, widely used in various industrial fields.
Compatible Equipment & Available Models
Compatible Equipment
- All WSX Series Fiber Laser Cutting Heads
- All WSX 2D Plane Fiber Laser Cutting Machines
- All WSX 3D Robotic Fiber Laser Cutting Systems
- All Original and Compatible WSX Laser Processing Equipment

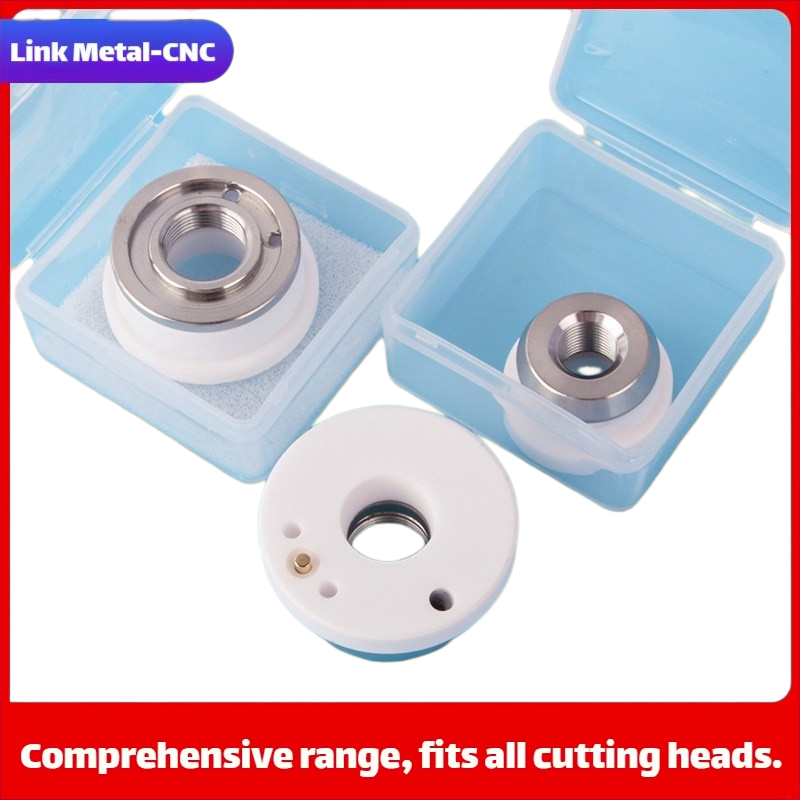

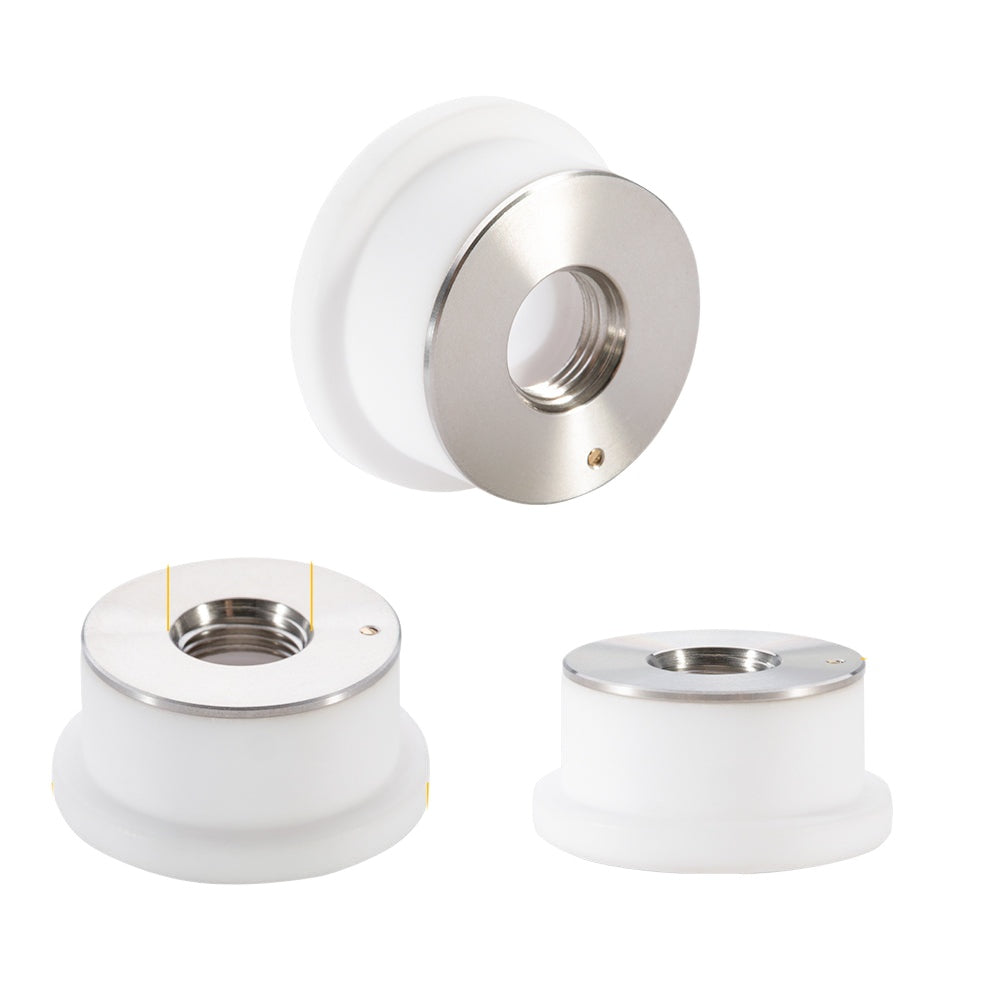

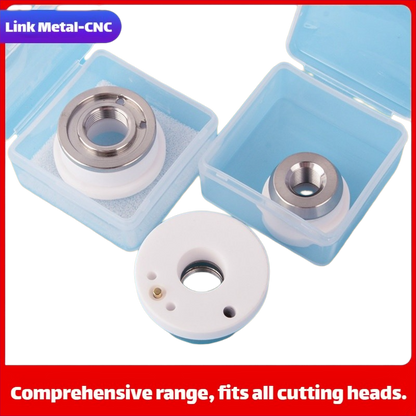

Available WSX Ceramic Ring & Spacer Models (6 Options)
-

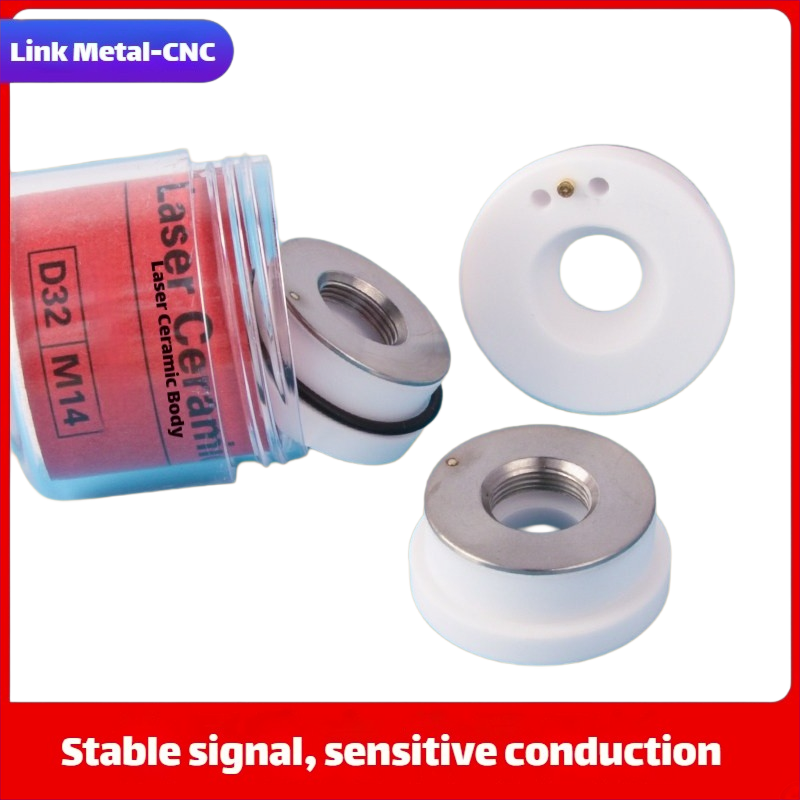

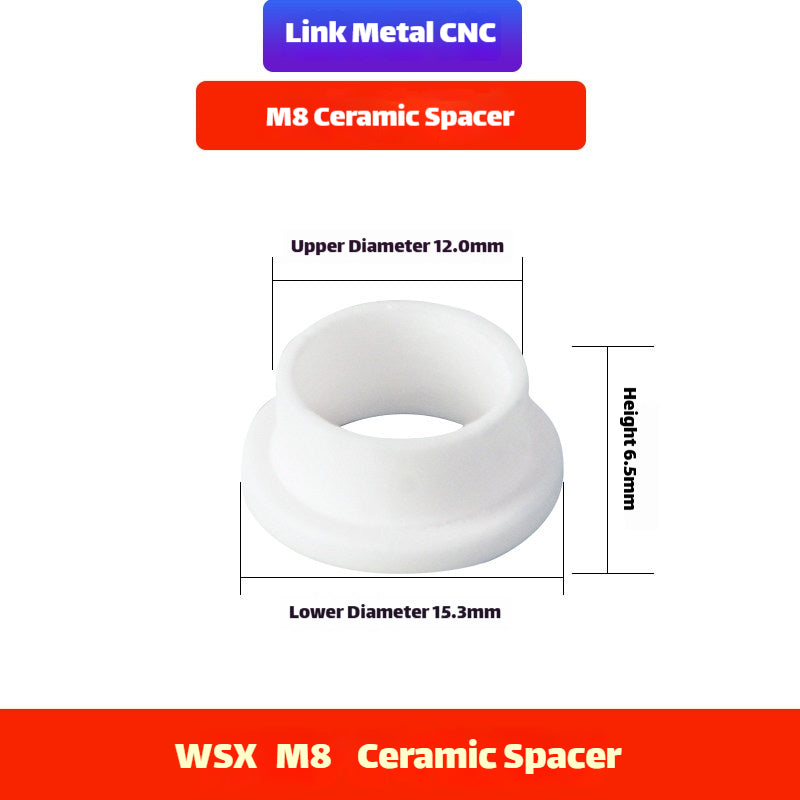

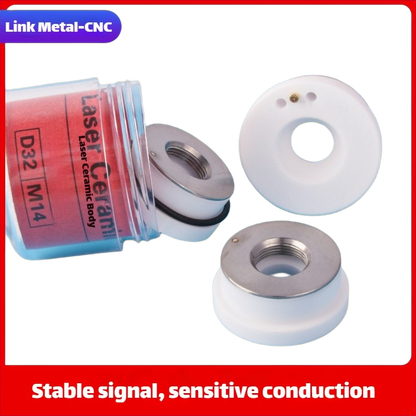

M8 Ceramic Spacer: Standard ceramic spacer for WSX entry-level cutting heads
-

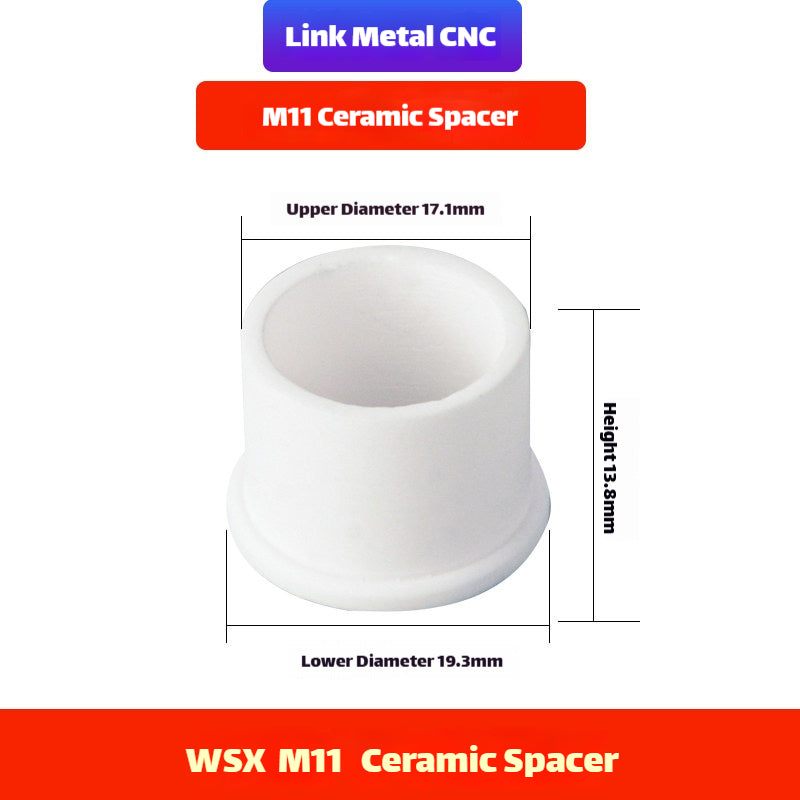

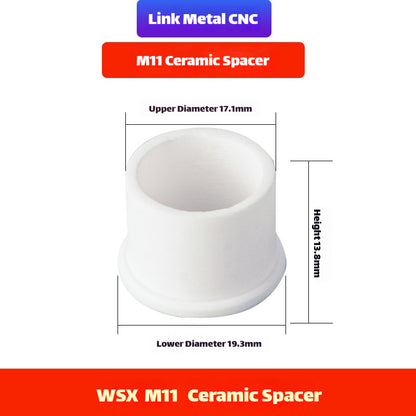

M11 Ceramic Spacer: Standard ceramic spacer for most WSX mid-range cutting heads
-

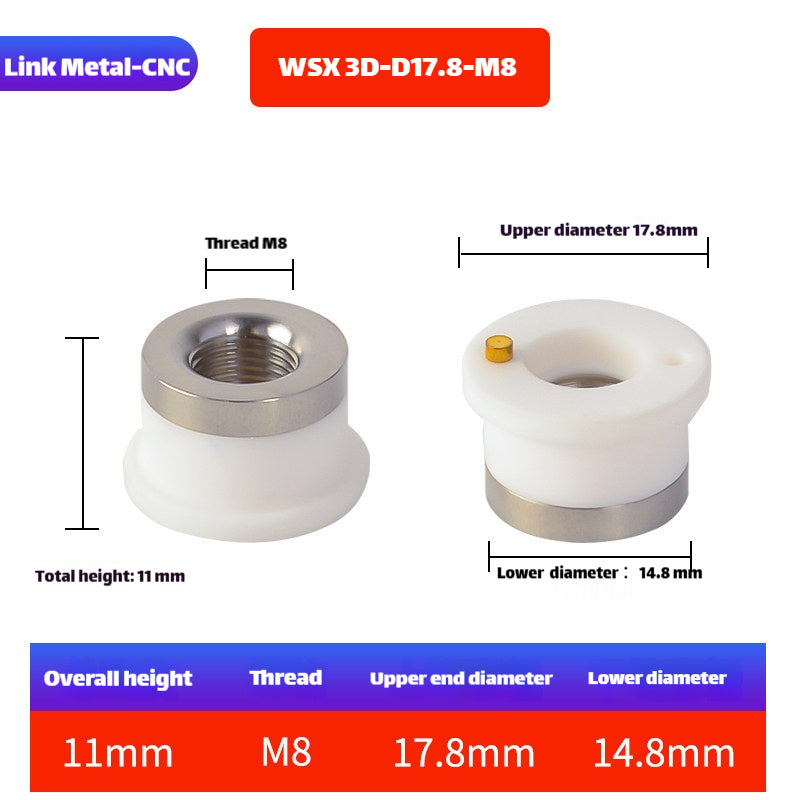

3D-M8-17.8: Dedicated ceramic ring for WSX 3D robotic cutting heads
-

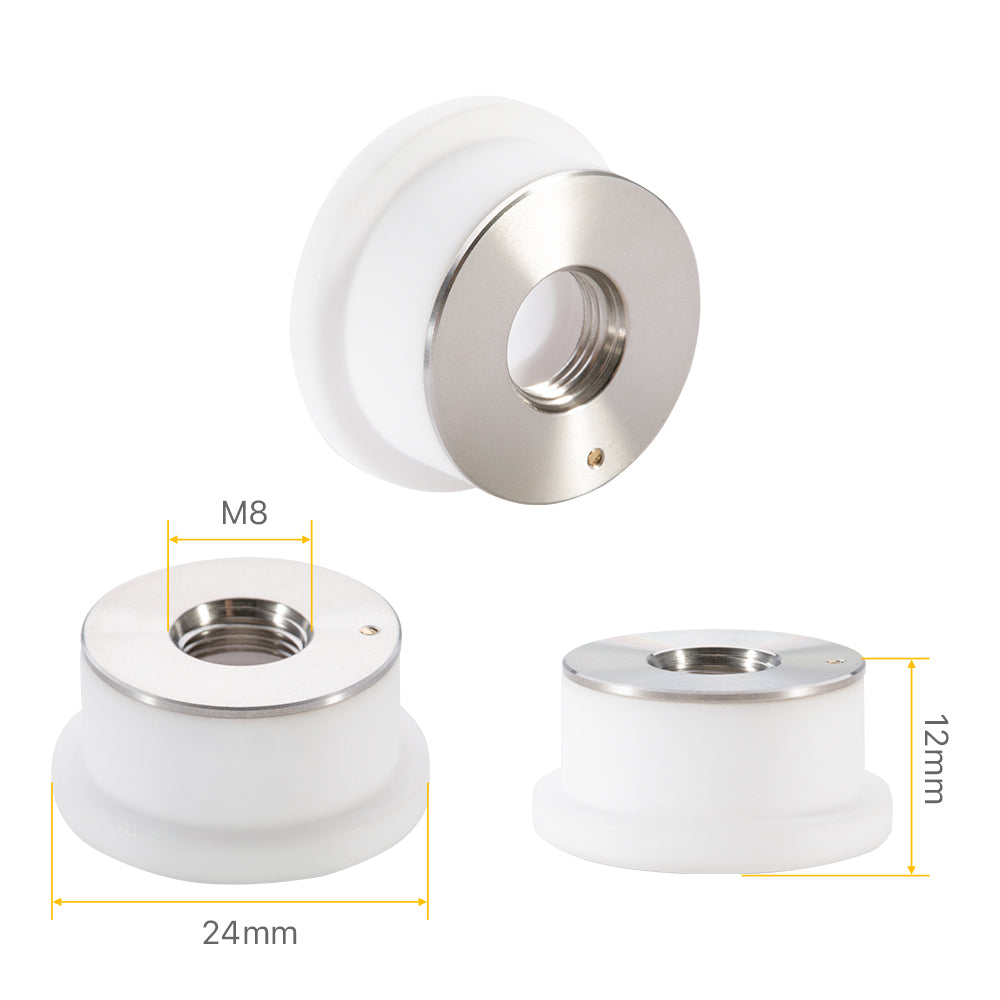

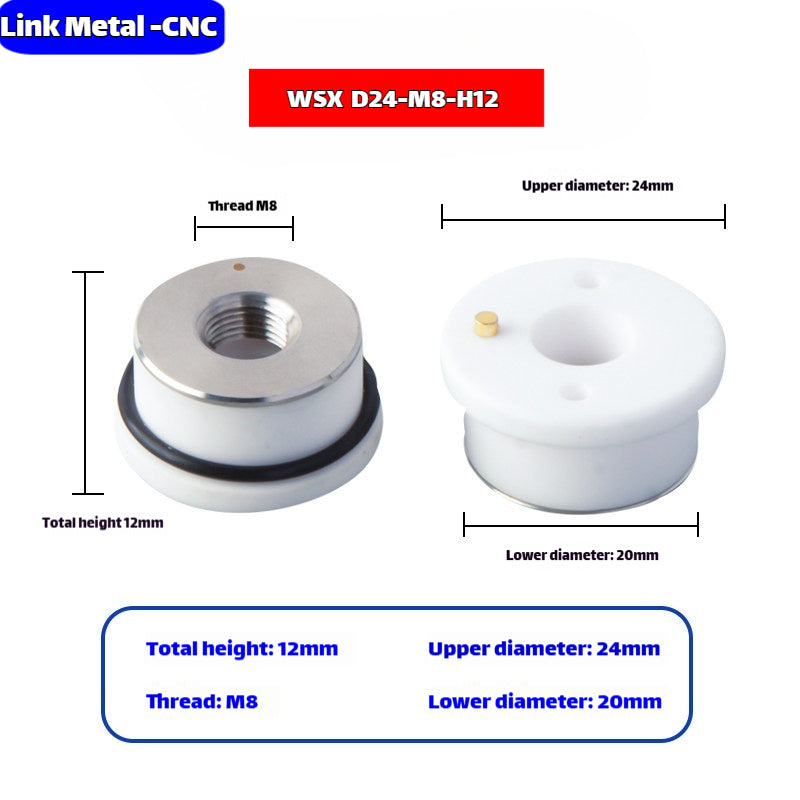

D24-M8-H12: Compact ceramic ring for WSX small format cutting heads
-

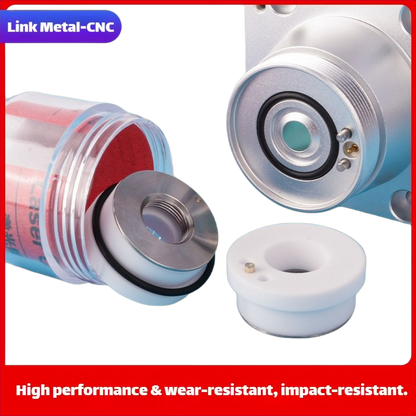

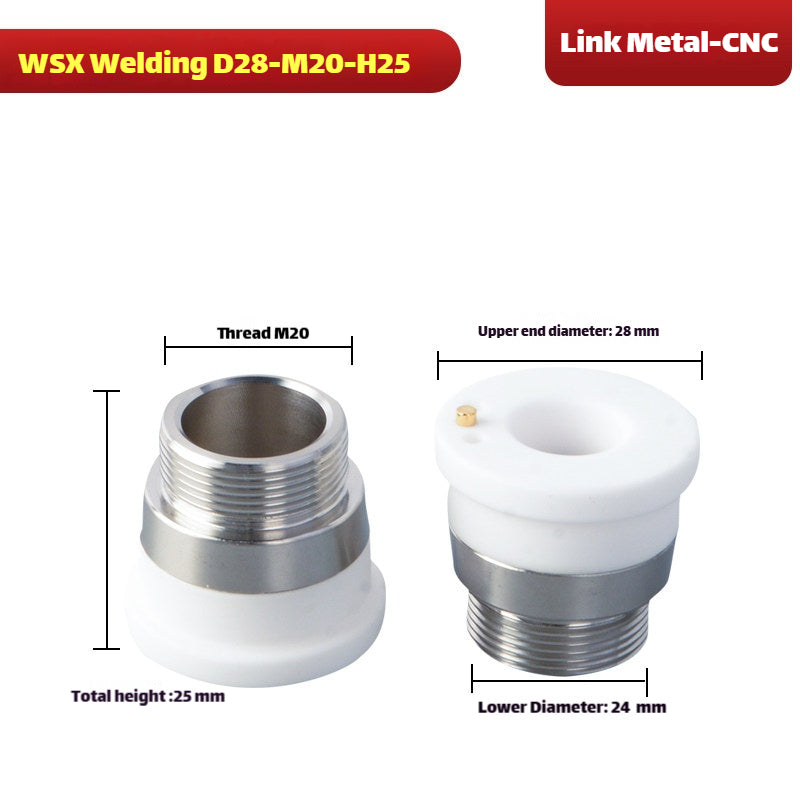

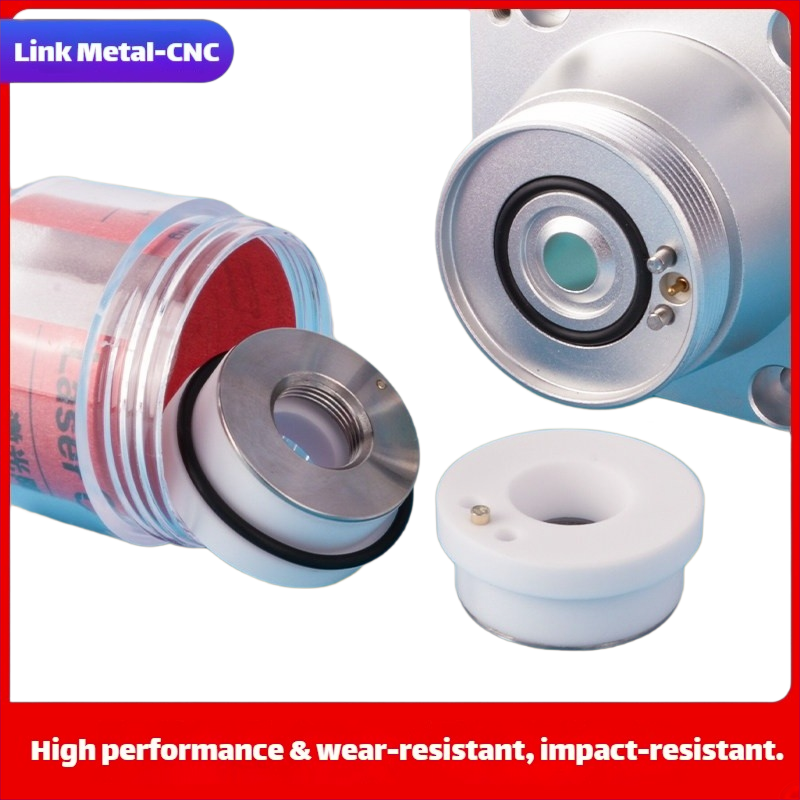

D28-M20-H25: Most popular general-purpose ceramic ring for WSX 2D cutting heads
-

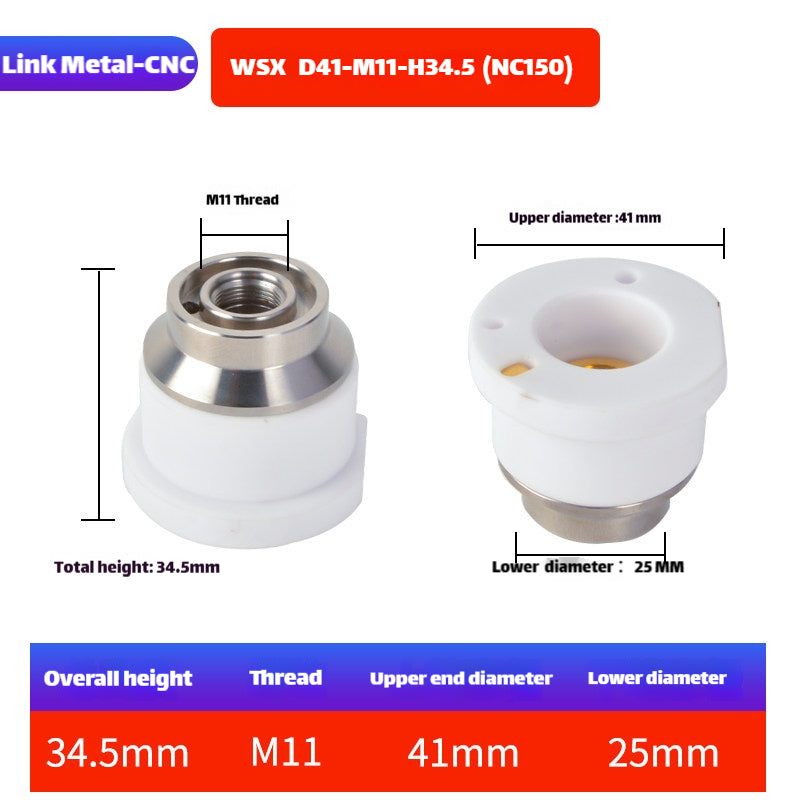

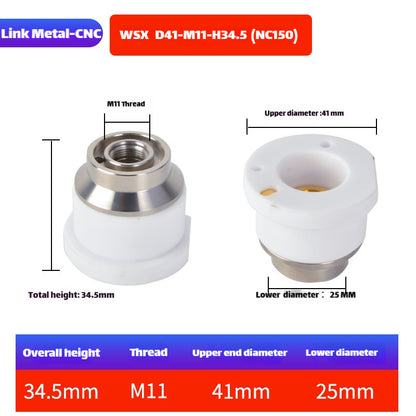

D41-M11-34.5: Large size ceramic ring for WSX high-power cutting heads
Custom Specifications Available: For custom sizes, special materials or other WSX dedicated laser cutting consumables, please contact our sales team directly for personalized solutions.
Detailed Technical Specifications
| Parameter |
Specification |
| Brand |
Link Metal CNC |
| Compatible Brand |
WSX |
| Product Type |
Fiber Laser Cutting Head Ceramic Insulation Ring / Ceramic Spacer |
| Model Options |
M8 Ceramic Spacer, M11 Ceramic Spacer, 3D-M8-17.8, D24-M8-H12, D28-M20-H25, D41-M11-34.5 |
| Main Body Material |
99% High-Purity Alumina Ceramic |
| Electrode Material |
High-Conductivity Oxygen-Free Copper |
| Insulation Resistance |
≥1000MΩ |
| Applicable Wavelength |
1064nm |
| Applicable Power |
1000W - 20000W |
| Application Scenario |
2D Plane Cutting, 3D Robotic Cutting, High-Power Cutting |
Package Contents
- 1 x Selected Link Metal CNC WSX Ceramic Ring / Ceramic Spacer
- 1 x Anti-Static Shock-Proof Protective Packaging
Quality Assurance
Every Link Metal CNC WSX ceramic ring and spacer undergoes rigorous pre-delivery testing, including dimensional accuracy inspection, insulation performance test, electrode conductivity verification, installation fit inspection and pressure resistance test.
We maintain strict ISO 9001 quality control standards to ensure stable and reliable product performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.
Frequently Asked Questions
Q: What is the difference between a ceramic ring and a ceramic spacer?
A: Ceramic spacers are simpler components that only provide electrical insulation and mechanical support. Ceramic rings have a built-in copper electrode that transmits electrical signals for the capacitive height follow system. They are not interchangeable and serve different functions in the laser cutting head assembly.
Q: Which WSX cutting head uses which ceramic model?
A: M8 spacer for NC30, NC30A; M11 spacer for NC60; 3D-M8-17.8 for ND30 3D head; D24-M8-H12 for NC30C; D28-M20-H25 for NC60B, NC60C; D41-M11-34.5 for NC120, NC150 high-power heads. If you are unsure, please contact our sales team with your cutting head model number.
Q: What is special about the 3D-M8-17.8 model?
A: The 3D-M8-17.8 is specifically designed for WSX 3D robotic cutting heads. It features a compact structure and optimized height to avoid interference with workpieces during complex 3D cutting paths and bevel cutting operations. Standard 2D ceramic rings will not work properly in 3D cutting heads.
Q: Will these WSX ceramic parts work with non-WSX cutting heads?
A: No, these ceramic rings and spacers are specifically designed for WSX cutting heads only. They have unique dimensions and interface specifications that differ from other brands. Using them on non-WSX equipment will result in poor fit, air leakage and unstable cutting performance.
Q: How often should I replace my WSX ceramic ring?
A: Under normal operating conditions, a WSX ceramic ring should last 2-3 months. However, it should be replaced immediately if you notice any cracks, chips, or if the height follow system becomes unstable. Frequent collisions between the nozzle and workpiece will significantly shorten its service life.
