Link Metal CNC WSX Collimating & Focusing Lens Assembly for Fiber Laser Cutting Heads

WSX Collimating & Focusing Lens Assembly

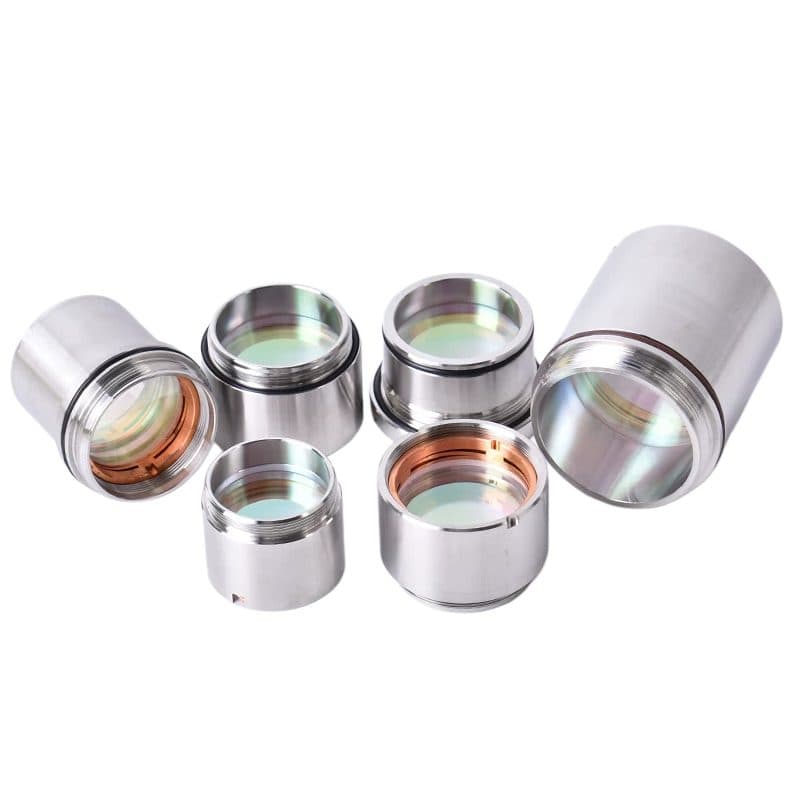

Professional industrial-grade fiber laser lens assemblies, exclusively designed for original WSX (Wanshunxing) fiber laser cutting systems. This set includes high-precision collimating lens assemblies and focusing lens assemblies, made of imported fused silica material. 1:1 perfectly matching original OEM factory parameters, with high transmittance, high temperature resistance and stable cutting performance, they are essential core consumables for daily maintenance of WSX laser cutting equipment.

This complete product series covers all mainstream WSX fiber laser cutting head models on the market, including KC series and NC series. All products are manufactured with strict optical quality control for reliable performance in demanding industrial environments.

Key Advantages of Our WSX Lens Assemblies

• Imported High-Purity Fused Silica: Premium imported high-purity fused silica substrate with excellent thermal stability and high laser damage threshold. Suitable for 1064nm fiber lasers and provides long service life under 7*24h high-load industrial working conditions.
• 99.8%+ High Light Transmittance: Double-sided anti-reflection coating with high light transmittance up to 99.8%+. Ultra-low absorption and no thermal deformation ensure consistent high-precision laser cutting output, reduce burrs and improve cutting quality.
• Precision CNC Machined Lens Barrel: Strict size tolerance control provides perfect fit with original WSX cutting heads. No light leakage, no beam offset, and easy to install and replace.
• 1:1 OEM Perfect Fit: Exact match for original WSX lens assemblies with direct plug and play installation. No additional debugging or alignment required, significantly reducing equipment downtime.
• Full Series Model Coverage: Complete range of collimating and focusing lens models available, fully compatible with all mainstream WSX fiber laser cutting head models on the market.
• Dust-Proof & Anti-Corrosion Protection: Sealed lens barrel design effectively prevents dust, moisture and cutting fumes from entering, protecting the optical components and extending service life.
• Broad Industrial Applicability: Suitable for all 1064nm WSX fiber laser cutting machines (2D plane cutting, high-power thick plate cutting) and automatic laser production lines.

Compatible Equipment & Available Models

Compatible Equipment

• All WSX (Wanshunxing) Series Fiber Laser Cutting Heads
• All WSX KC Series Compact Cutting Heads
• All WSX NC Series Standard Cutting Heads
• All WSX 2D Plane Fiber Laser Cutting Machines
• All Original and Compatible WSX Laser Processing Equipment

Available WSX Lens Assembly Models (8 Options Total)

Collimating Lens Assembly

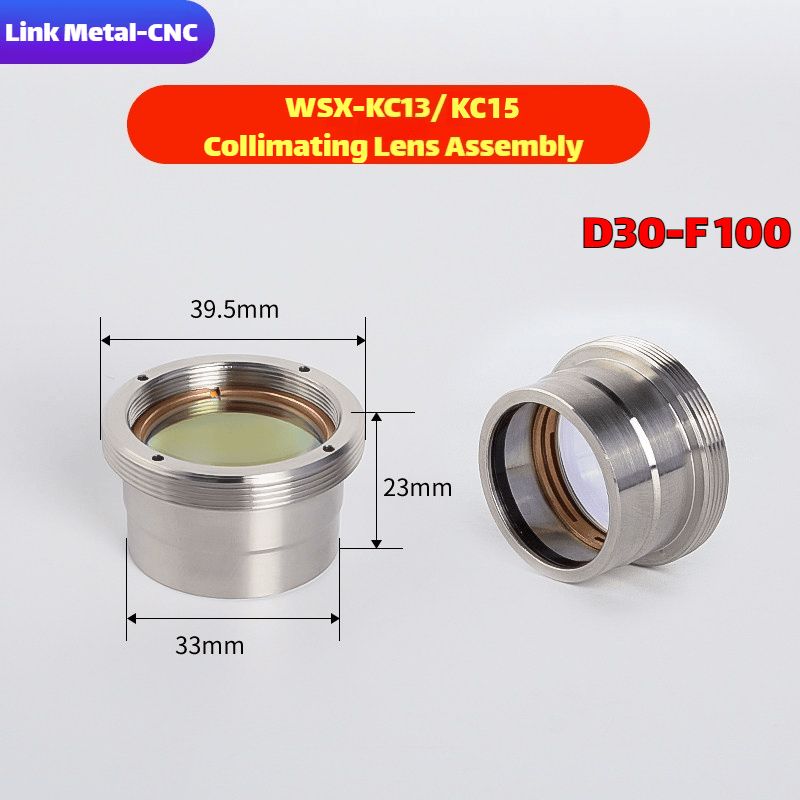

• KC13/KC15 D30-F100: For WSX KC13/KC15 compact cutting heads (D30 diameter, F100 focal length)
• KC13/KC15 D30-F75: For WSX KC13/KC15 compact cutting heads (D30 diameter, F75 focal length)

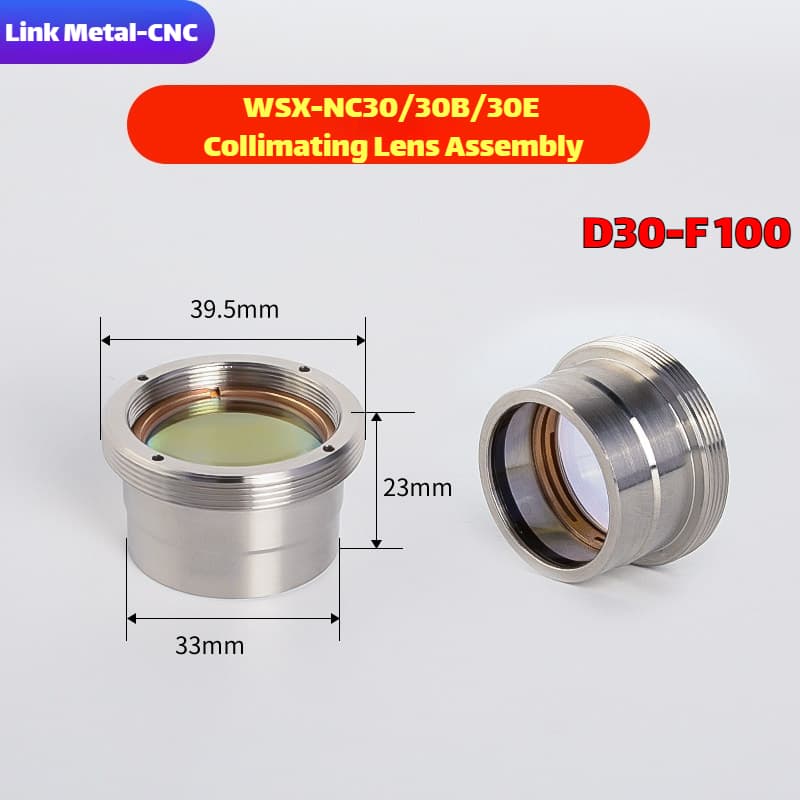

• NC30/30B/30E D30-F100: For WSX NC30/30B/30E standard cutting heads (D30 diameter, F100 focal length)

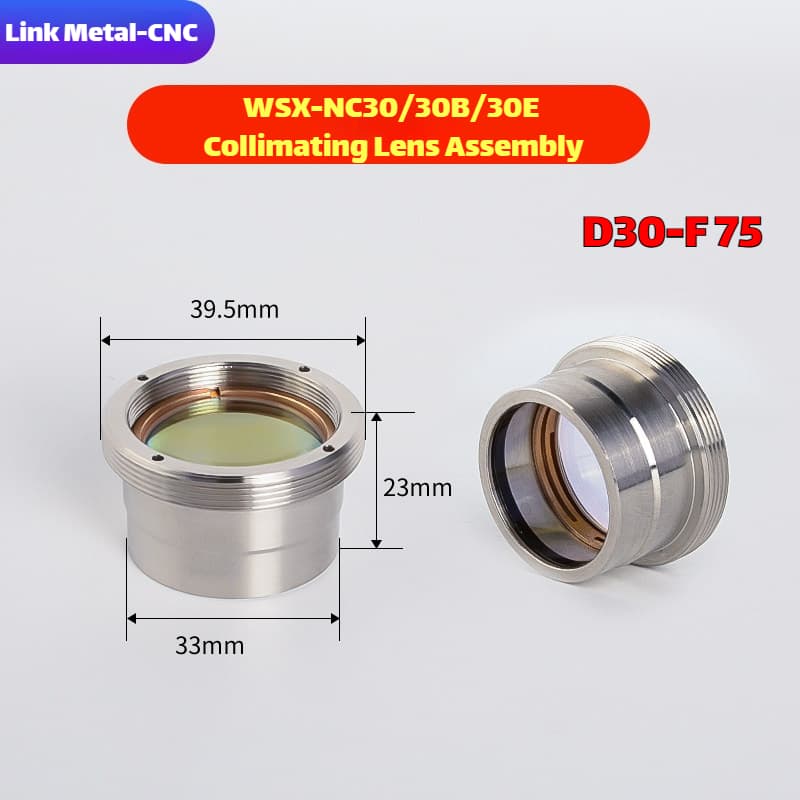

• NC30/30B/30E D30-F75: For WSX NC30/30B/30E standard cutting heads (D30 diameter, F75 focal length)

Focusing Lens Assembly

• KC13/KC15 D30-F125: For WSX KC13/KC15 compact cutting heads (D30 diameter, F125 focal length)
• NC30/30B/30E D30-F125: For WSX NC30/30B/30E standard cutting heads (D30 diameter, F125 focal length)

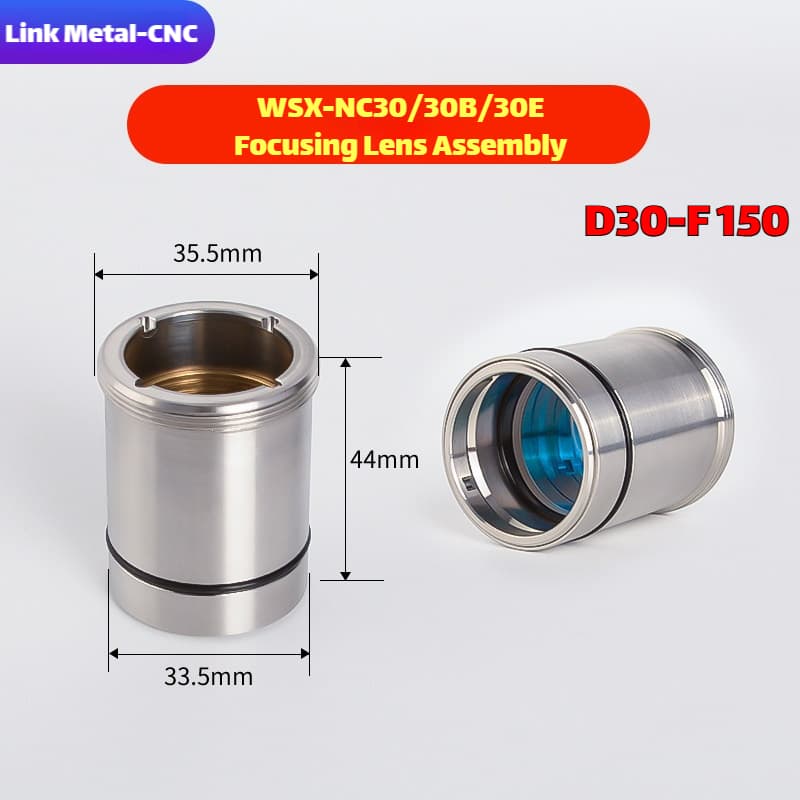

• NC30/30B/30E D30-F150: For WSX NC30/30B/30E standard cutting heads (D30 diameter, F150 focal length)
• NC30/30B/30E D30-F200: For WSX NC30/30B/30E standard cutting heads (D30 diameter, F200 focal length)

Custom Specifications Available: For custom WSX models or other laser cutting head optical consumables, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Selected Link Metal CNC WSX Collimating / Focusing Lens Assembly
• 1 x Specialized Dust-Proof Shockproof Protective Packaging

Quality Assurance

All WSX laser lens assemblies from Link Metal CNC undergo strict optical performance inspection and size testing in a dust-free environment before delivery, including transmittance test, wavefront error measurement, surface quality inspection and dimensional accuracy verification.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable optical performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What is the difference between KC series and NC series lenses?
A: KC series lenses are designed for WSX KC13/KC15 compact cutting heads, which are typically used in lower to mid-power laser machines (1000W-6000W). NC series lenses are for WSX NC30/30B/30E standard cutting heads, suitable for mid to high-power applications (1000W-20000W). They are not interchangeable due to different interface specifications.

Q: How do I choose the correct focal length?
A: Shorter focal lengths (F75-F125) provide a smaller spot size and higher power density, ideal for thin plate cutting and high-speed cutting. Longer focal lengths (F150-F200) provide a deeper depth of field, better for thick plate cutting and applications where material thickness varies. Always match the focal length to your original part.

Q: How often should I replace the lens assembly?
A: Under normal operating conditions, a lens assembly should last 1-3 months. However, it should be replaced immediately if you notice any film burning, scratches, or if cutting quality deteriorates. Frequent cutting of reflective materials like aluminum and copper will accelerate wear.

Q: Can I clean and reuse a lens assembly?
A: Yes, you can clean a lightly contaminated lens using isopropyl alcohol and lint-free optical wipes. However, once a lens has film burning, deep scratches or significant spatter that cannot be removed, it must be replaced immediately to avoid damage to more expensive optical components.

Q: Do I need to align the lens after replacement?
A: No, our WSX lens assemblies are pre-aligned in precision-machined barrels to match original factory specifications. They are designed for direct plug and play installation with no additional alignment or debugging required.
