WSX Nozzle Connector & Capacitive Height Sensor

Professional industrial-grade fiber laser cutting head replacement parts, exclusively designed for original WSX (Wanshunxing) fiber laser cutting systems. This set includes a high-precision capacitive height sensor and heavy-duty nozzle connector, 1:1 perfectly matching original OEM factory parameters. With stable performance, long service life and tool-free installation, it is an essential core spare part for daily maintenance of WSX laser cutting equipment.

This complete product series covers all mainstream WSX fiber laser cutting head models on the market. All products are manufactured with high-grade industrial materials and undergo rigorous quality control for reliable performance in demanding industrial environments.

Key Advantages of Our WSX Nozzle Connectors & Sensors

• High-Grade Industrial Raw Materials: Precision CNC machined from premium high-grade industrial alloy with strict size tolerance control. Offers excellent corrosion resistance and wear resistance, suitable for 7*24h high-load industrial working conditions.
• High Stability Capacitive Height Sensor: Features anti-interference design for real-time high-precision height sensing and stable signal transmission. Ensures consistent high-precision laser cutting output and reduces defective rate.
• Heavy-Duty Nozzle Connector: Tight thread fit provides secure locking and no air leakage. Perfectly matches original WSX laser nozzles and sensors, with easy installation and replacement.
• 1:1 OEM Perfect Fit: Exact match for original WSX cutting heads with direct plug and play installation. No additional debugging required, significantly reducing equipment downtime.
• Full Series Model Coverage: Complete range of WSX models available, including side blow type and various height specifications. Fully compatible with all mainstream WSX fiber laser cutting head models on the market.
• Anti-Spatter & Anti-Oxidation Protection: Enhanced surface treatment effectively resists erosion from cutting splash and high-temperature smoke. Resists dust and welding slag adhesion, is easy to clean, and maintains stable performance in harsh environments.
• Broad Industrial Applicability: Suitable for all 1064nm WSX fiber laser cutting machines (2D plane cutting, high-power thick plate cutting) and automatic laser production lines.

Compatible Equipment & Available Models

Compatible Equipment

• All WSX (Wanshunxing) Series Fiber Laser Cutting Heads
• All WSX 2D Plane Fiber Laser Cutting Machines
• All Original and Compatible WSX Laser Processing Equipment

Available WSX Nozzle Connector & Sensor Models (11 Options Total)

KC Series

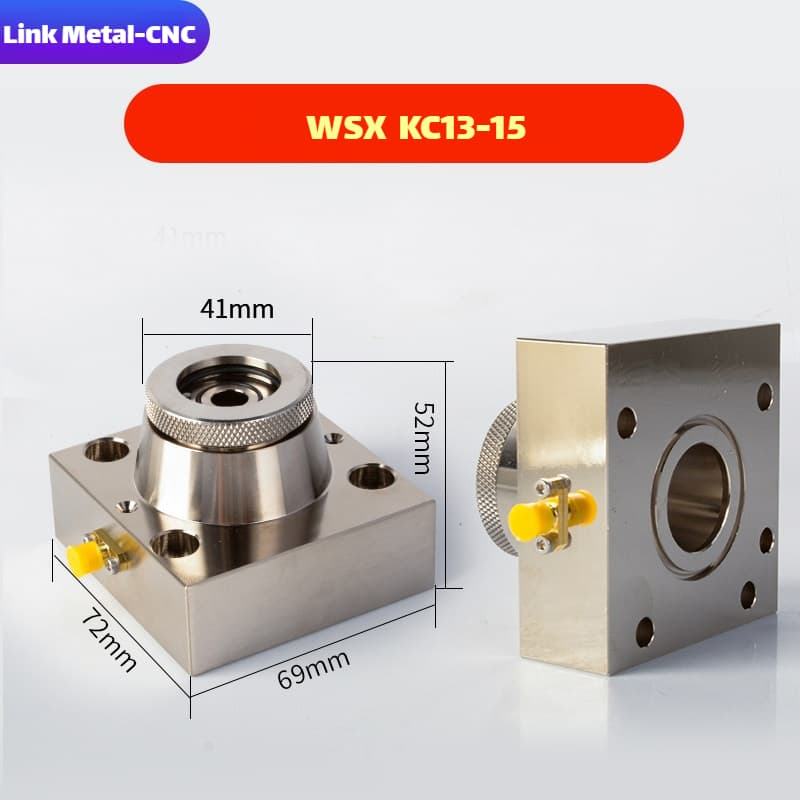

• KC13-15: For WSX KC13 and KC15 compact cutting heads

NC30 Series

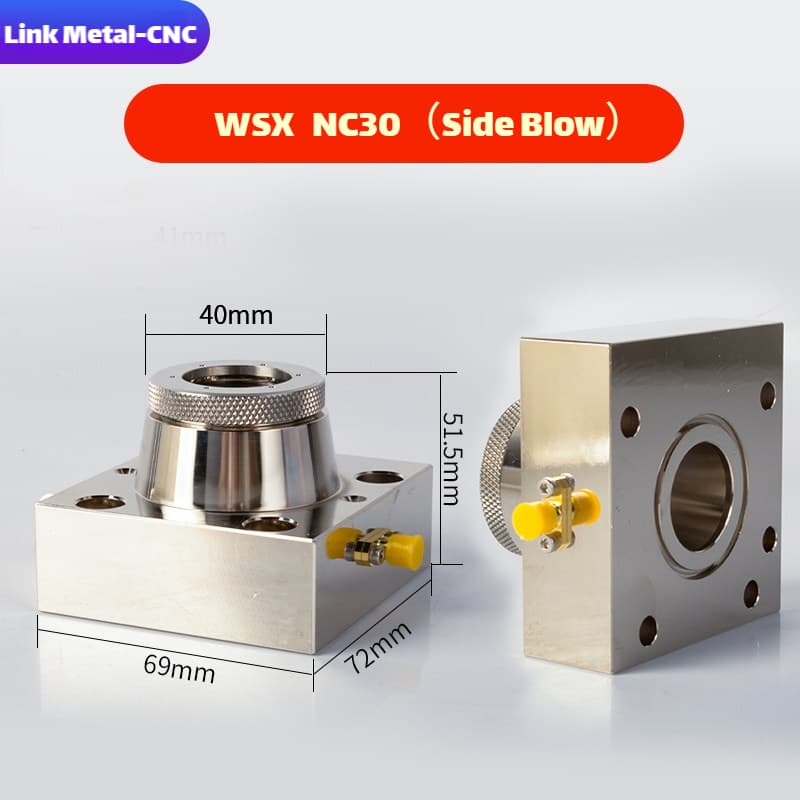

• NC30 - With Side Blow: For WSX NC30 cutting heads with side blow function

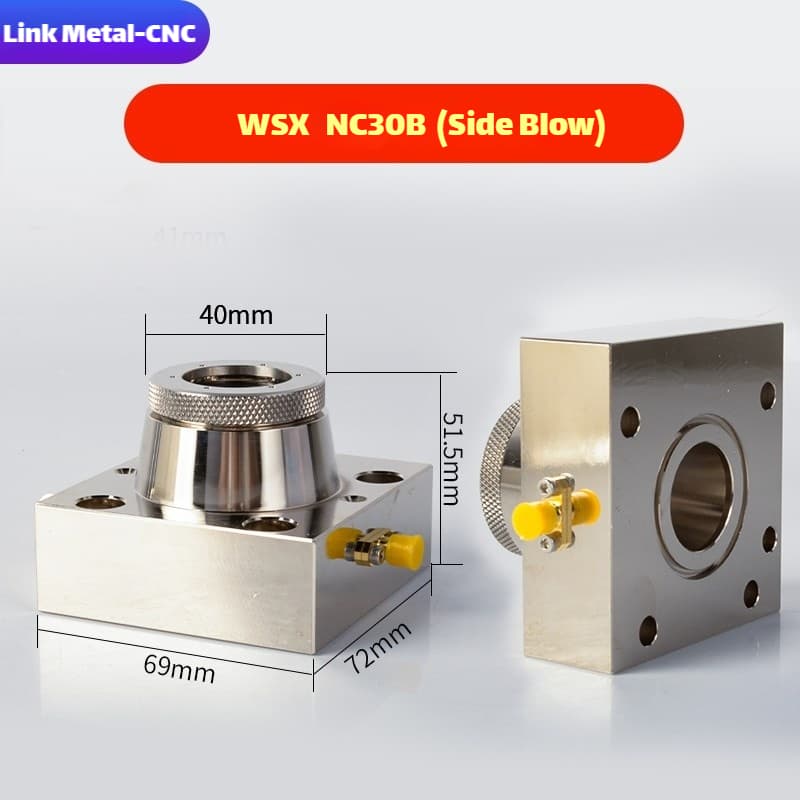

• NC30B - With Side Blow: For WSX NC30B cutting heads with side blow function

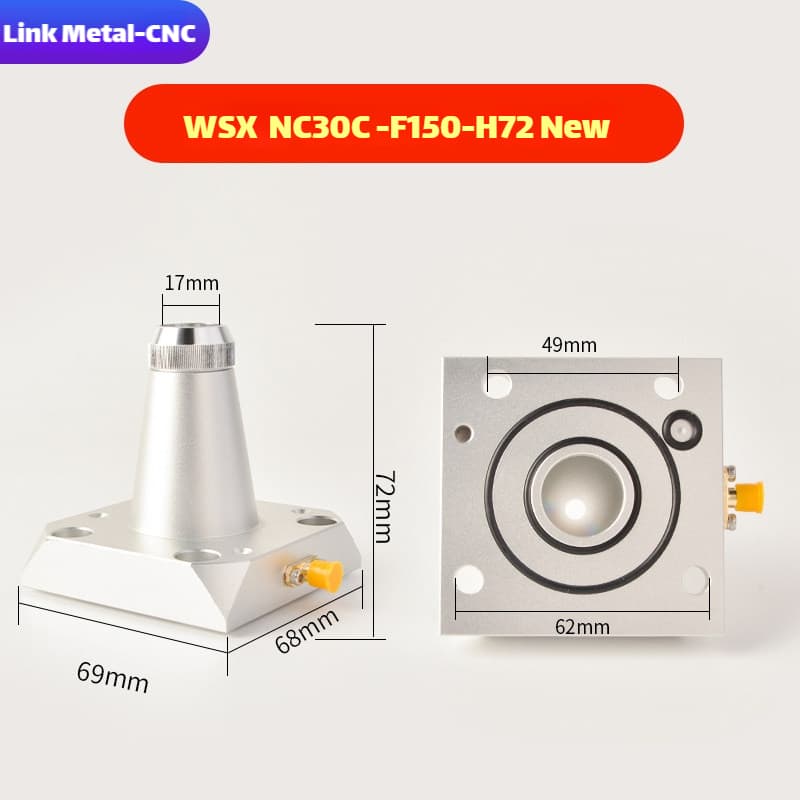

• NC30C/A-F150-H72: For WSX NC30C/A cutting heads (F150 focal length, H72 height)

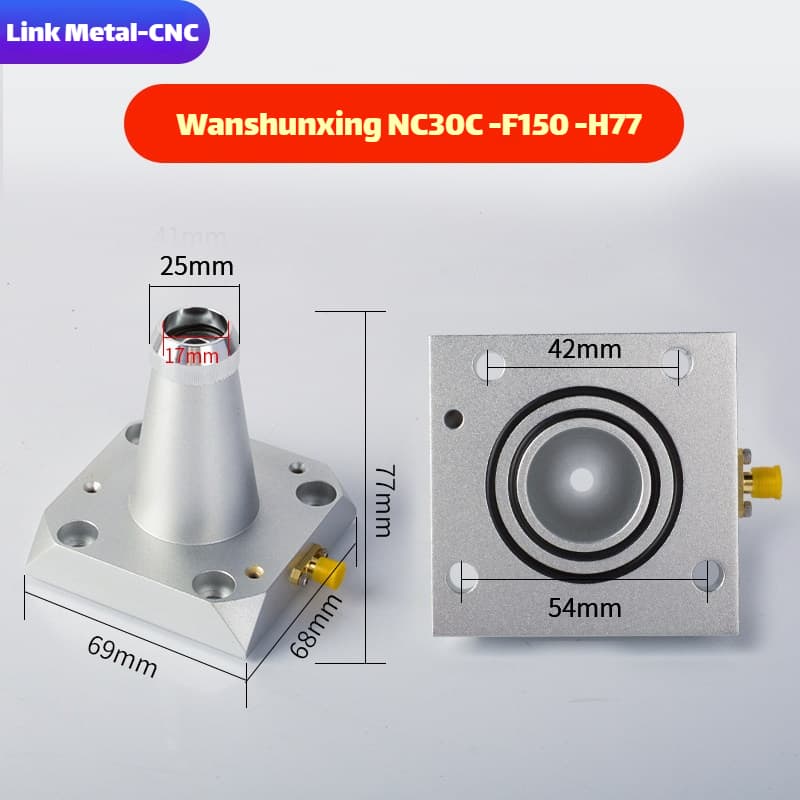

• NC30C-F150-H77: For WSX NC30C cutting heads (F150 focal length, H77 height)

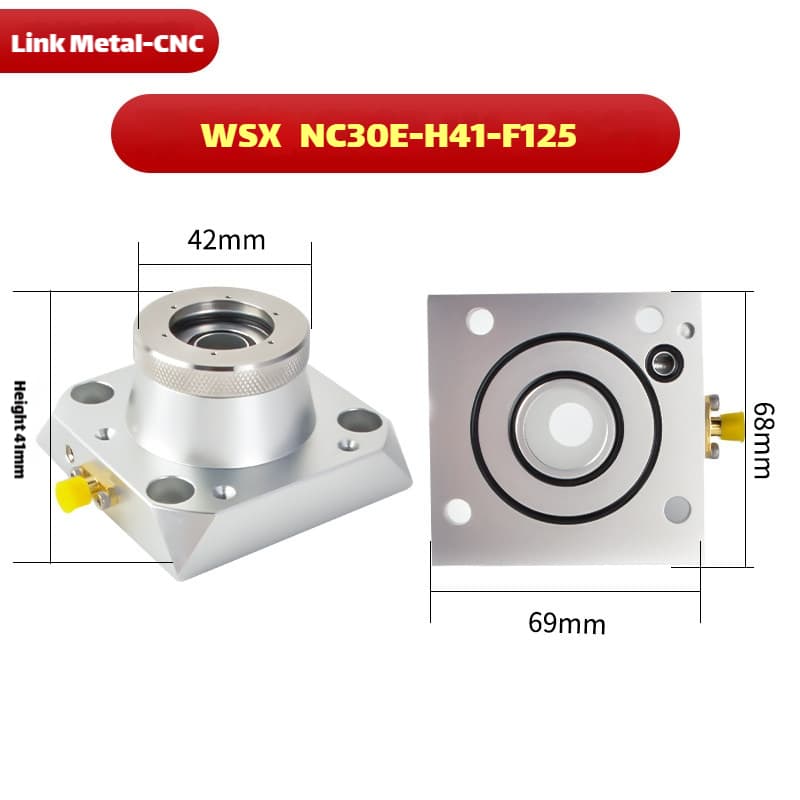

• NC30E-H41-F125: For WSX NC30E cutting heads (F125 focal length, H41 height)

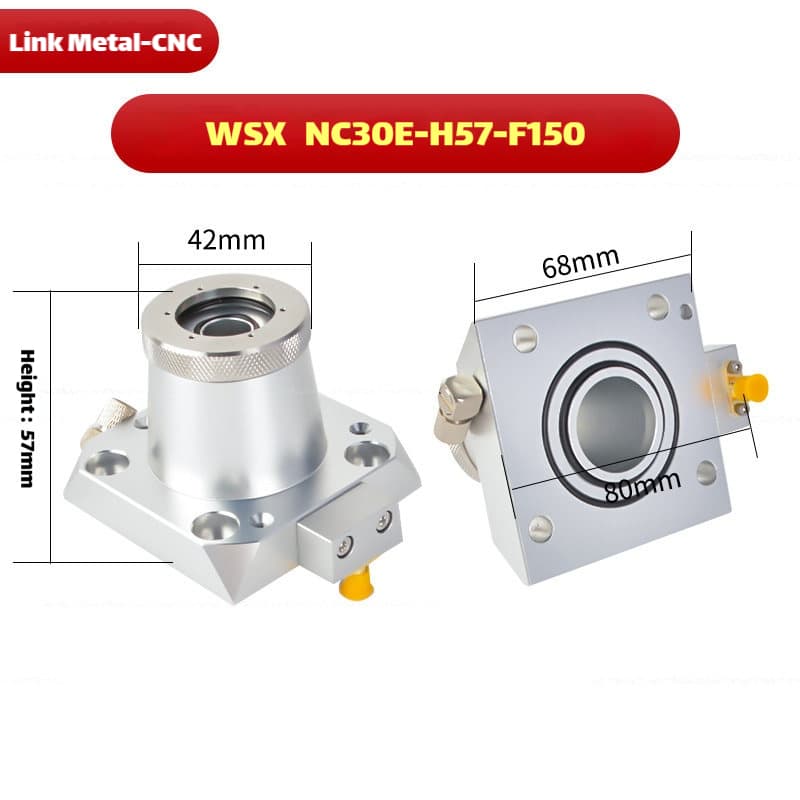

• NC30E-H57-F150: For WSX NC30E cutting heads (F150 focal length, H57 height)

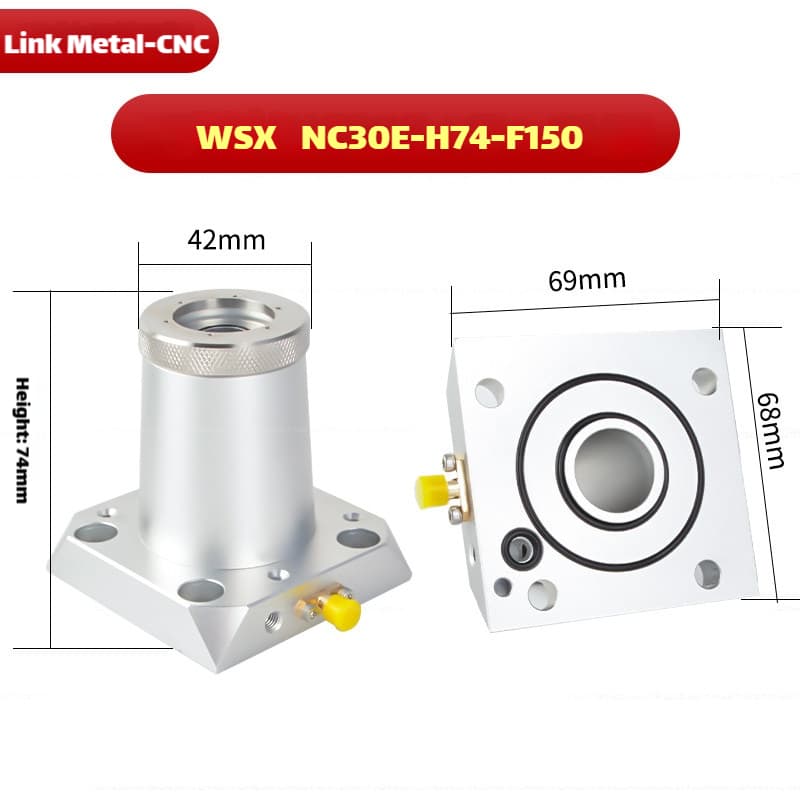

• NC30E-H74-F150: For WSX NC30E cutting heads (F150 focal length, H74 height)

NC60/NC68 Series

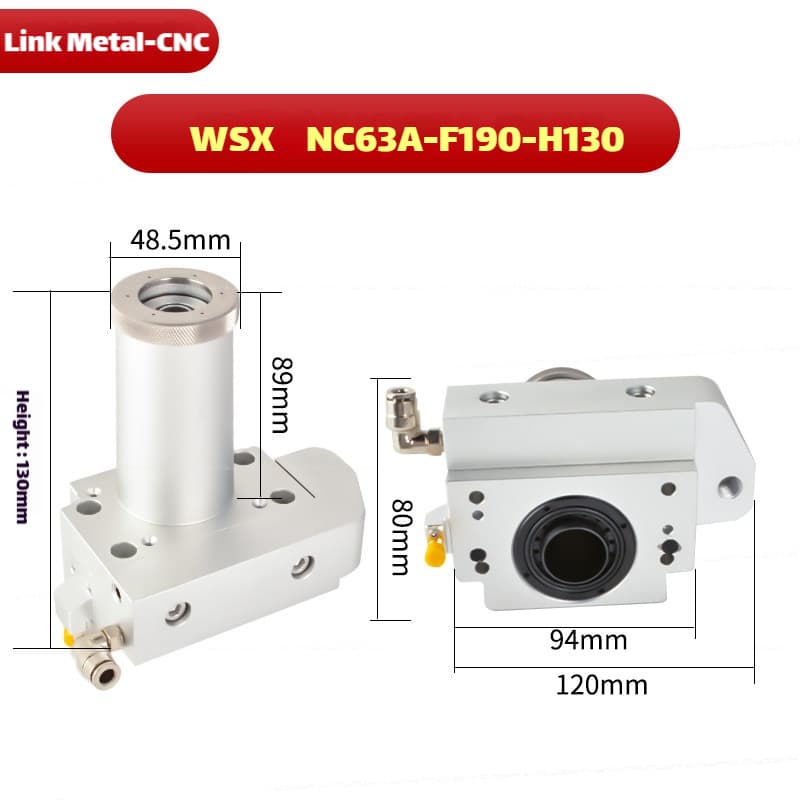

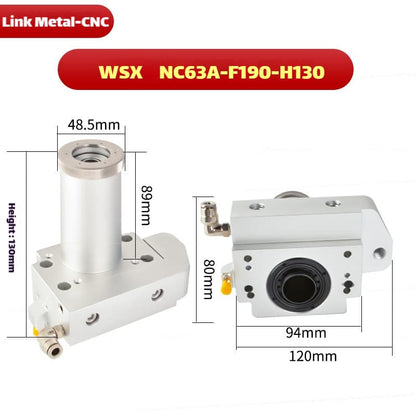

• NC63-F190-H130: For WSX NC63 high-power cutting heads (F190 focal length, H130 height)

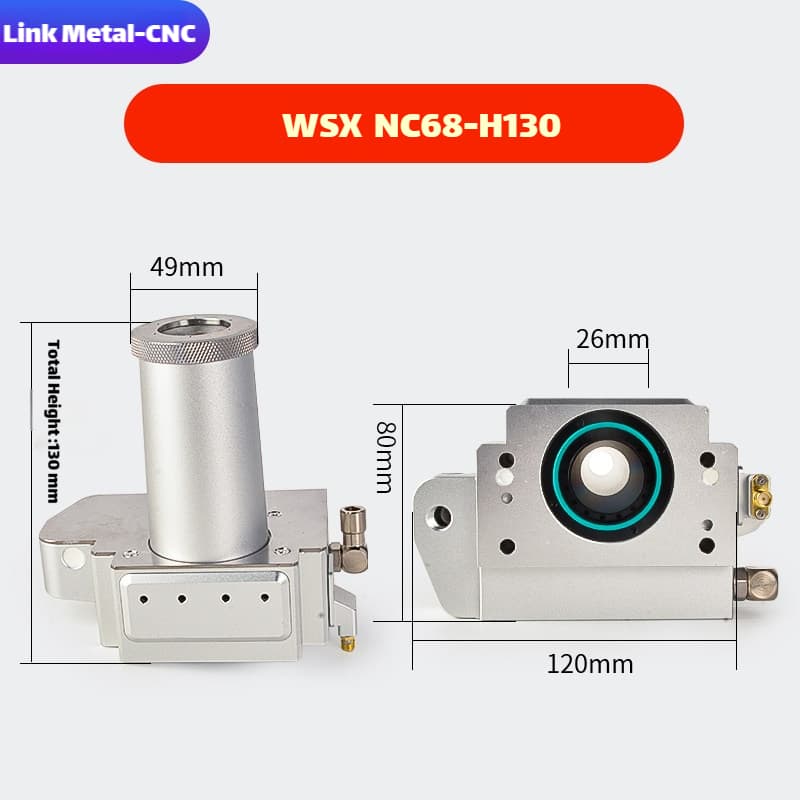

• NC68-H130: For WSX NC68 high-power cutting heads (H130 height)

SW Series

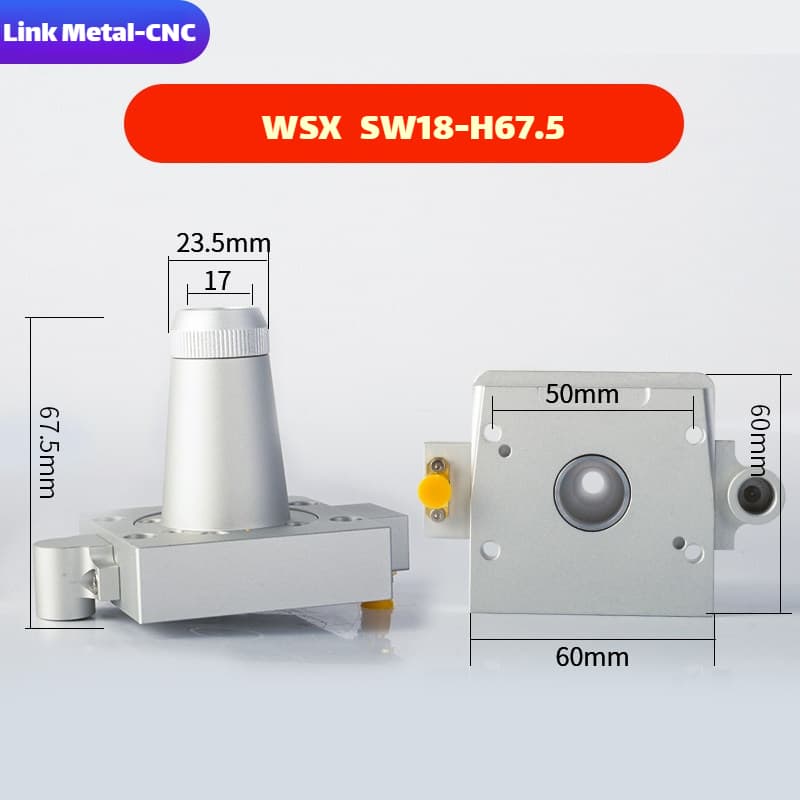

• SW18-H67.5: For WSX SW18 cutting heads (H67.5 height)

Custom Specifications Available: For custom WSX models or other laser cutting head consumables, please contact our sales team directly for personalized solutions.

Detailed Technical Specifications

Package Contents

• 1 x Selected Link Metal CNC WSX Capacitive Height Sensor / Nozzle Connector
• 1 x Specialized Shockproof Anti-static Protective Packaging

Quality Assurance

All WSX laser parts from Link Metal CNC undergo strict quality inspection before delivery, including dimensional accuracy inspection, sensor performance calibration, connector precision verification and durability test.

We maintain strict ISO 9001 quality control standards to ensure stable and reliable mechanical and sensing performance. All our products come with professional pre-sales consultation and comprehensive after-sales support.

Frequently Asked Questions

Q: What is the difference between the various NC30 models?
A: The NC30 series has multiple variants with different heights and focal lengths. The height (Hxx) and focal length (Fxx) must match your original part exactly. For example, NC30C-F150-H72 has a height of 72mm while NC30C-F150-H77 has a height of 77mm. They are not interchangeable.

Q: What is special about the "With Side Blow" models?
A: The side blow models feature an additional air channel that provides auxiliary air flow to blow away cutting debris and protect the optical components. They are designed specifically for WSX cutting heads with side blow function and cannot be used on non-side blow models.

Q: Can I purchase just the sensor or just the connector separately?
A: Yes, we offer both complete assemblies and individual components. If you only need to replace one part, please contact our sales team and specify which component you require. However, replacing the entire assembly is recommended for optimal performance and reliability.

Q: How often should I replace the nozzle connector/sensor?
A: Under normal operating conditions, a nozzle connector/sensor assembly should last 3-6 months. However, it should be replaced immediately if you notice any damage, deformation, or if the height follow system becomes unstable. Frequent collisions will significantly shorten its service life.

Q: Do I need to recalibrate the height follow system after replacement?
A: No, our WSX nozzle connectors and sensors are pre-calibrated to match original factory specifications. They are designed for direct plug and play installation with no additional debugging or recalibration required.
